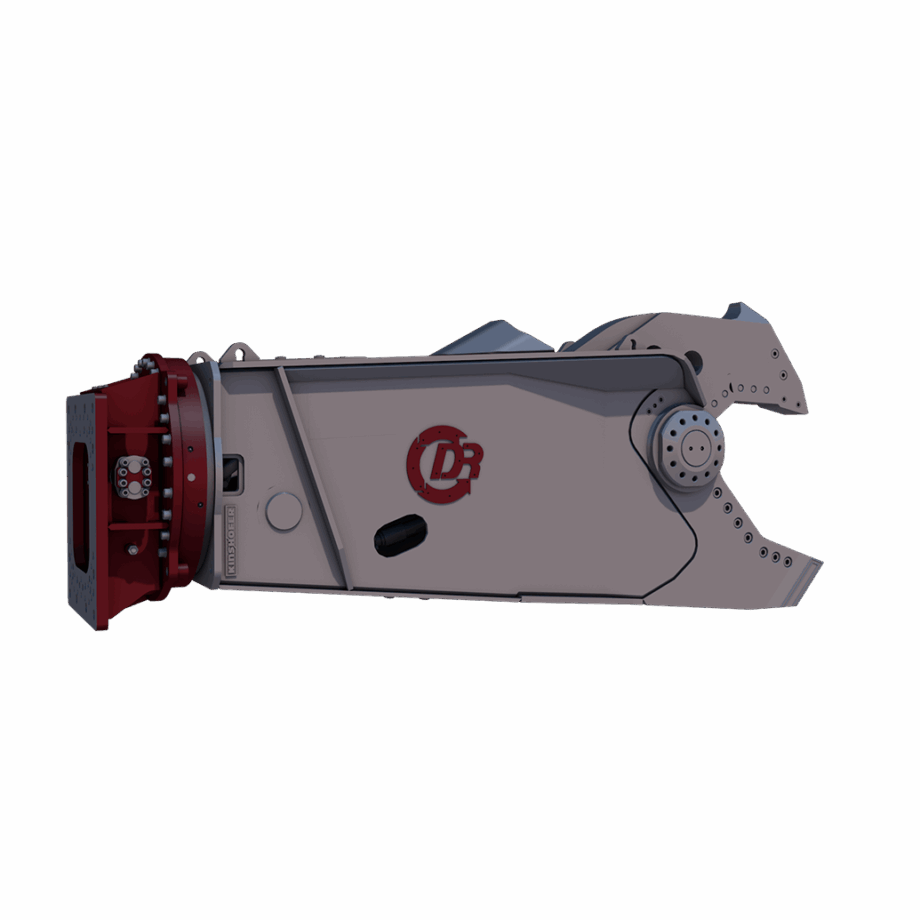

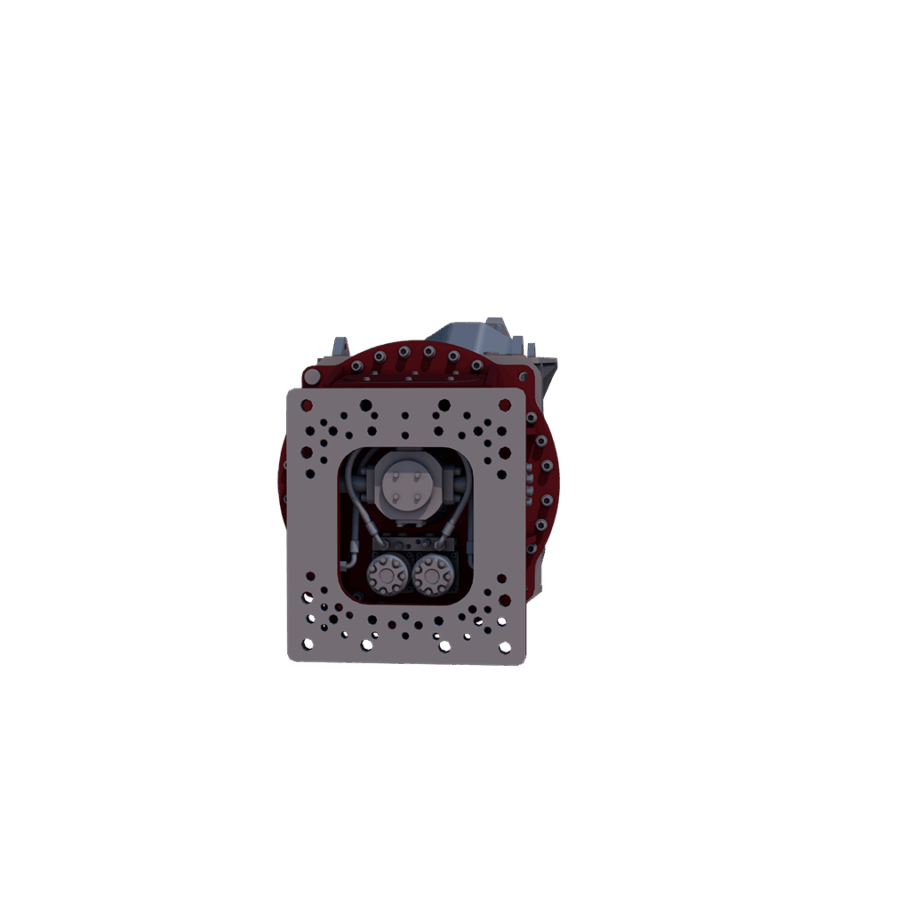

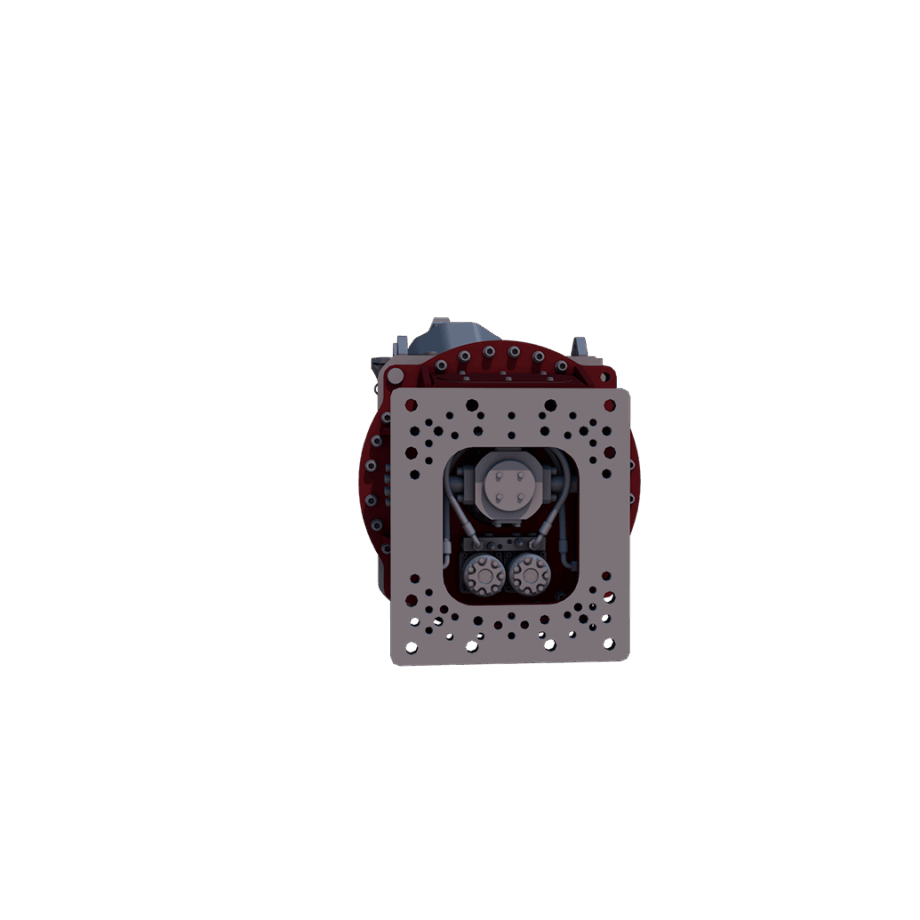

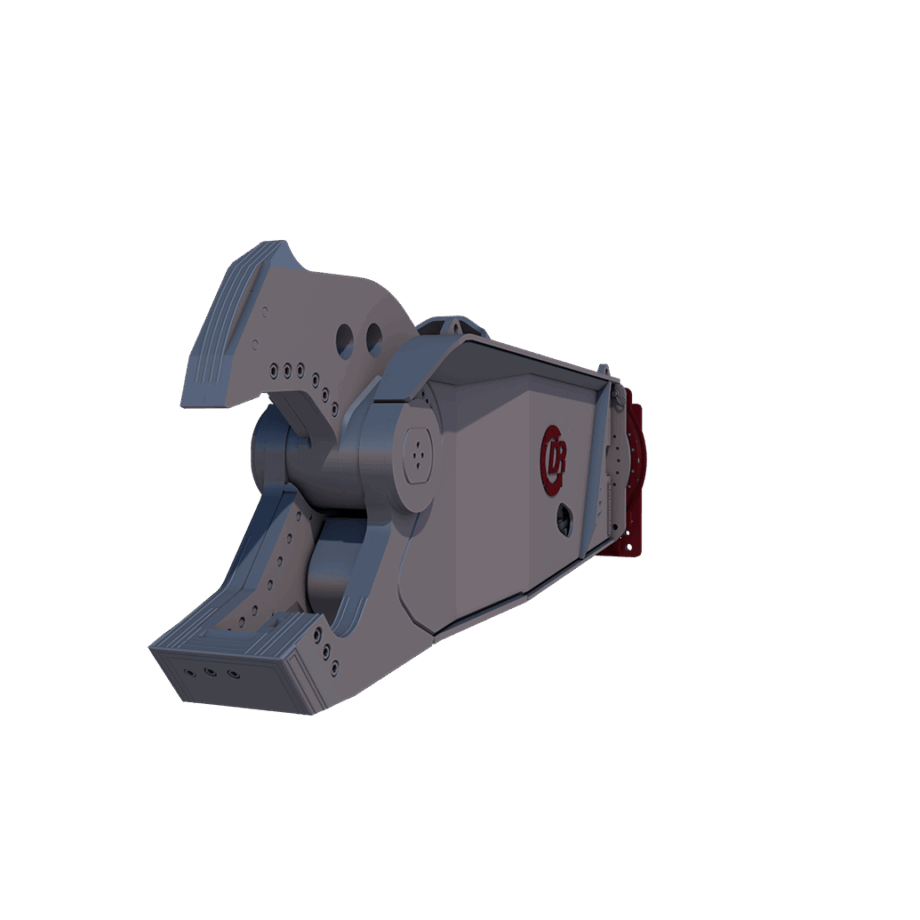

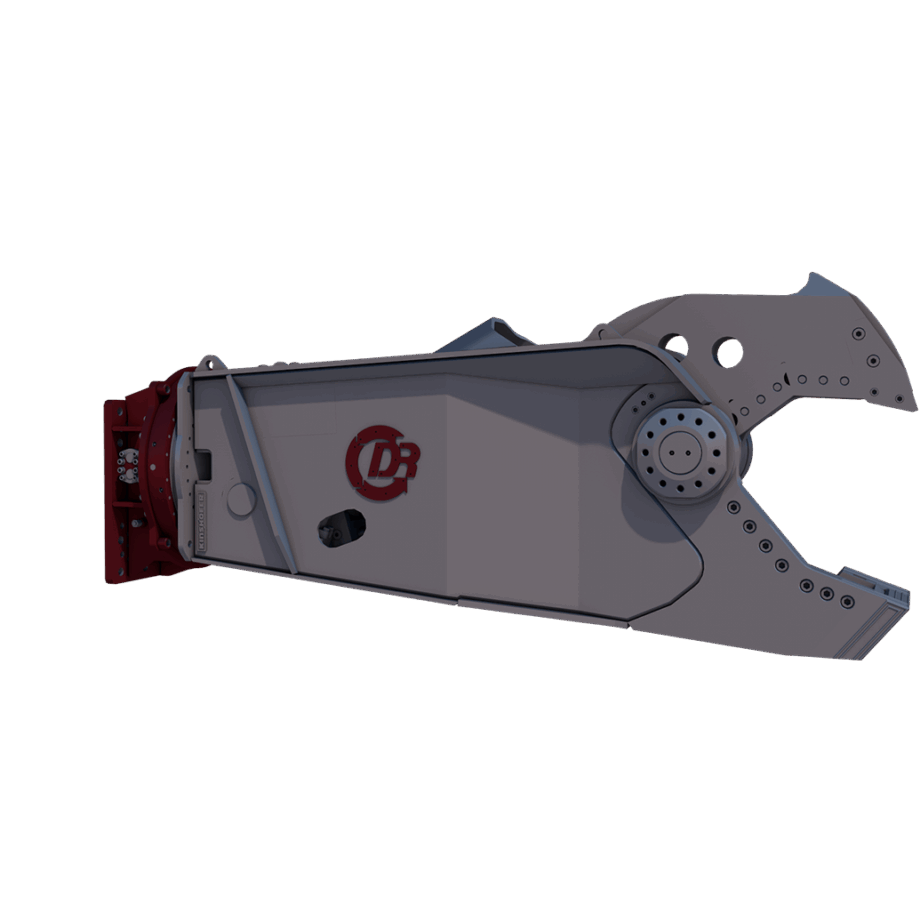

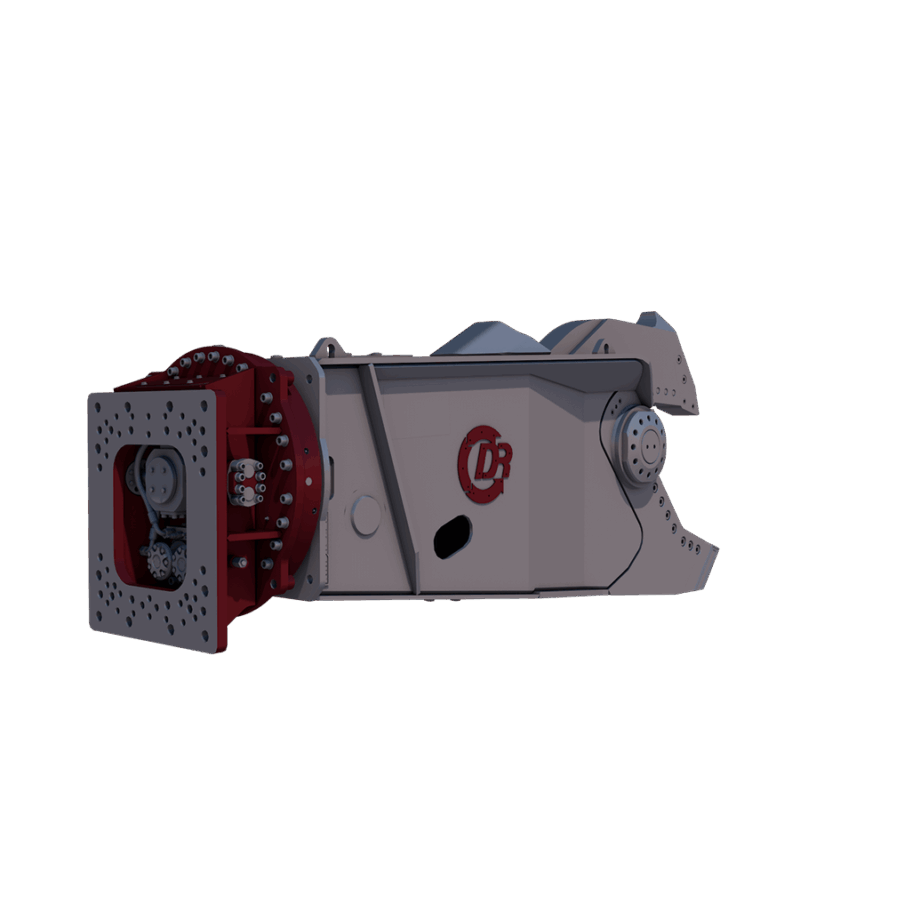

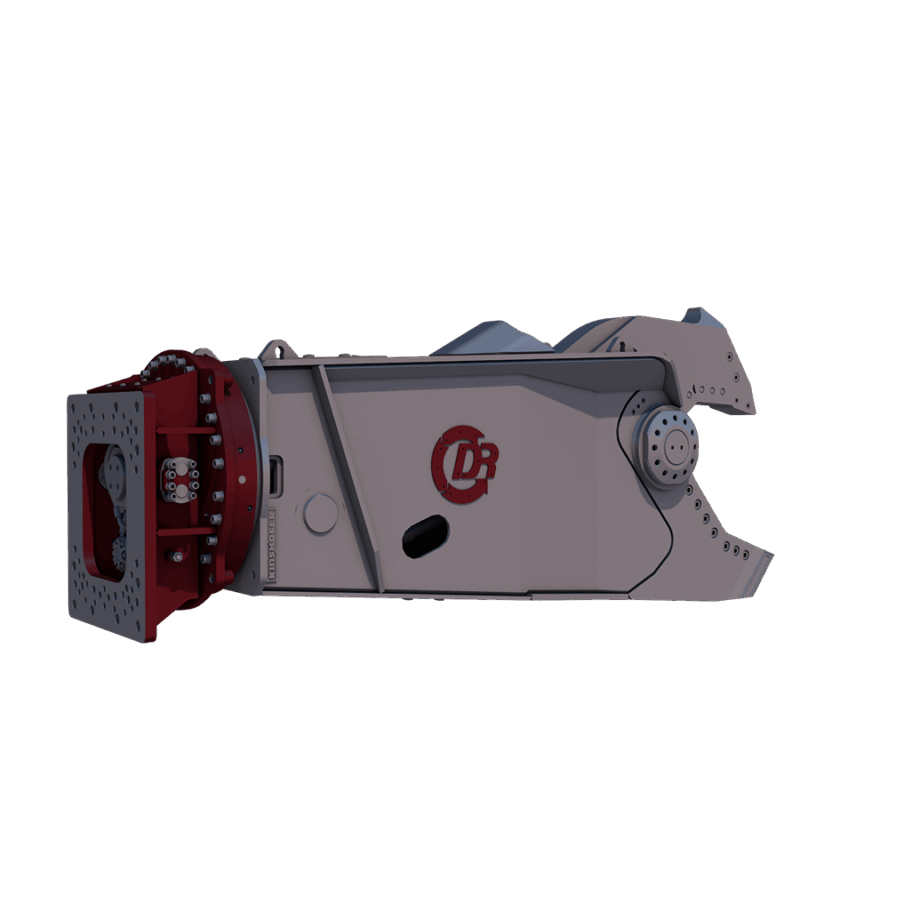

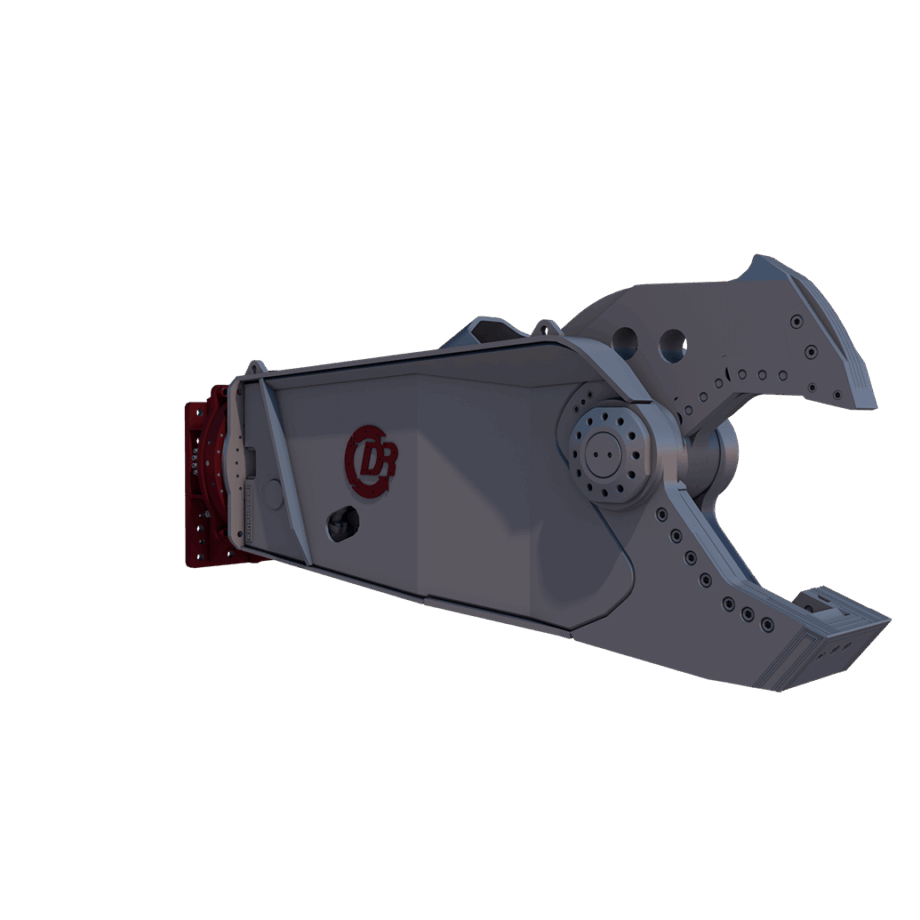

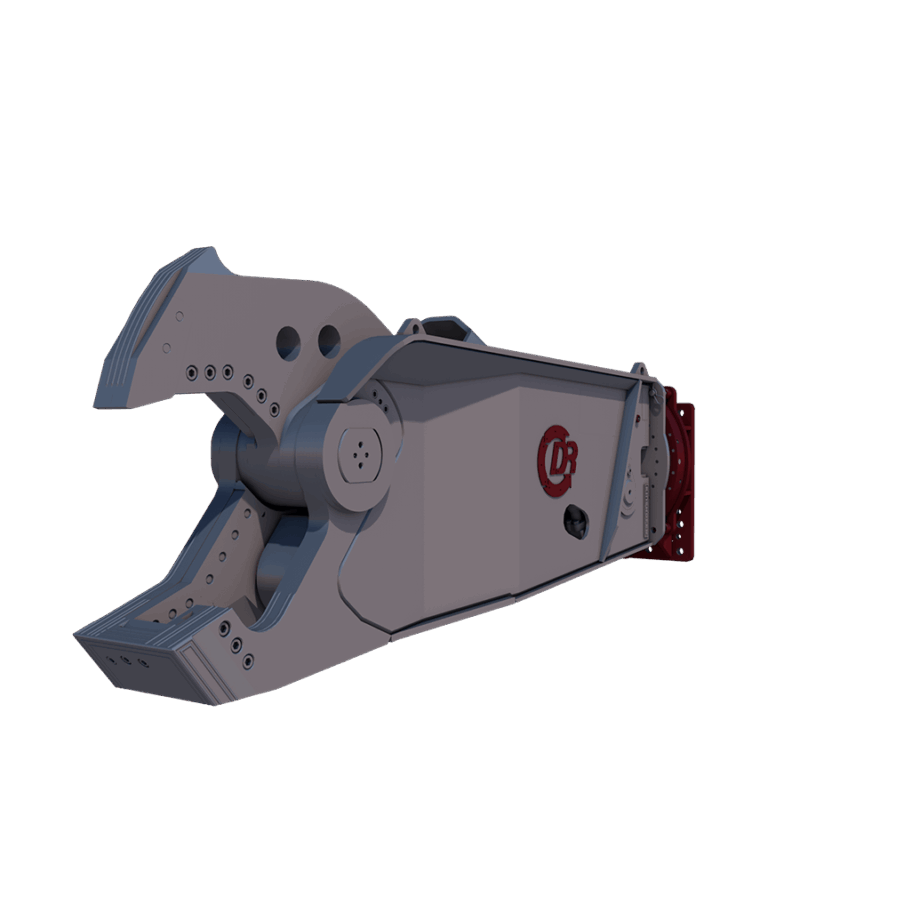

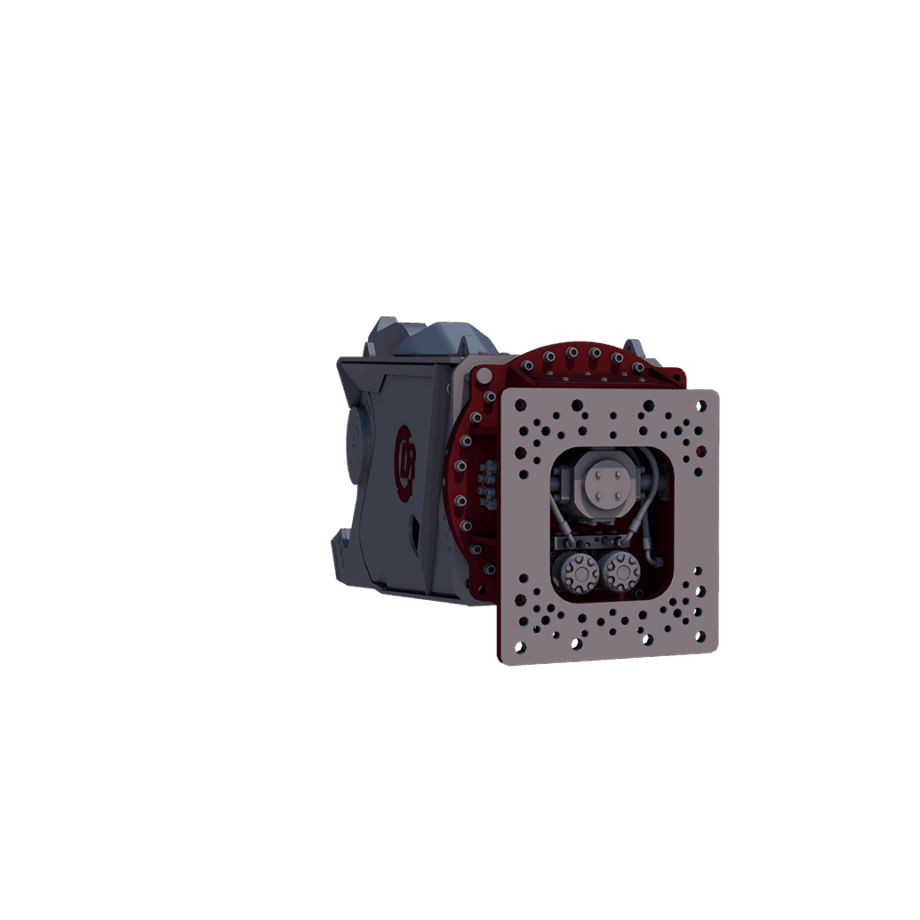

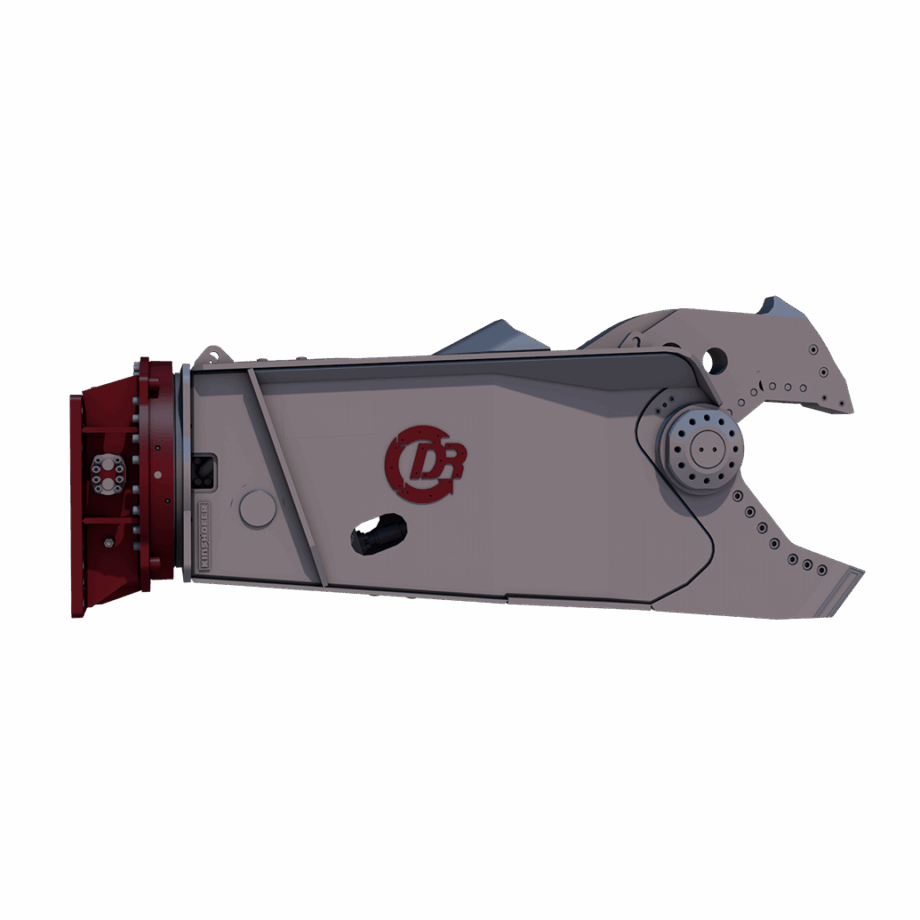

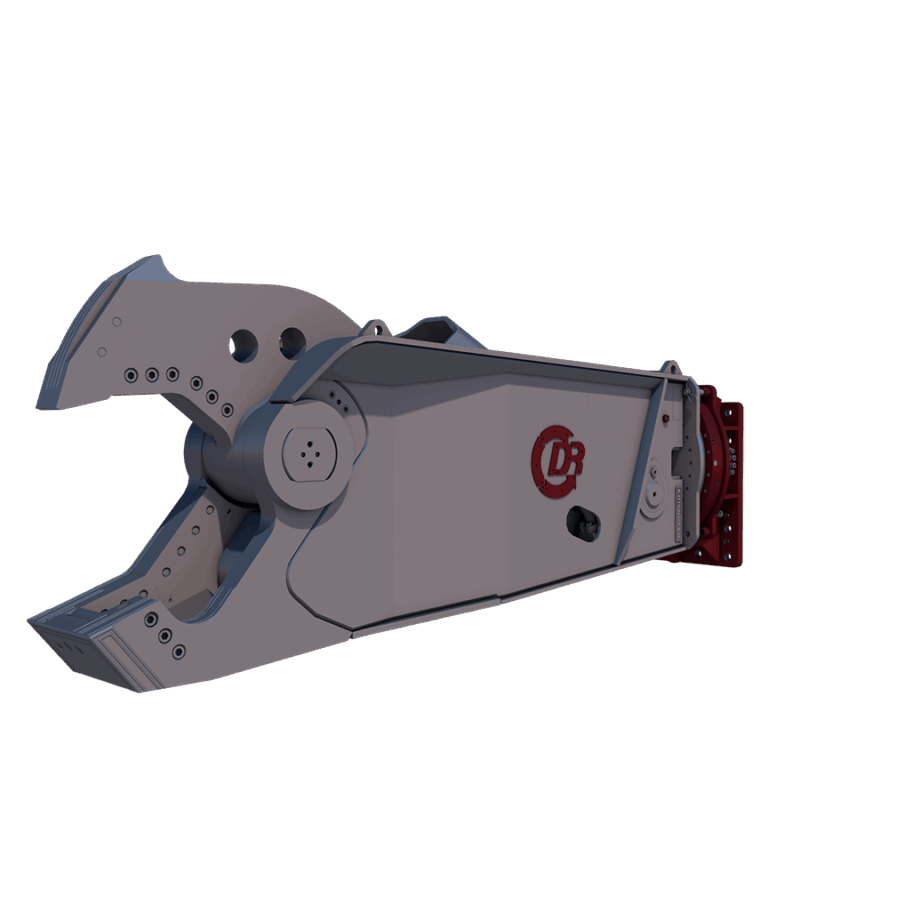

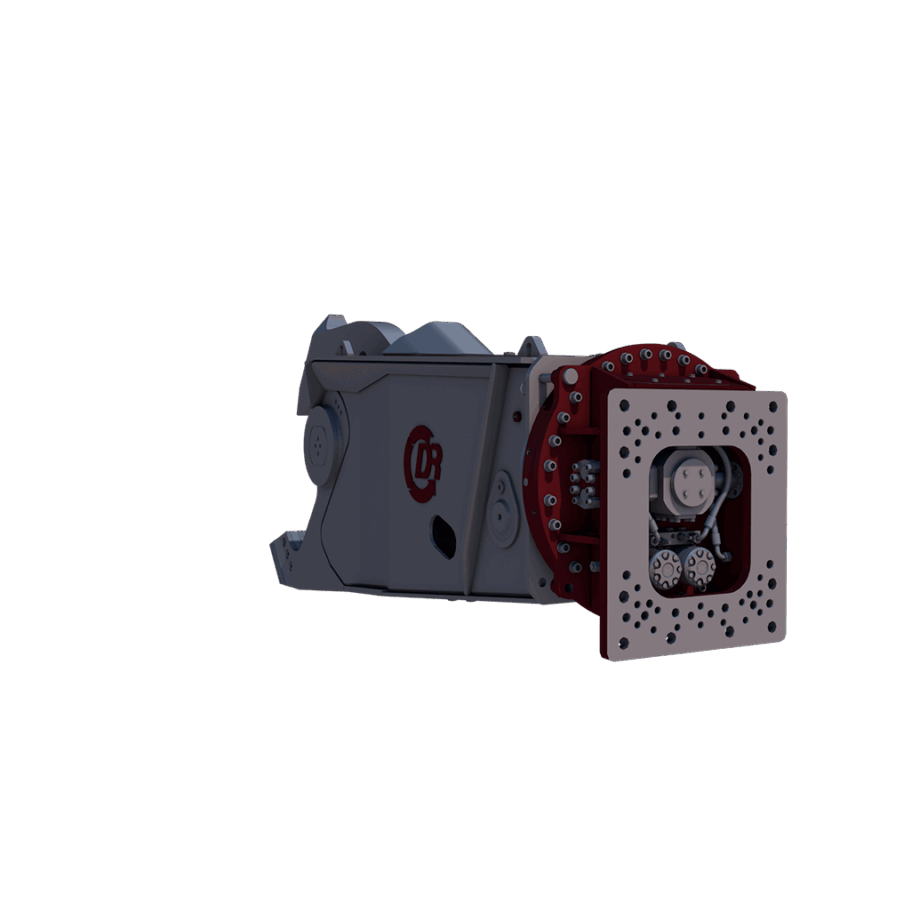

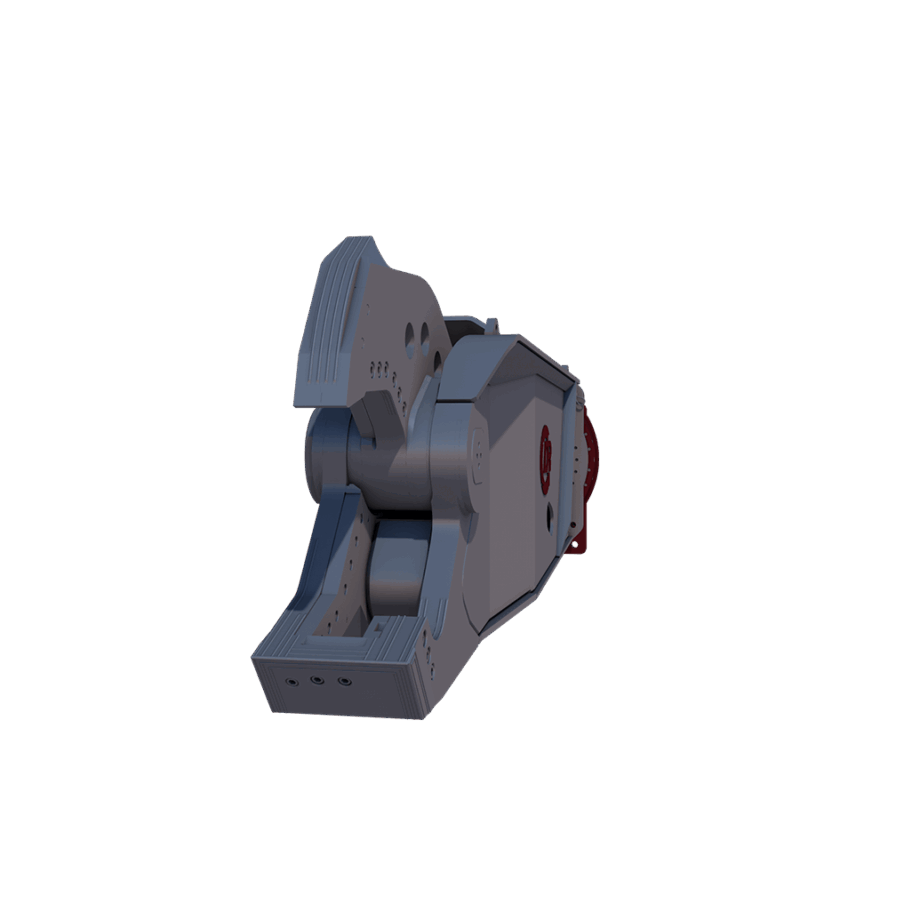

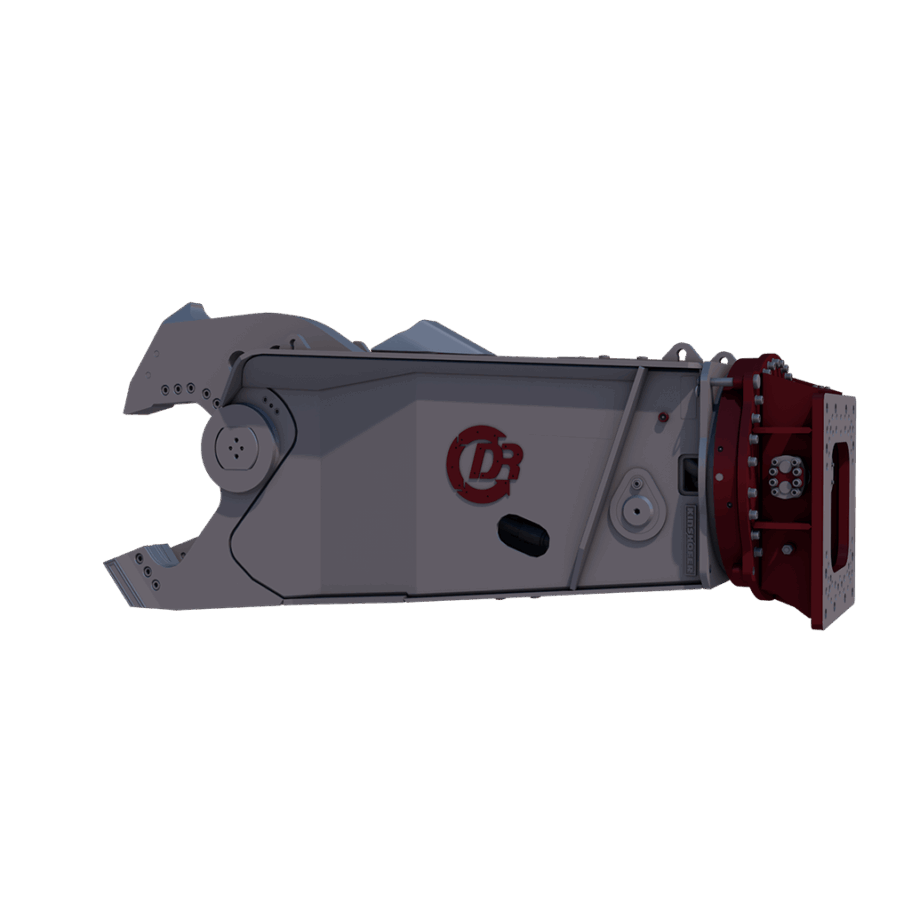

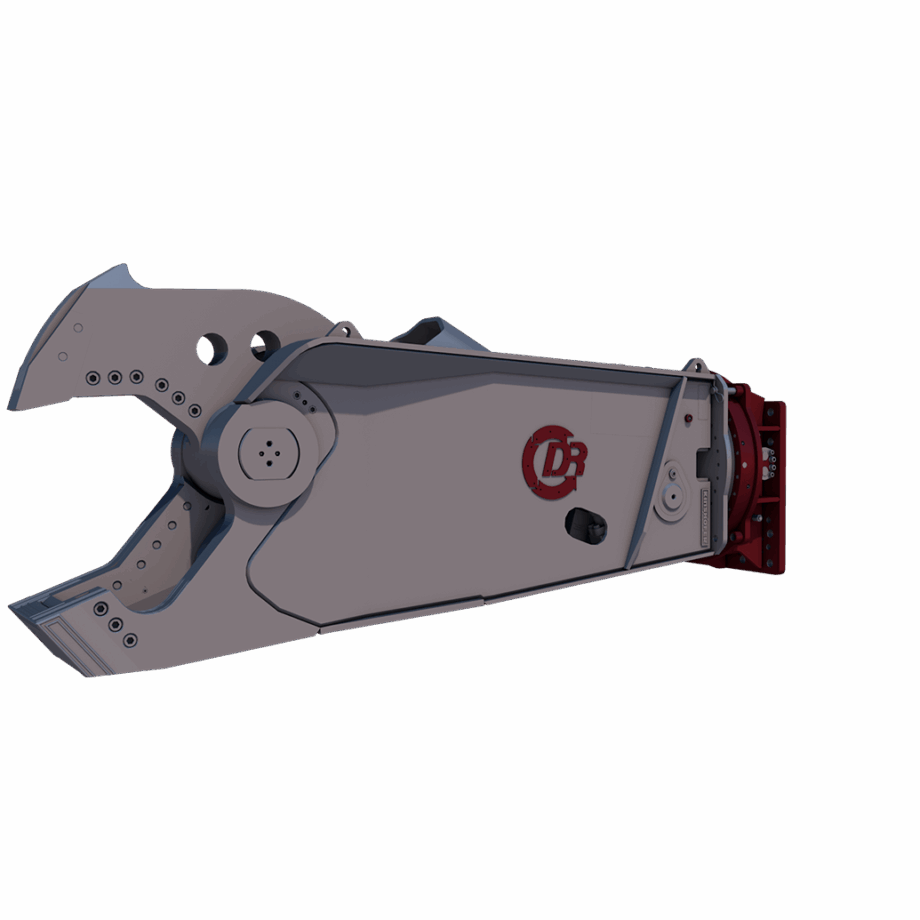

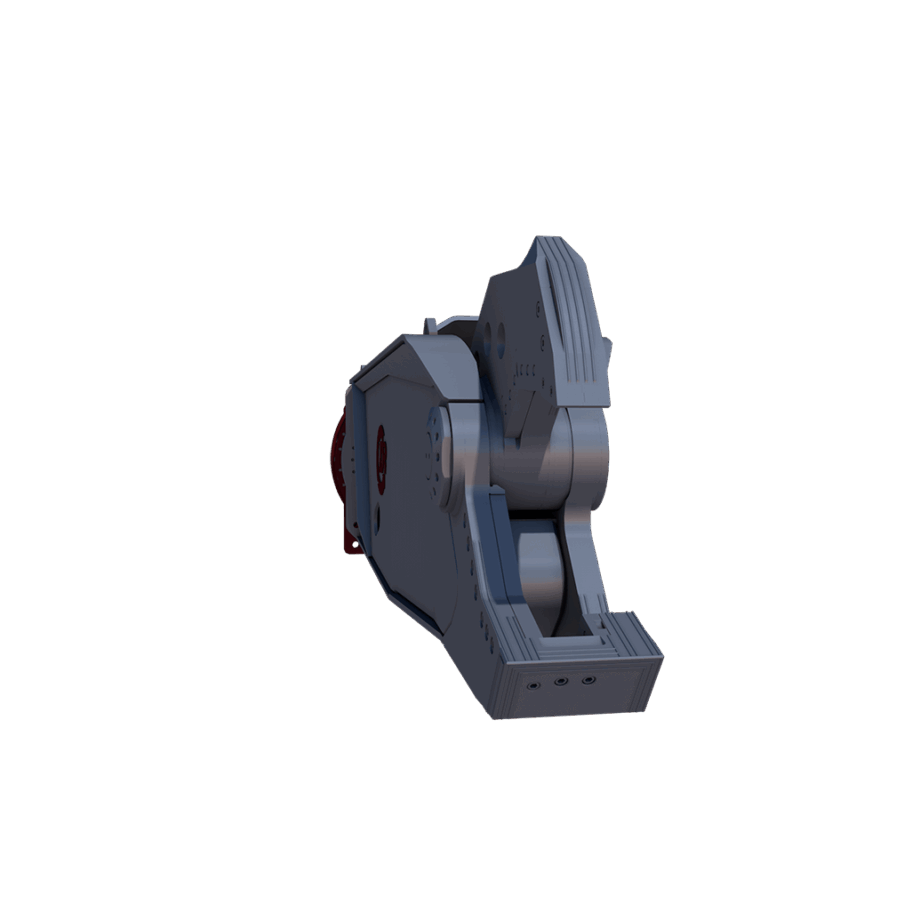

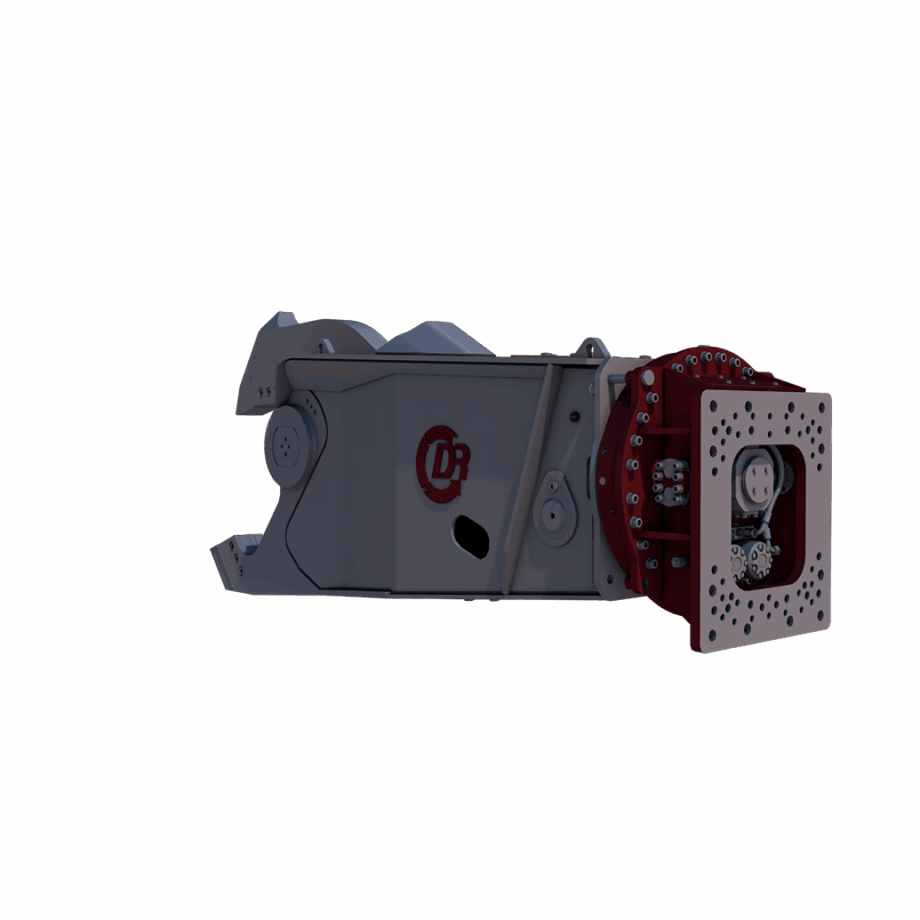

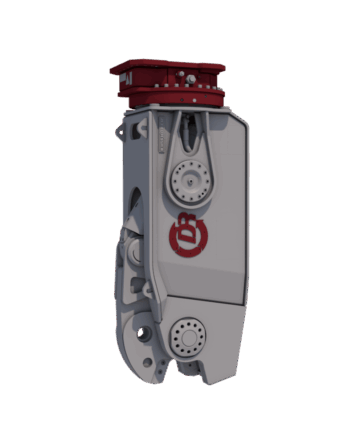

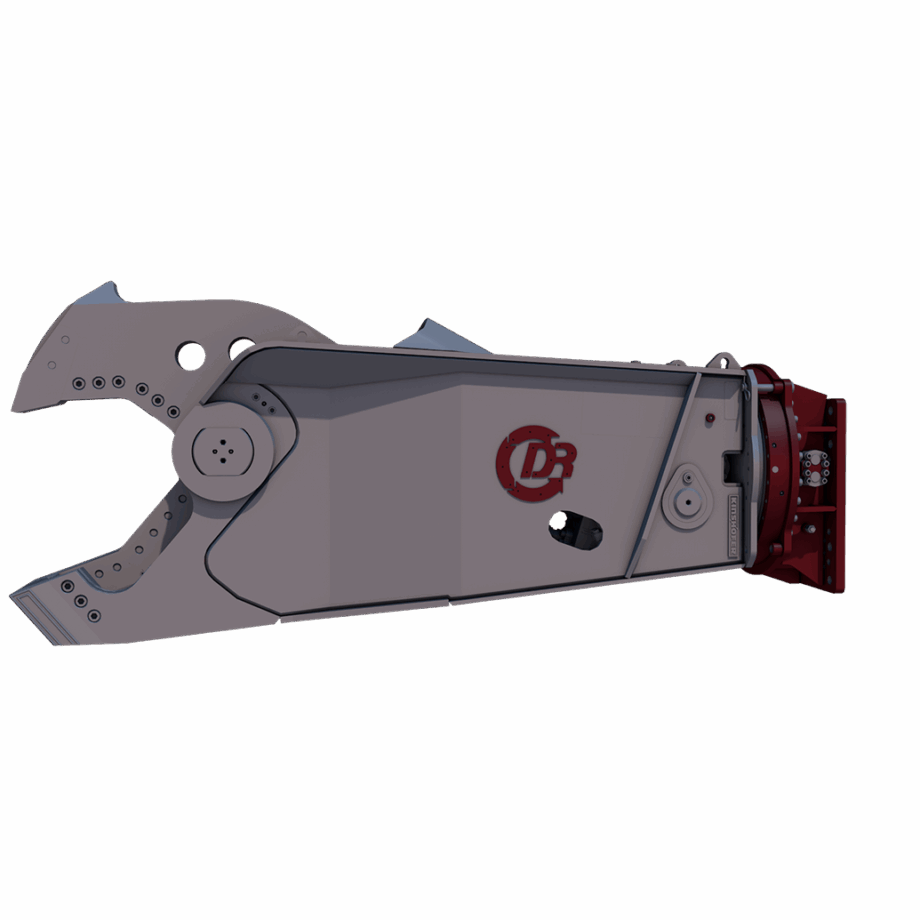

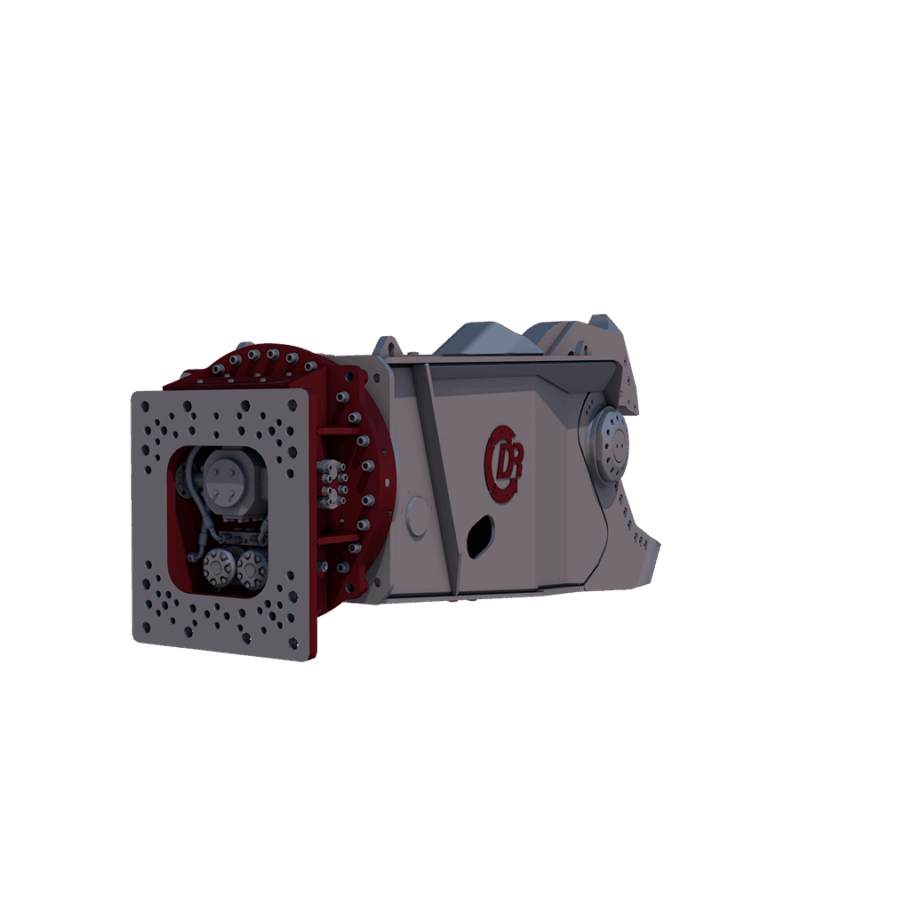

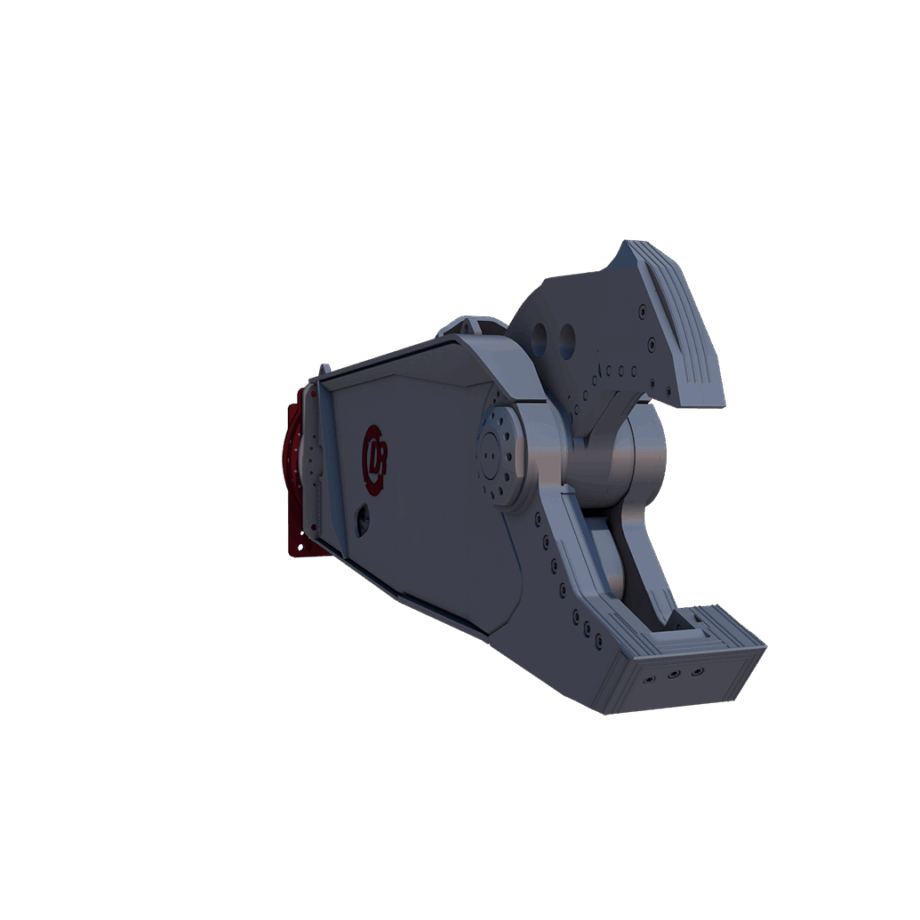

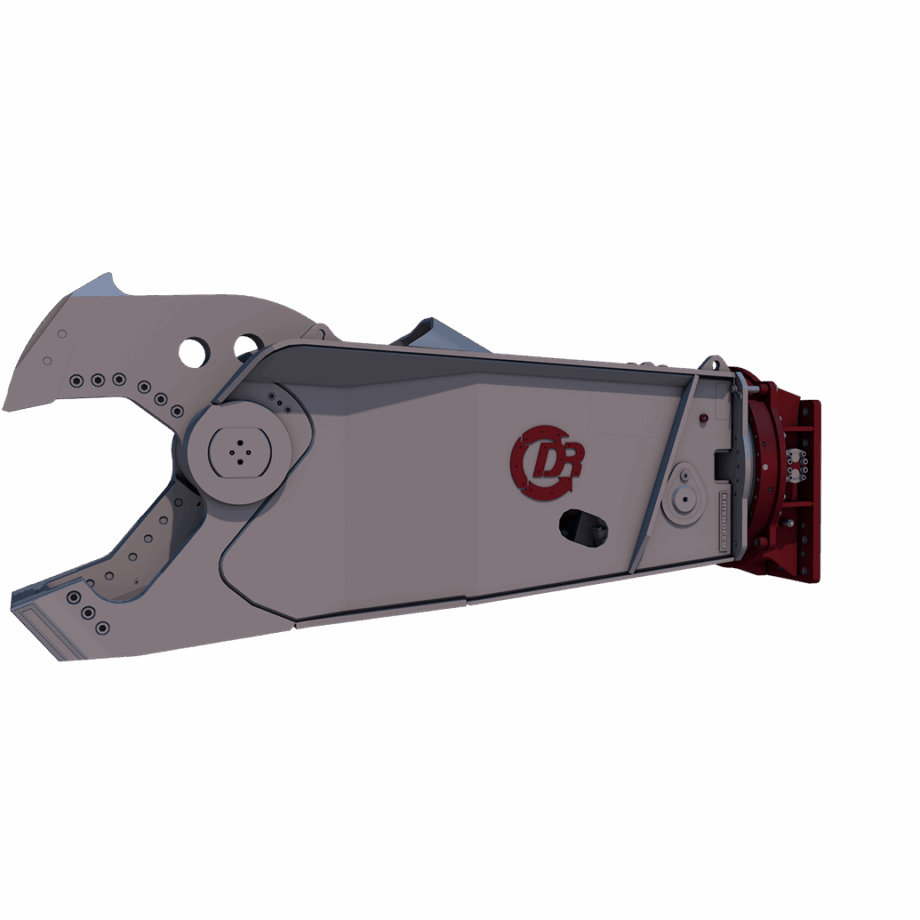

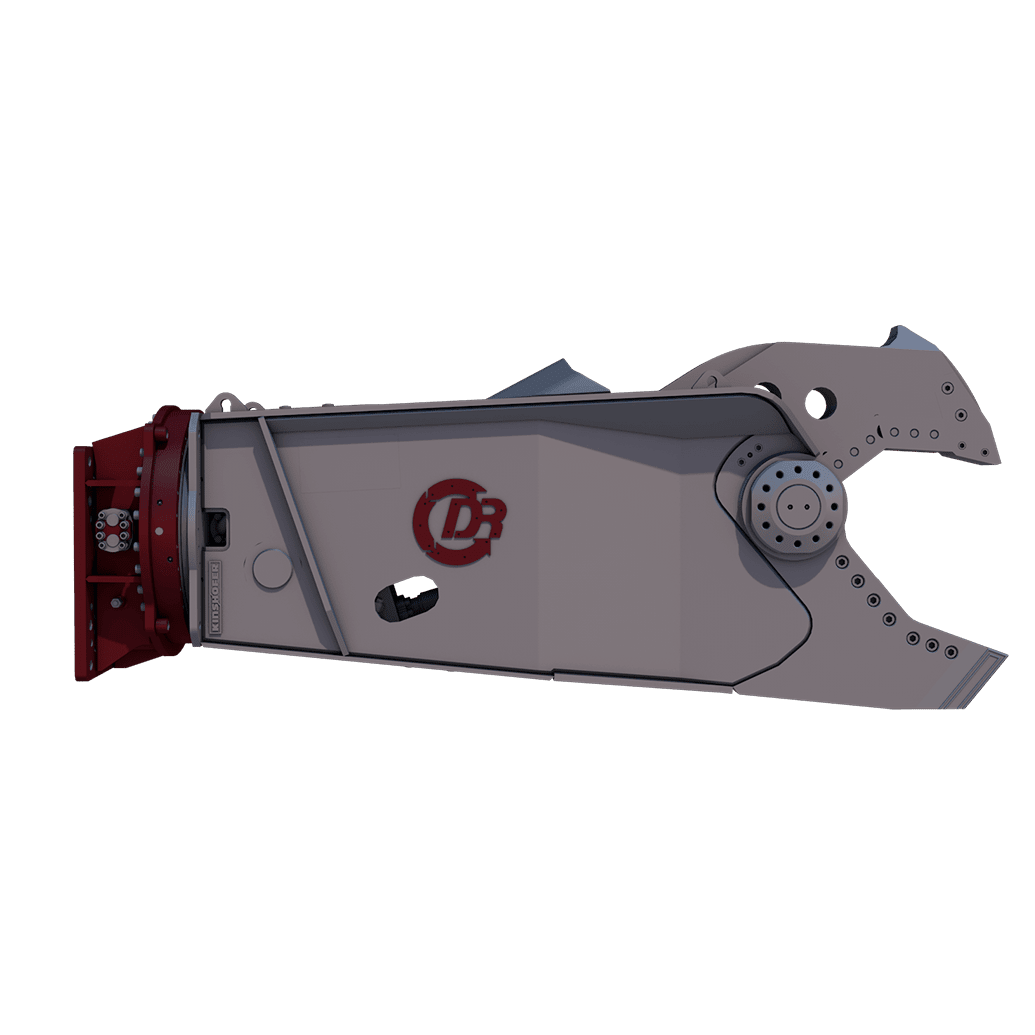

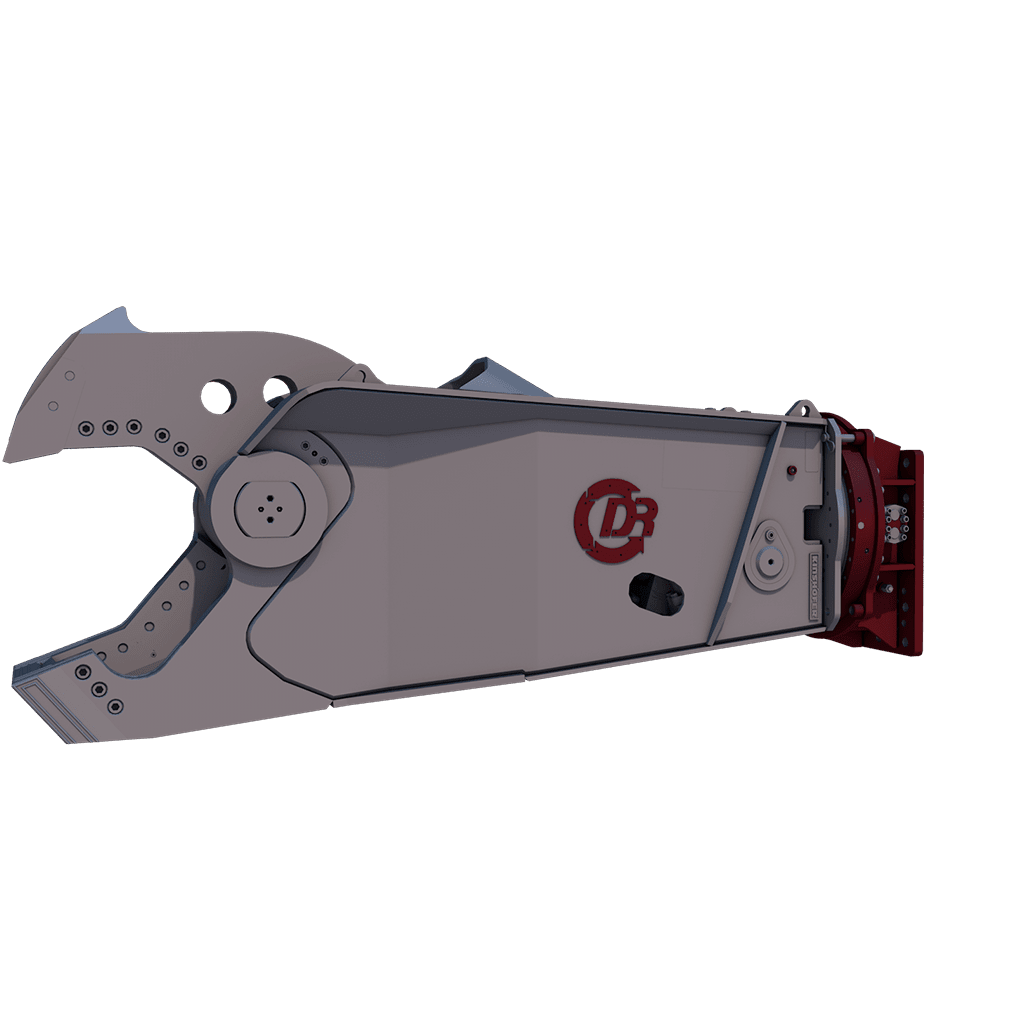

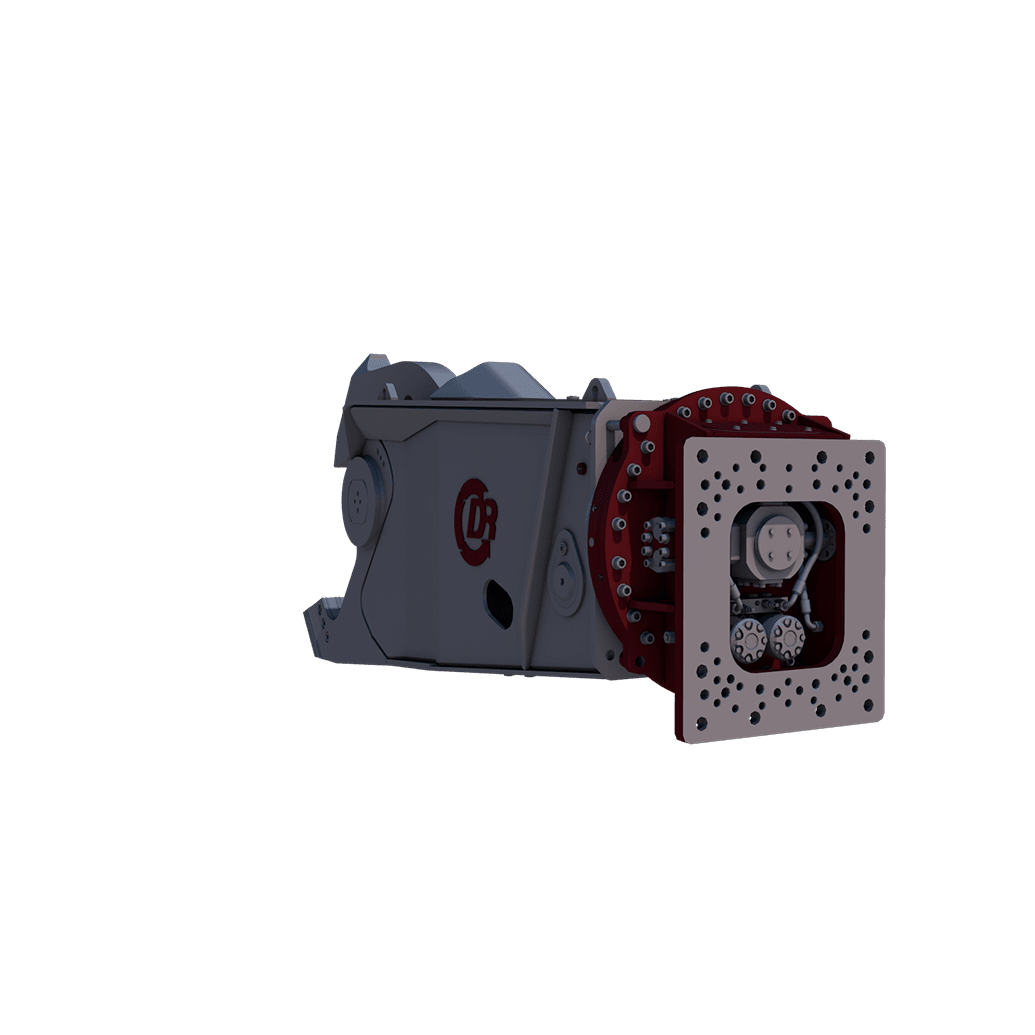

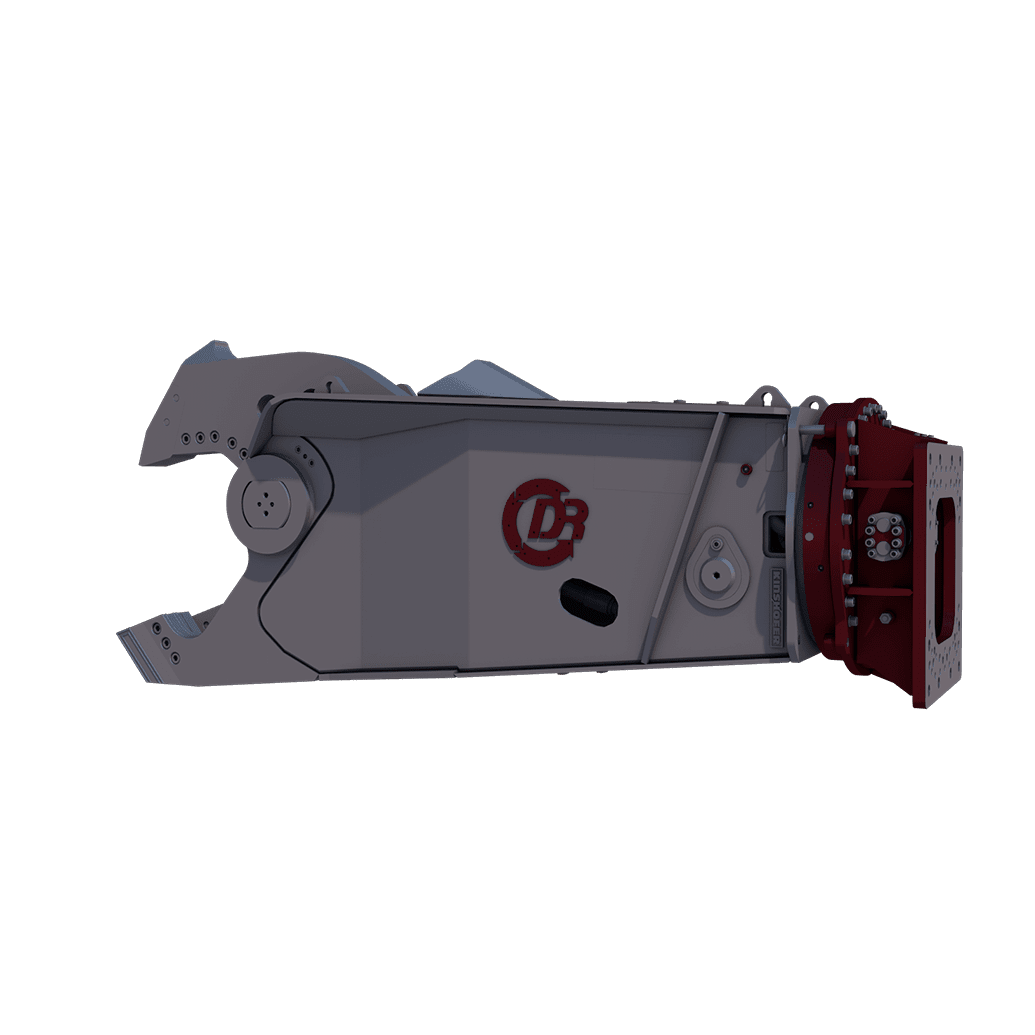

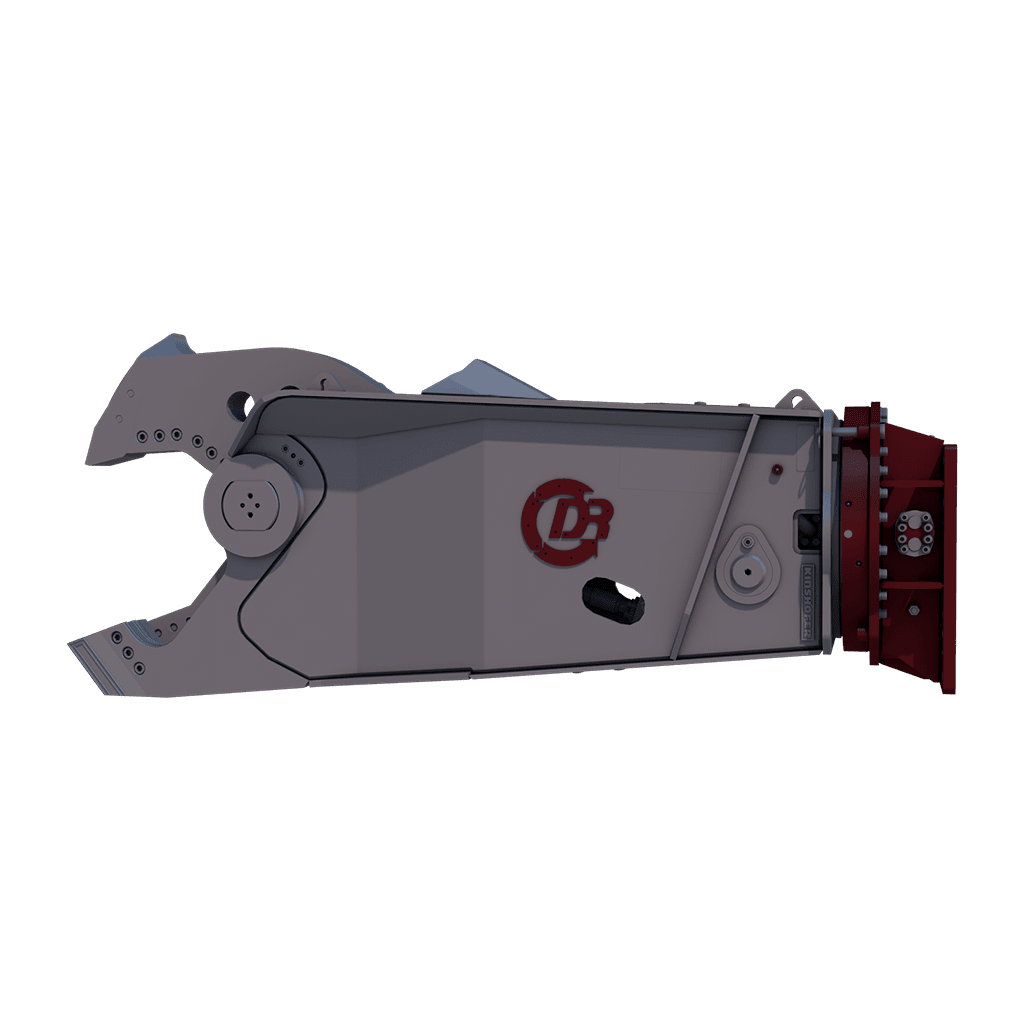

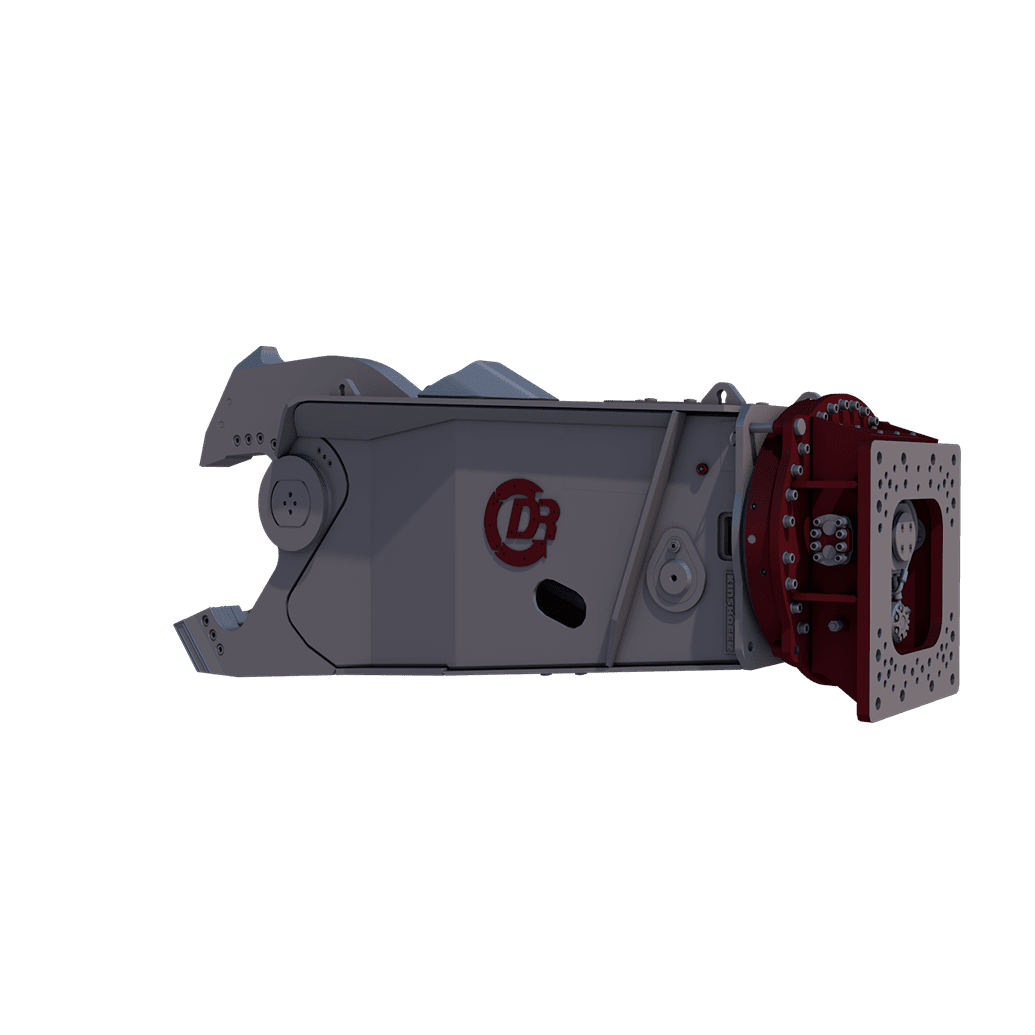

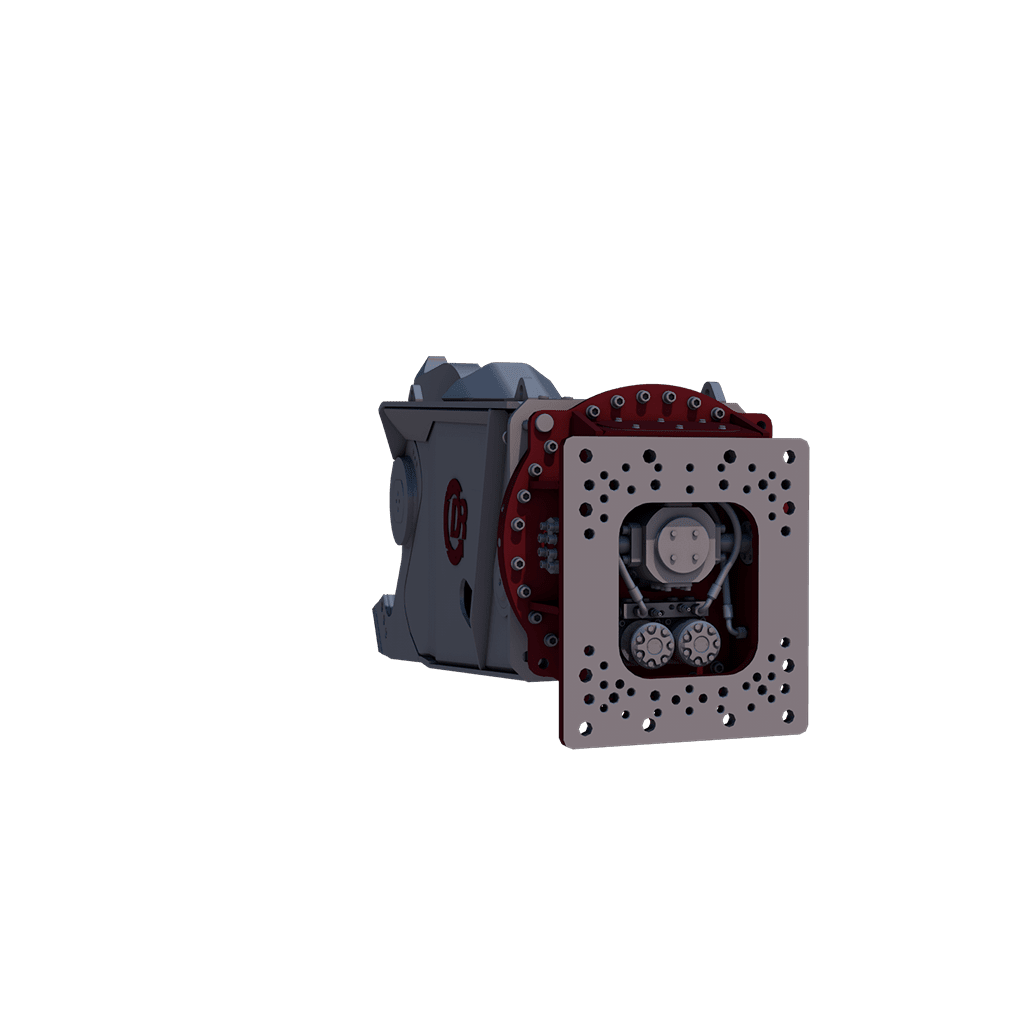

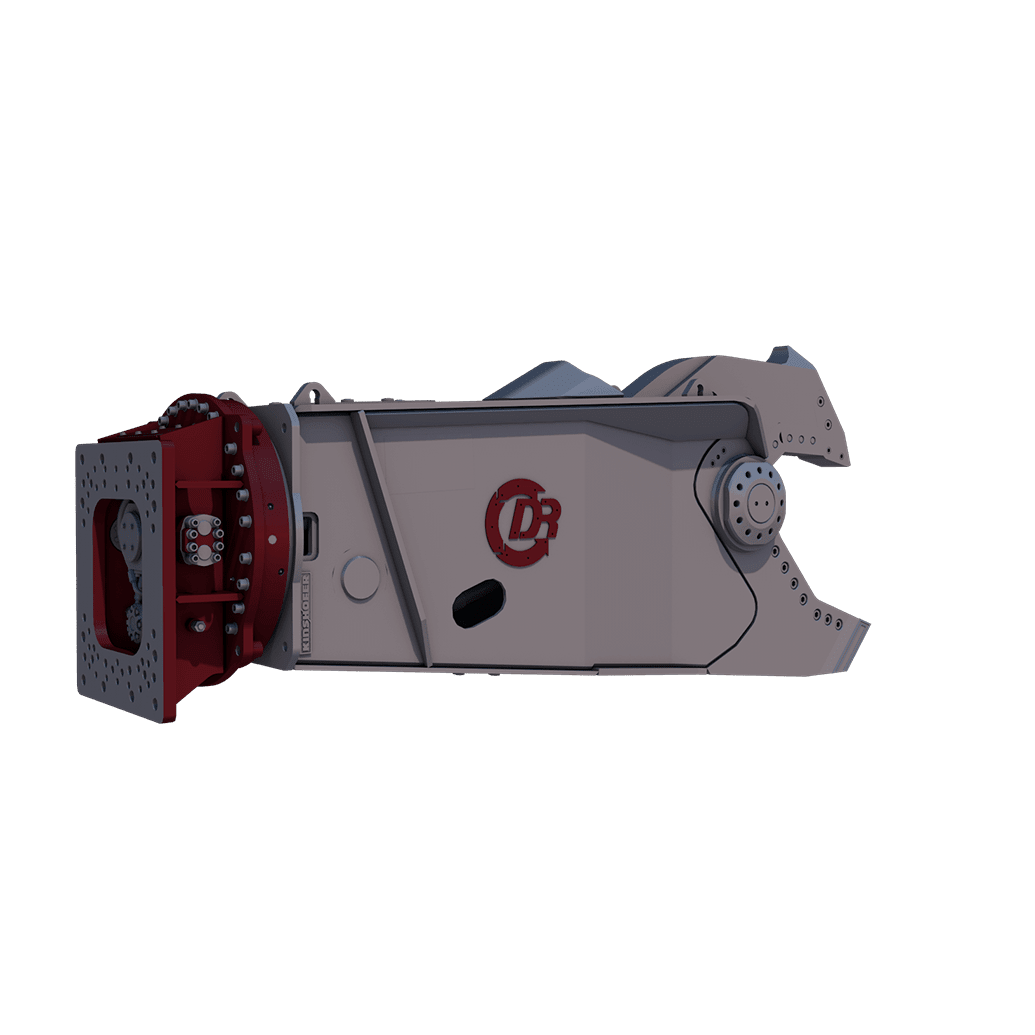

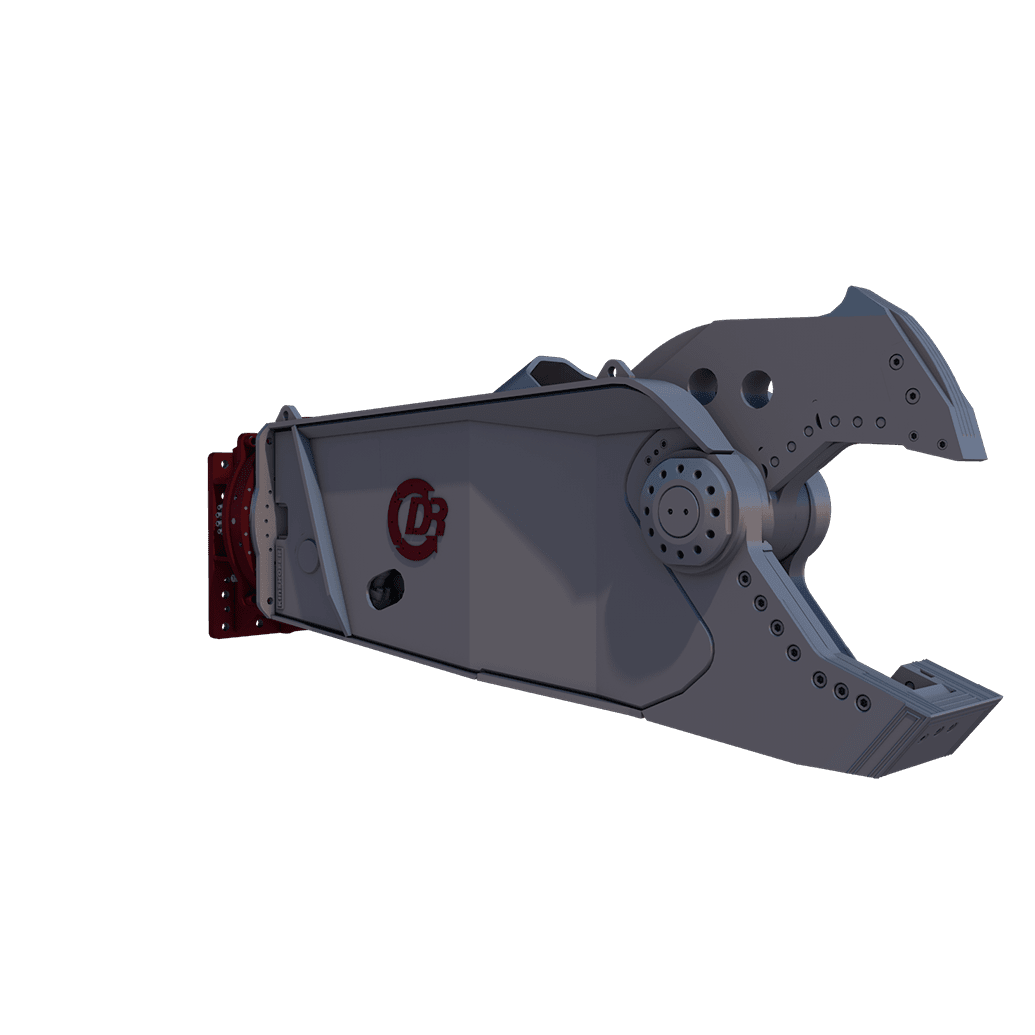

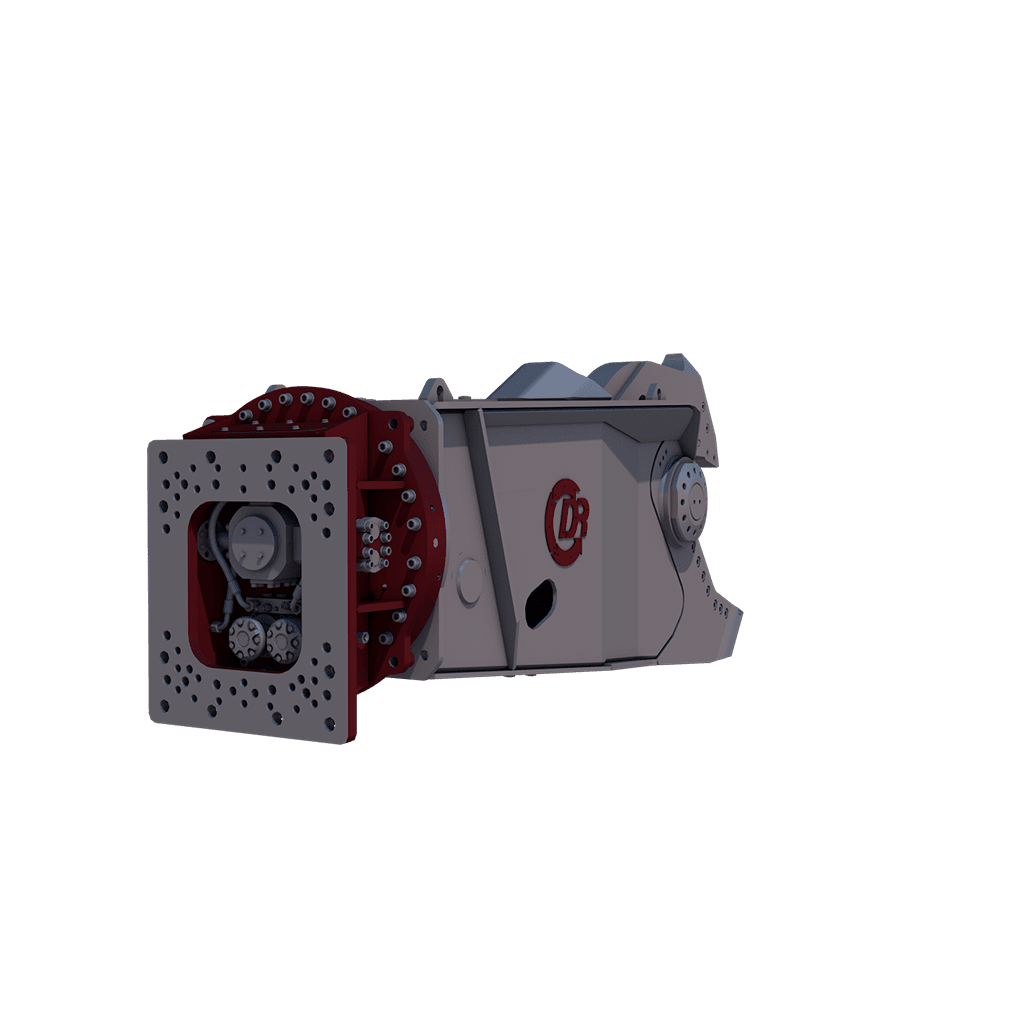

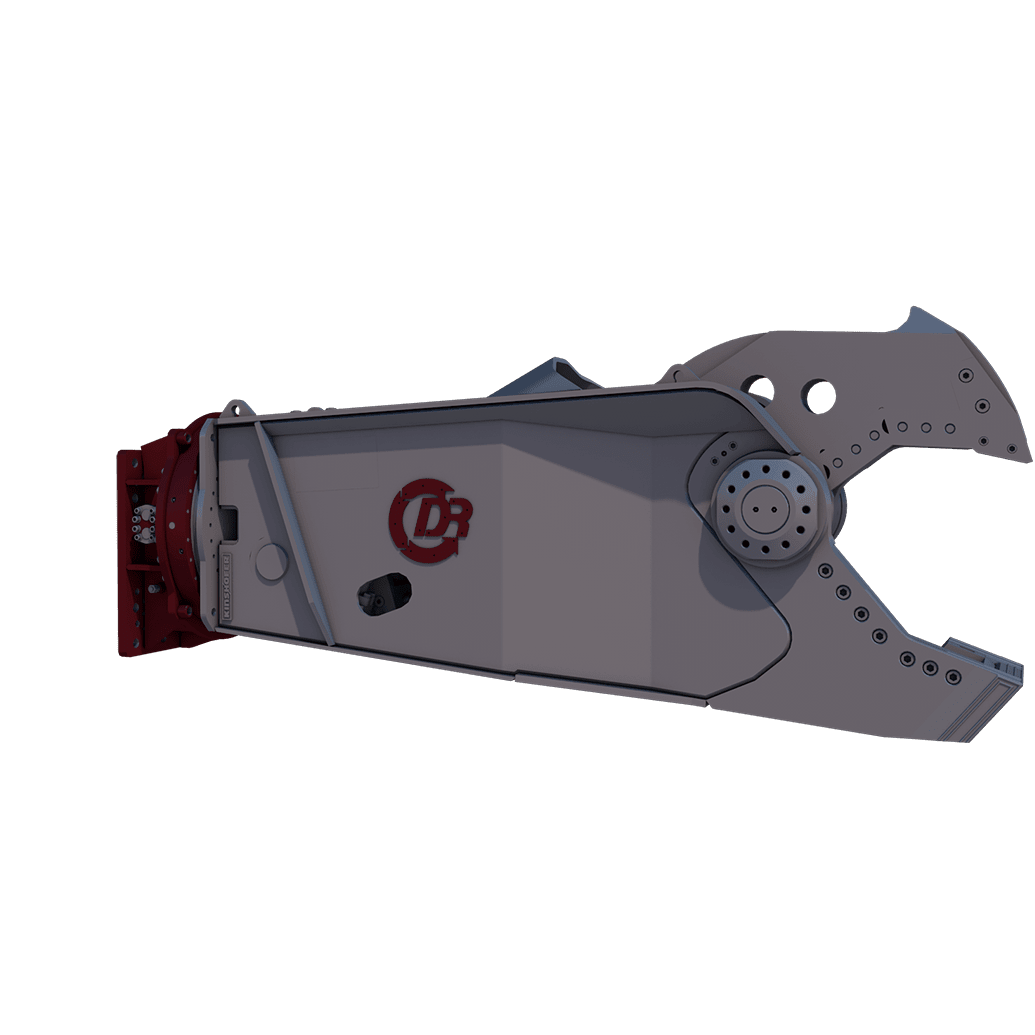

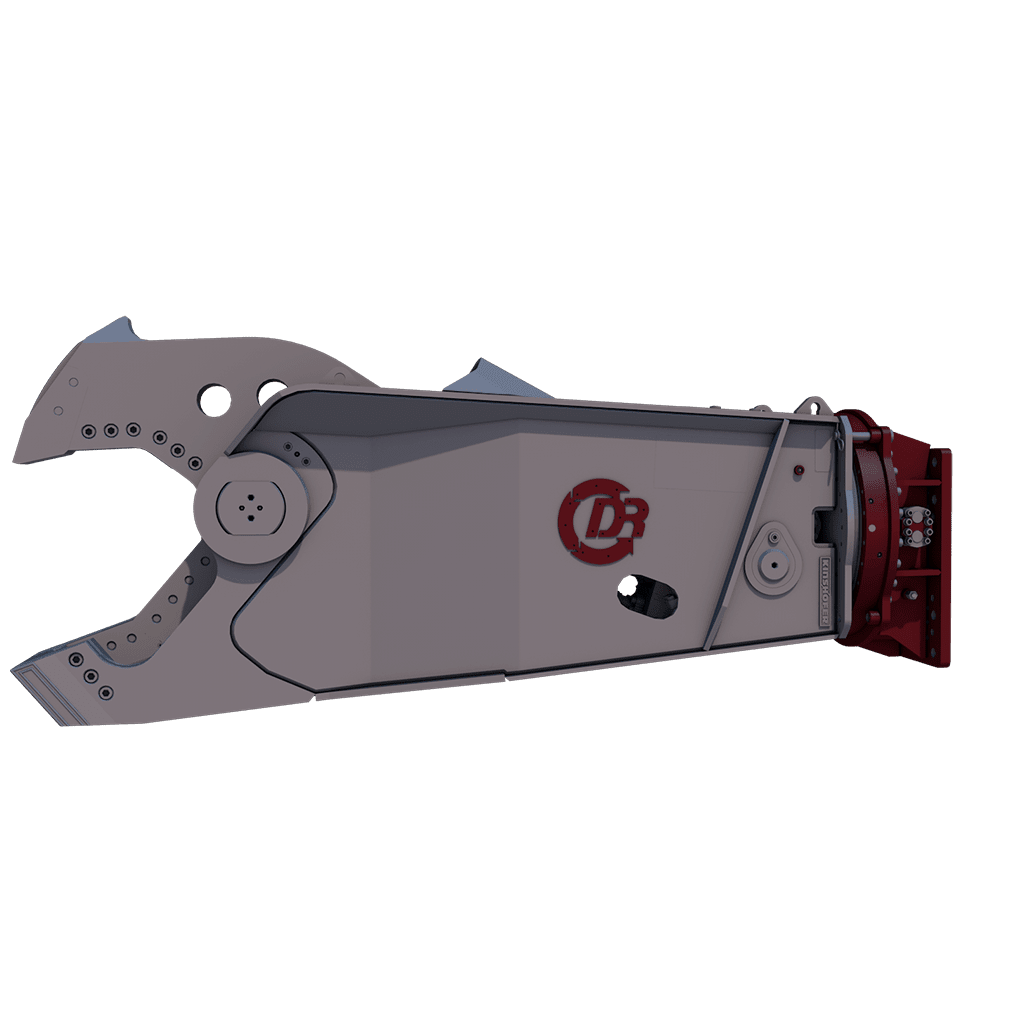

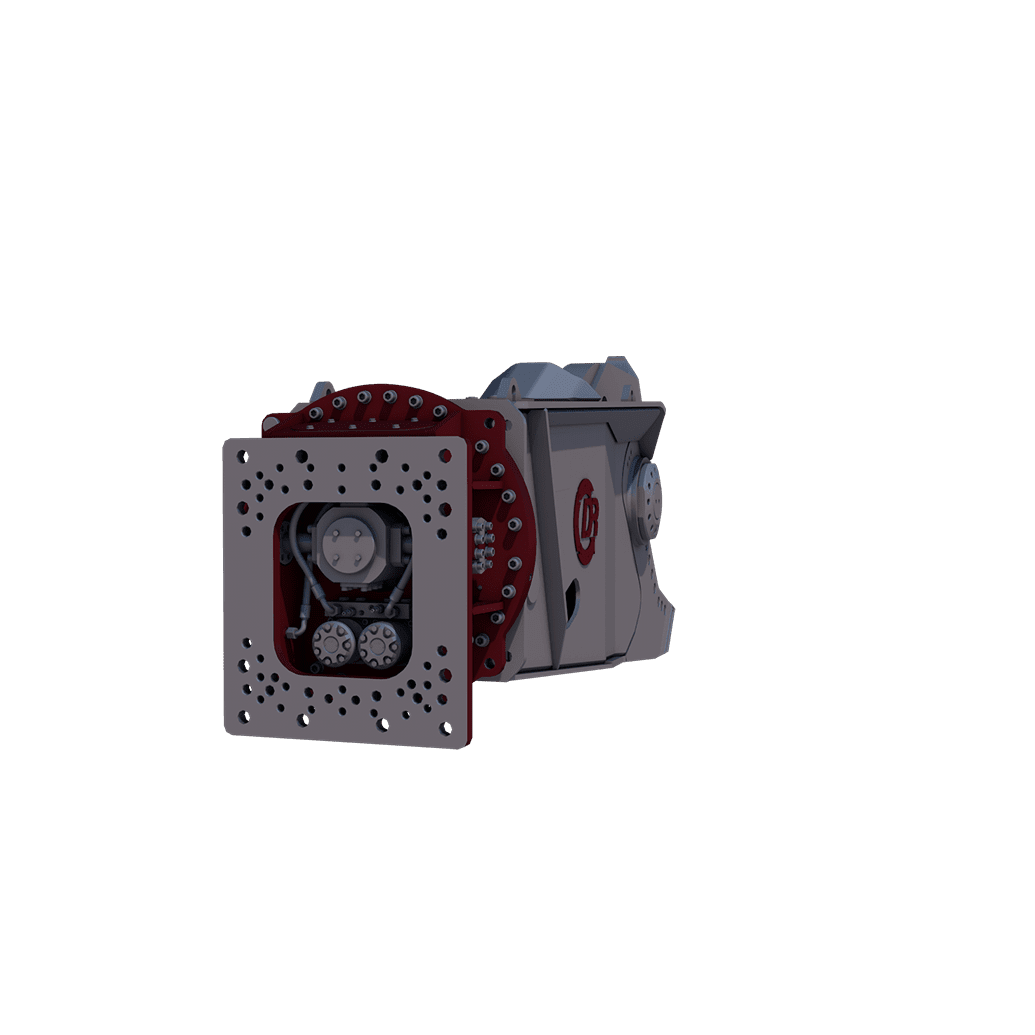

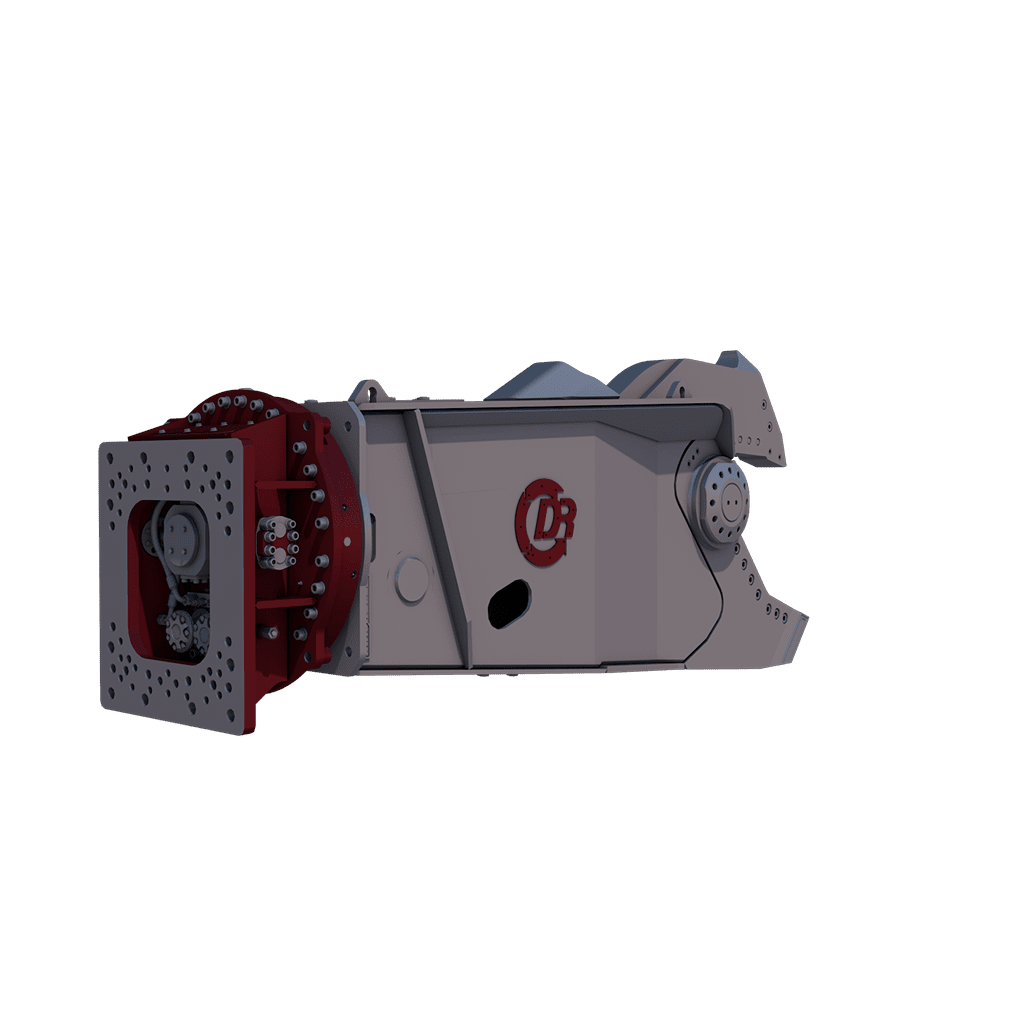

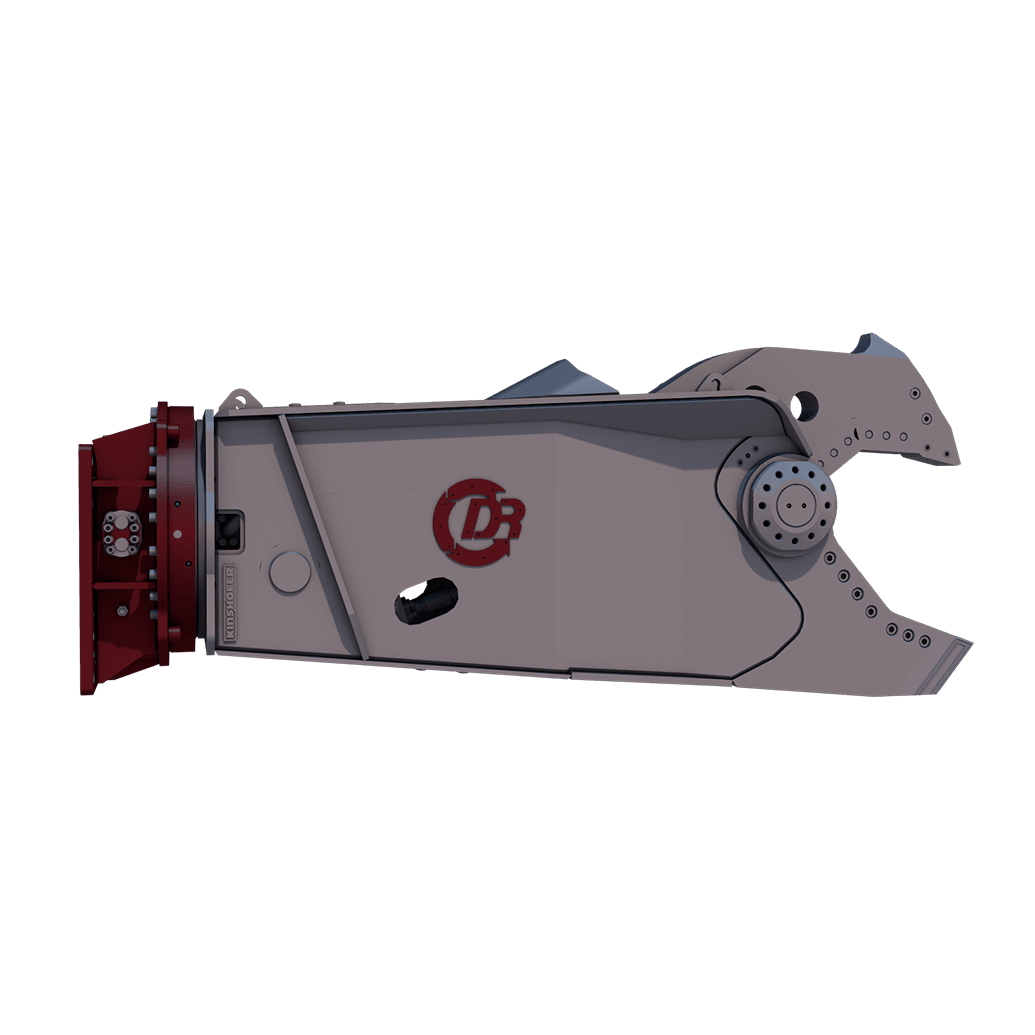

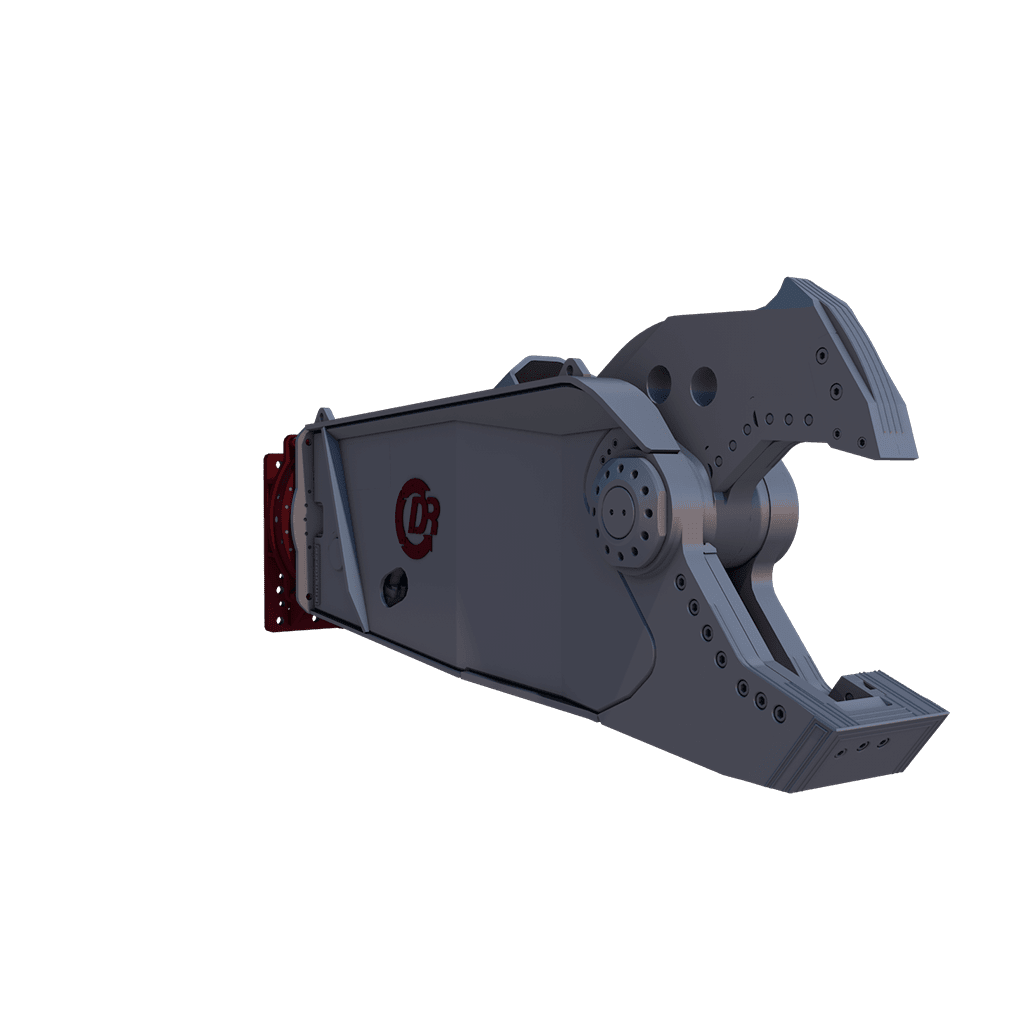

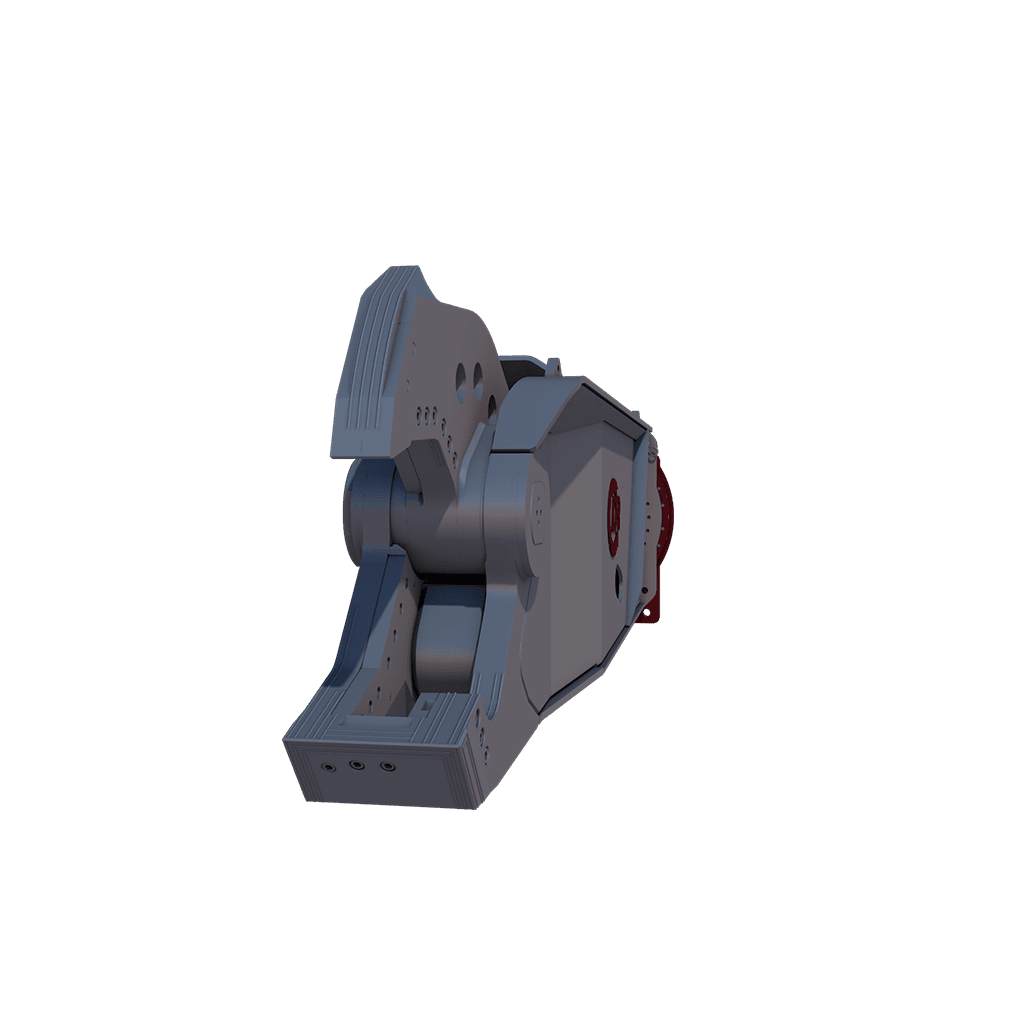

    Scrap shear – DXS

    0.00

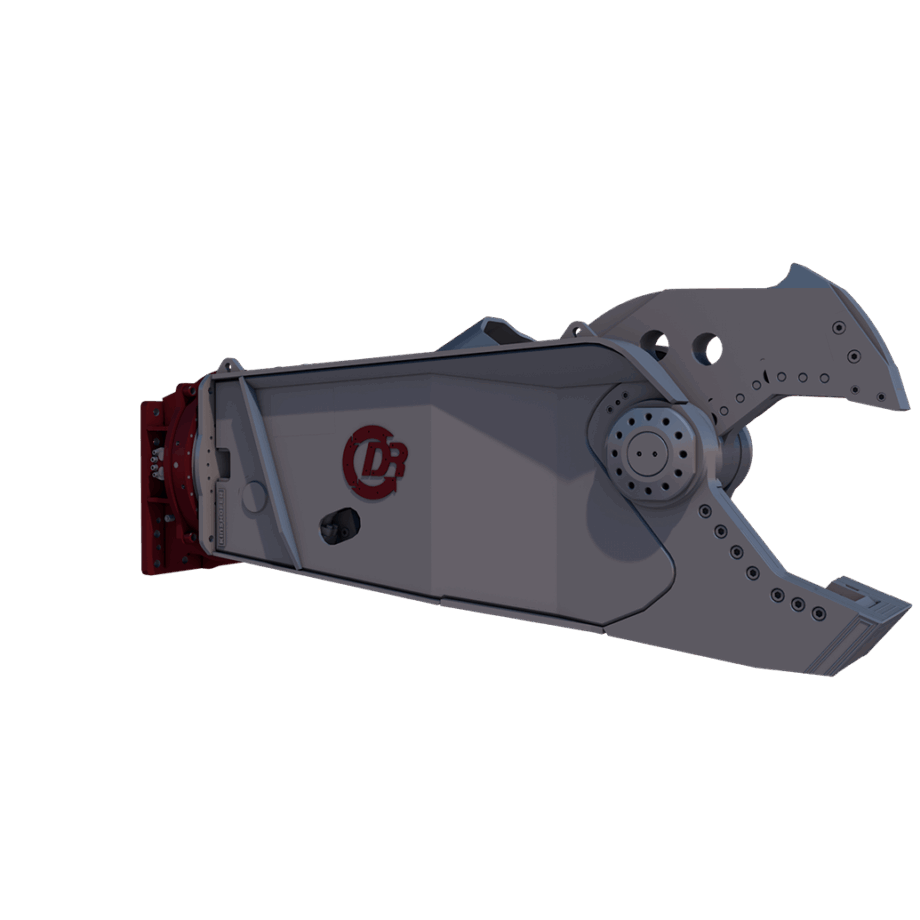

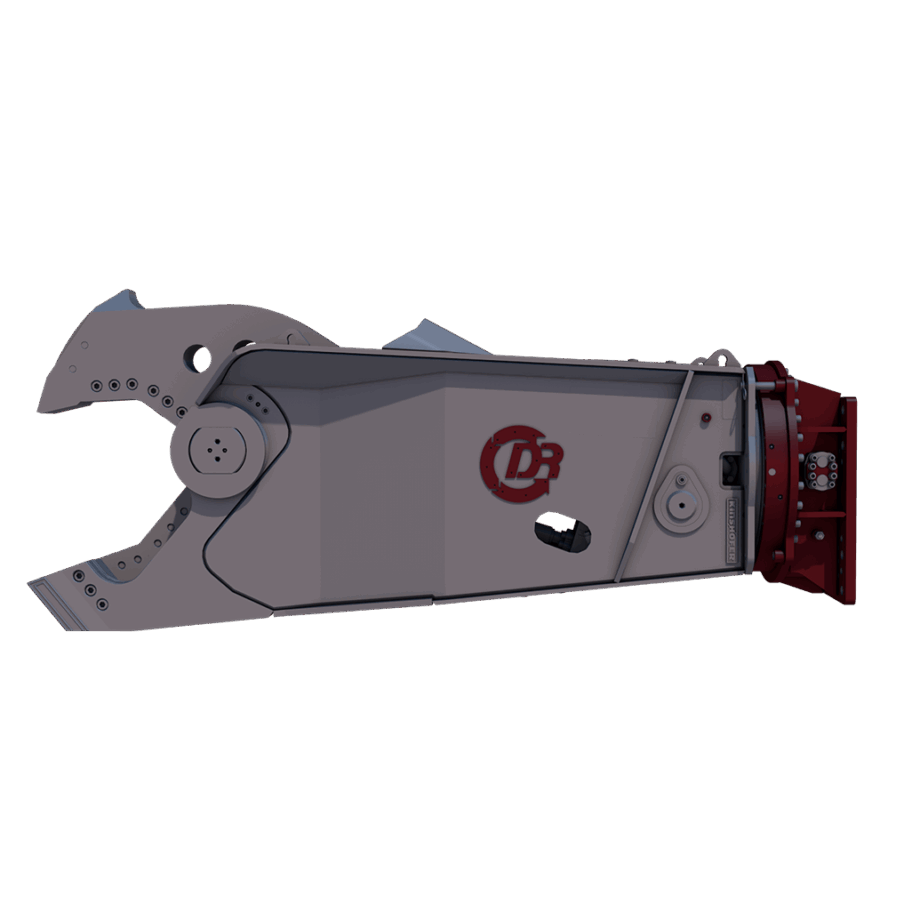

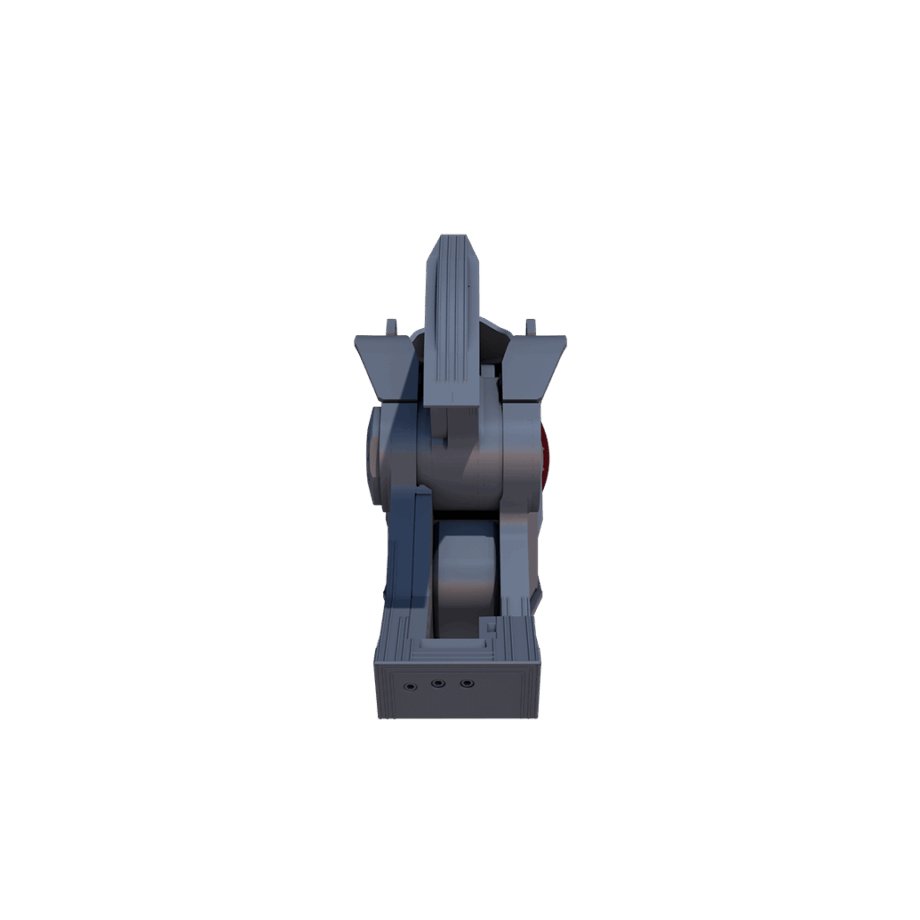

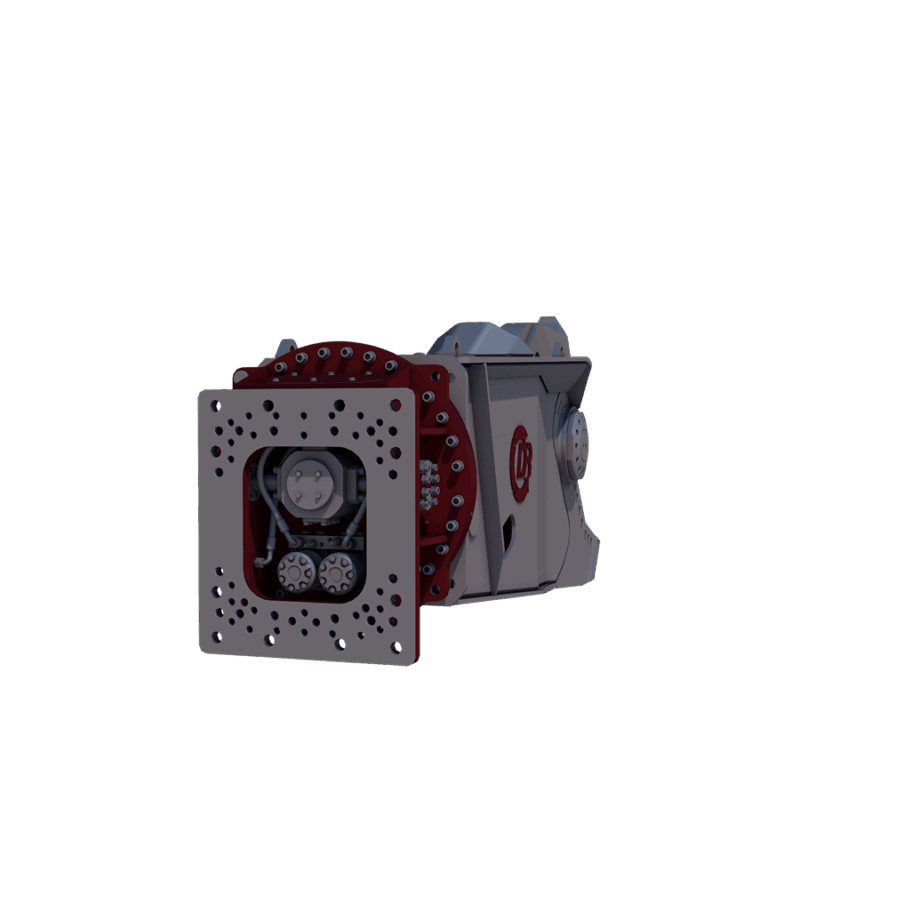

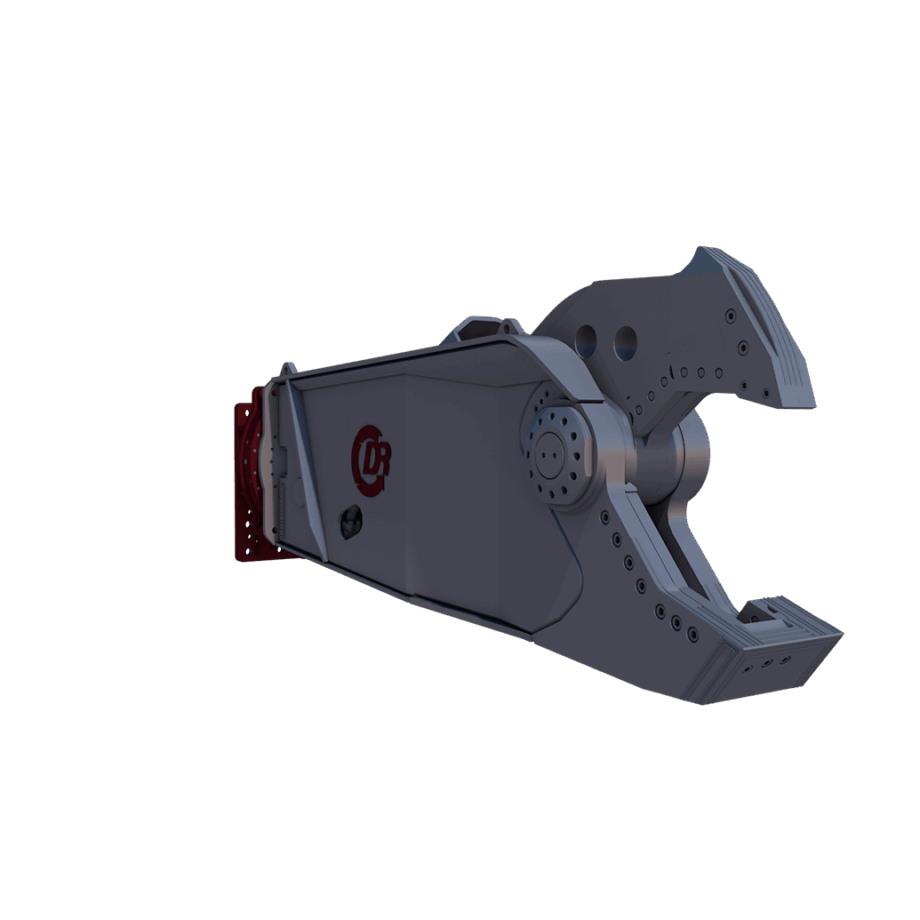

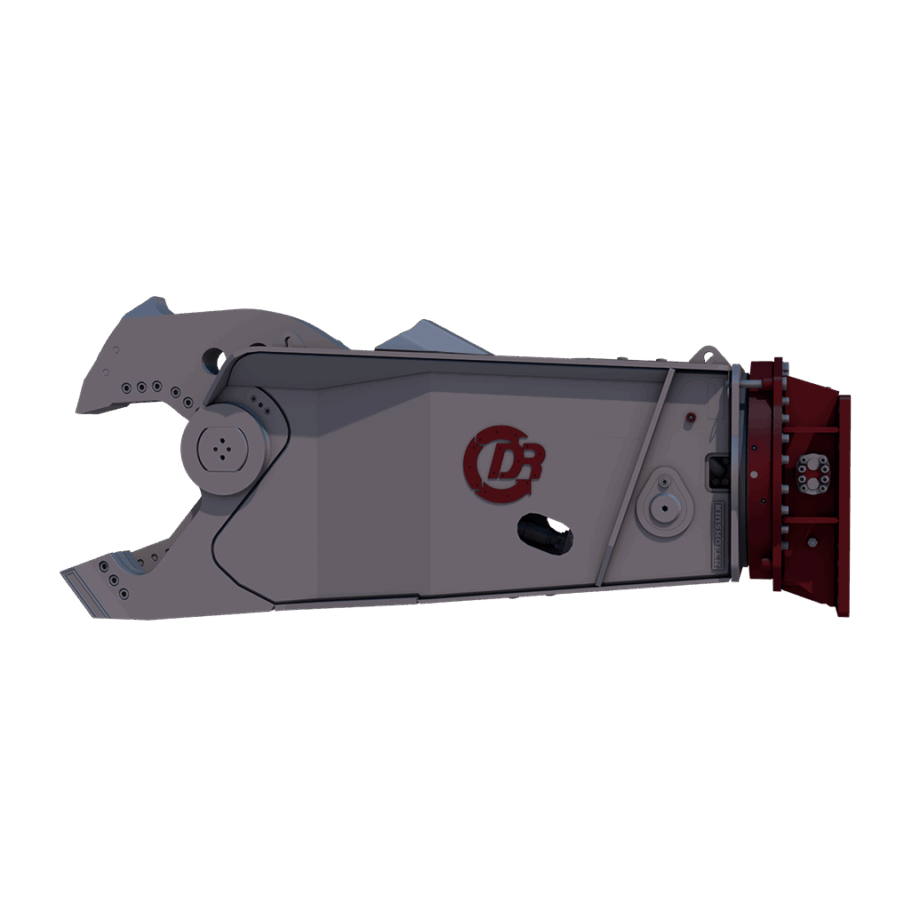

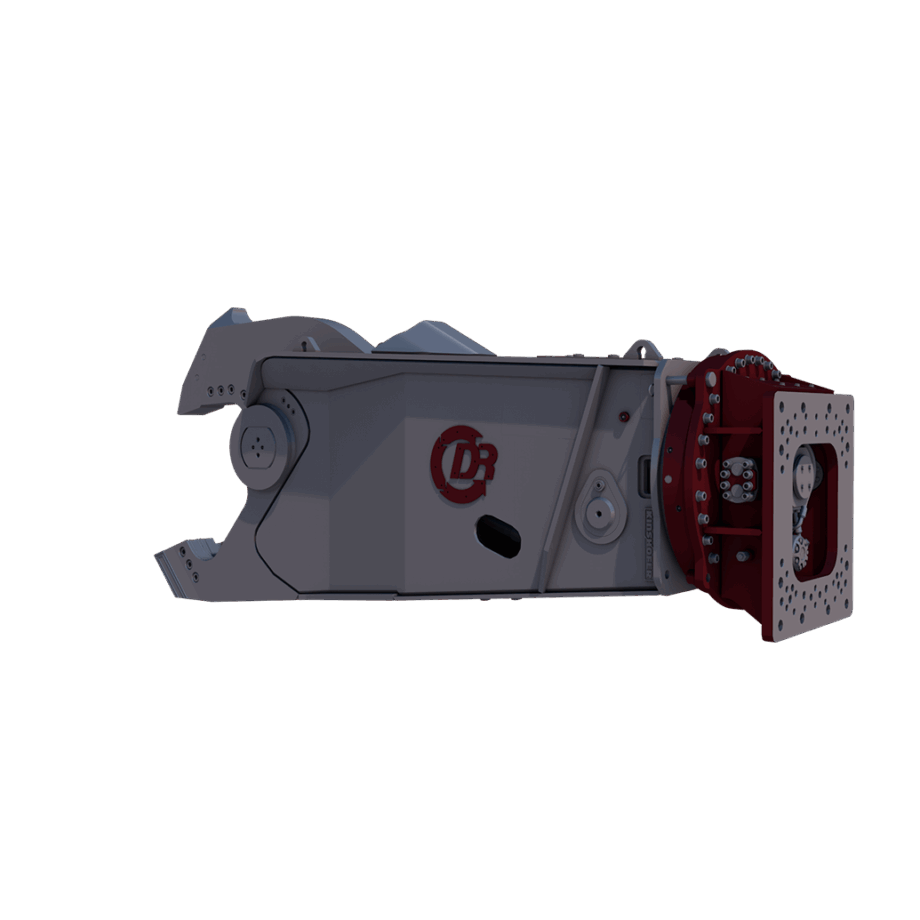

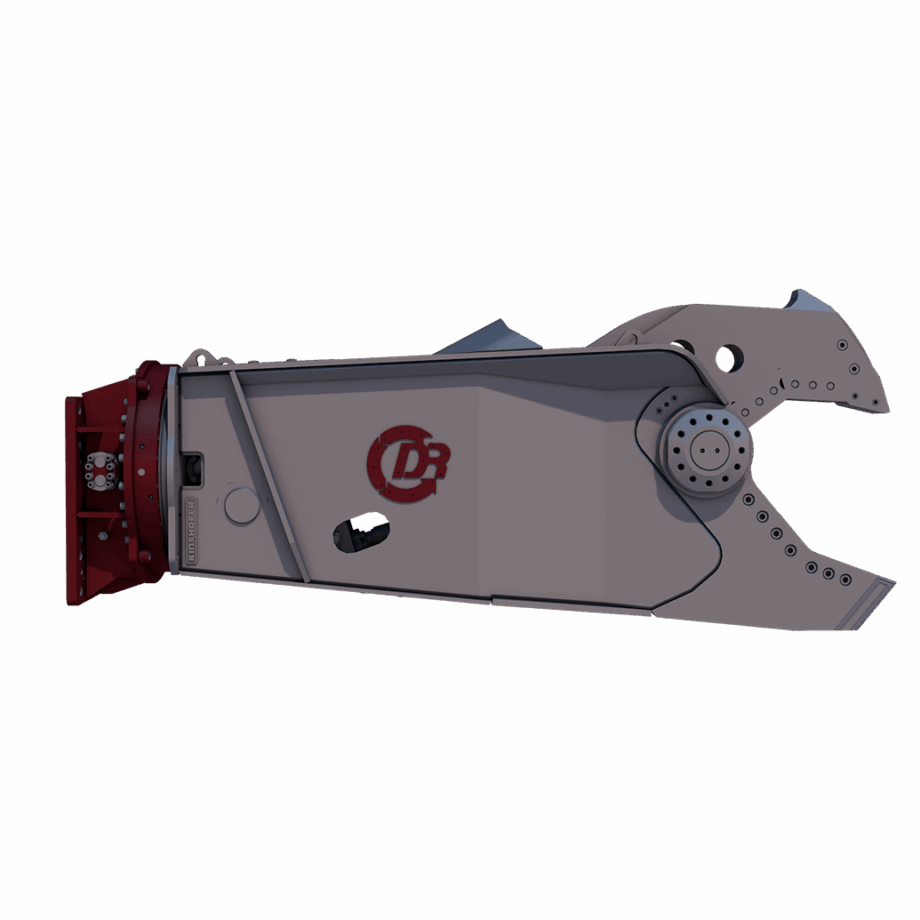

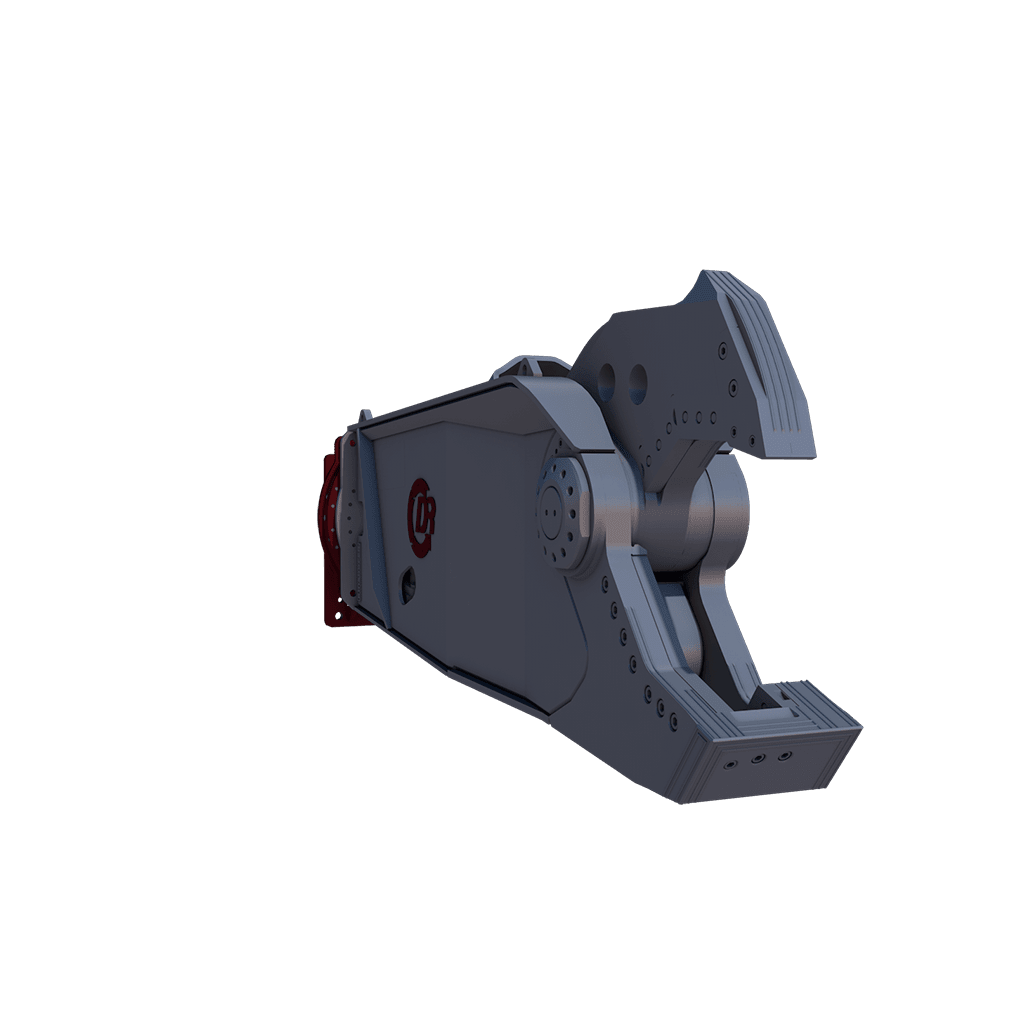

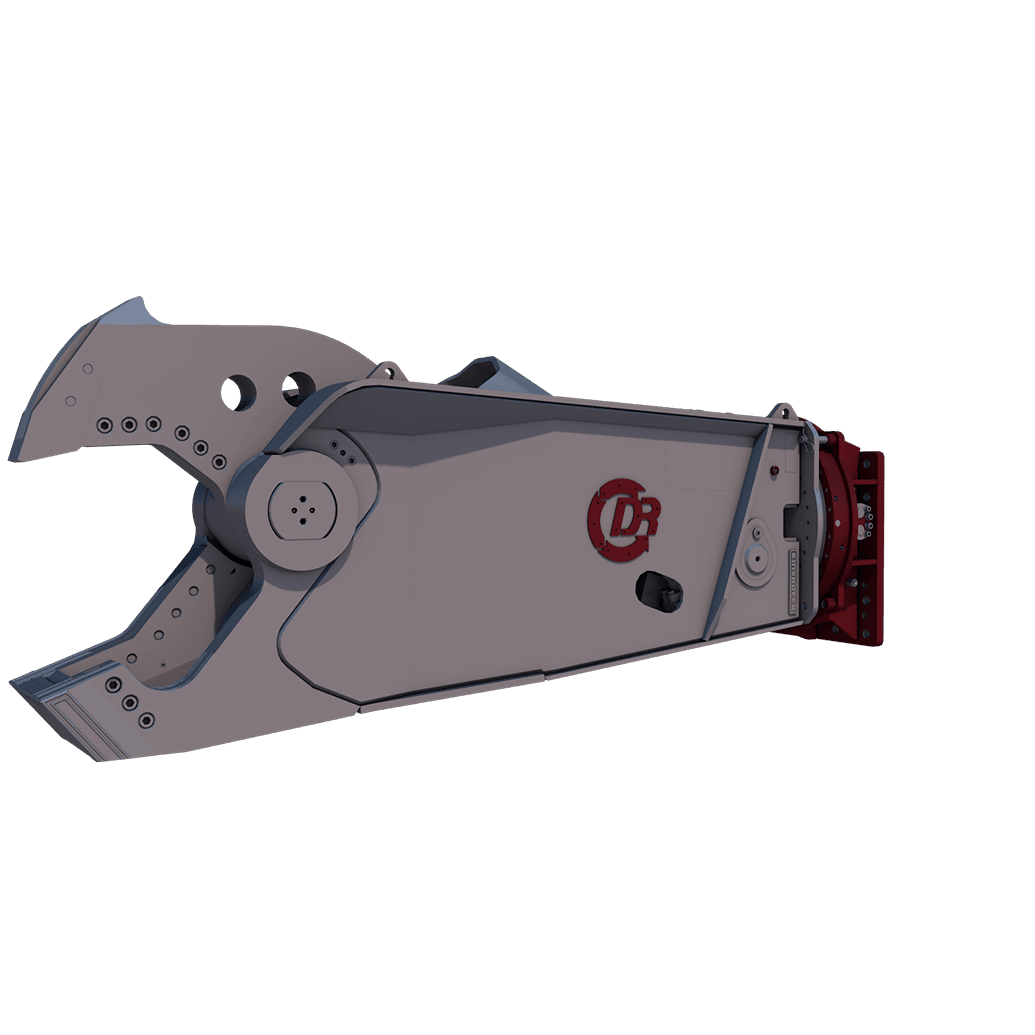

    The Demarec DXS scrap shears, equipped with DemaPower 2.0, excels in power and speed in combination with a favorable own weight for the best performance in daily use during demolition and recycling activities. Due to the DemaPower 2.0 cylinder with four pressure chambers and 25% more power in combination with a double-acting speed valve, which ensures extremely fast cycle times, the DXS scrap shears have the performance equivalent to shears two sizes up. There are 4 types of shears available for mounting on 18-80 ton excavators. This robust tool can be used for a wide variety of jobs including demolition, scrap processing and tire recycling. The DXS scrap shear has an offset apex jaw design. This jaw design forces the material into the jaw and starts cutting during the compression of the material.

    Read more…

    More information
    Video
    Information brochure



    Description

    ‘The DemaPower 2.0 cylinder with four pressure chambers and 25% more power in combination with a double-acting speed valve, which ensures extremely fast cycle times, the DXS scrap shears have the performance equivalent to shears one to two sizes larger.’

    DXS-50-A

    DXS-50-A

    DXS-40-A

    DXS-60-A

    Key features and benefits

    Click on the hotspots for more information!

    IN THE END... IT'S ONLY ABOUT THE RIGHT TOOL

    Technical specifications

    TypeWeight*Machine weight [boom]Machine weight [dipper]Jaw openingJaw depth
    3200 kg18 – 25 t25 – 35 t630 mm665 mm
    DXS-40-FQC803425 kg18 – 25 t25 – 35 t630 mm665 mm
    DXS-50-A4500 kg25 – 35 t35 – 50 t730 mm780 mm
    DXS-50-FQC804630 kg25 – 35 t35 – 50 t730 mm780 mm
    DXS-60-A5800 kg32 – 50 t50 – 70 t820 mm835 mm
    DXS-60-FQC805800 kg32 – 50 t50 – 70 t820 mm835 mm
    DXS-70-A6750 kg35 – 65 t60 – 80 t900 mm895 mm
    DXS-70-FQC6750 kg35 – 65 t60 – 80 t900 mm895 mm

    *Excl adapter
    **Machine weights are indicative only, depending on boom / stick configuration. Stability check required.

    For more technical information, download our brochure here.
