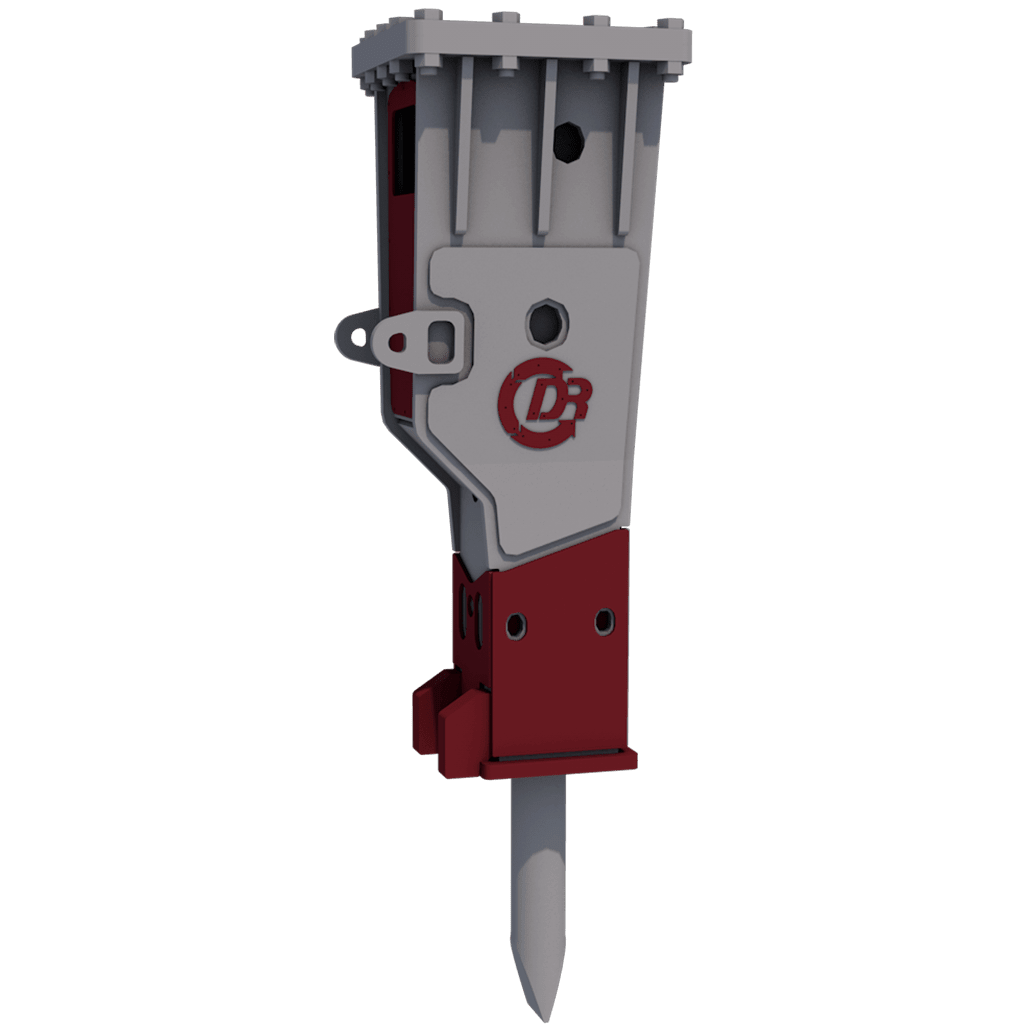

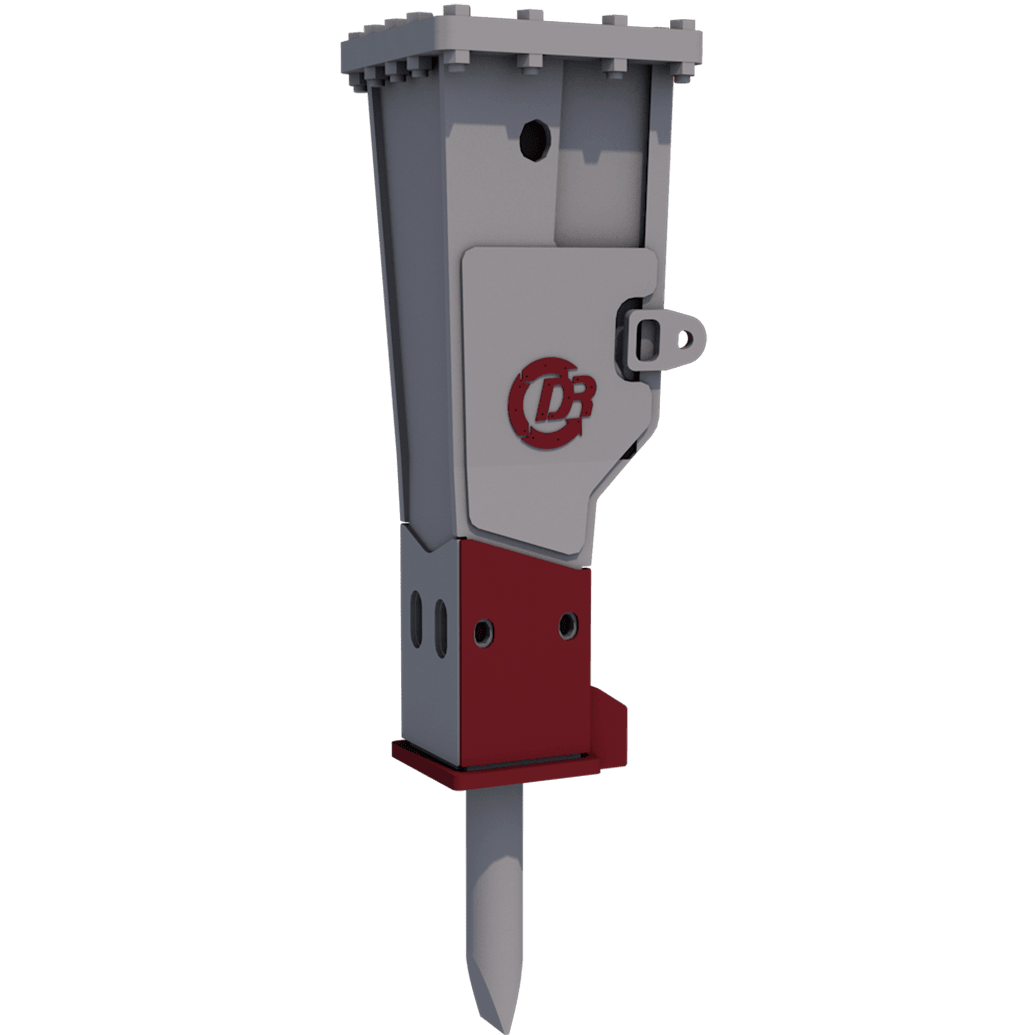

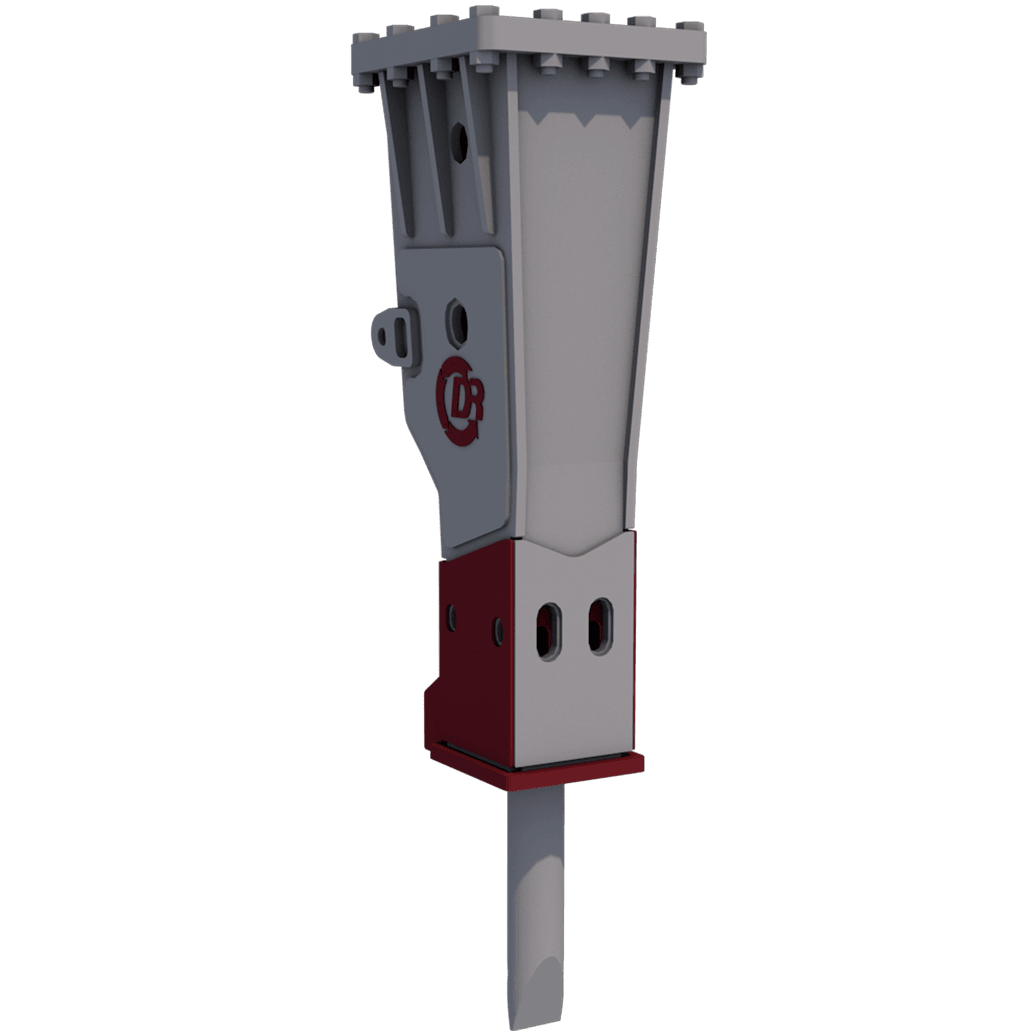

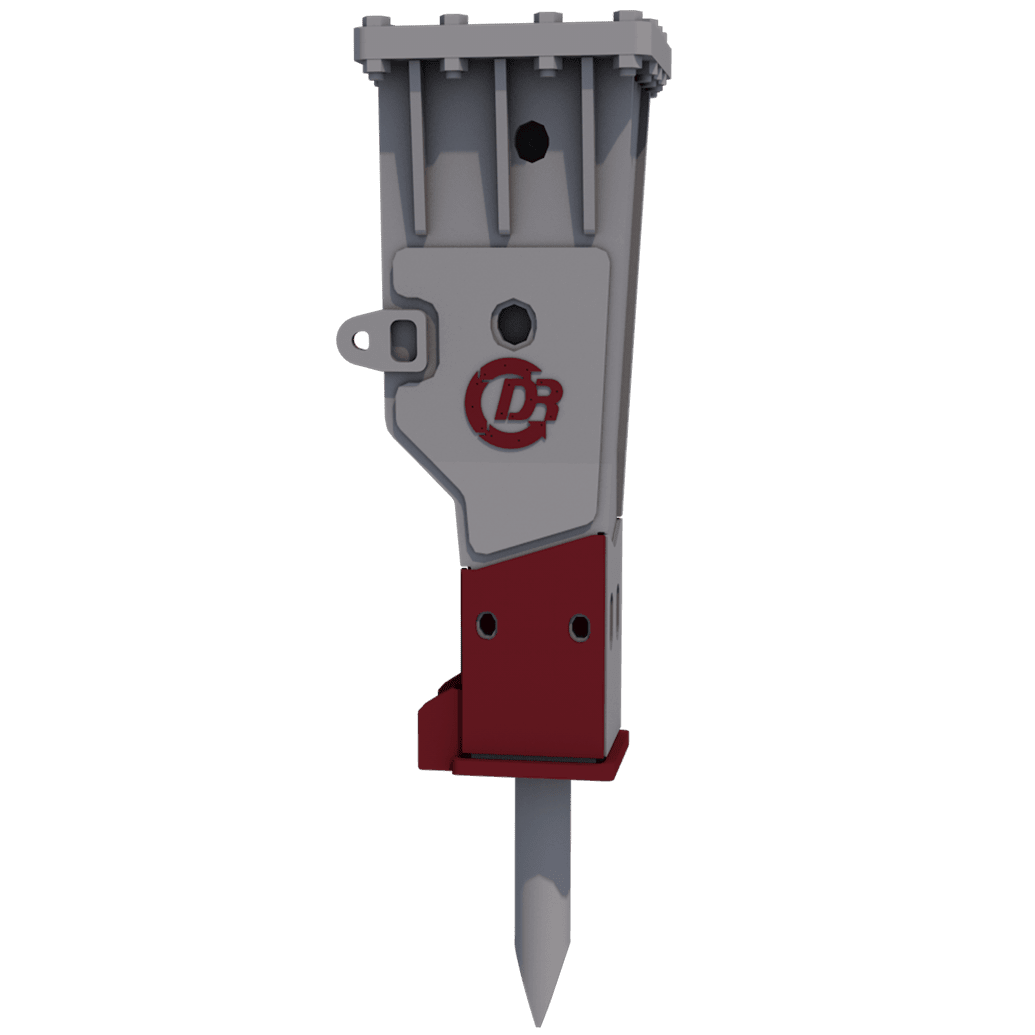

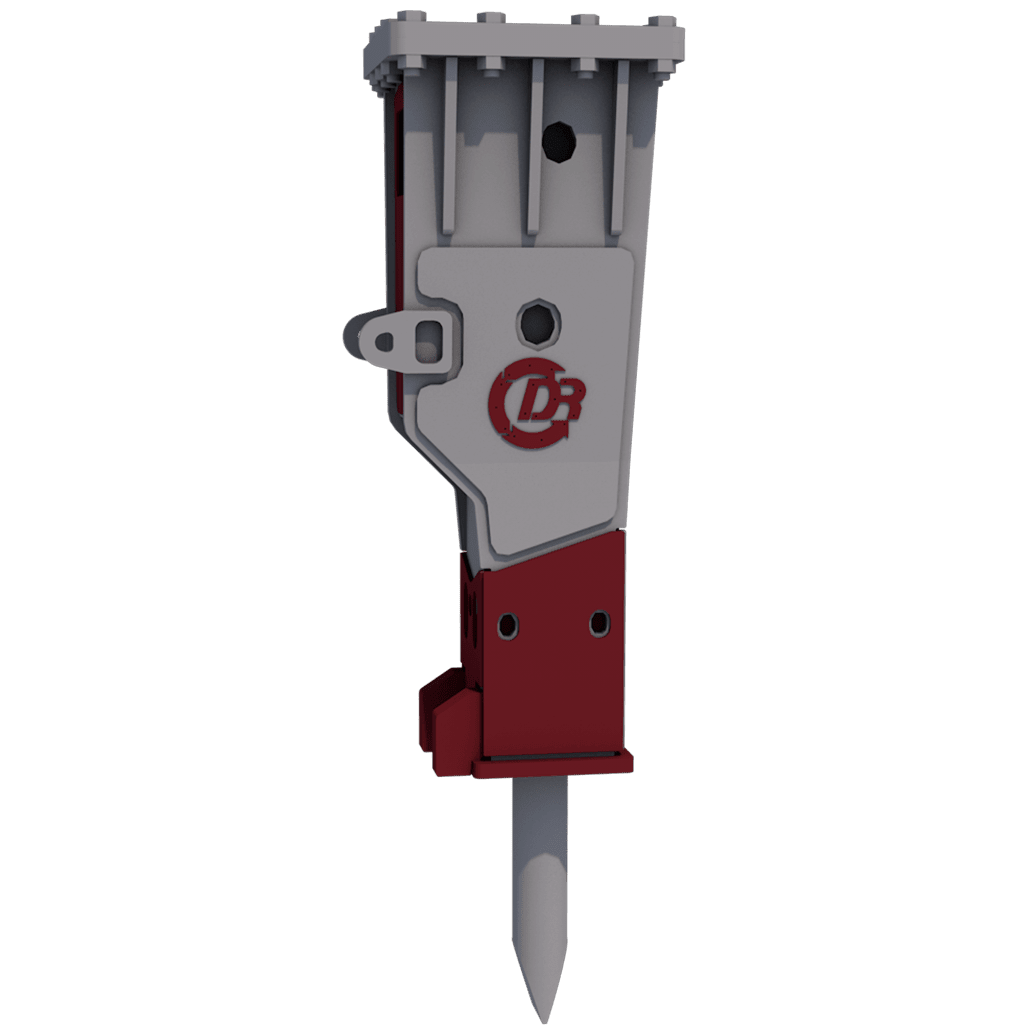

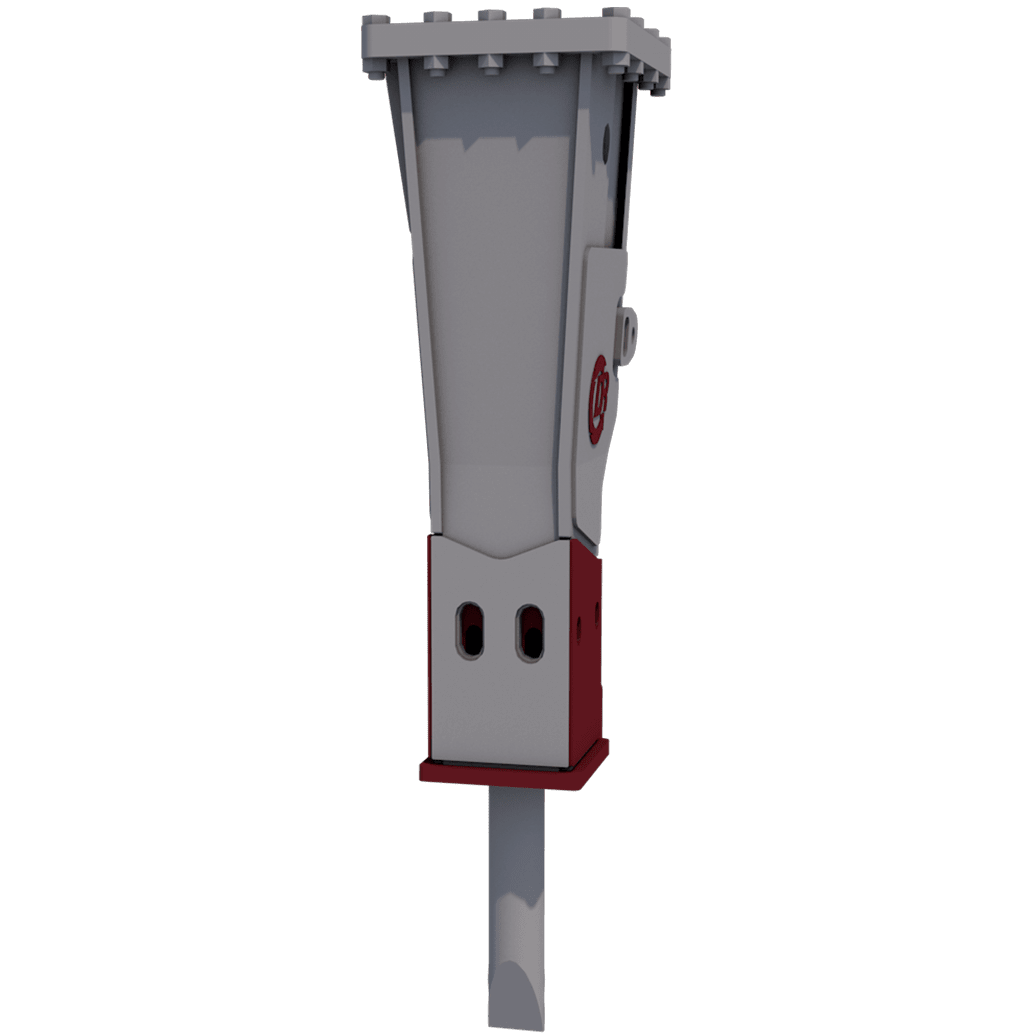

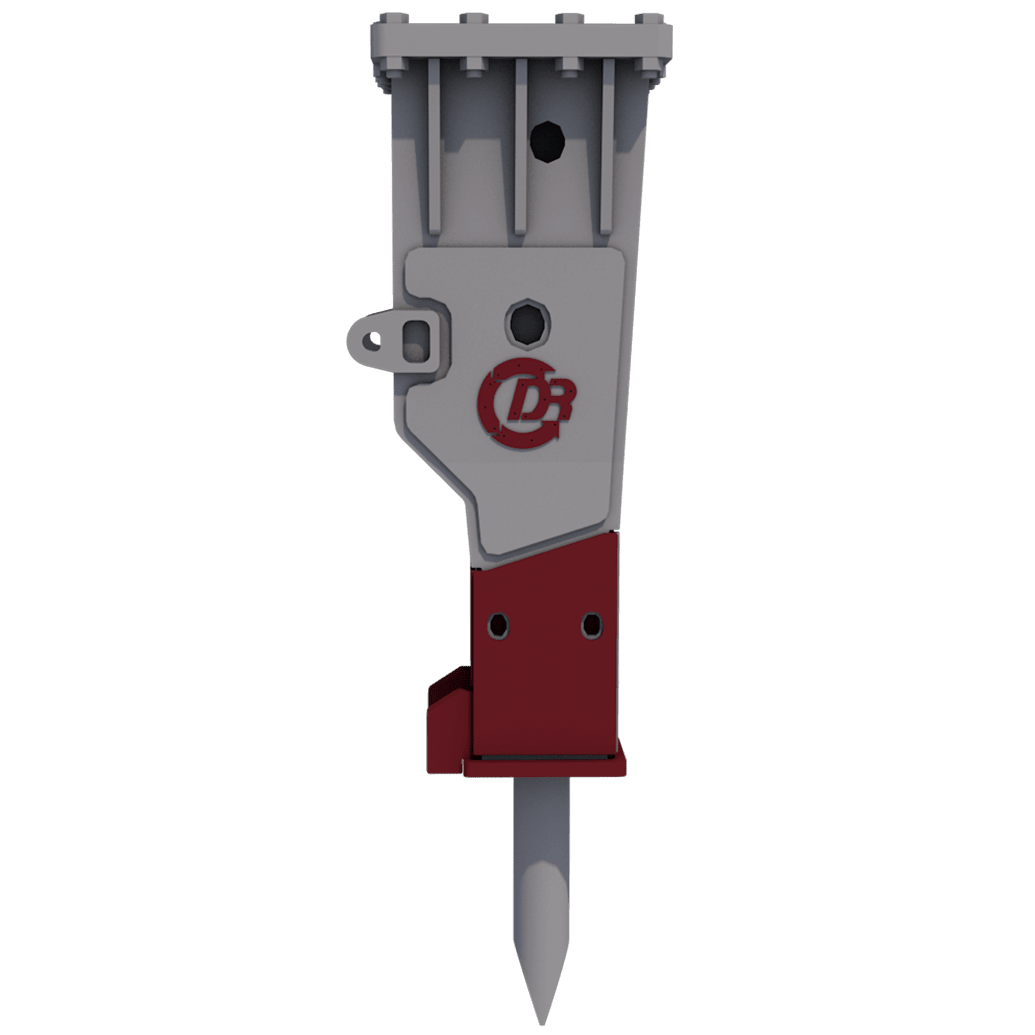

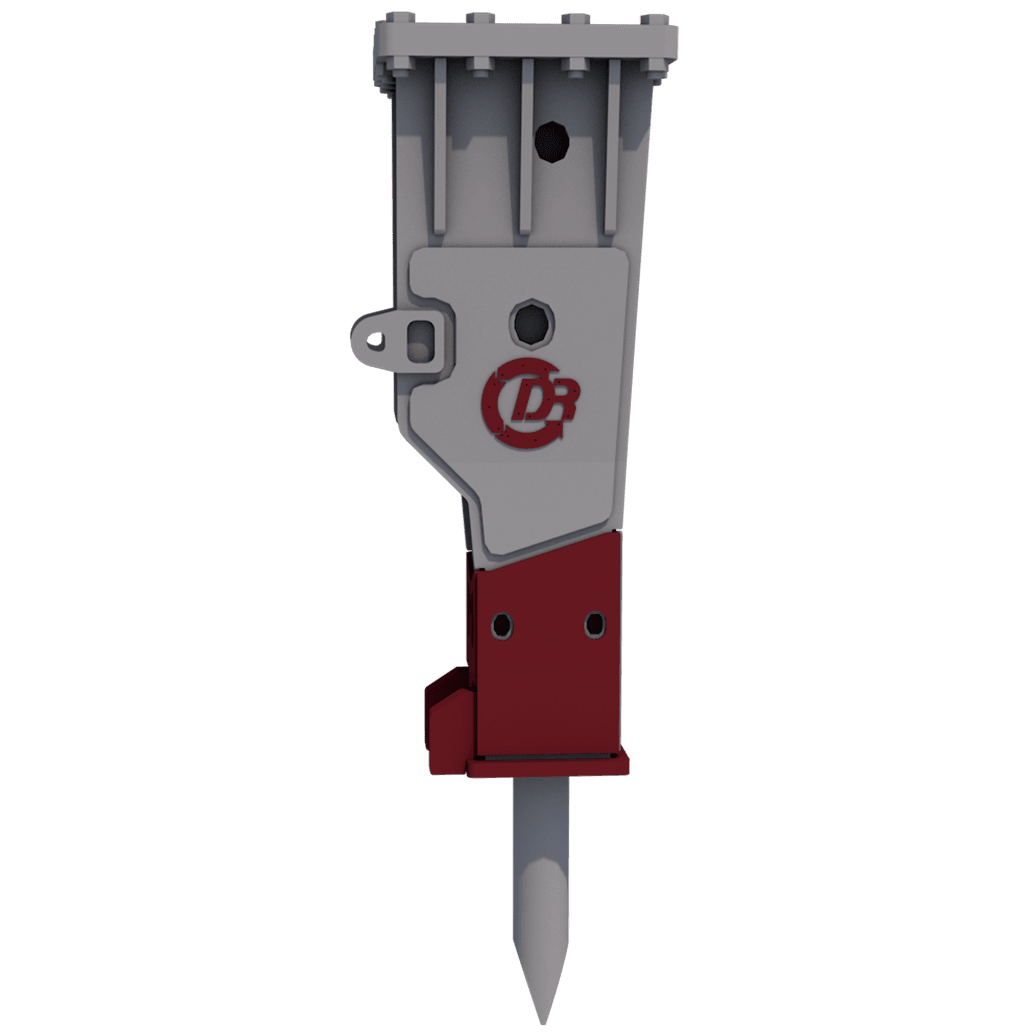

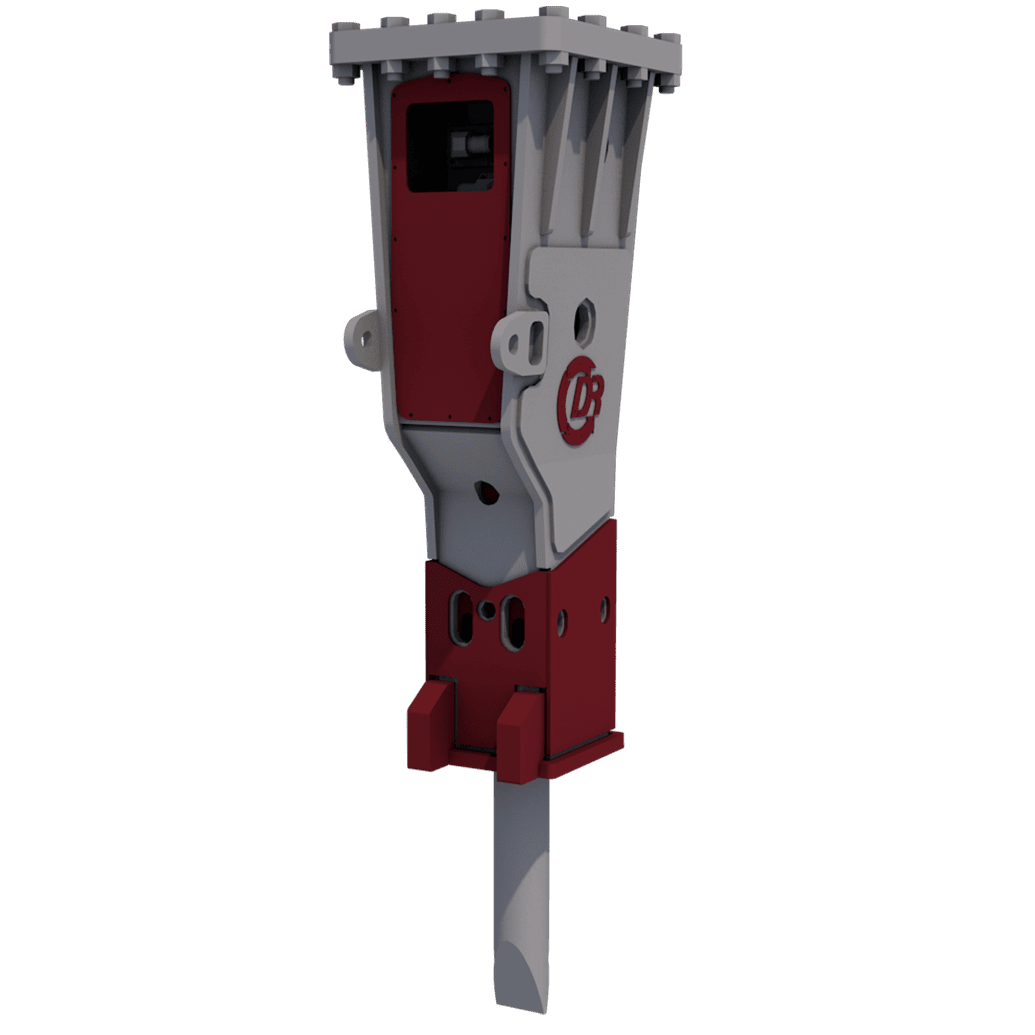

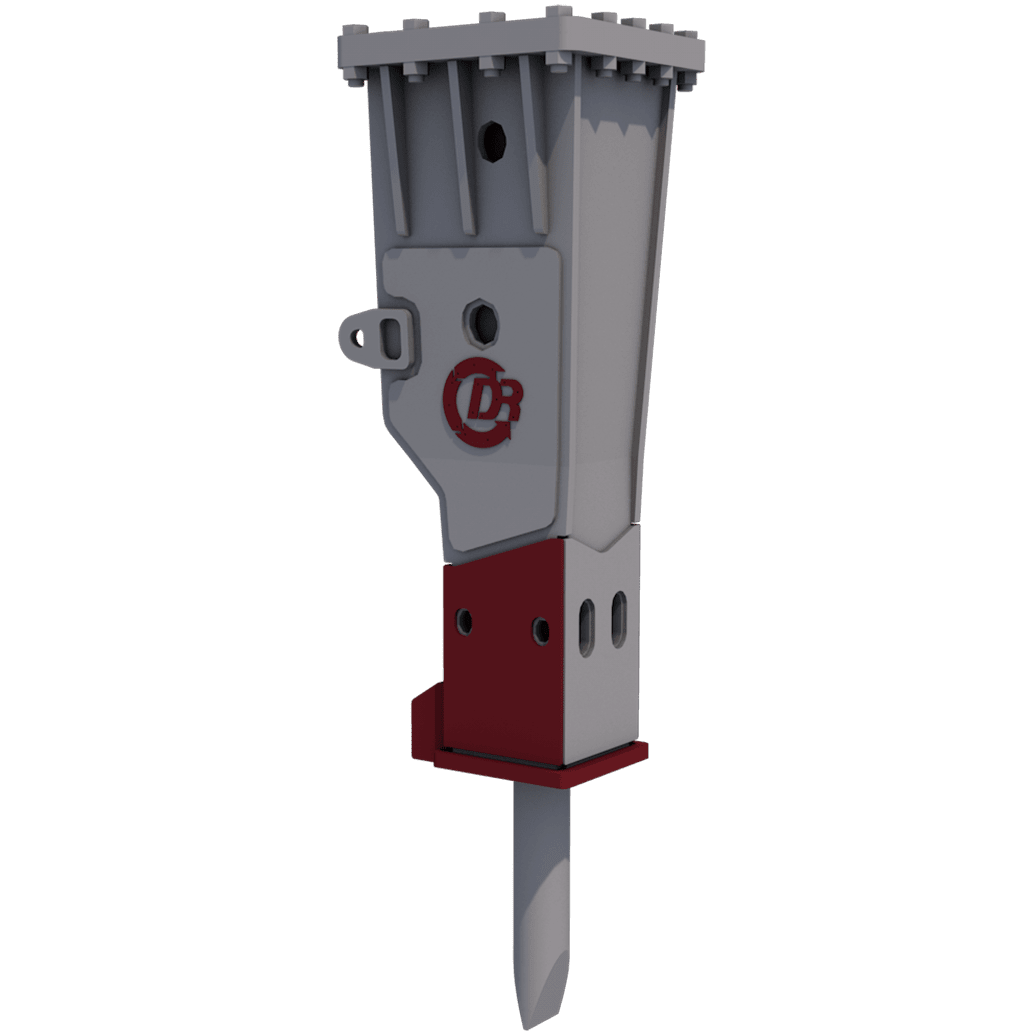

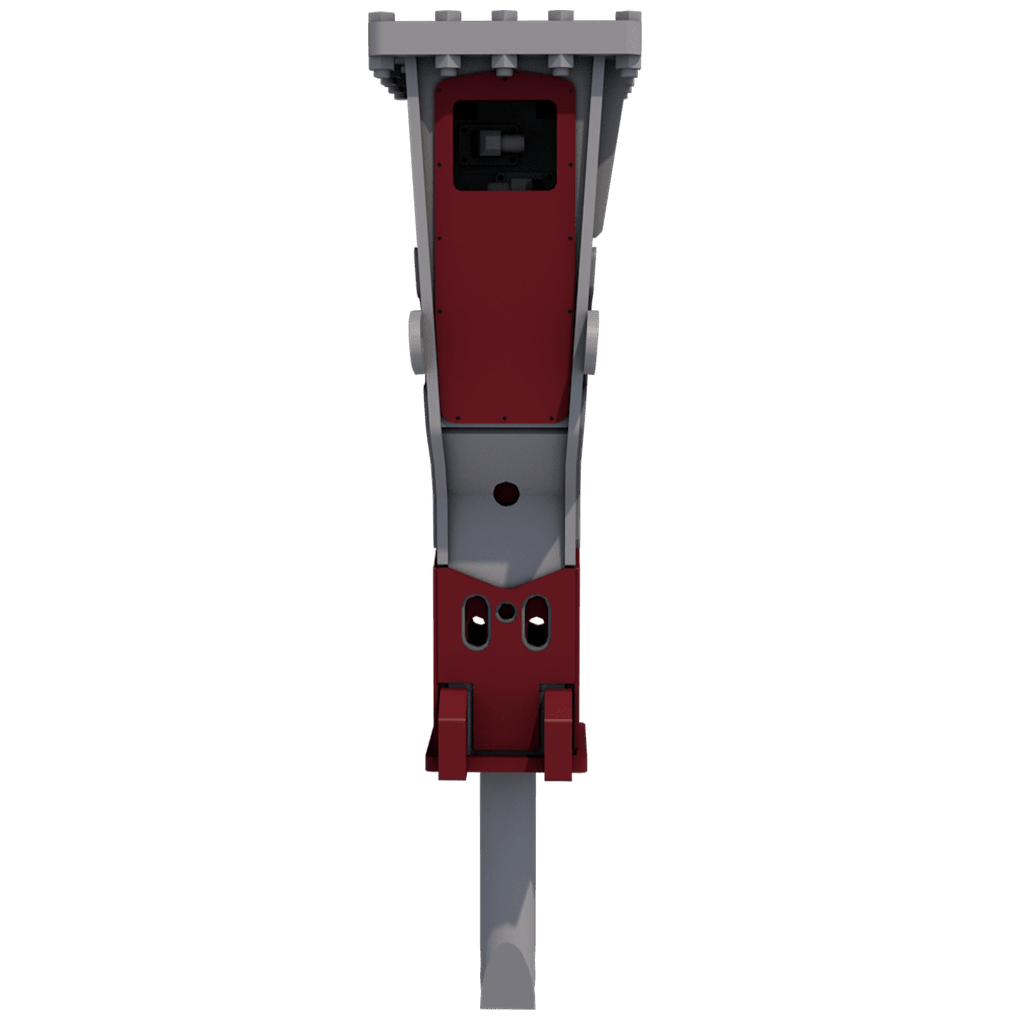

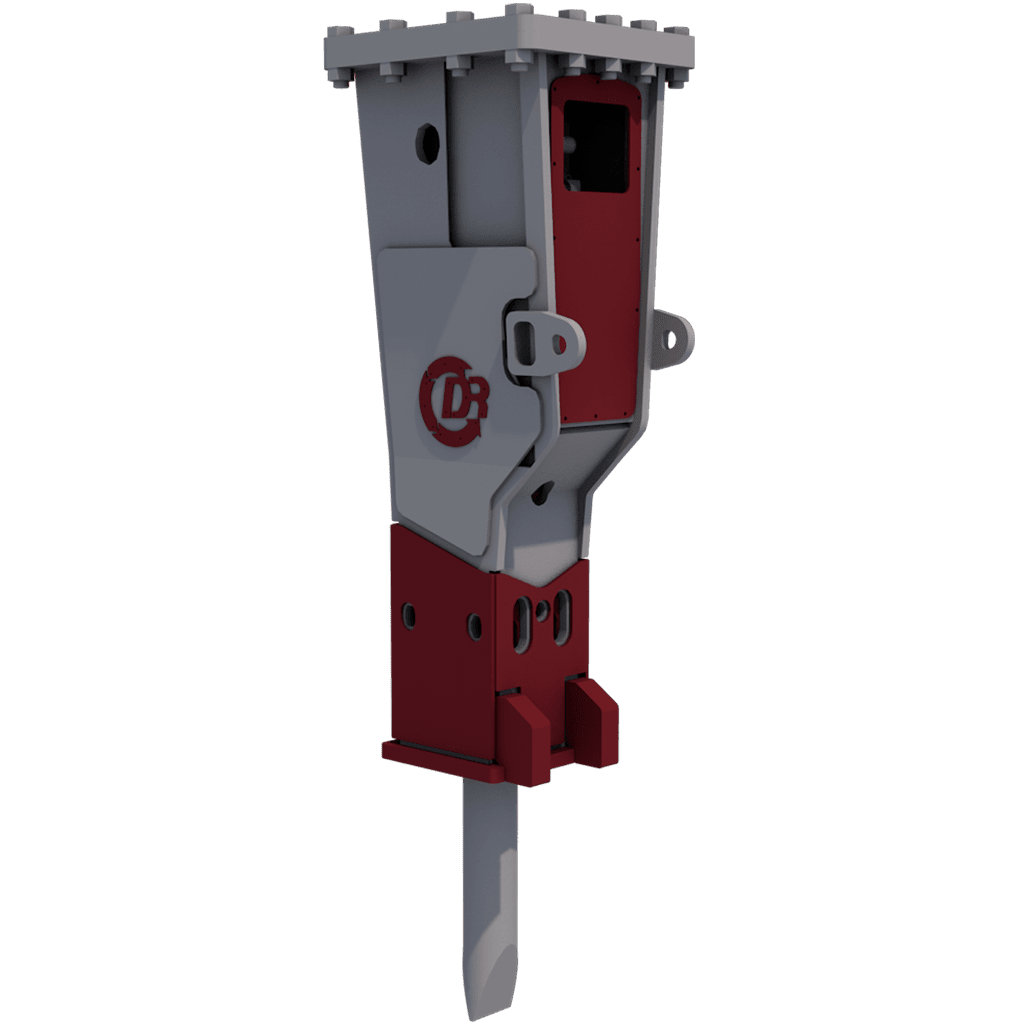

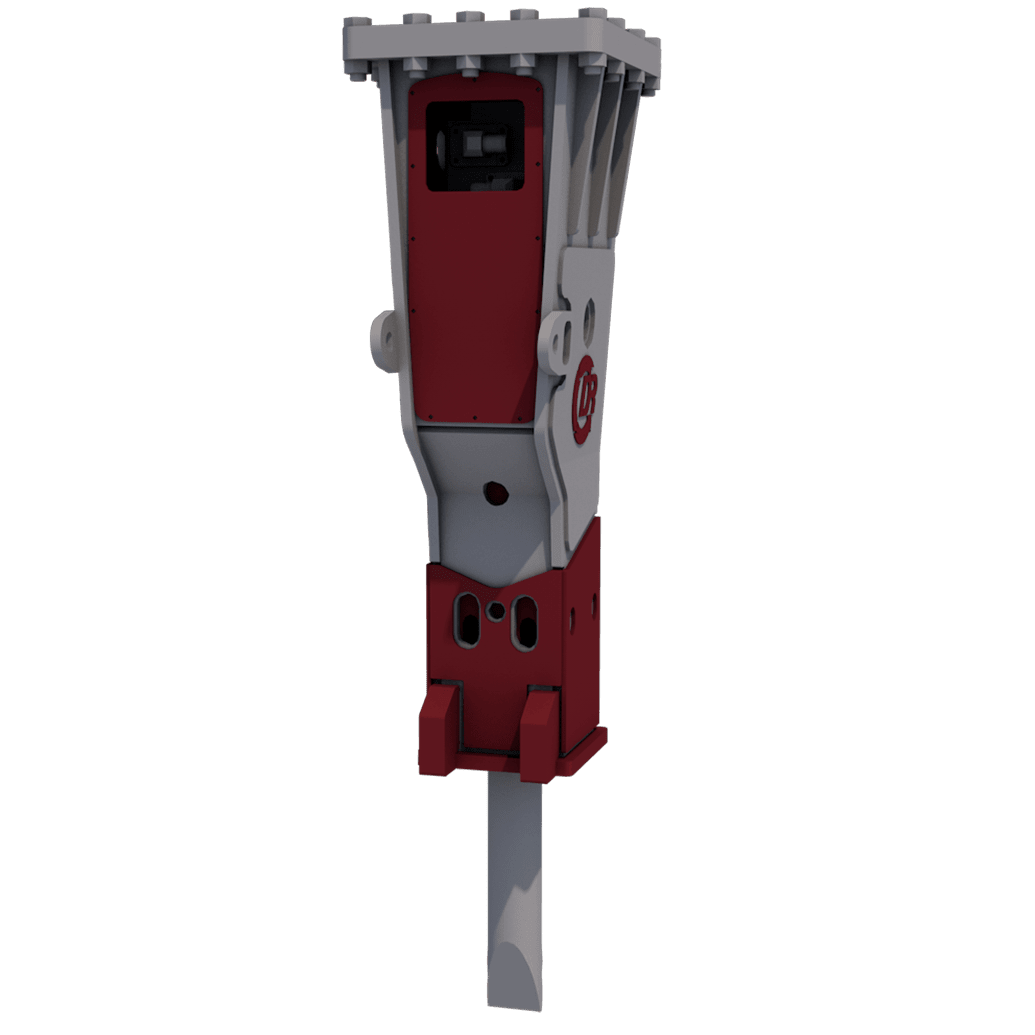

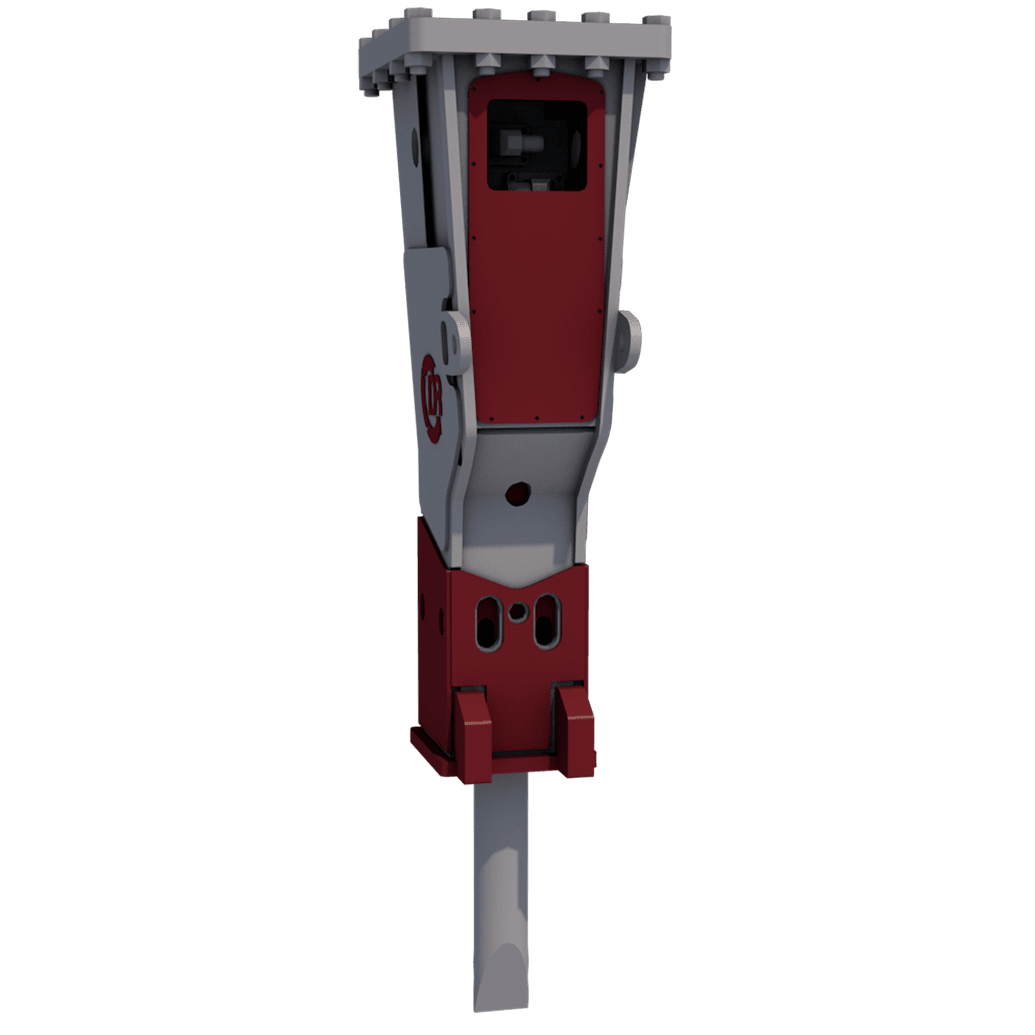

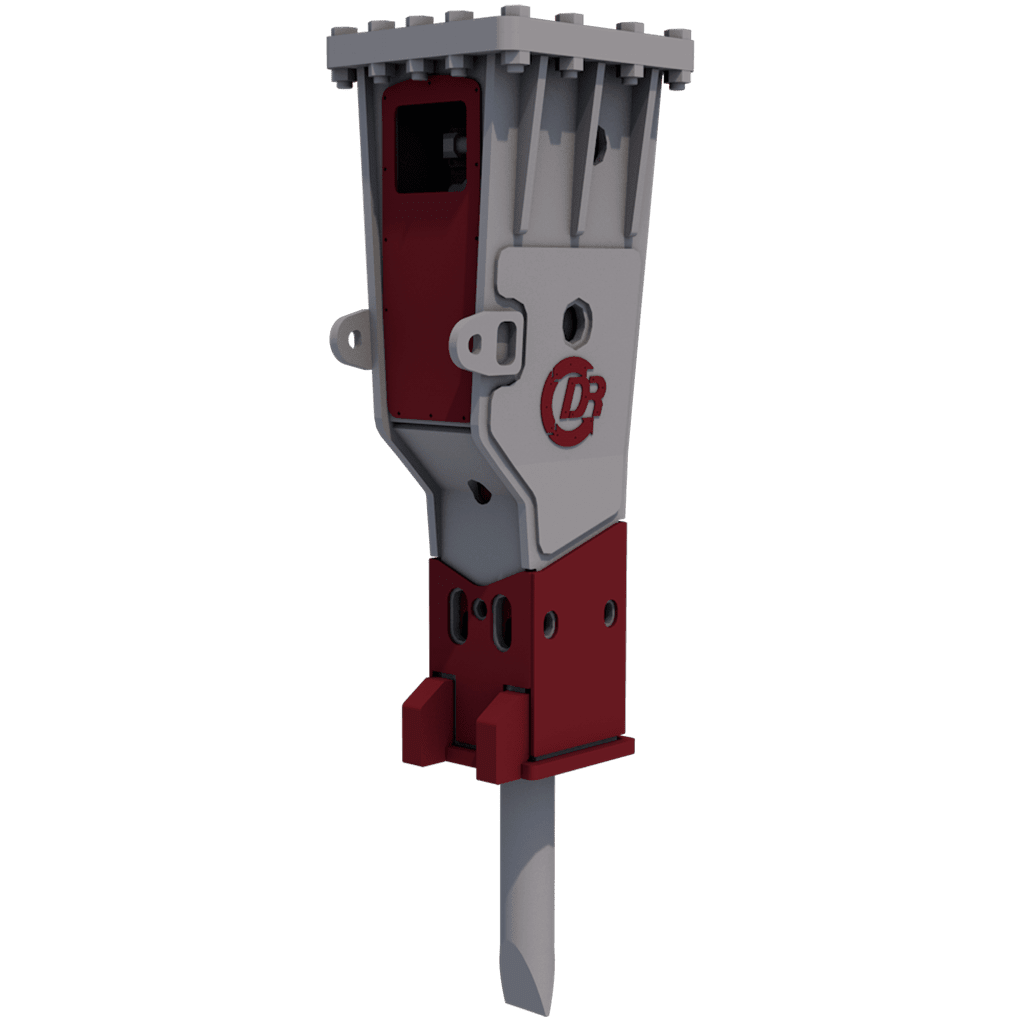

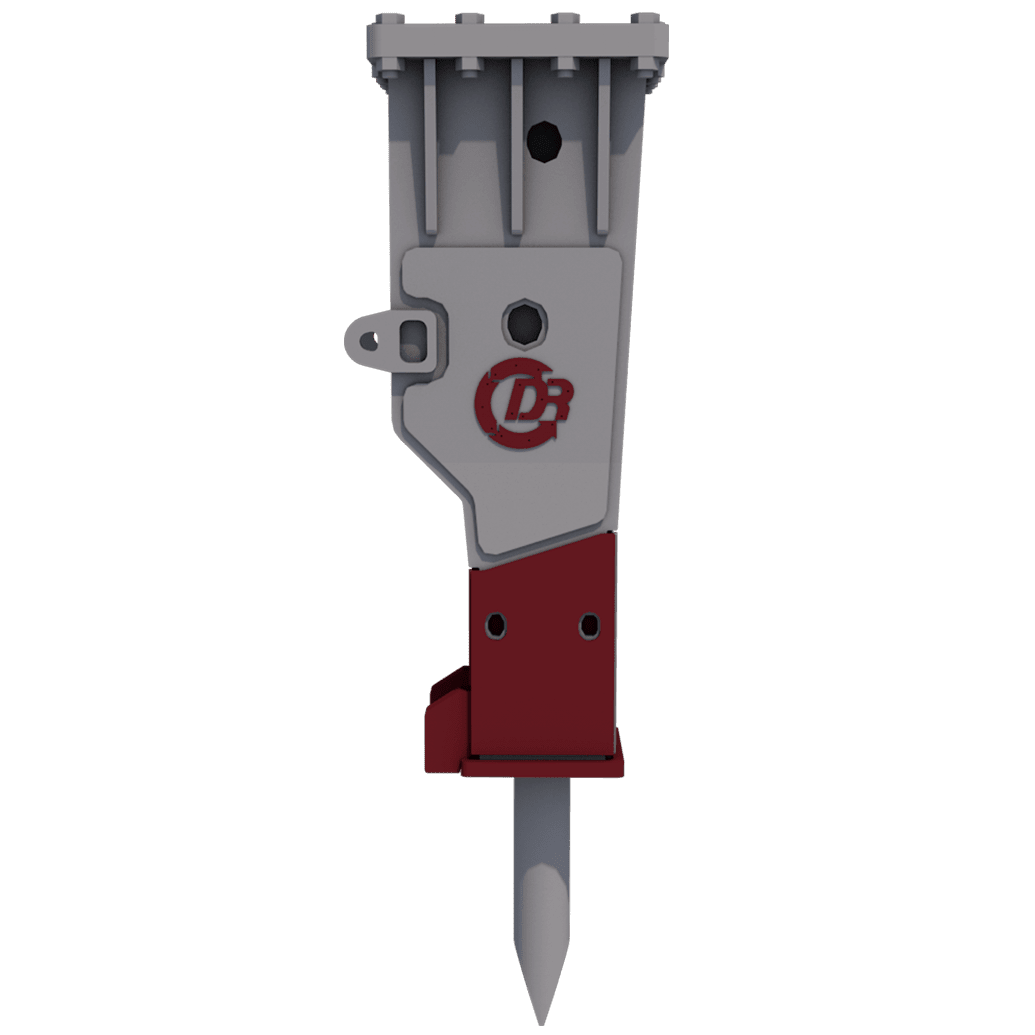

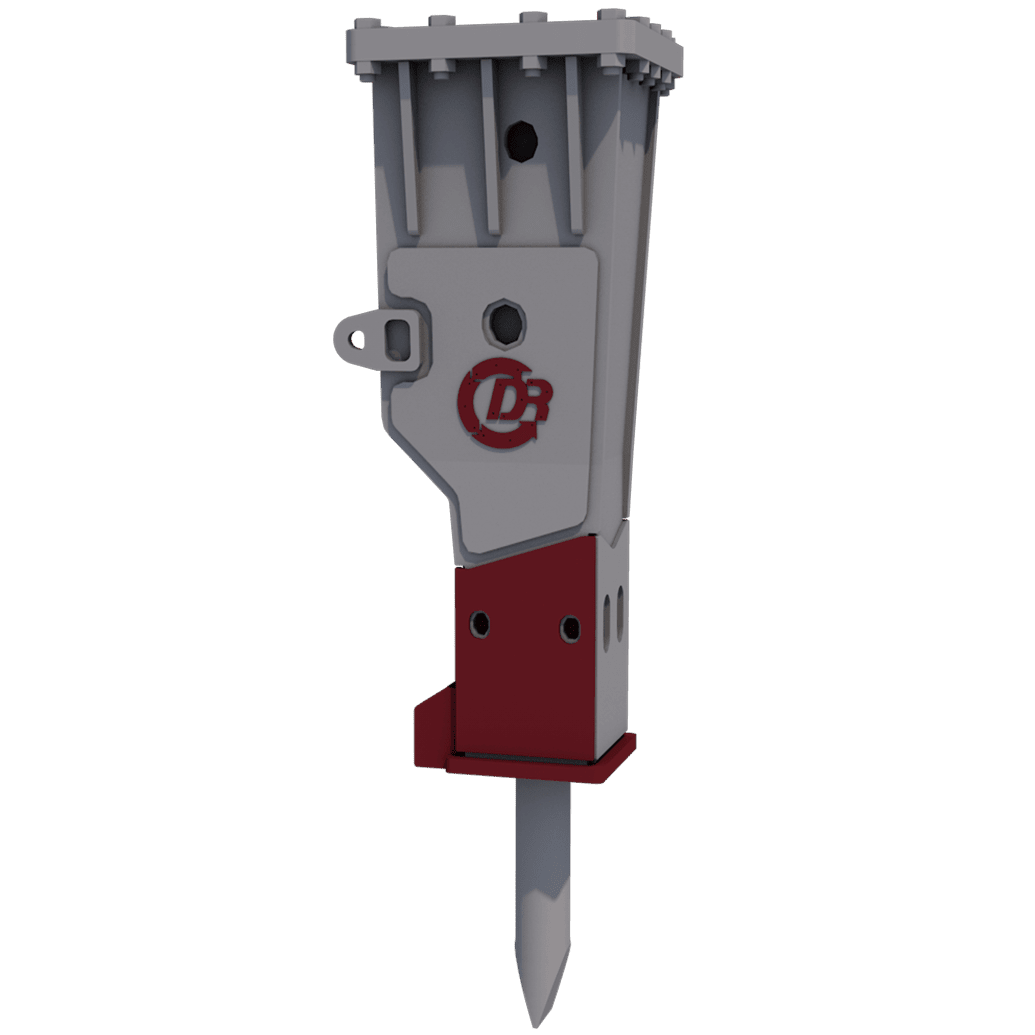

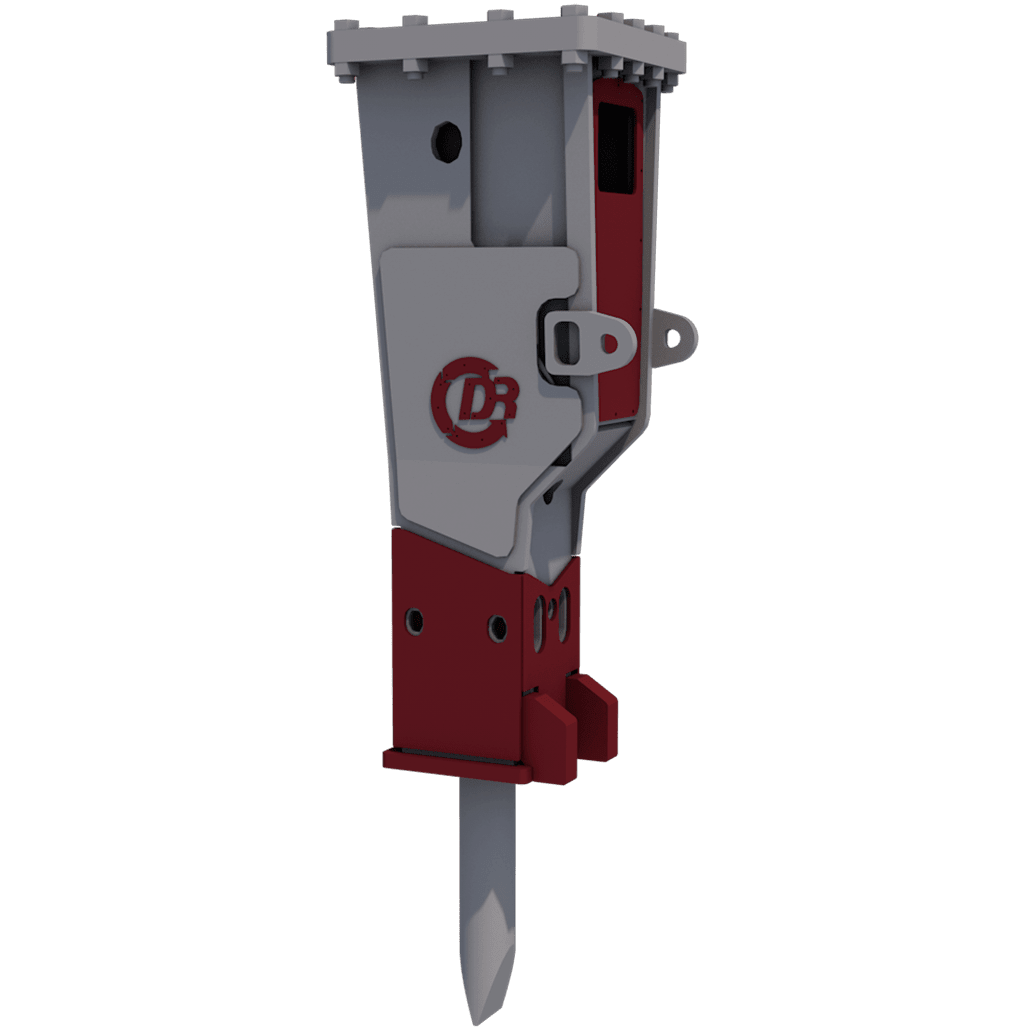

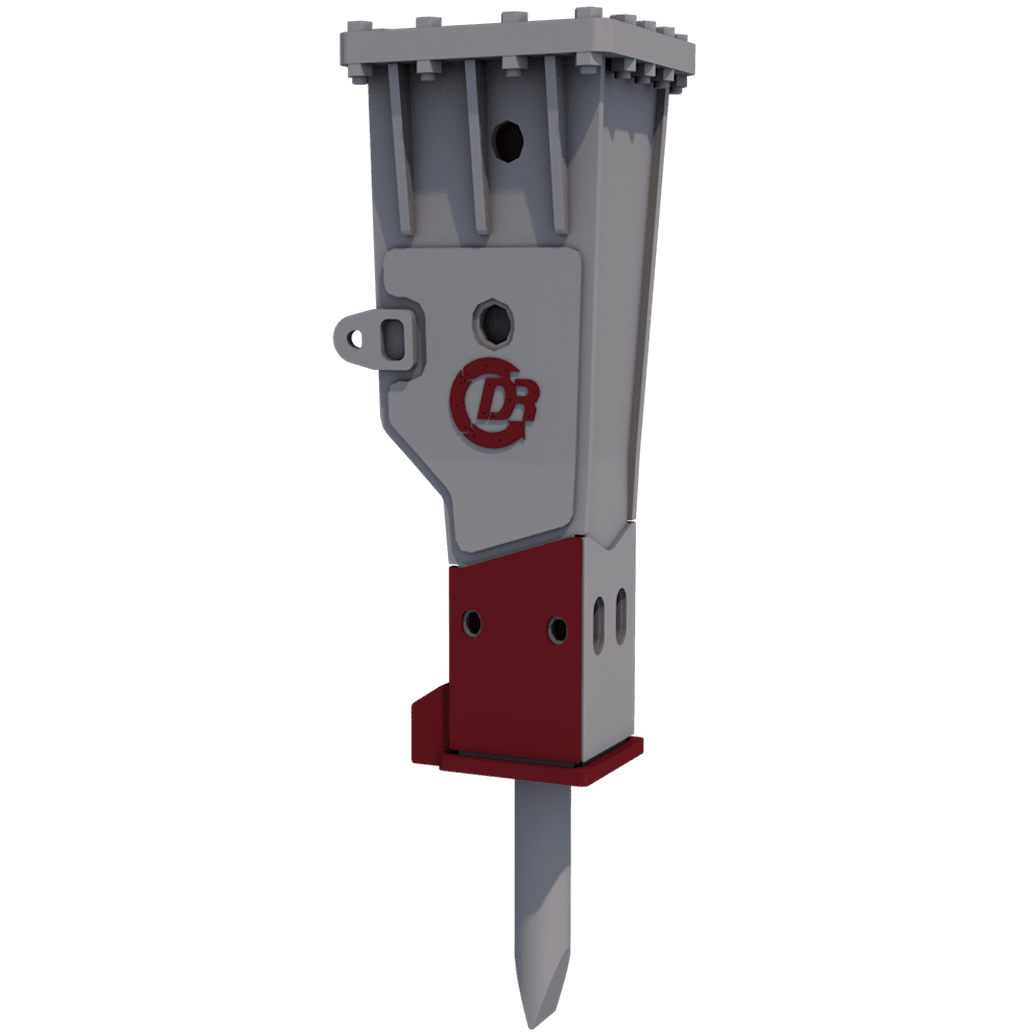

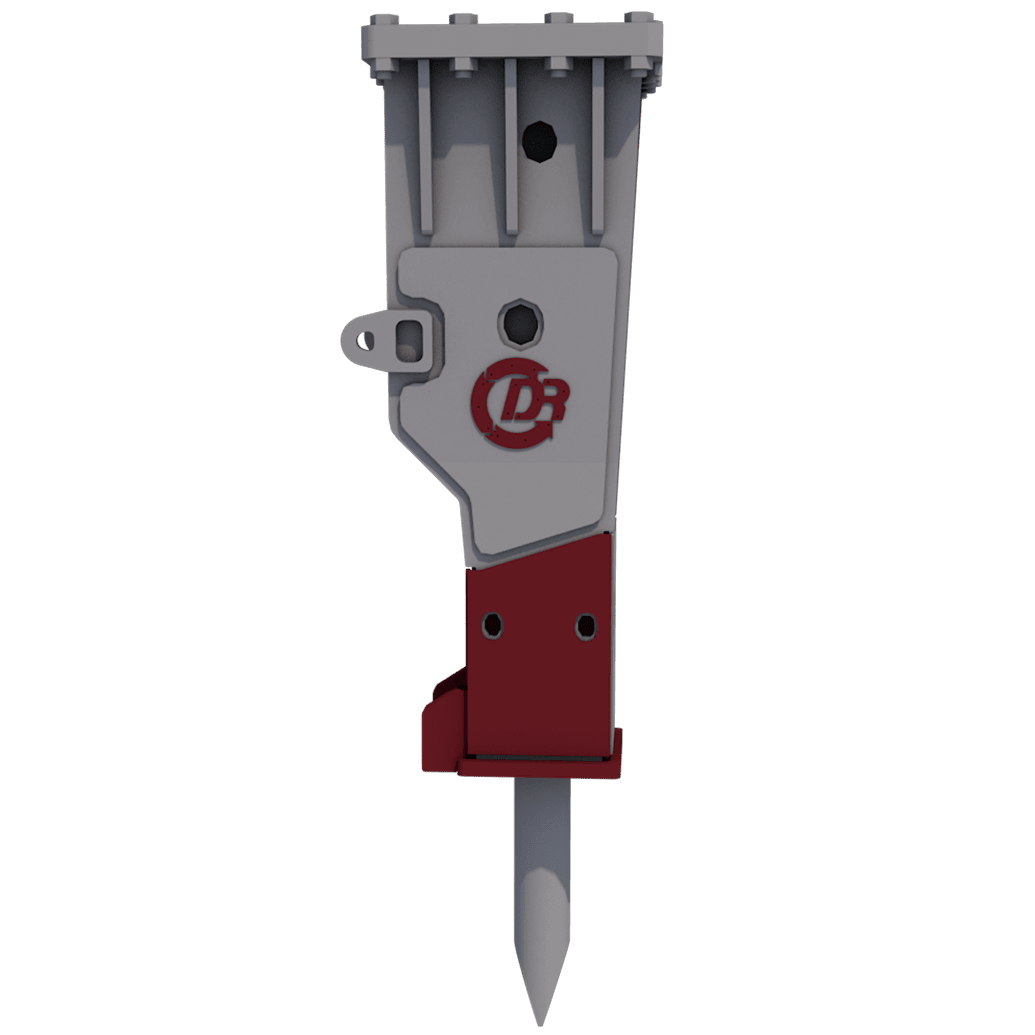

Hydraulic hammer – DFX

    €0.00

    The breakers of the DFX series, thanks to their power and efficiency and to the right relationship between weight and power are suitable for secondary demolition work, excavations in quarry, work in urban areas, galleries, pipelines and railway tunnels and, concerning the biggest models, demolitions in open pit mining.
    The FX series starts from the DFX-14 up to DFX-200 breaker; DFX-14 and DFX-17 have neither membrane, nor possibility of manual adjustment of the frequency of blows.

    More information
    Video
    Download brochure

    Aan verlanglijst toevoegen
    Categories: ,

    Description

    “A combination of punchingpower and innovation”

    DFX-32

    DFX-70

    Key features and benefits

    Click on the hotspots for more information

    Video
    Download brochure

    IN THE END... IT'S ONLY ABOUT THE RIGHT TOOL

    Technical specifications

    Technical specification
    Type Carrier weight* Weight** Height*** Chisel diameter Flow Oil pressure Max back pressure
    DFX-16 10 – 16 ton 950 kg 1940mm 115 mm 90 – 120 l/min 165 bar 25 bar
    DFX-20 14 – 24 ton 1250 kg 2030 mm 120 mm 110 – 140 l/min 170 bar 25 bar
    DFX-26 20 – 30 ton 1700 kg 2290 mm 135 mm 130 – 160 l/min 180 bar 25 bar
    DFX-29 22 – 27 ton 1850 kg 2515 mm 140 mm 140 – 180 l/min 180 bar 25 bar
    DFX-32 23 – 31 ton 2200 kg 2560 mm 150 mm 165 – 190 l/min 180 bar 25 bar
    DFX-36 28 – 45 ton 2900 kg 2740 mm 160 mm 180 – 240 l/min 180 bar 25 bar
    DFX-40 30 – 47 ton 3200 kg 2740 mm 160 mm 200 – 260 l/min 180 bar 25 bar
    DFX-47 35 – 50 ton 3700 kg 3040 mm 175 mm 250 – 300 l/min 180 bar 25 bar
    DFX-58 37-57 ton 4400 kg 3040 mm 180 mm 270 – 320 l/min 190 bar 25 bar
    DFX-70 40 – 70 ton 4850 kg 3090 mm 195 mm 290 – 350 l/min 250 bar 30 bar
    DFX-80 45-80 ton 5800 kg 4200 mm 215 mm 300-380 l/min 200 bar 30 bar
    DFX-120 60 – 110 ton 7800 kg 4500 mm 215 mm 380 – 440 l/min 215 bar 30 bar
    DFX-150 80 – 170 ton 12000 kg 5200 mm 255 mm 480 – 570 l/min 255 bar 30 bar
    DFX-200 100 – 200 ton 14500 kg 5500 mm 280 mm 500-600 l/min 280 bar 30 bar

    * Depending on capacity of carrier
    ** Weight excluding bracket
    *** With standard tool

    For more technical information, download our brochure here.
