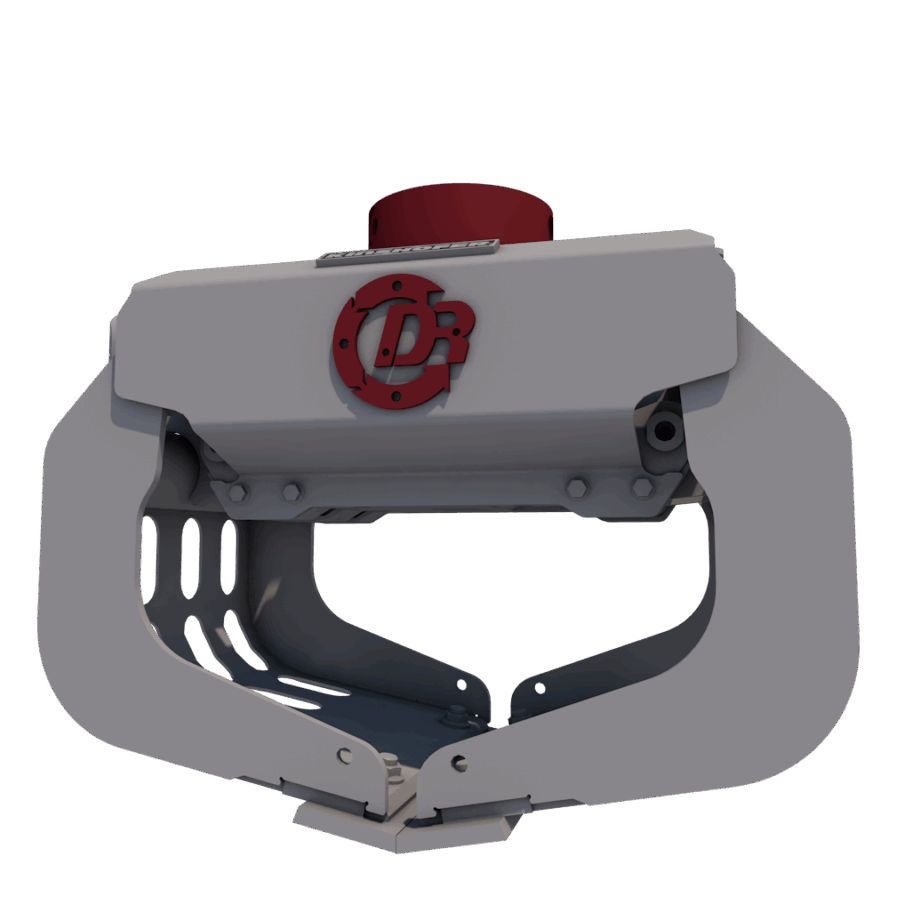

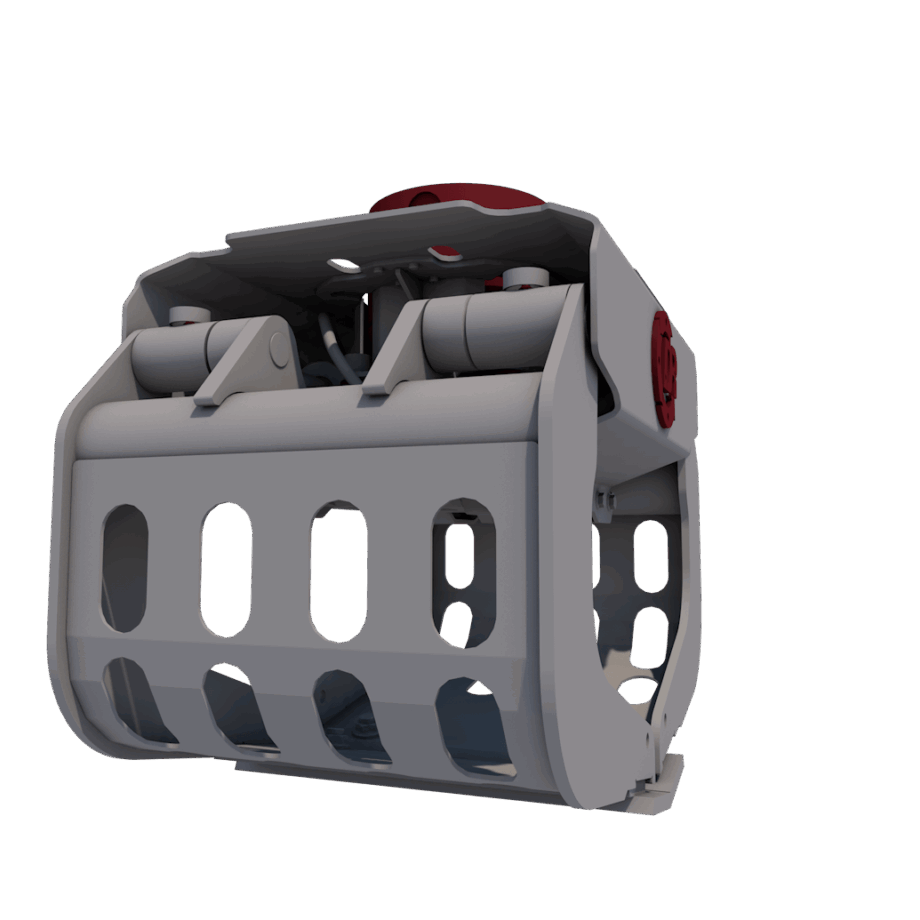

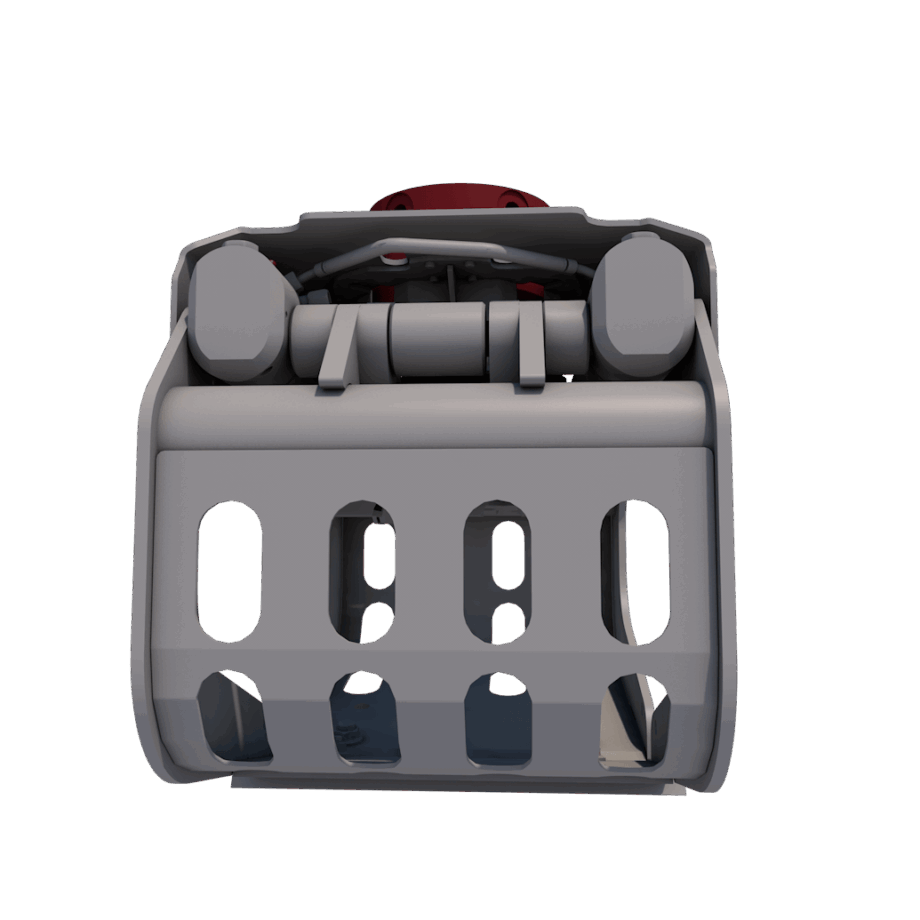

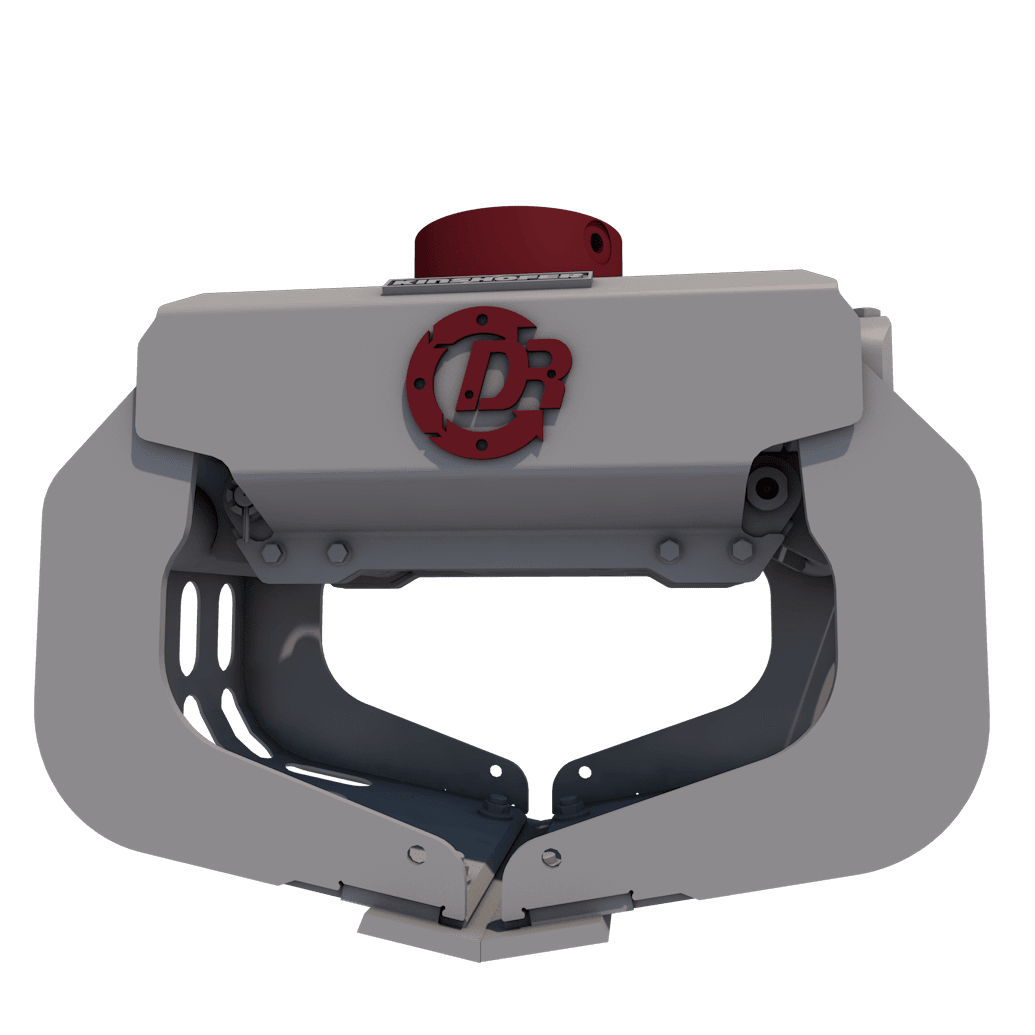

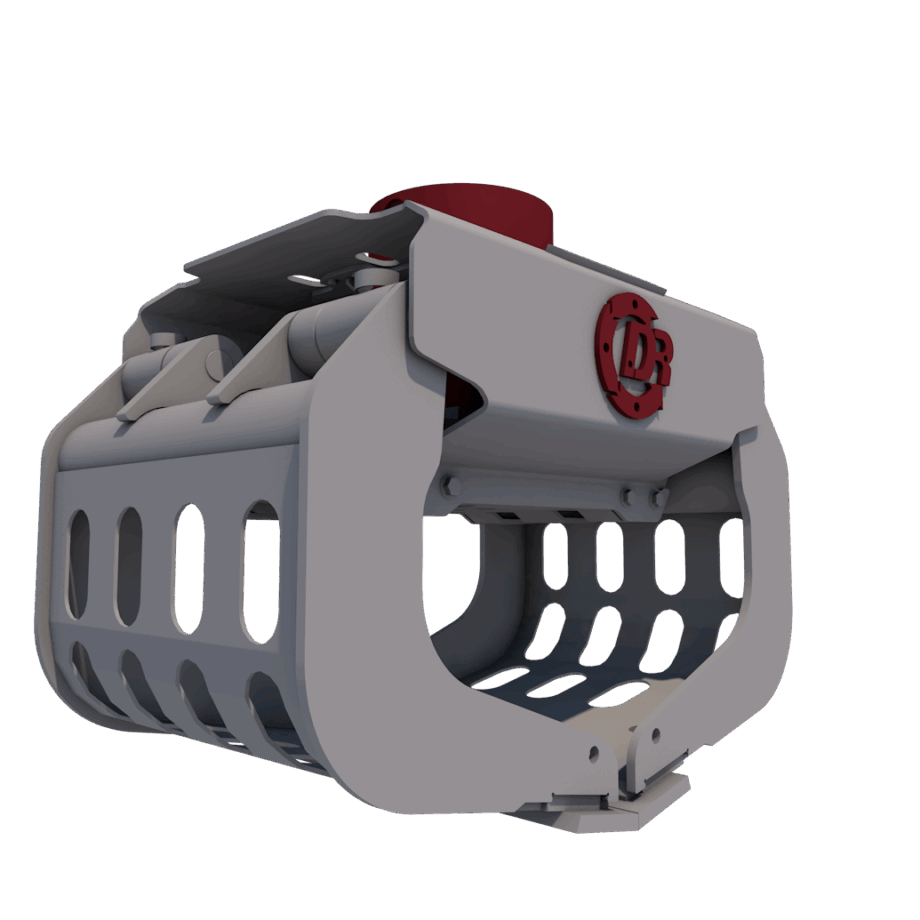

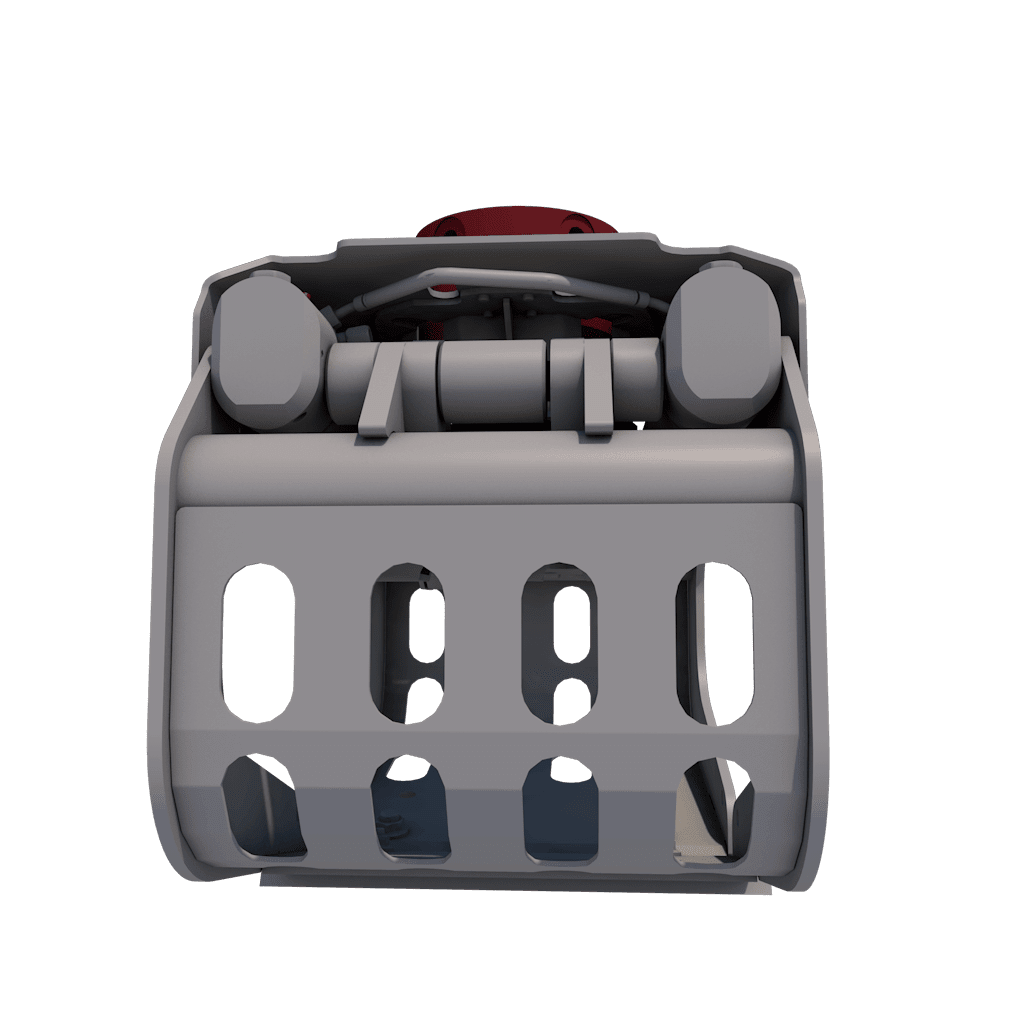

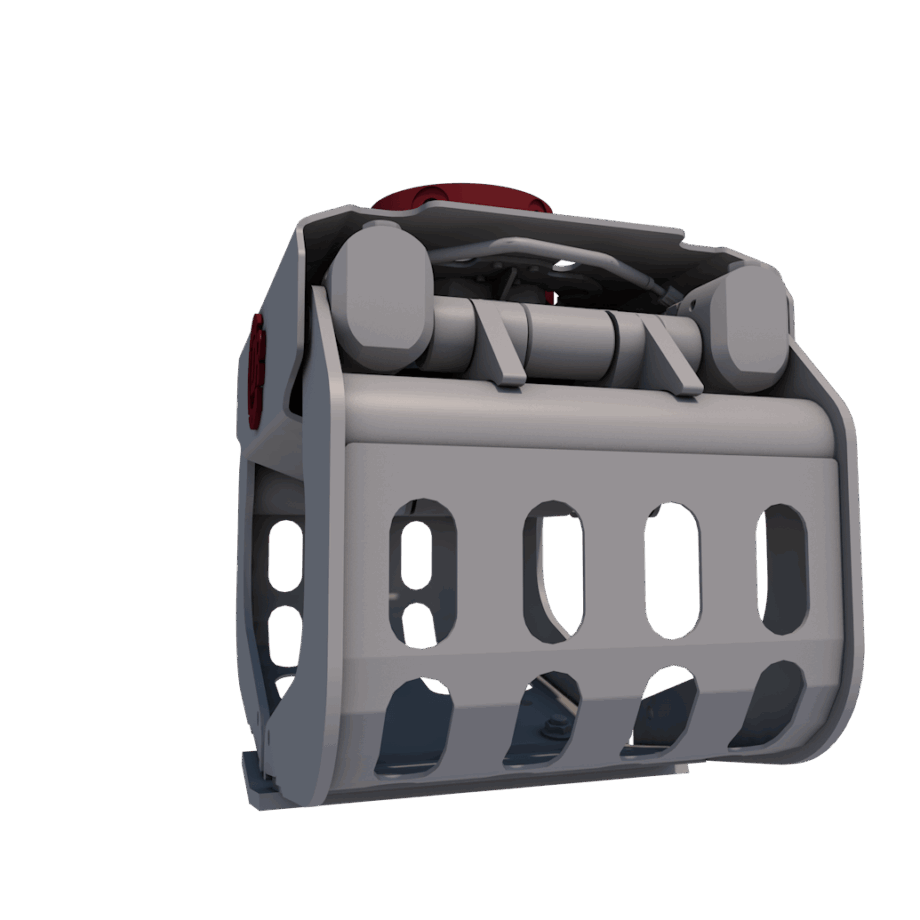

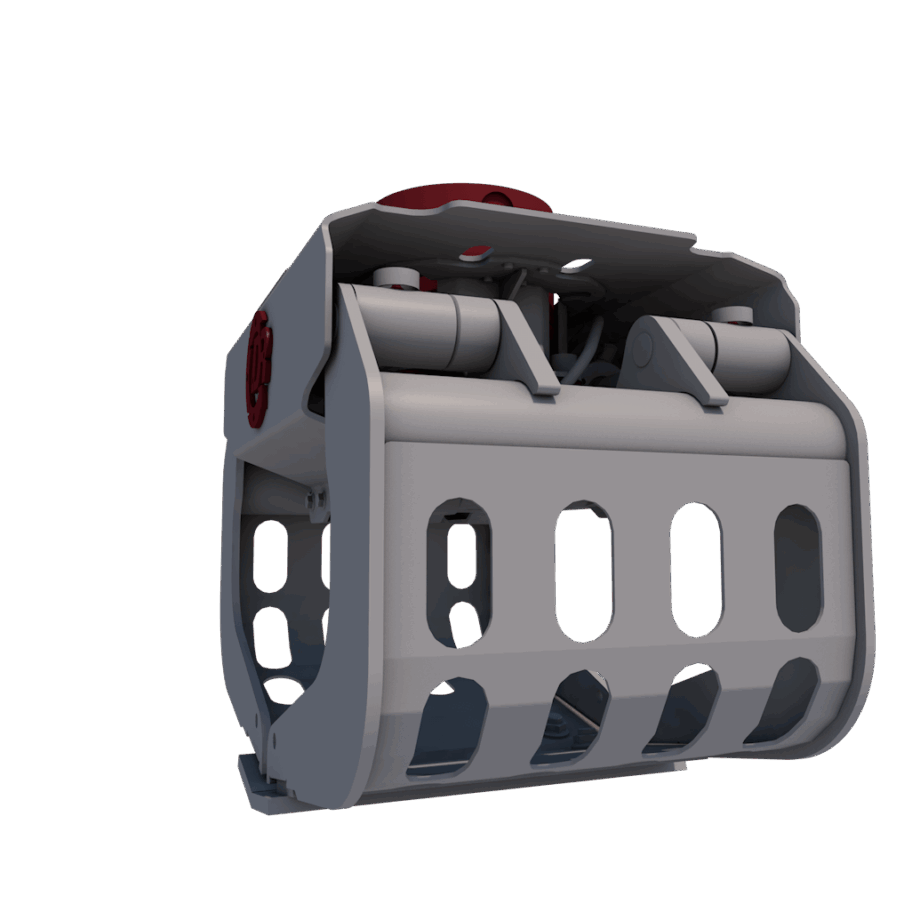

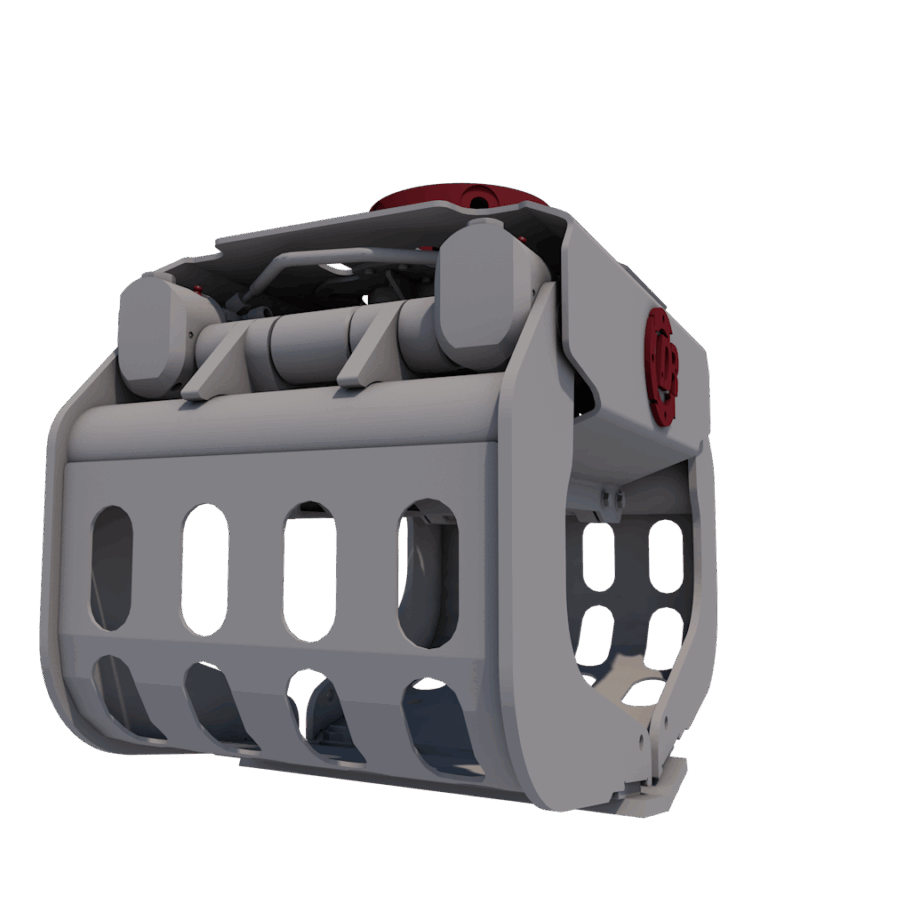

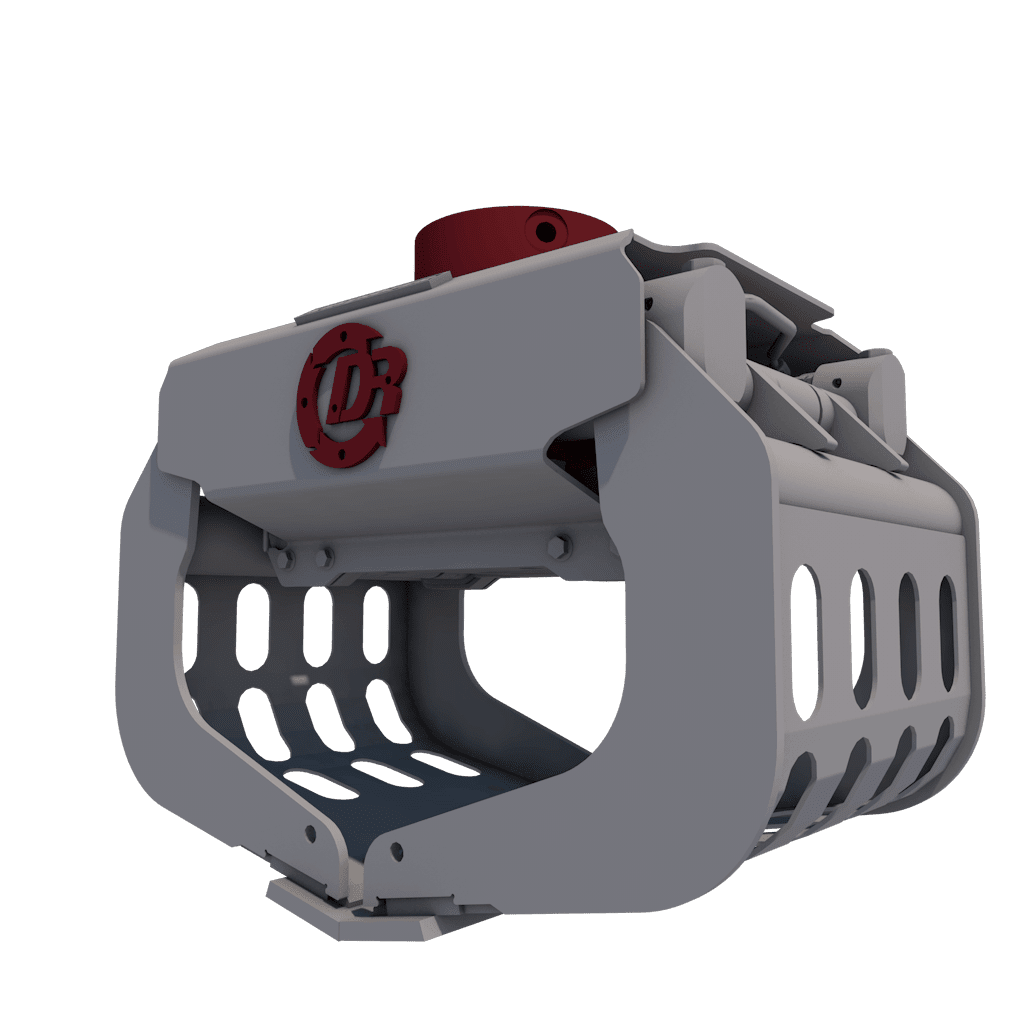

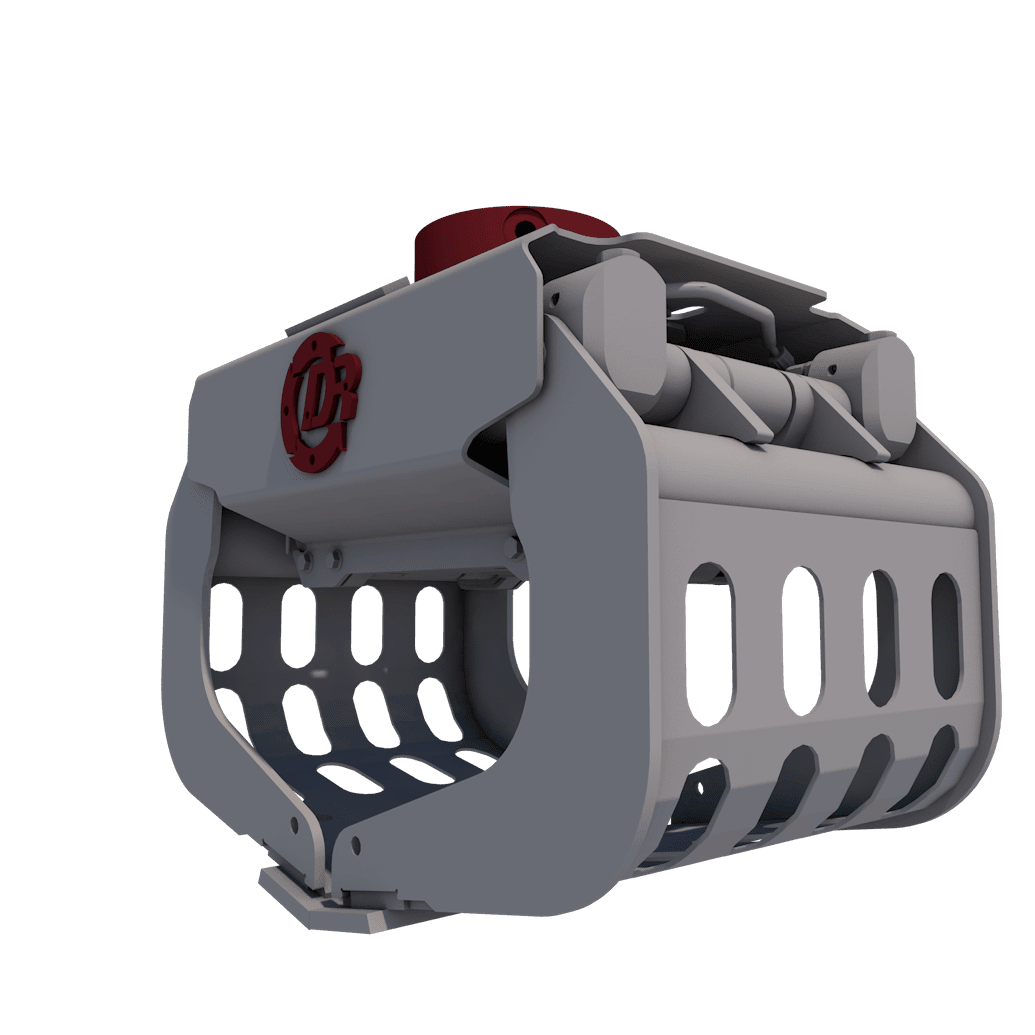

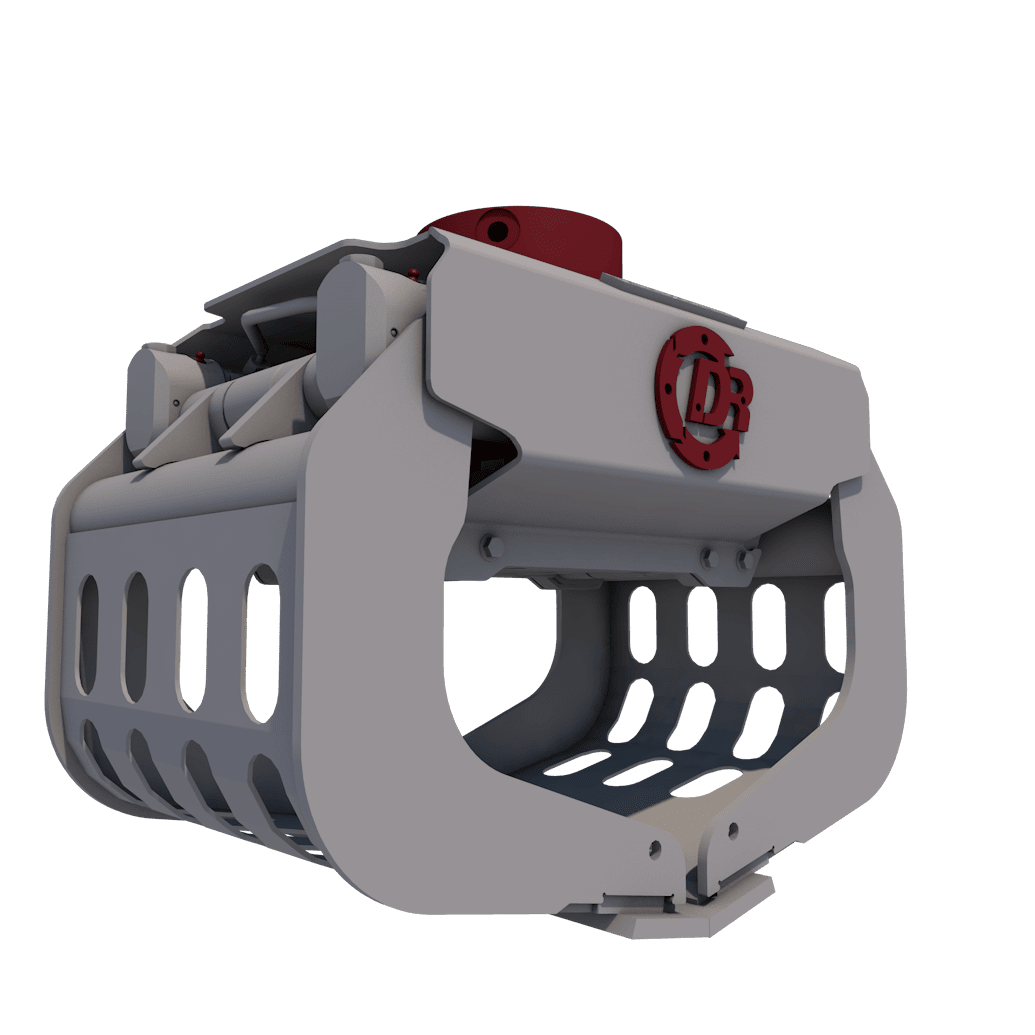

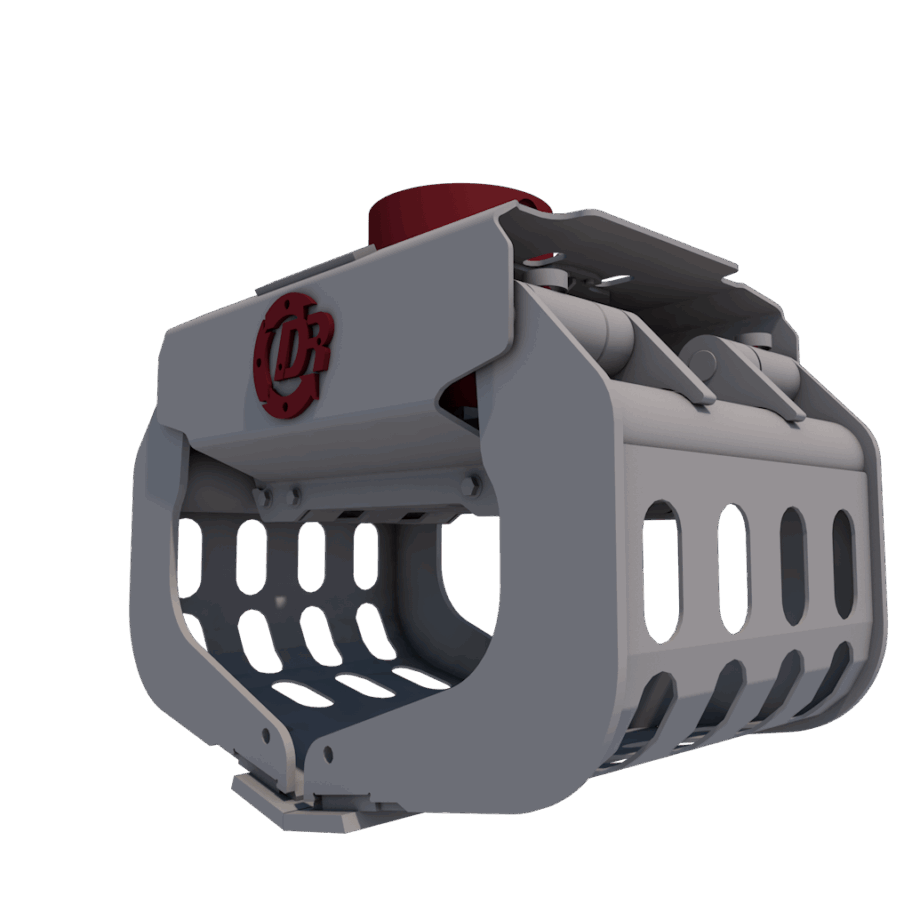

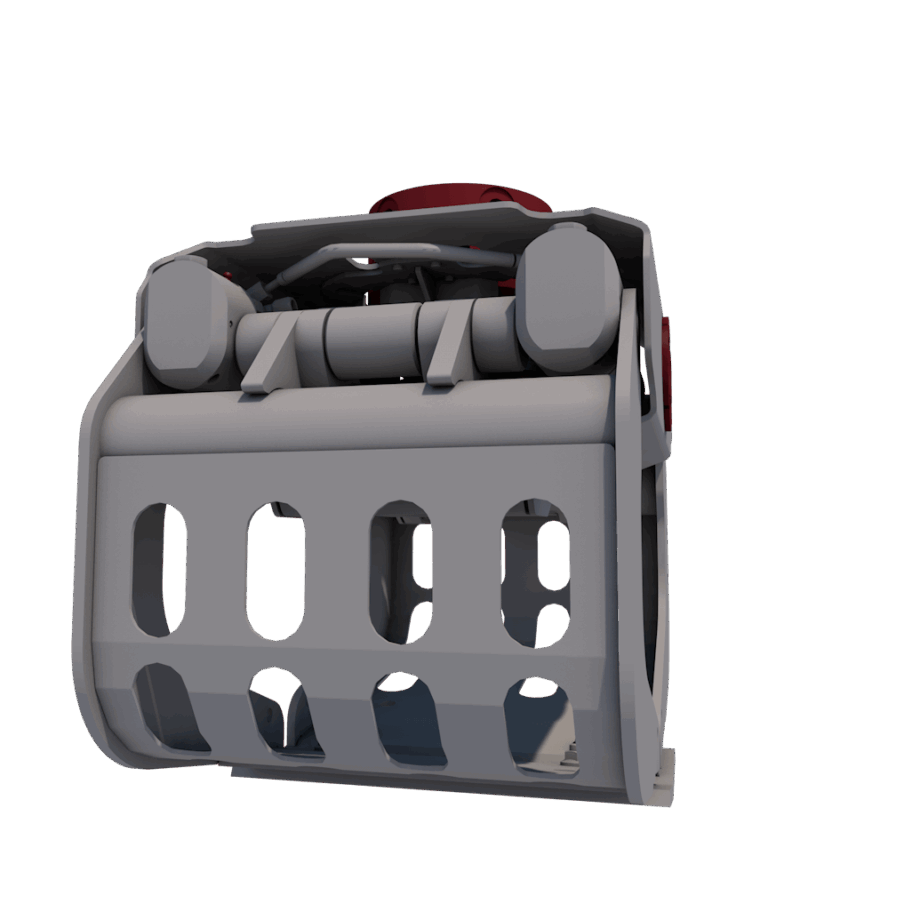

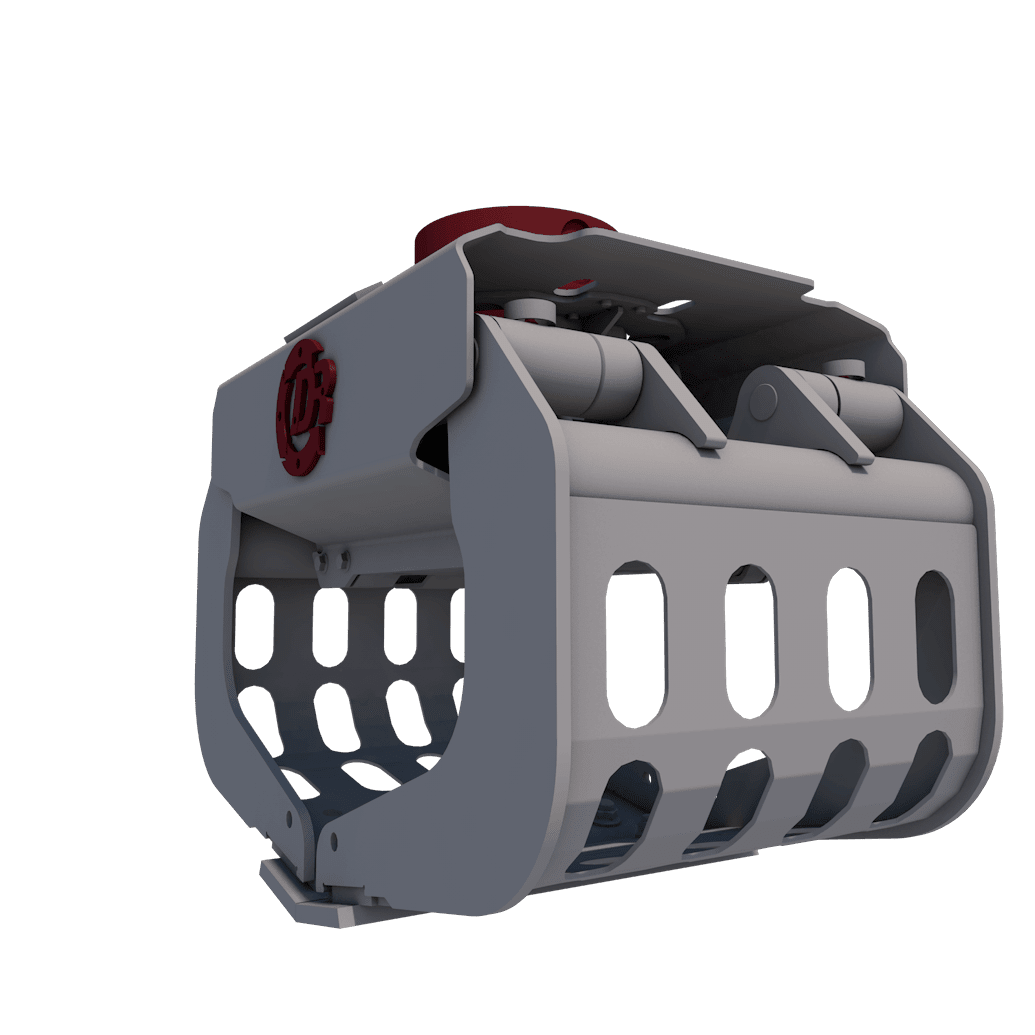

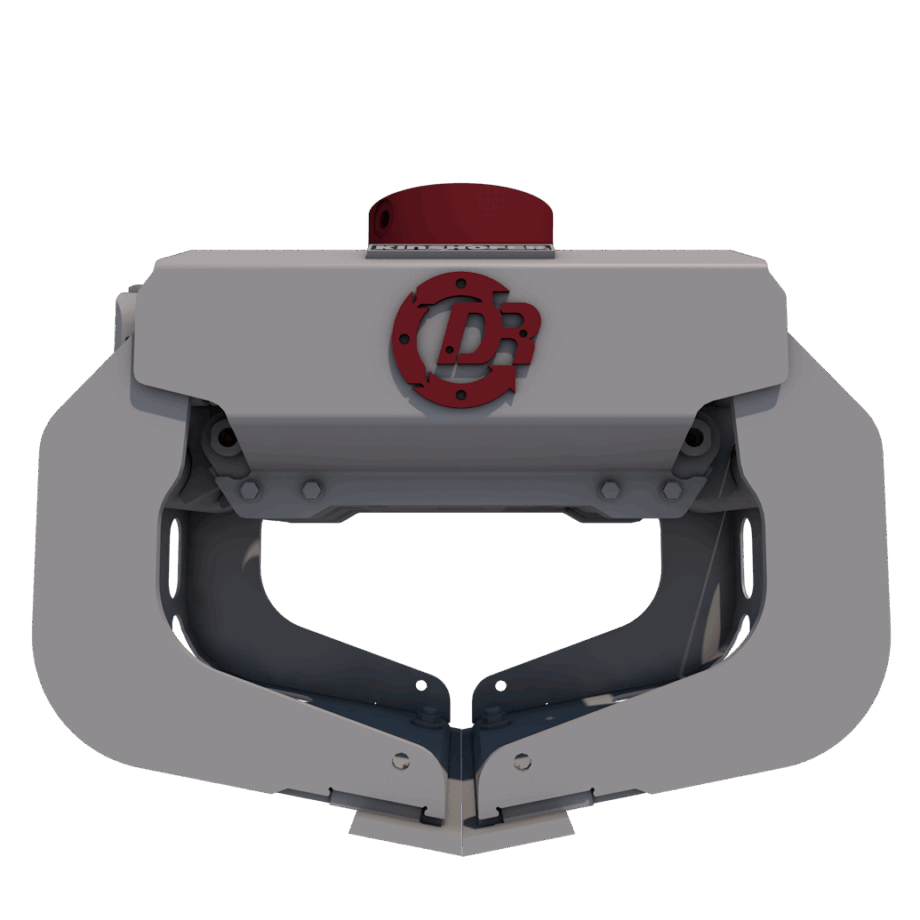

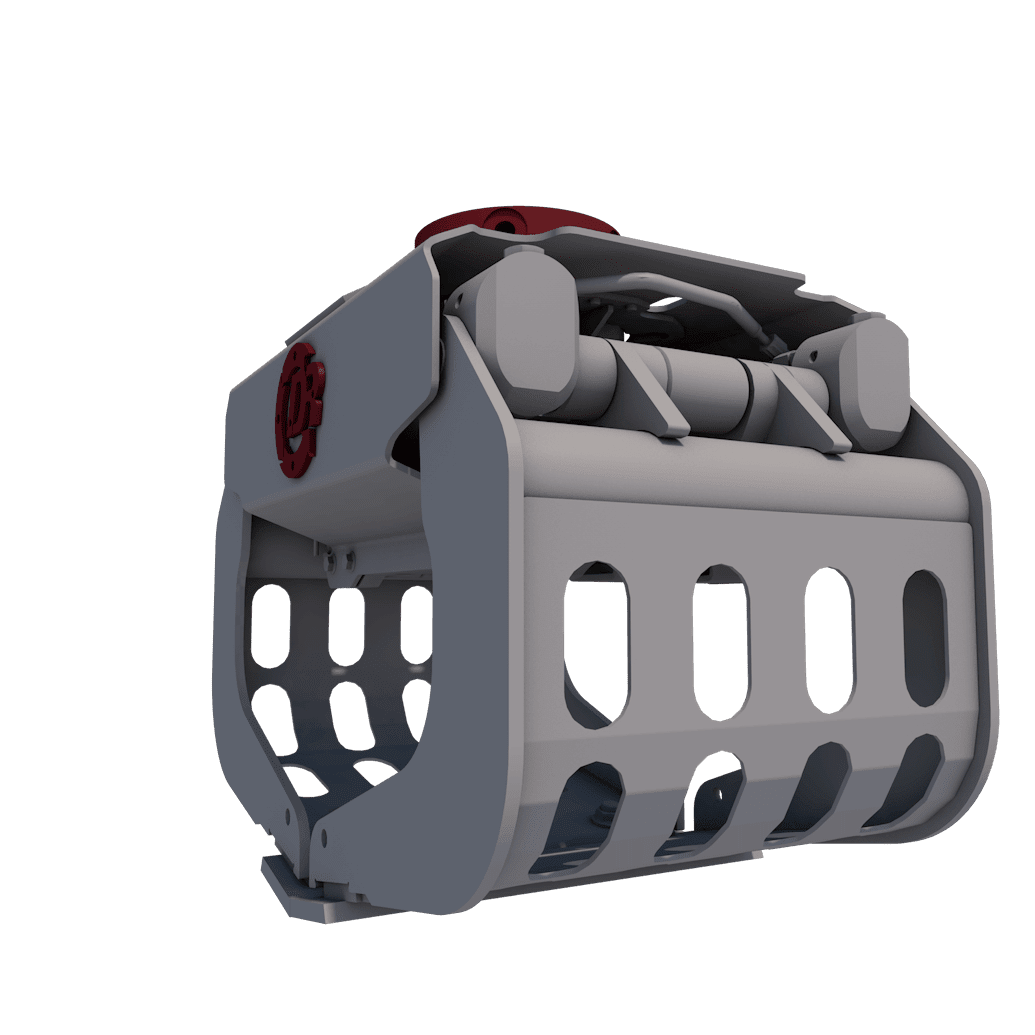

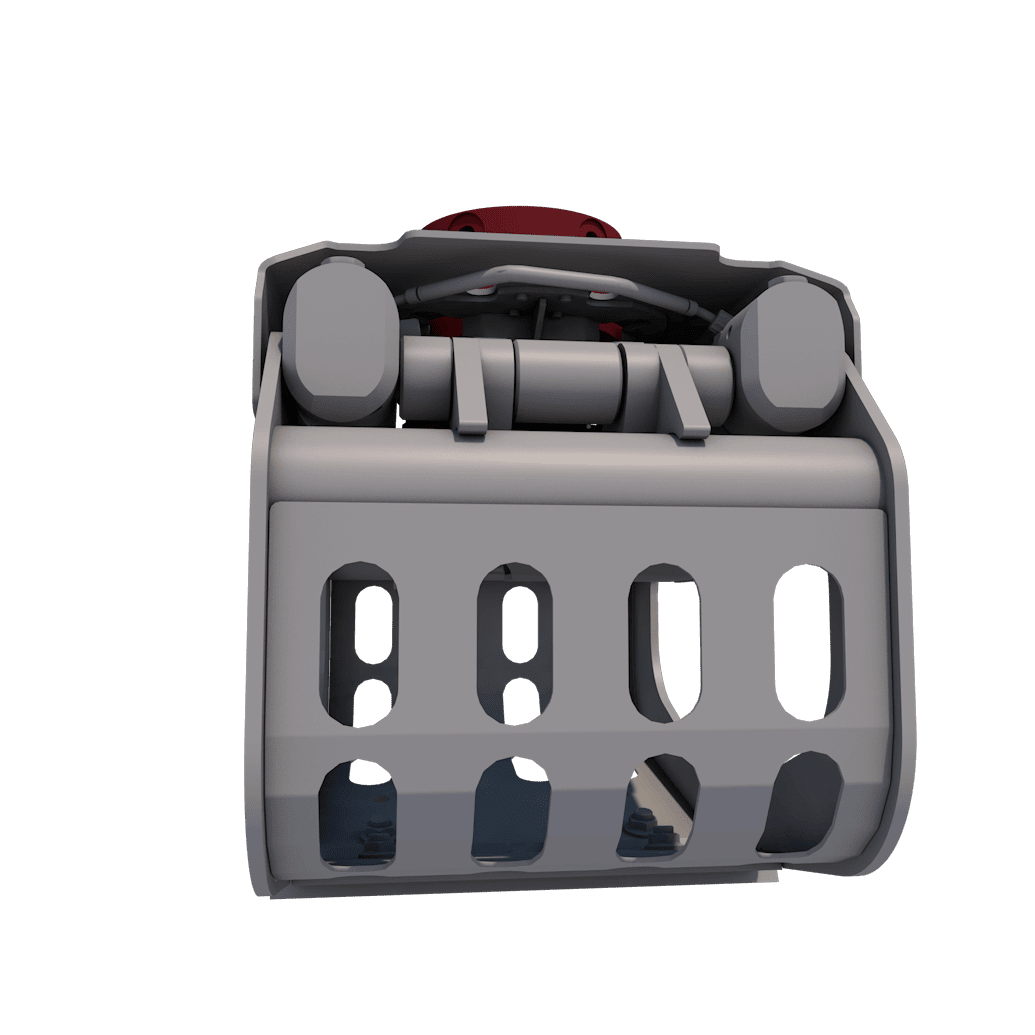

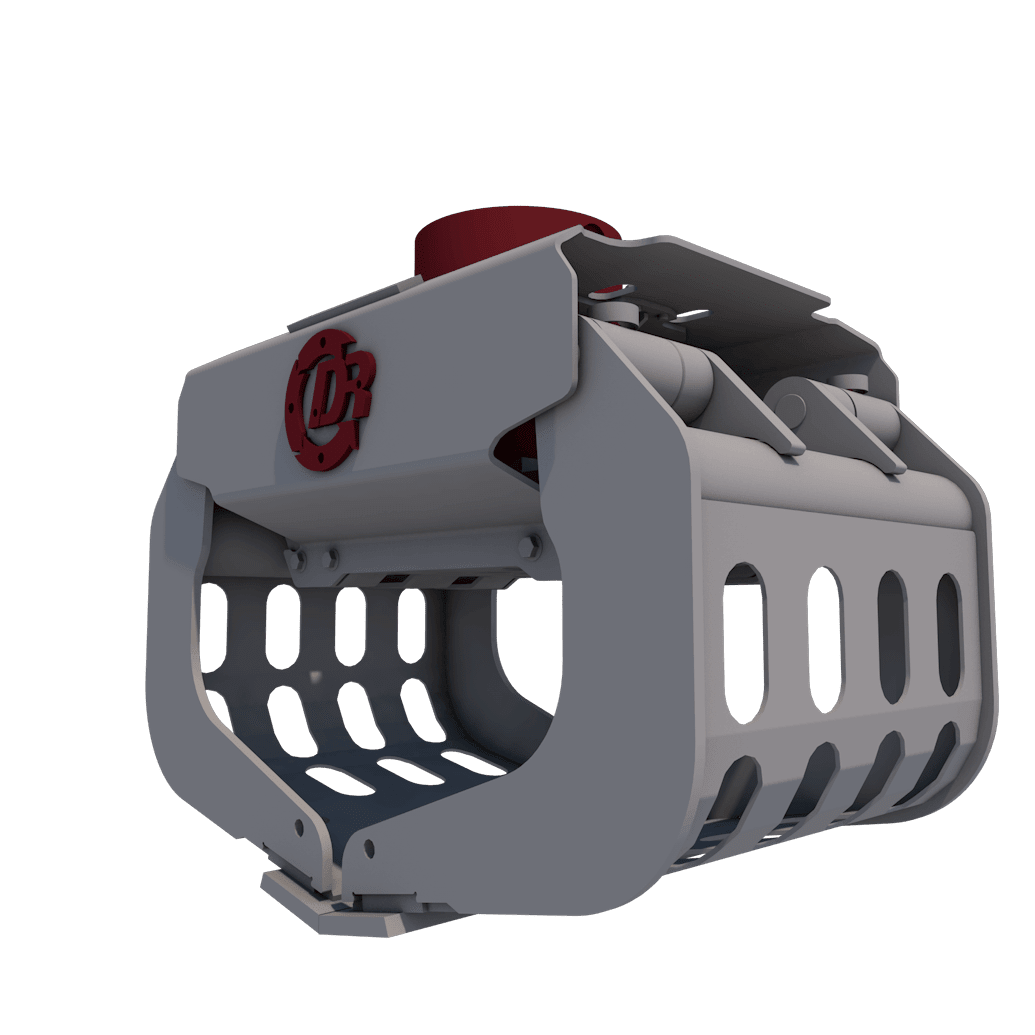

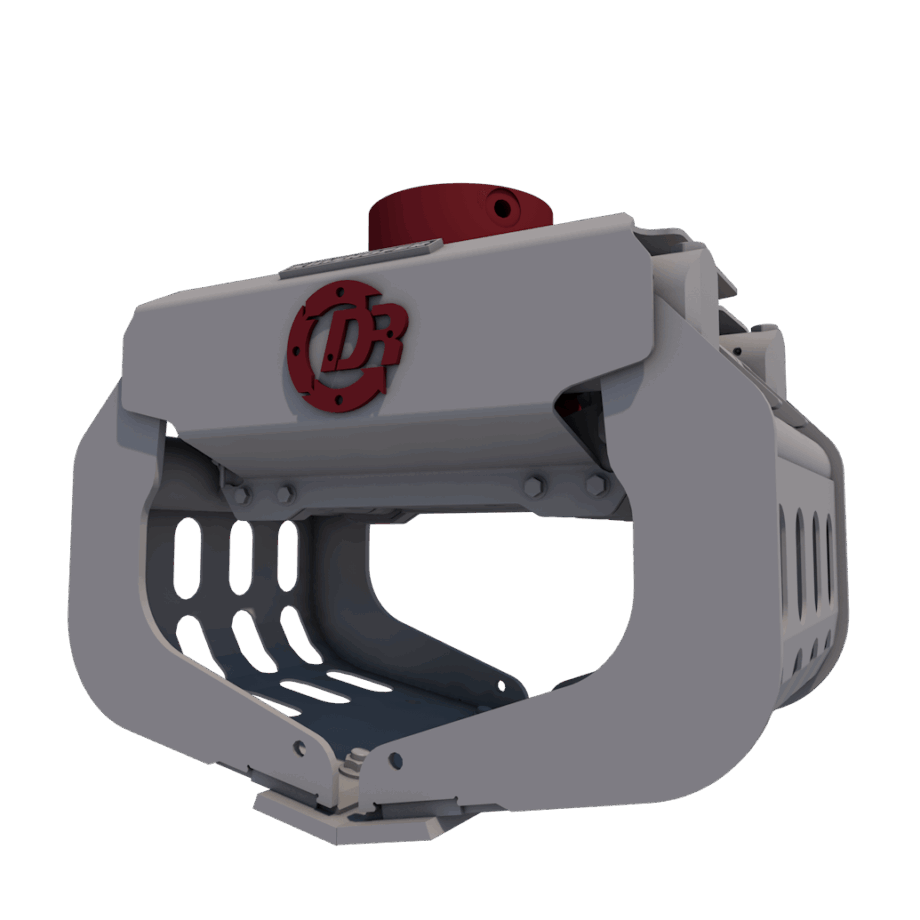

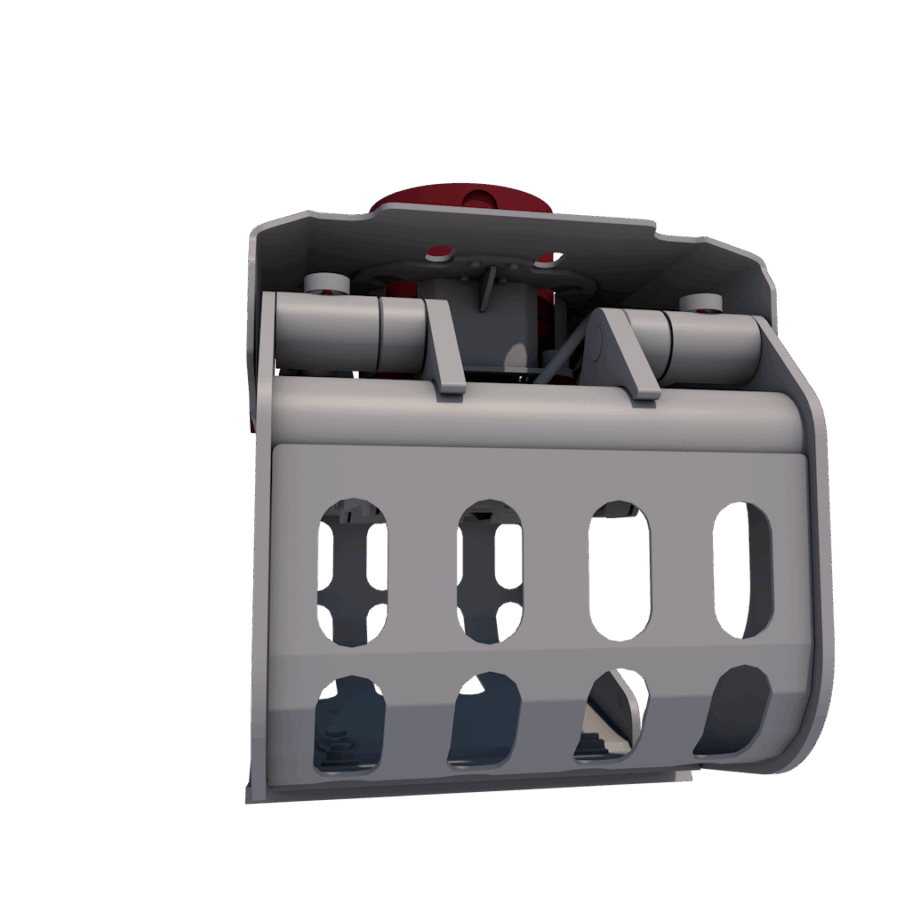

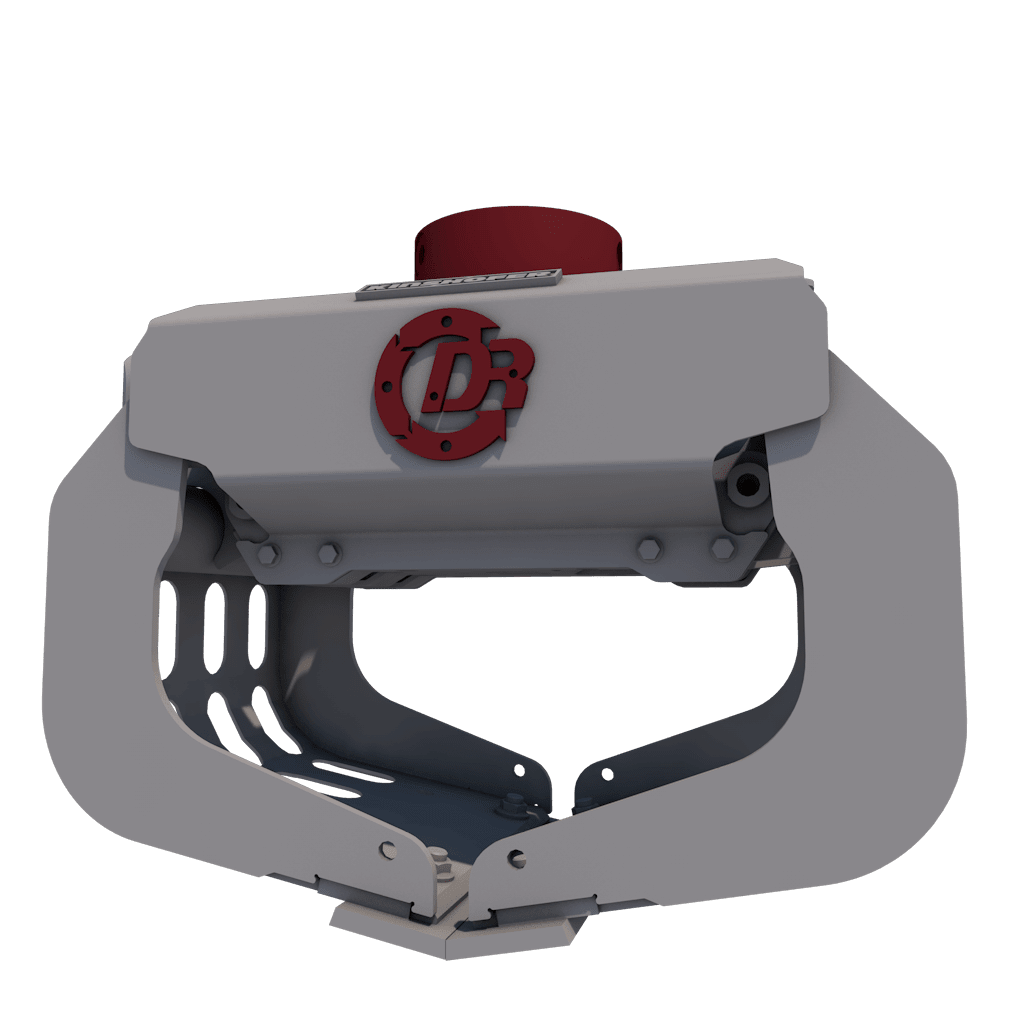

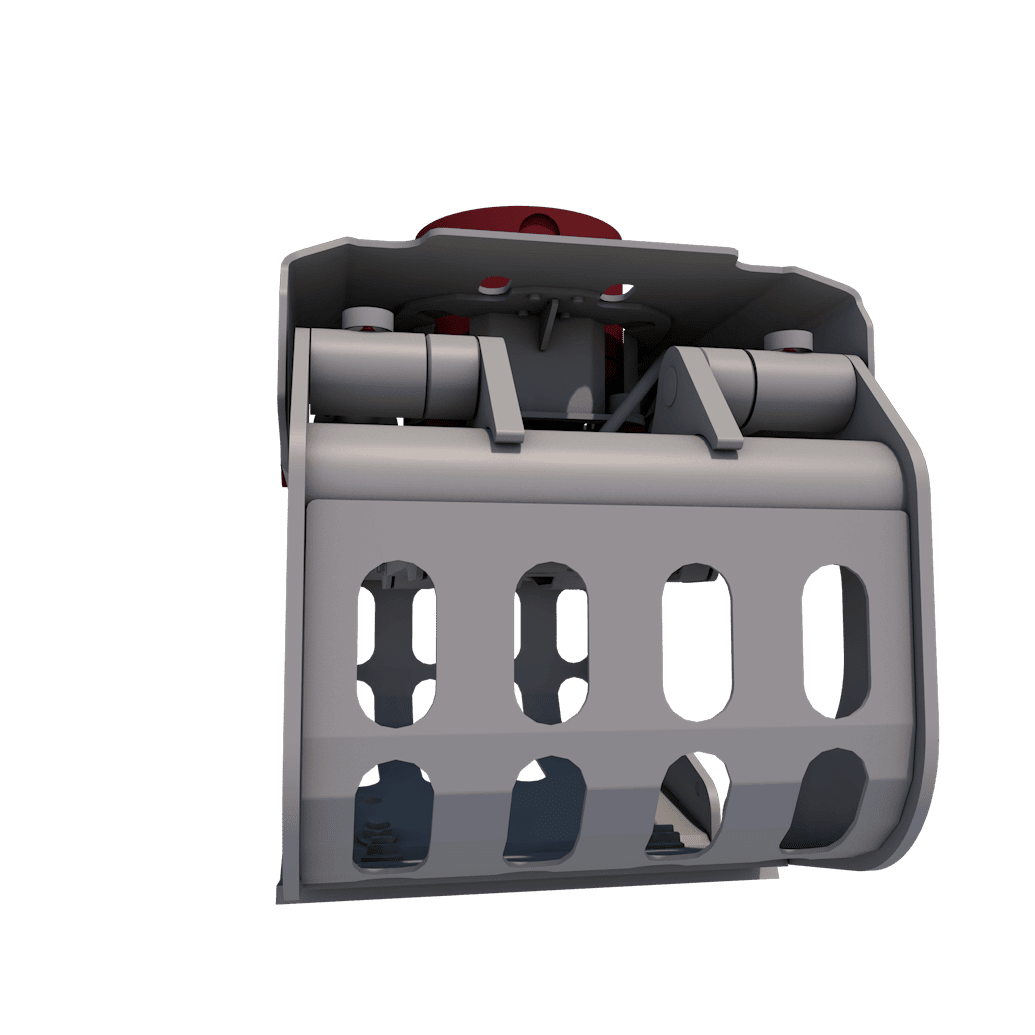

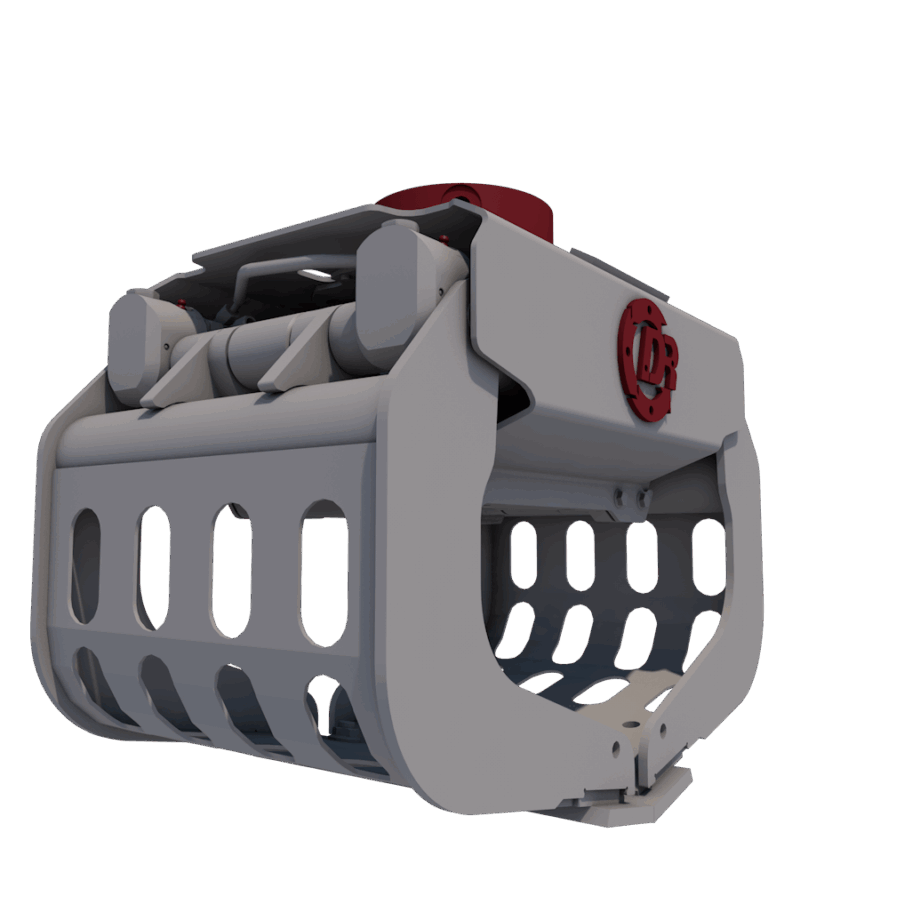

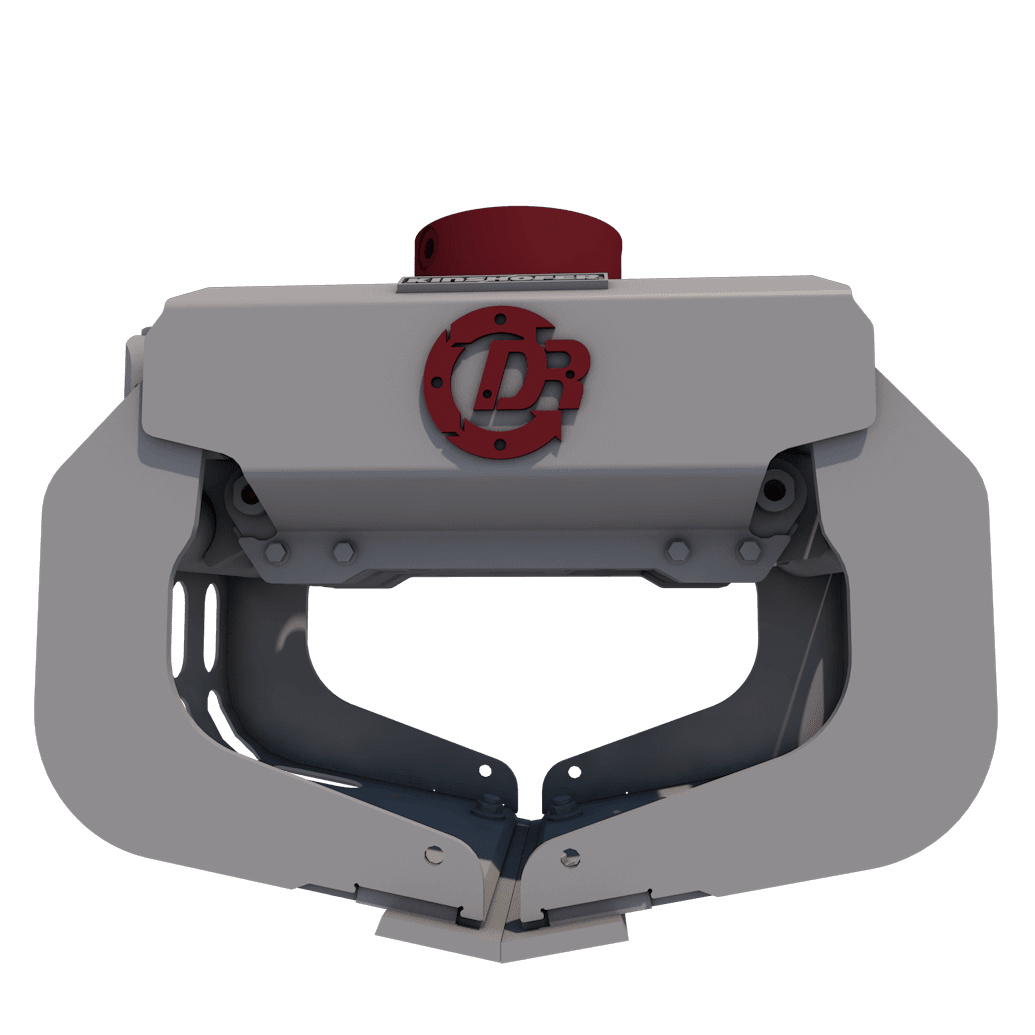

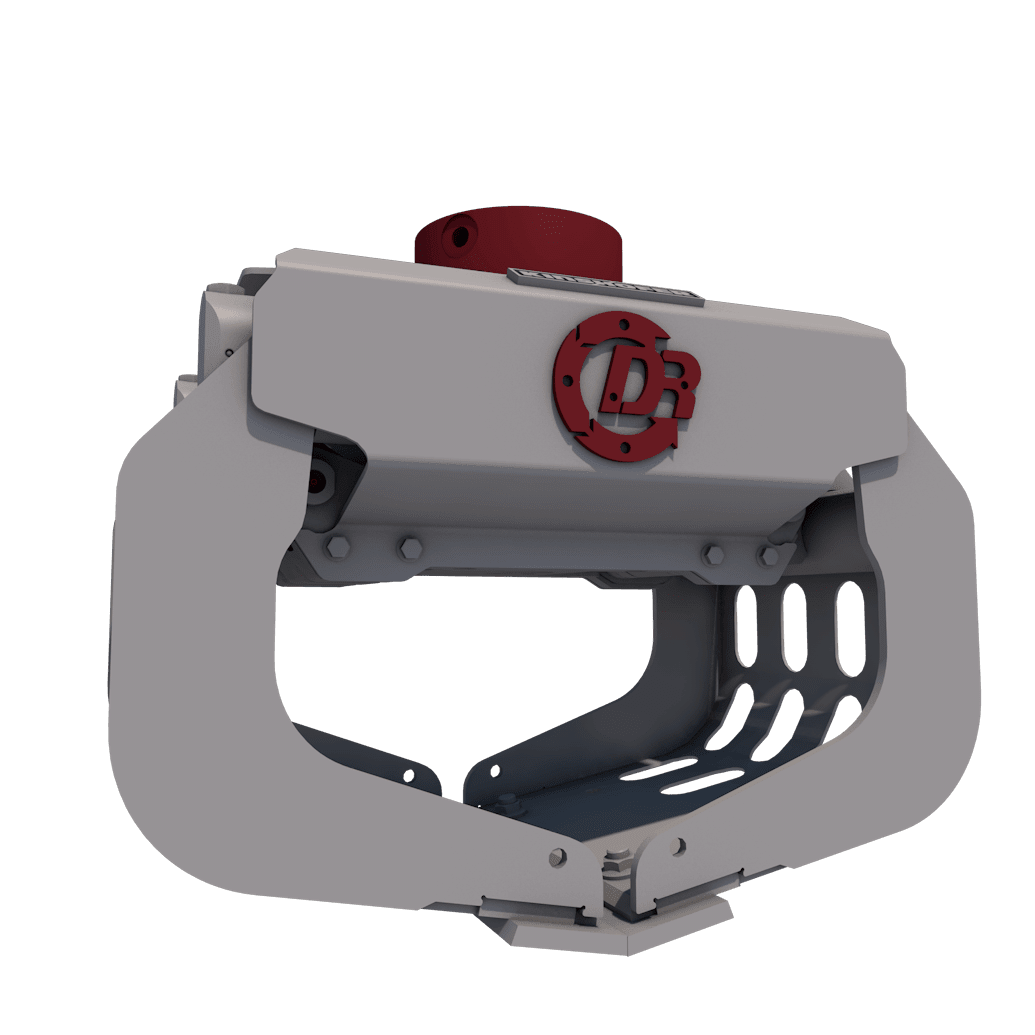

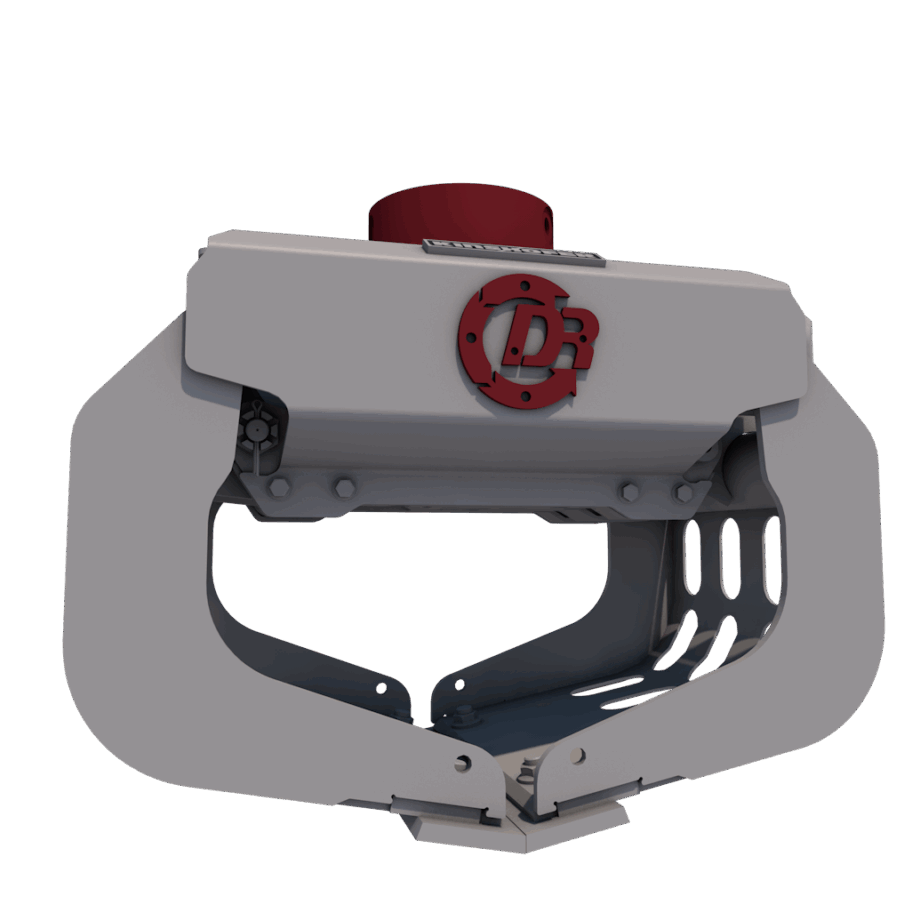

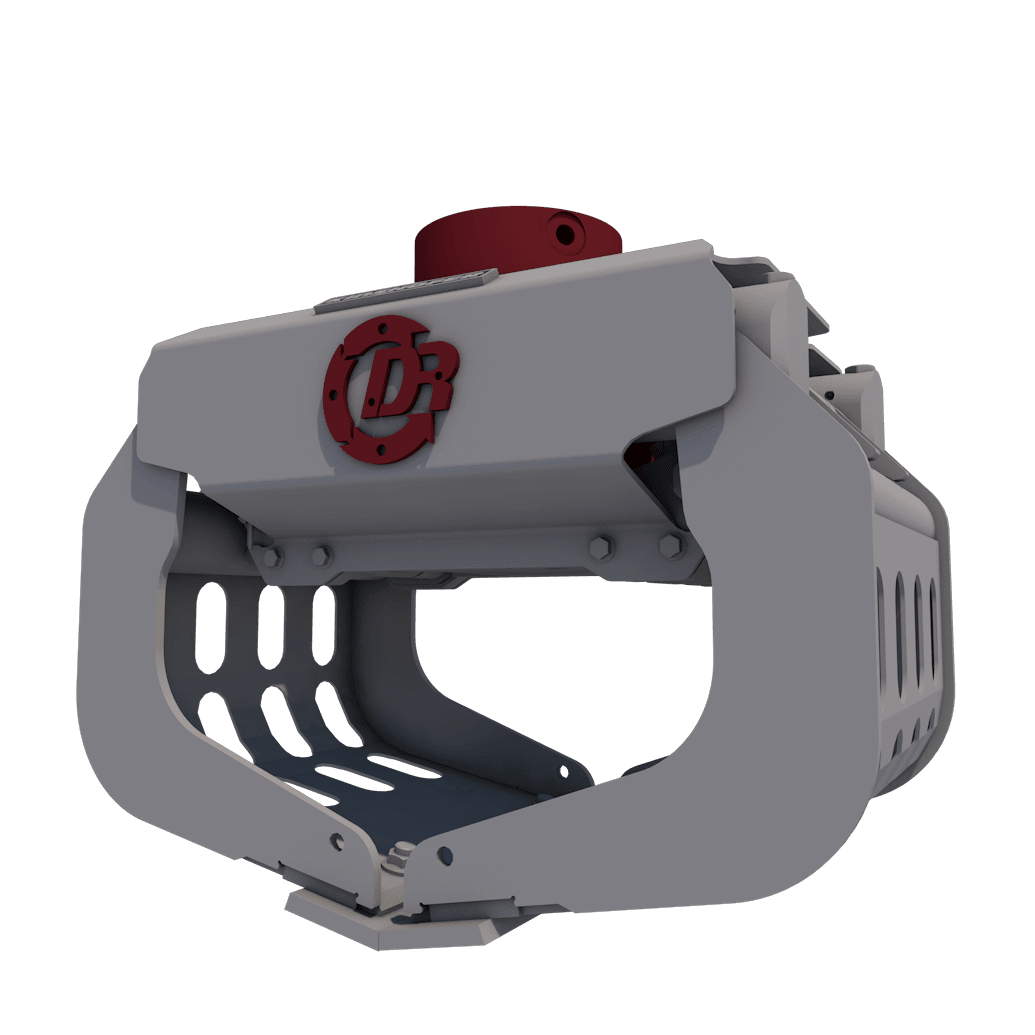

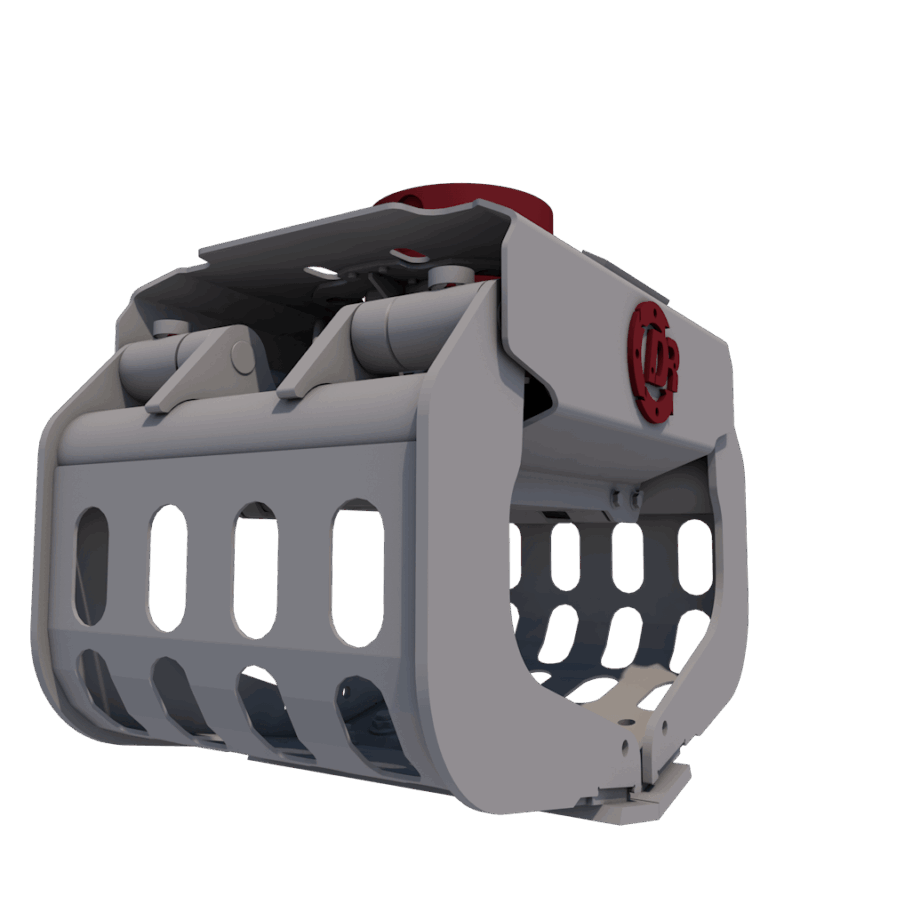

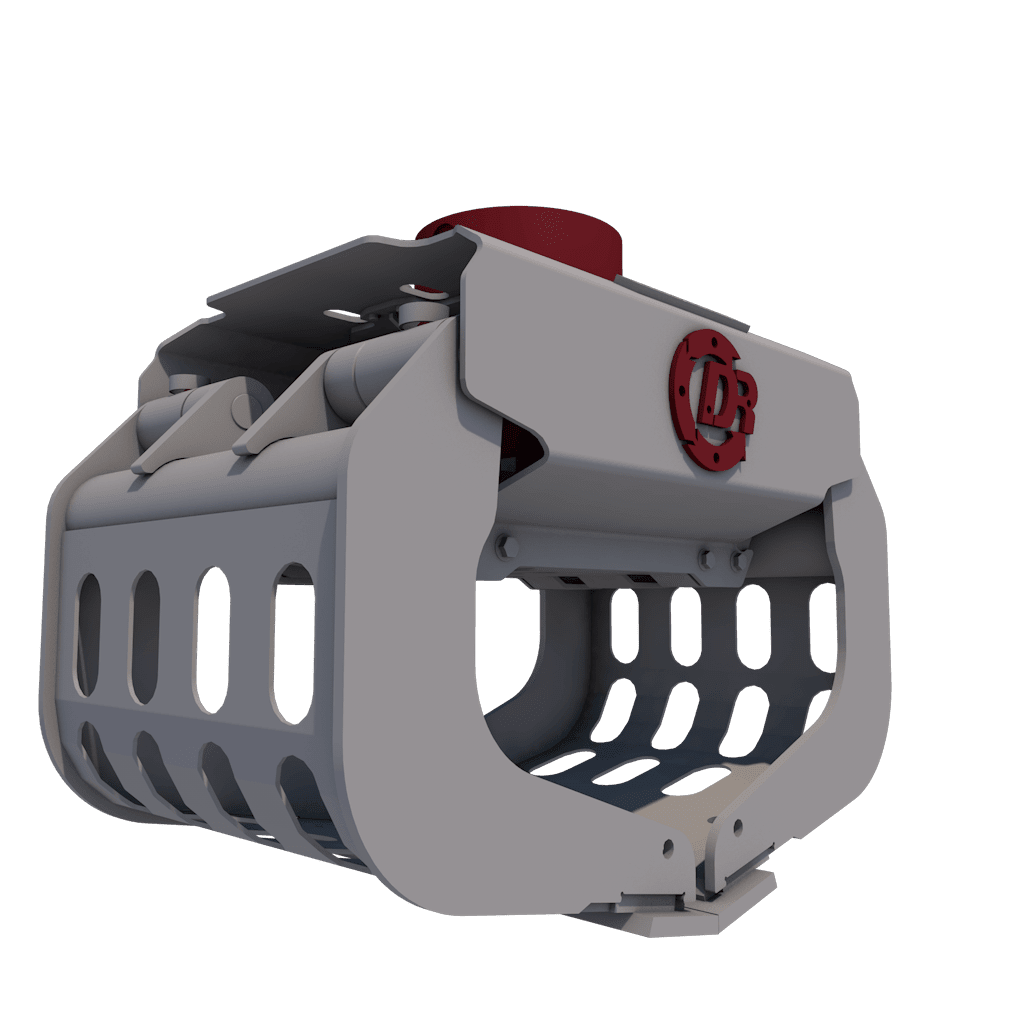

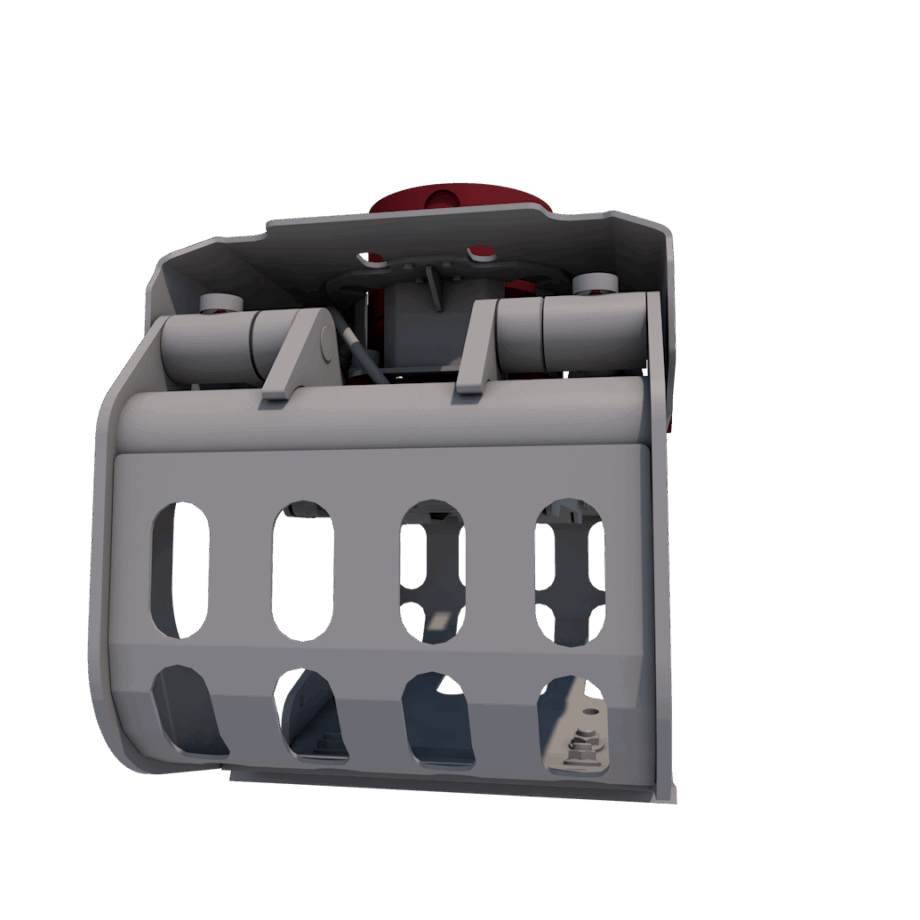

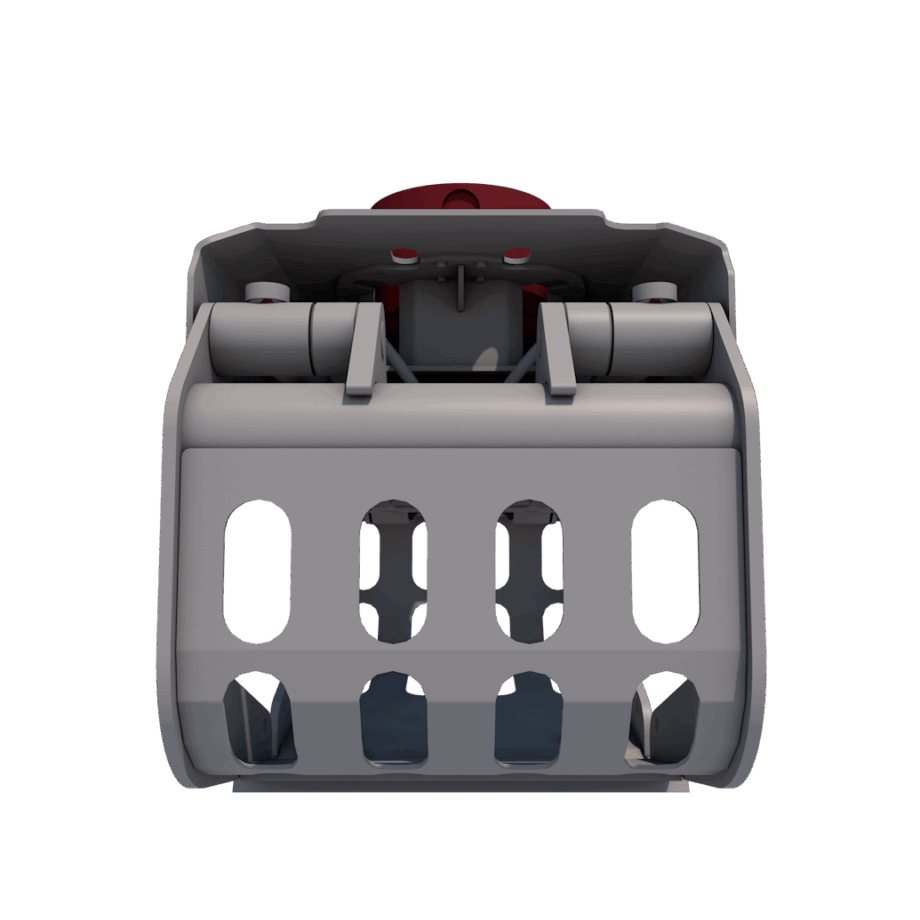

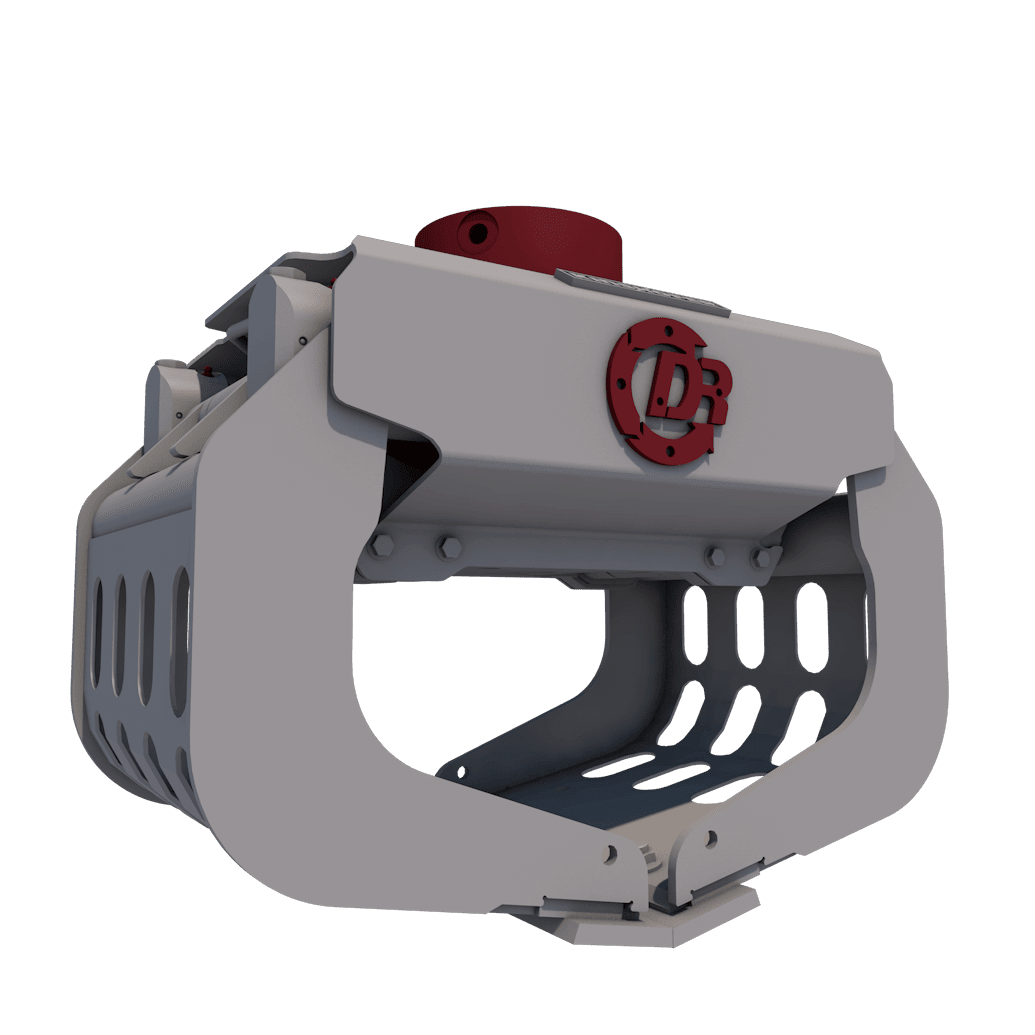

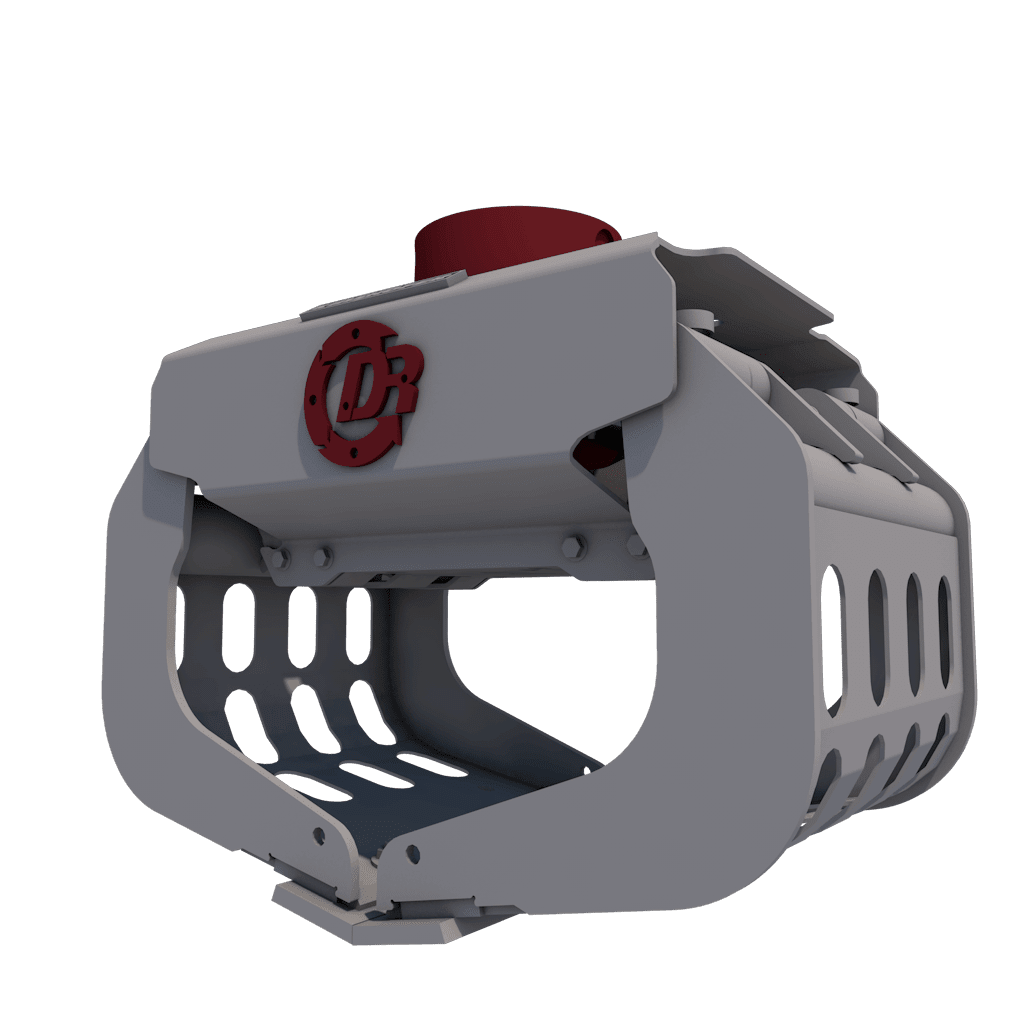

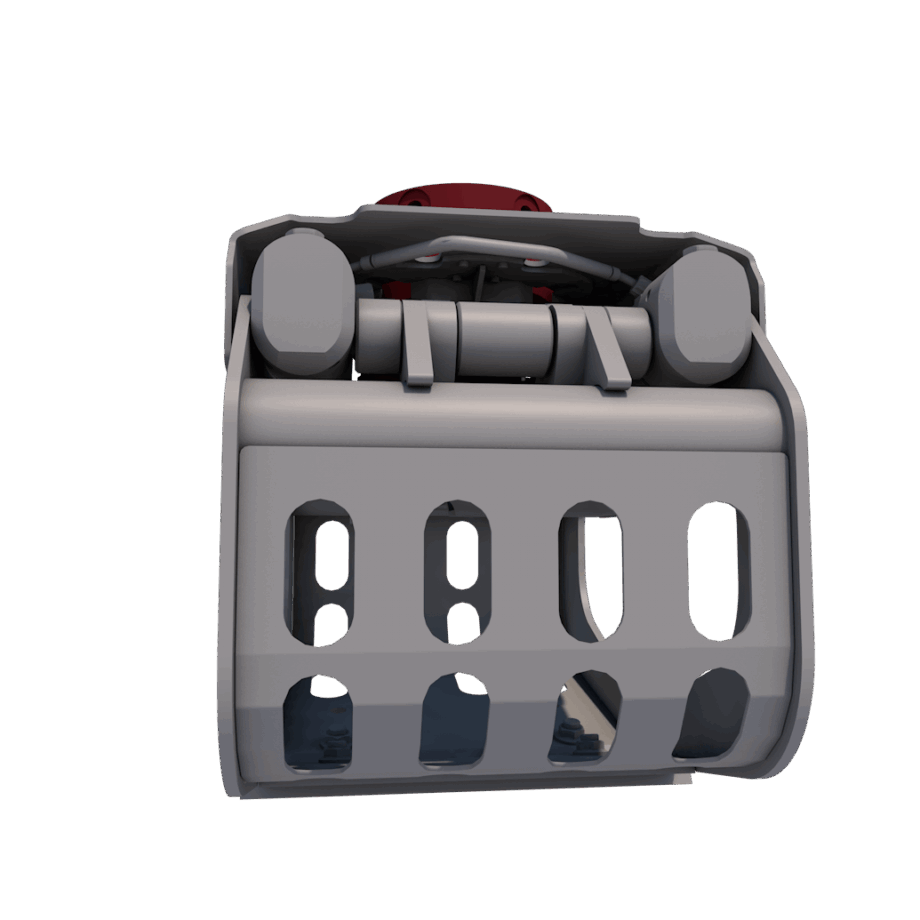

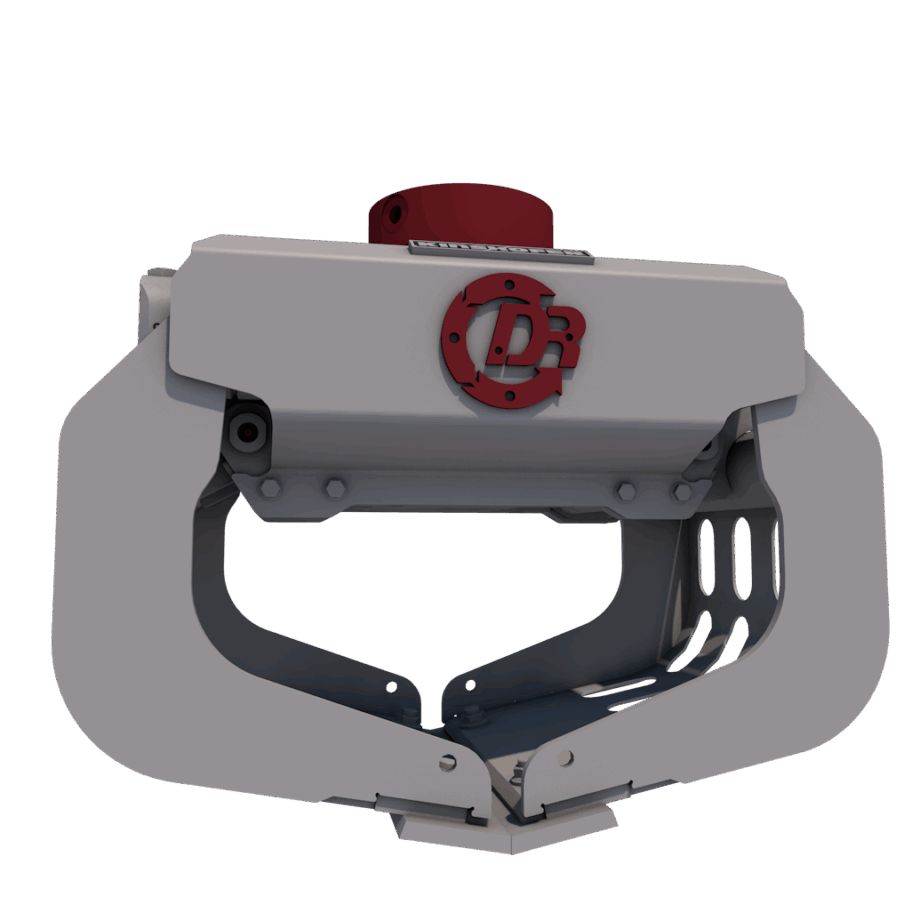

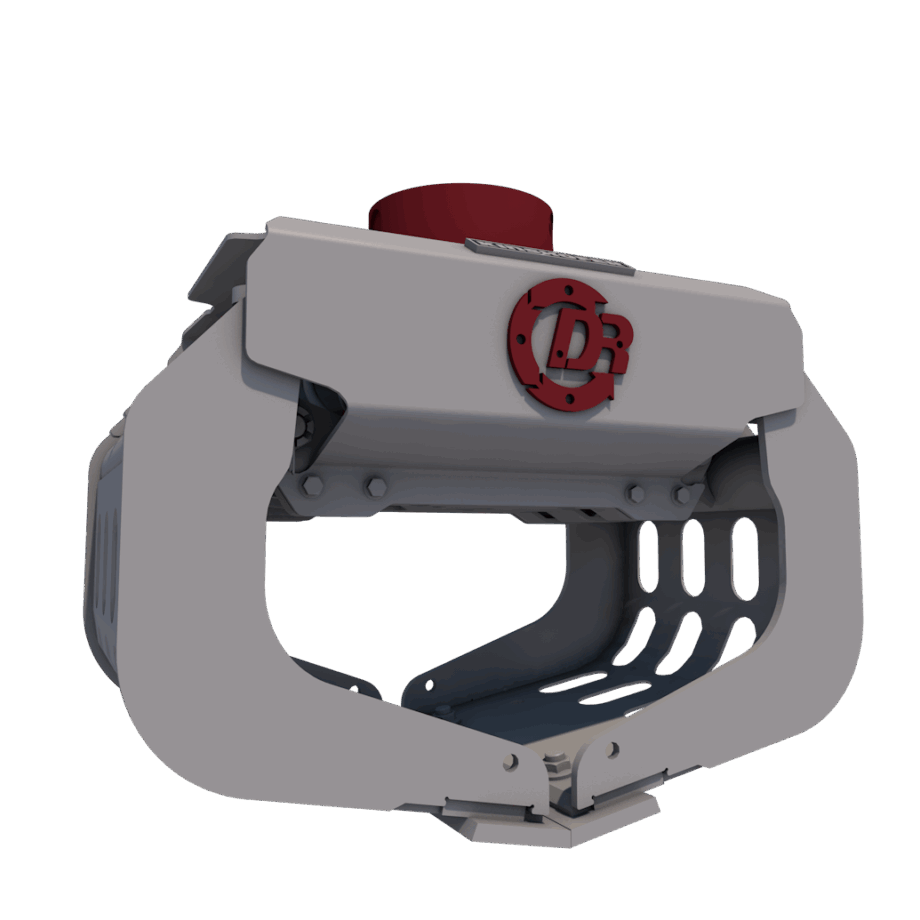

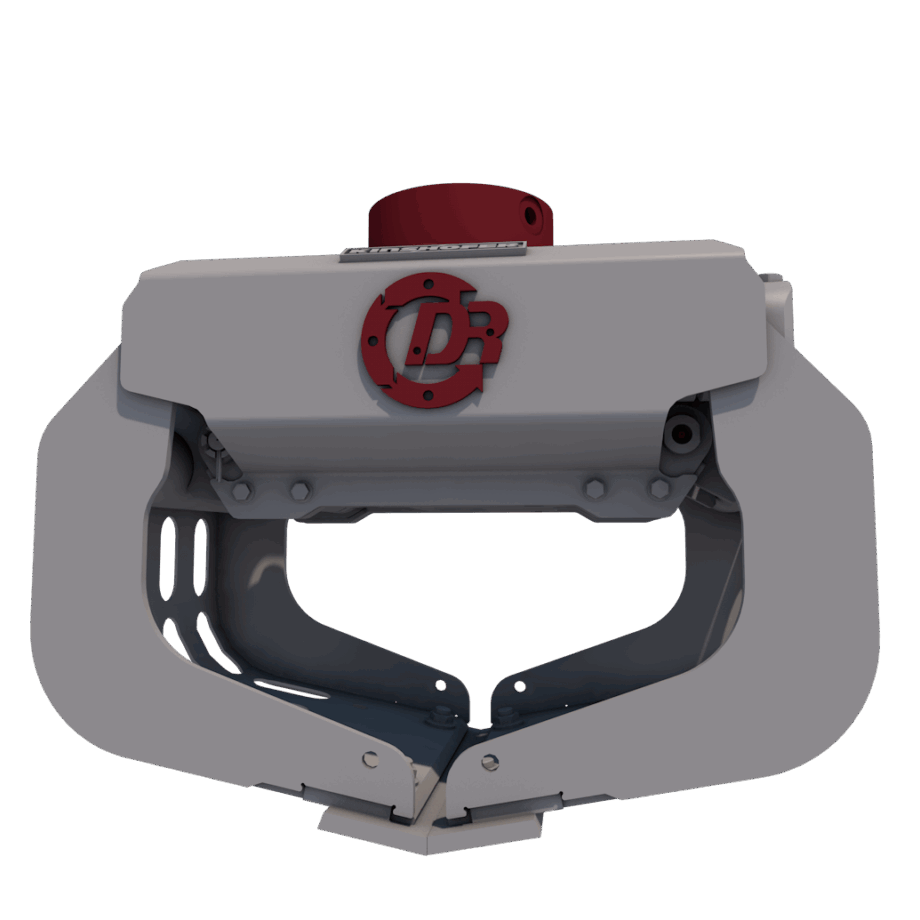

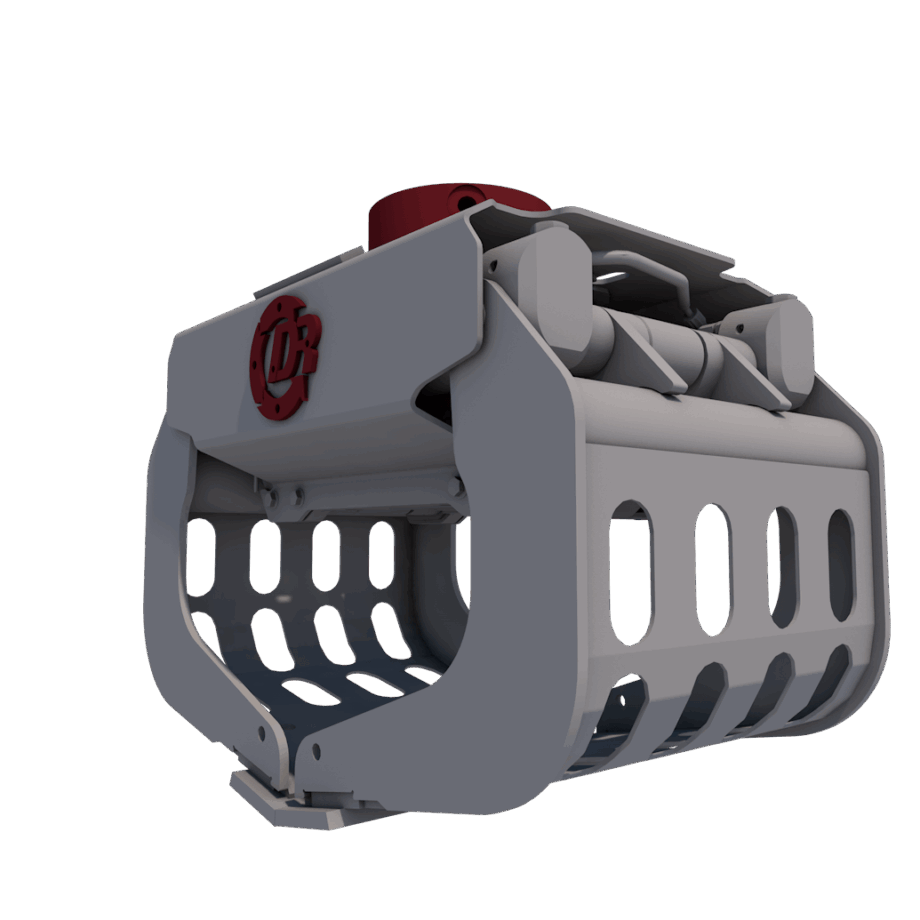

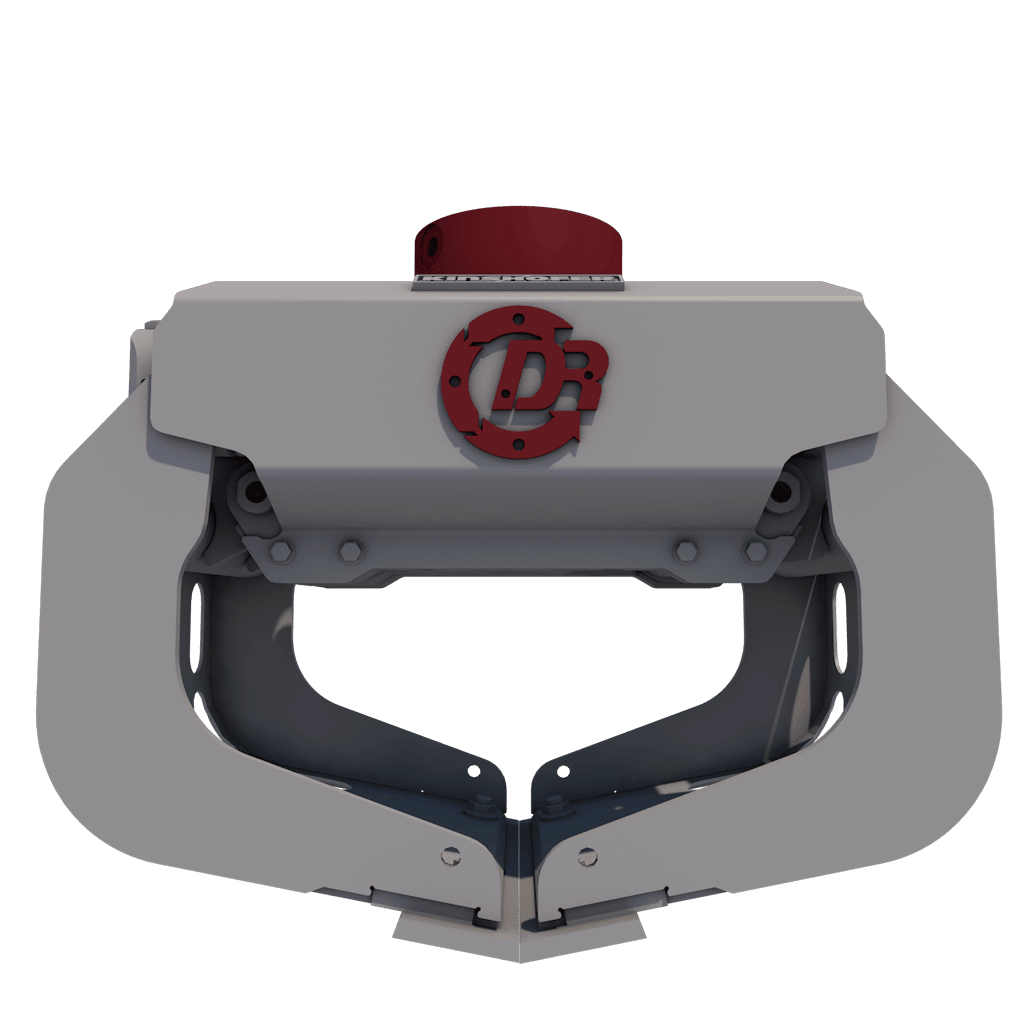

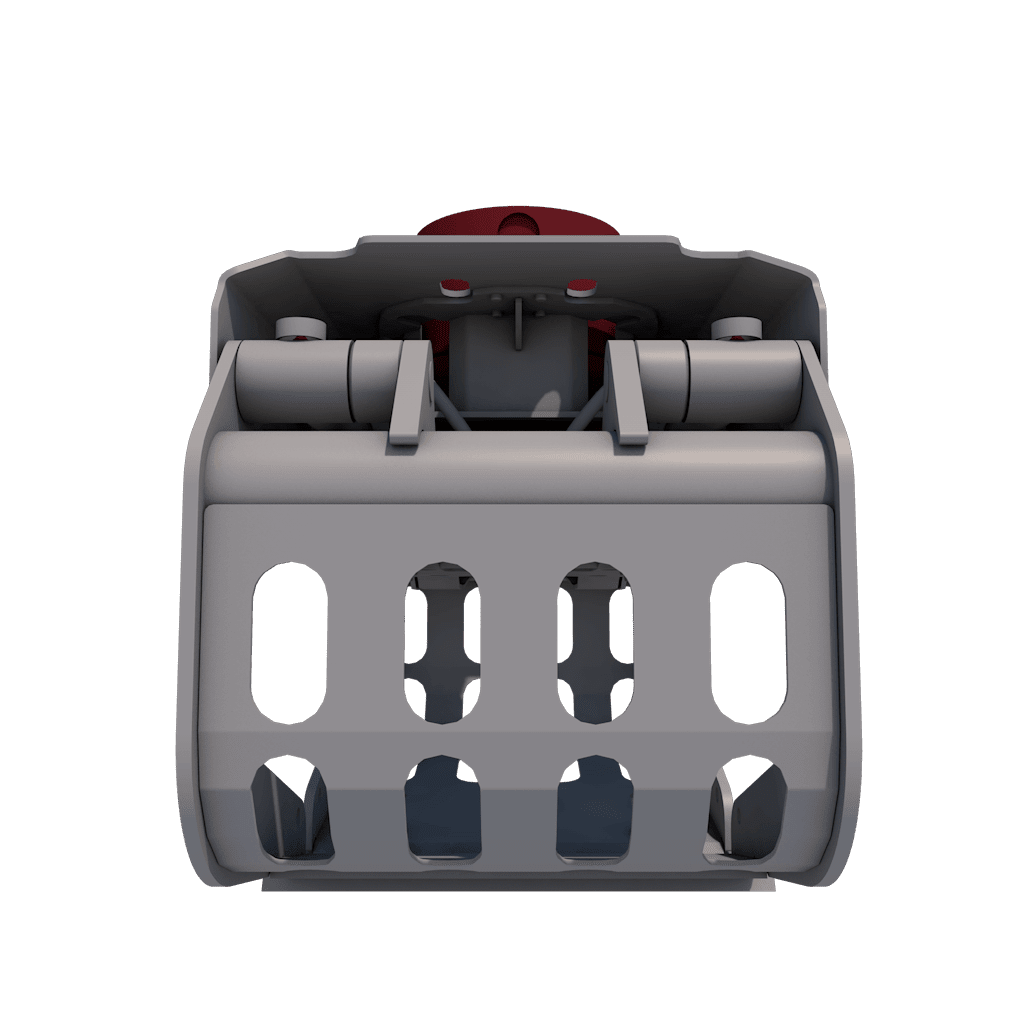

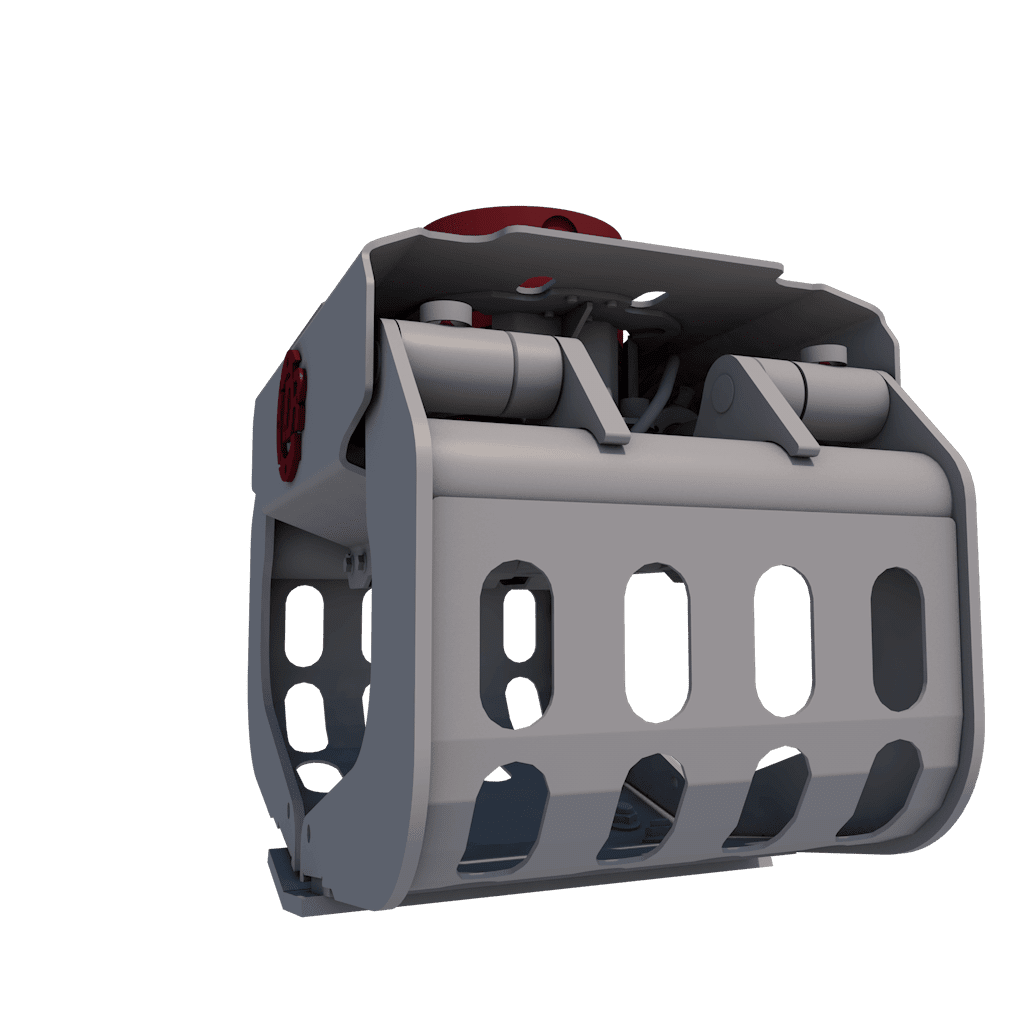

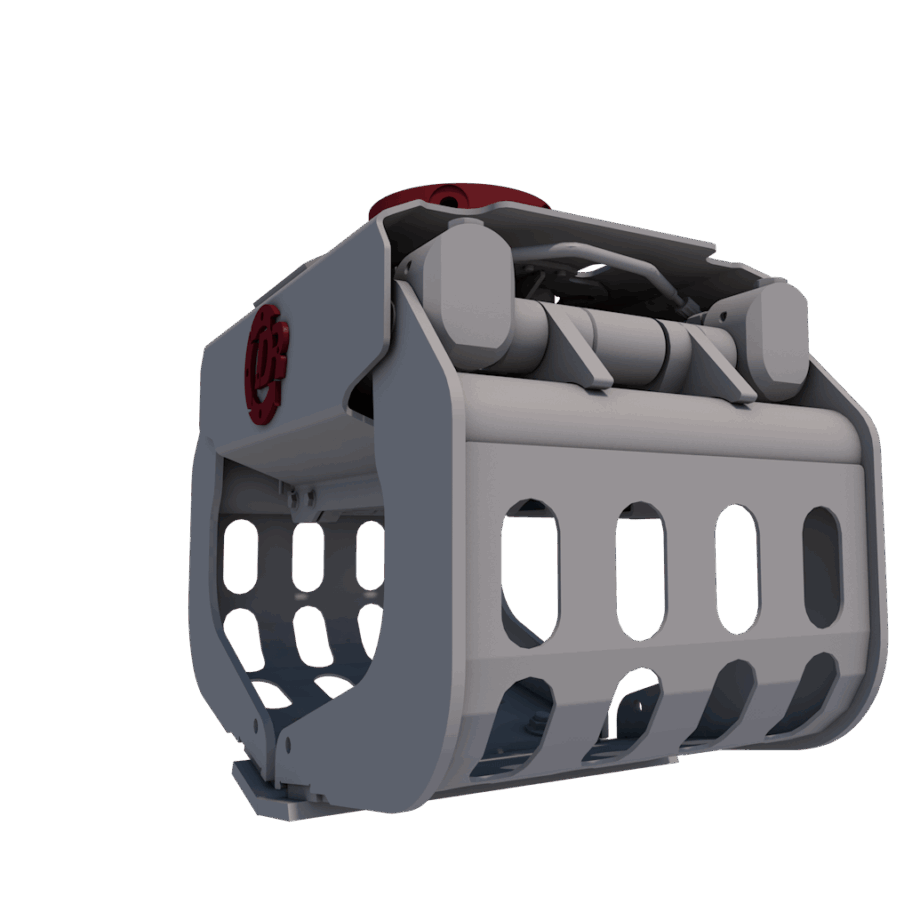

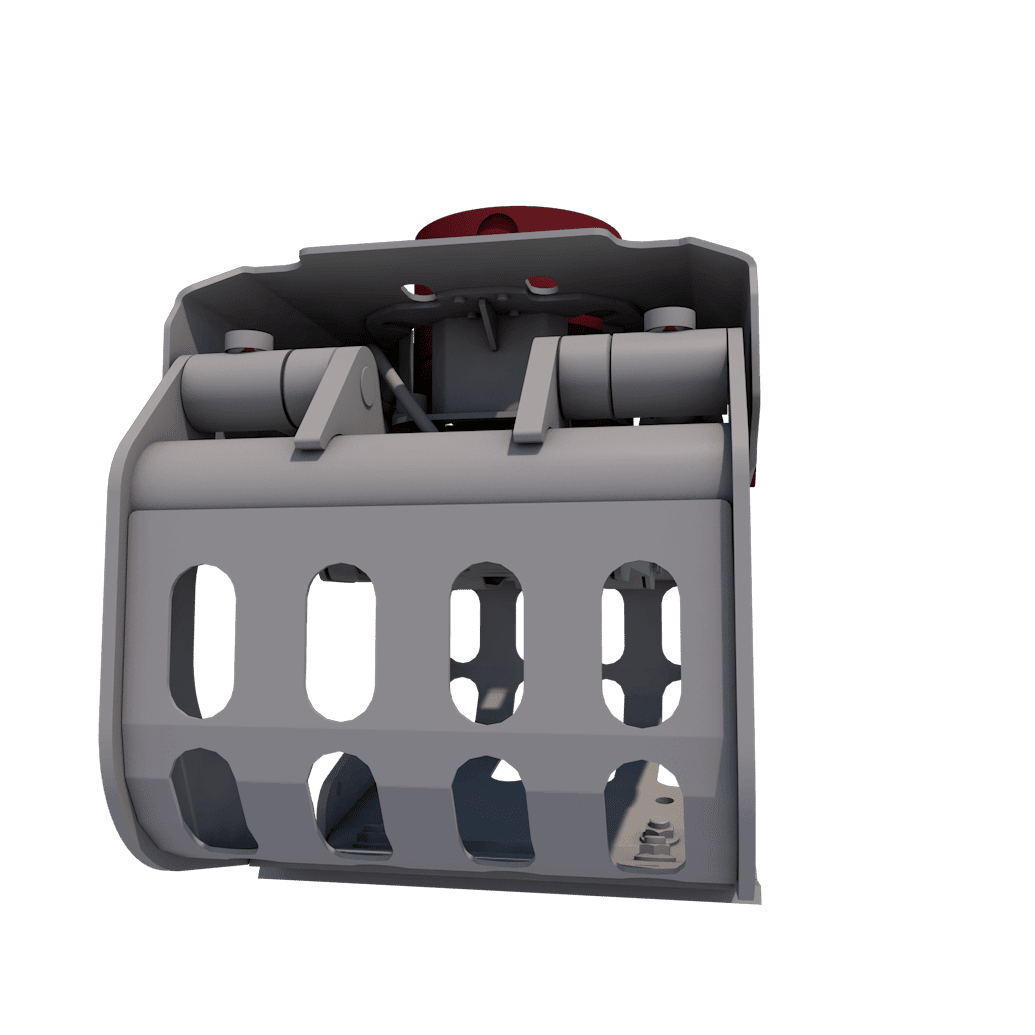

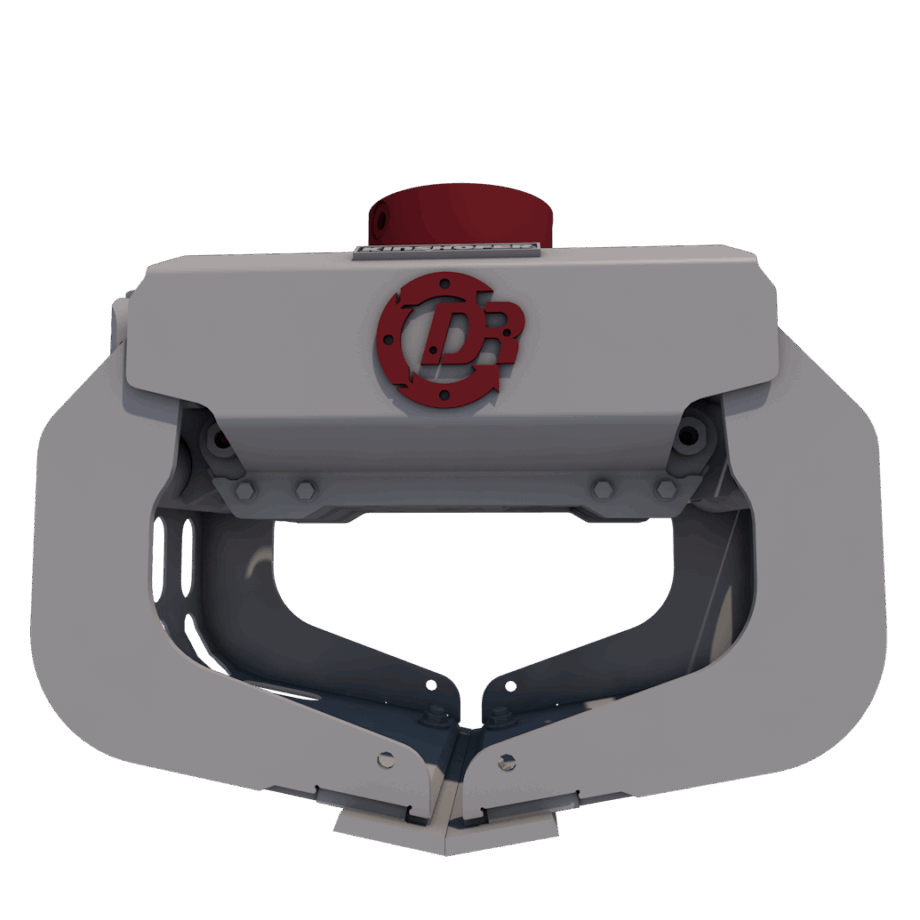

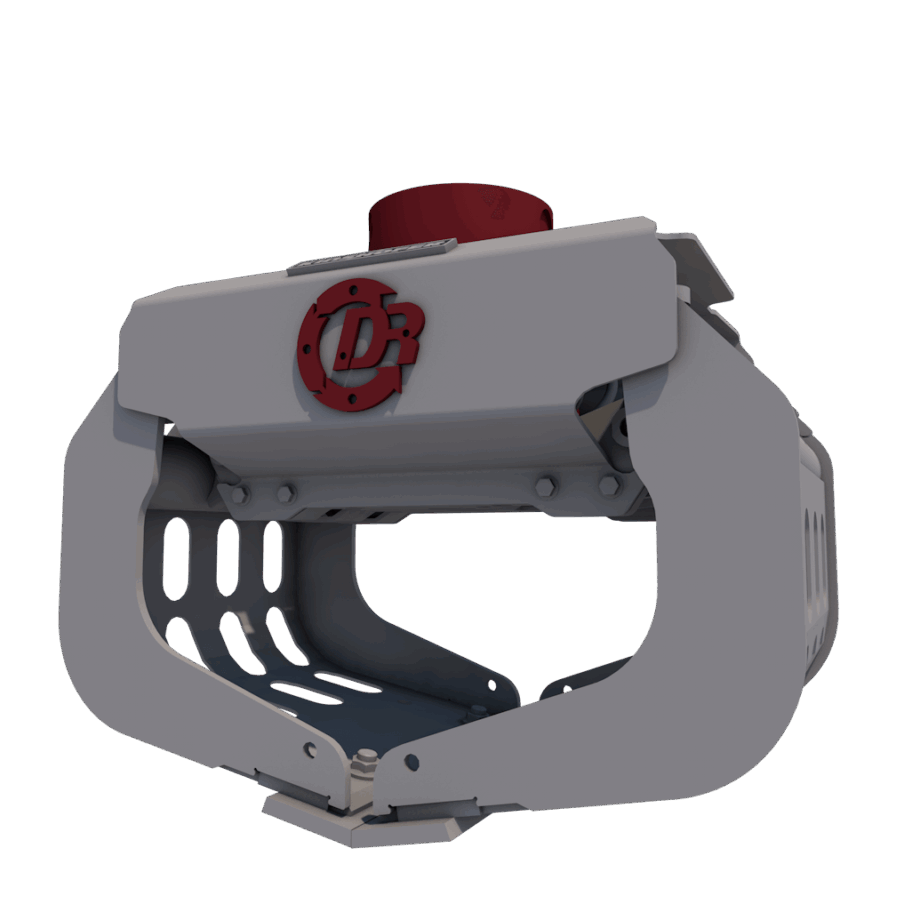

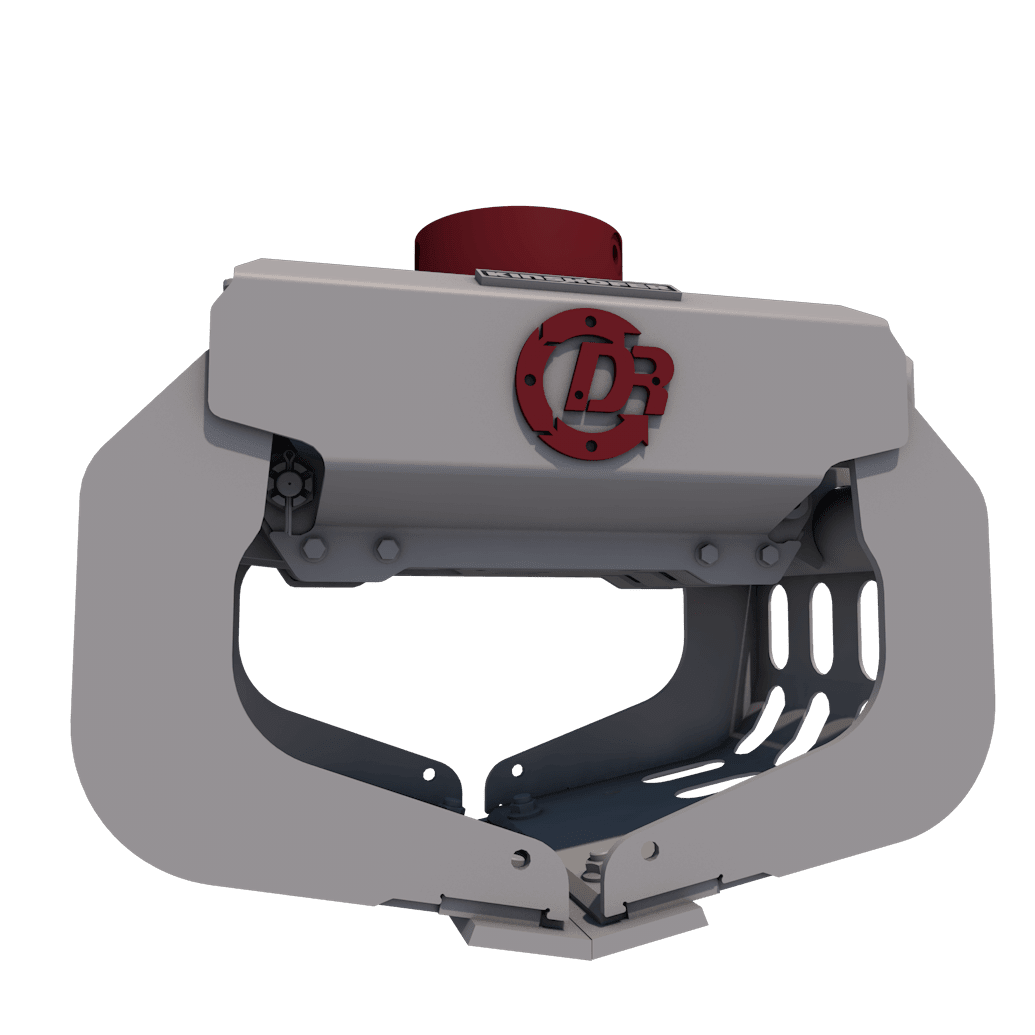

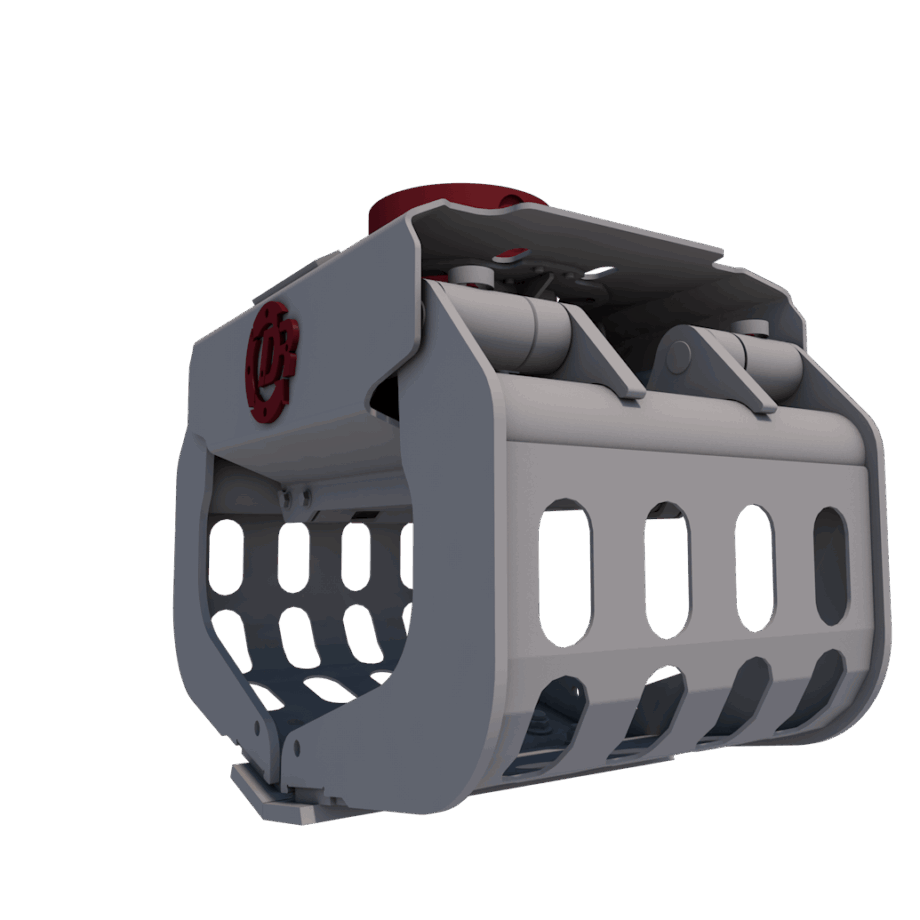

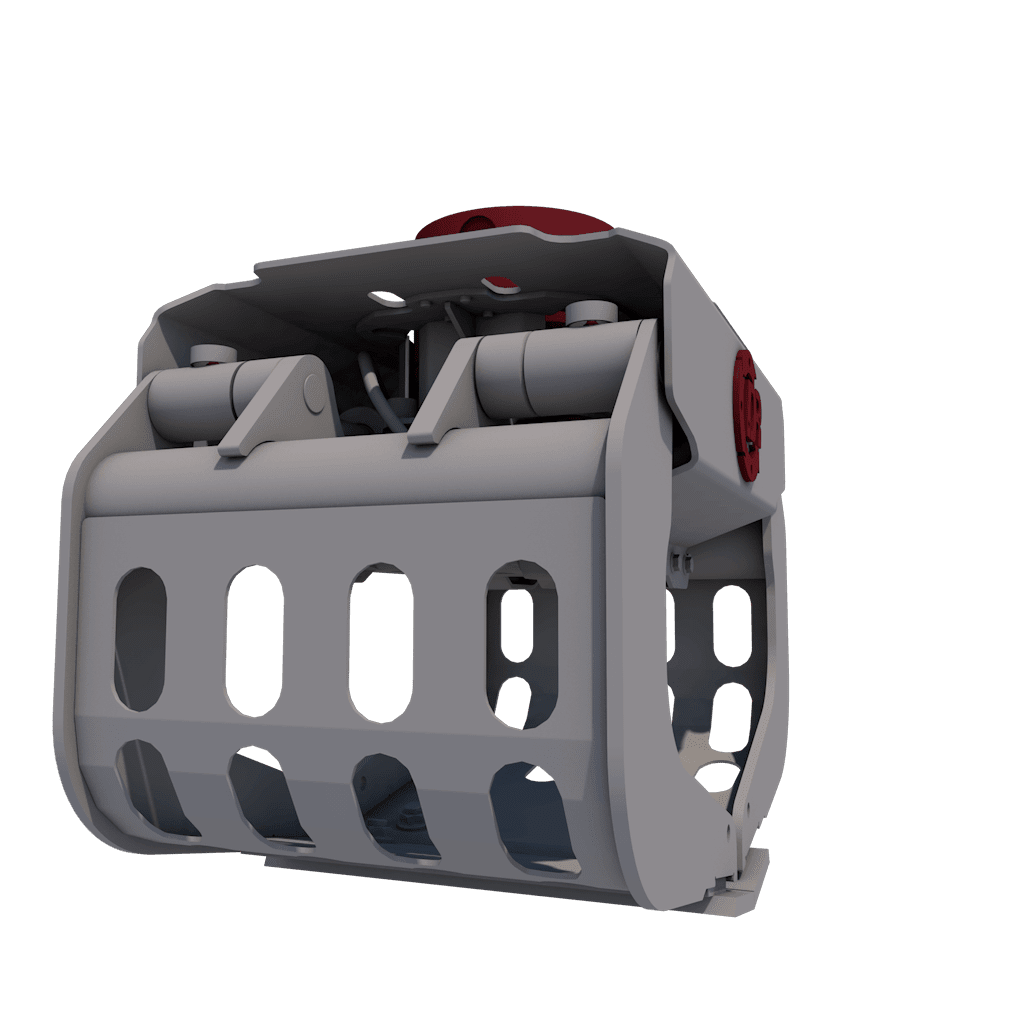

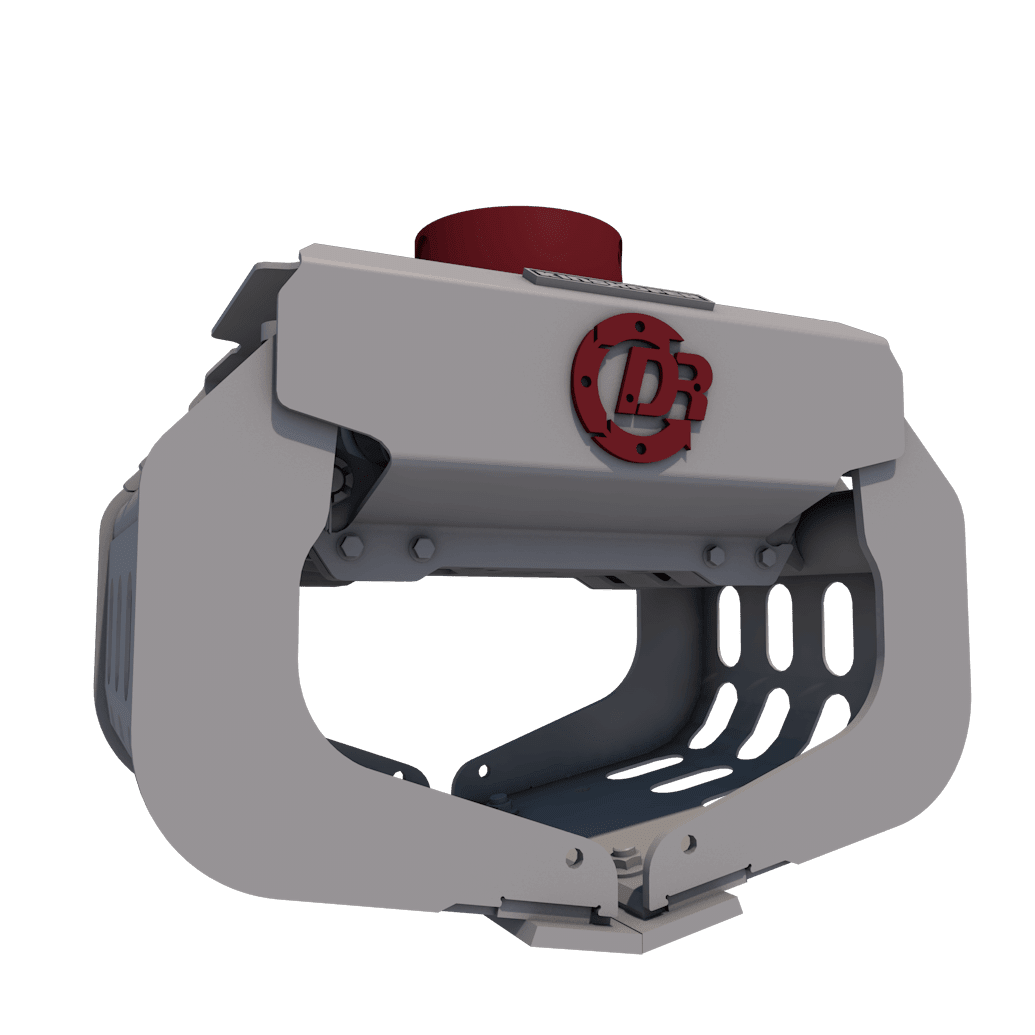

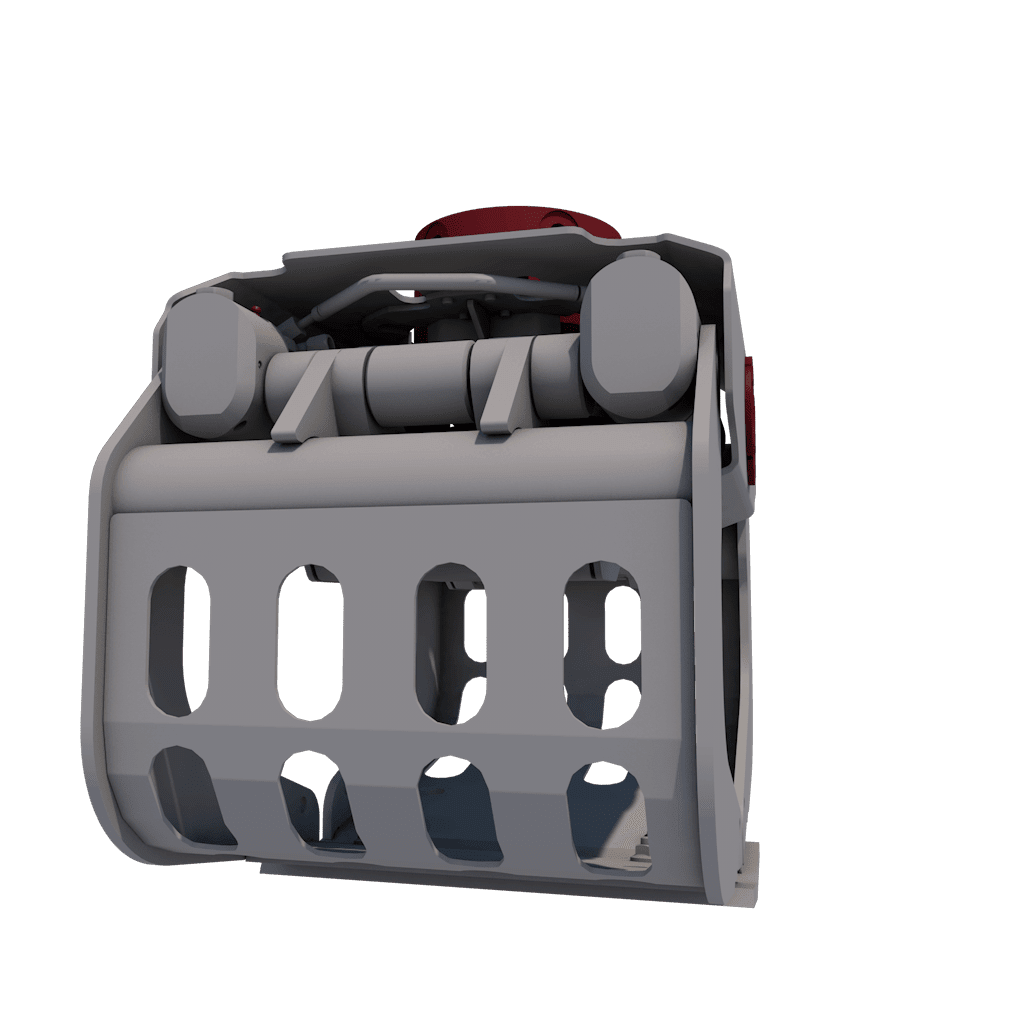

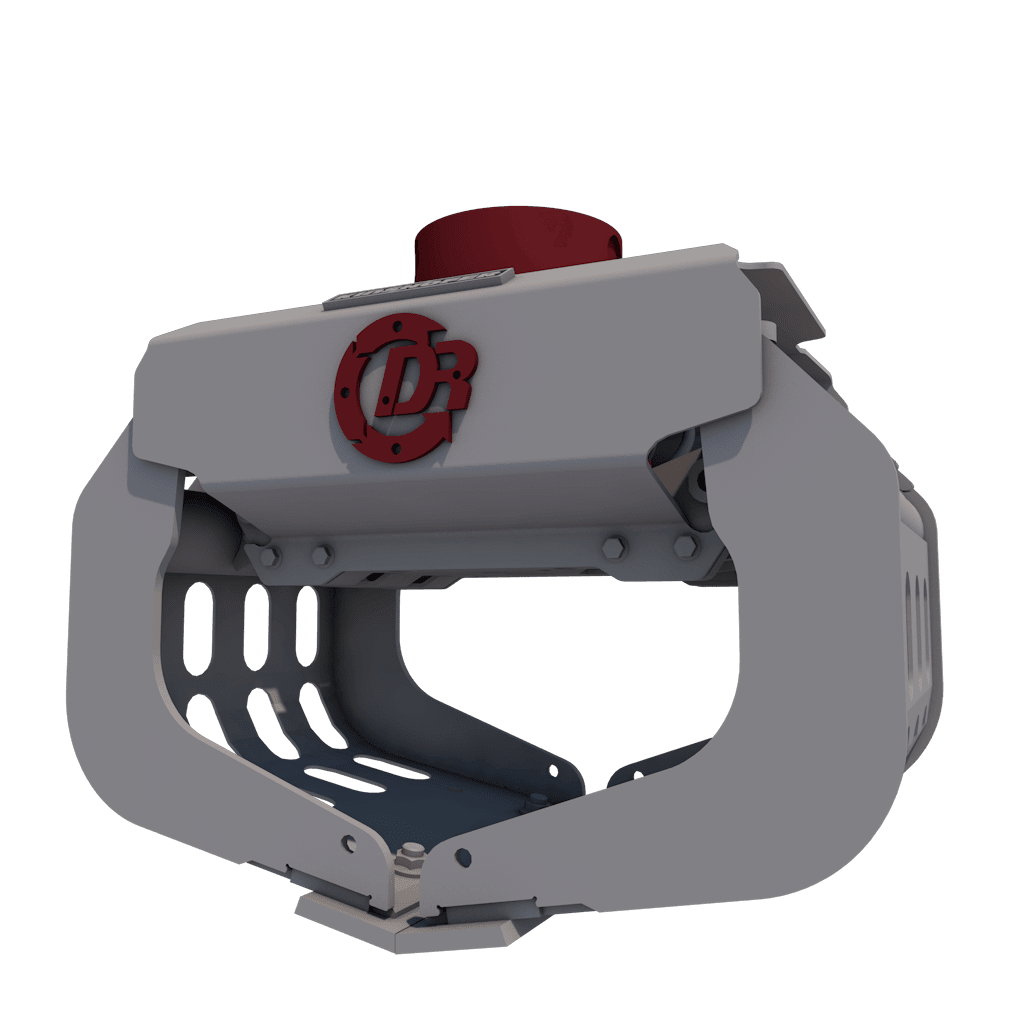

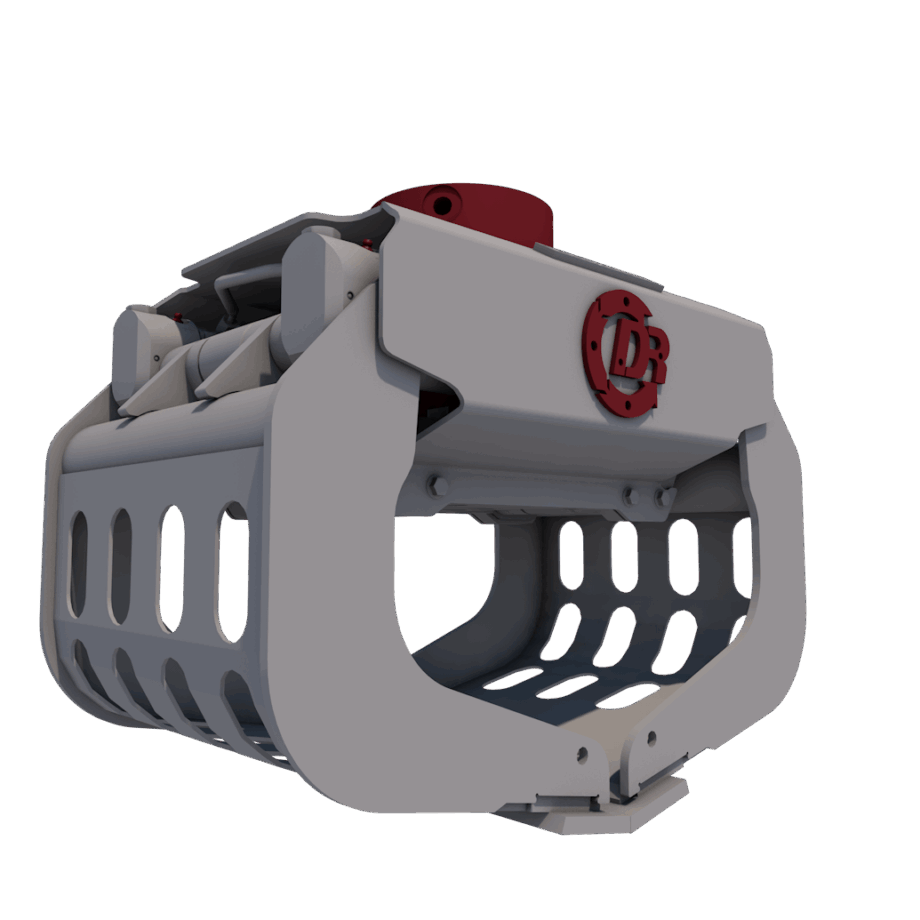

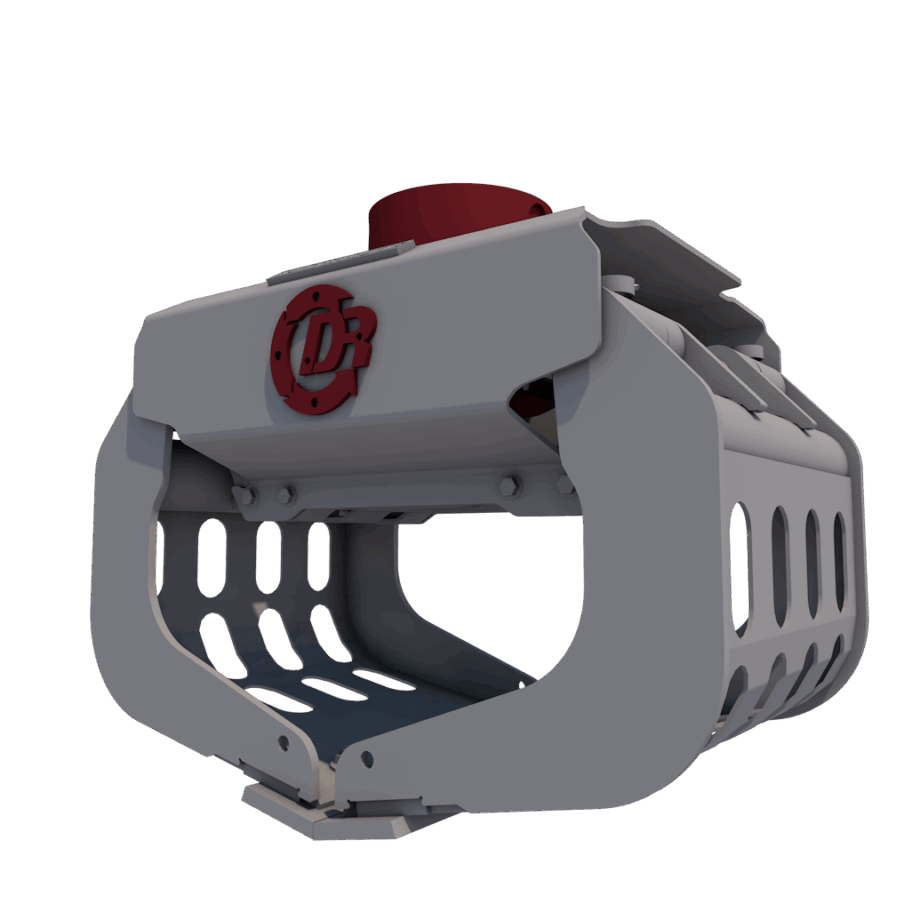

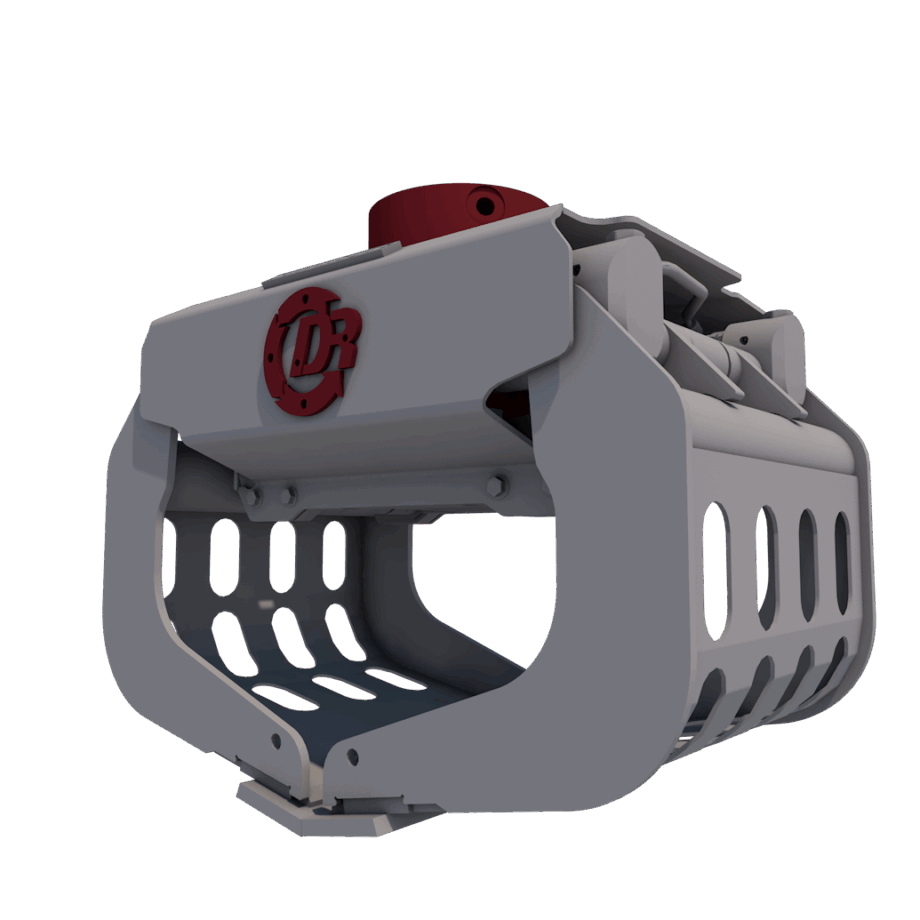

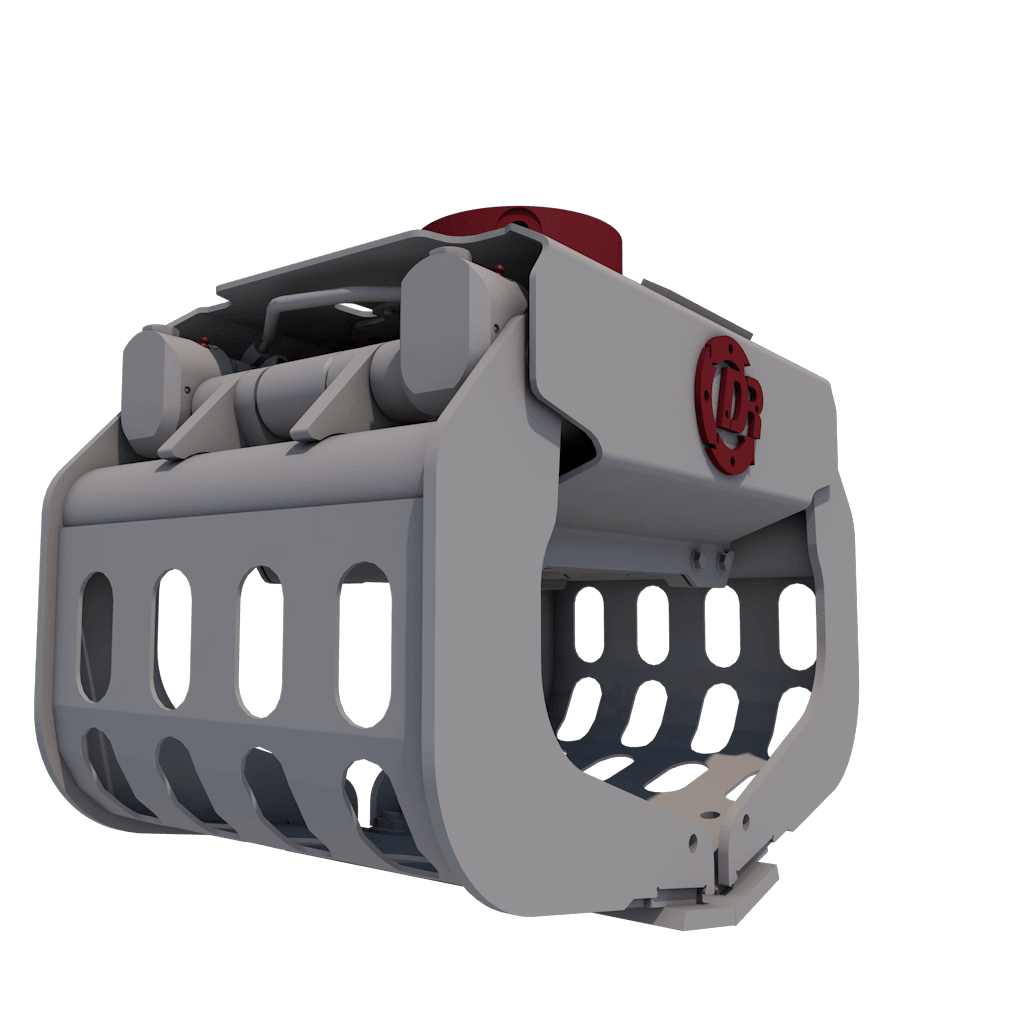

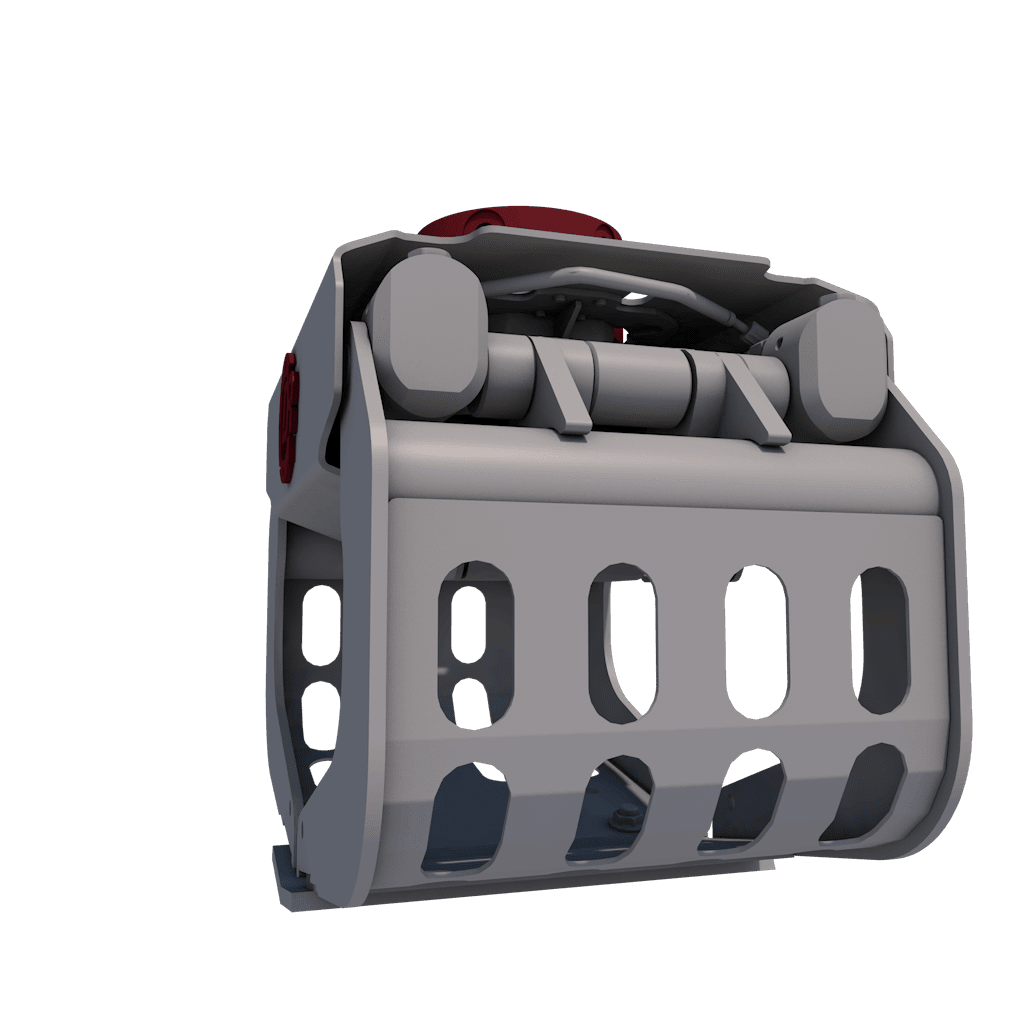

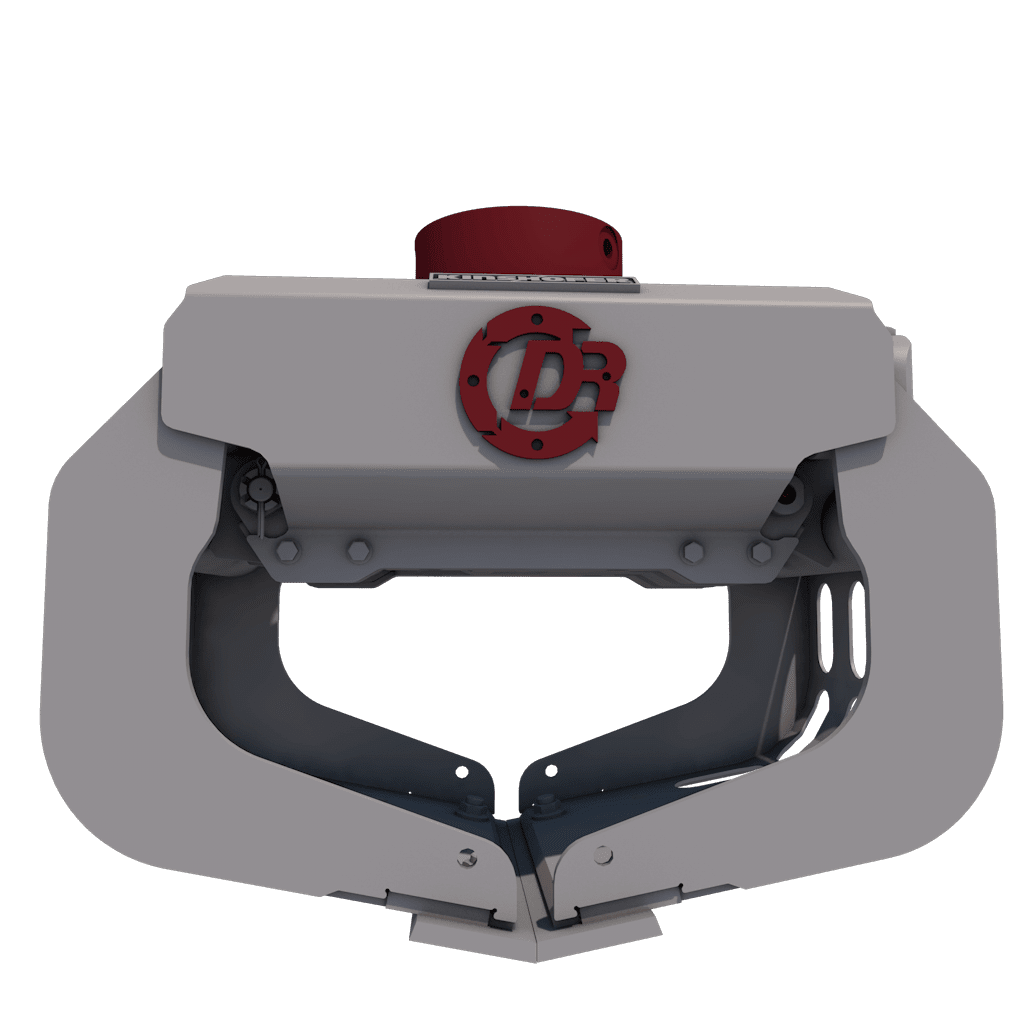

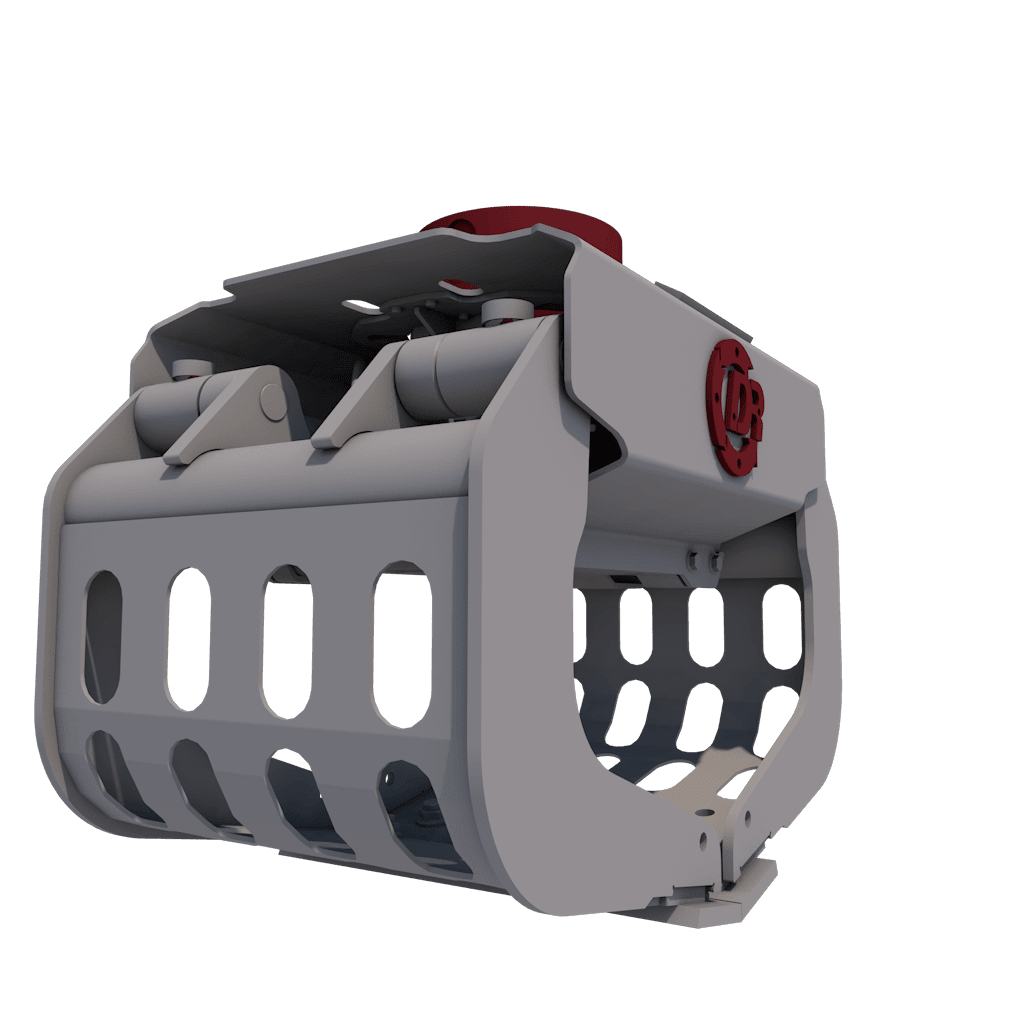

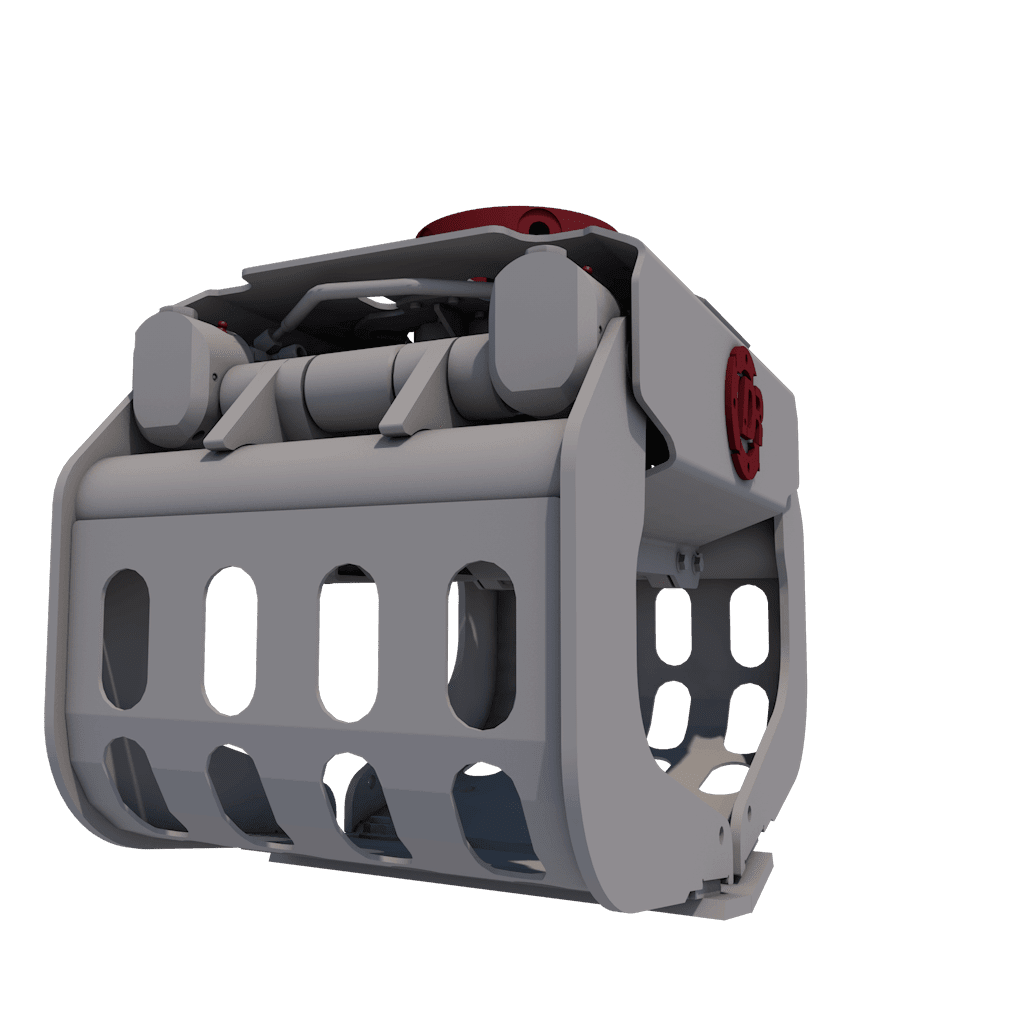

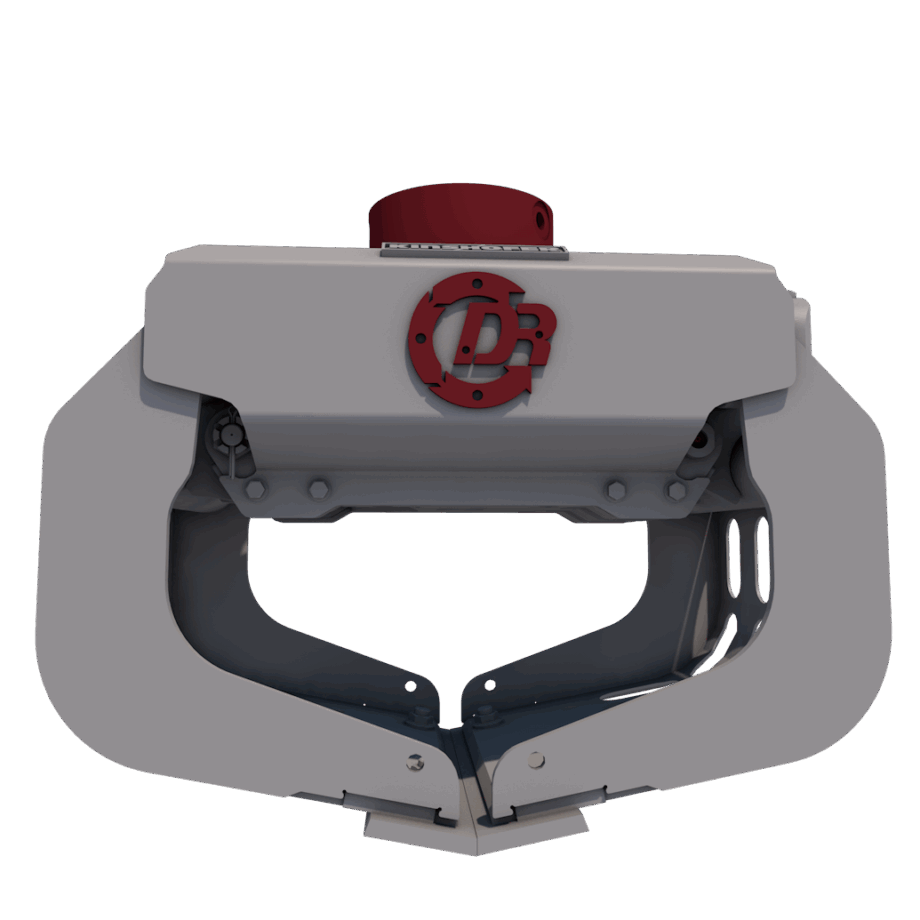

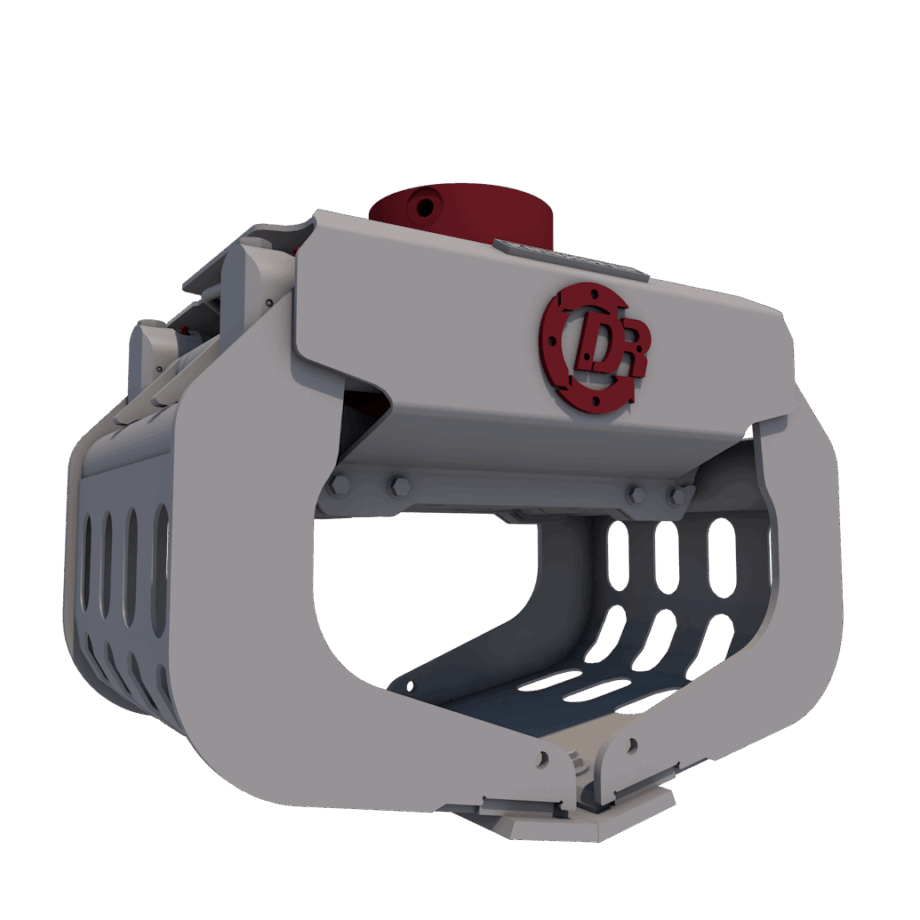

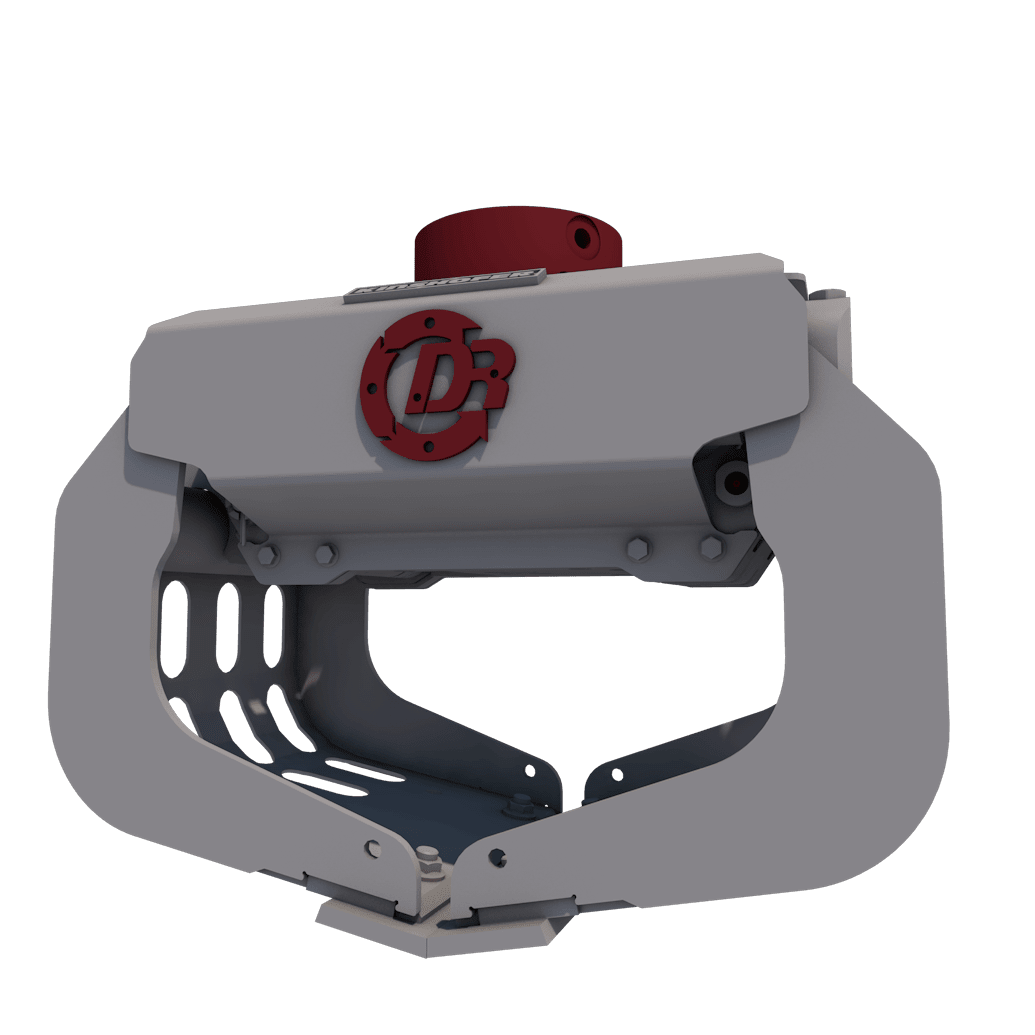

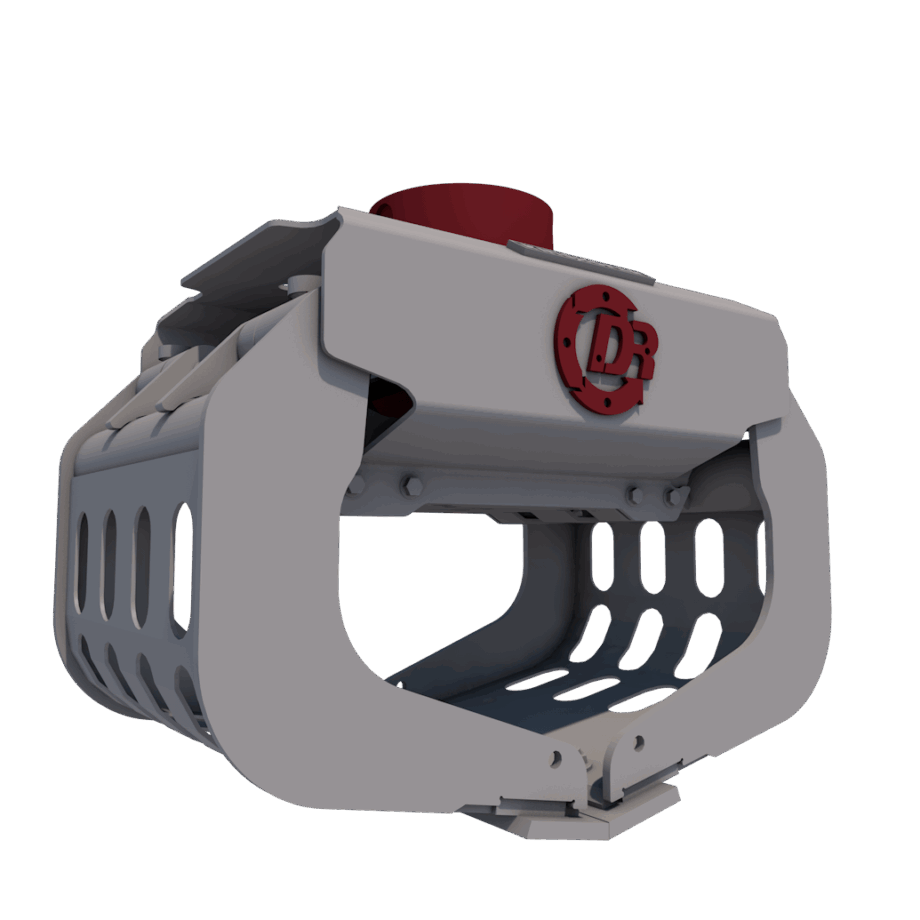

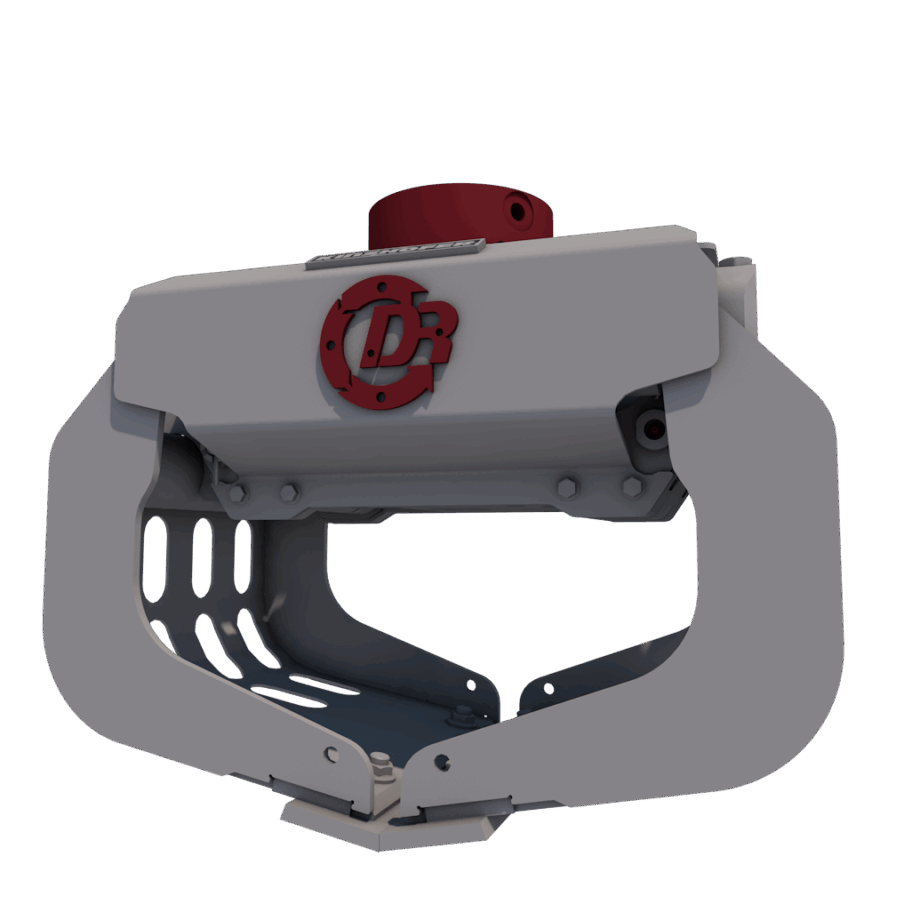

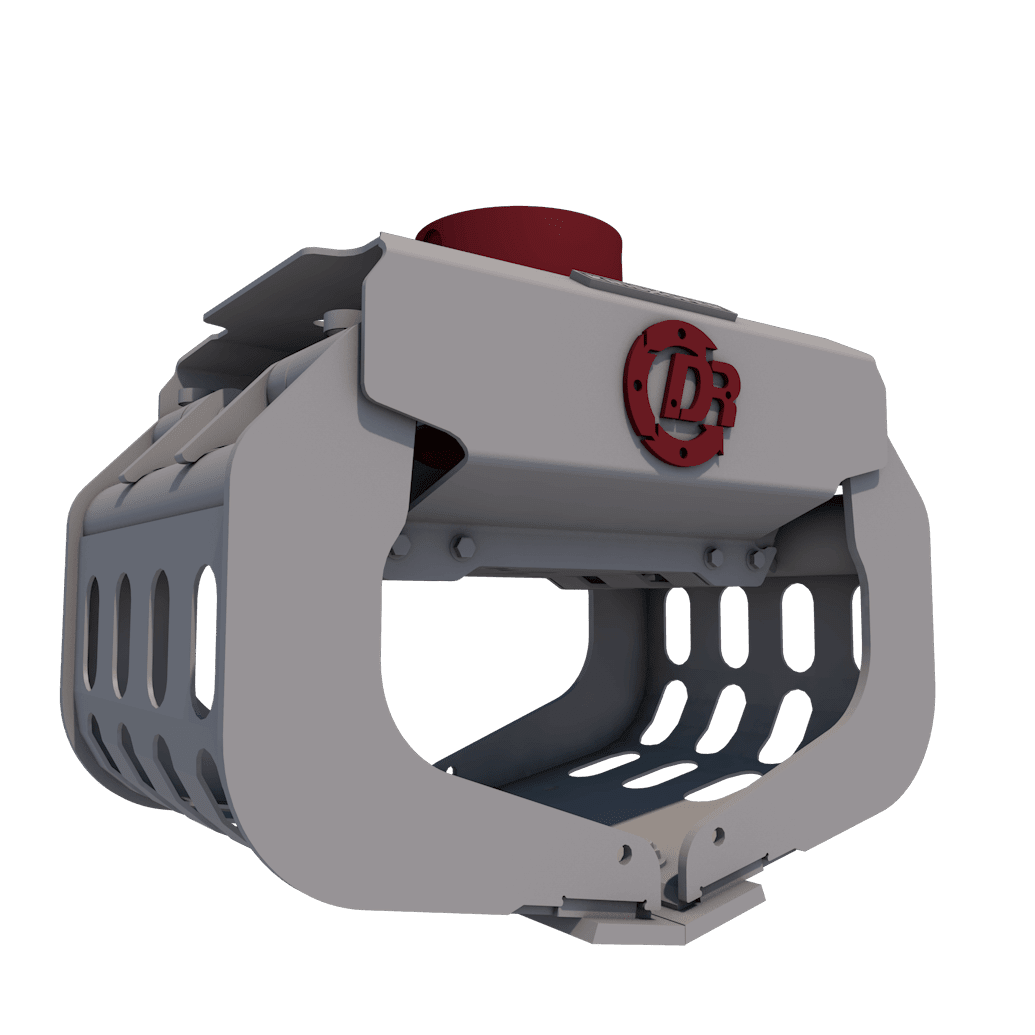

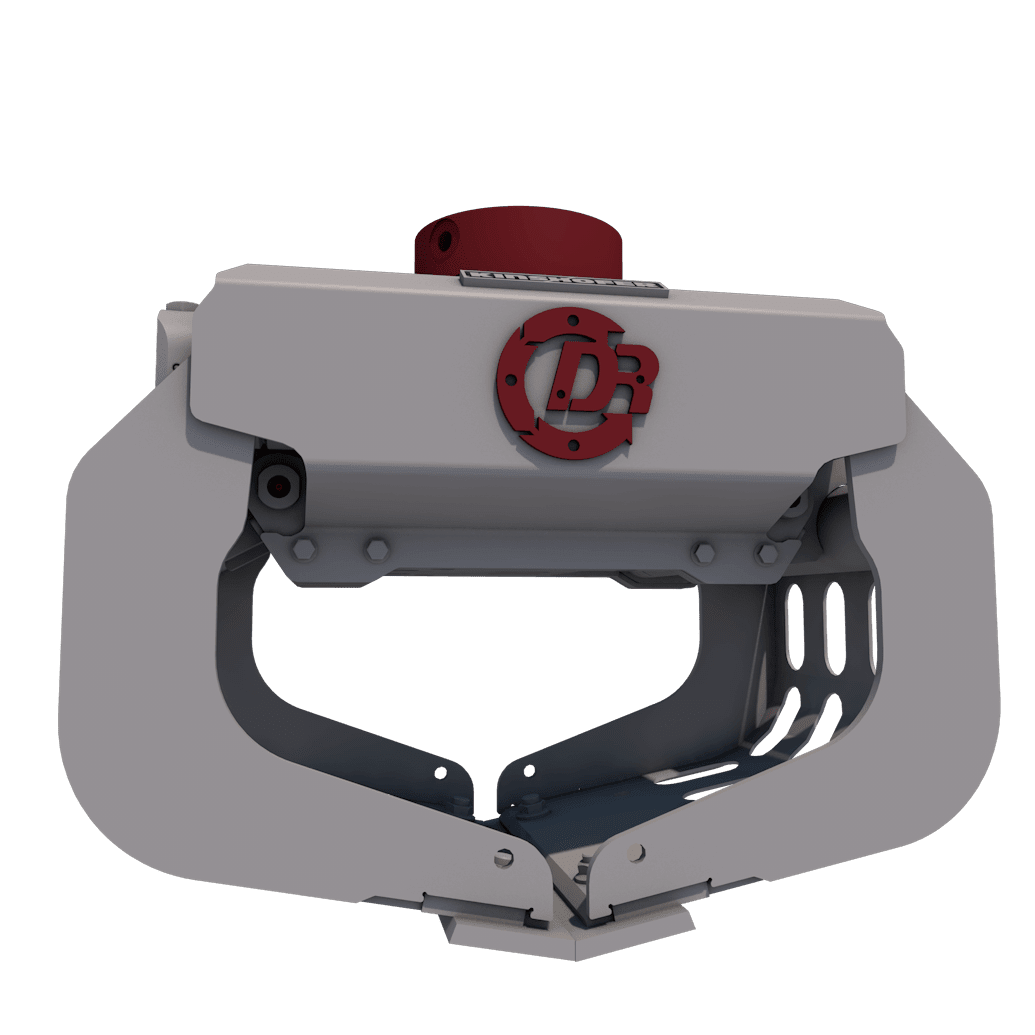

Demolition and sorting grab – DRG-Mini/Midi
Demarec mini and midi demolition and sorting grabs are perfect for demolition, recycling, and general use. They are ideal for demolition work prior to renovations and after fire damage or for pulling up shrubs. The mini and midi demolition and sorting grabs are available for excavators from 1 until 9 ton. Because the grabs have a low construction height and a favourable weight, the combination of digging machine and grab is extremely stable in all conditions.… Despite their low weight, Demarec mini and midi demolition and sorting grabs are extremely robust and powerful. The grabs are fitted with load holding valves, which is unique in this class. Mini and midi demolition and sorting grabs also save time and manpower and are safer to work with.
|Type||Carrier weight*||Weight**||Capacity||Closing force||Opening||Width||Height|
|DRG-1-DN||1 – 2 ton||115 kg||35 l||18,3 ton||792 mm||300 mm||520 mm|
|DRG-4-DN||2 – 4 ton||185 kg||60 l||21 ton||1212 mm||420 mm||747 mm||DRG-5-DN NOX||3 – 6 ton||160 kg||60 l||21 ton||1212 mm||420 mm||–|
|DRG-6-DN||3 – 6 ton||225 kg||90 l||21 ton||1345 mm||470 mmm||817 mm|
|DRG-7-DN NOX||5 – 8 ton||180 kg||90 l||21 ton||1345 mm||470 mmm||–|
|DRG-9-DN||6 – 9 ton||355 kg||165 l||24 ton||1665 mm||500 mm||973 mm||DRG-11-DN NOX||7 – 11 ton||305 kg||165 l||24 ton||1665 mm||500 mm||–|
*Depending of lifting capacity of carrier
