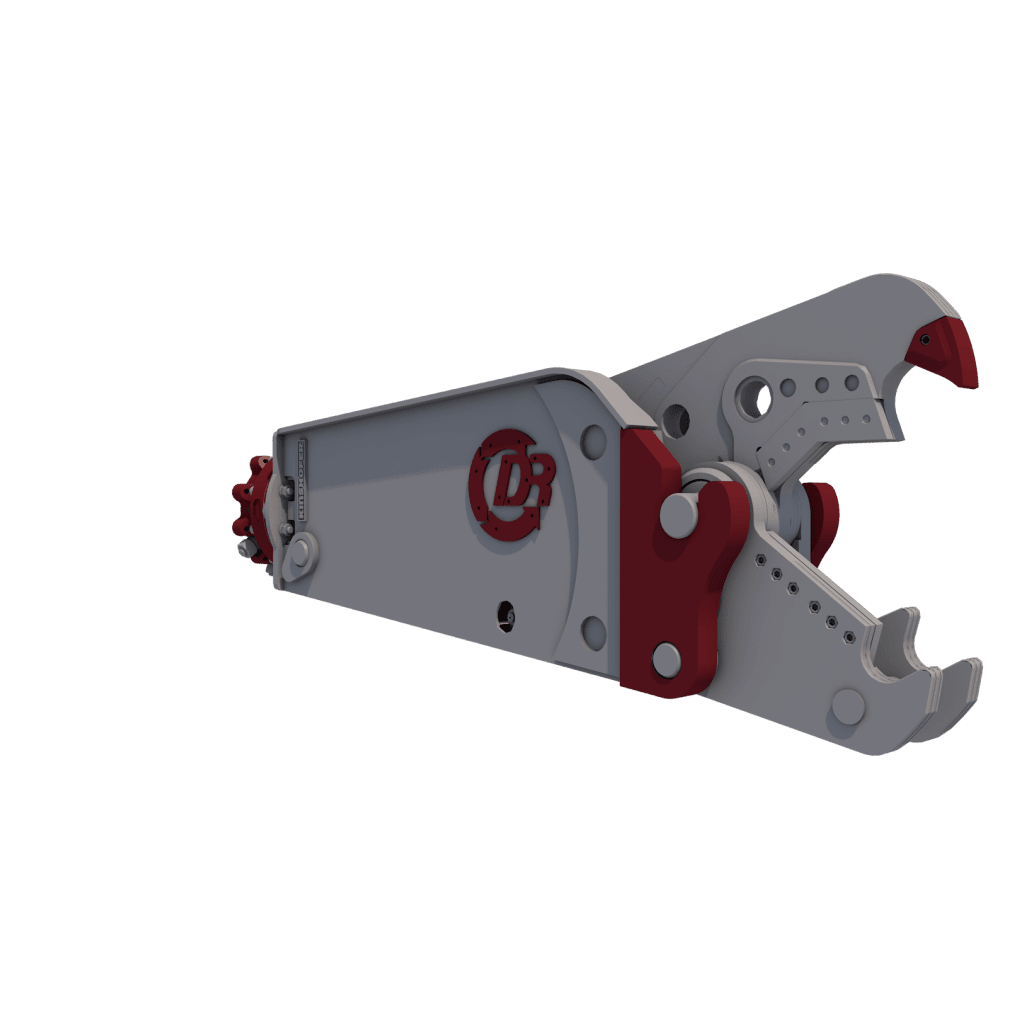

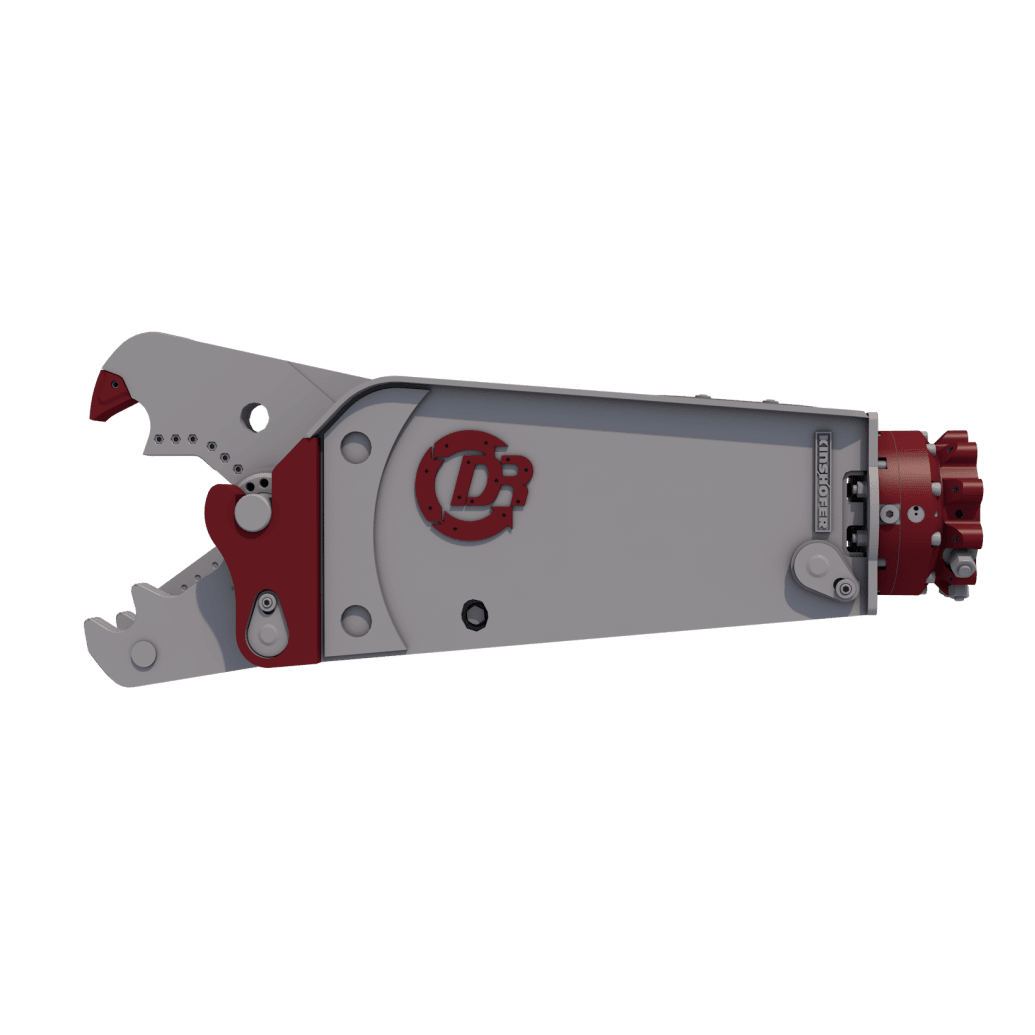

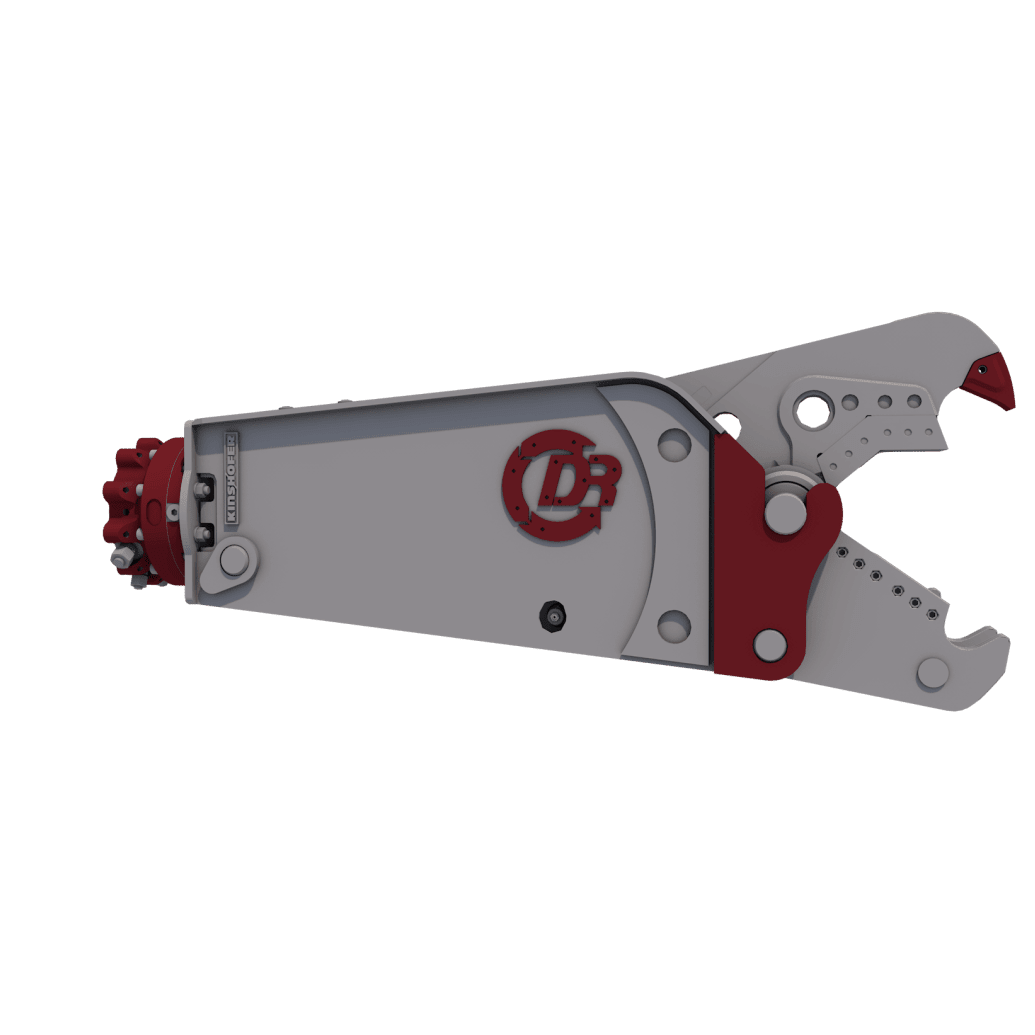

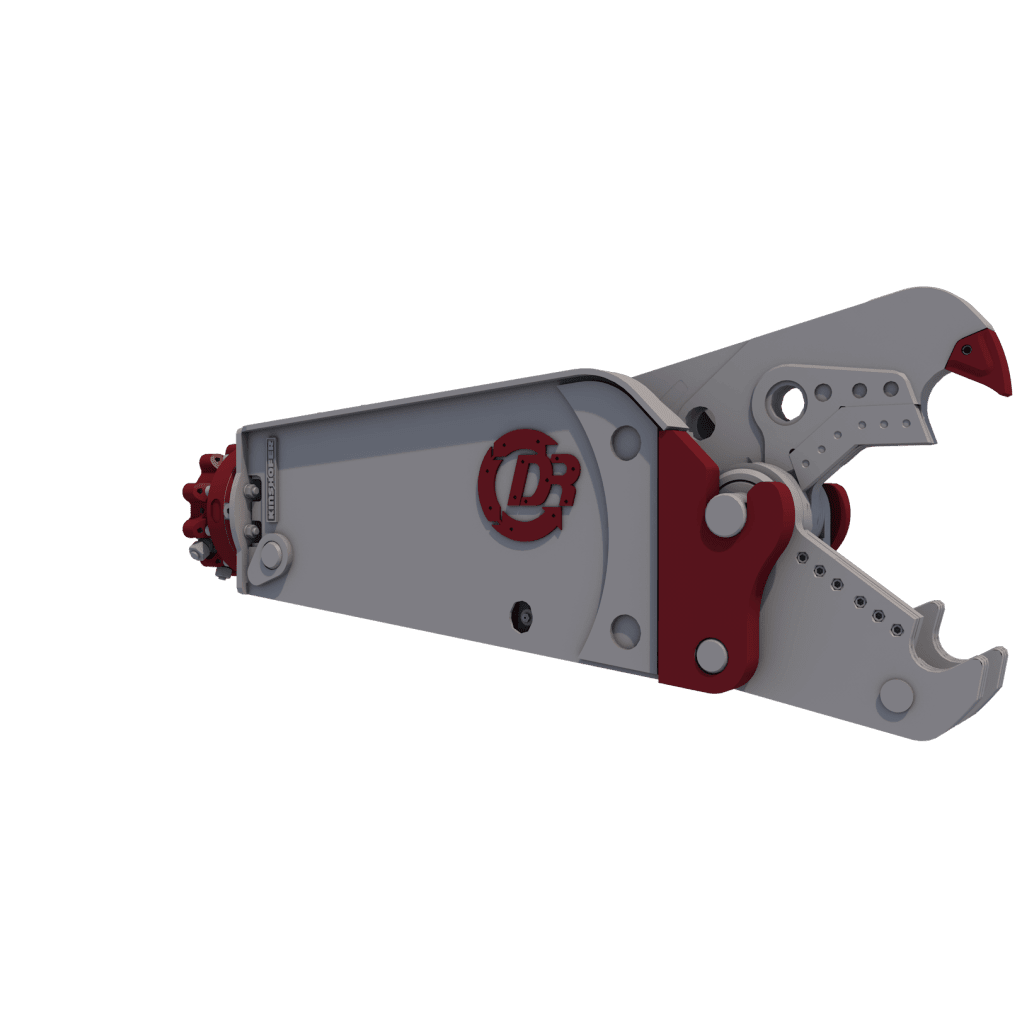

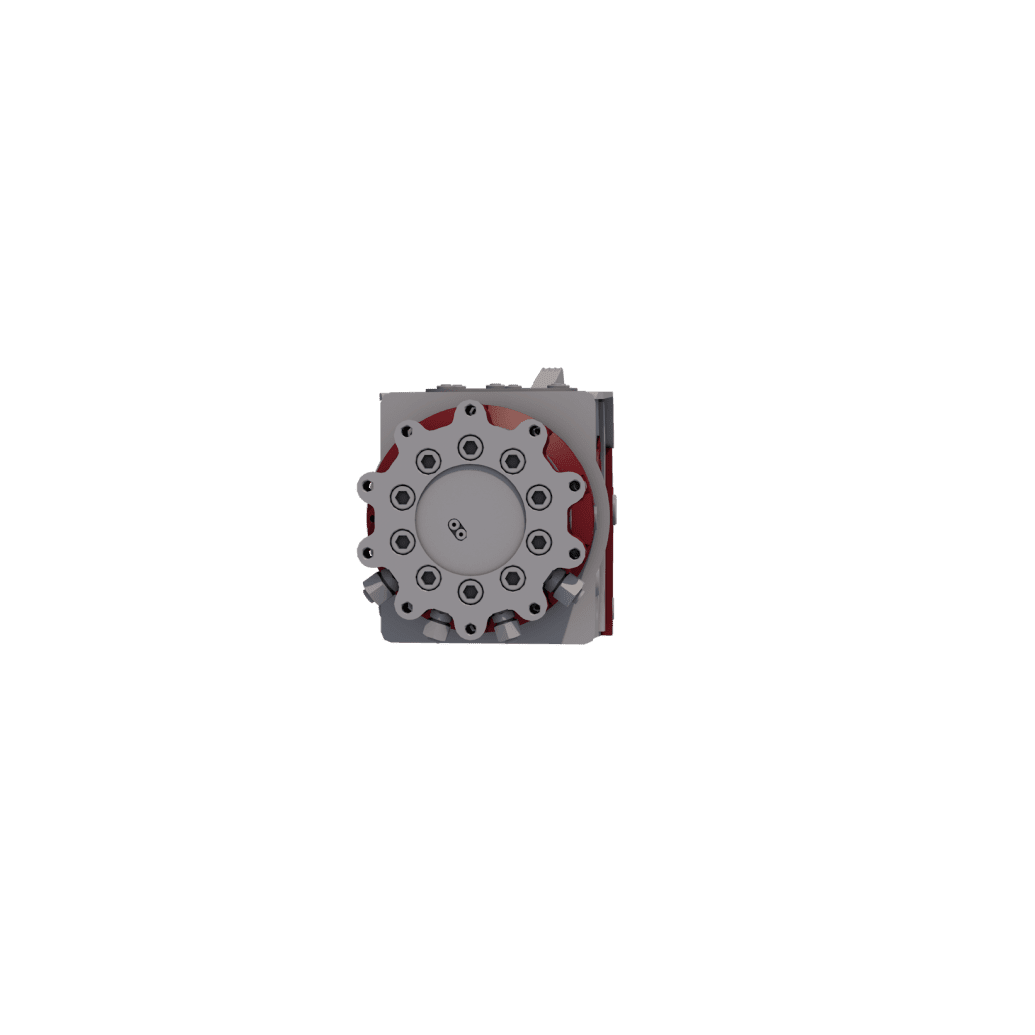

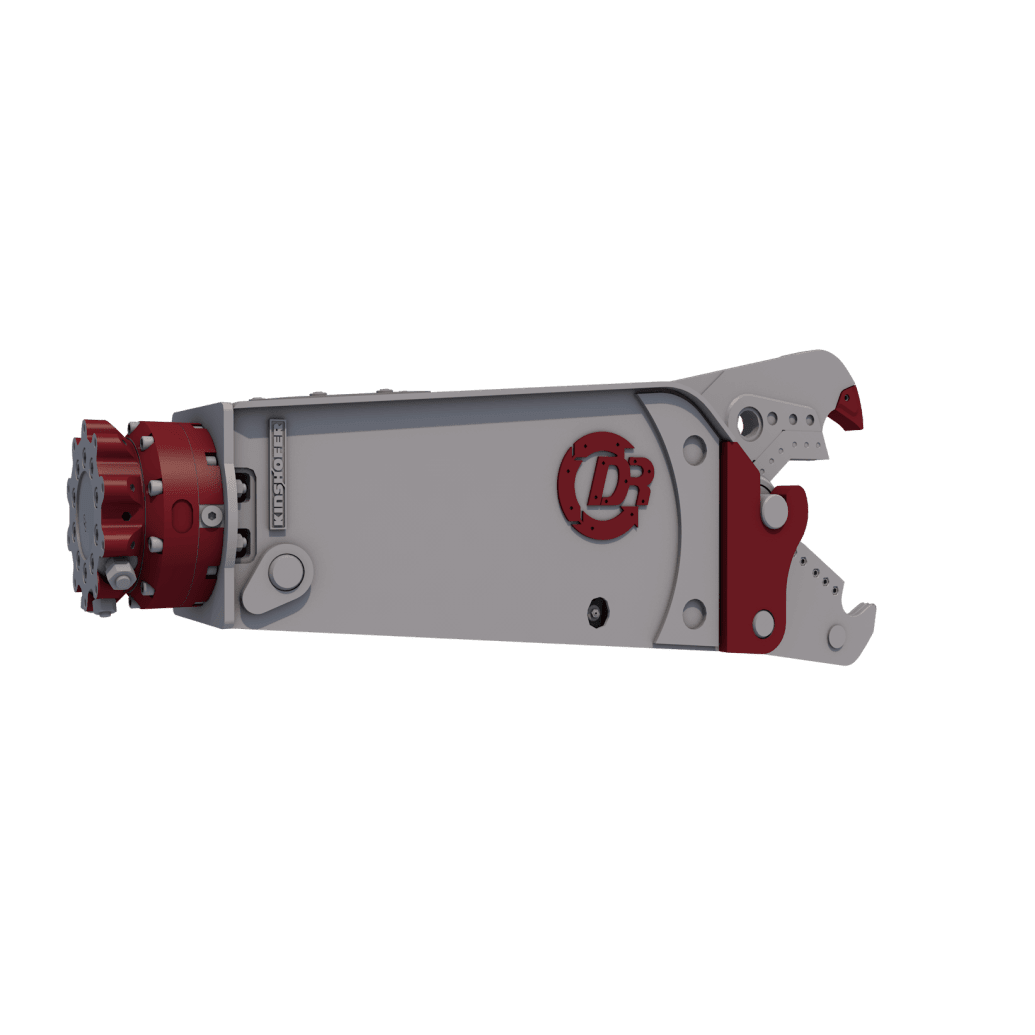

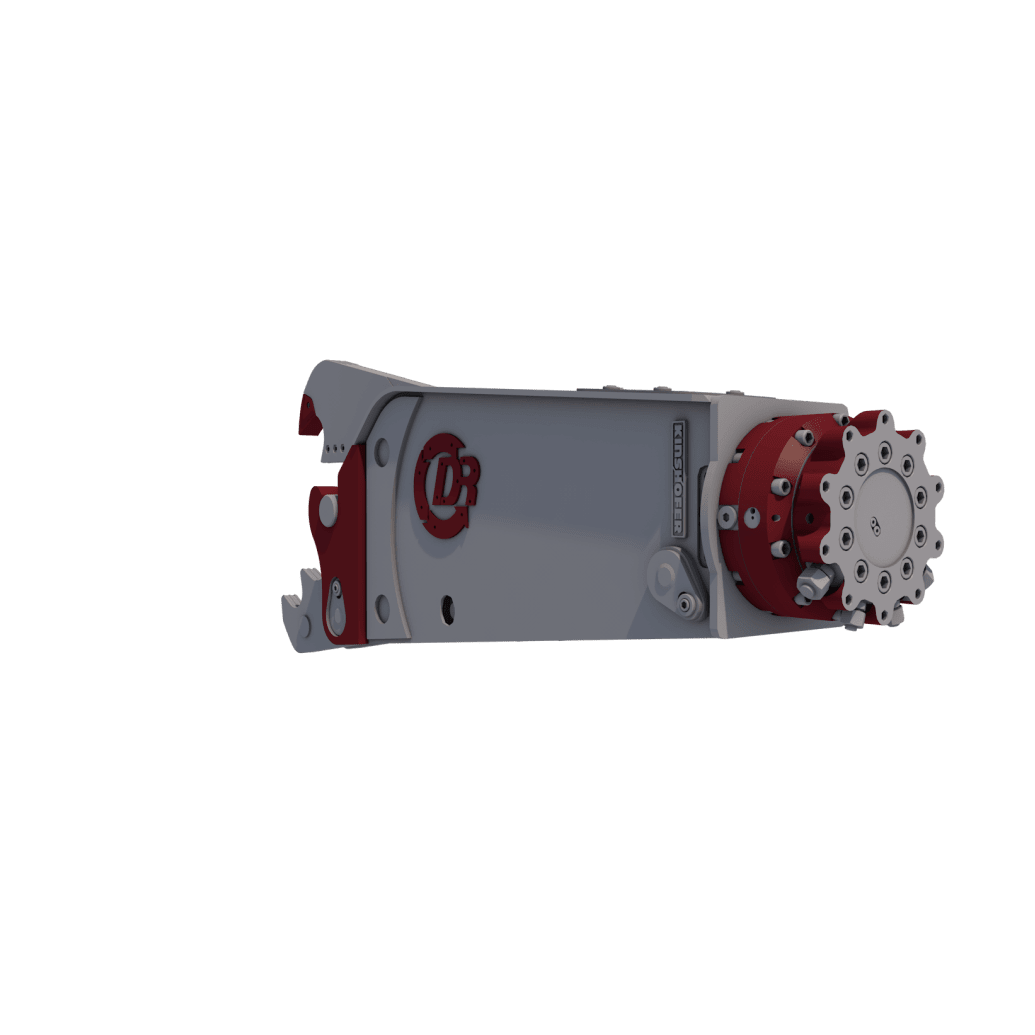

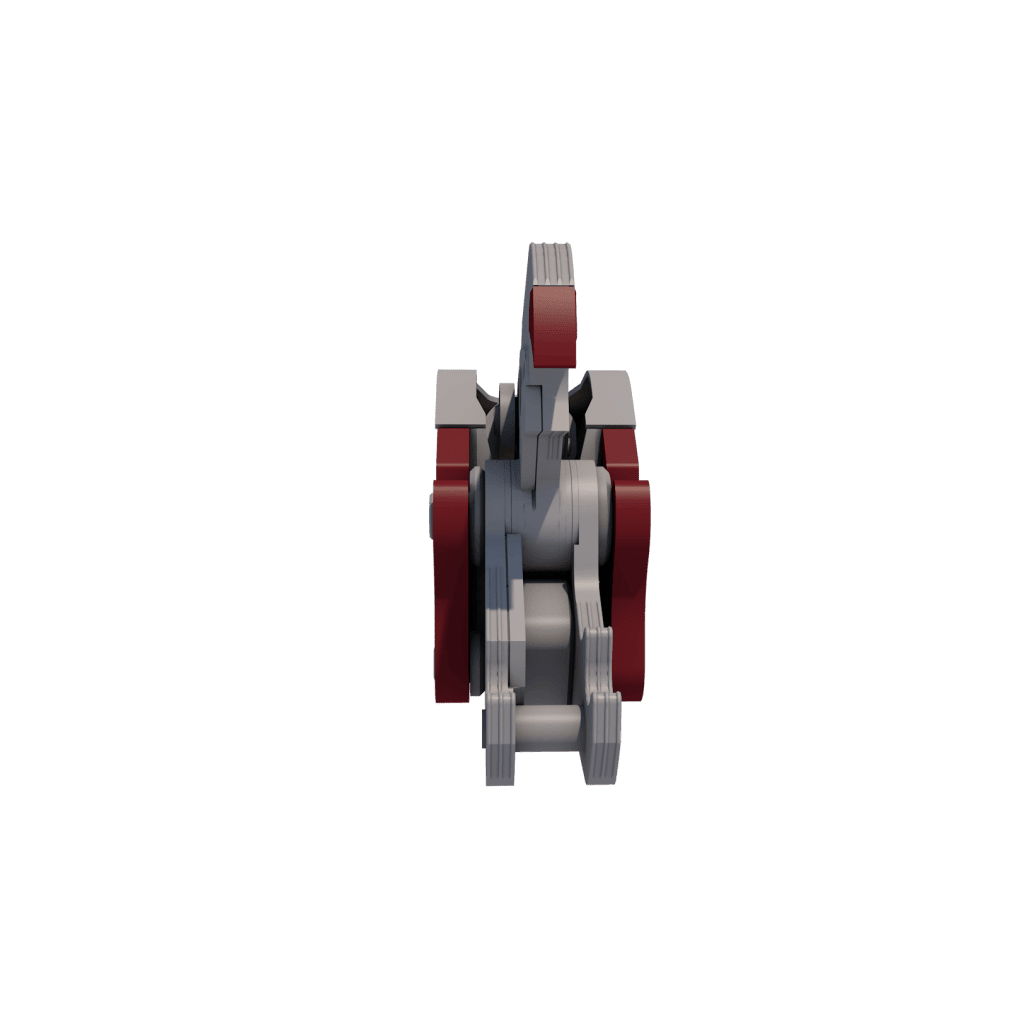

Multi-shear – DMS

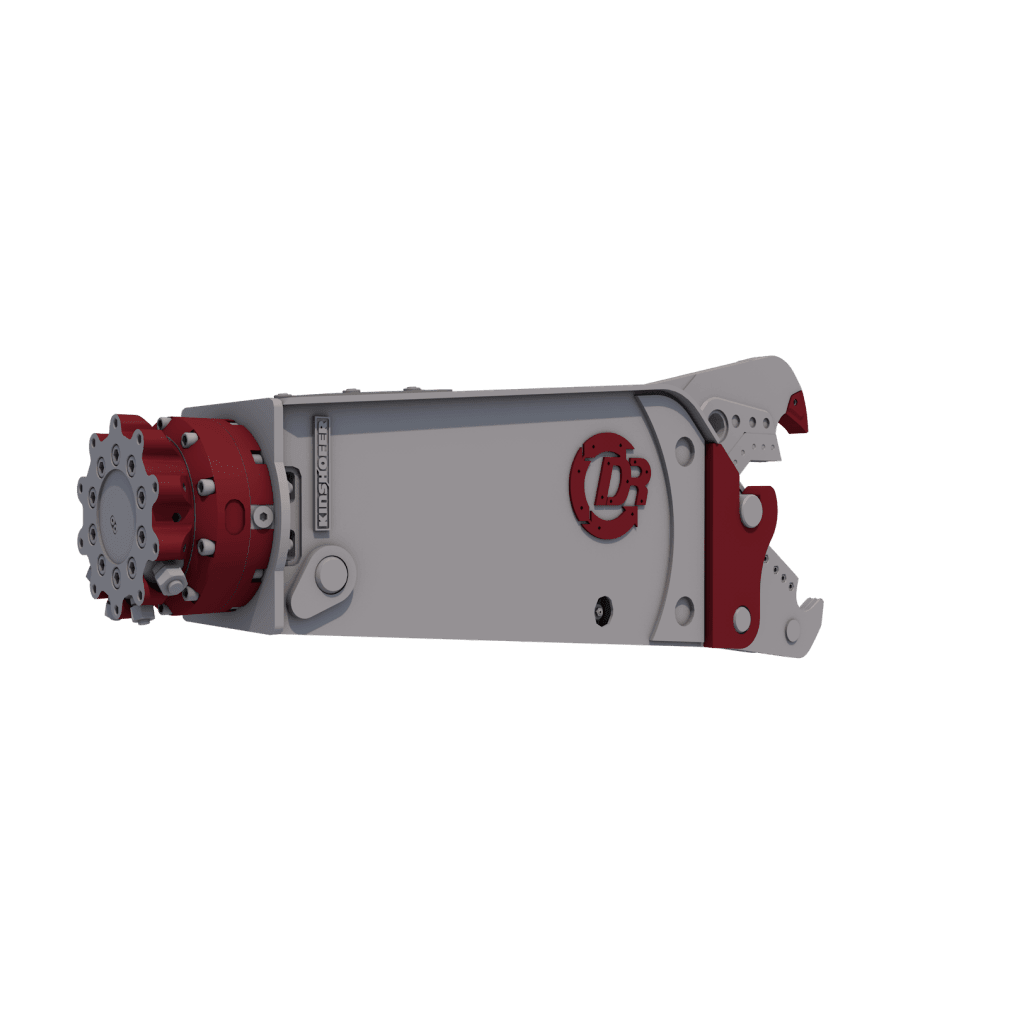

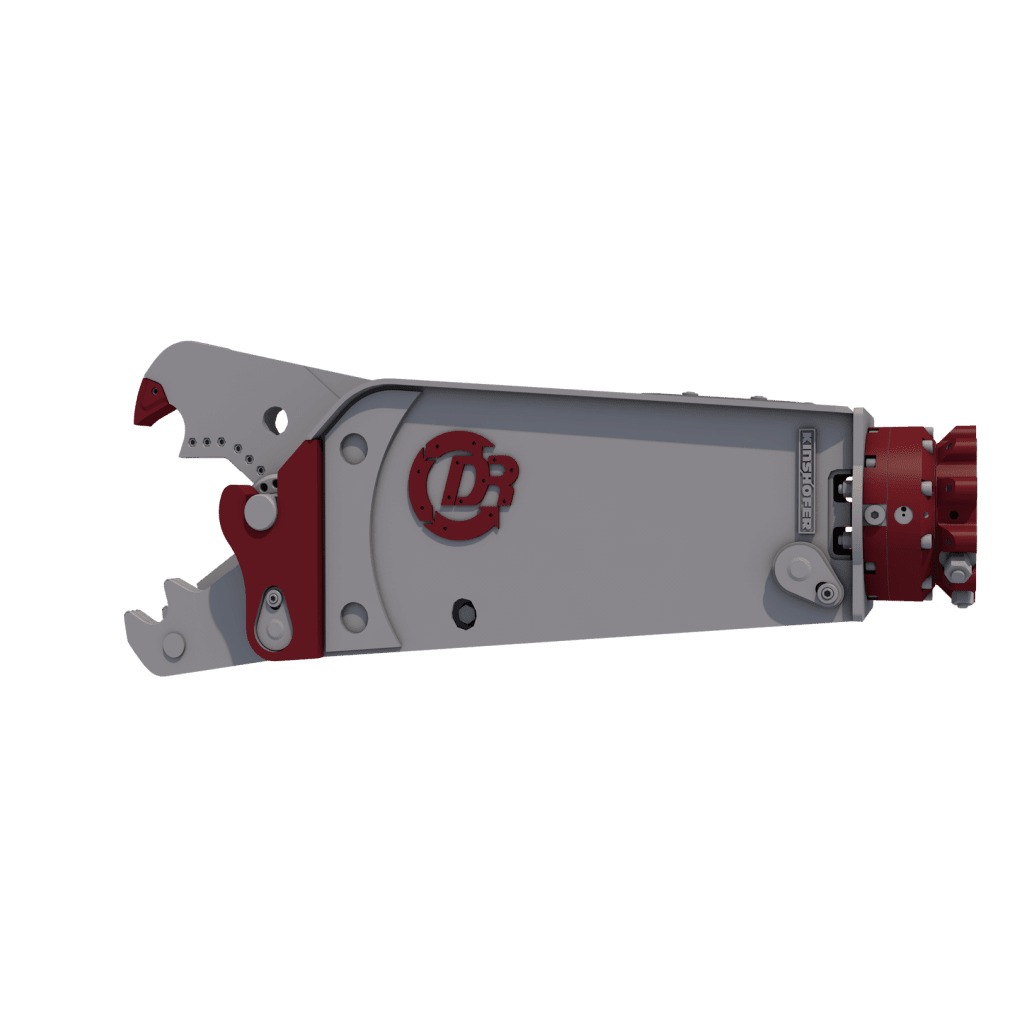

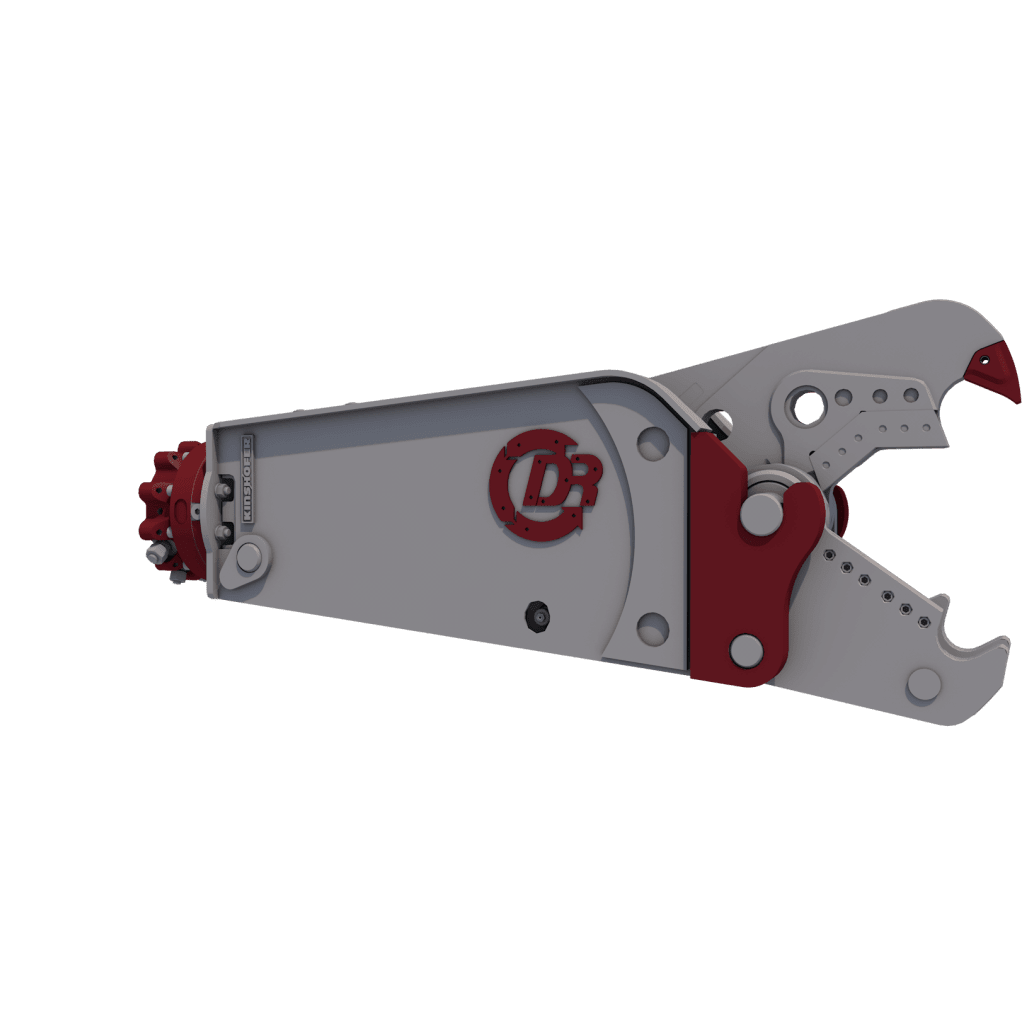

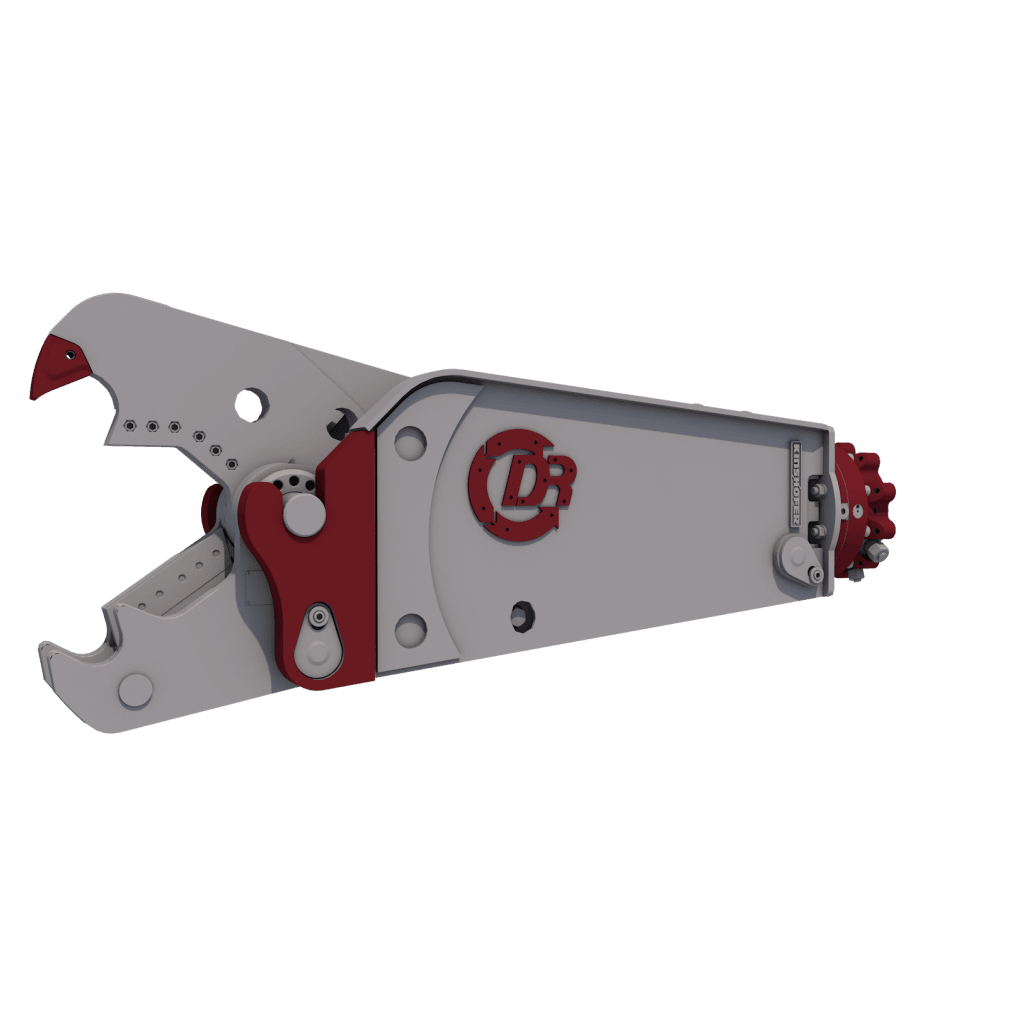

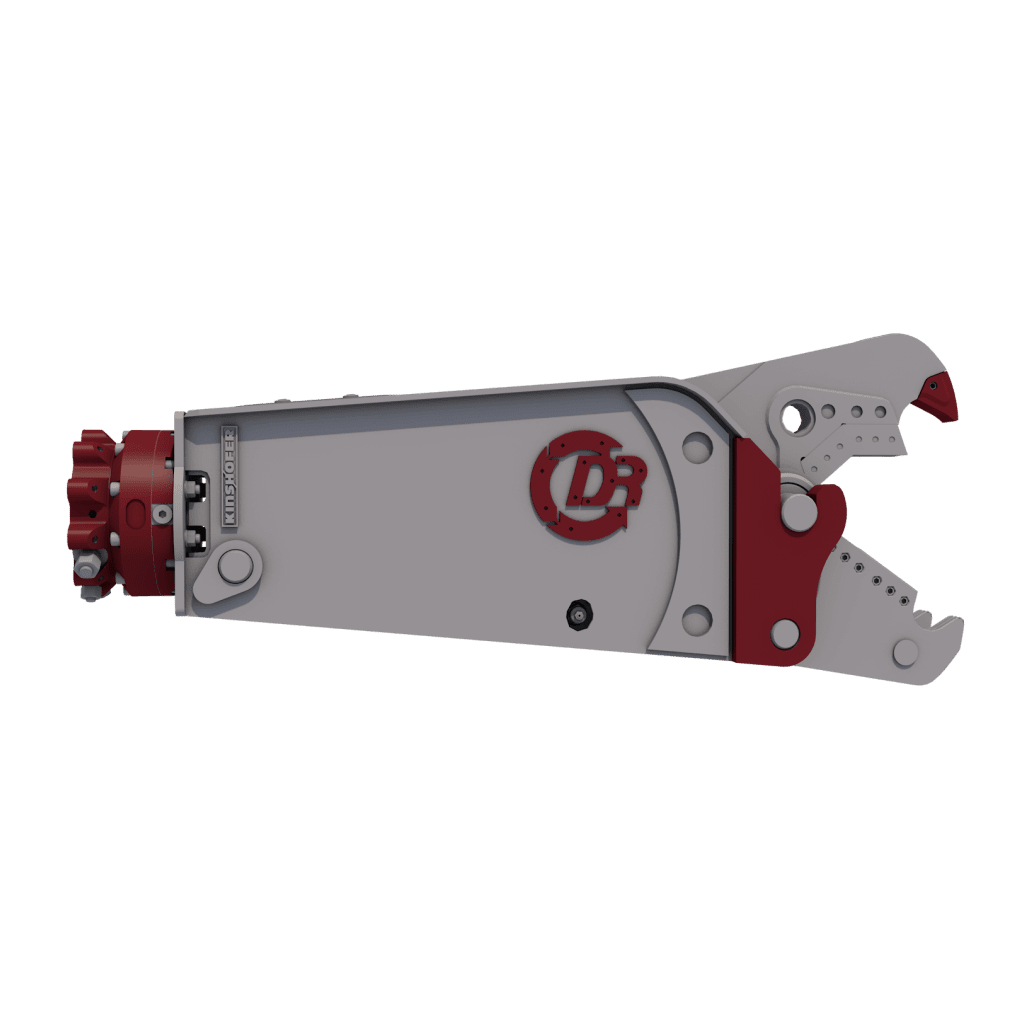

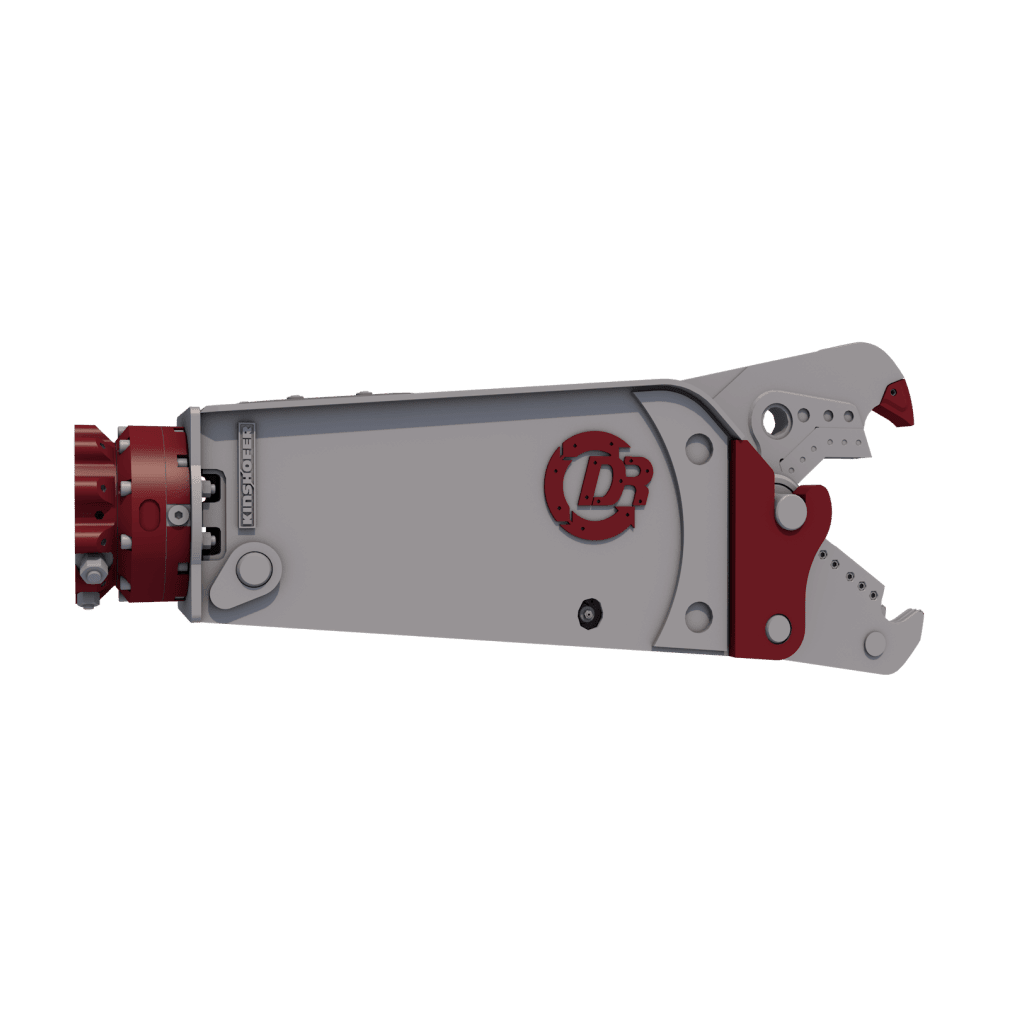

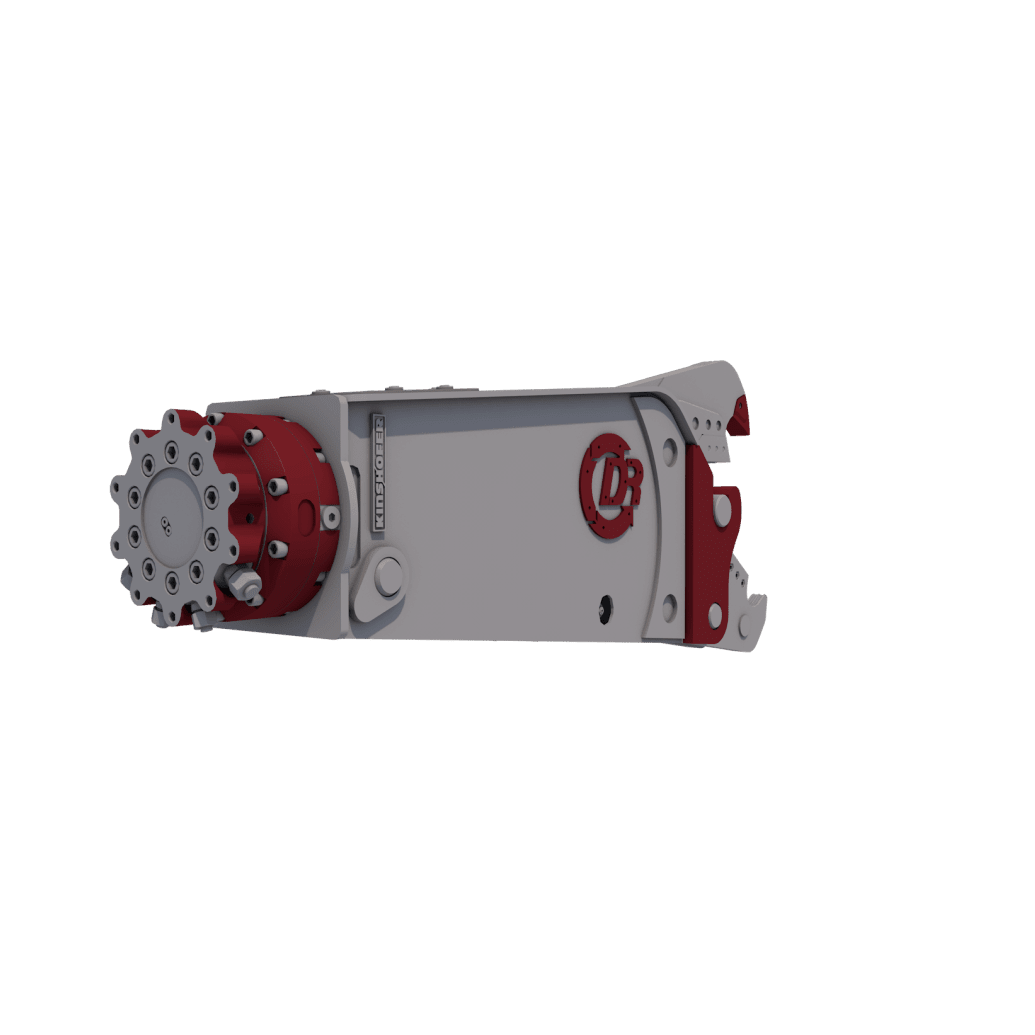

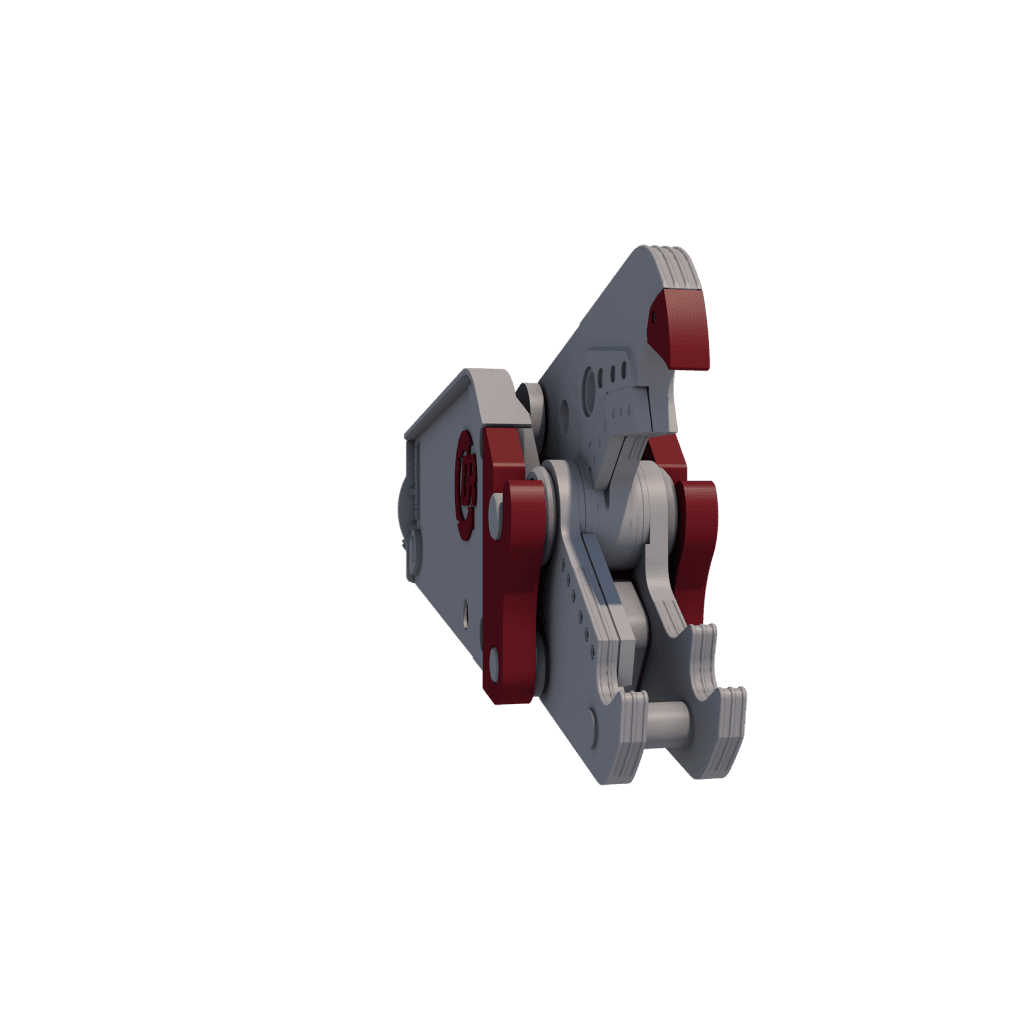

The DEMAREC DMS Multi-shear is the ideal flexible shear for use with midi excavators. The DMS is a truly multifunctional shear thanks to the mechanical change system and the wide range of available jaws. There are jaws available for cutting through reinforced concrete (DMS-05-C), scrap (DMS-05-S), and for cutting cables (DMS-05-V).… The DMS-05 can be used for both primary and secondary demolition work. All jaws are fitted with replaceable wearing parts where possible. Jaws can be quickly and safely changed in just a few minutes.
|Type||Carrier weight (Stick)*||Carrier weight (Boom)*||Carrier weight (Skid steer)*|
|DMS-05-Y||7 – 9 ton||5 – 7 ton||3 – 5 ton|
*Depending on lifting capacity of carrier
|Type||Weight*||Closing force||Lenght||Jaw opening||Jaw depth|
|DMS-05-C||540 kg||34 / 48 ton||1665 mm||400 mm||360mm|
|DMS-05-S||510 kg||156 ton||1665 mm||320 mm||360 mm|
|DMS-05-V||500 kg||102 ton||1725 mm||270 mm||355 mm|
* Excl bracket
