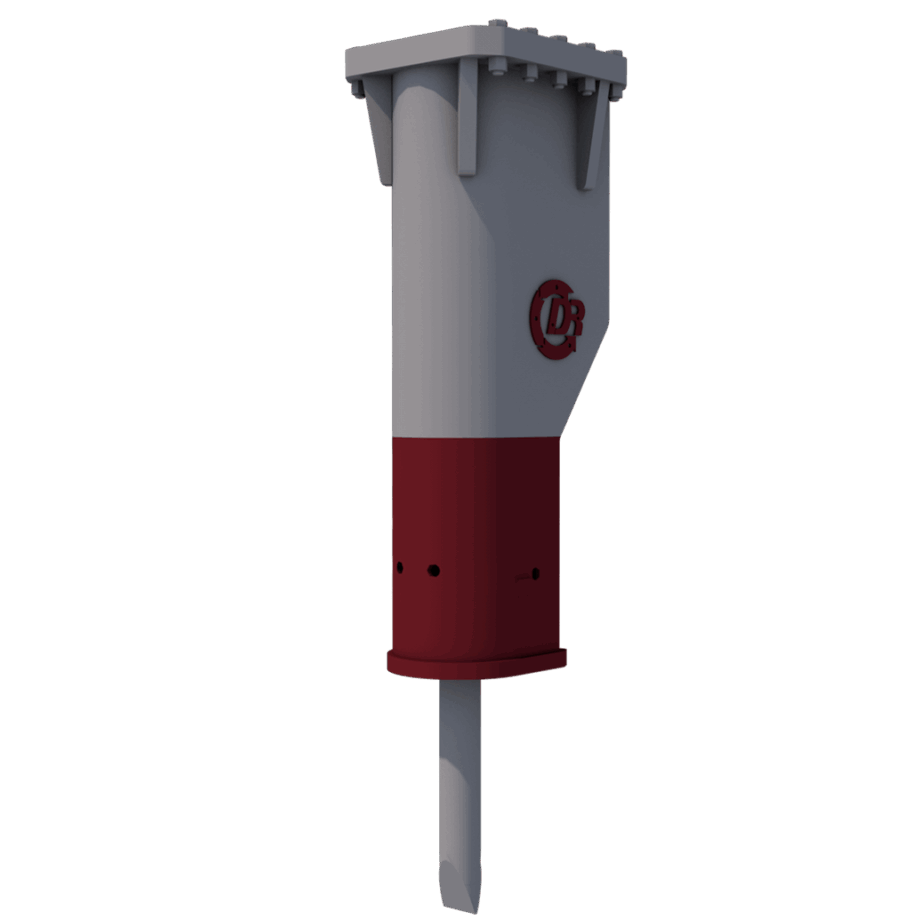

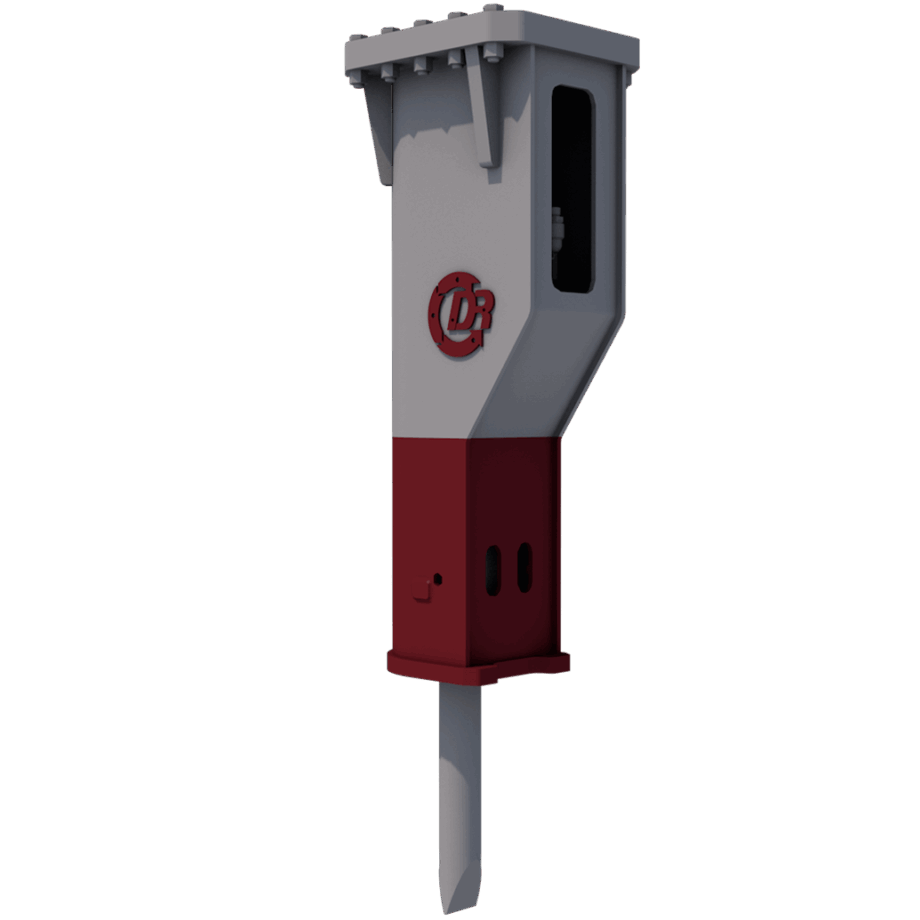

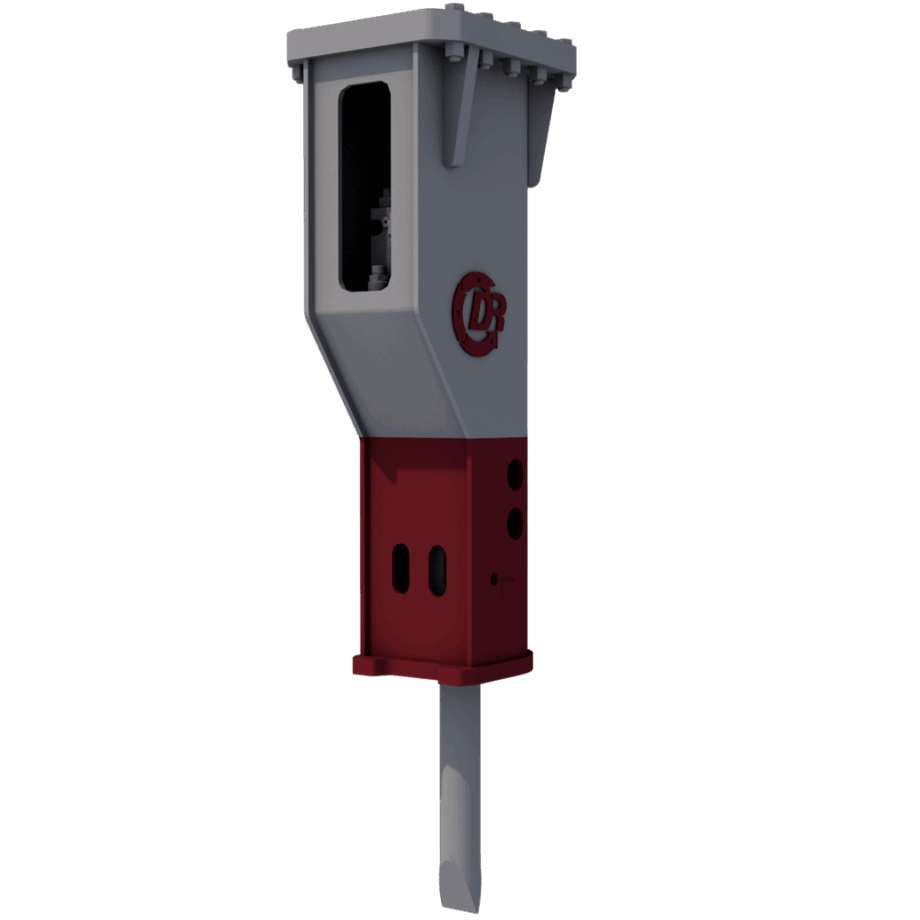

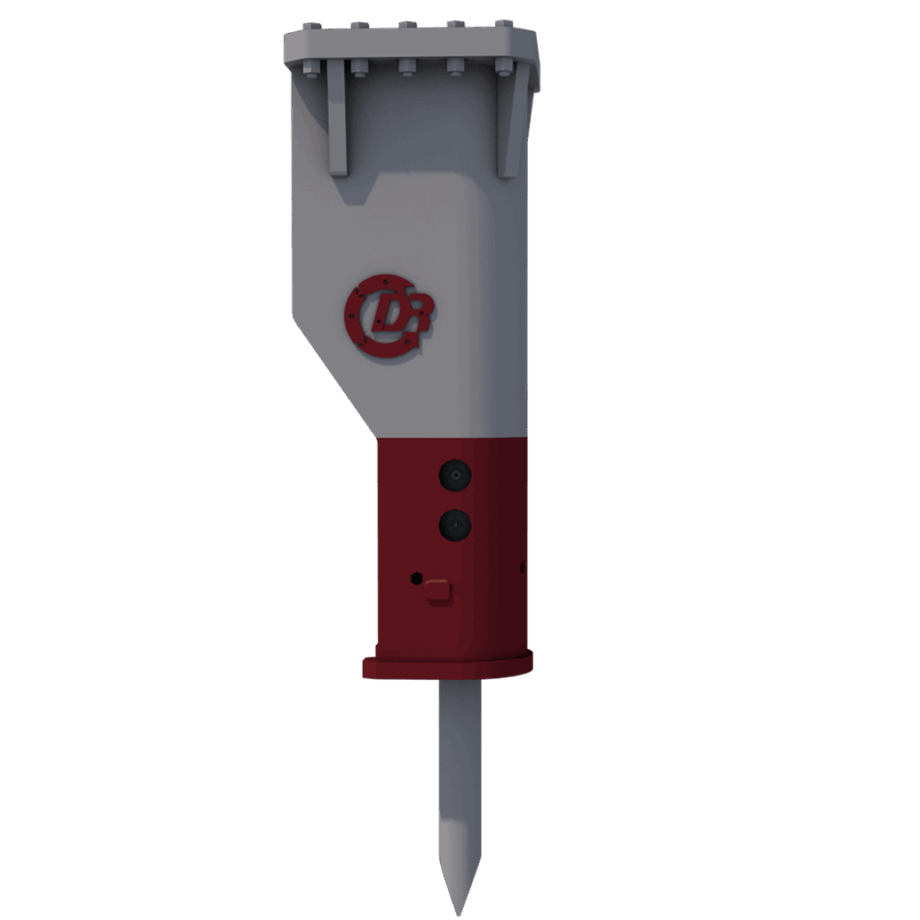

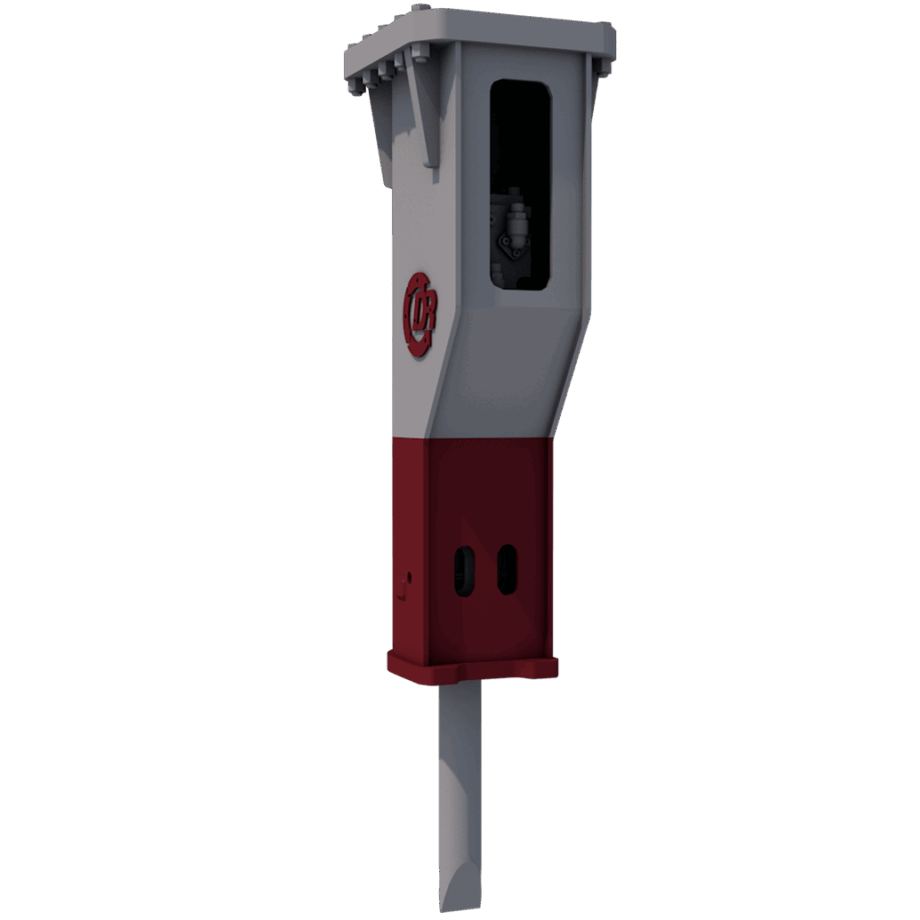

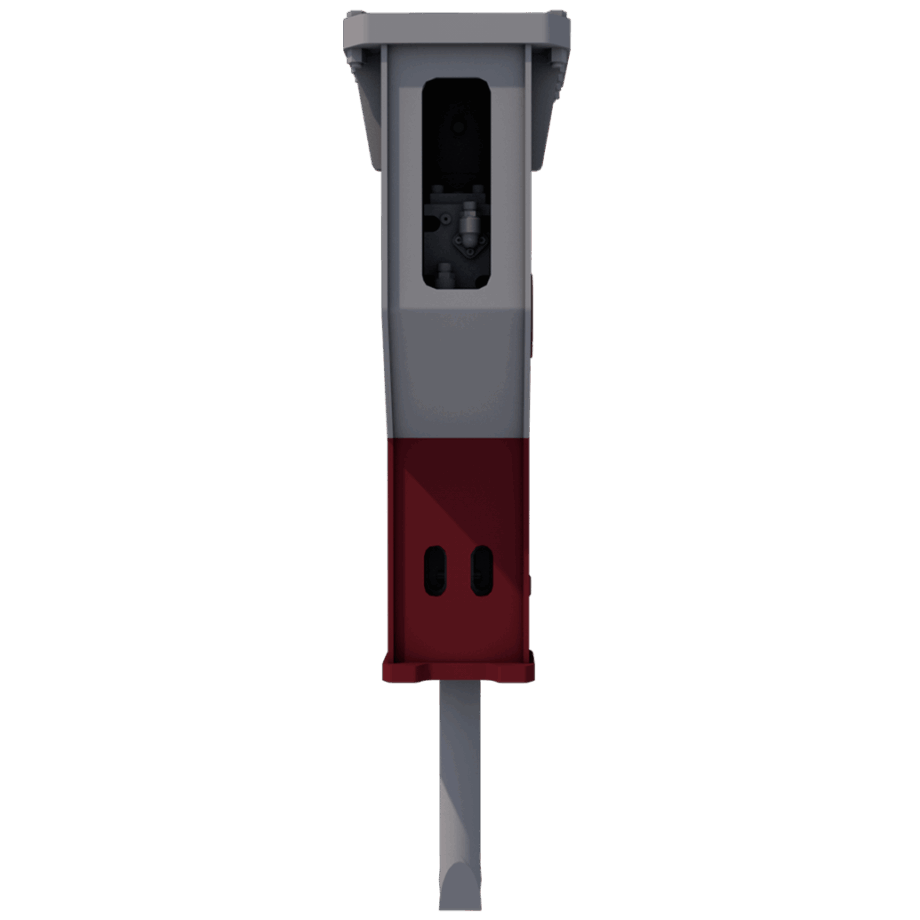

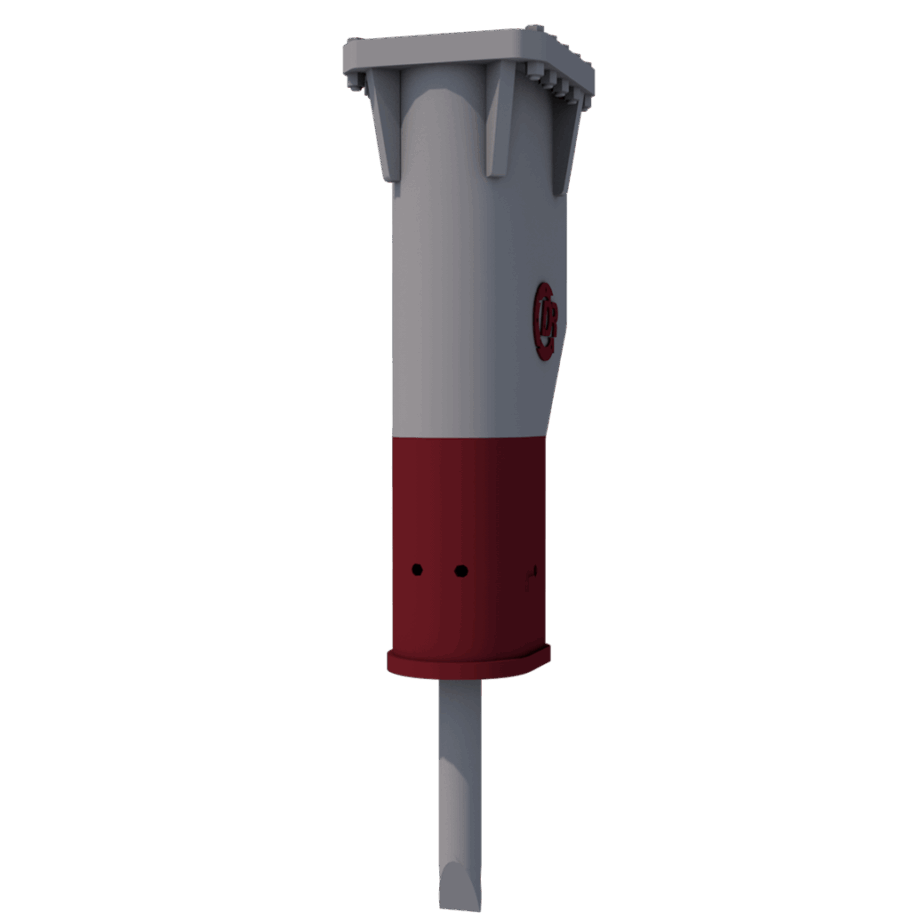

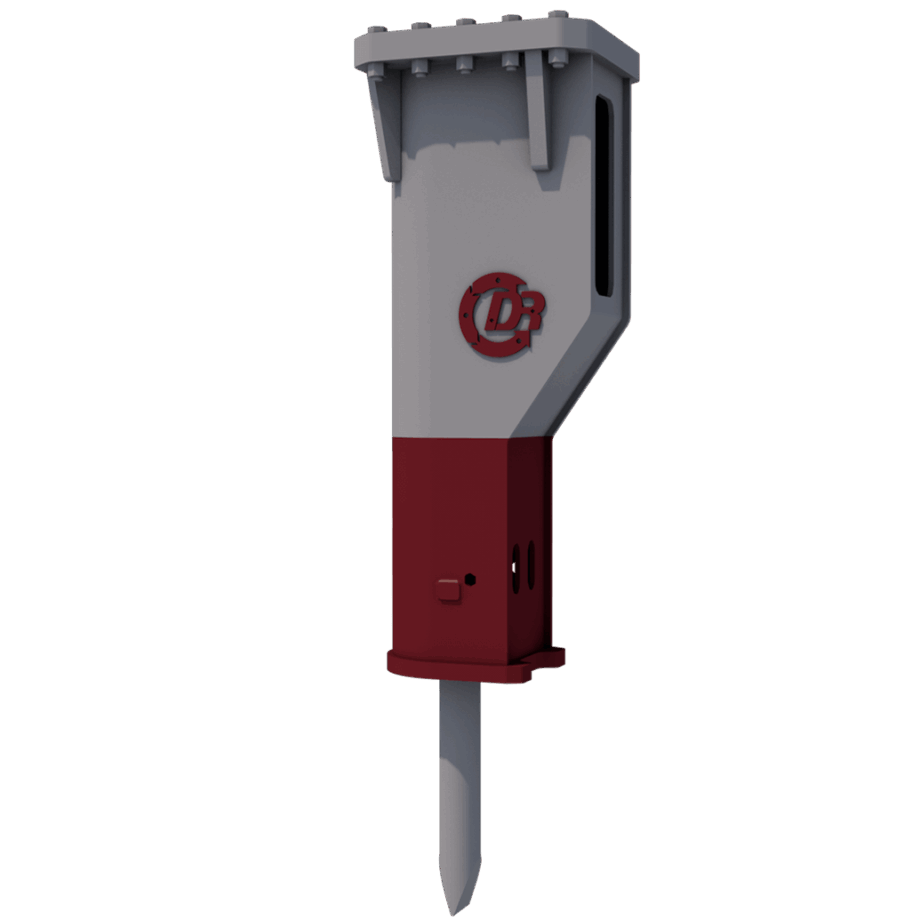

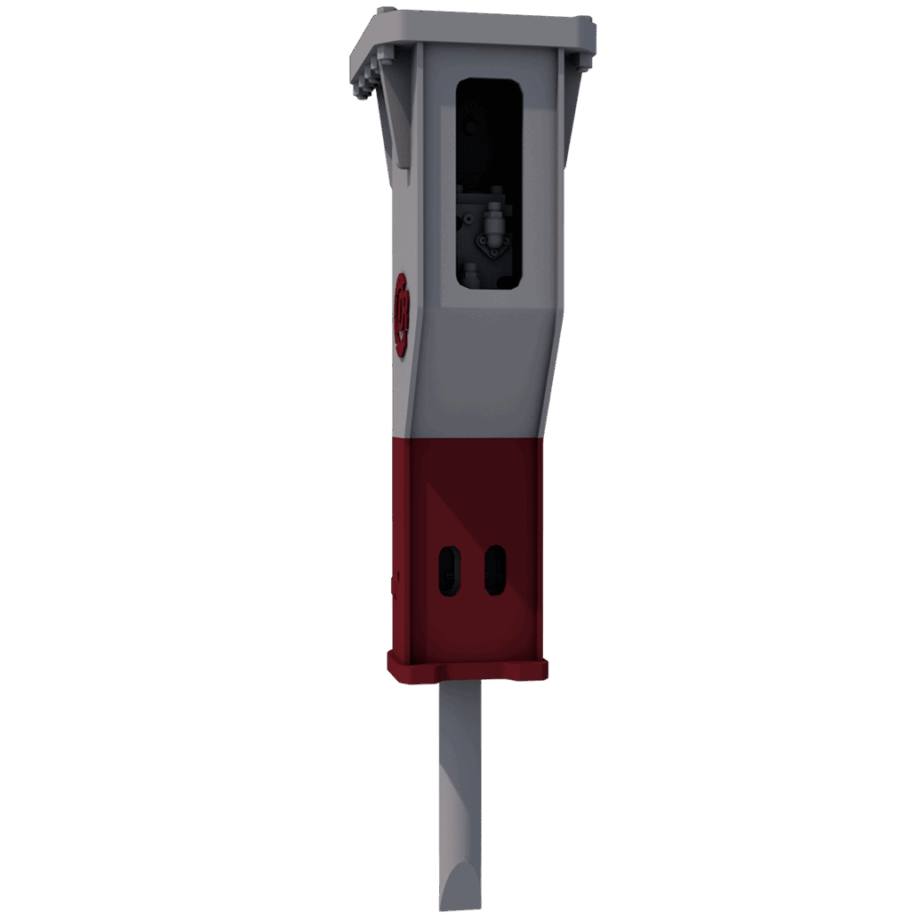

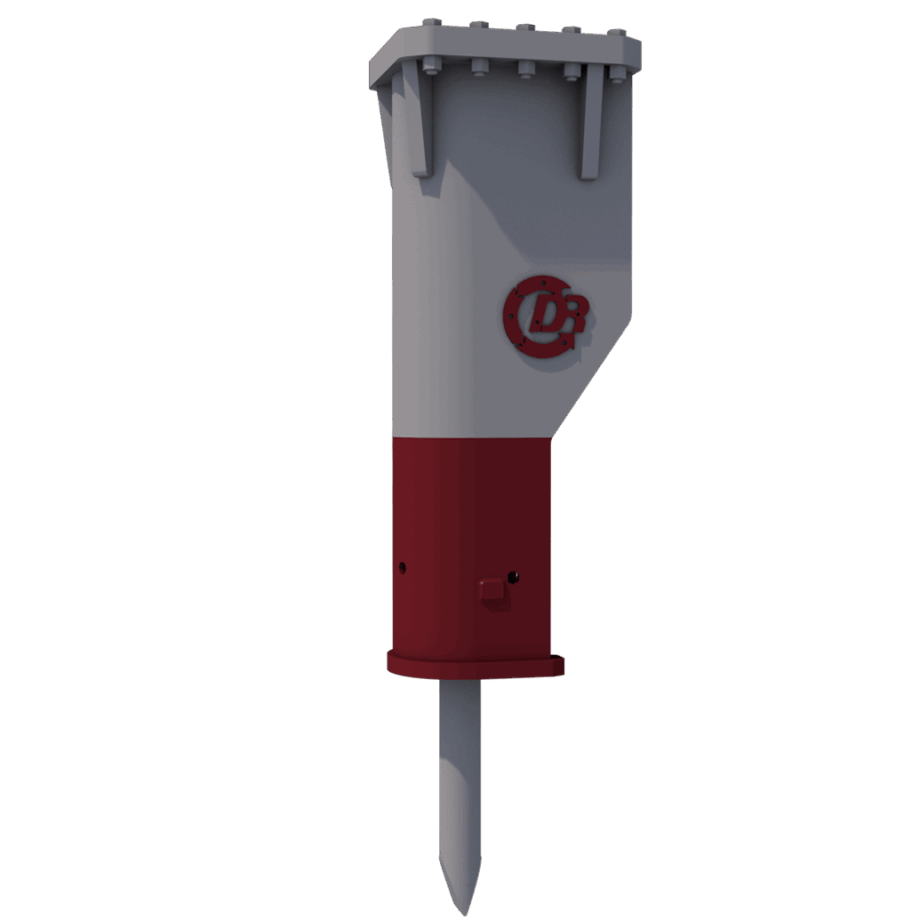

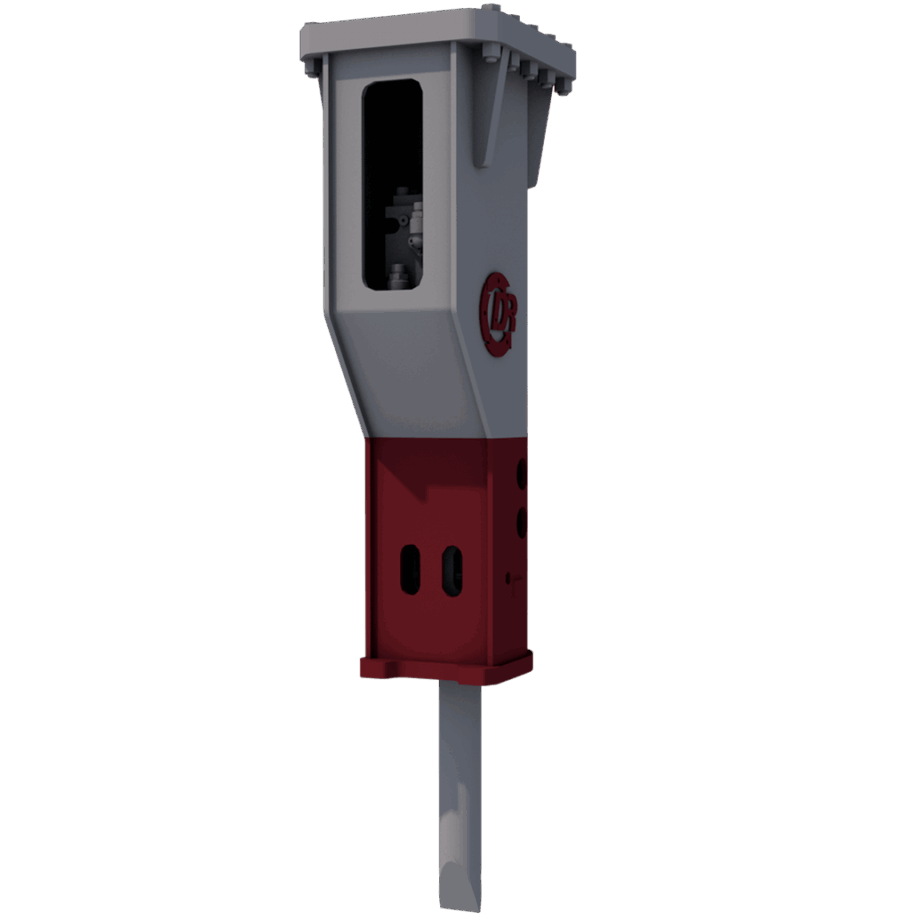

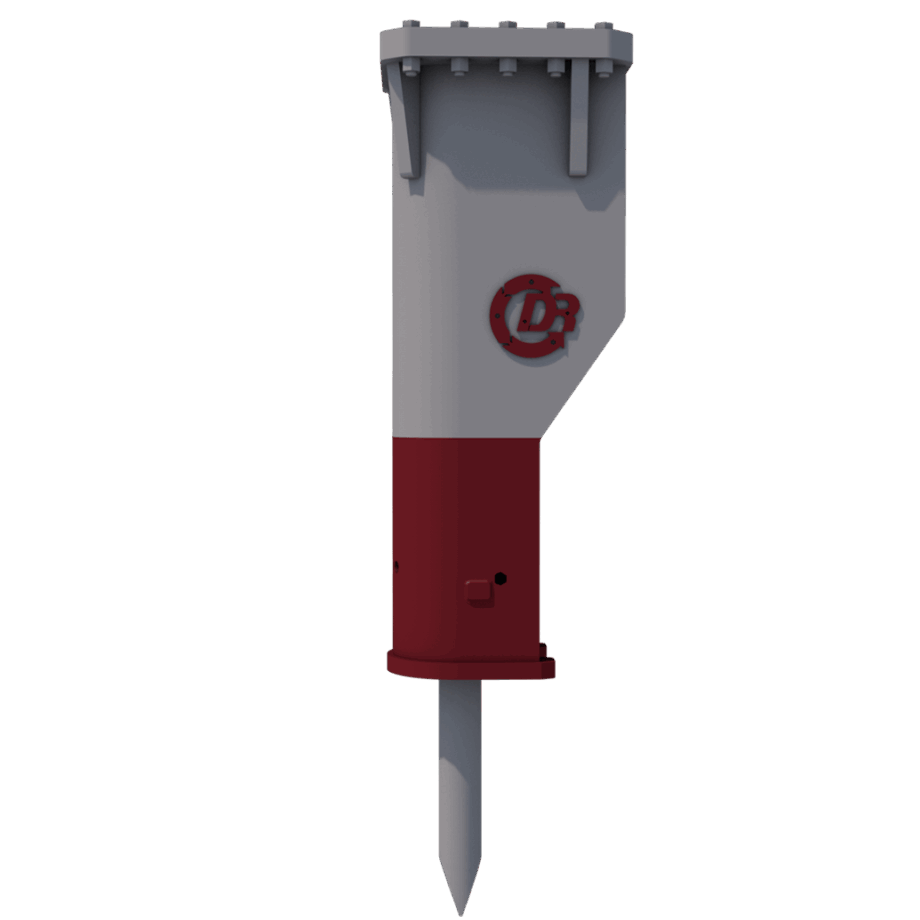

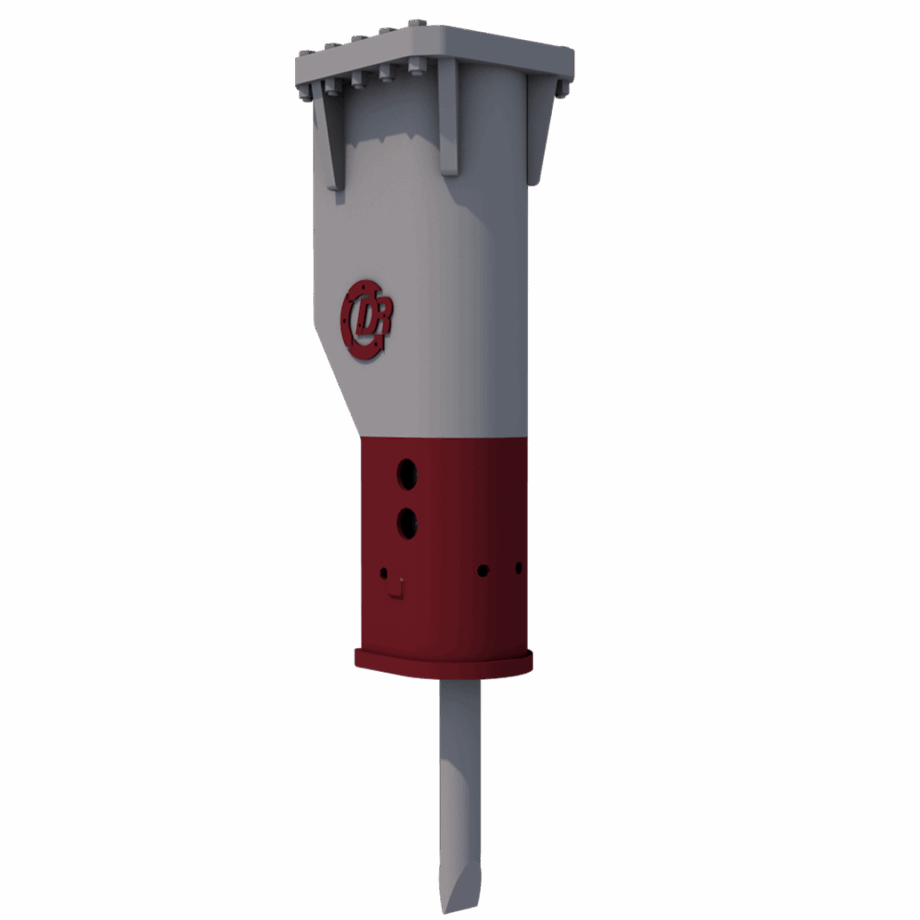

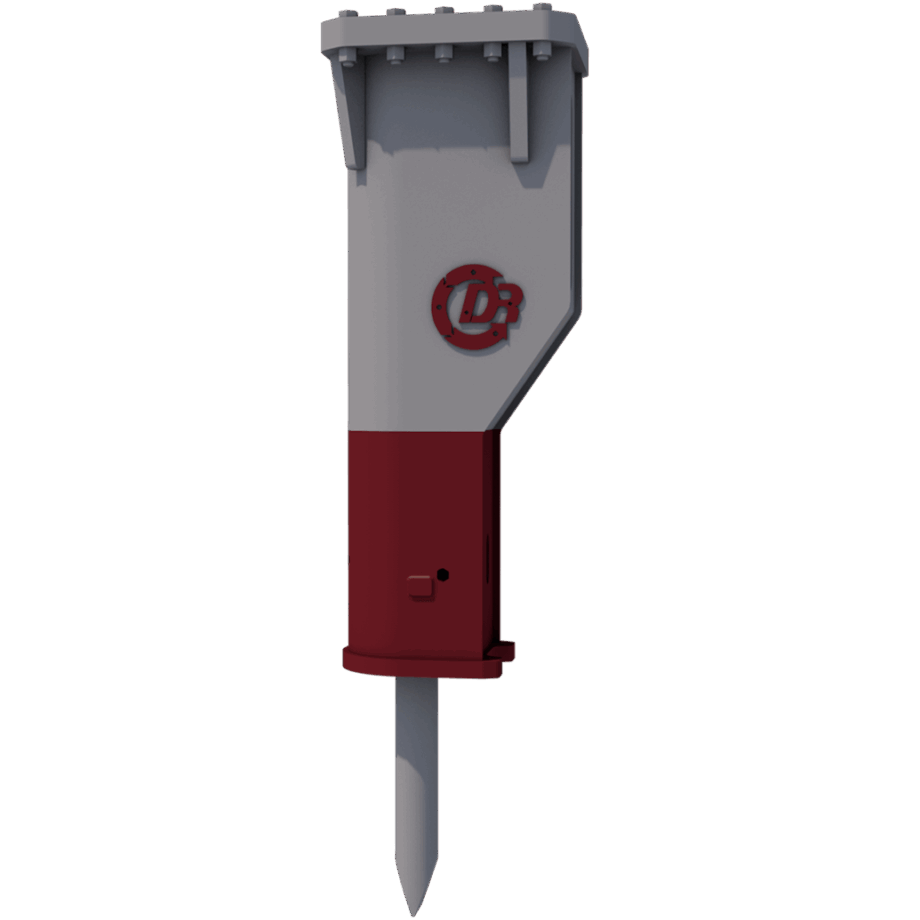

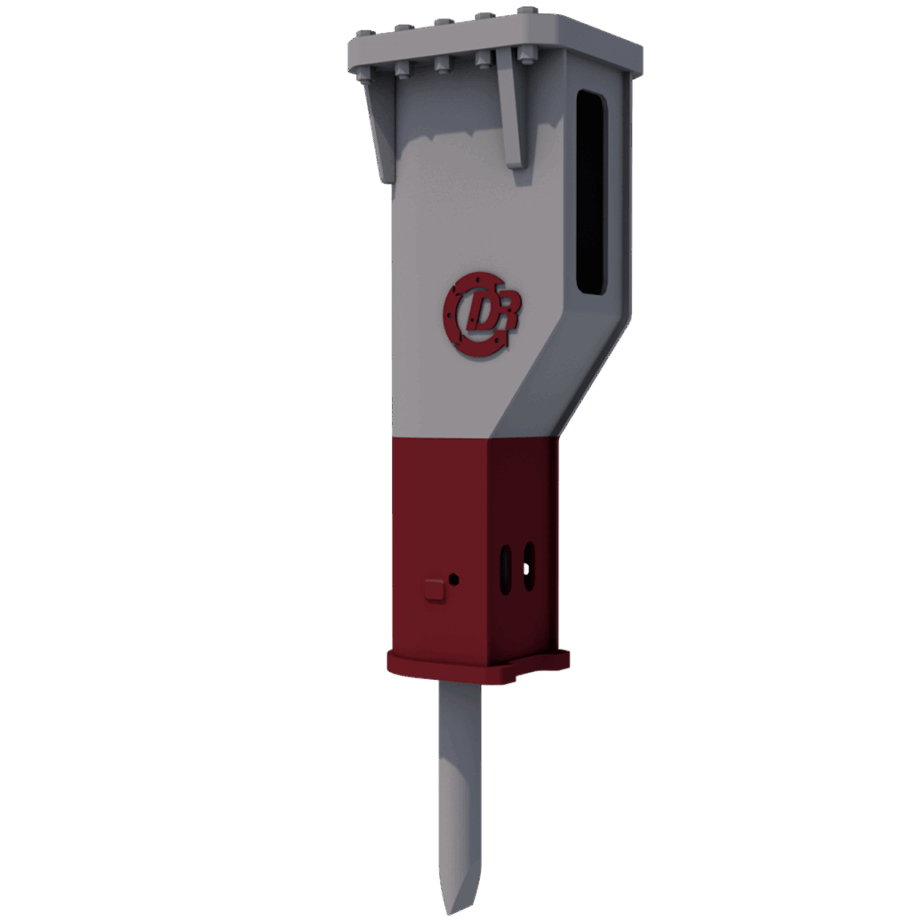

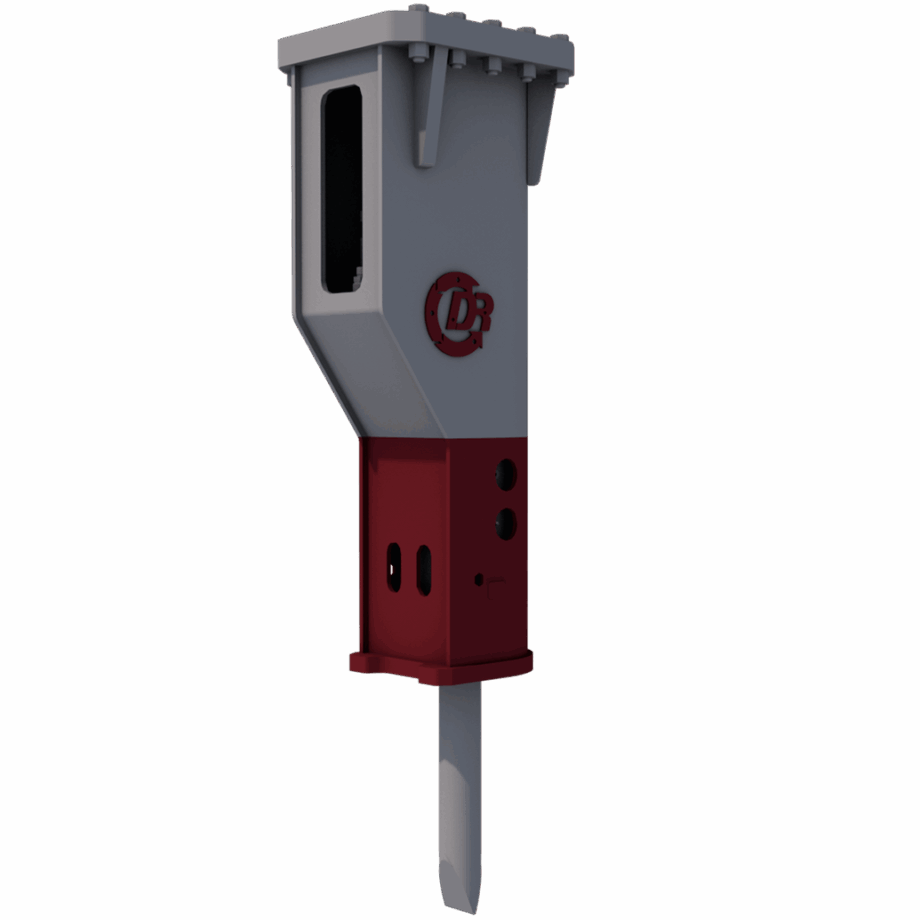

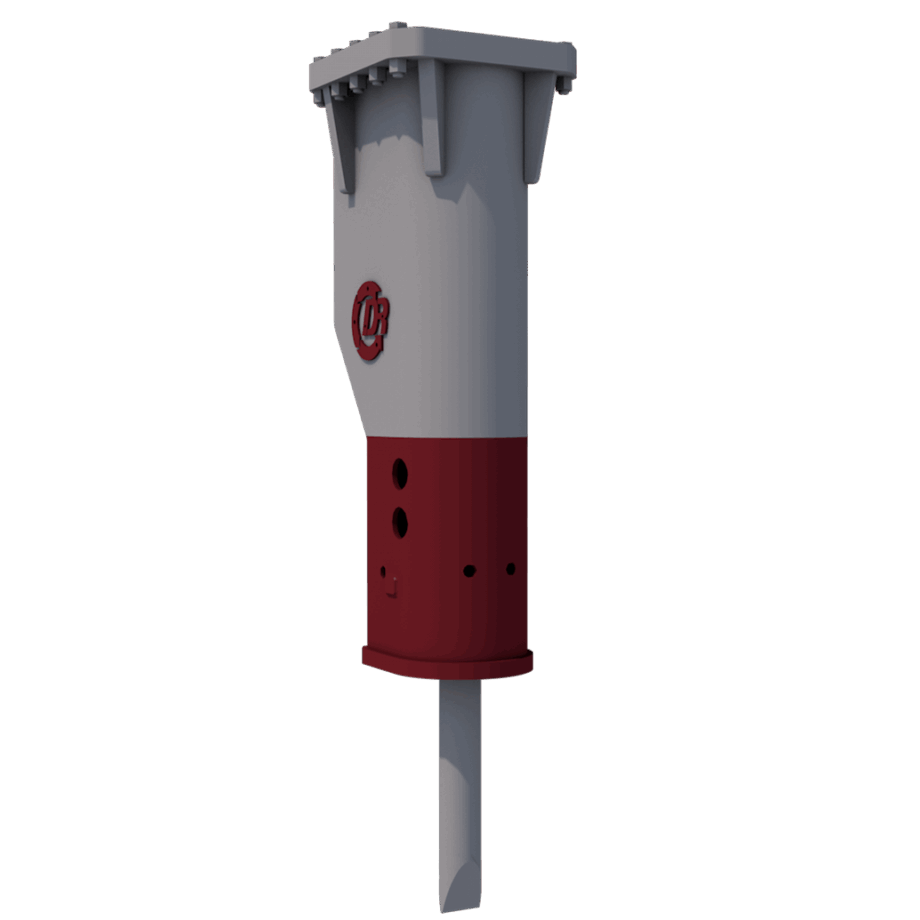

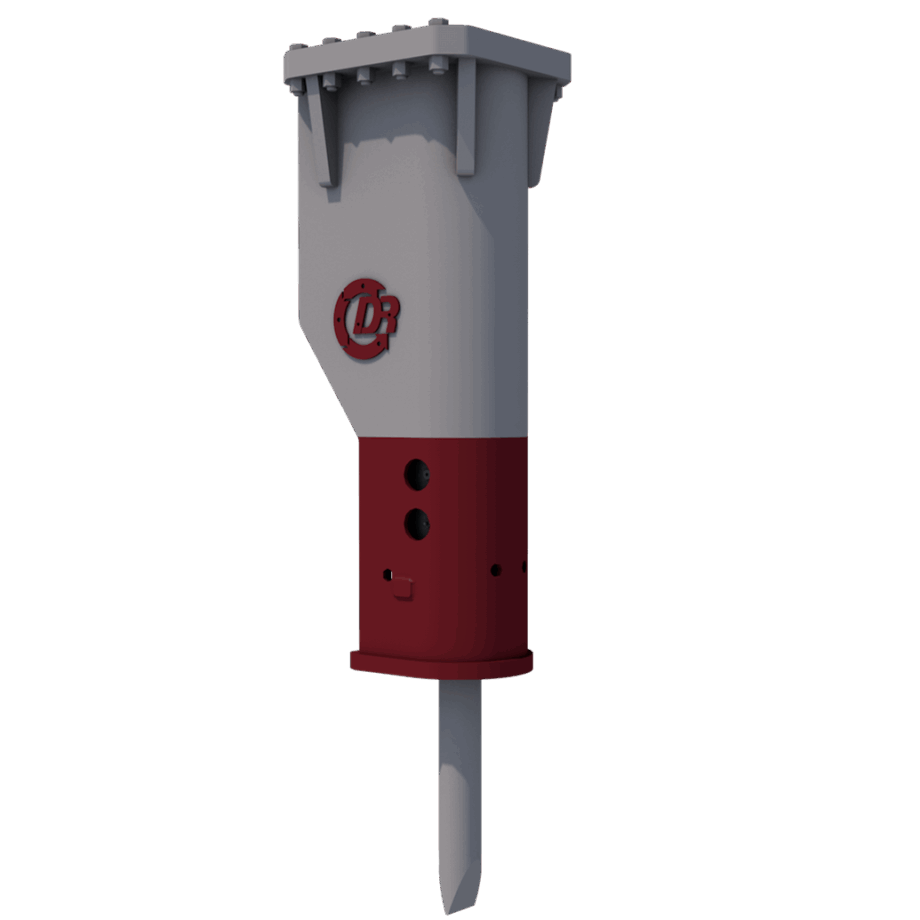

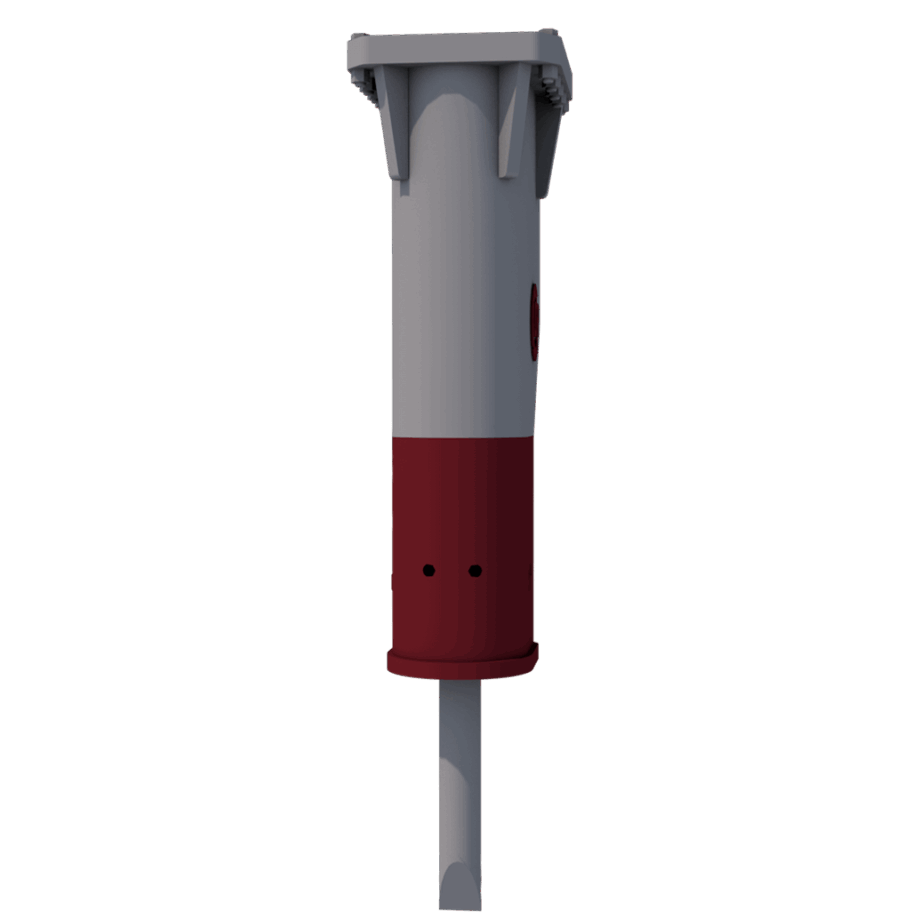

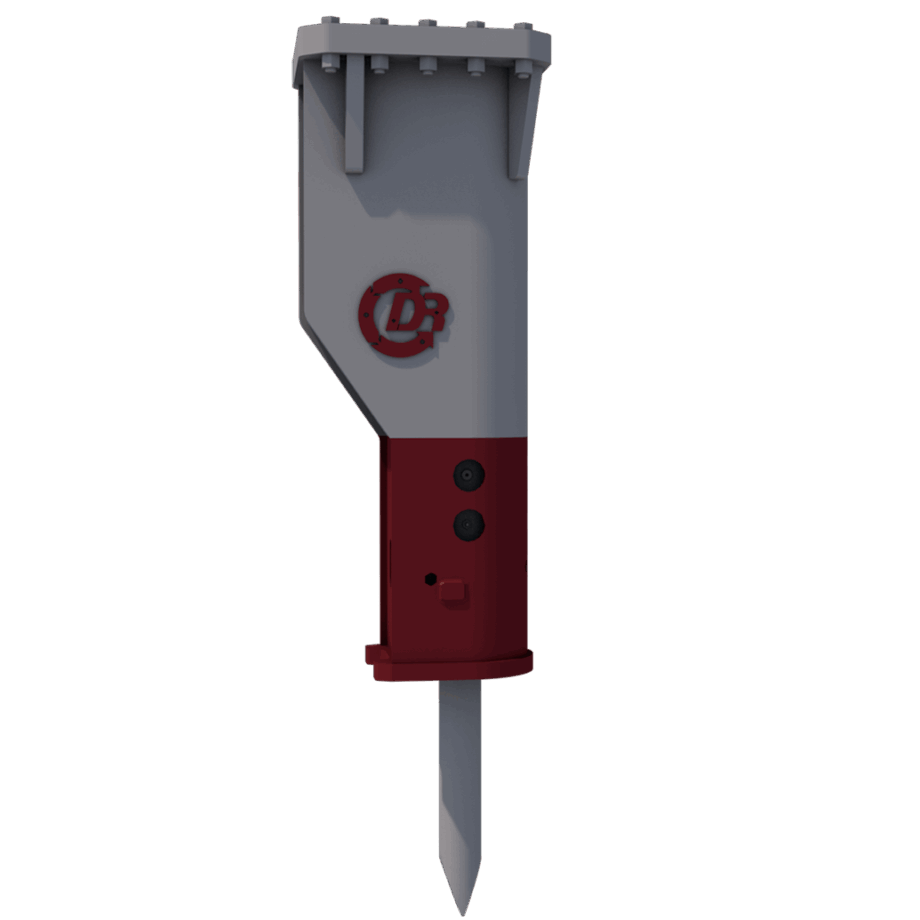

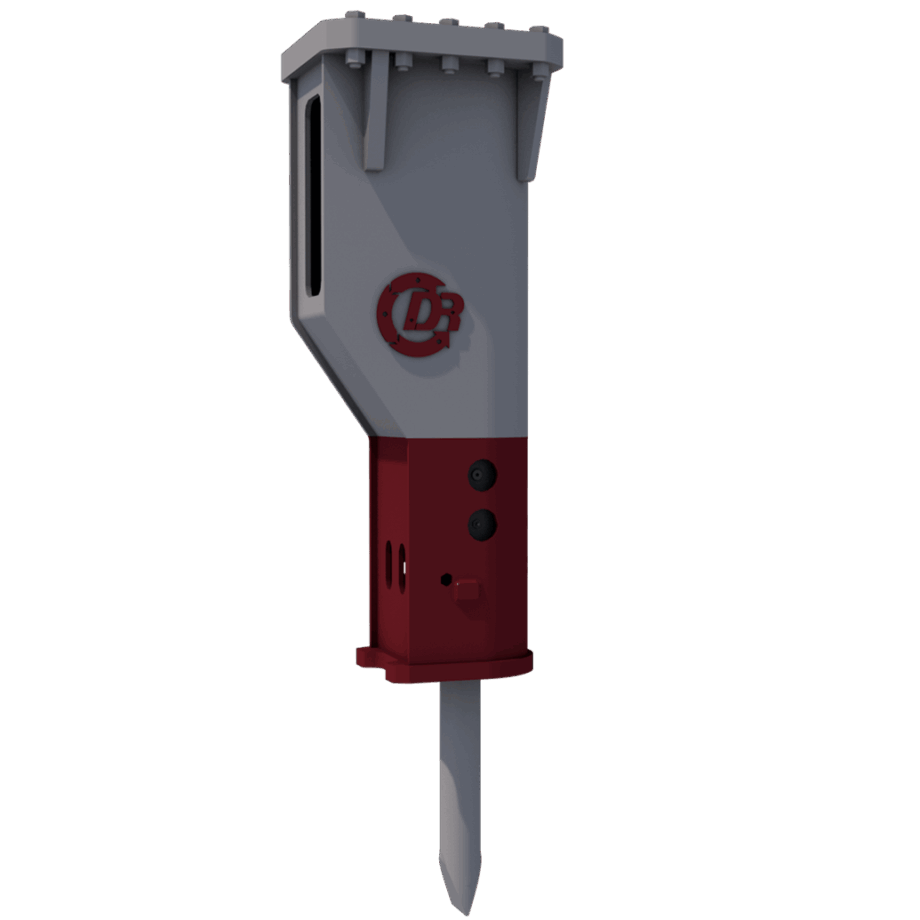

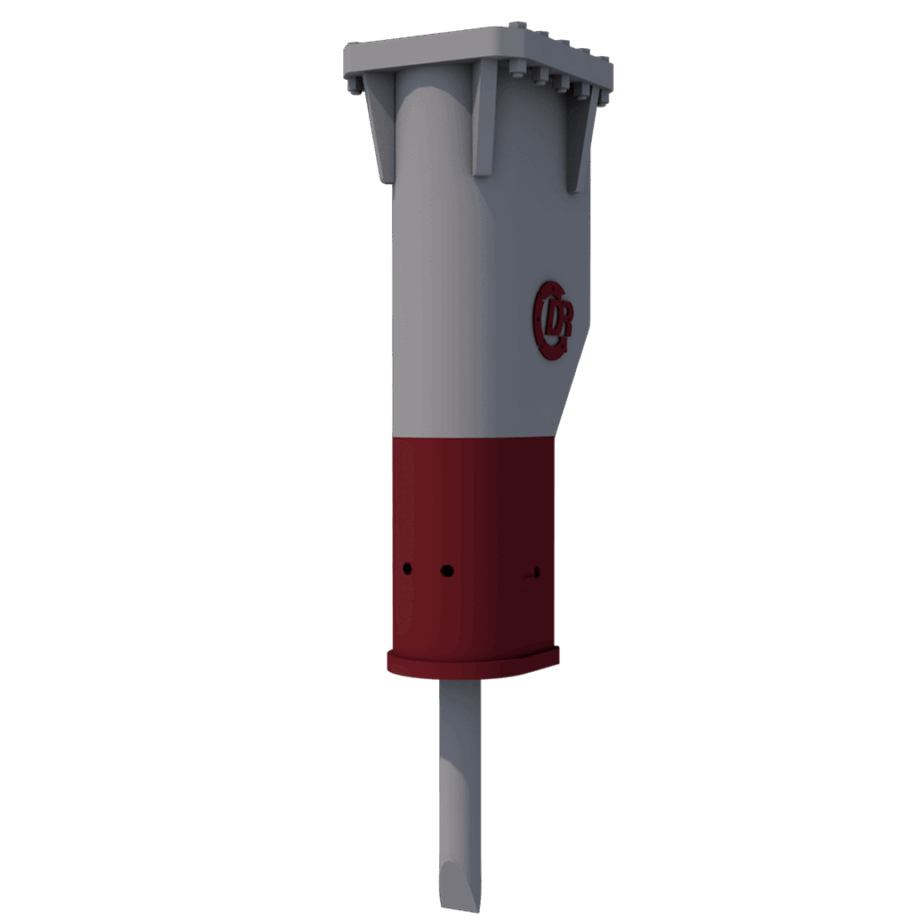

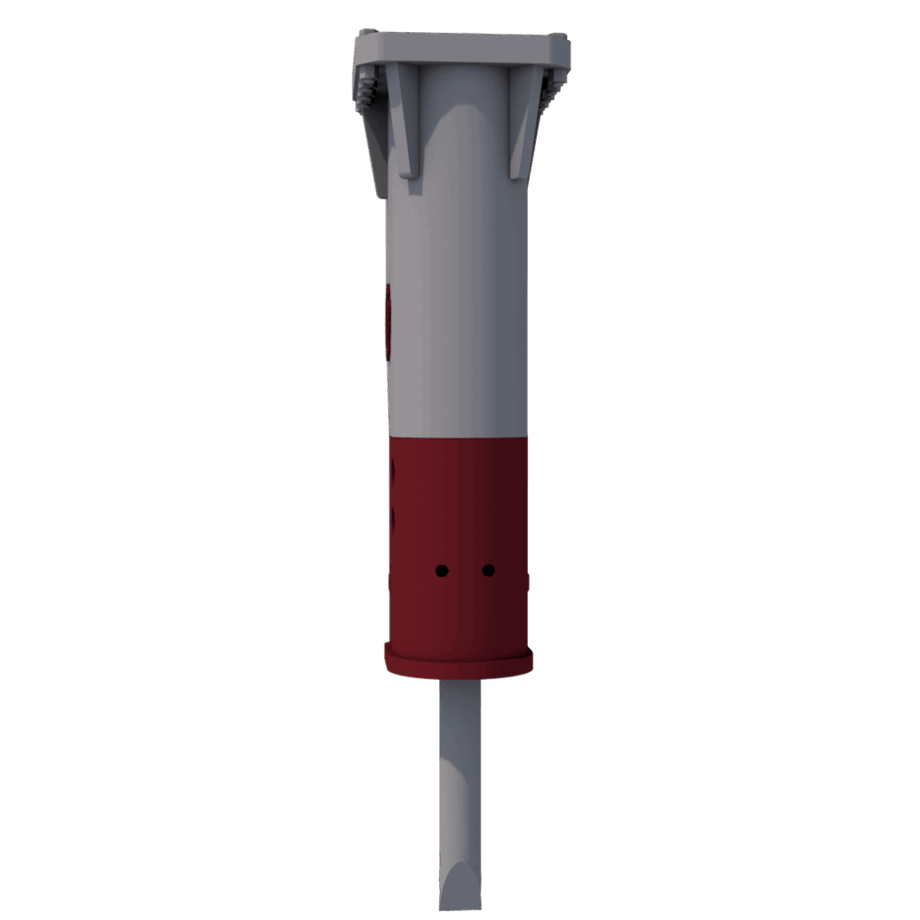

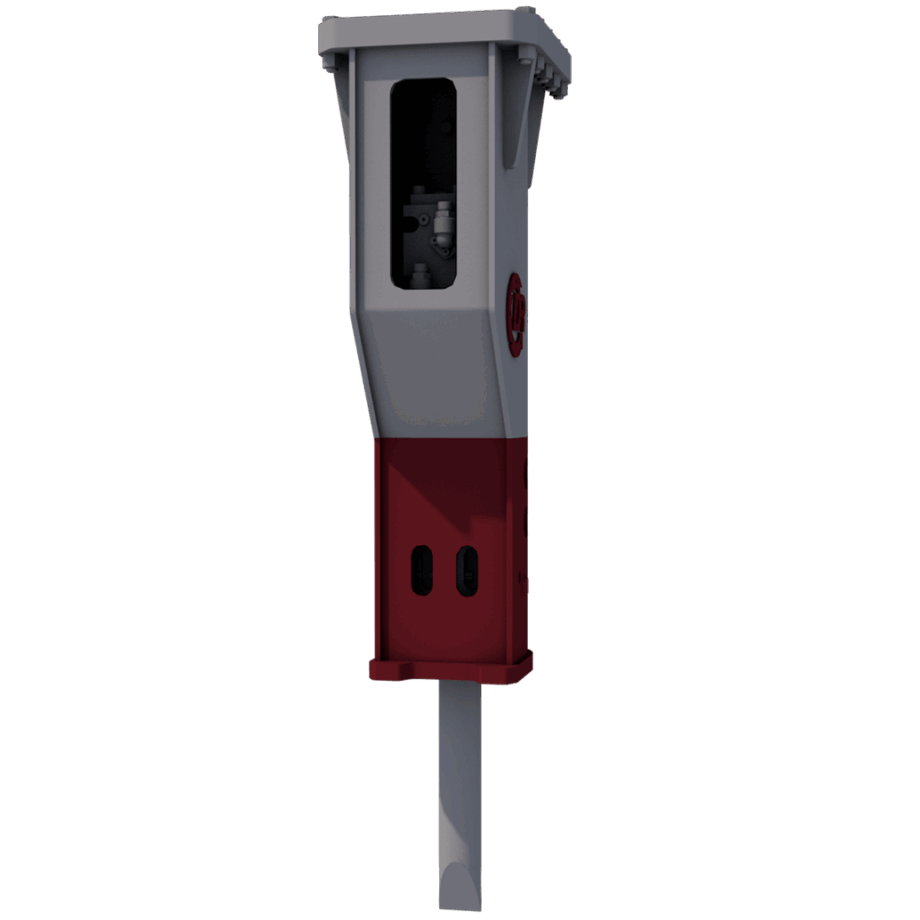

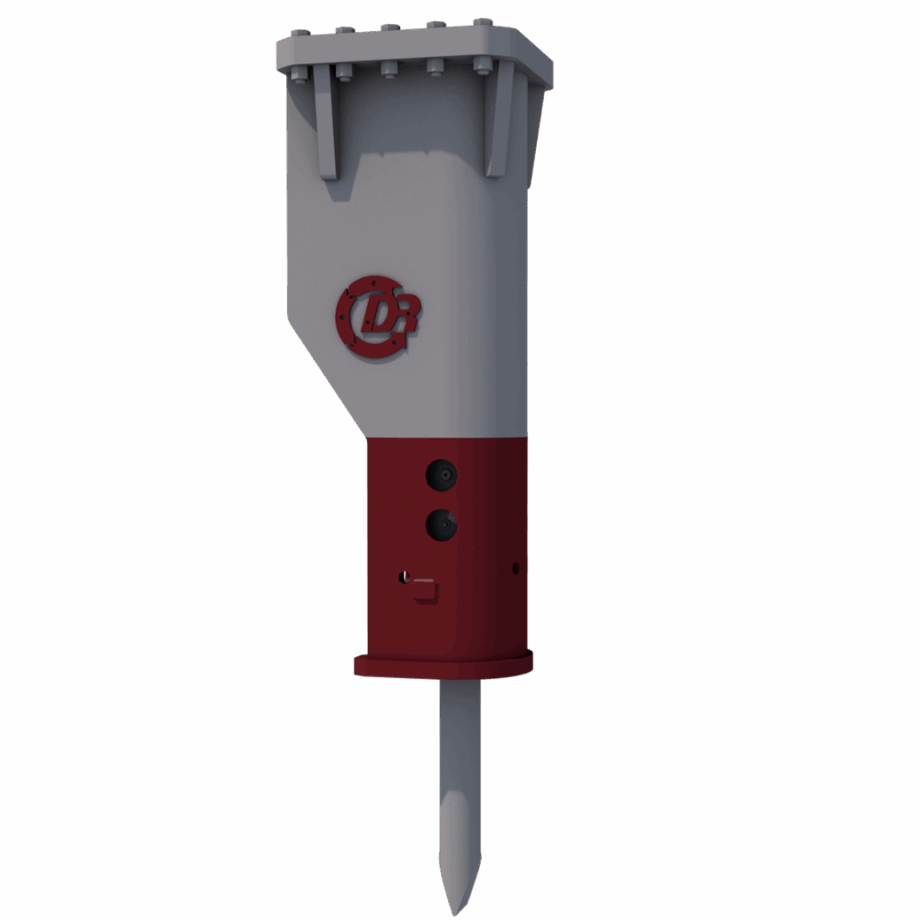

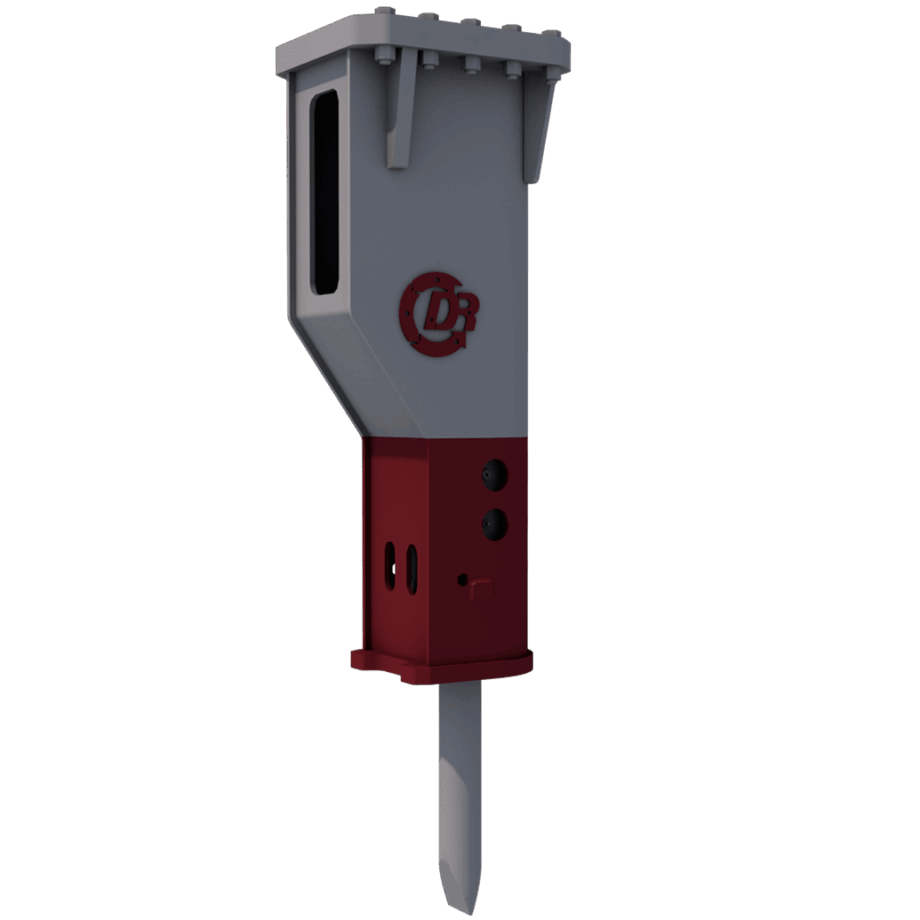

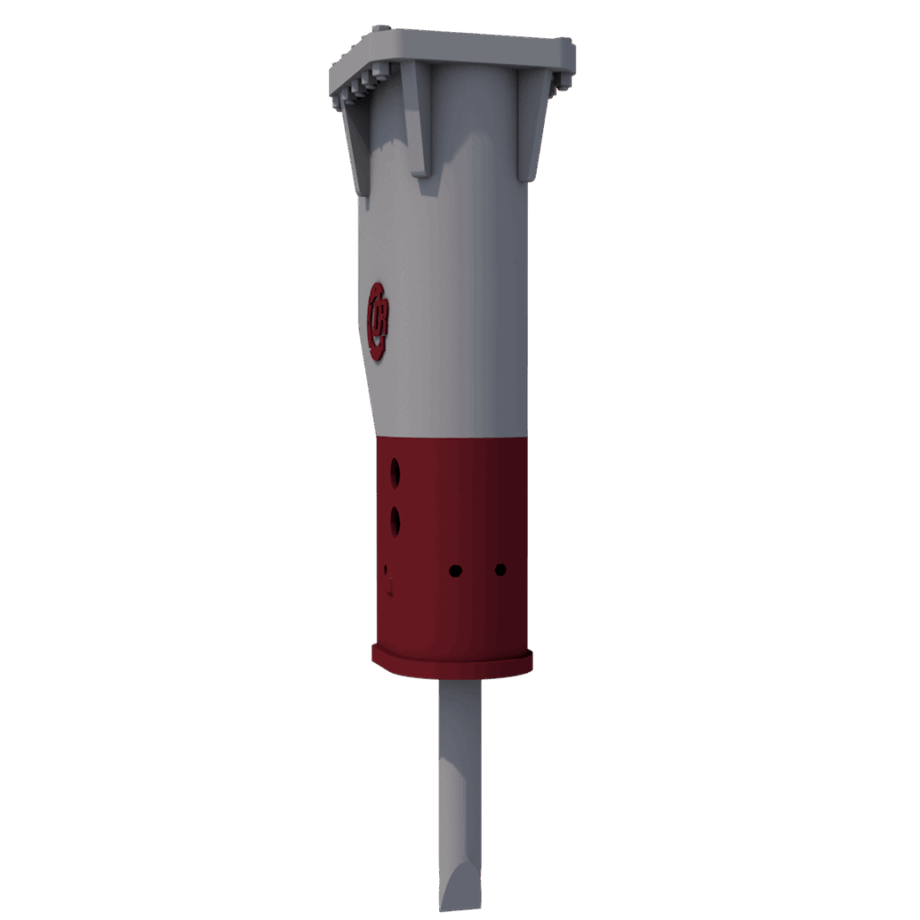

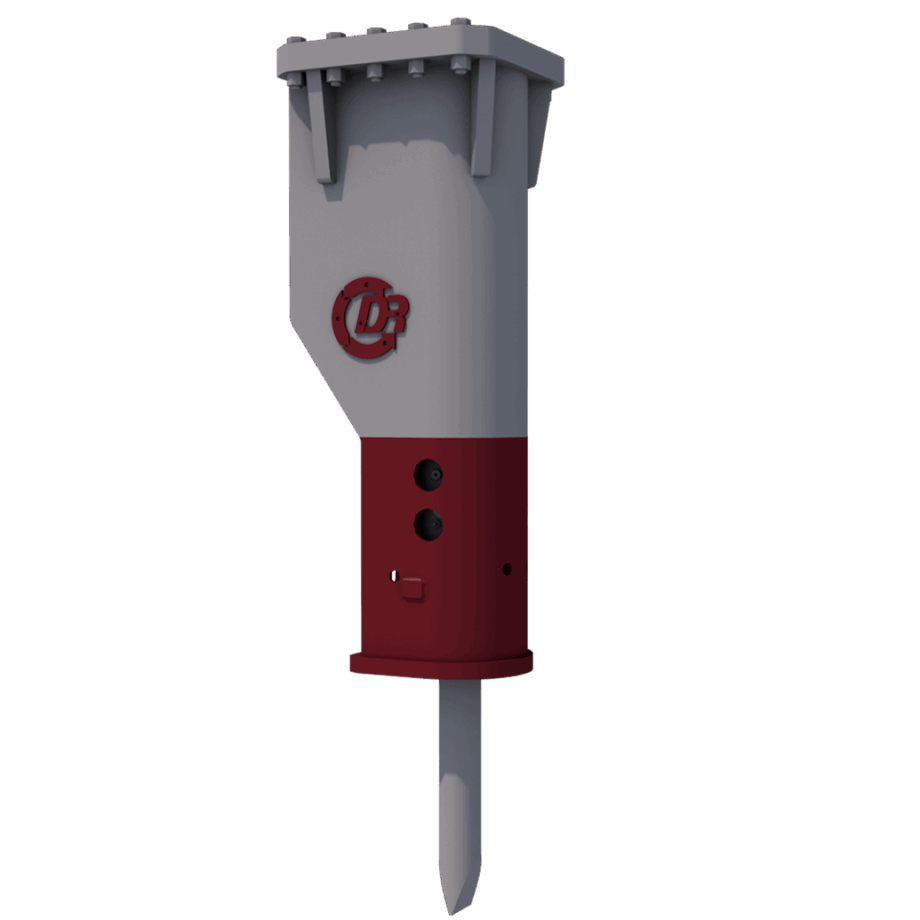

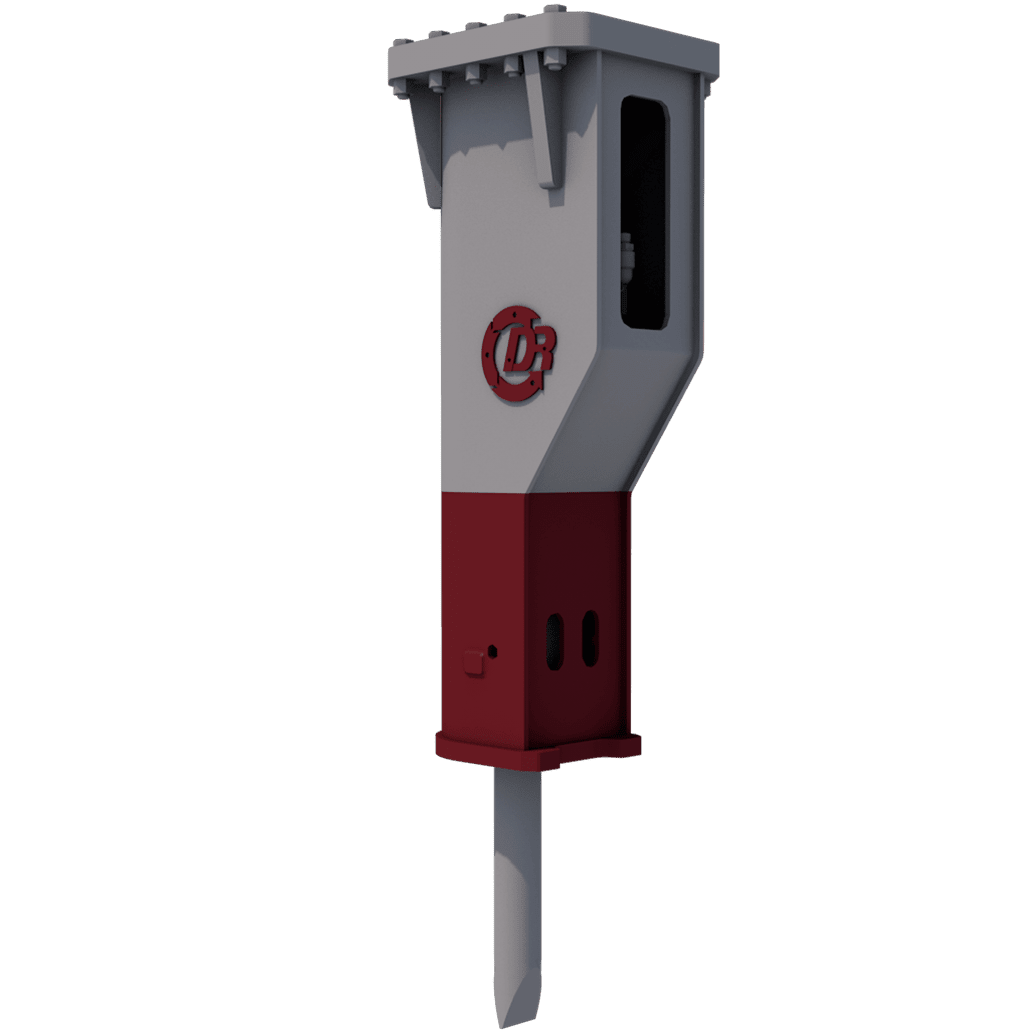

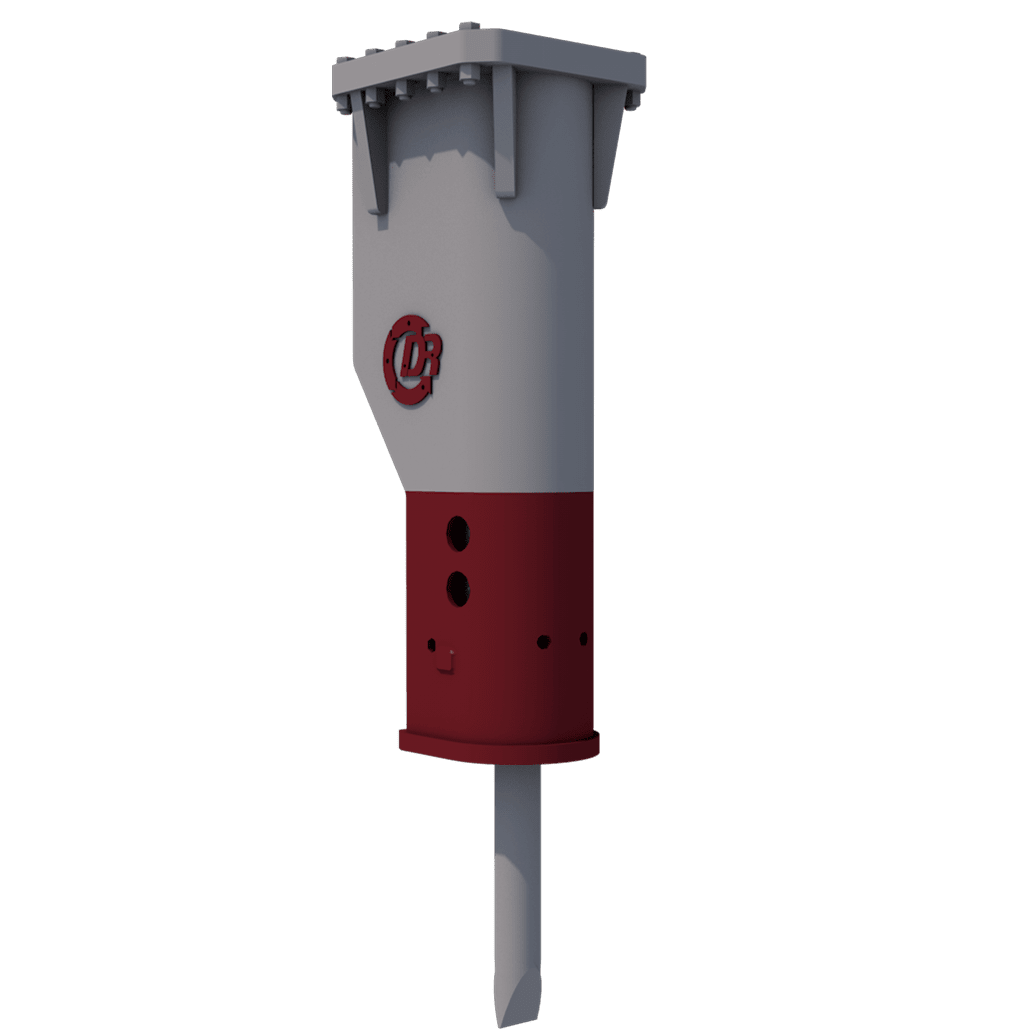

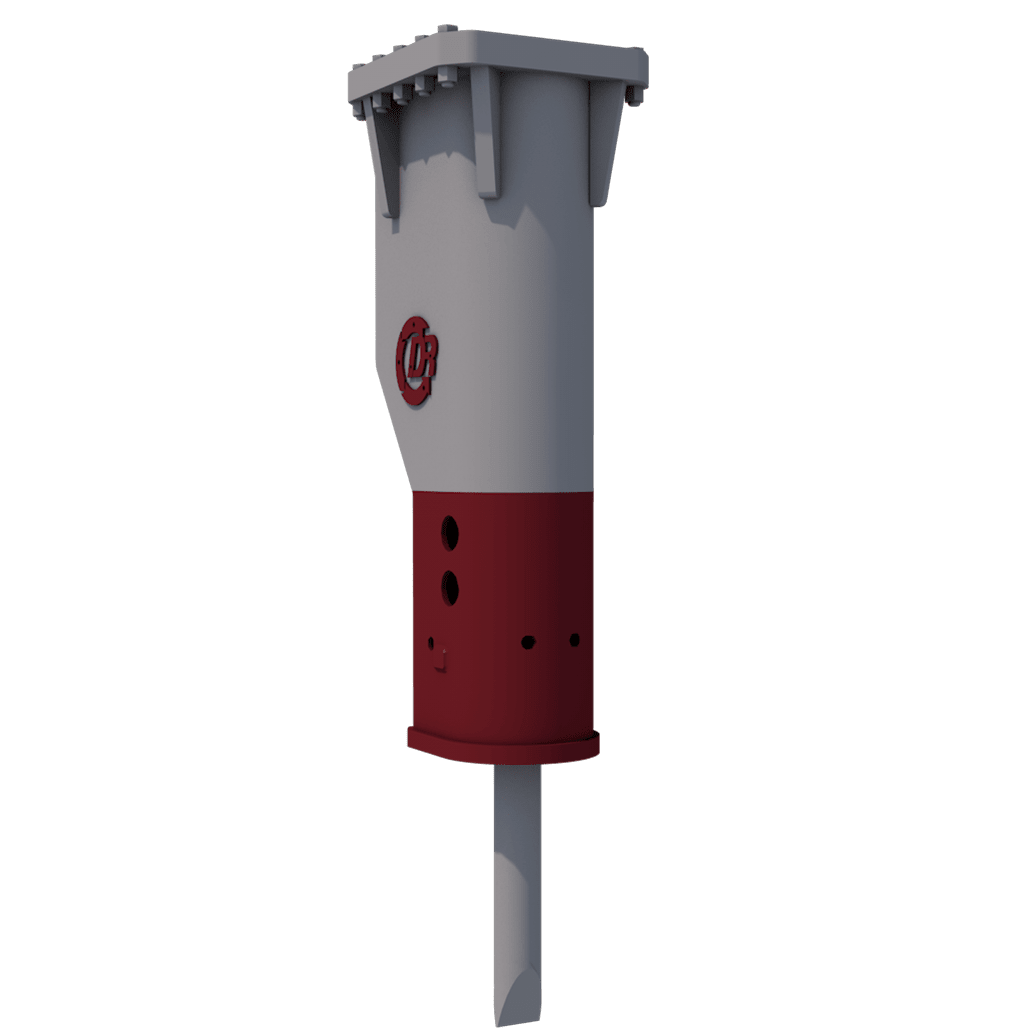

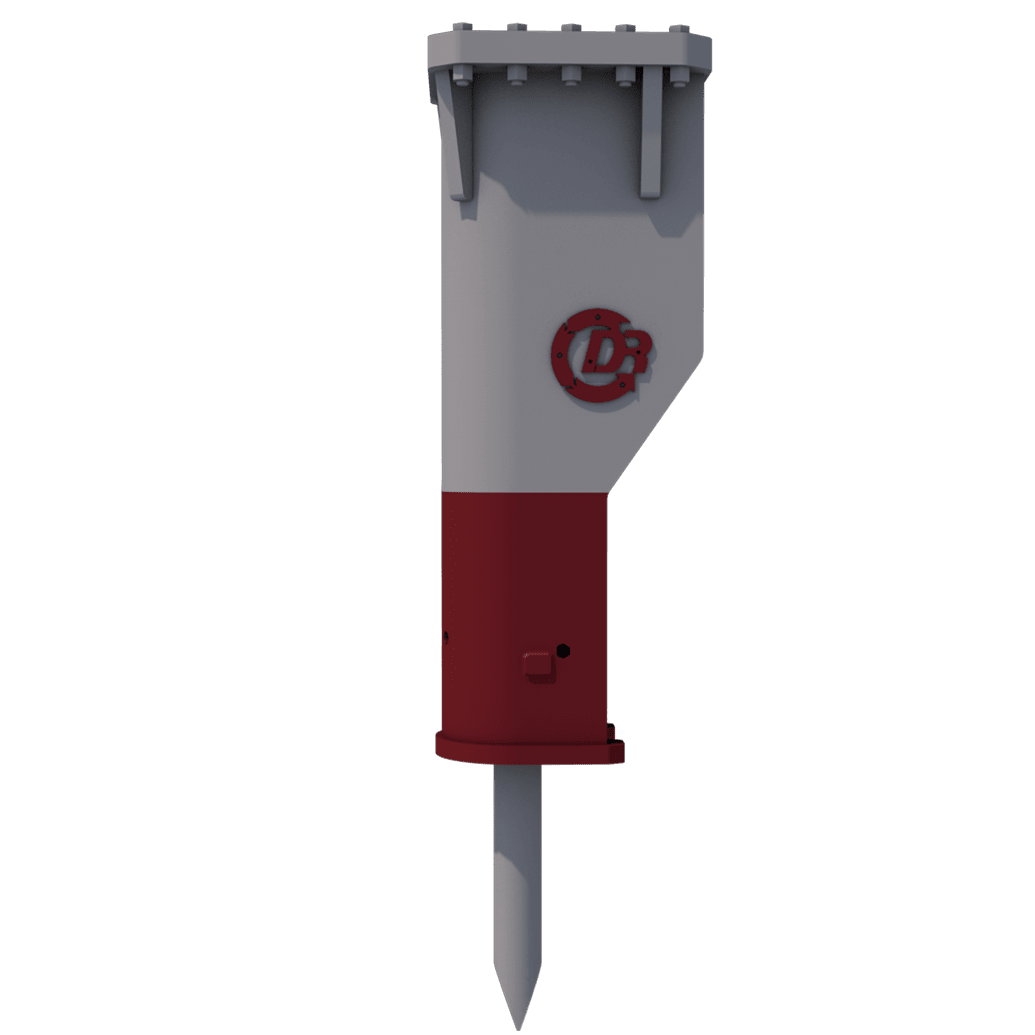

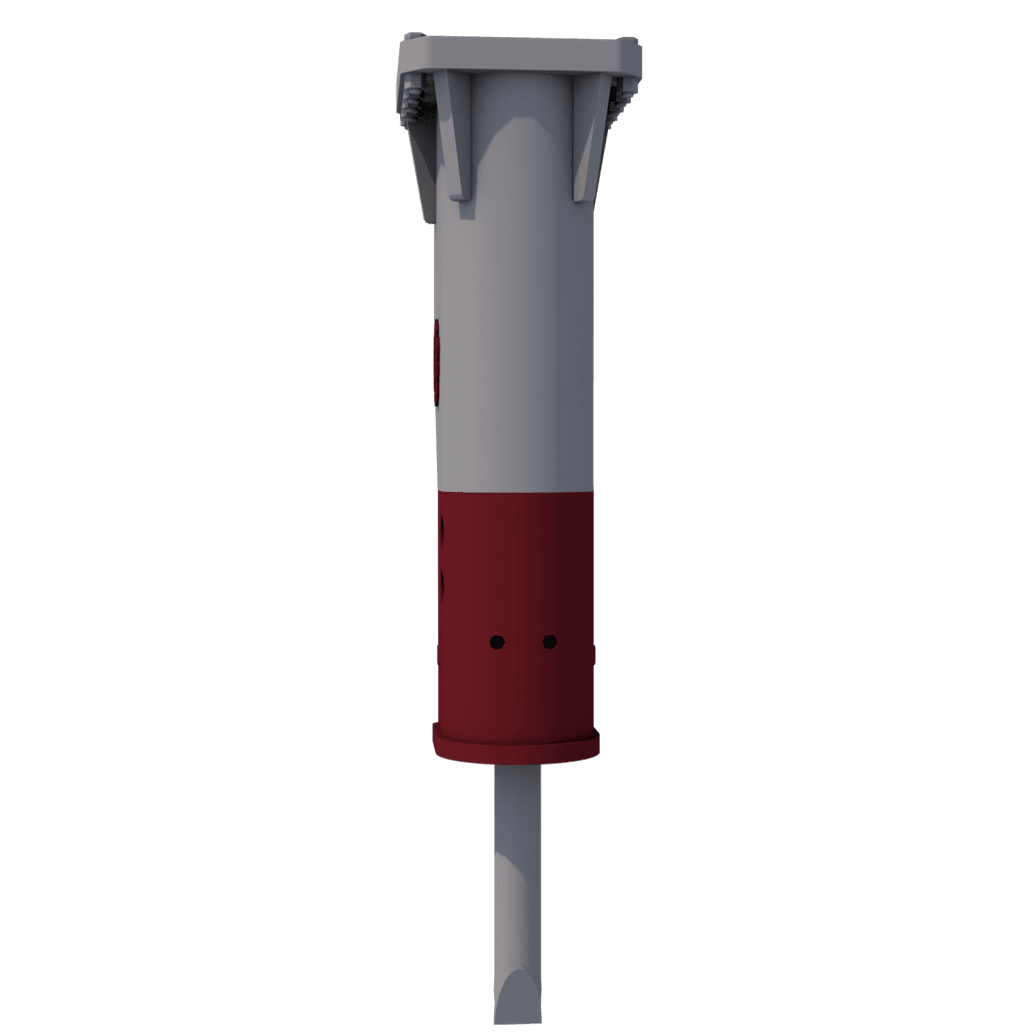

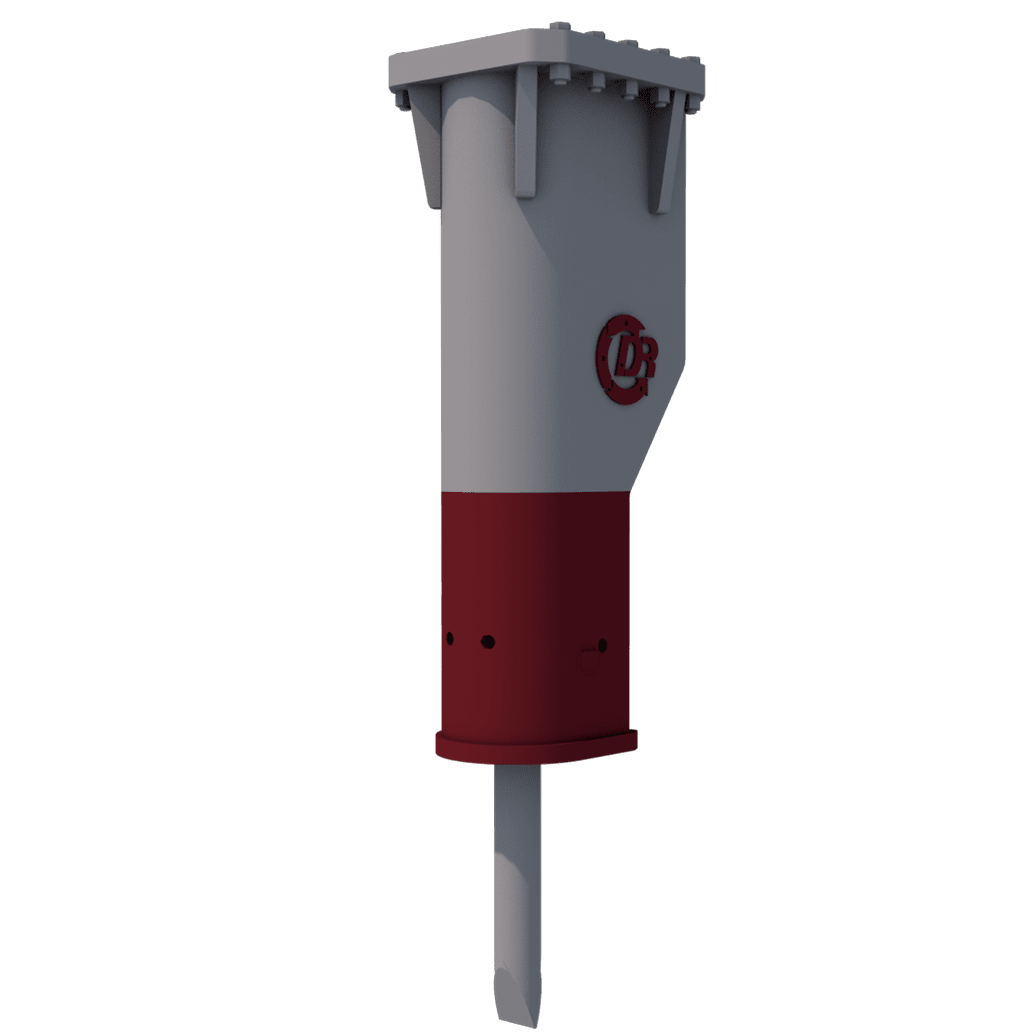

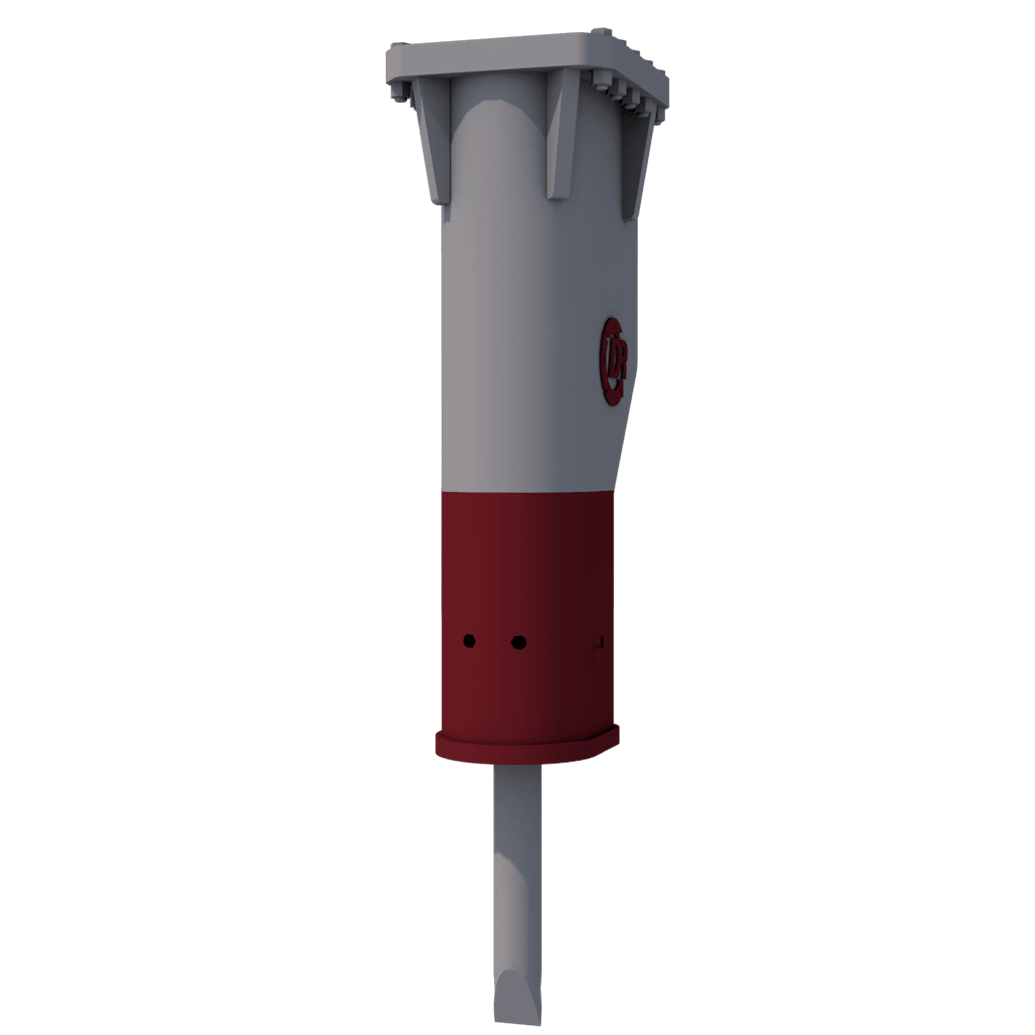

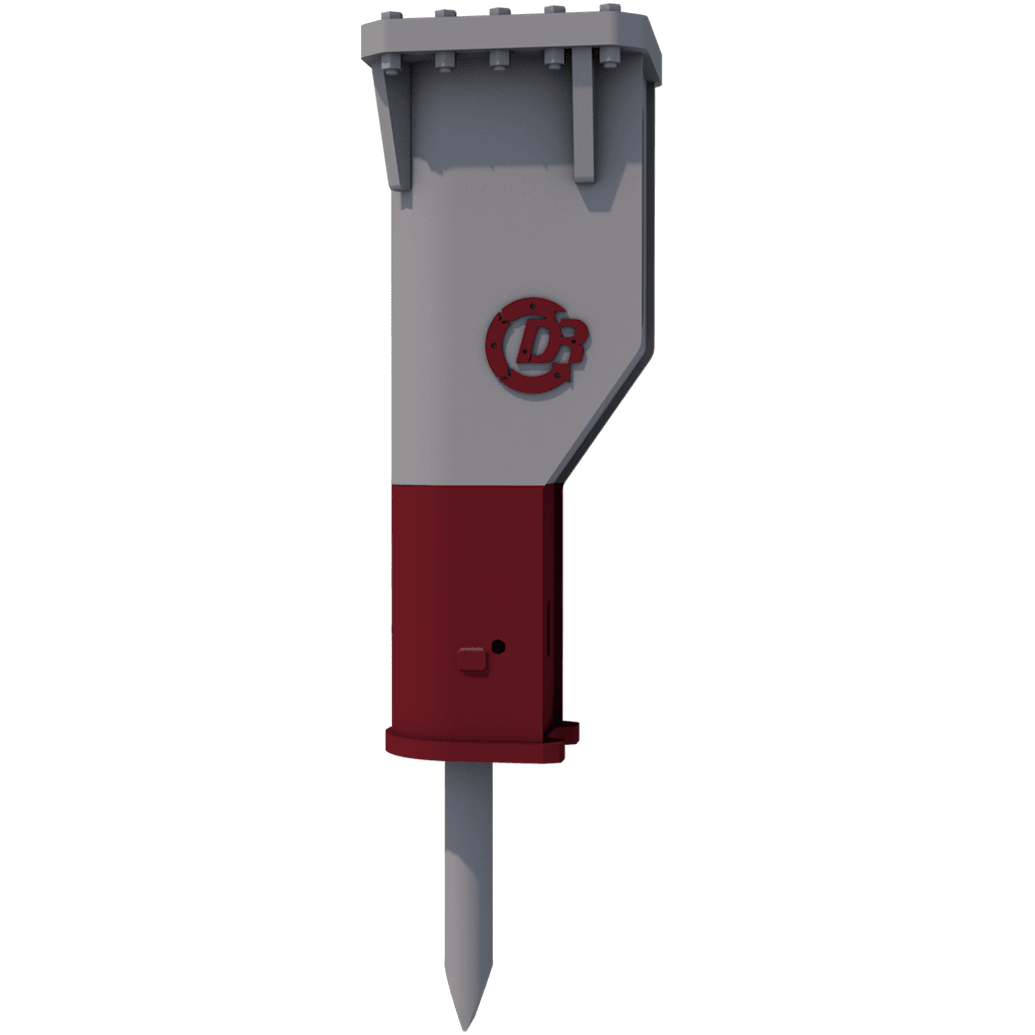

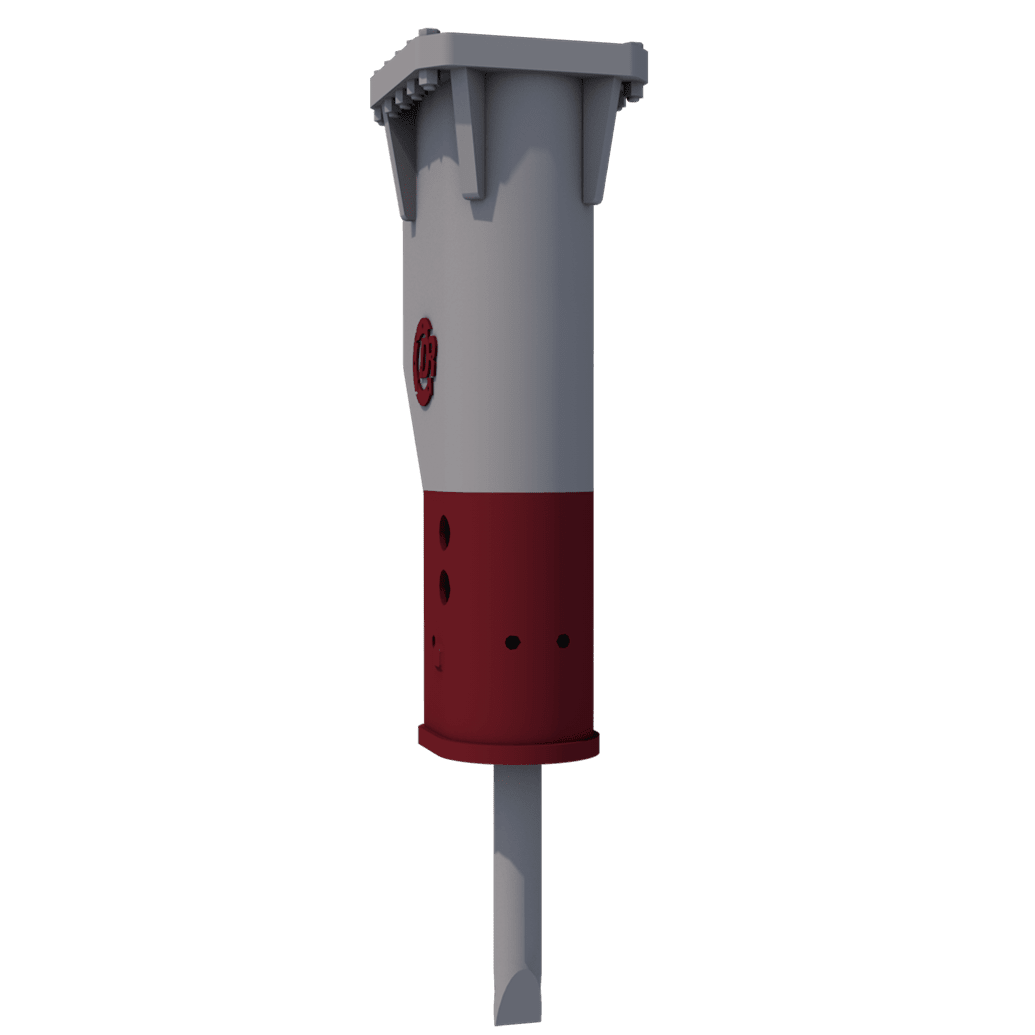

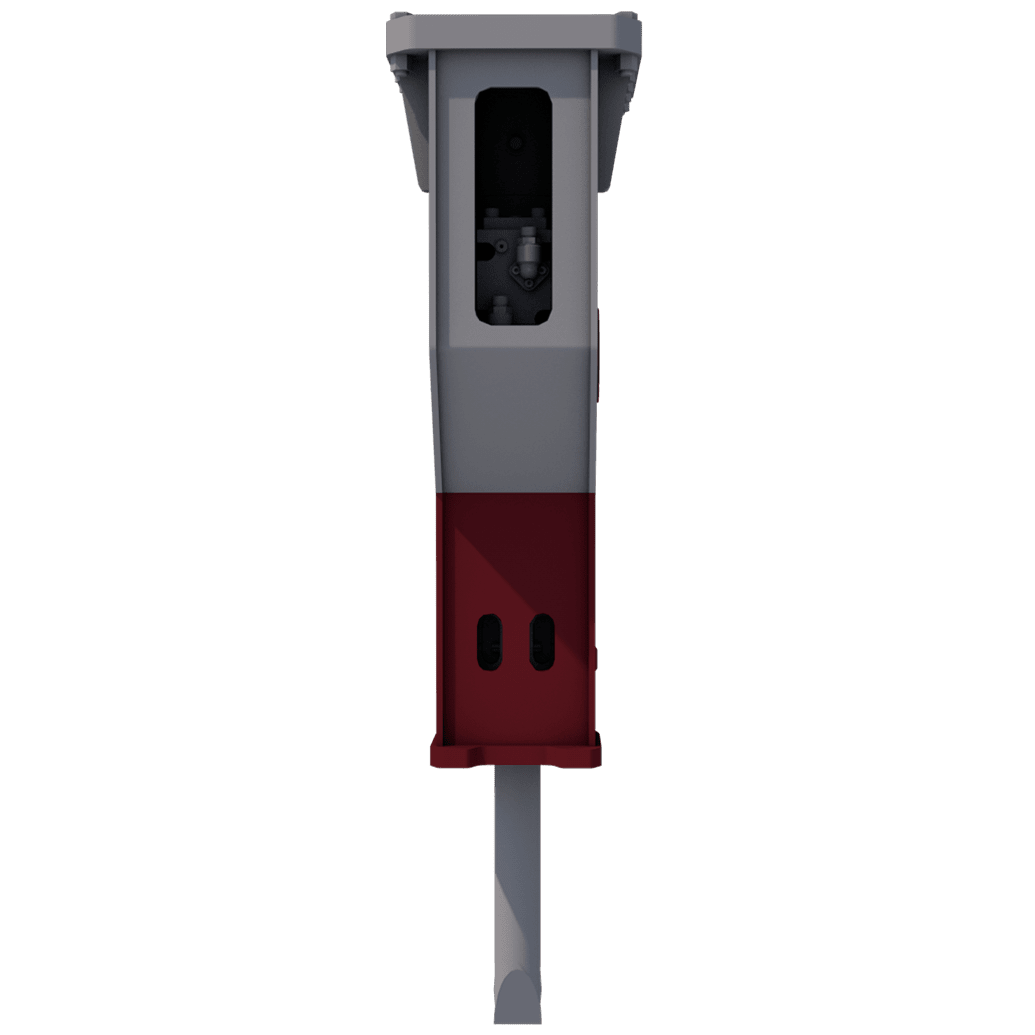

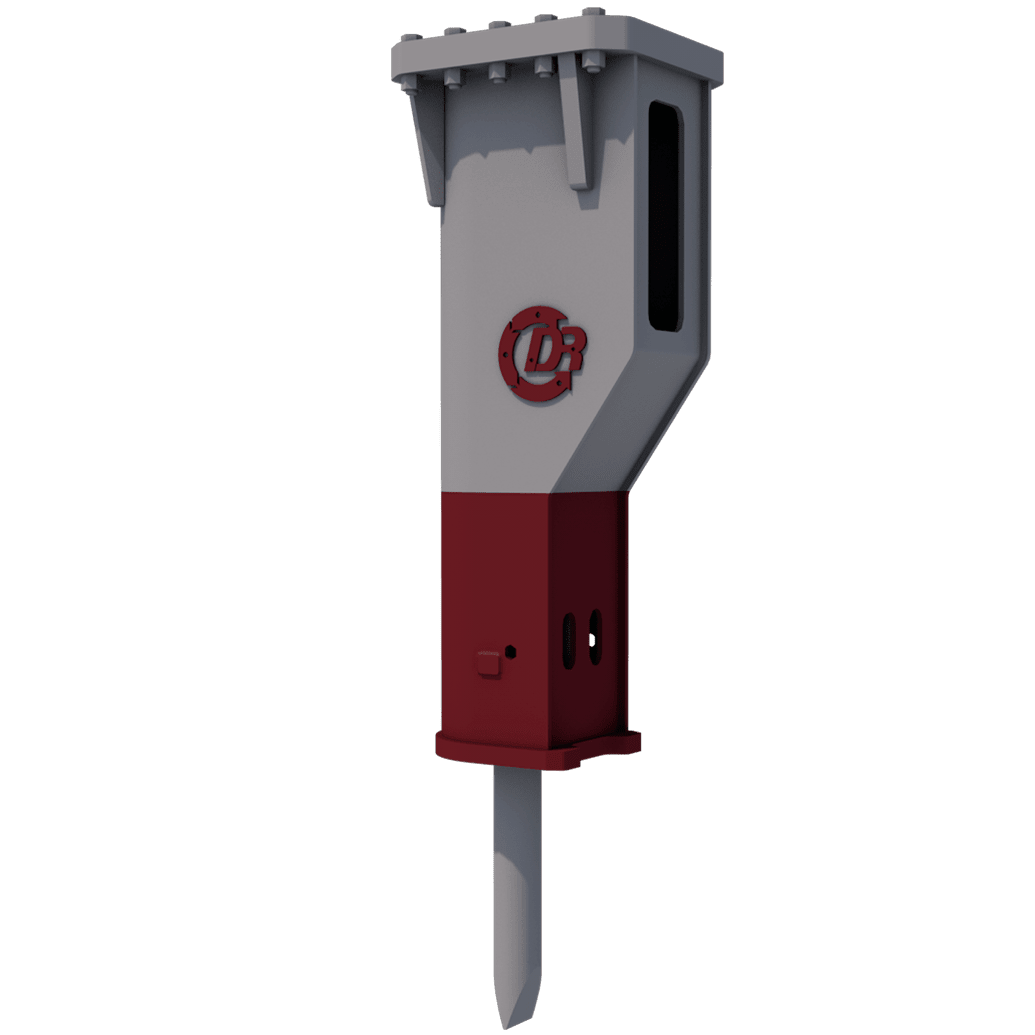

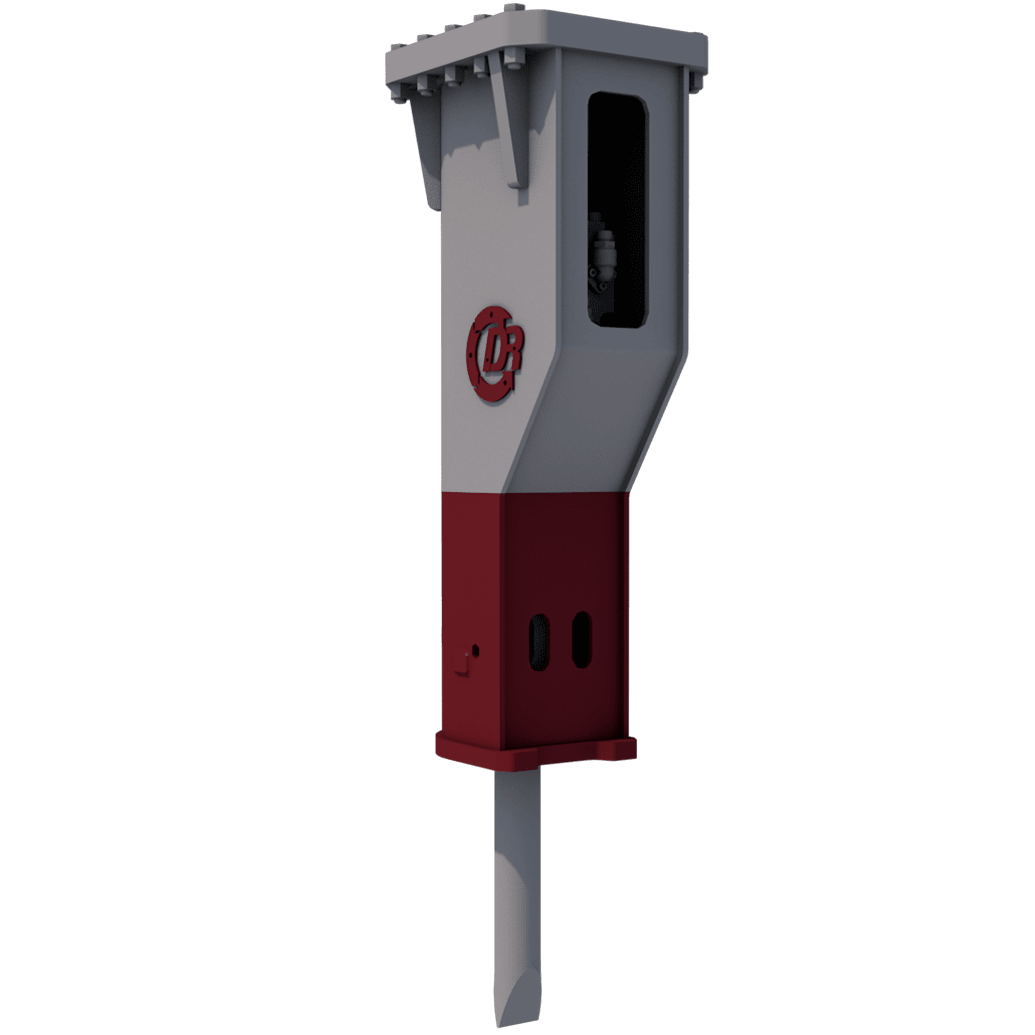

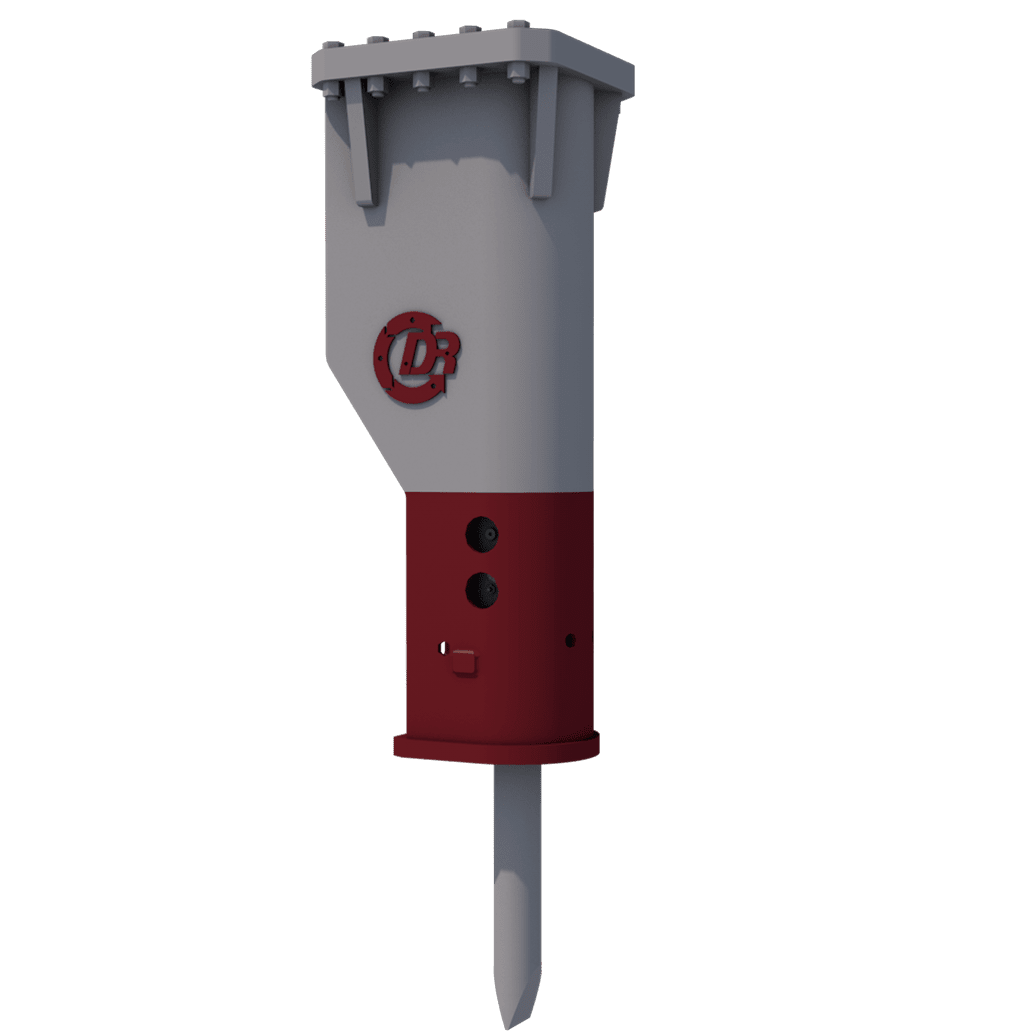

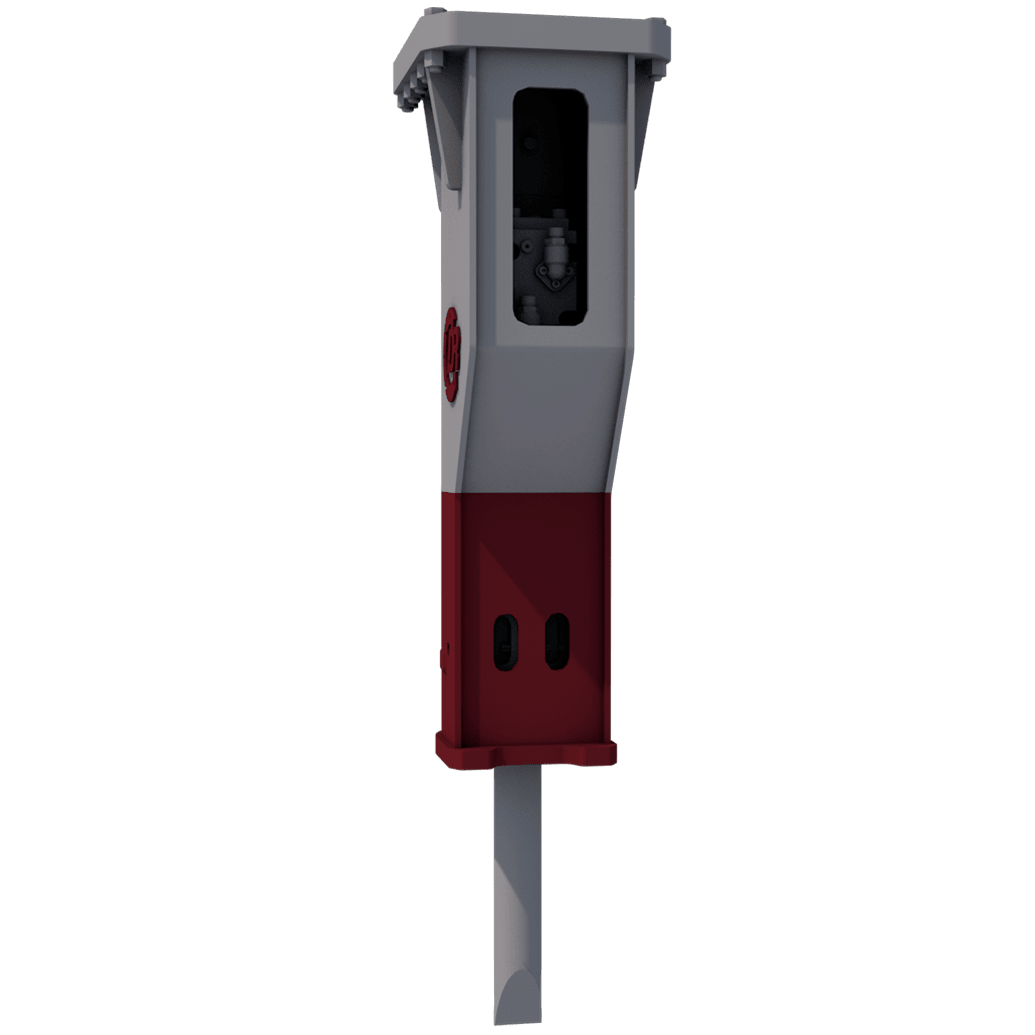

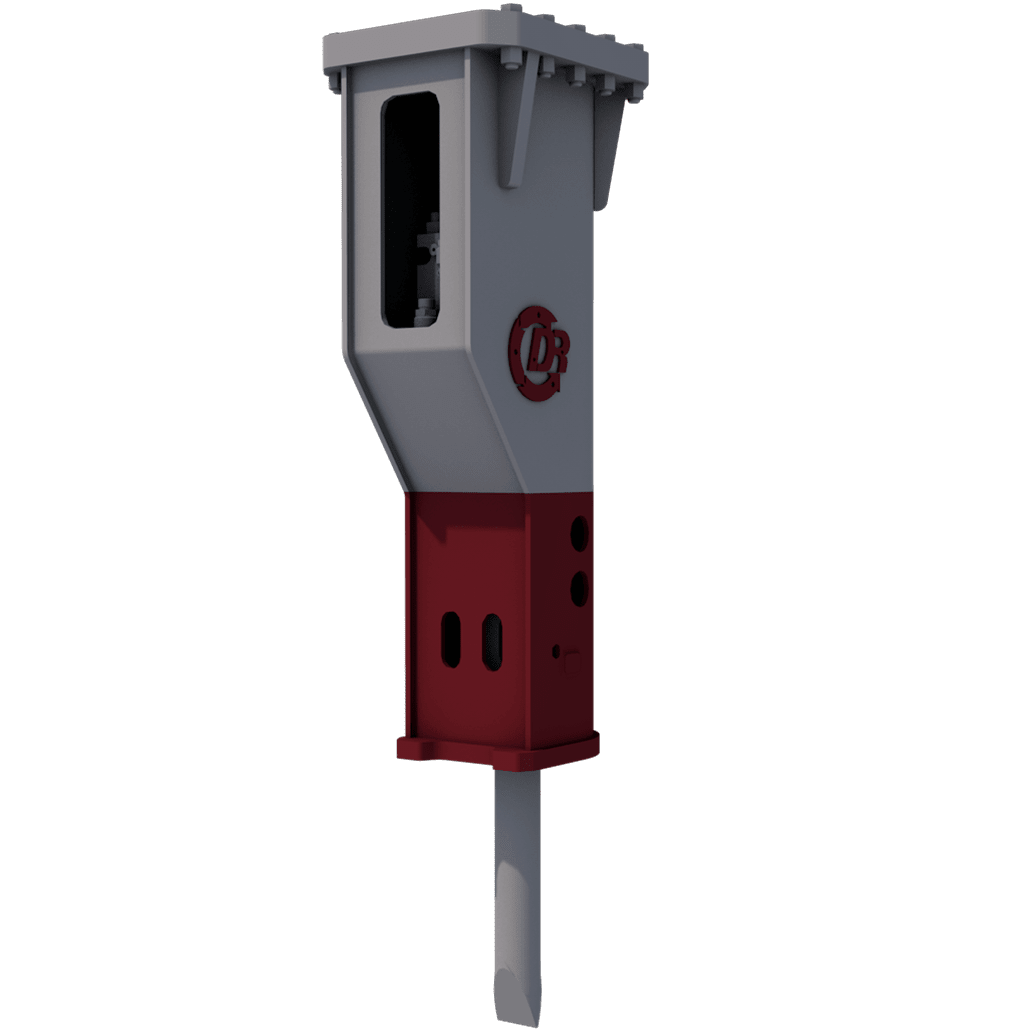

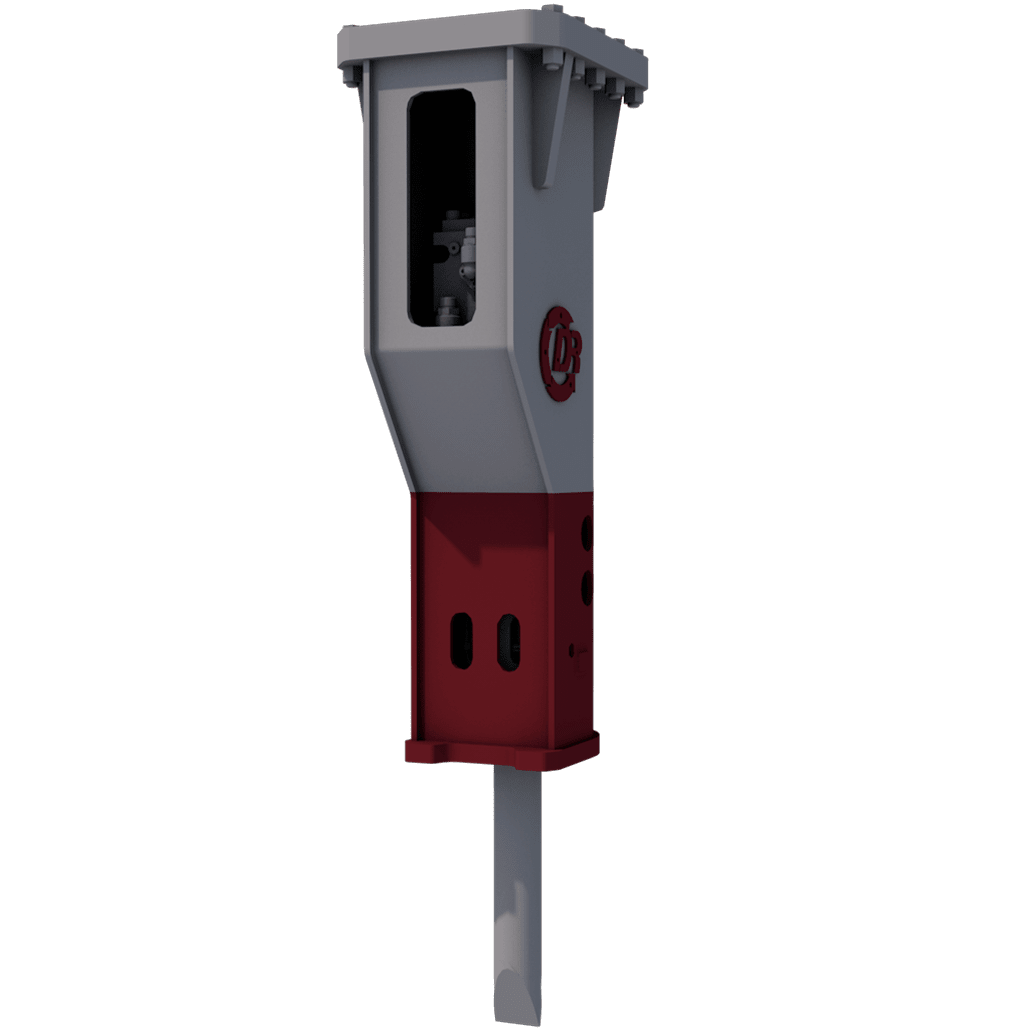

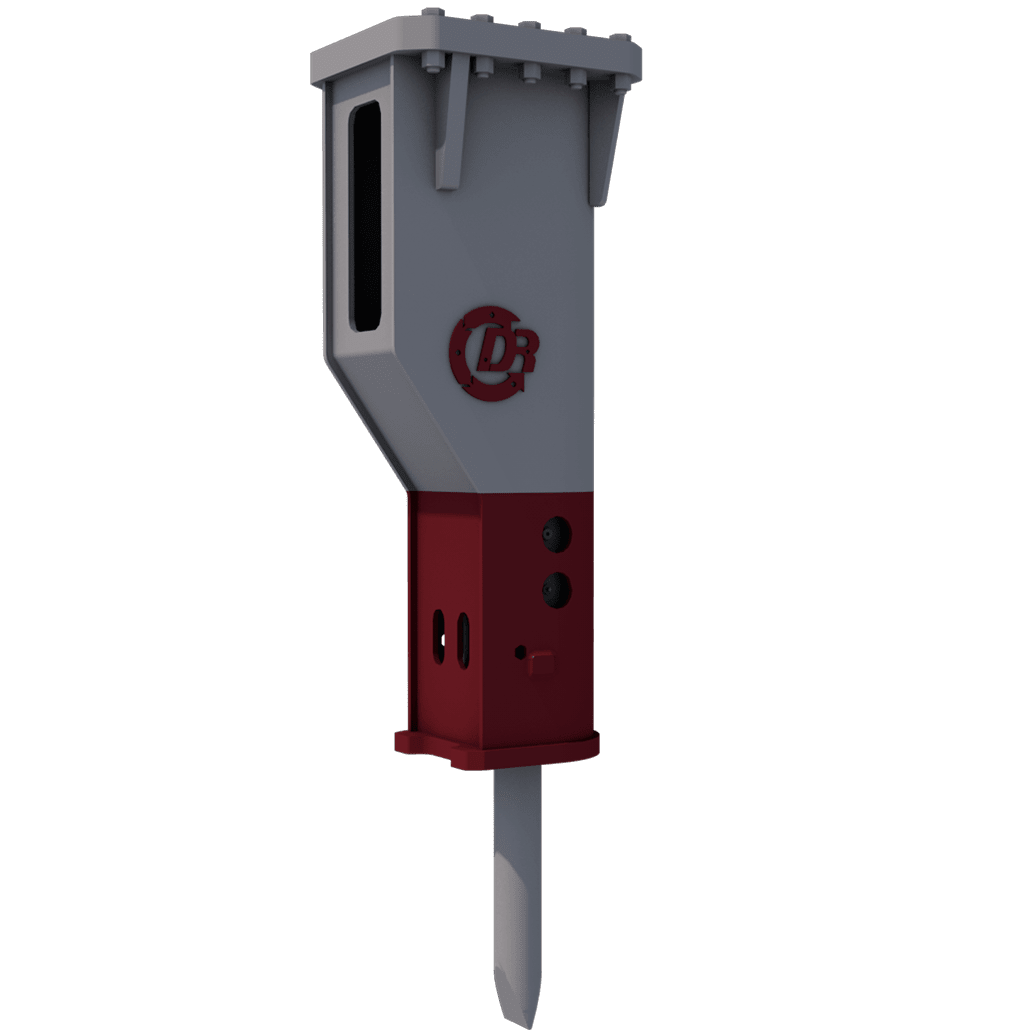

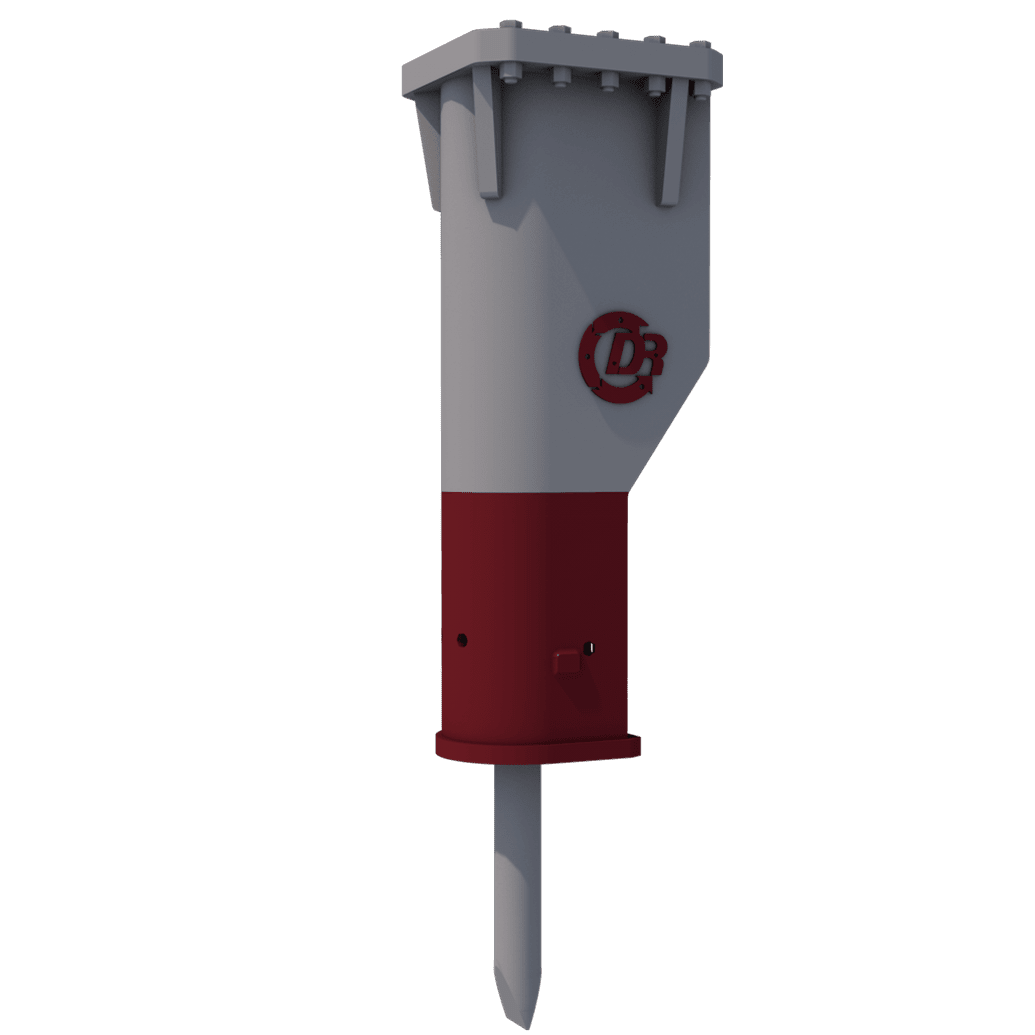

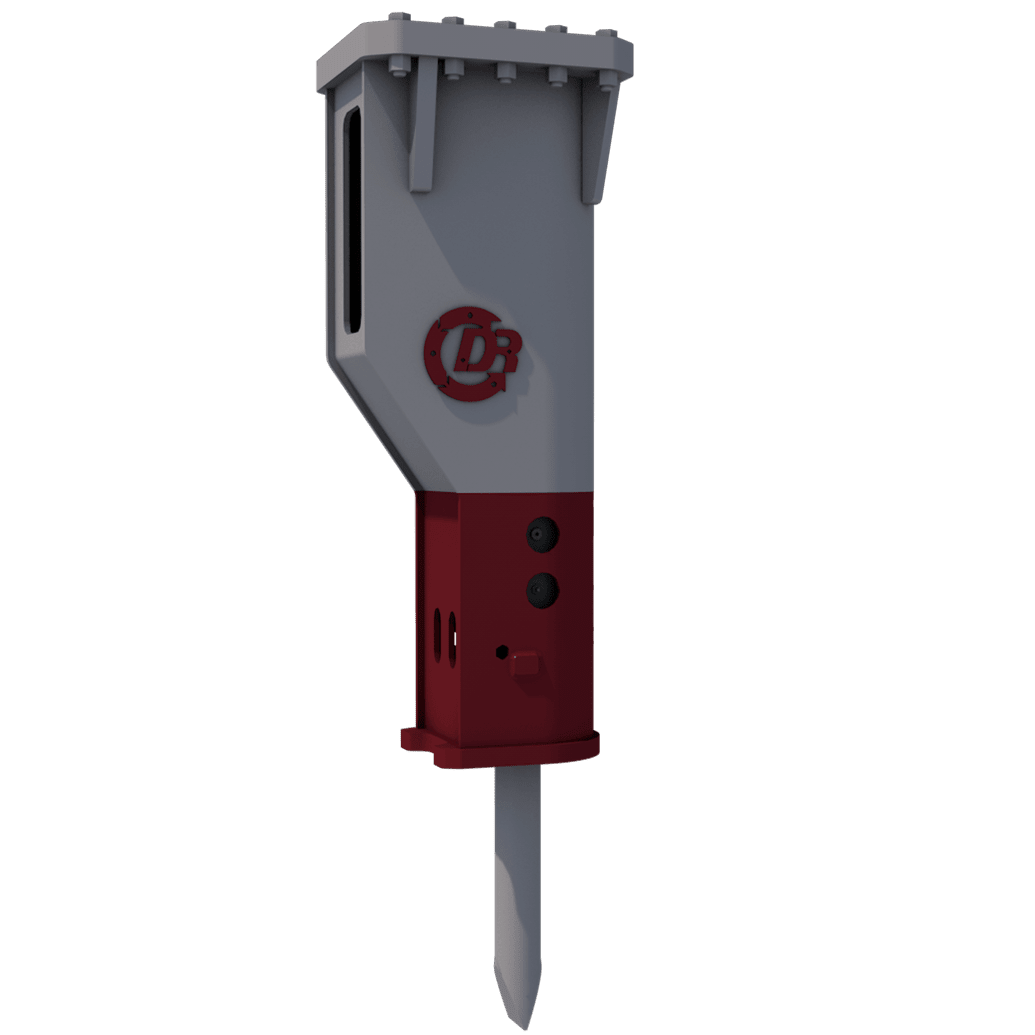

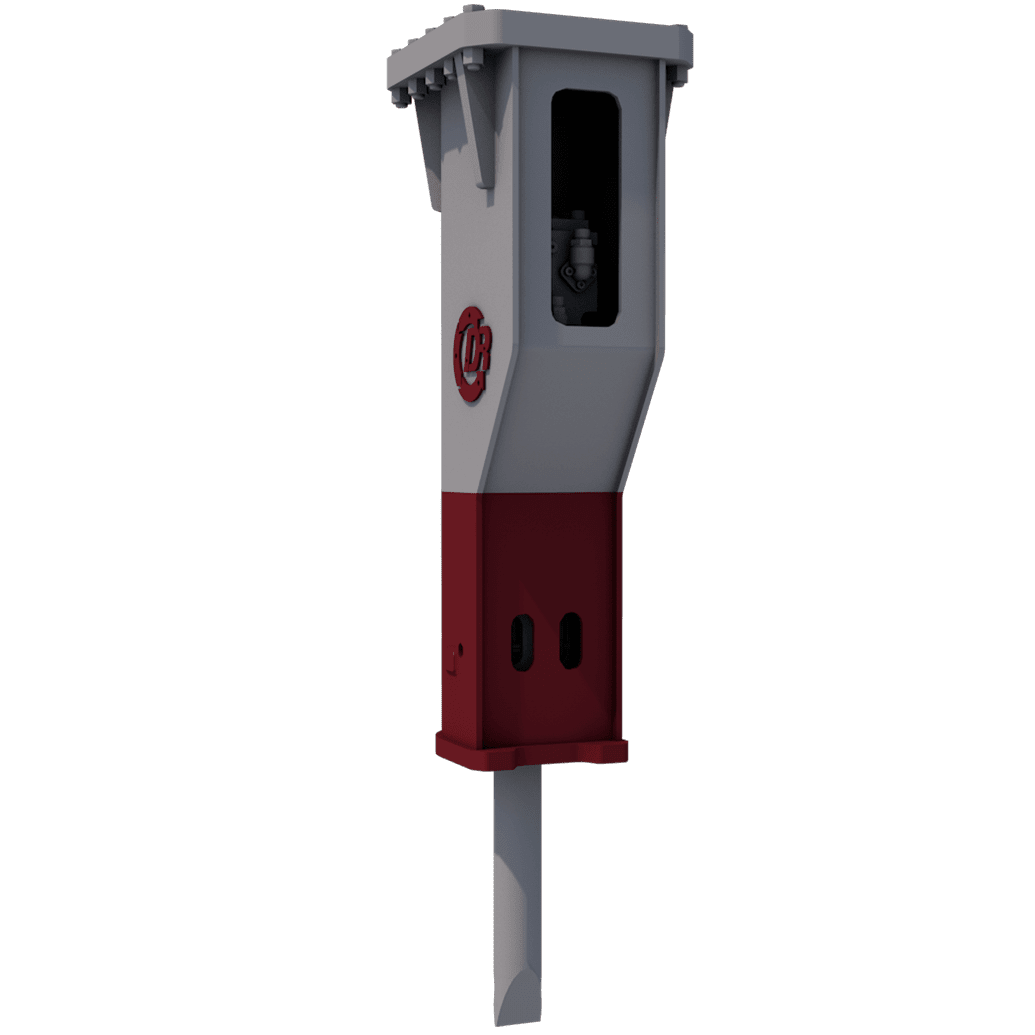

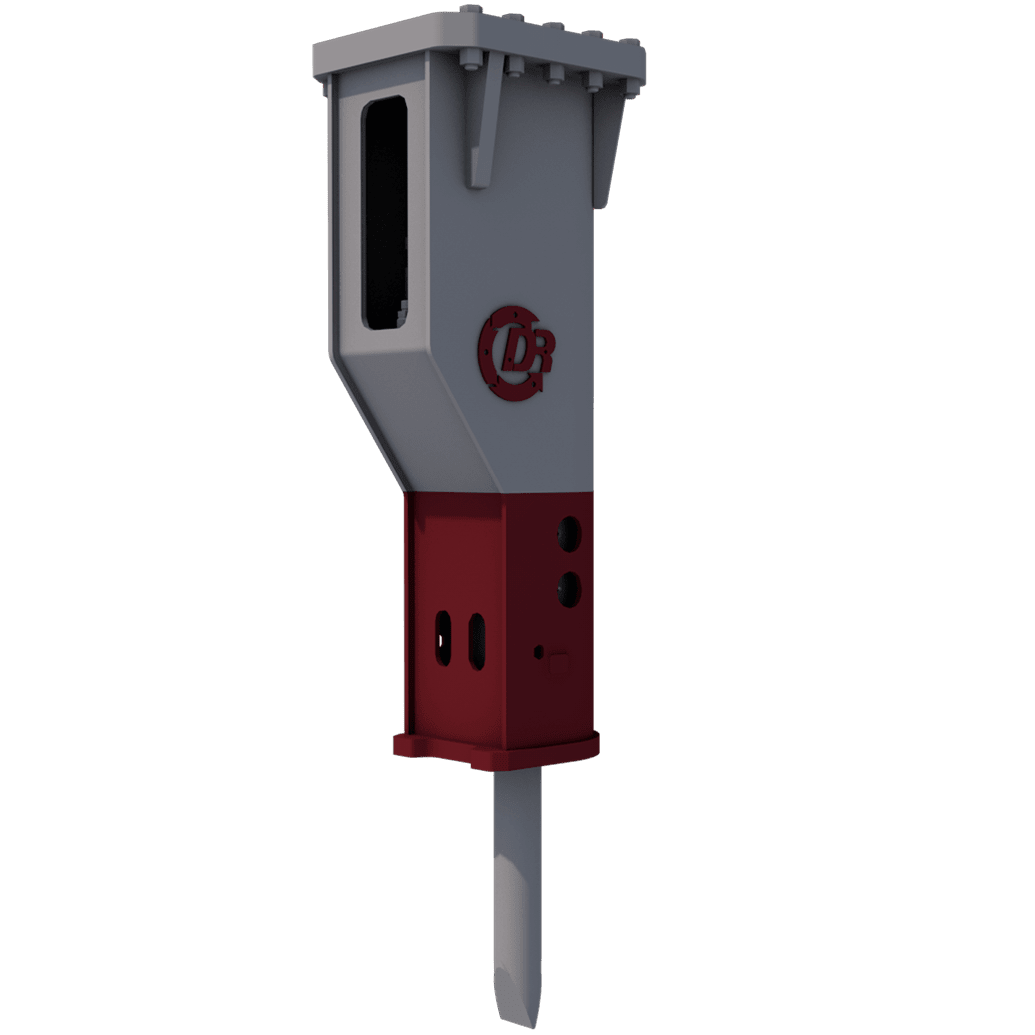

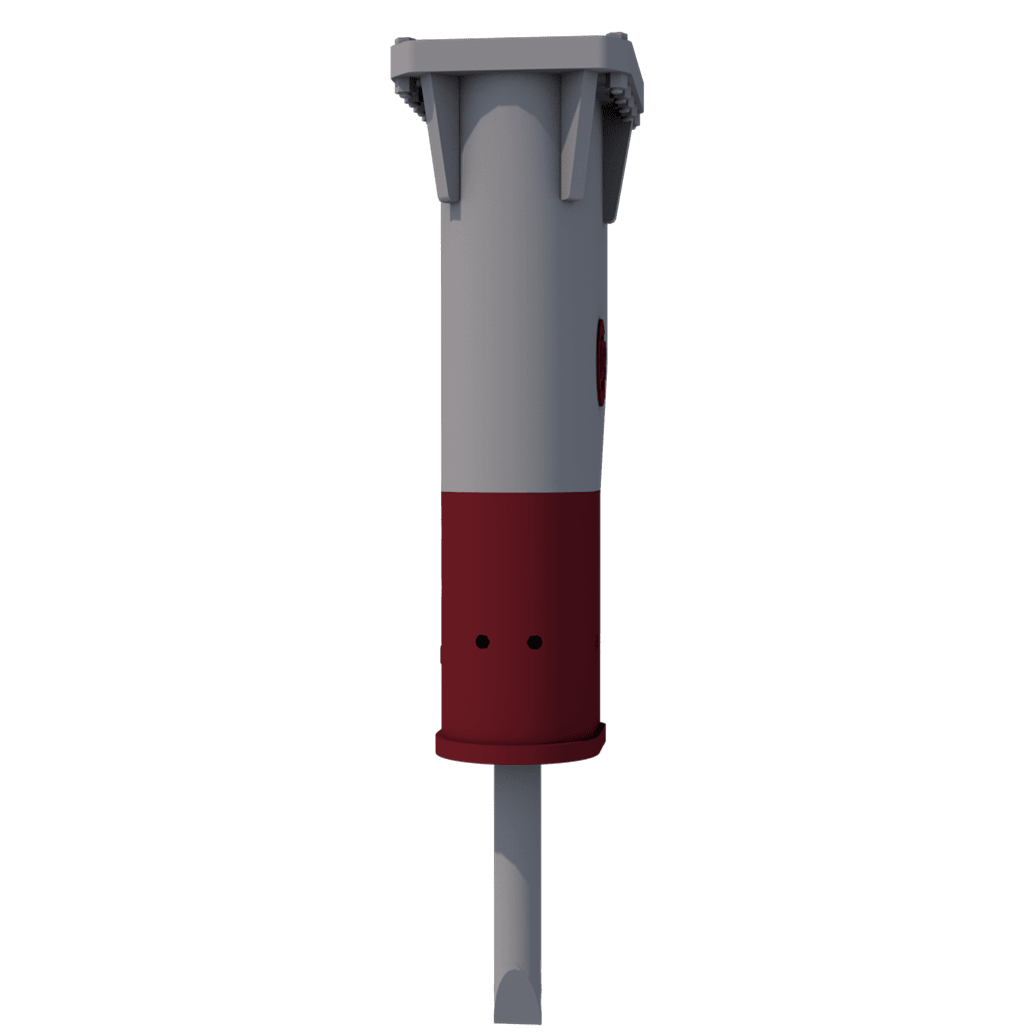

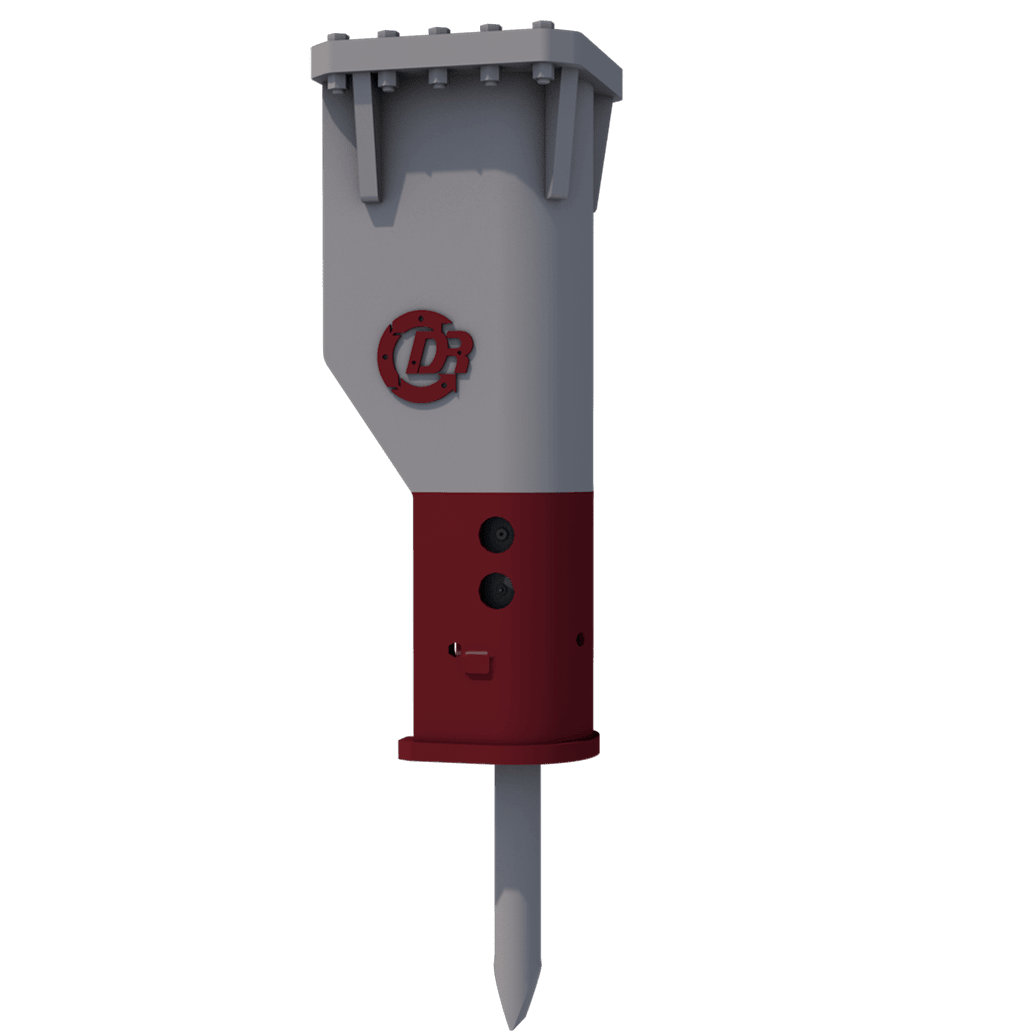

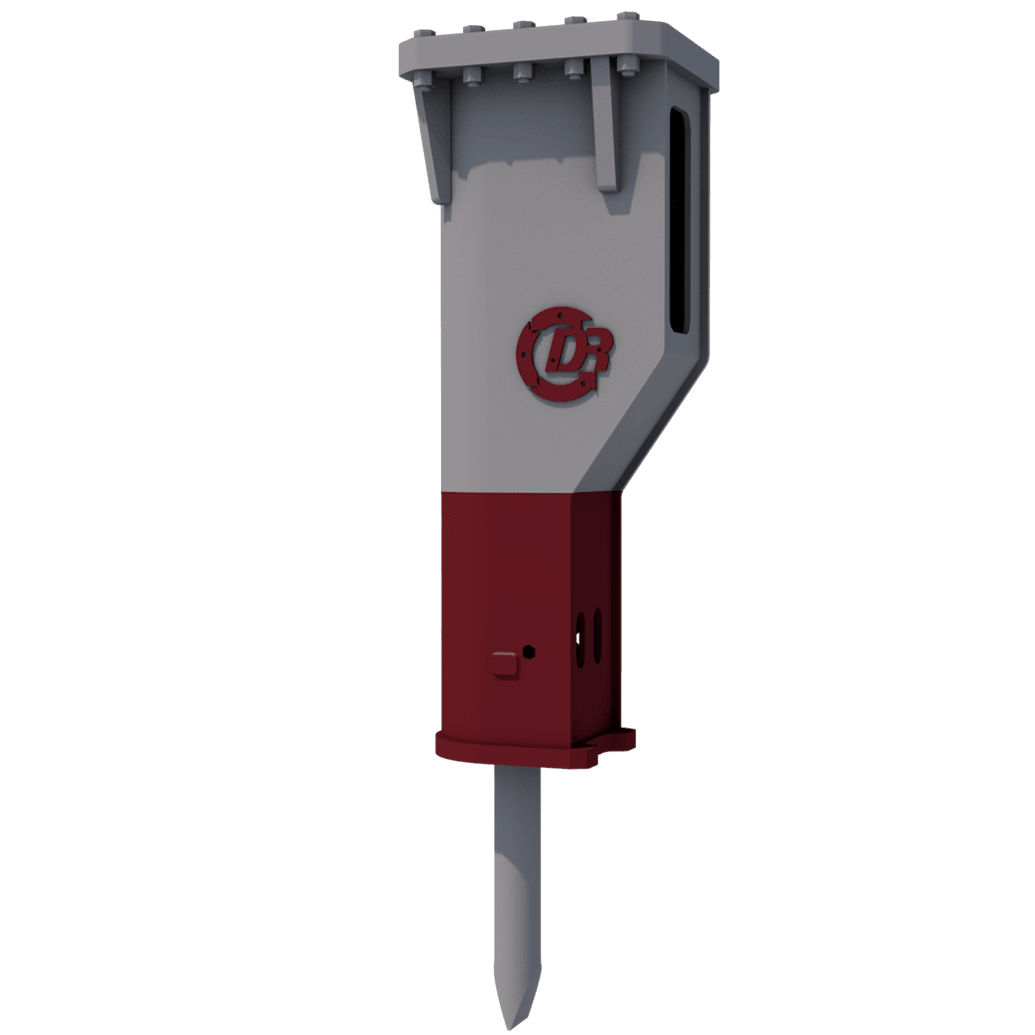

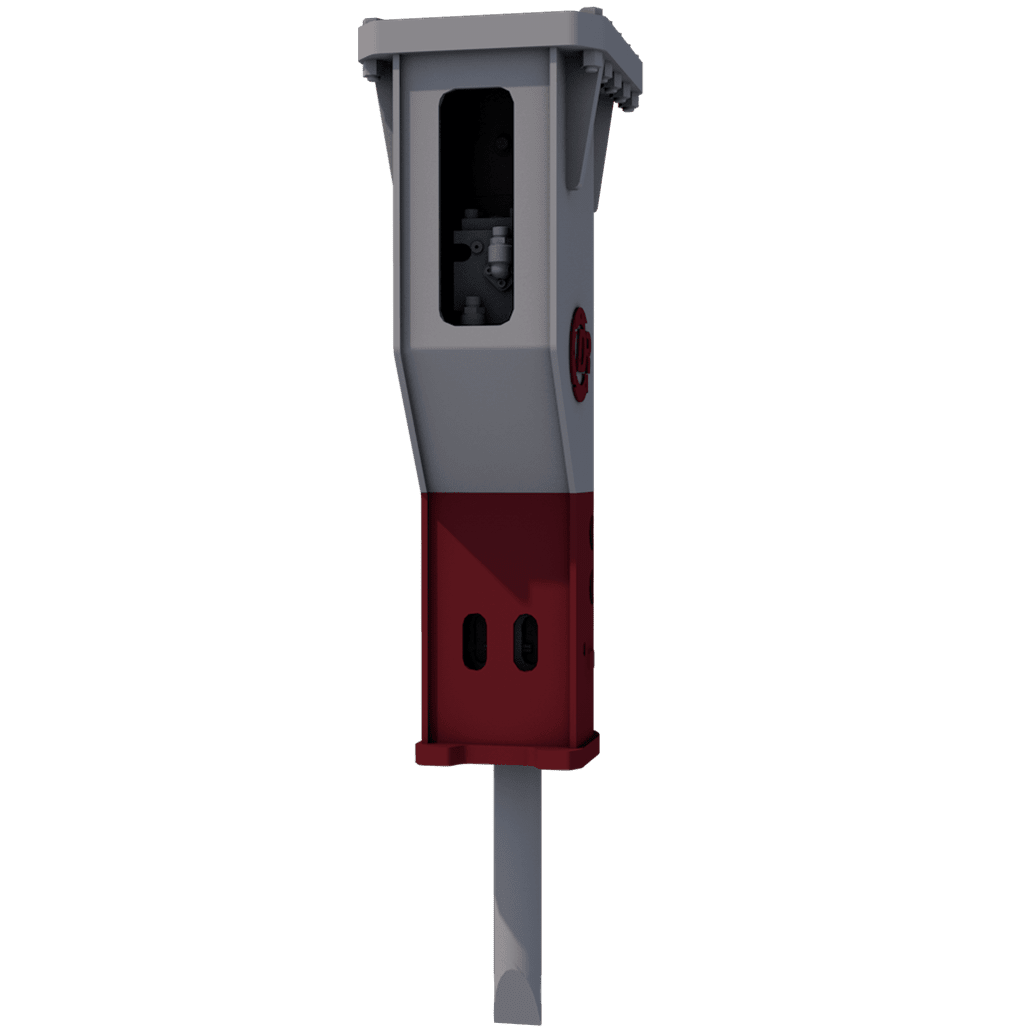

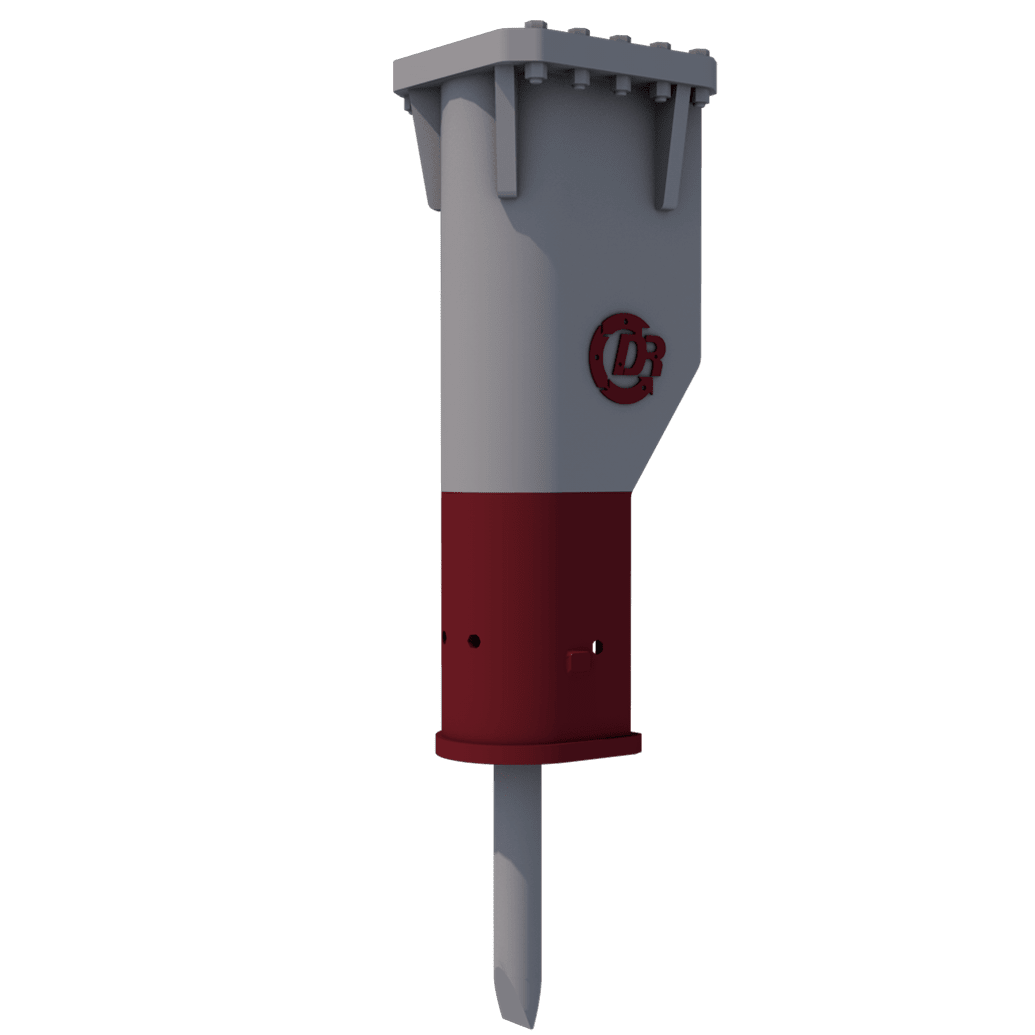

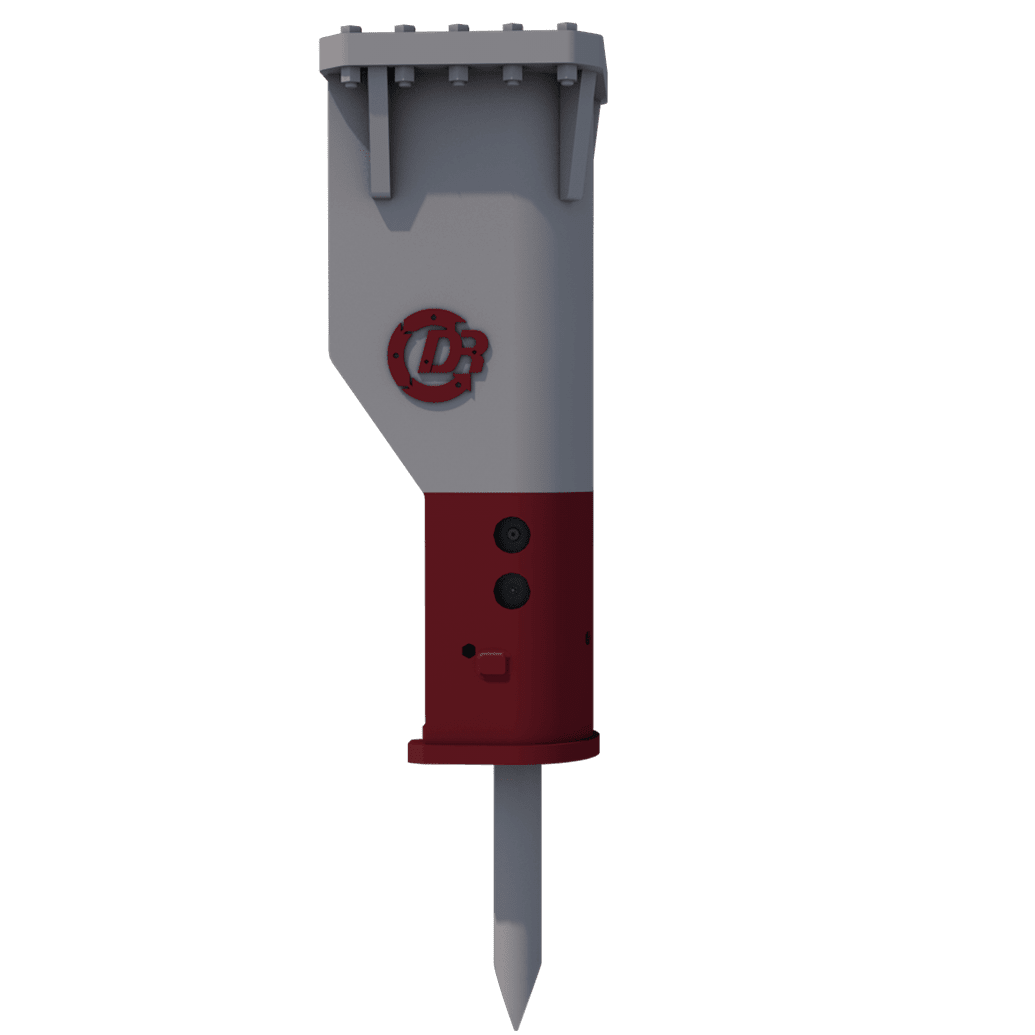

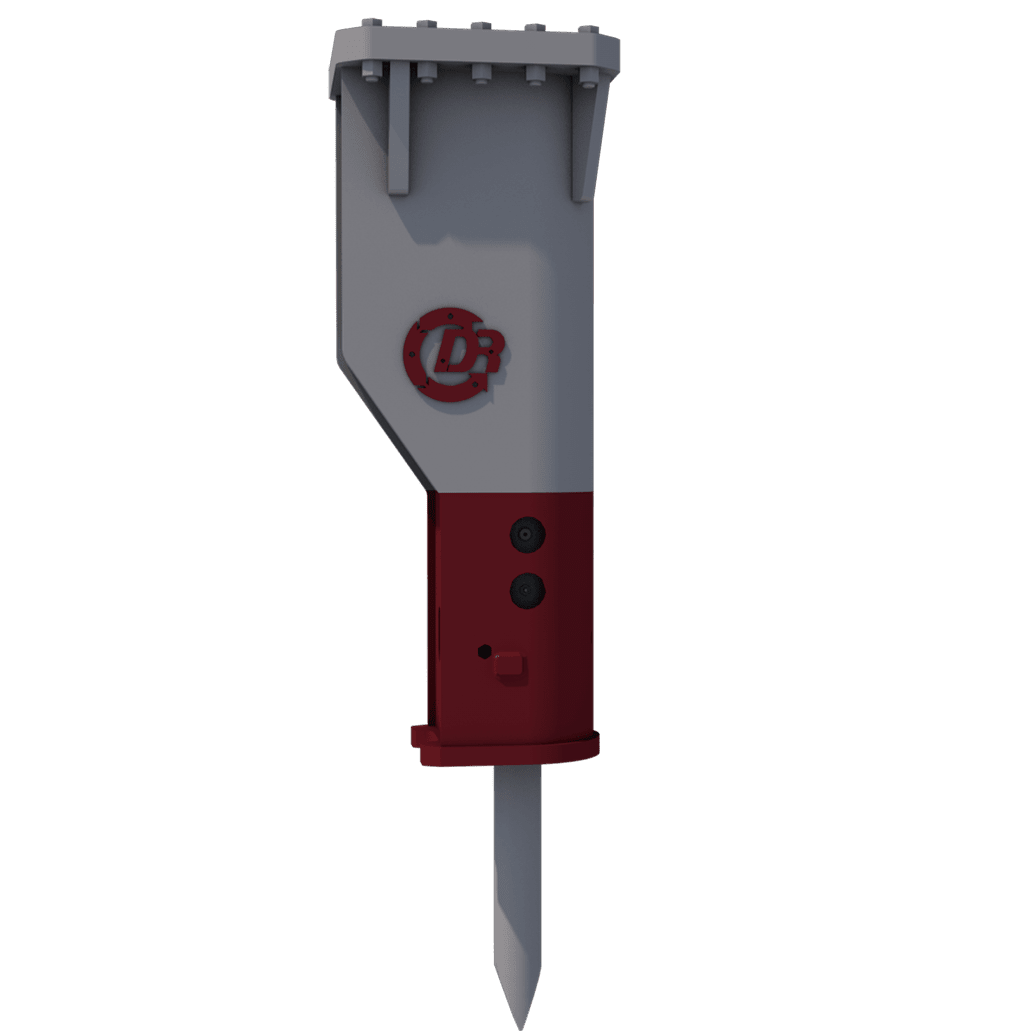

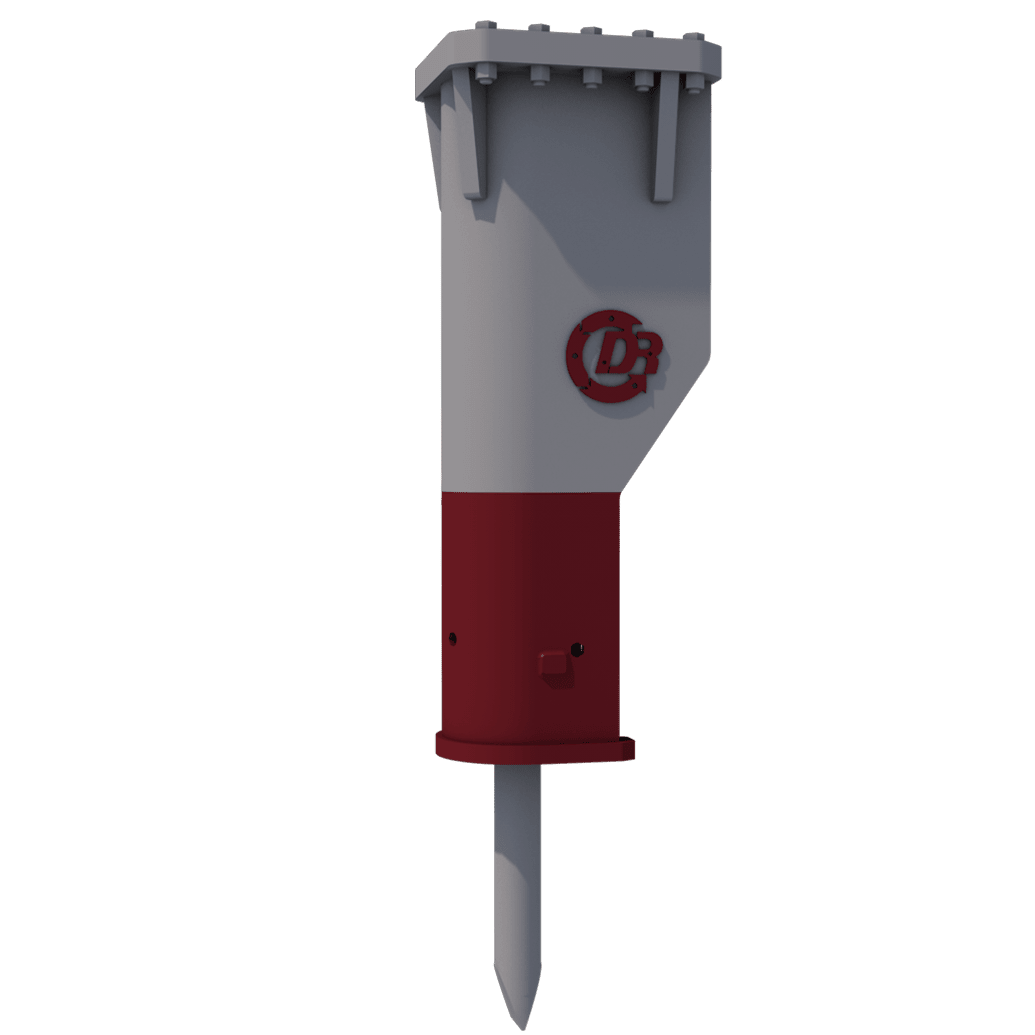

    Hydraulic hammer – DSB

    0.00

    The Demarec hammers of the DSB series are suitable for carriers, mini excavators, mini-blades, backhoe loaders, demolition robots. etc.. The breakers of the DSB series, thanks to their power and efficiency and to the right relationship between weight and power are suitable for primary and secondary demolition work, in urban areas and f.e. galleries. The DSB series are “MonoBloc-Hammers”, a very simple design, less parts and easy to service.

    More information
    Video
    Download brochure

    Description

    “A combination of punchingpower and innovation”

    Key features and benefits

    Click on the hotspots for more information!

    IN THE END... IT'S ONLY ABOUT THE RIGHT TOOL

    Technical specifications

    Technical specifications
    Type Carrier Weight* Weight** Height*** Chisel diameter Flow Oil pressure Max back pressure
    DSB-0 0,5-1,4 ton 60 kg 783 mm 40 mm 15-20 l/min 110 bar 30 bar
    DSB-1 0,5-1,6 ton 70 kg 810 mm 40 mm 13-20 l/min 140 bar 30 bar
    DSB-2 1,2-2,5 ton 100 kg 920 mm 45 mm 15-30 l/min 150 bar 30 bar
    DSB-3 1,5-3,8 ton 135 kg 920 mm 48 mm 18-40 l/min 150 bar 30 bar
    DSB-4 2,5-5,0 ton 190 kg 1145 mm 55 mm 25-55 l/min 170 bar 30 bar
    DBS-6 3,0-6,5 ton 240 kg 1170 mm 65 mm 30-60 l/min 140 bar 30 bar
    DSB-8 4,5-8,5 ton 300 kg 12000 mm 75 mm 50-70 l/min 200 bar 30 bar
    DSB-10 6,0-10 ton 430 kg 1515 mm 80 mm 75-90 l/min 190 bar 30 bar
    DSB-12 8,0-12,5 ton 480 kg 1570 mm 90 mm 85-110 l/min 190 bar 30 bar

    *Depending of capacity of carrier
    **Weigth excluding bracket
    *** With standard tool
    Subject to change without notice.

    For more technical information, download our brochure here.
