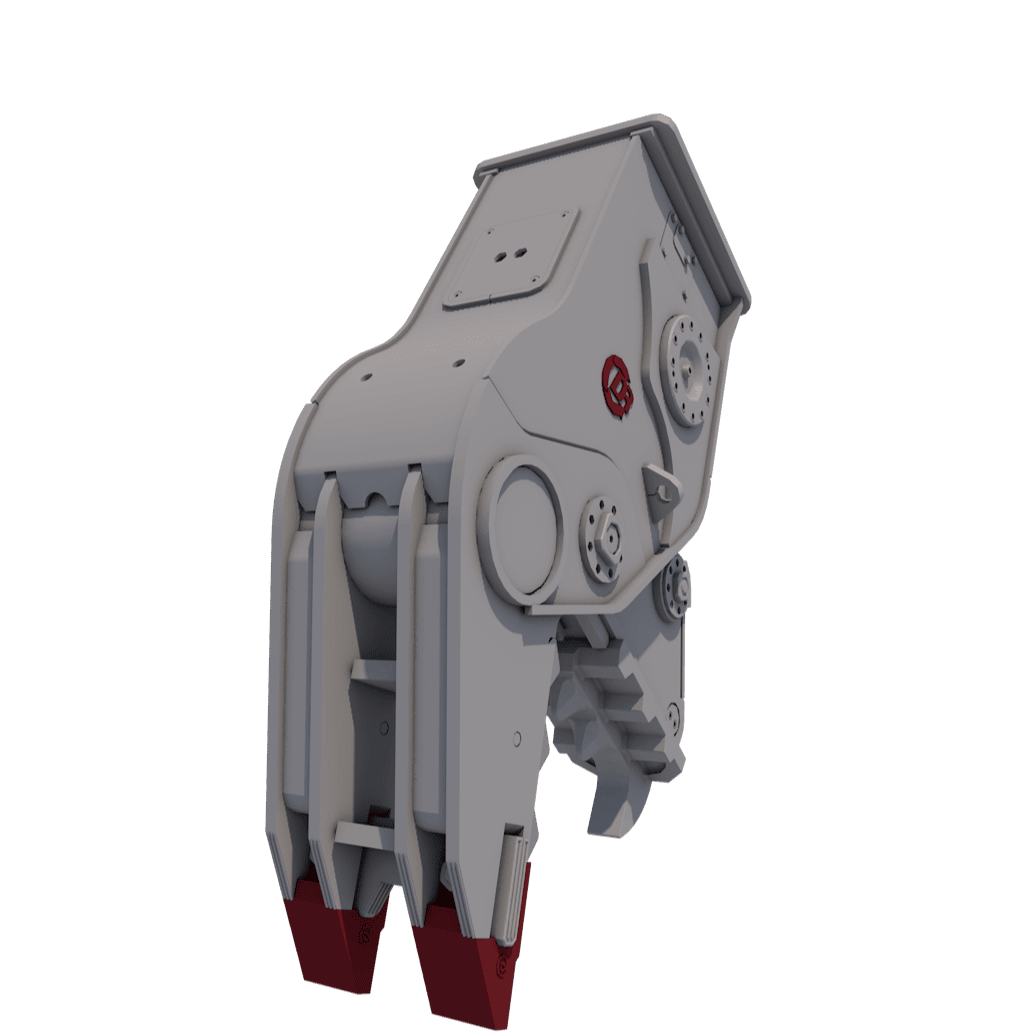

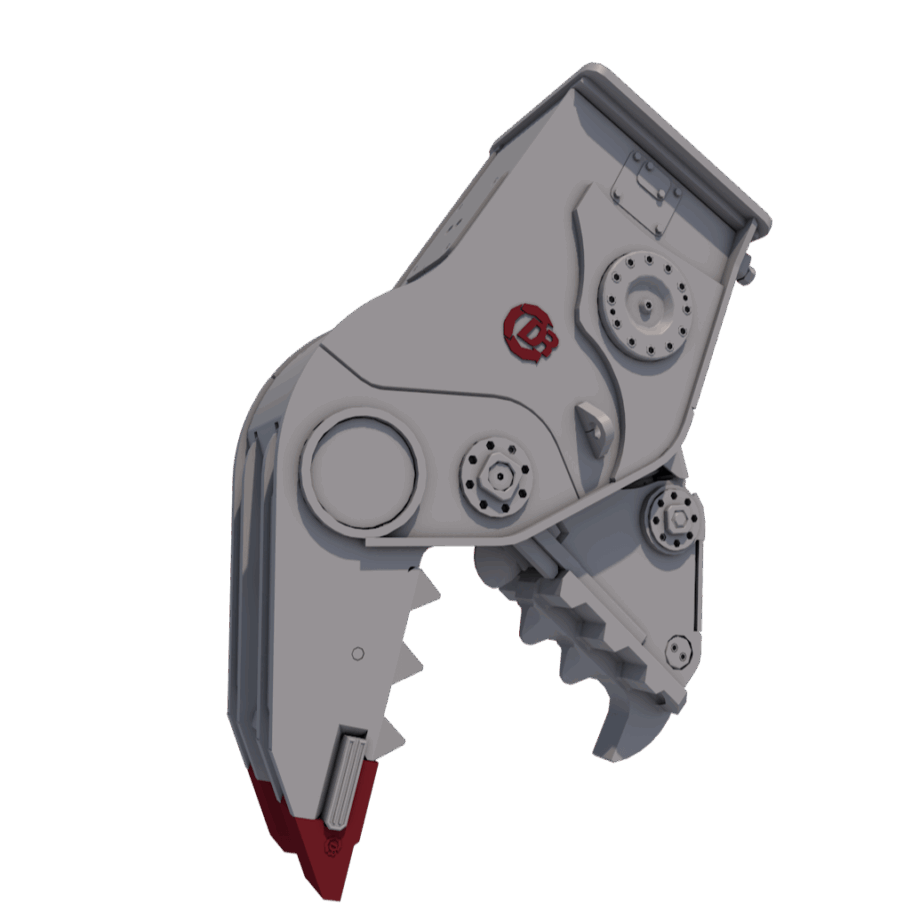

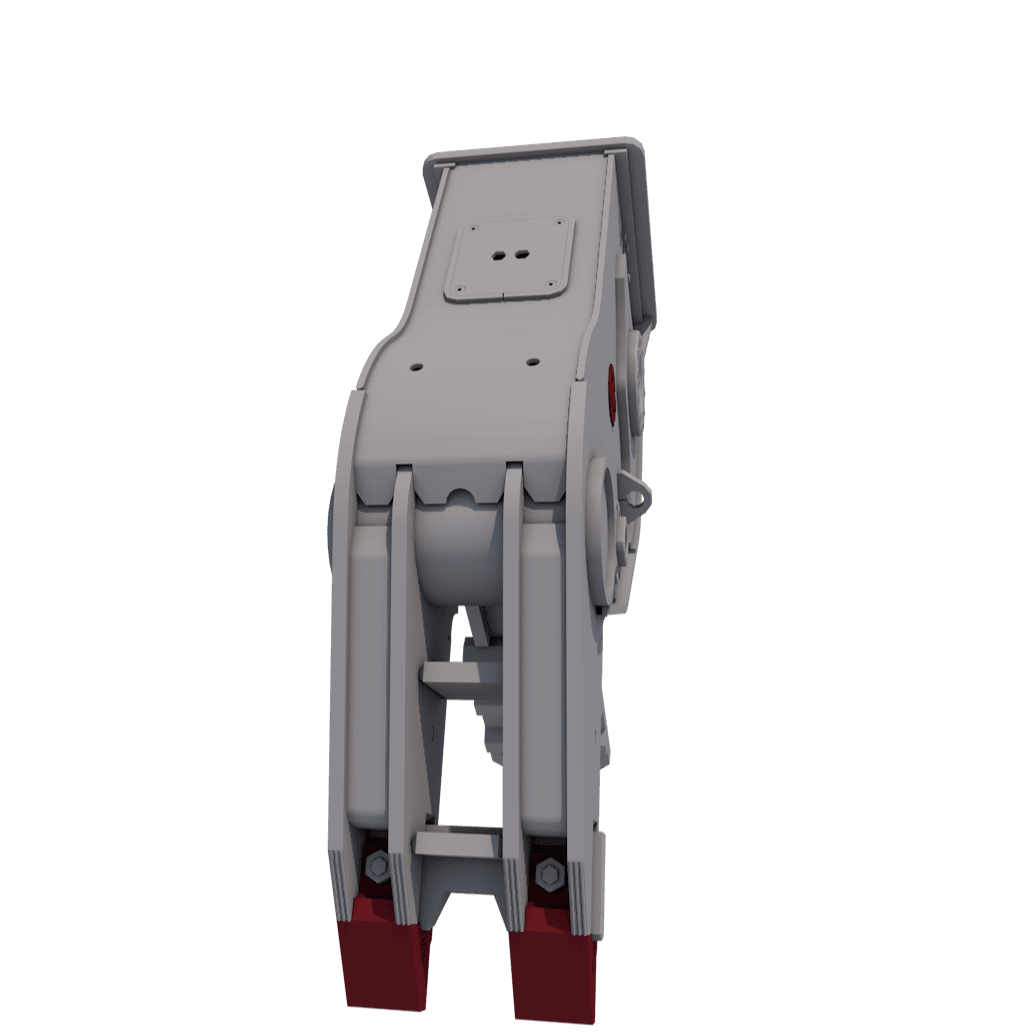

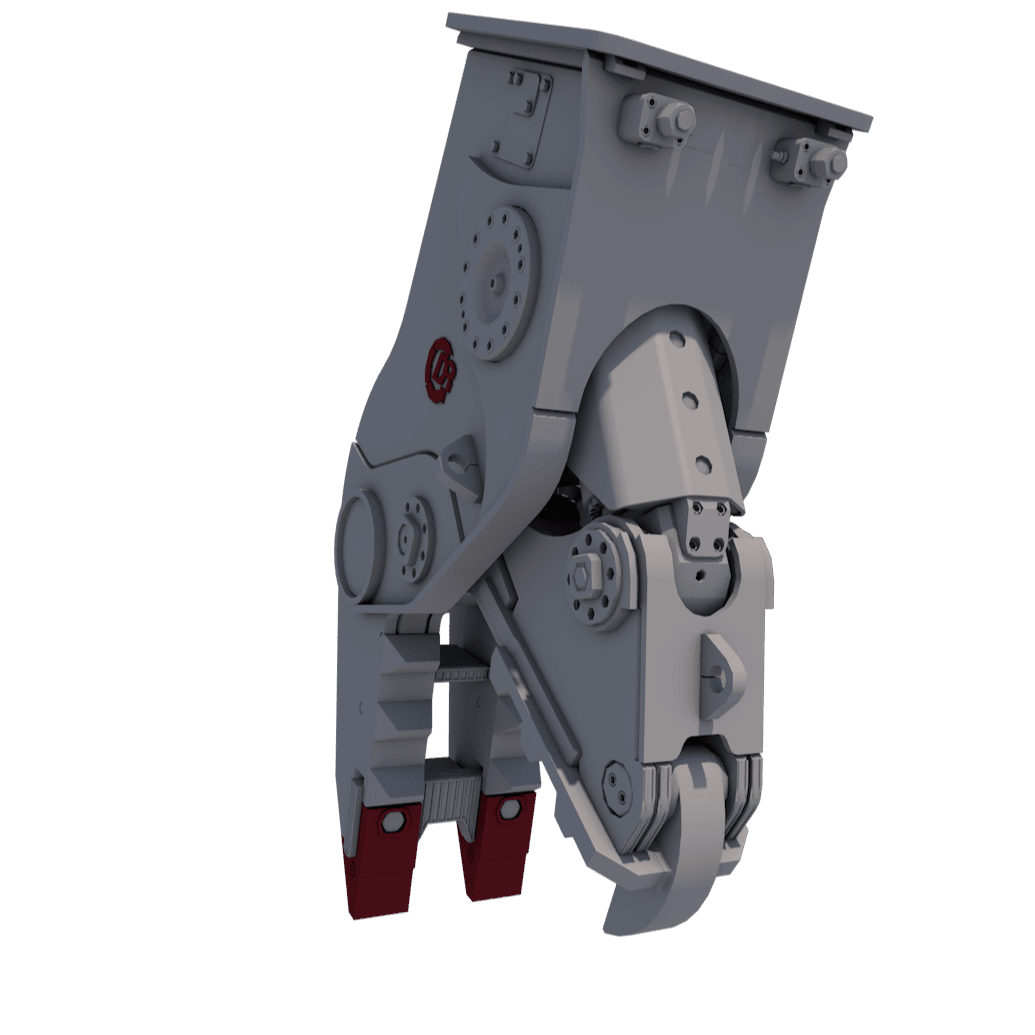

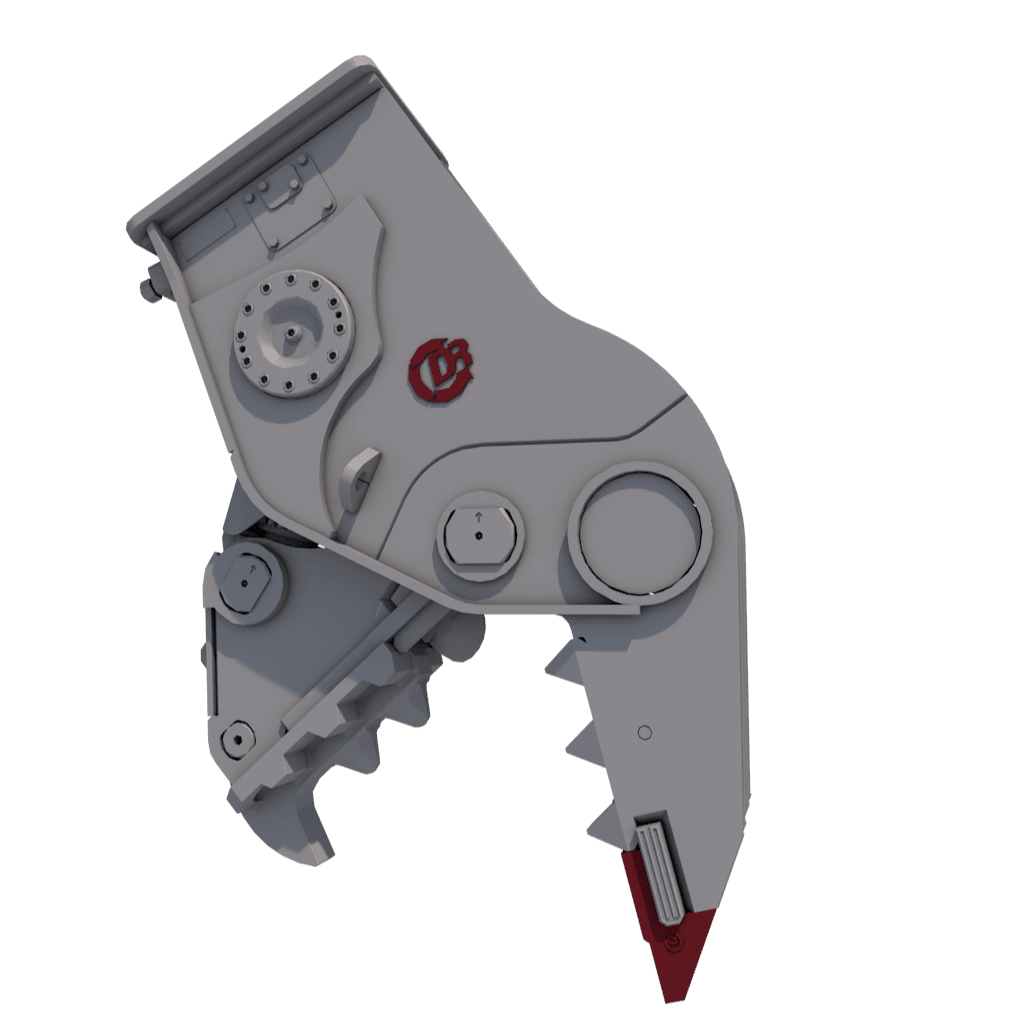

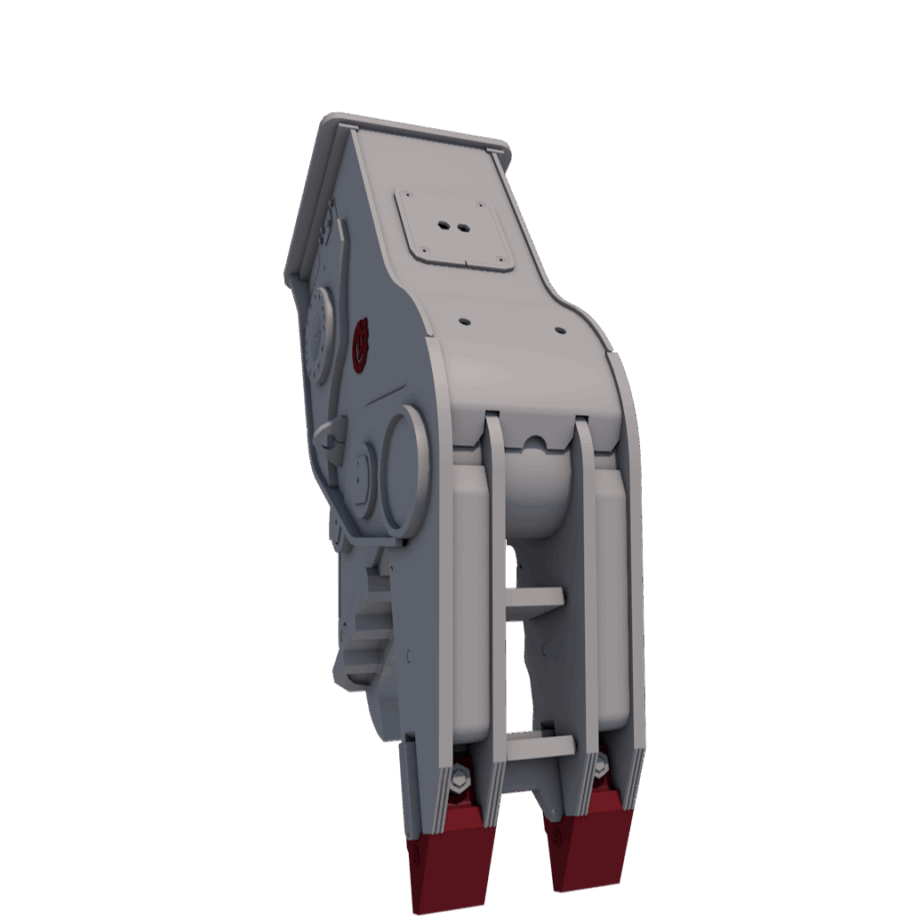

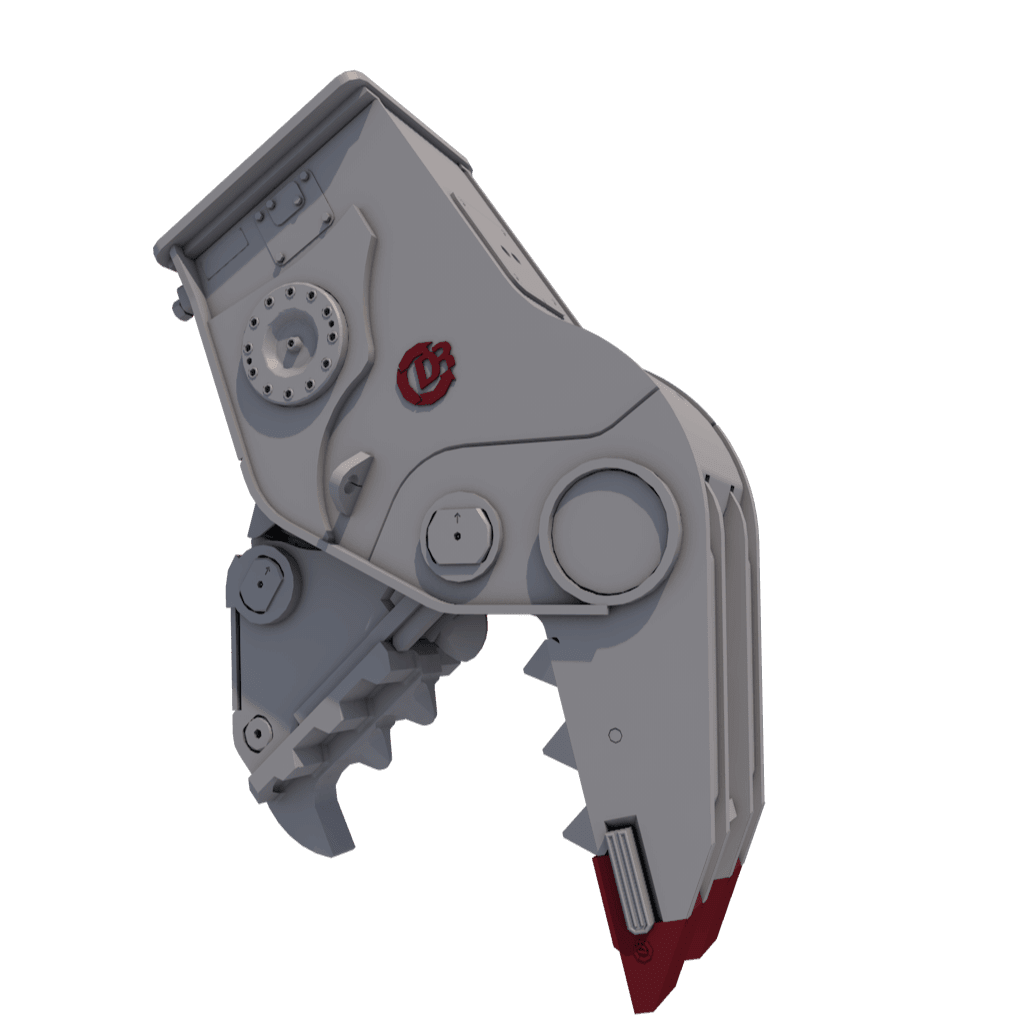

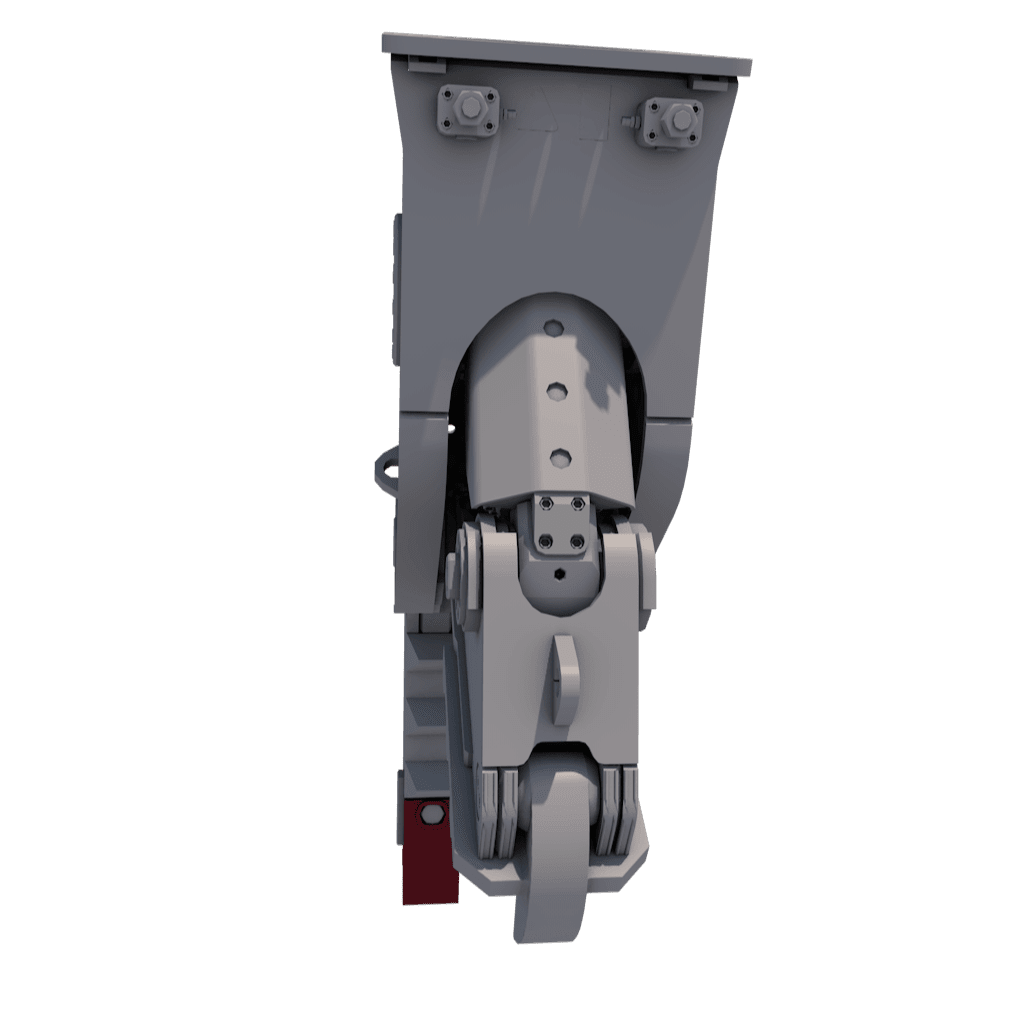

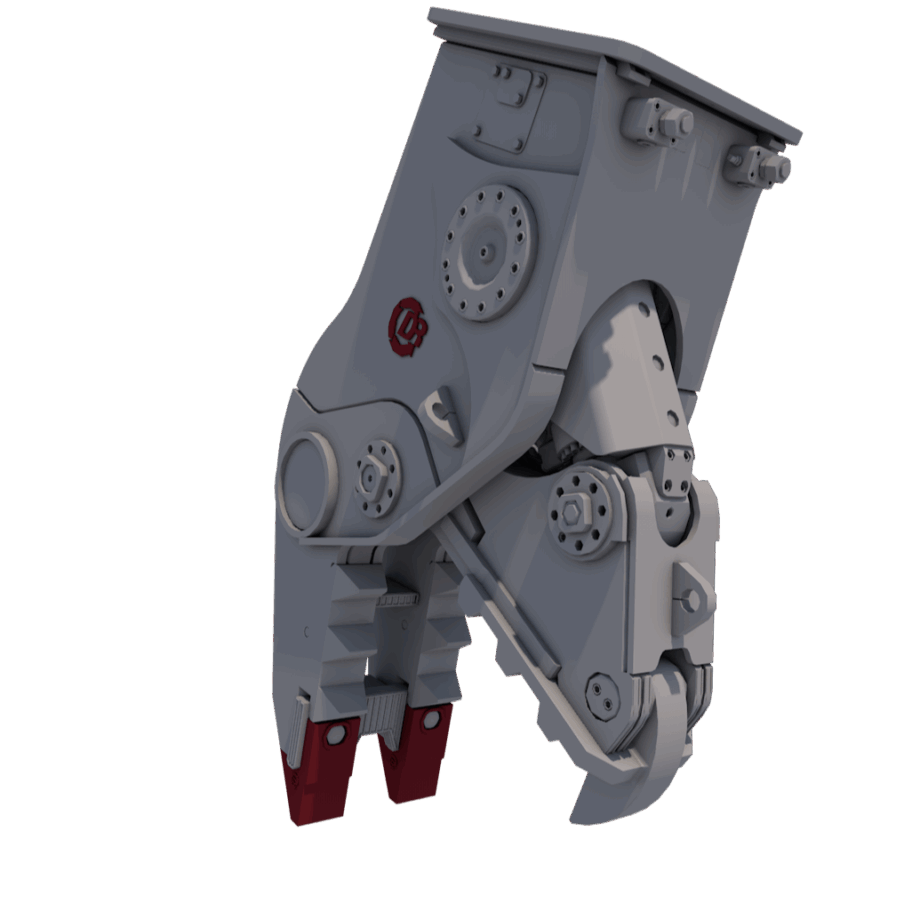

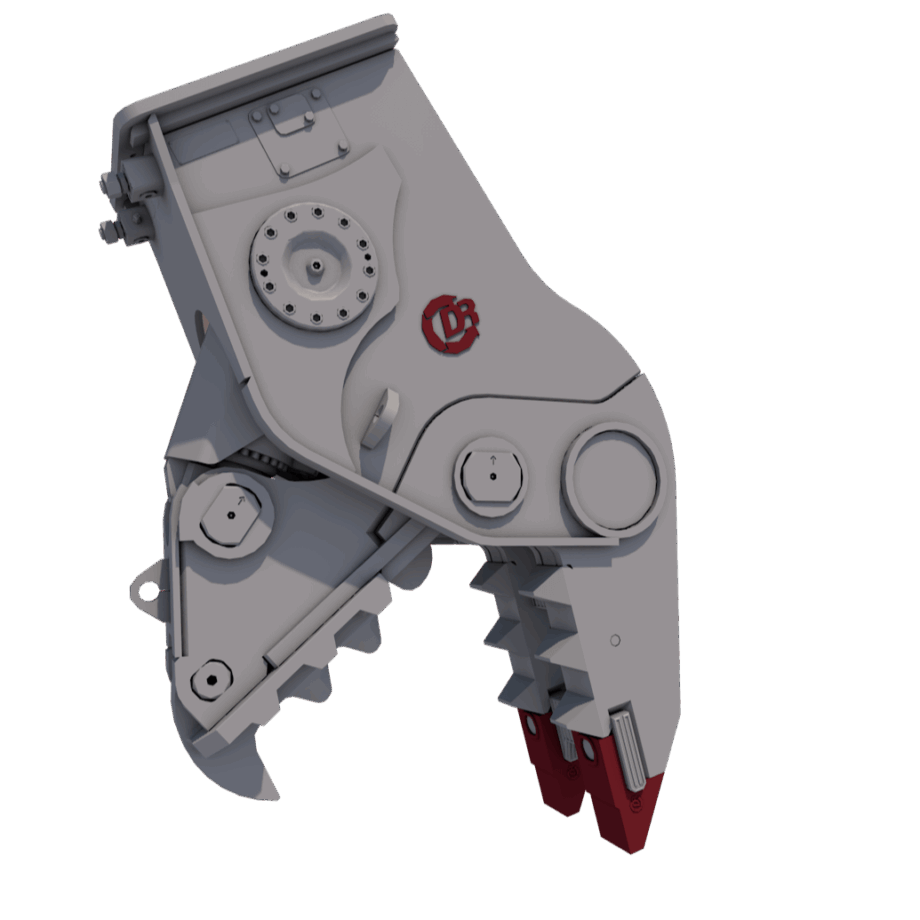

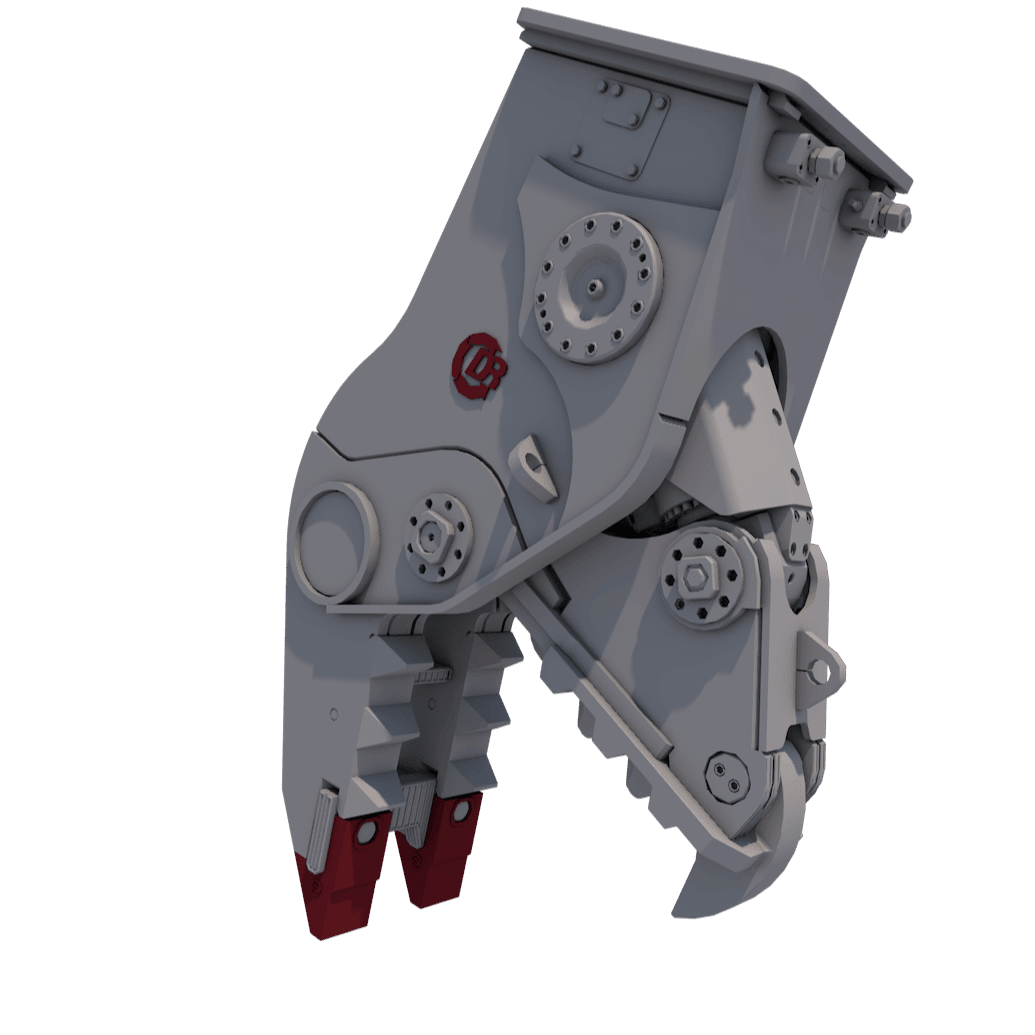

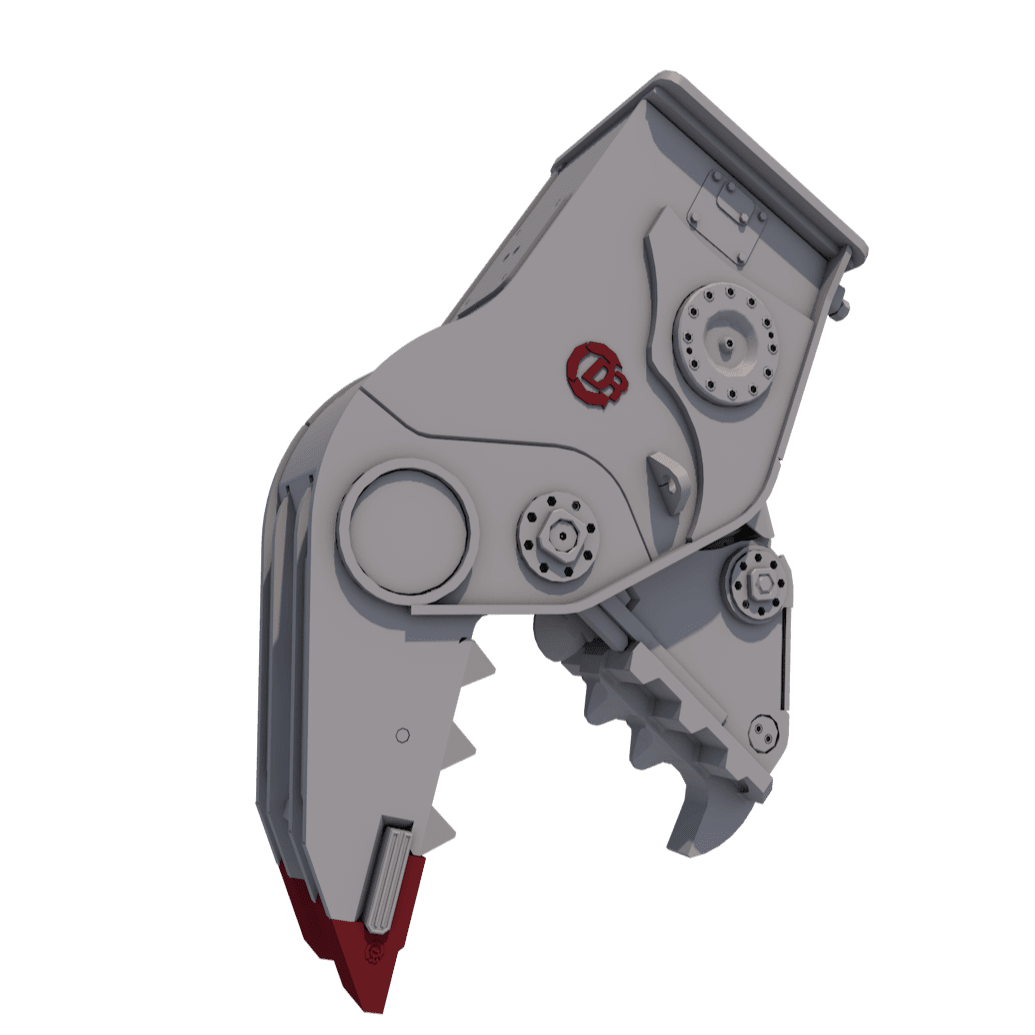

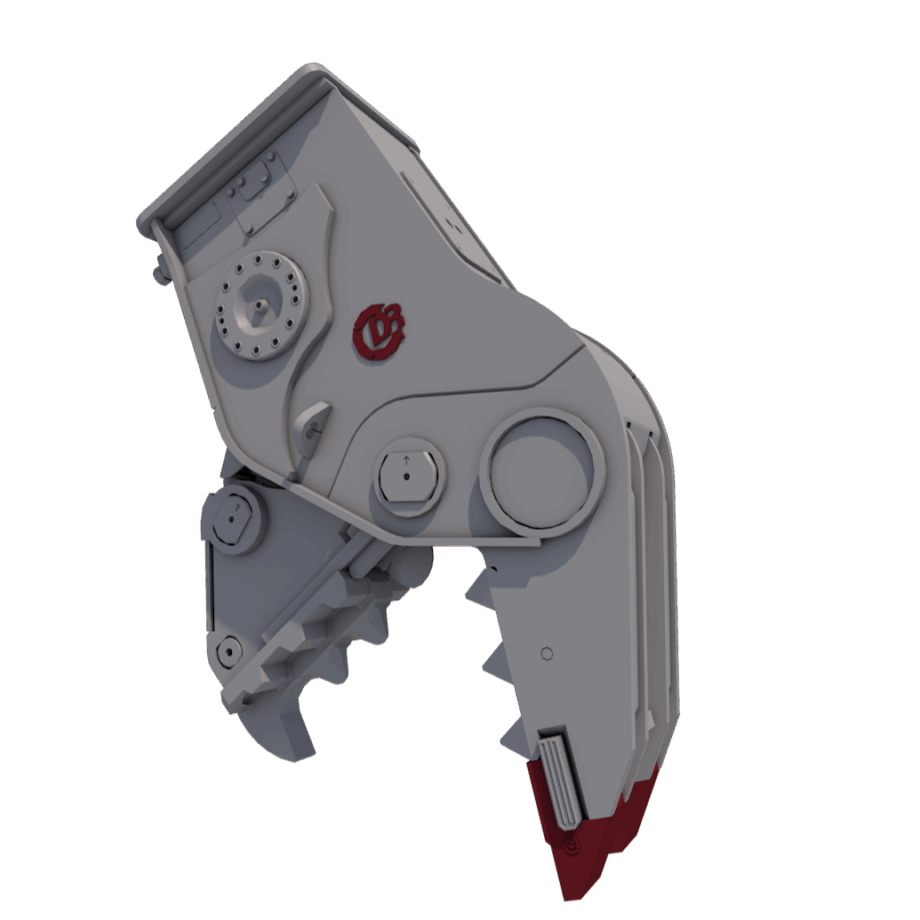

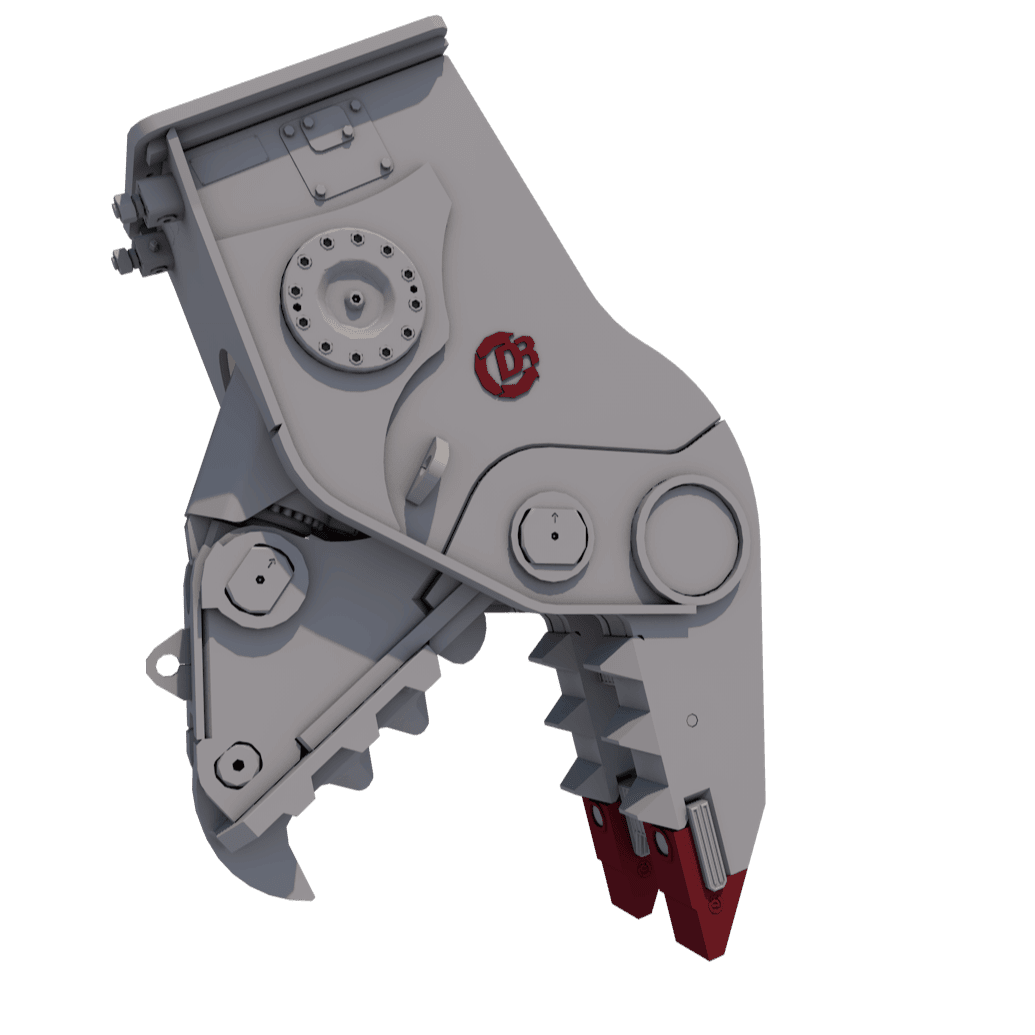

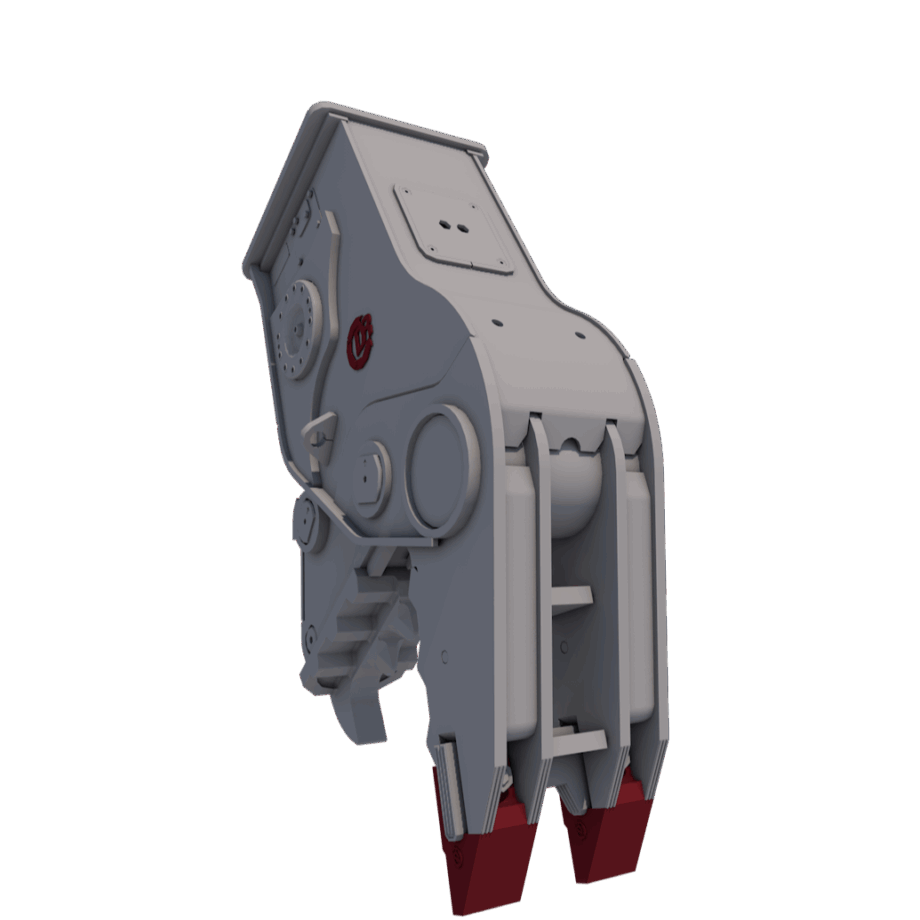

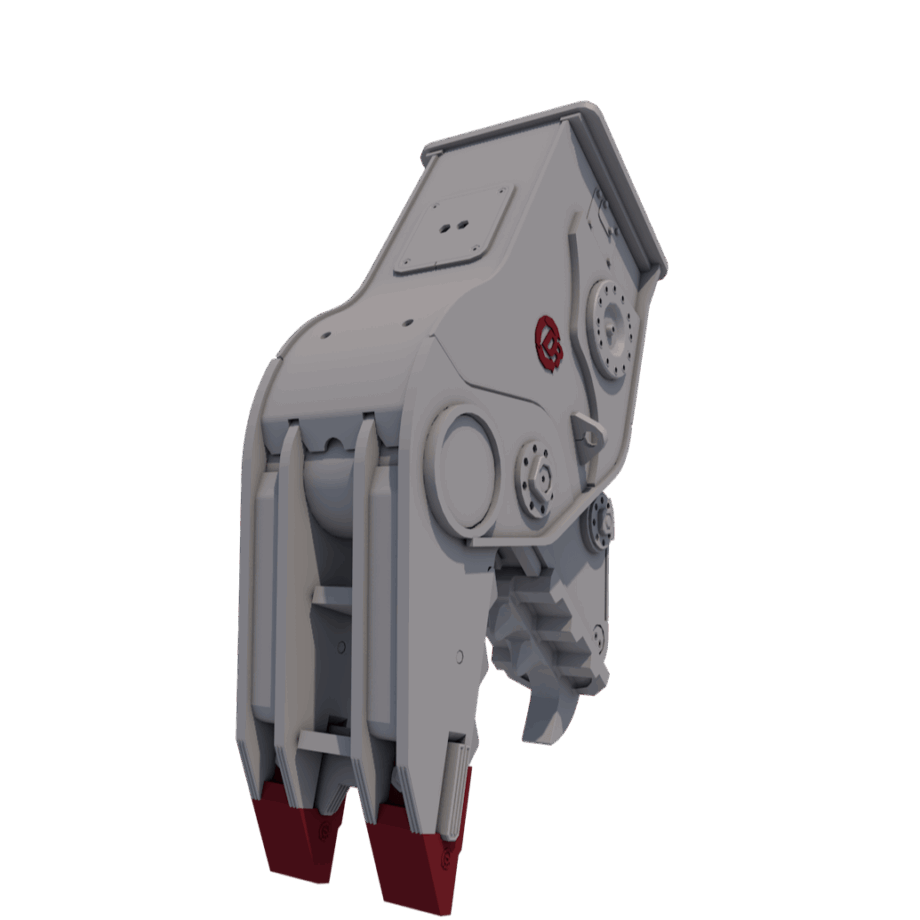

    Pulverizers – DSP

    0.00

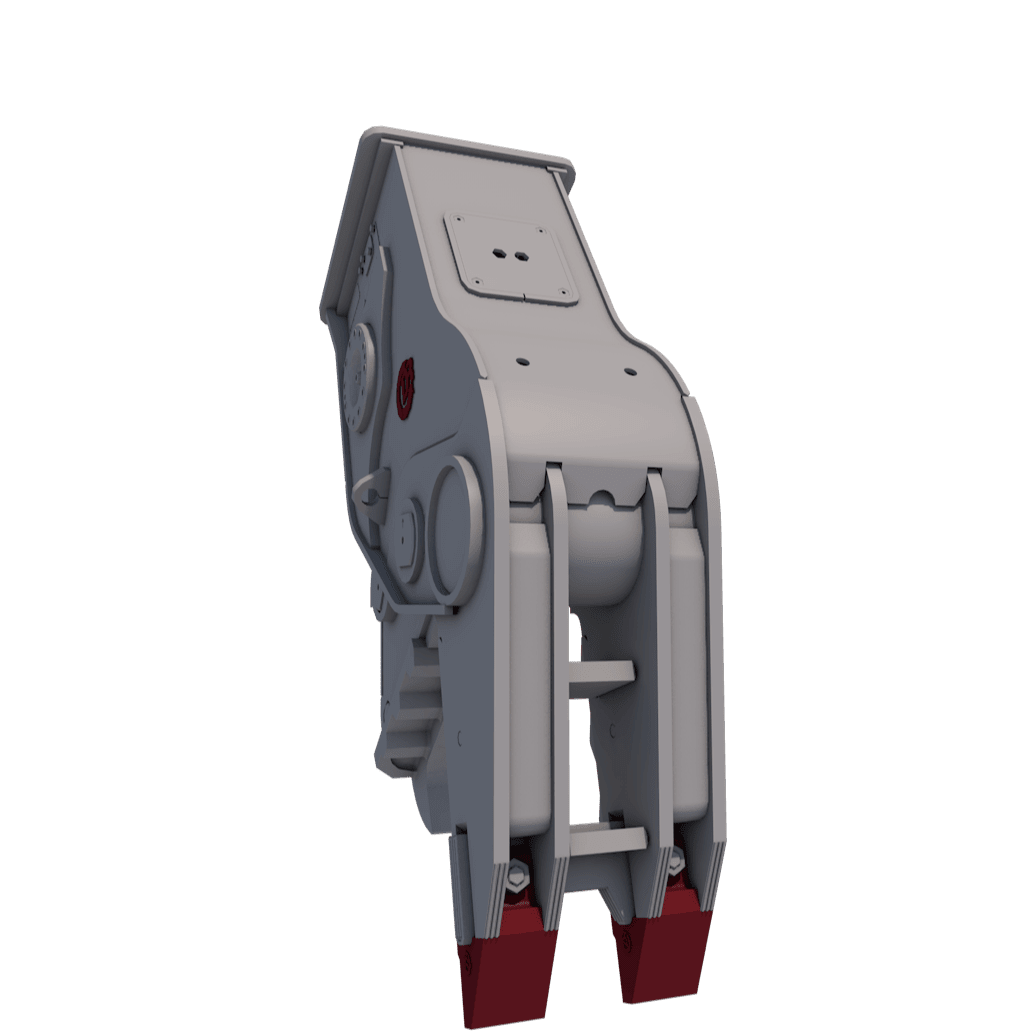

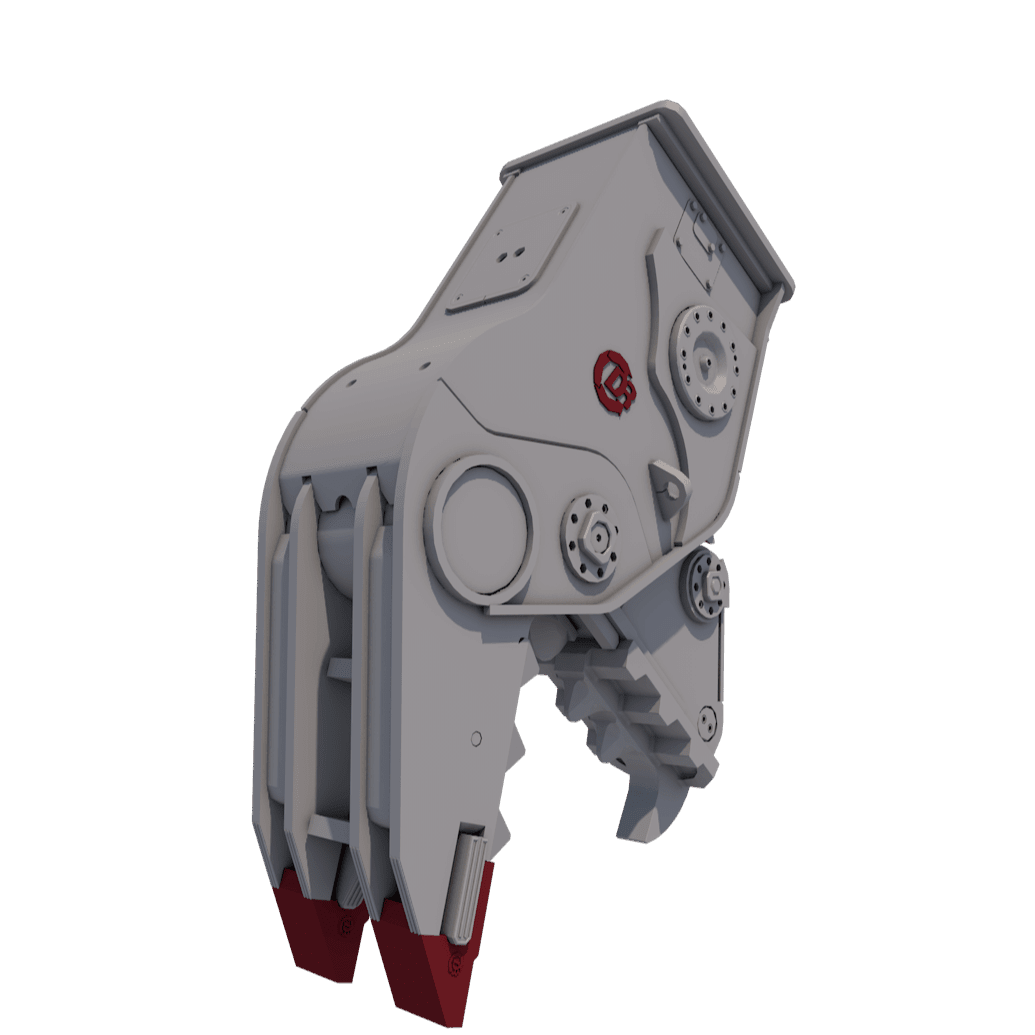

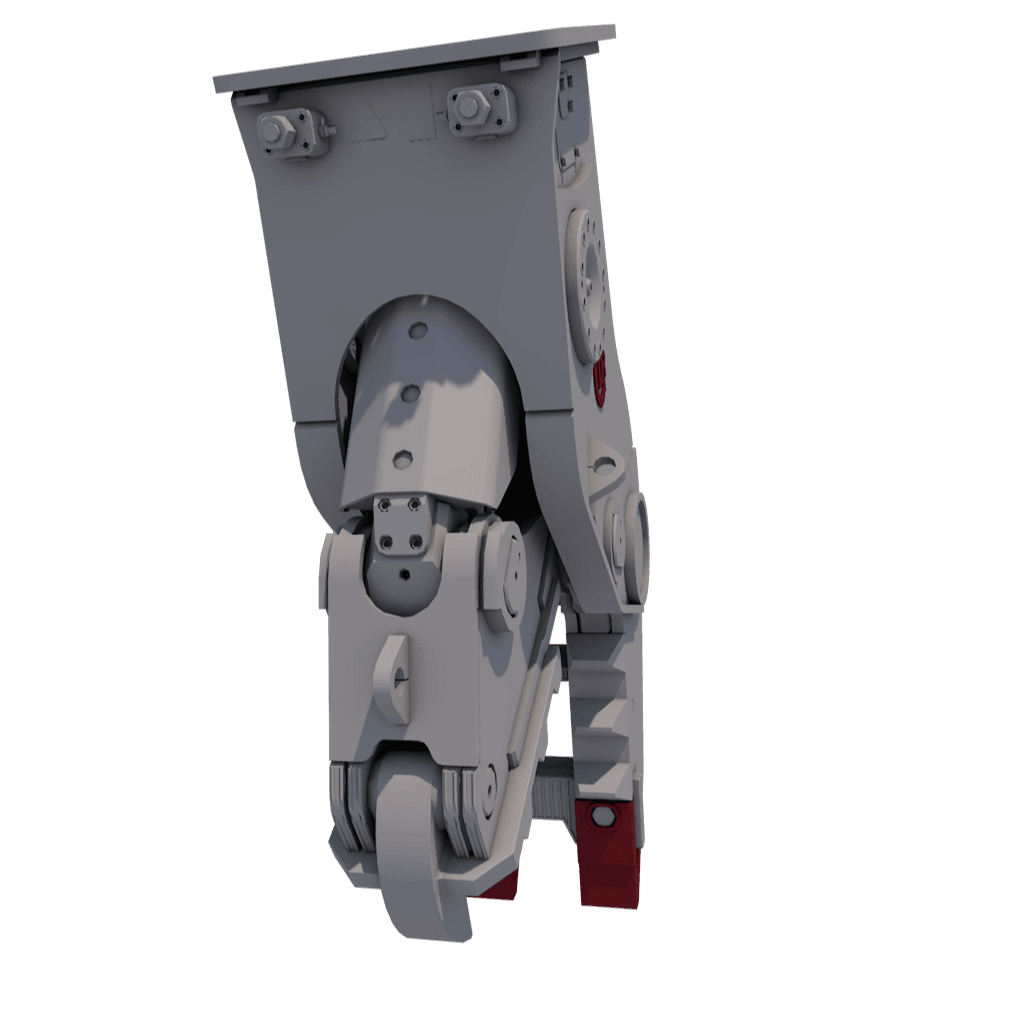

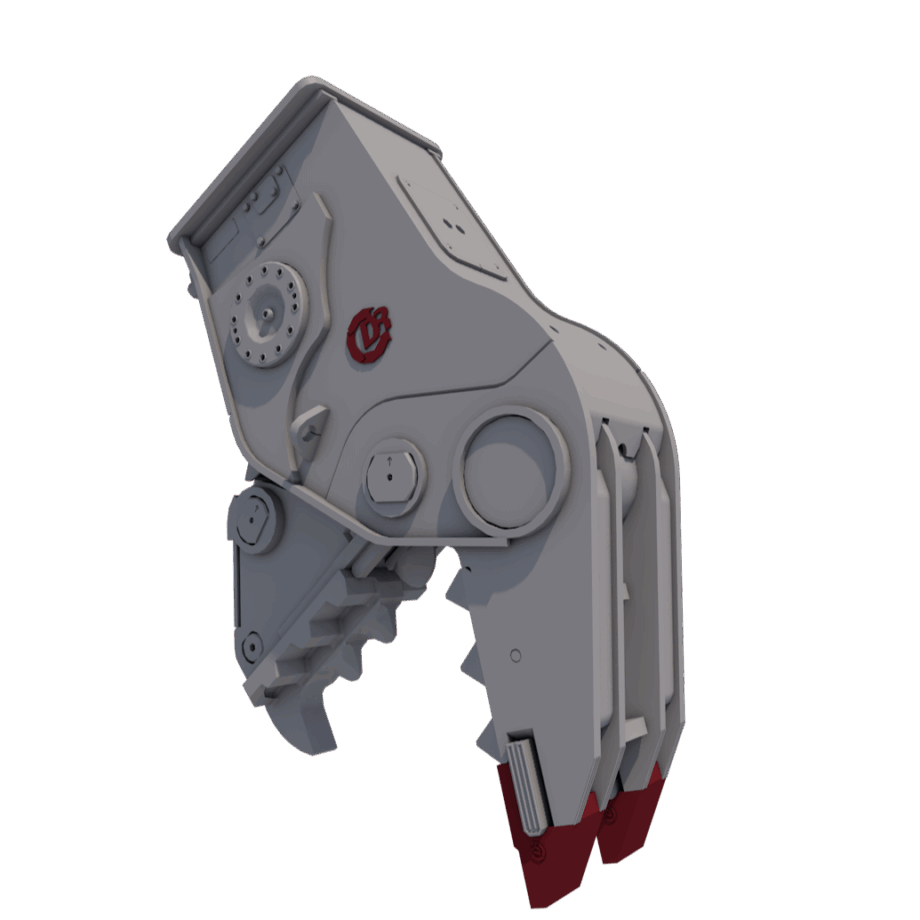

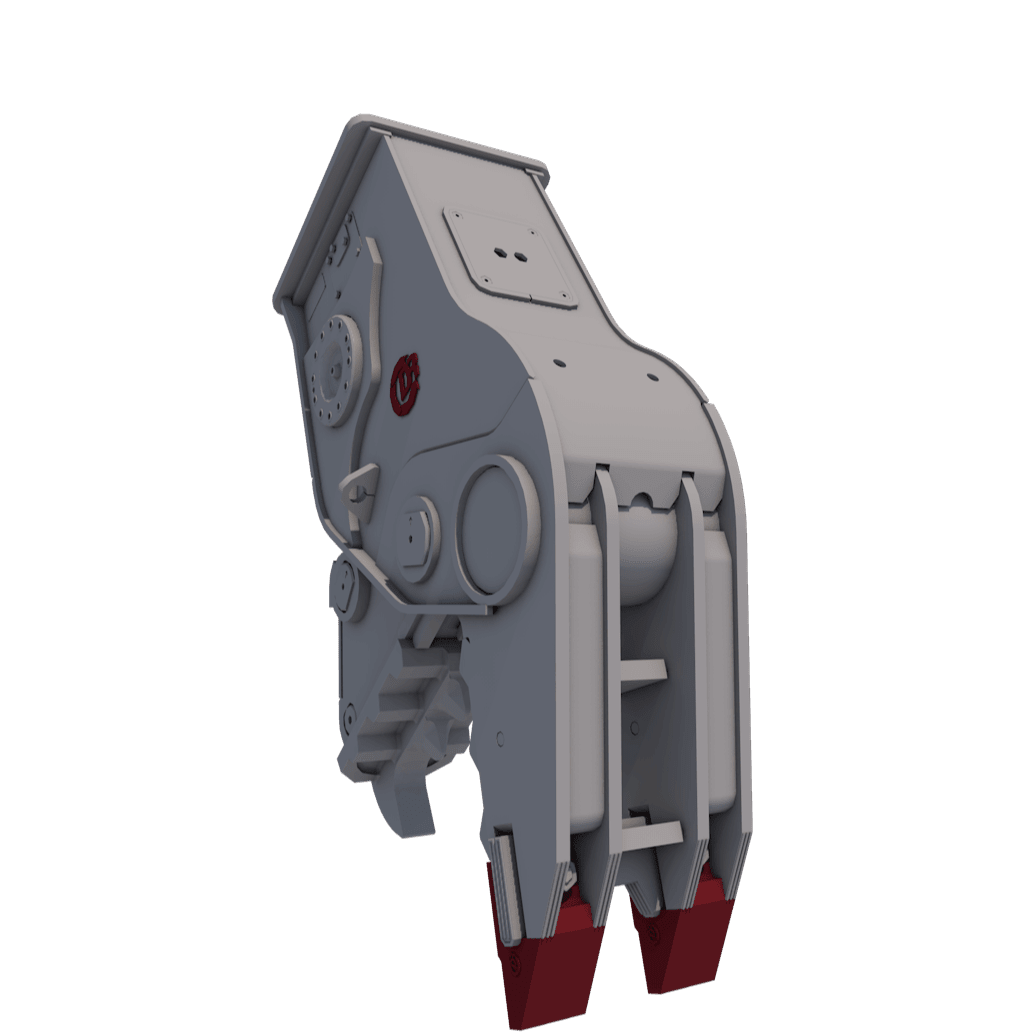

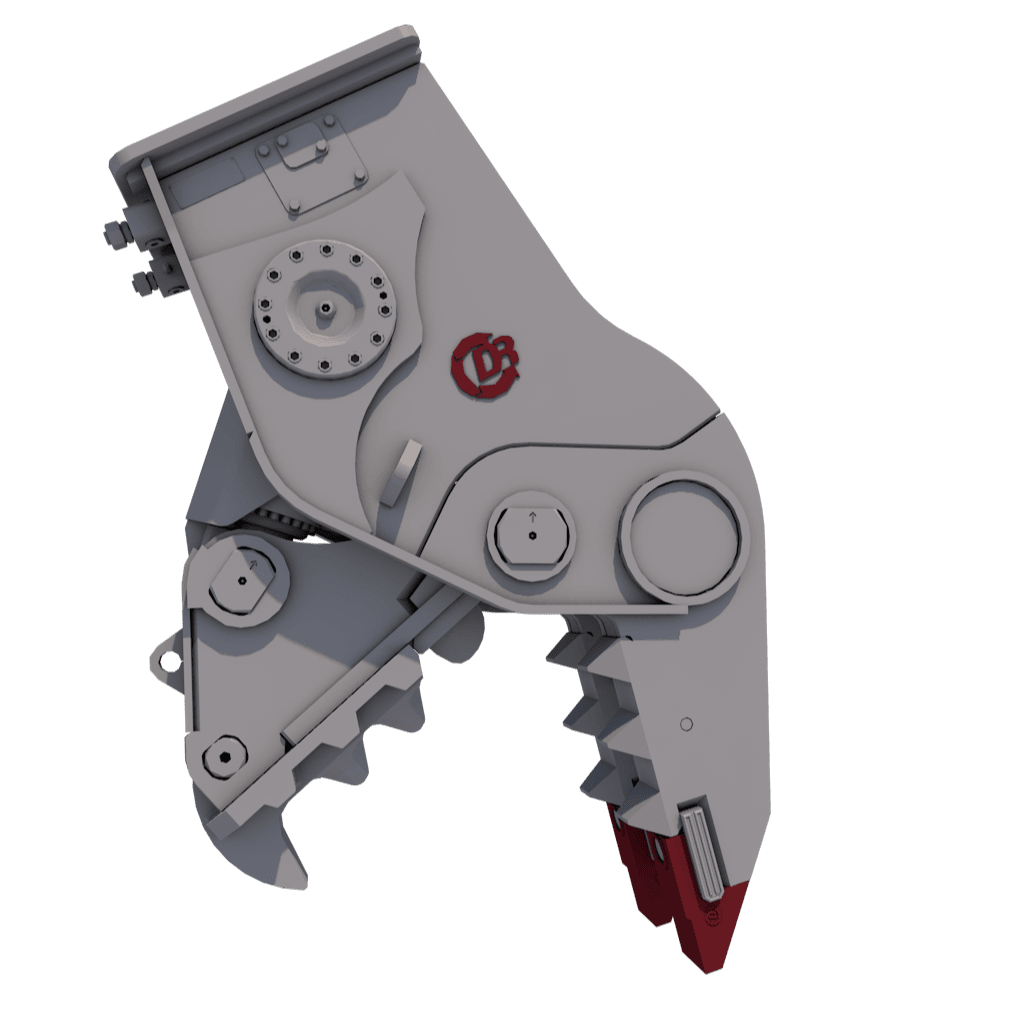

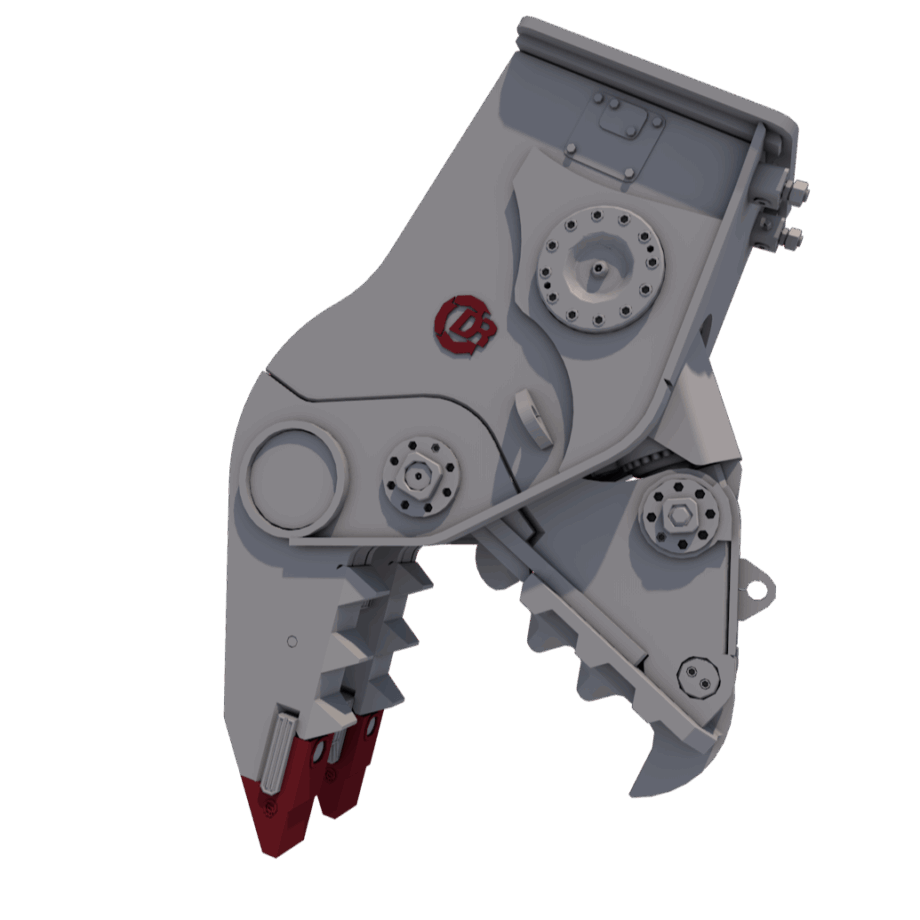

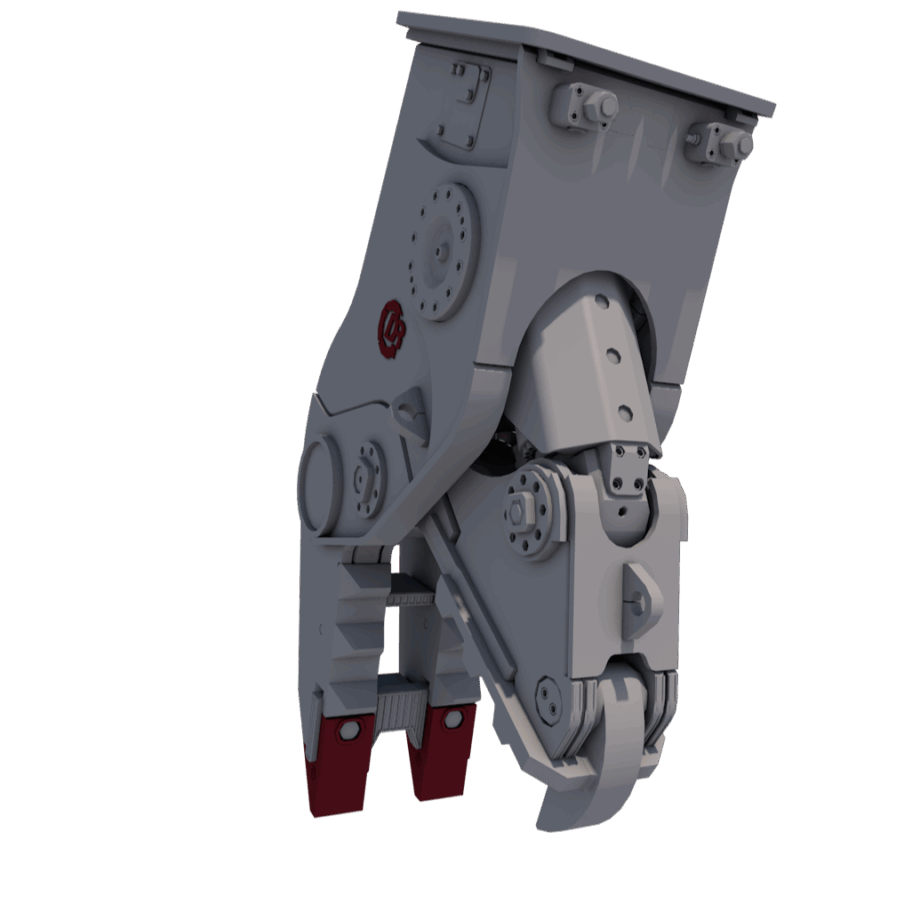

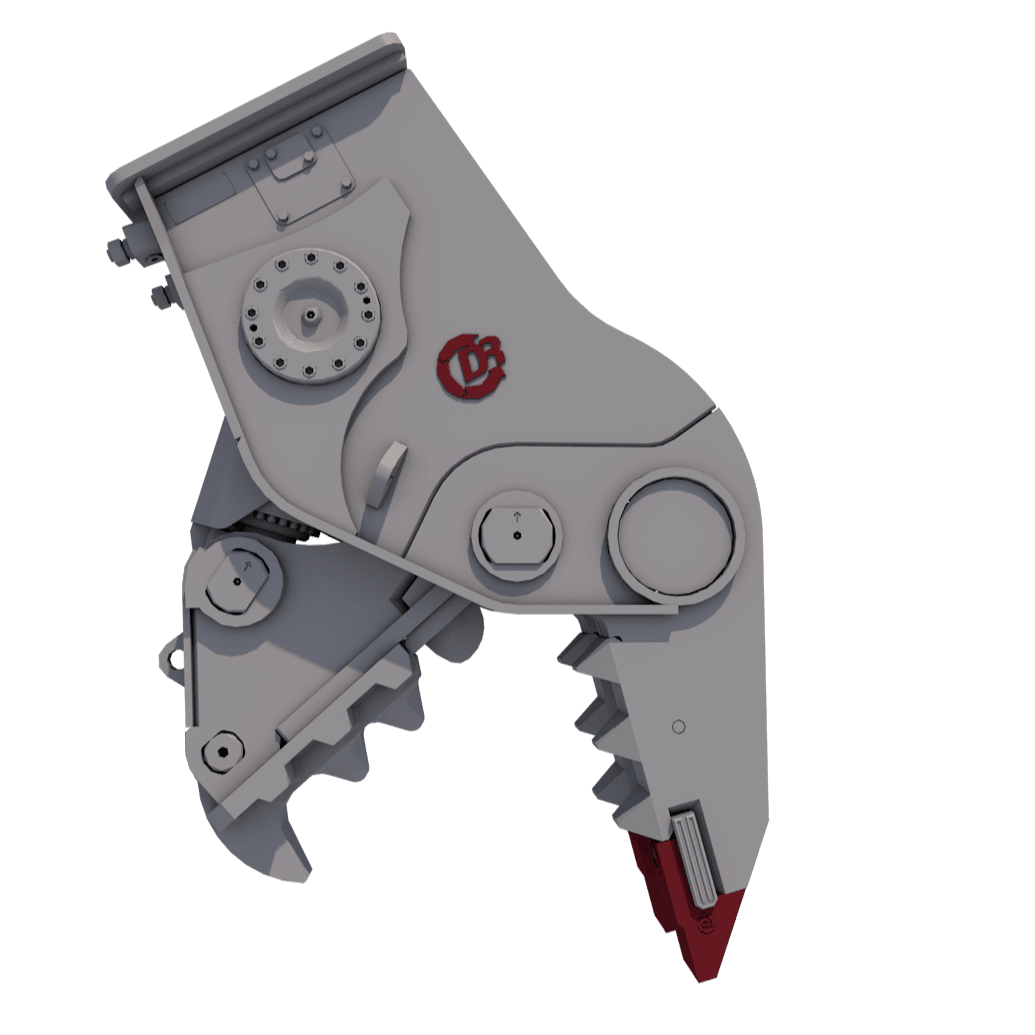

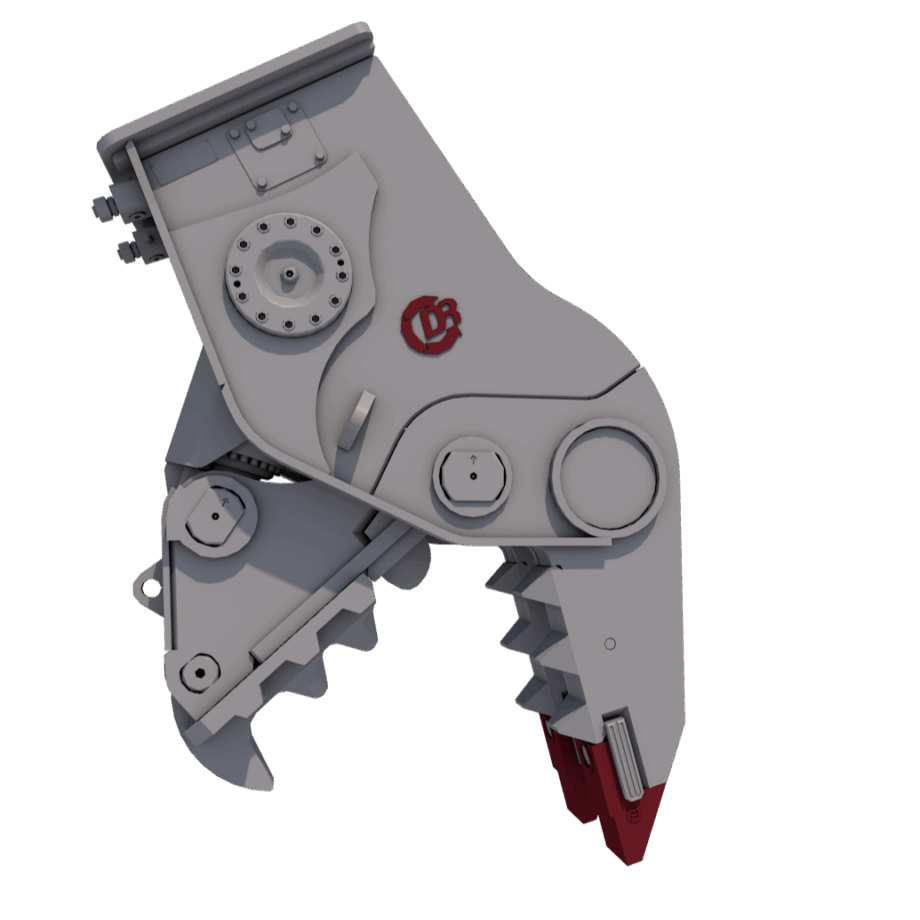

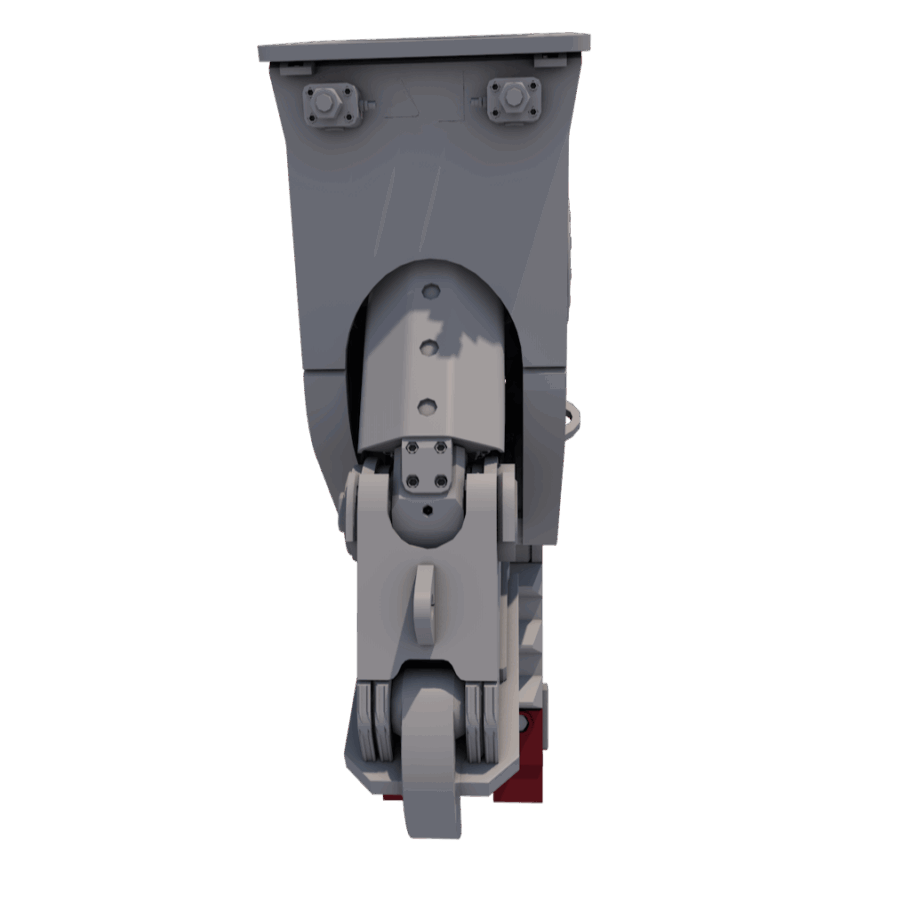

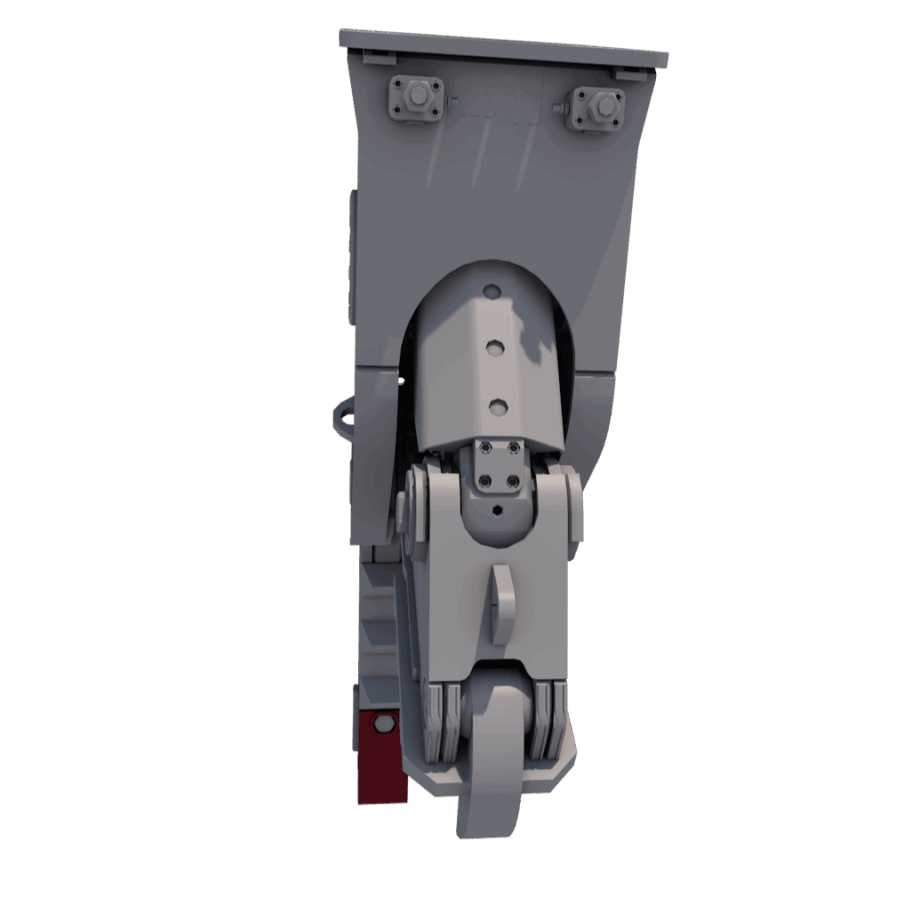

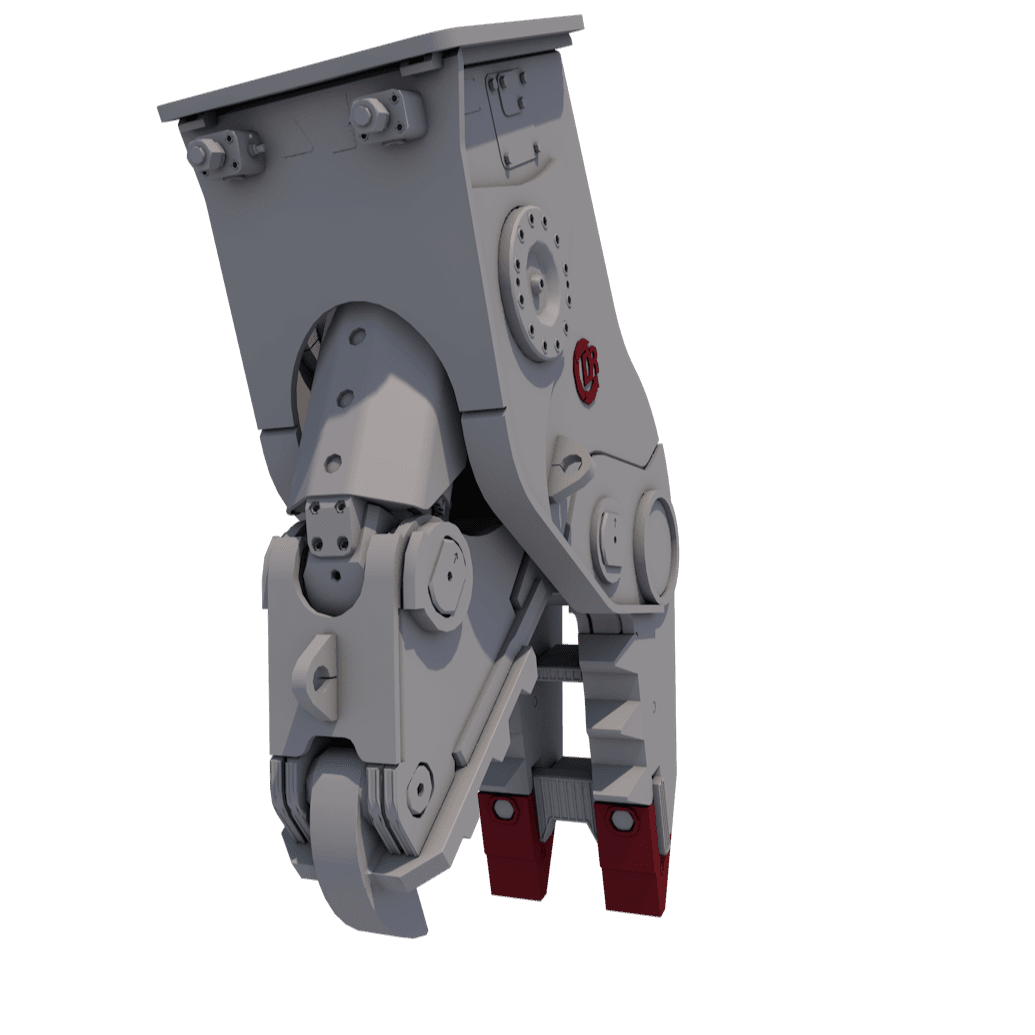

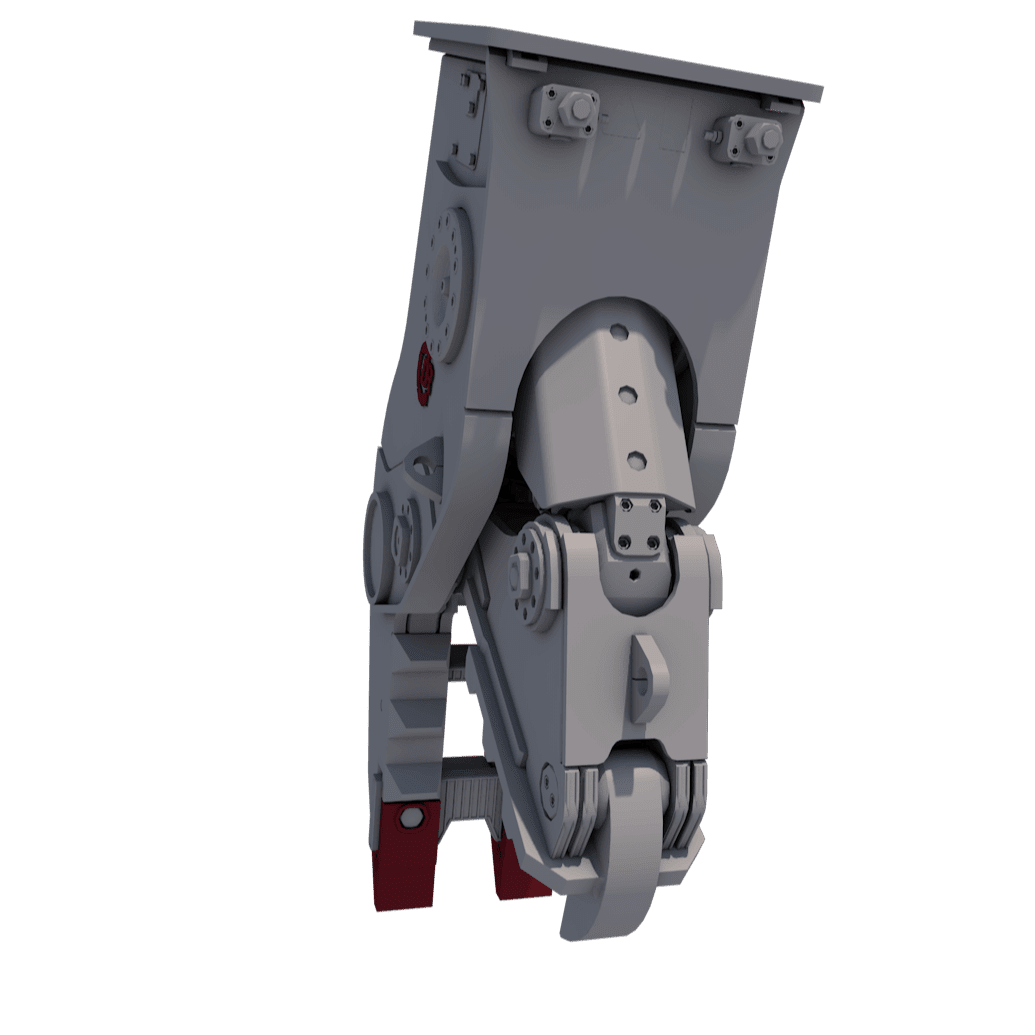

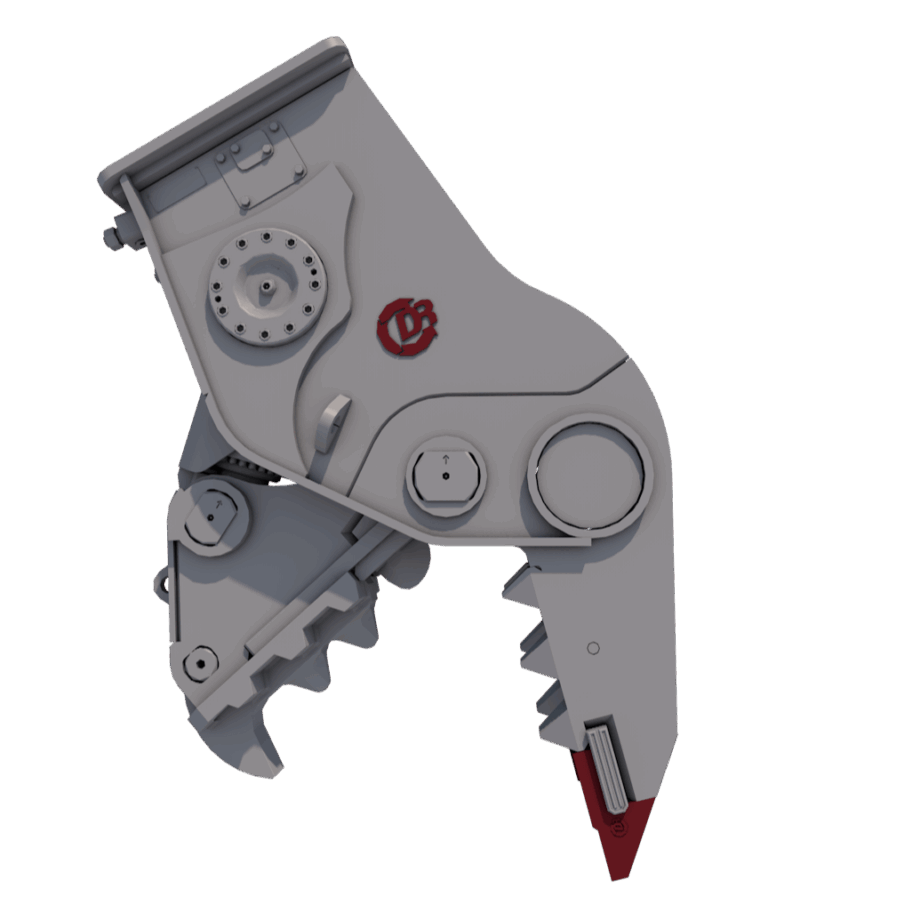

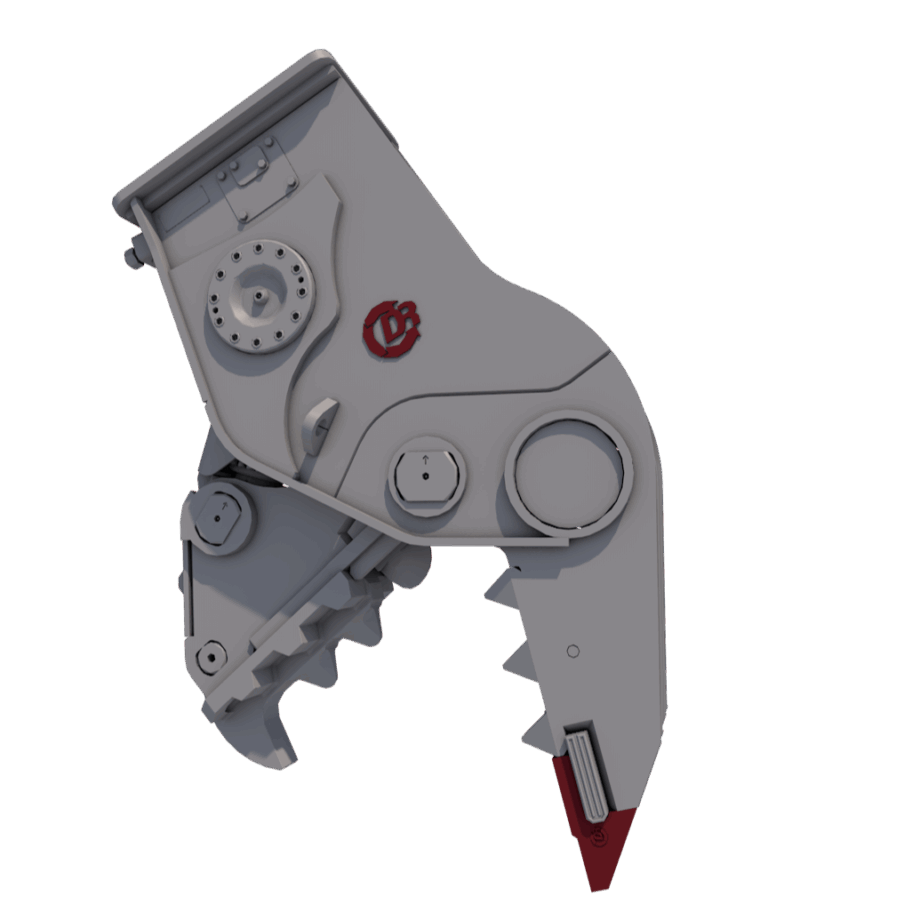

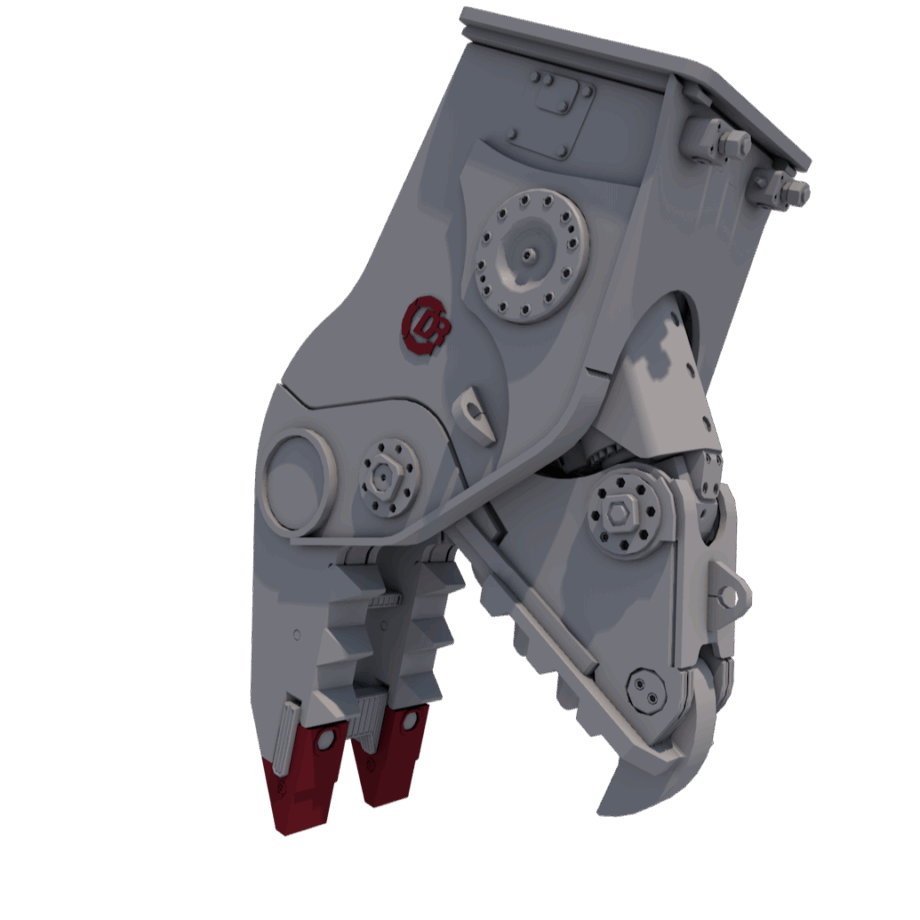

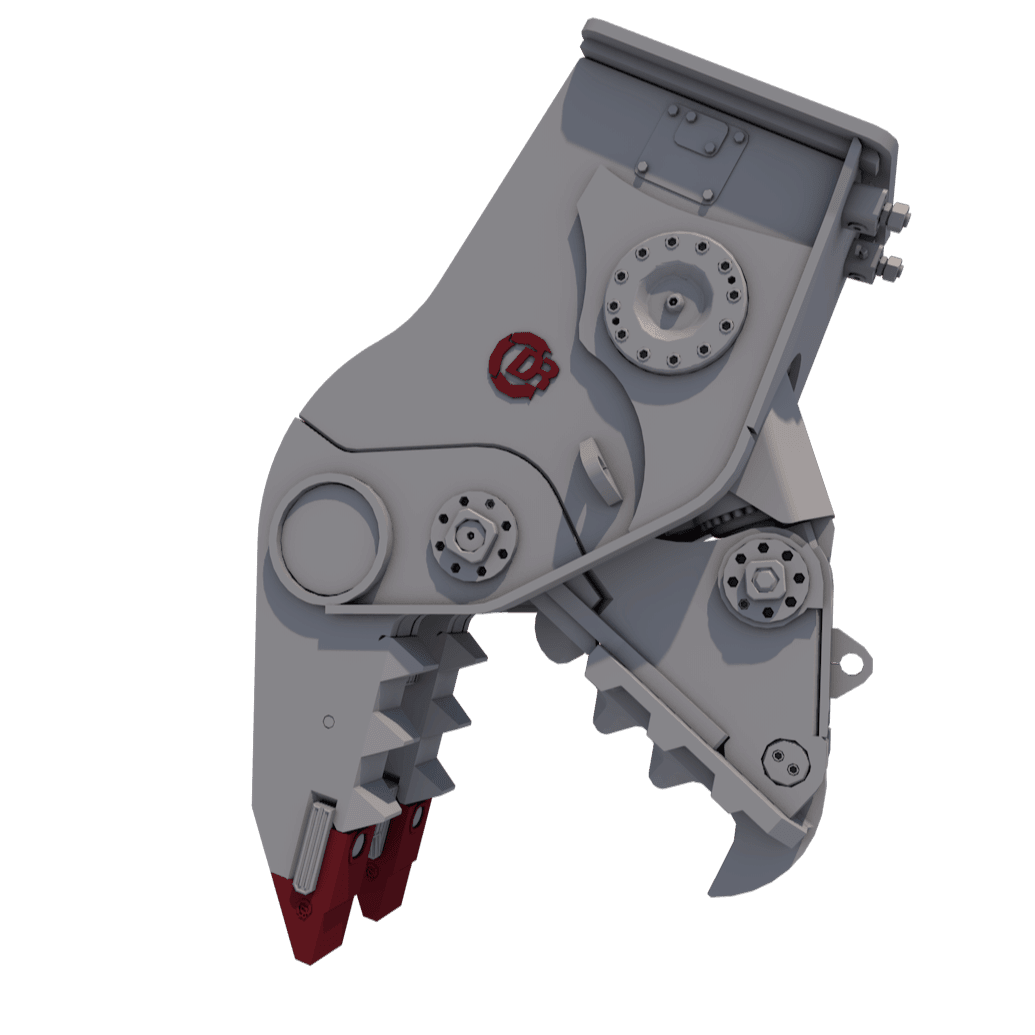

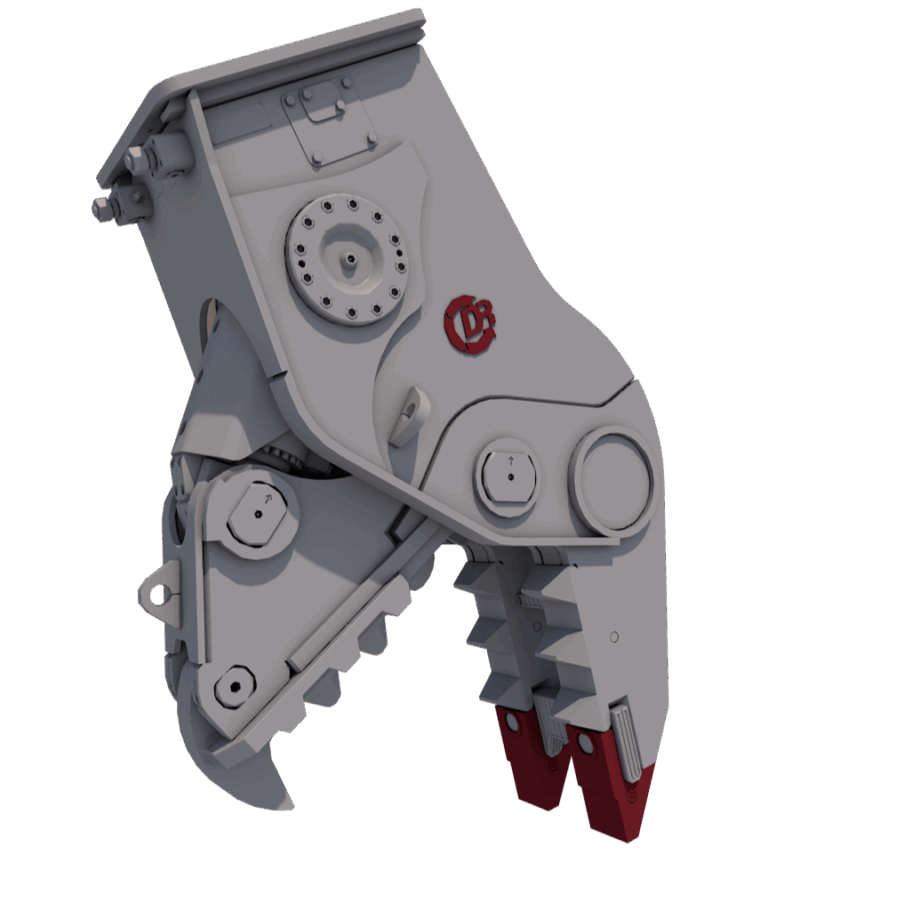

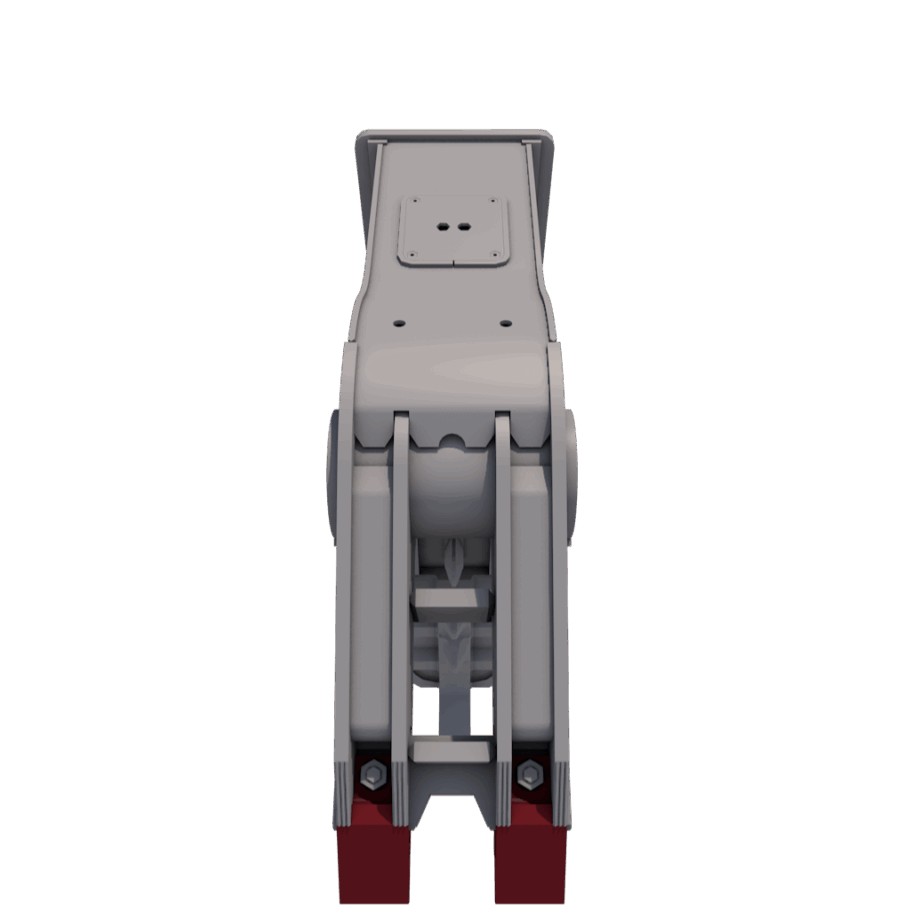

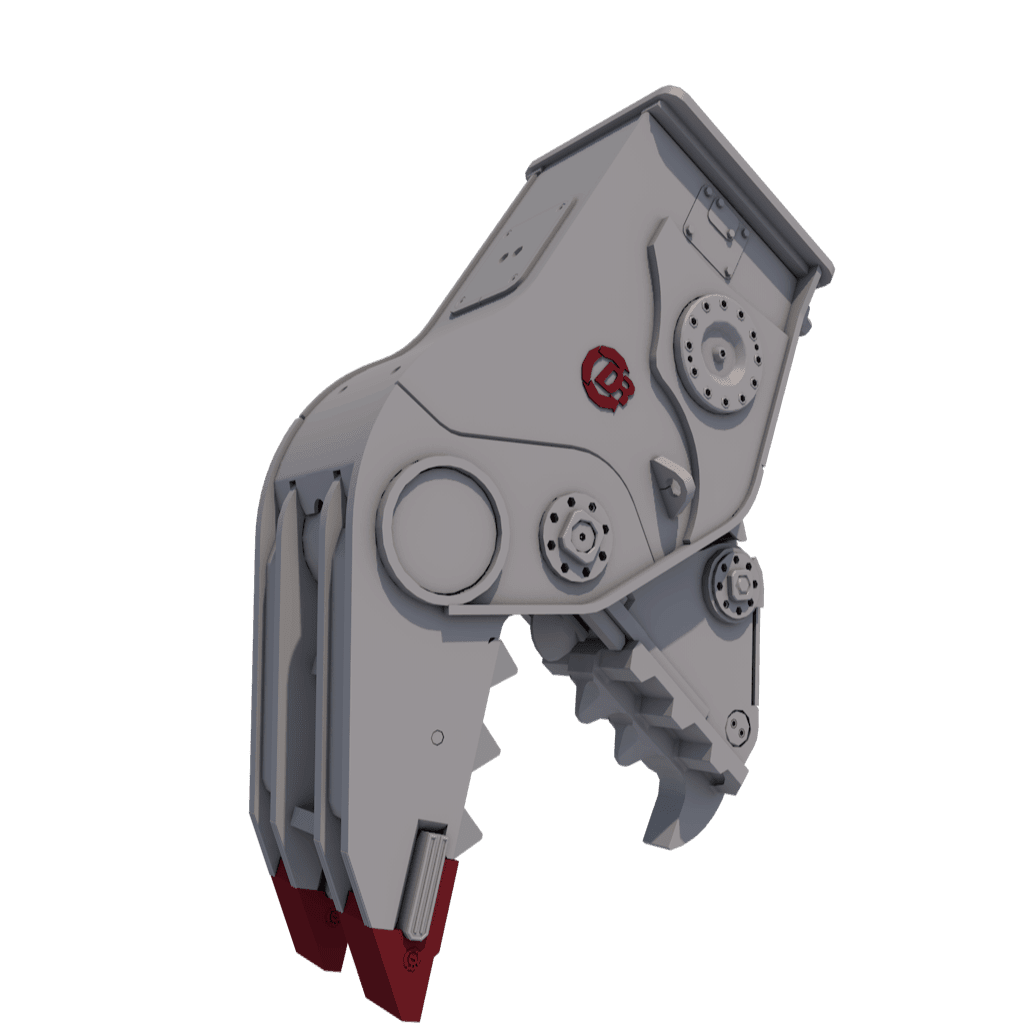

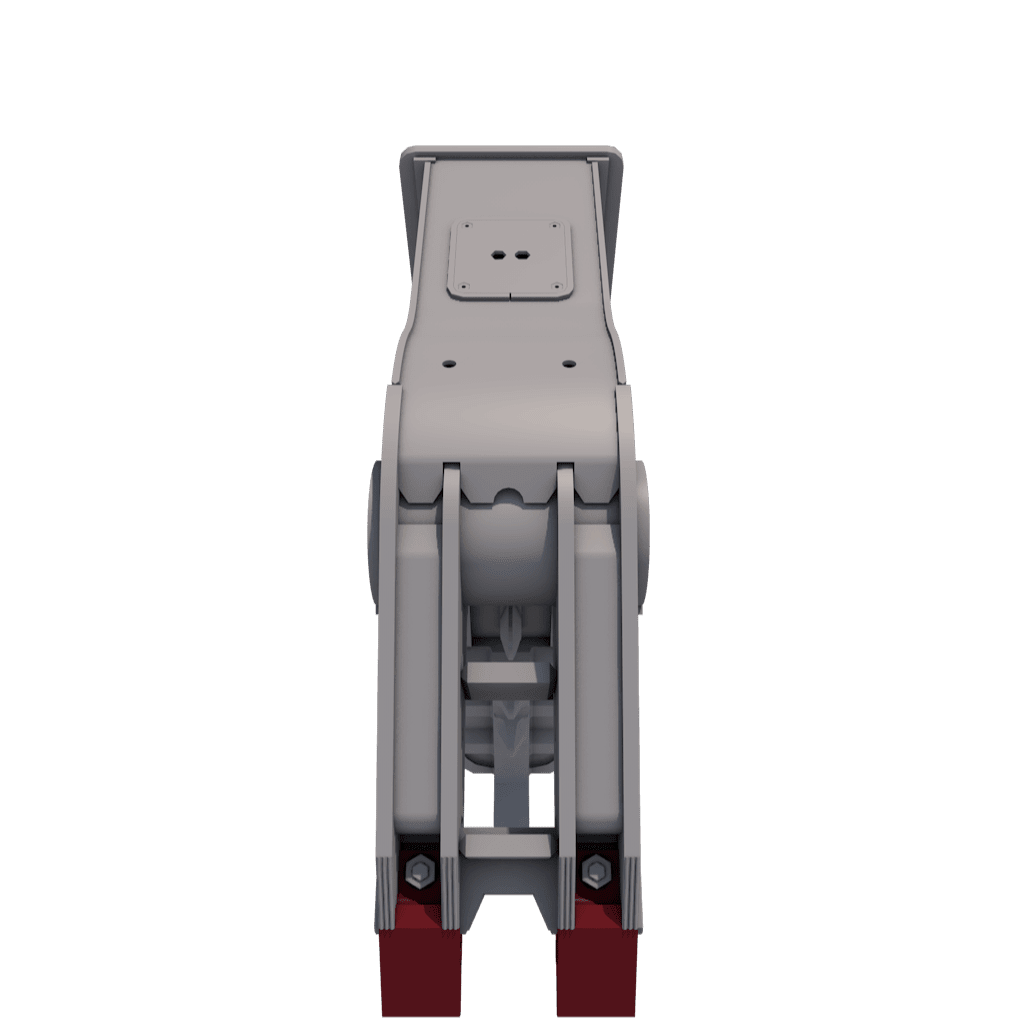

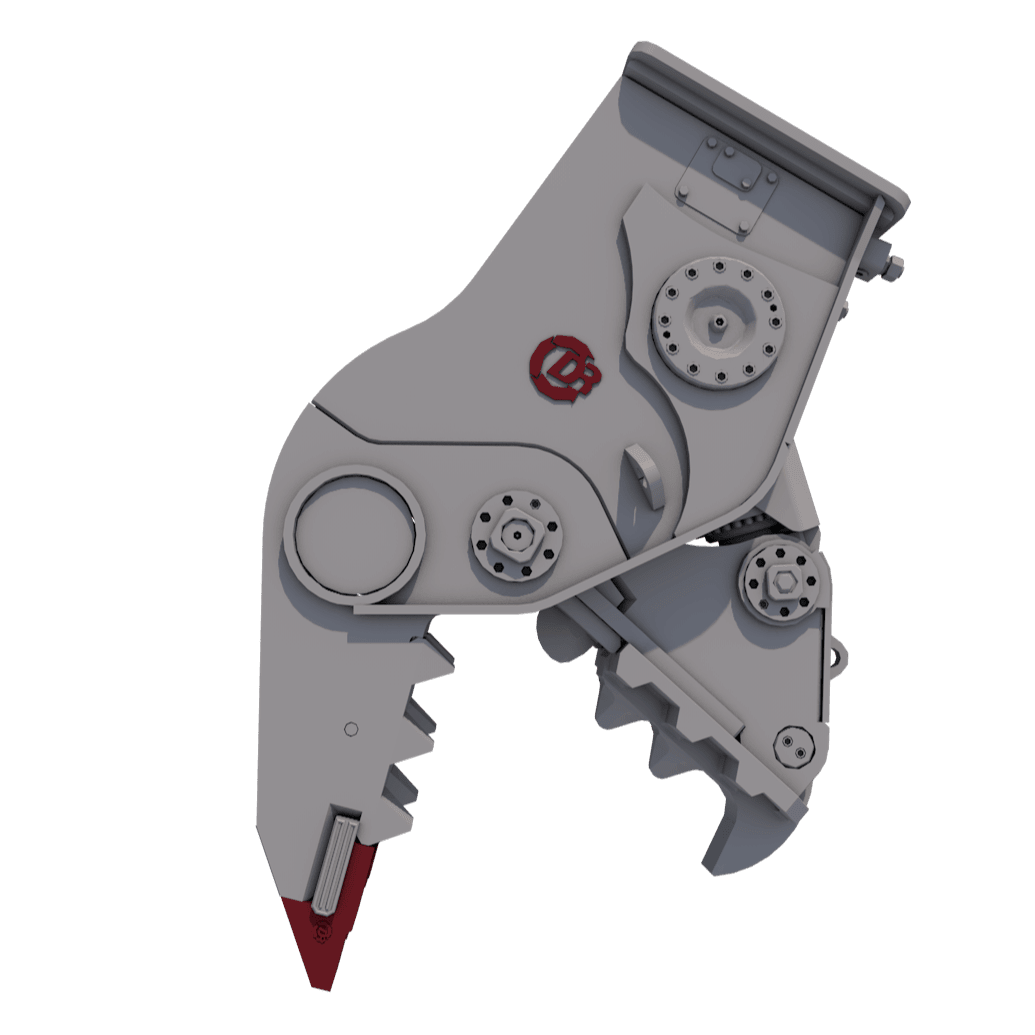

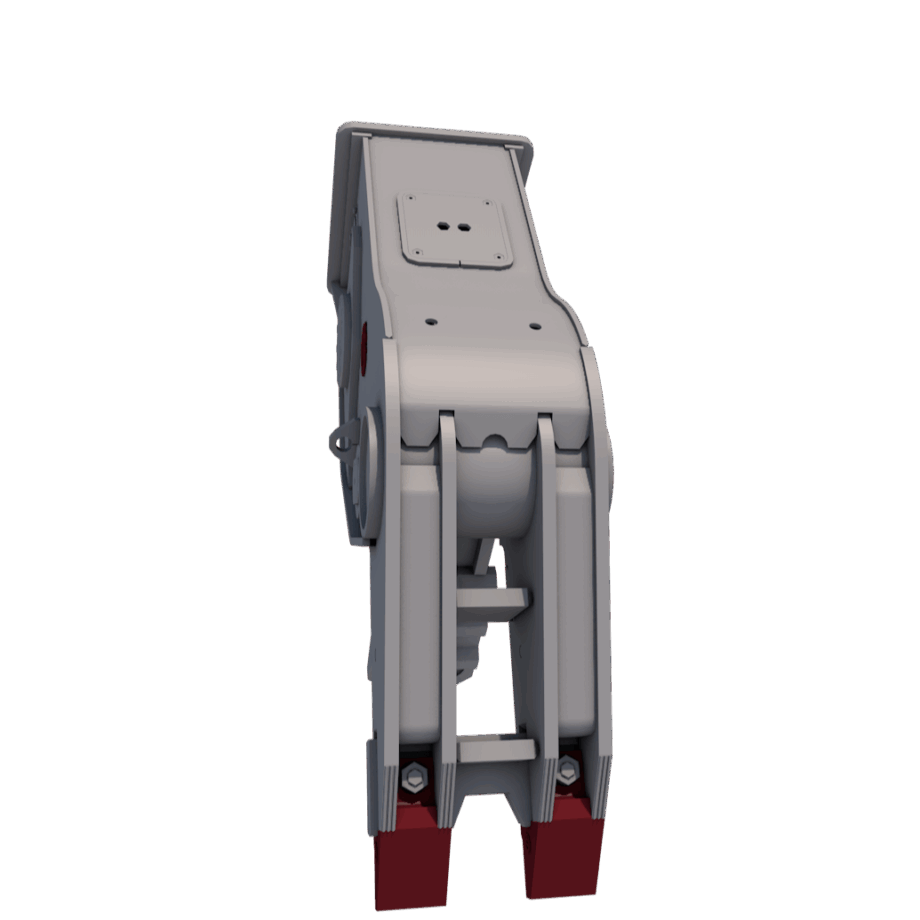

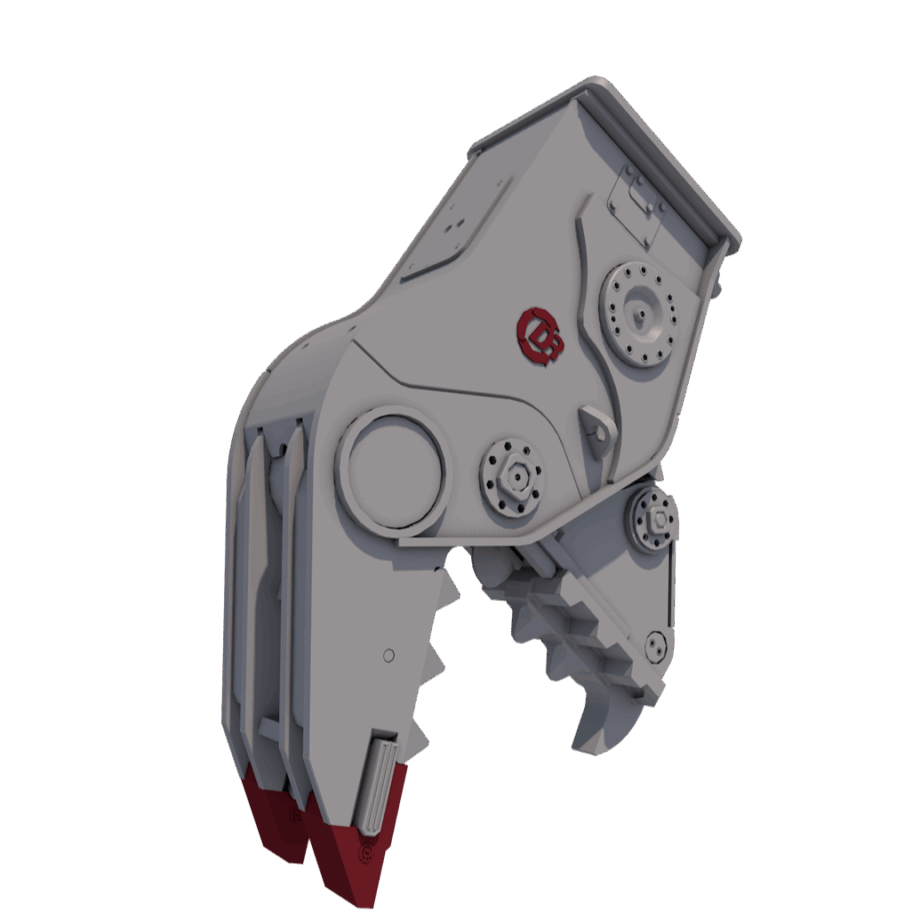

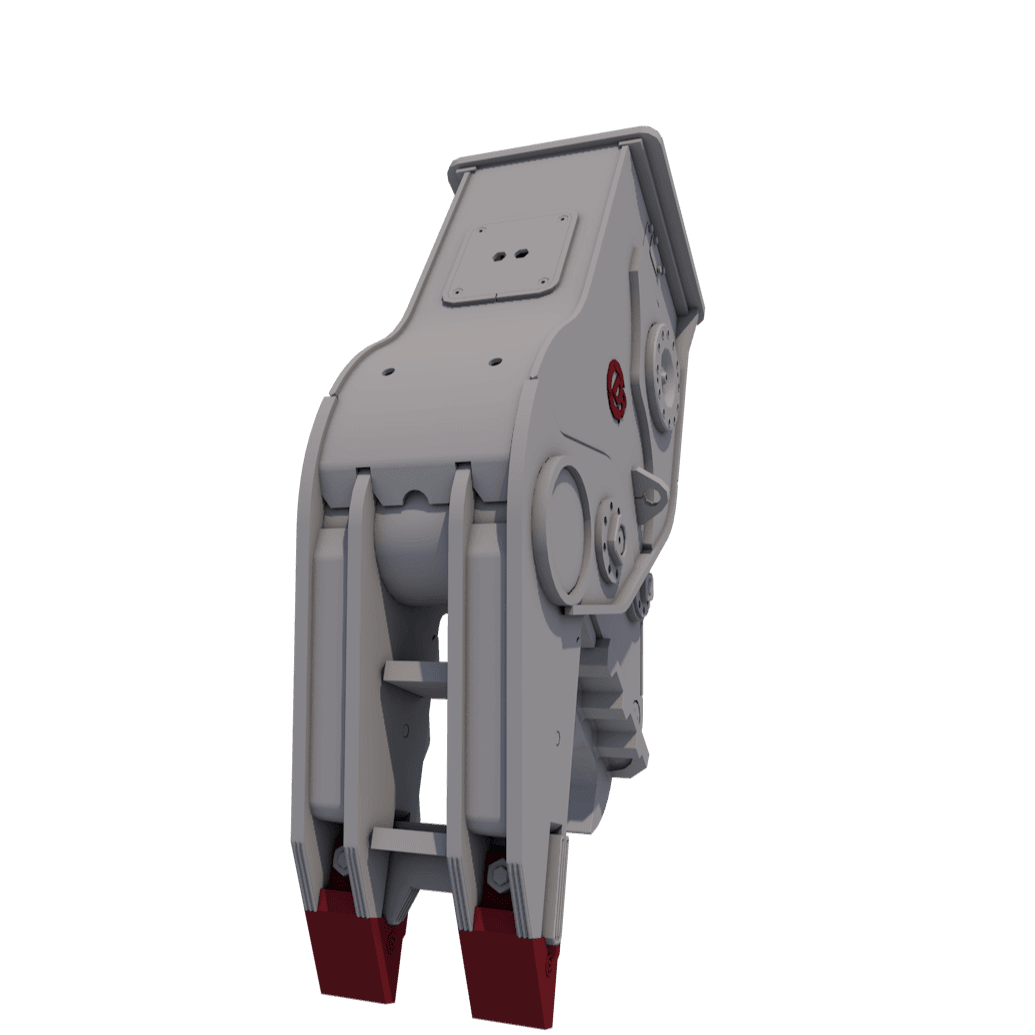

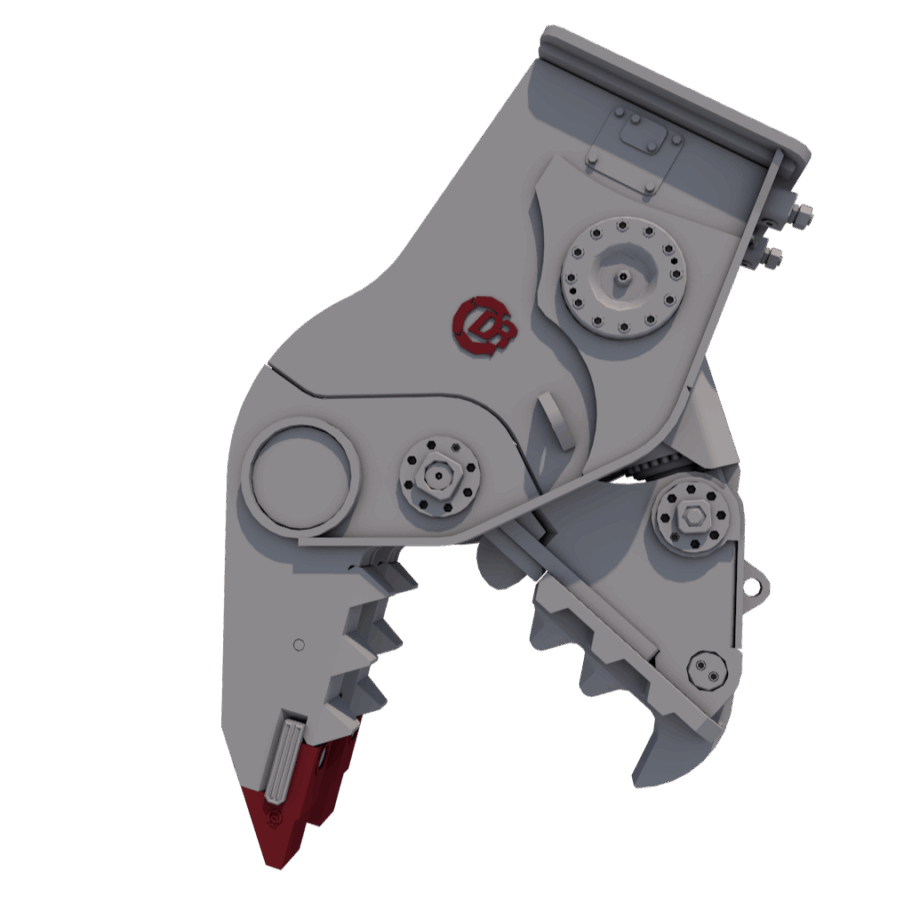

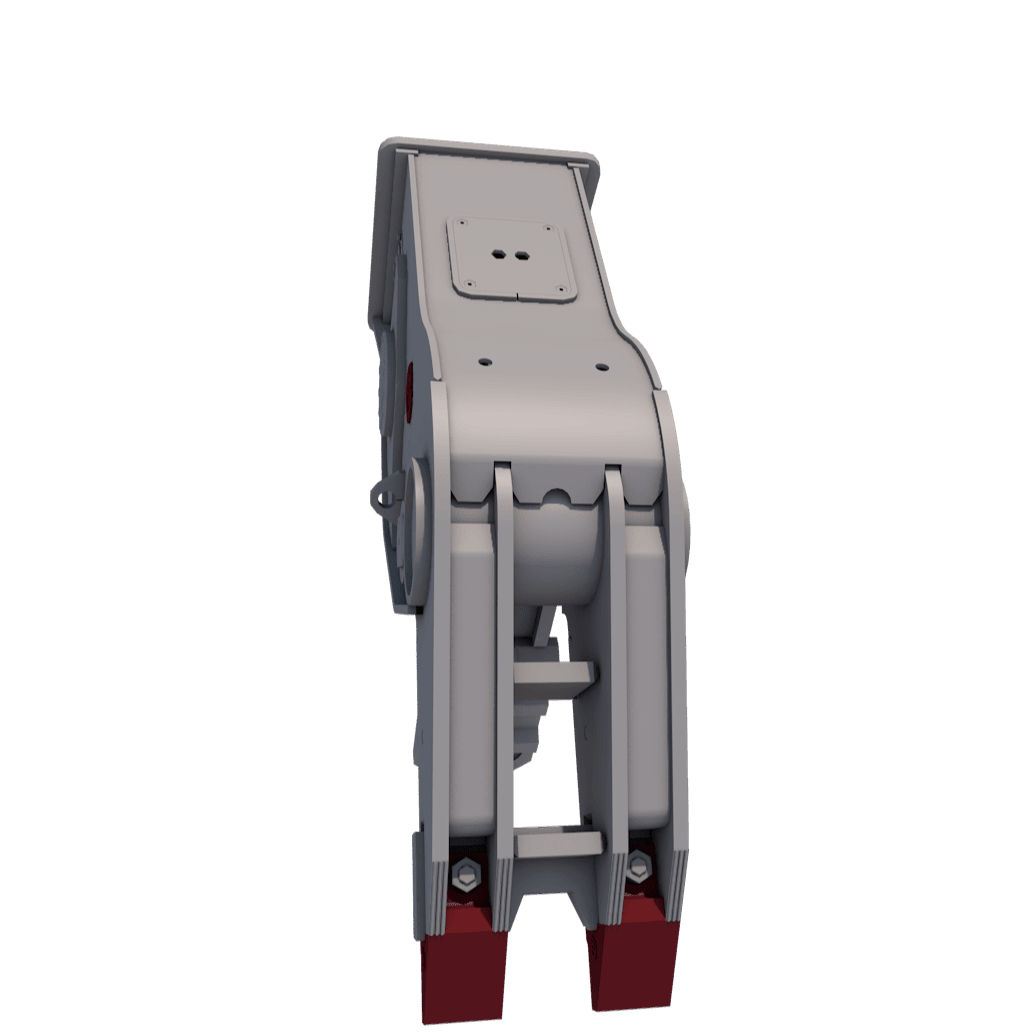

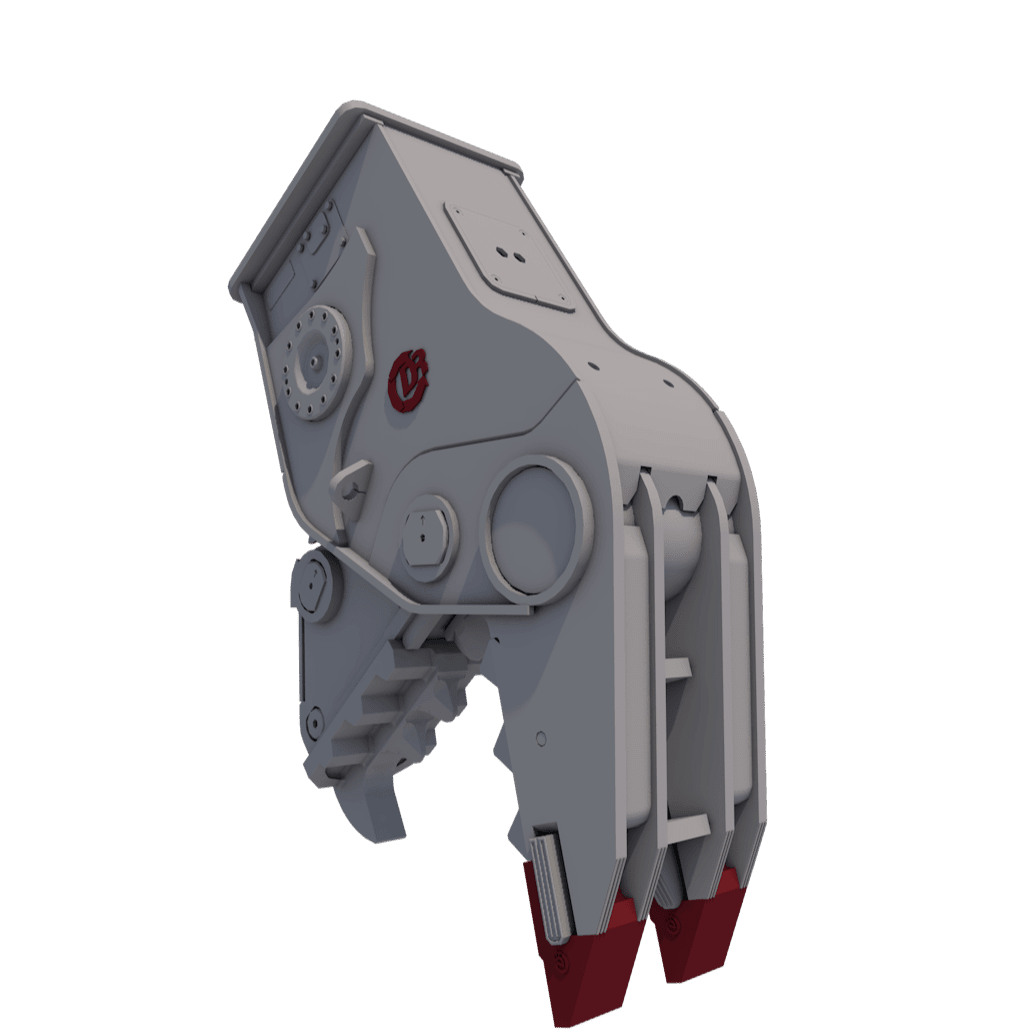

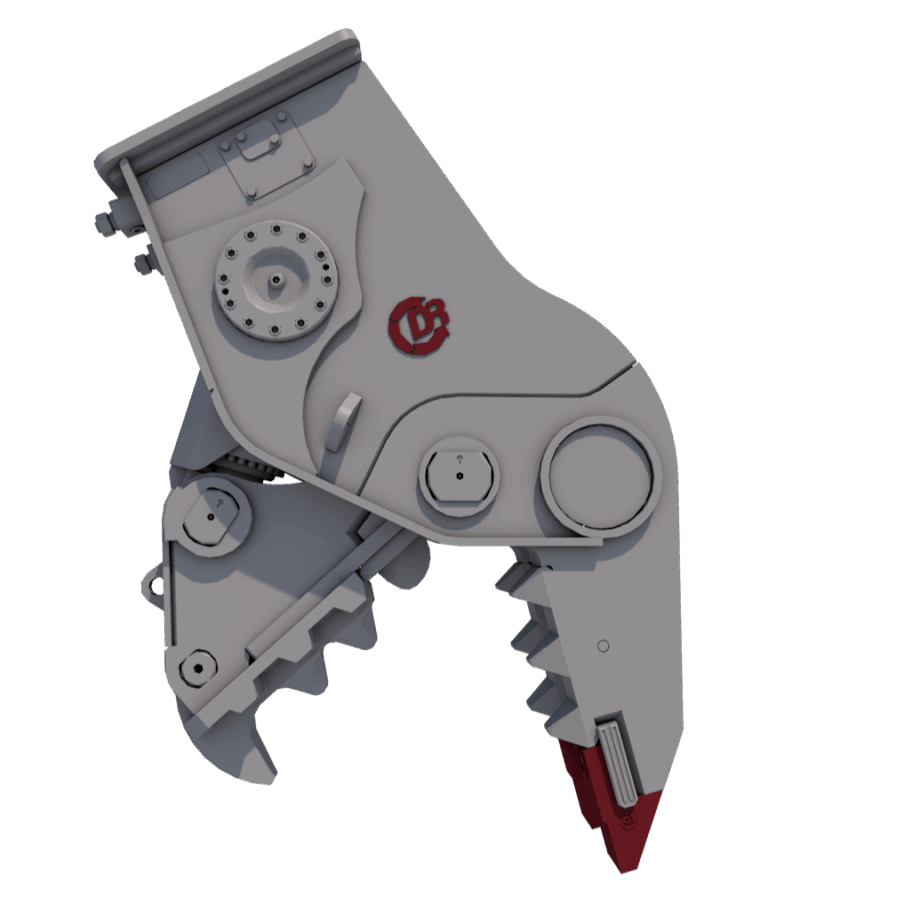

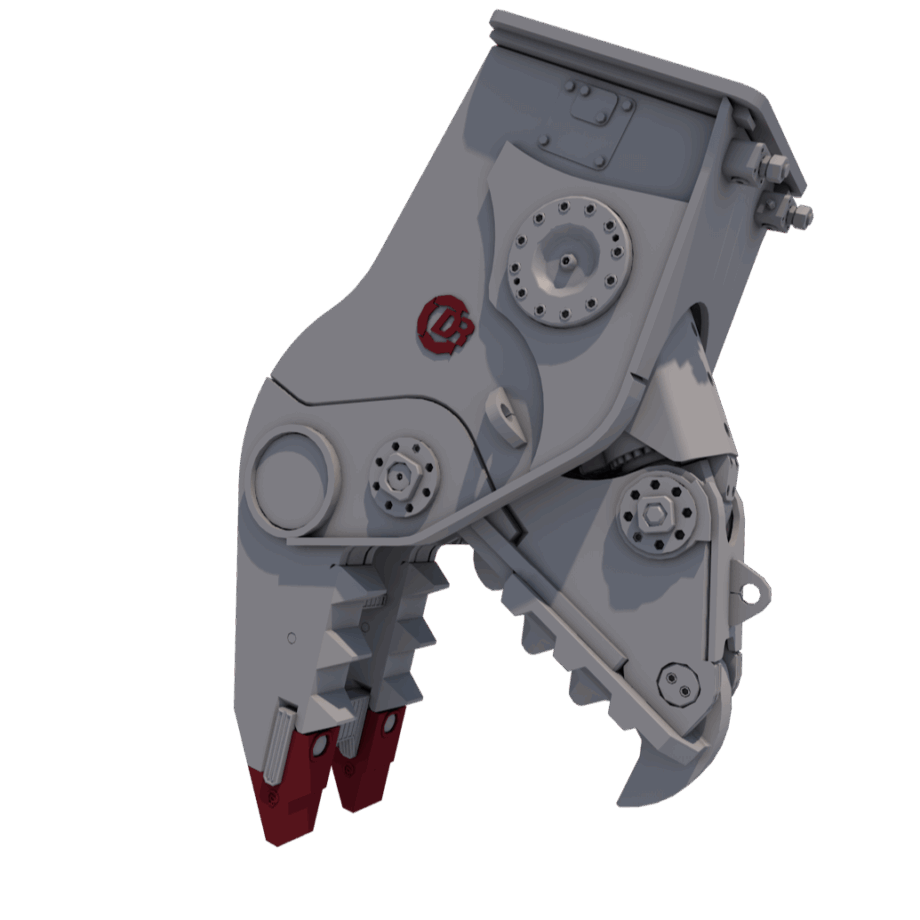

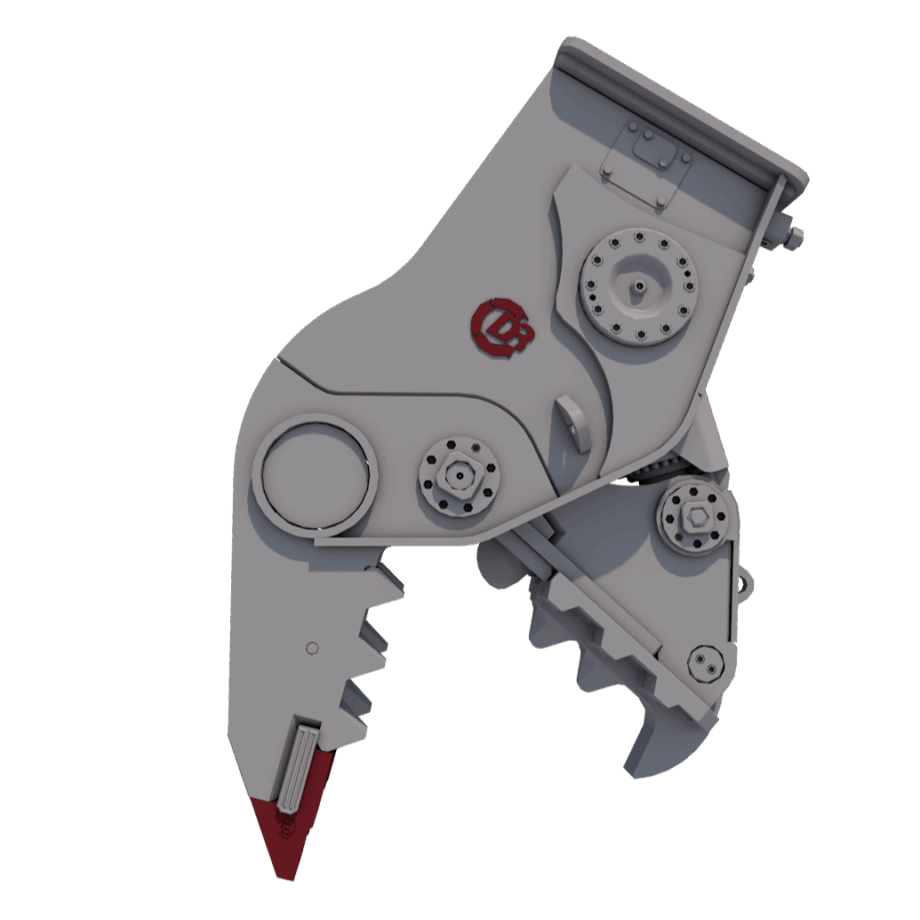

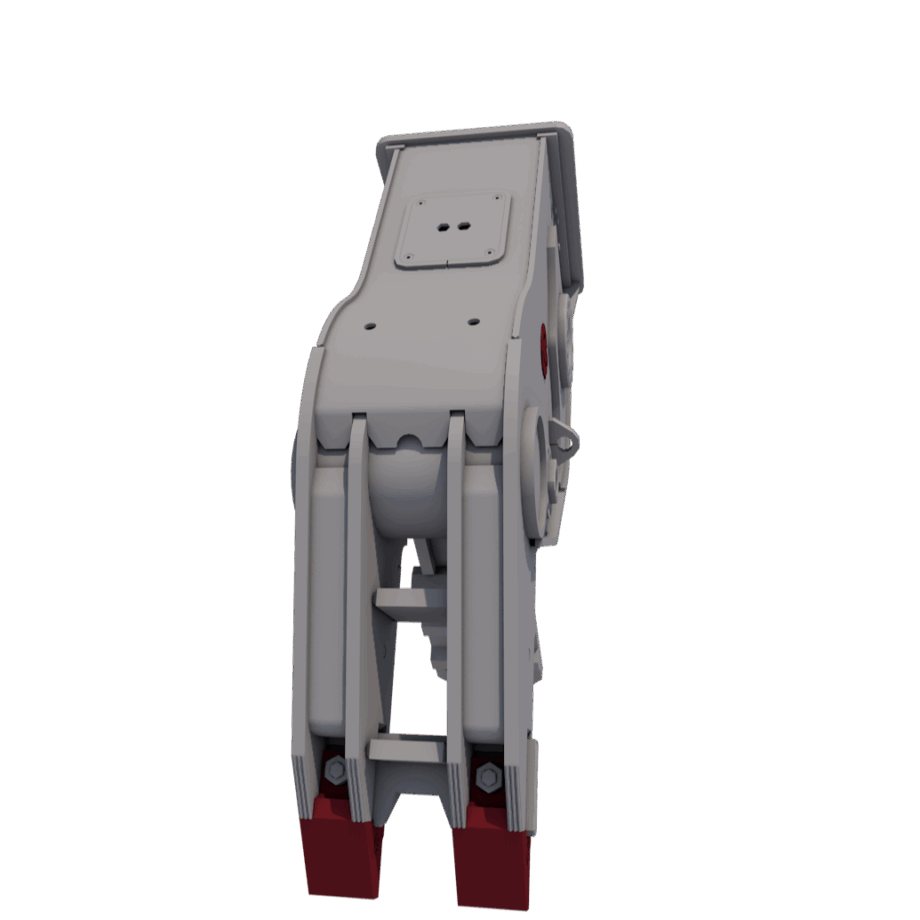

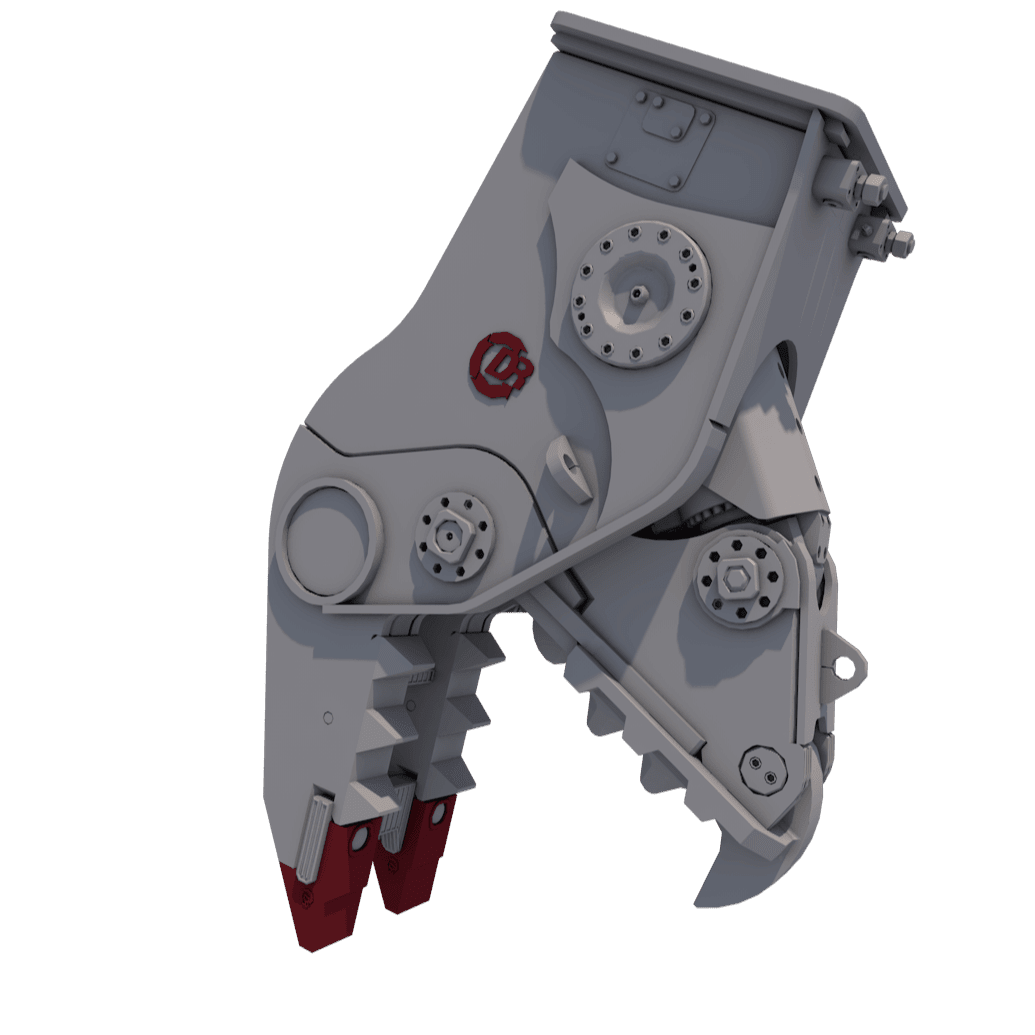

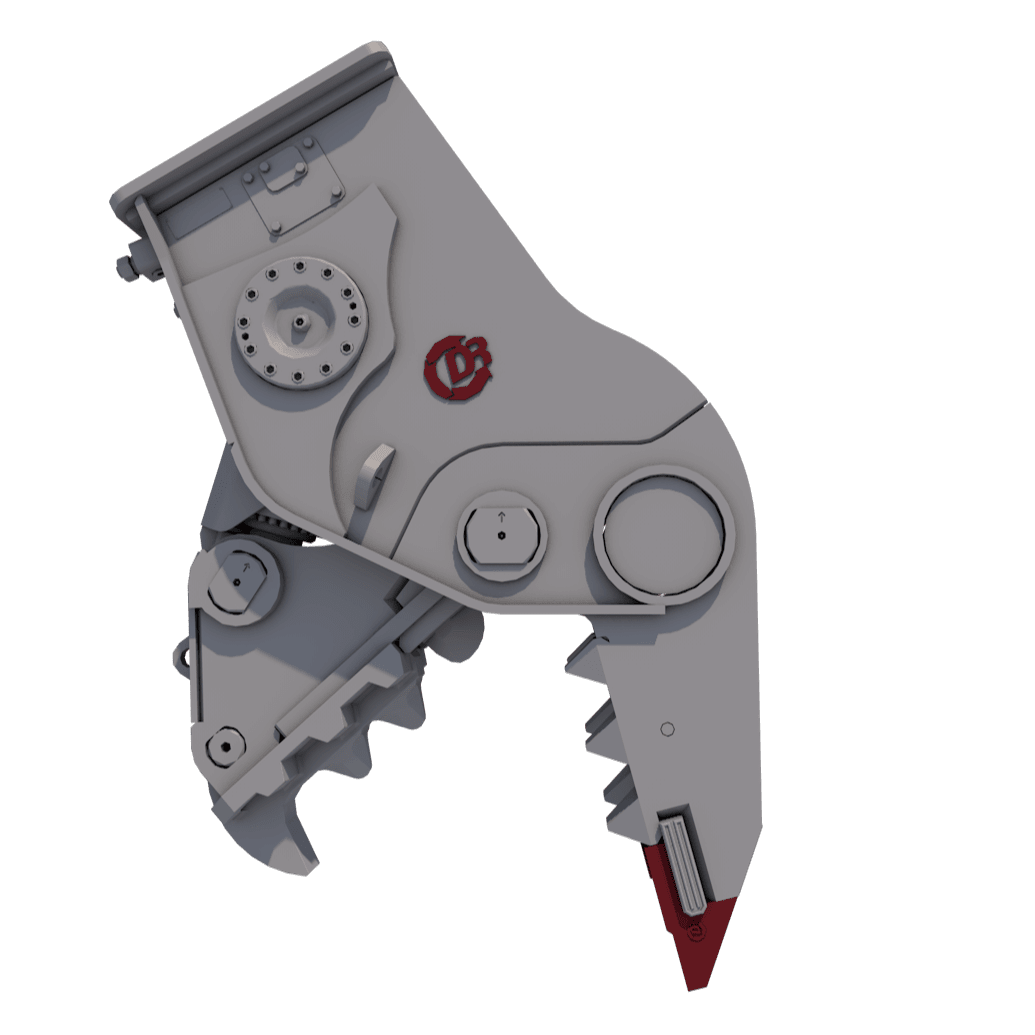

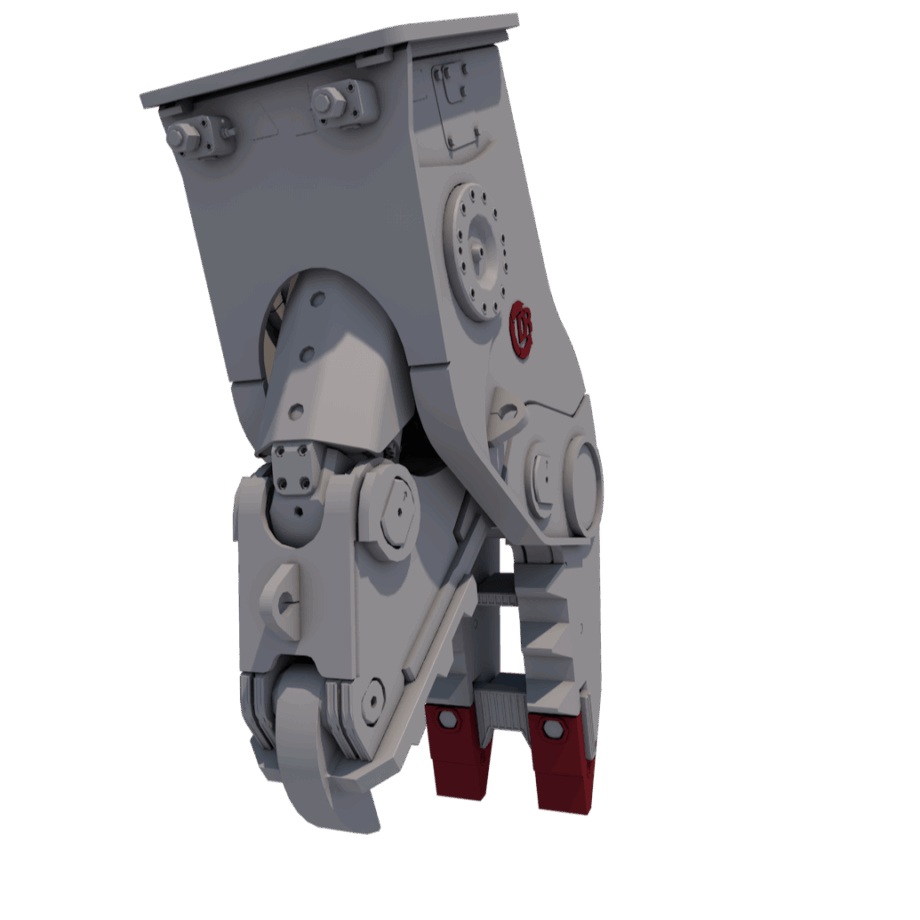

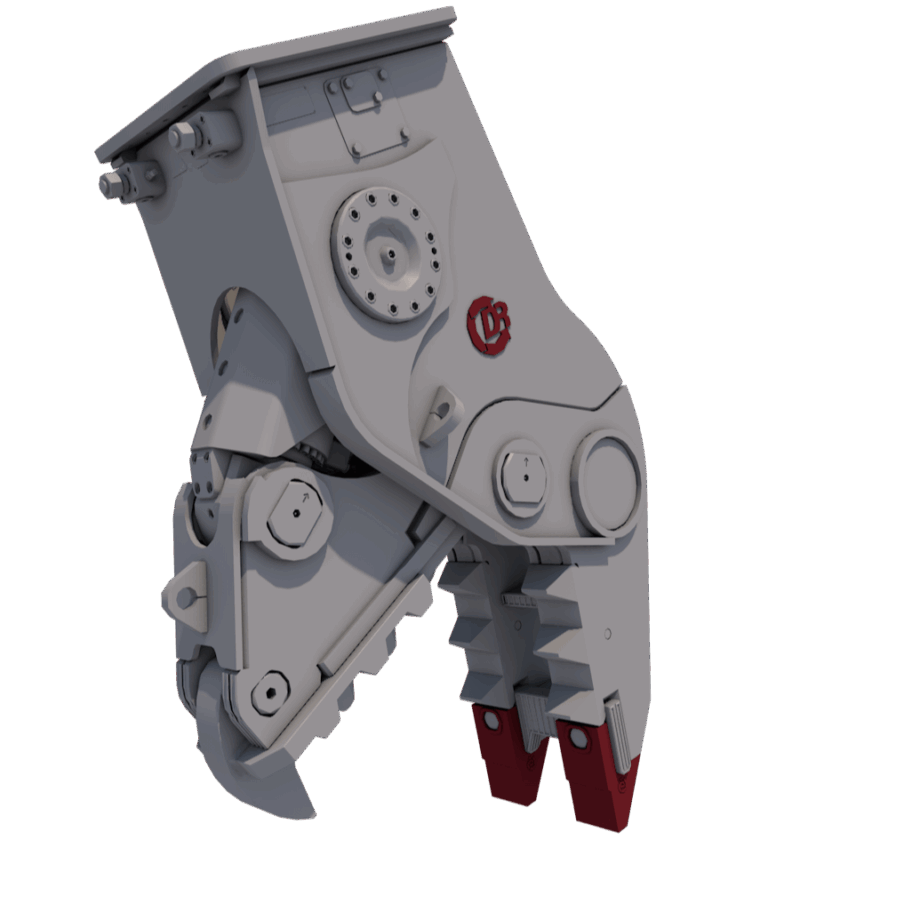

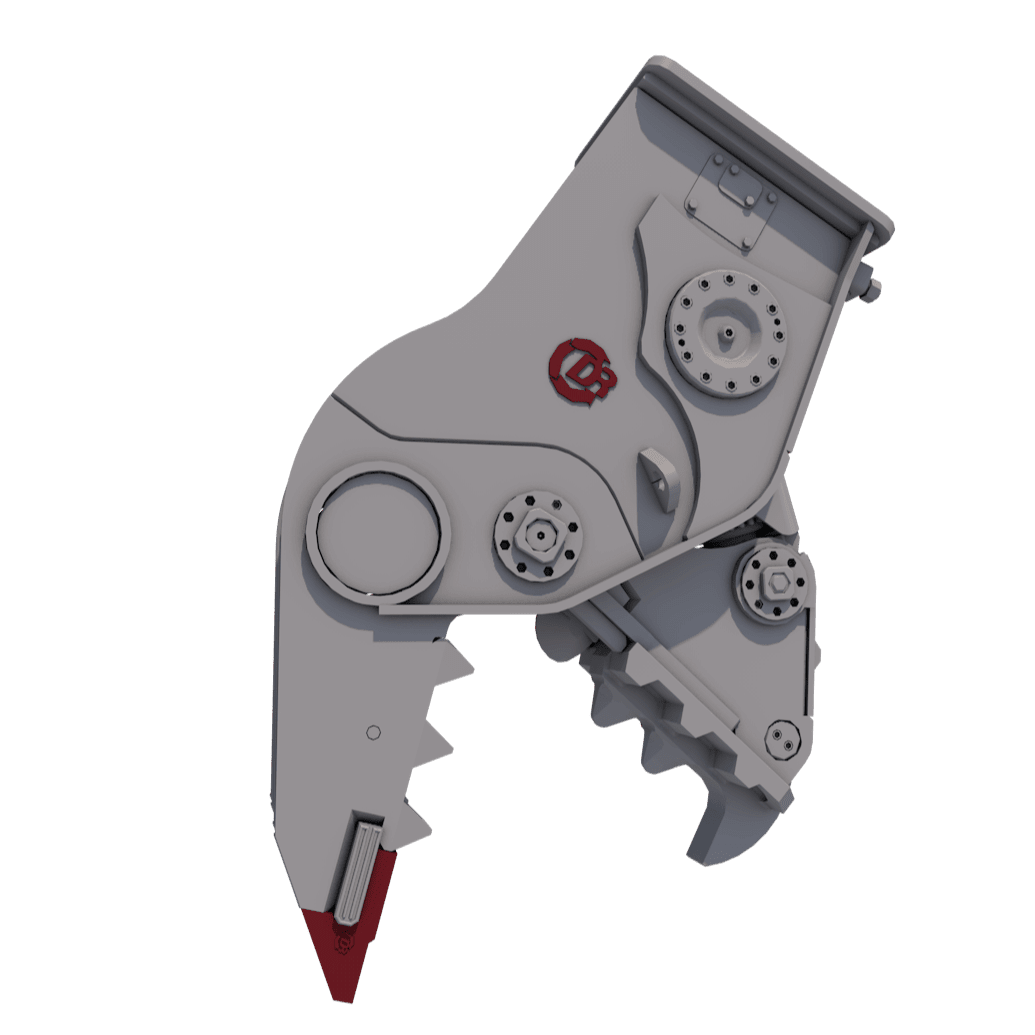

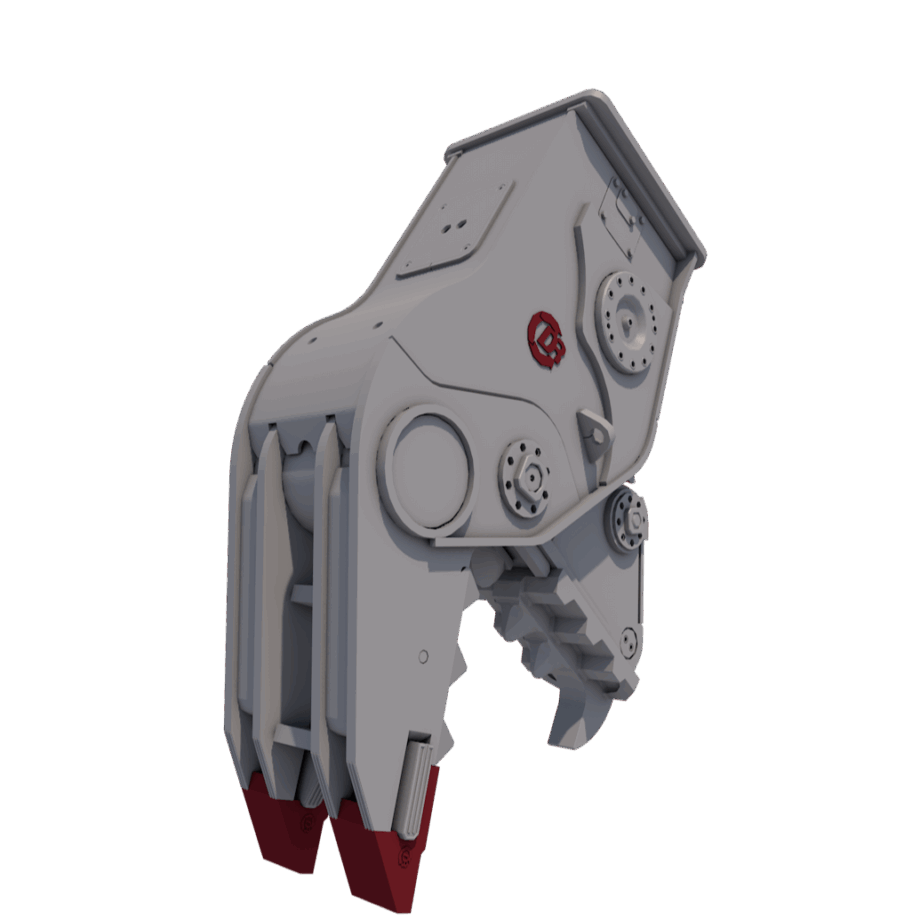

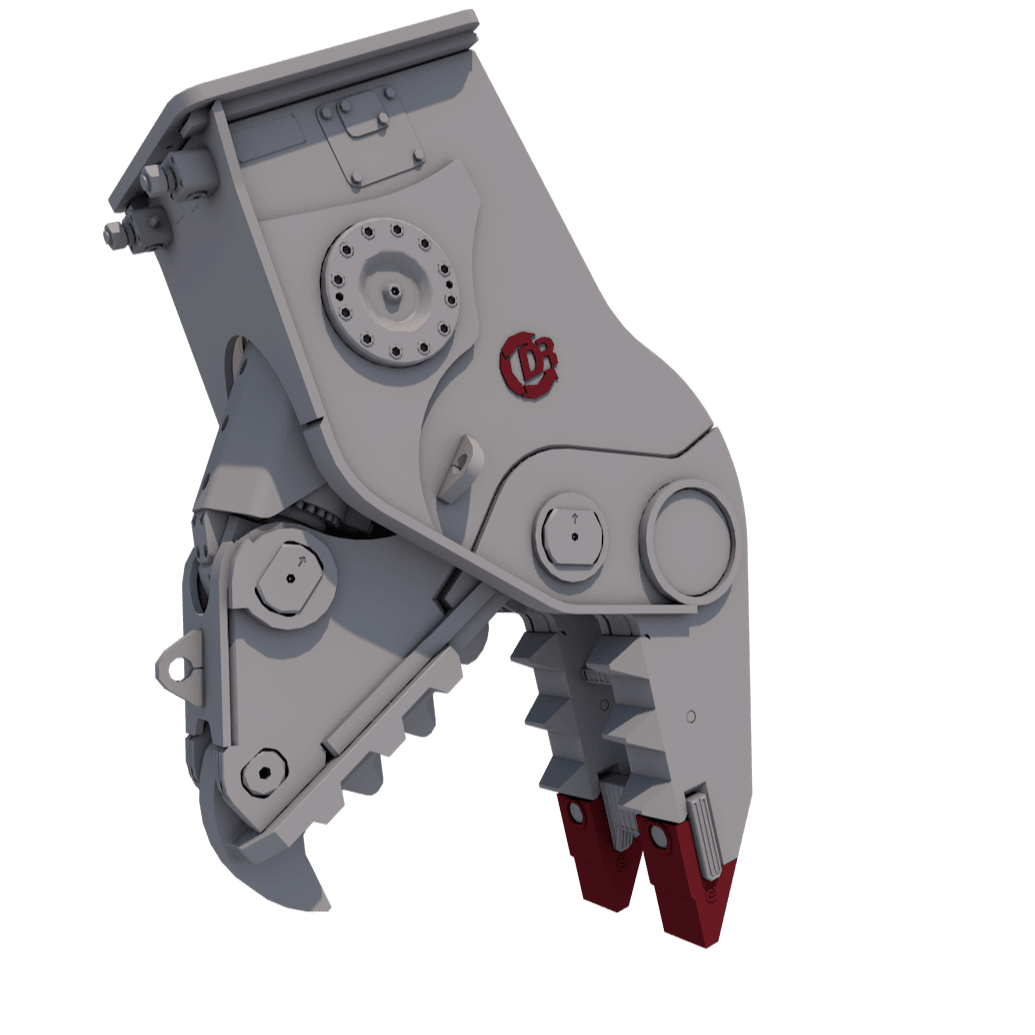

    The Demarec Pulverisers have been developed for secondary demolition – breaking concrete and freeing reinforced steel bars. Pulverising at the demolition site reduces the costs of transport and recycling. The Extreme version of the DSP-series is equipped with the “well known” DemaPower-System! A unique cylinder technique: 20% more power and extremely fast cycle times. The upper jaw has a ground tooth plate that has one front tooth which ensure outstanding penetration into the concrete. Both teeth in the upper jaw are between the shrouds in the lower jaw, so the reinforced steel is always optimally  separated from the concrete. All wear parts can be changed on site. No need to transport the pulverizer to the workshop. Demarec pulverisers are supplied without cutting blades as standard. This means that the reinforcing steel can be optimally separated from the concrete without small pieces of steel being cut off.

    Read more…

    More information
    Video
    Information brochure



    Description

    ‘20% more cylinder power and extremely fast cycle times’

    ‘More power, More speed, More tonnes processed per day’

    Key features and benefits

    Click on the hotspots for more information!

    IN THE END... IT'S ONLY ABOUT THE RIGHT TOOL

    Technical specifications

    TypeCarrier weight*Weight**Additional weight rotatingClosing forceJaw openingWidth upper jawWidth lower jawJaw depthHeightLenght of cutting blades***
    DSP-30 20 – 35 ton2135 kg+375 kg80/ 125 ton885 mm350 mm490 mm840 mm2145 mm200 mm
    DSP-30 EXTREME20 – 35 ton2115 kg+375 kg100 / 150 ton885 mm350 mm490 mm840 mm2145 mm200 mm
    DSP-4530 – 50 ton2670 kg+375 kg110 / 150 ton1015 mm400 mm525 mm900 mm2360 mm200 mm
    DSP-45
    EXTREME
    30 – 50 ton2645 kg+375 kg130 / 185 ton1015 mm400 mm525 mm900 mm2360 mm200 mm
    DSP-60
    EXTREME
    42 – 65 ton3525 kg+550 kg150 / 205 ton1135 mm450 mm565 mm1000 mm2635 mm200 mm

    *Depending of lifting capacity of carrier
    **Excl adapter
    ***Optional

    For more technical information, download our brochure here.
