‘The 360 ° continuous rotation and 2 x 50 ° tilt angle make the excavator a multifunctional all-rounder’
0%

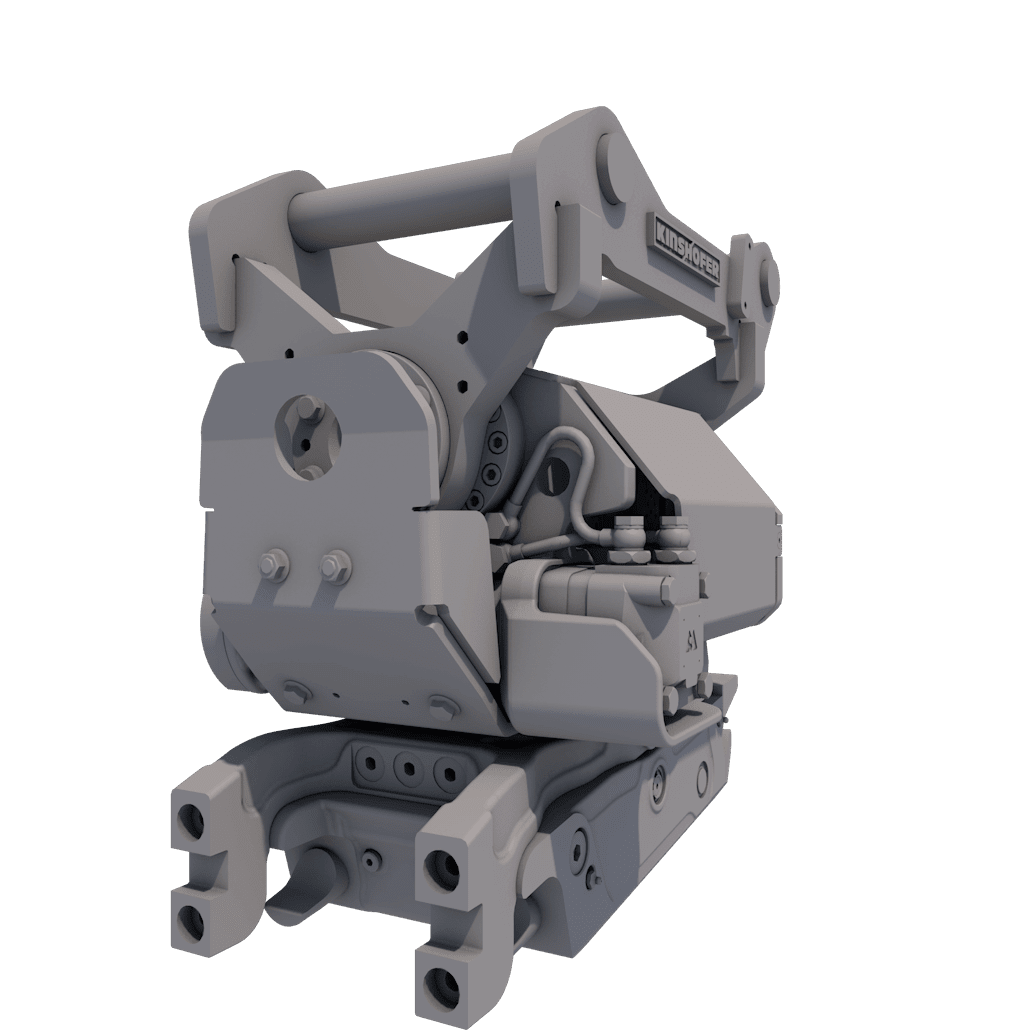

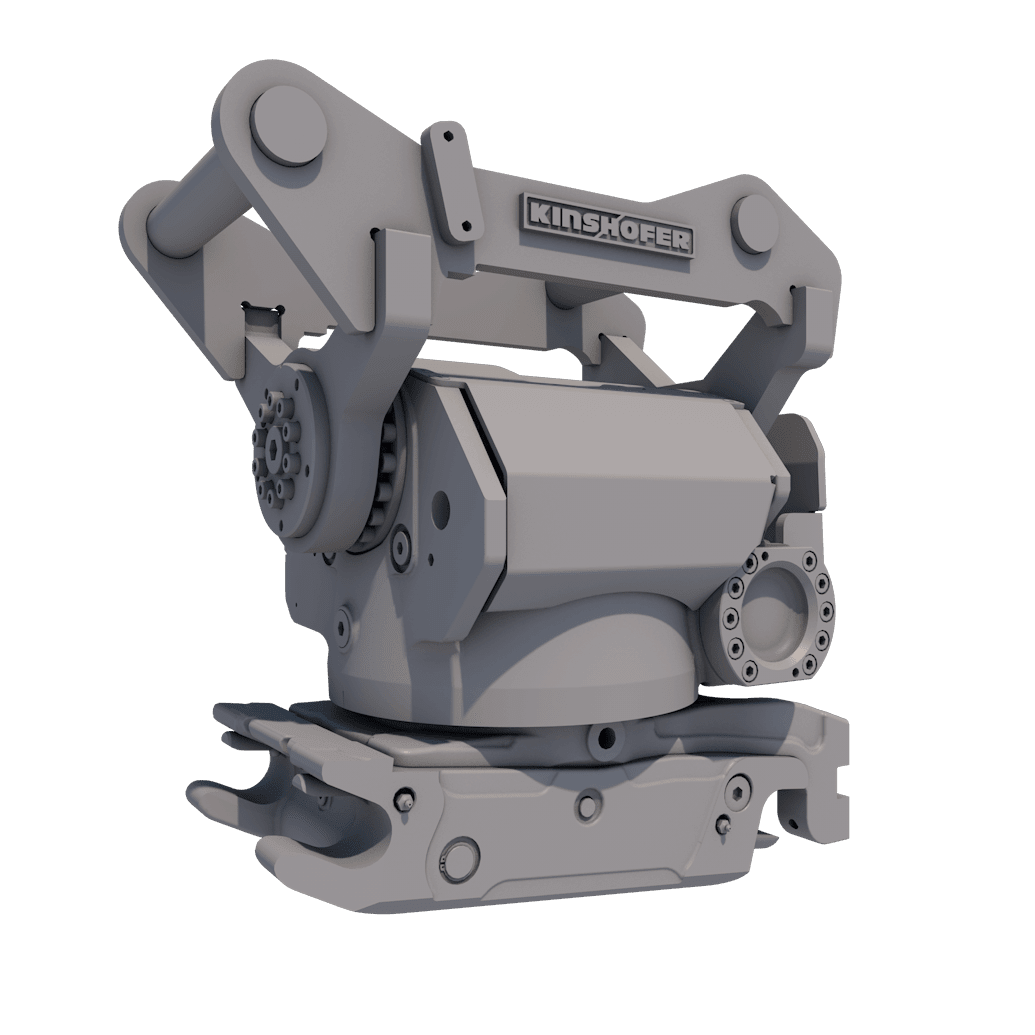

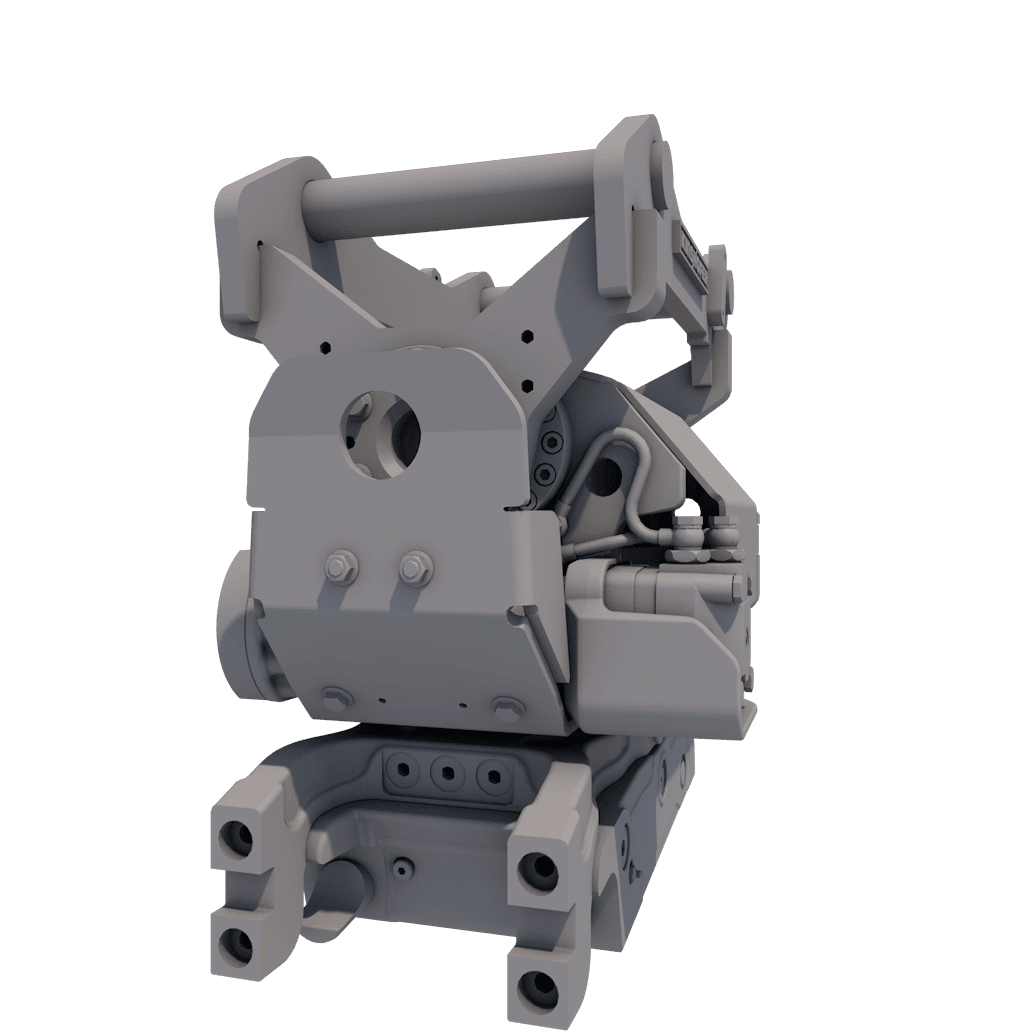

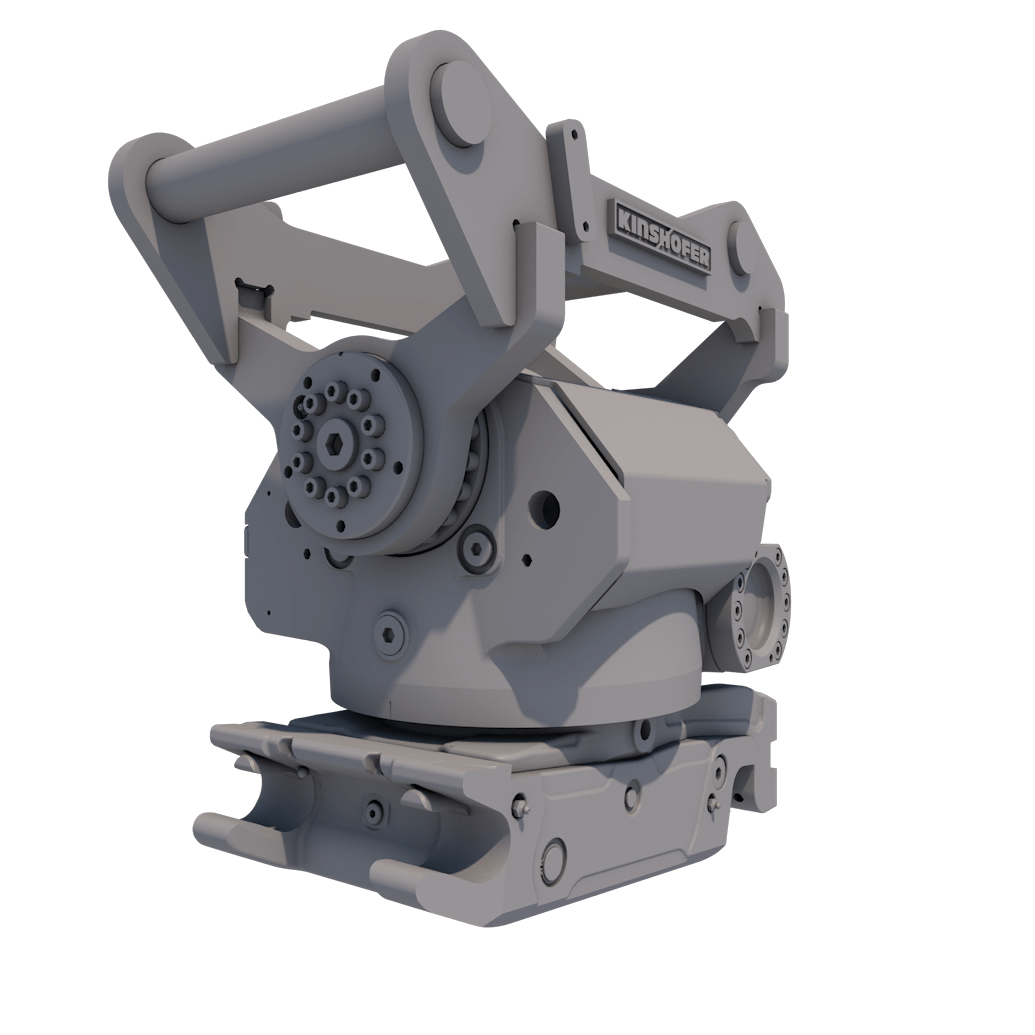

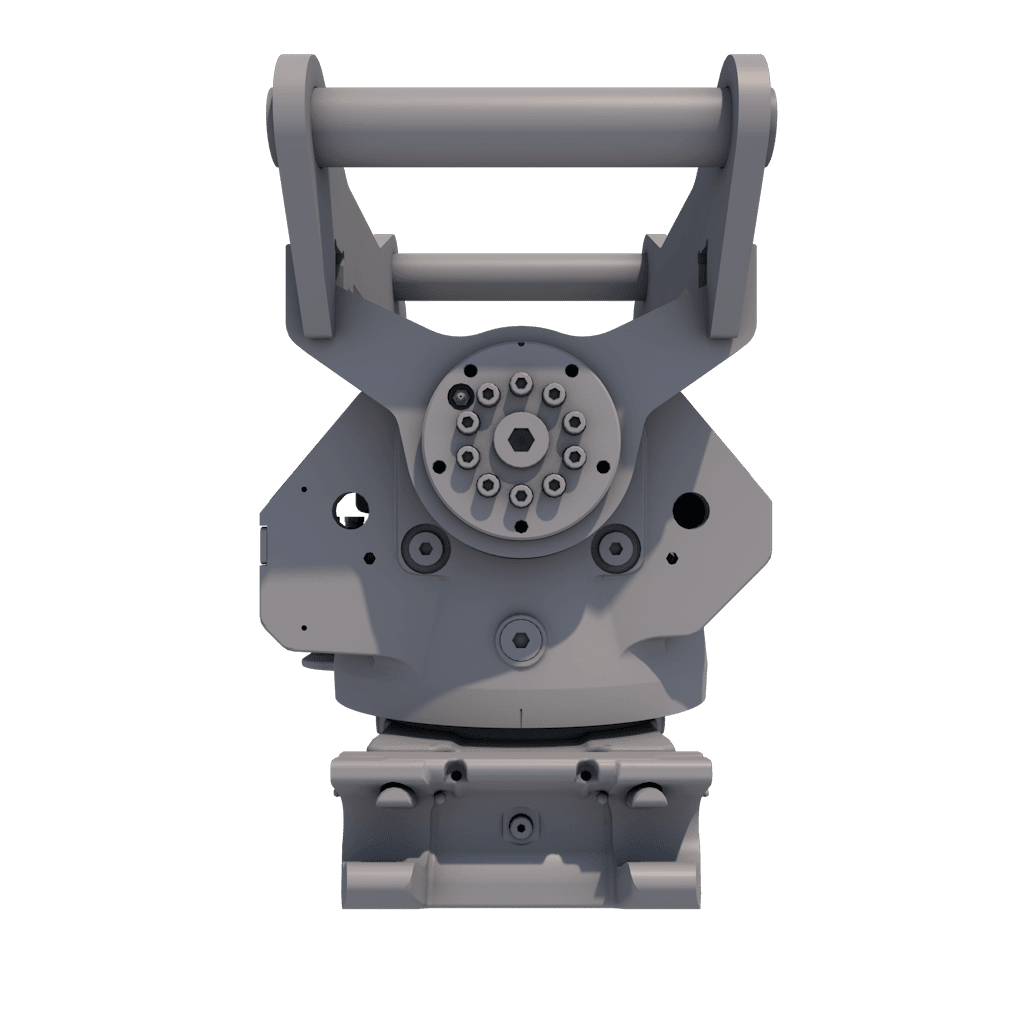

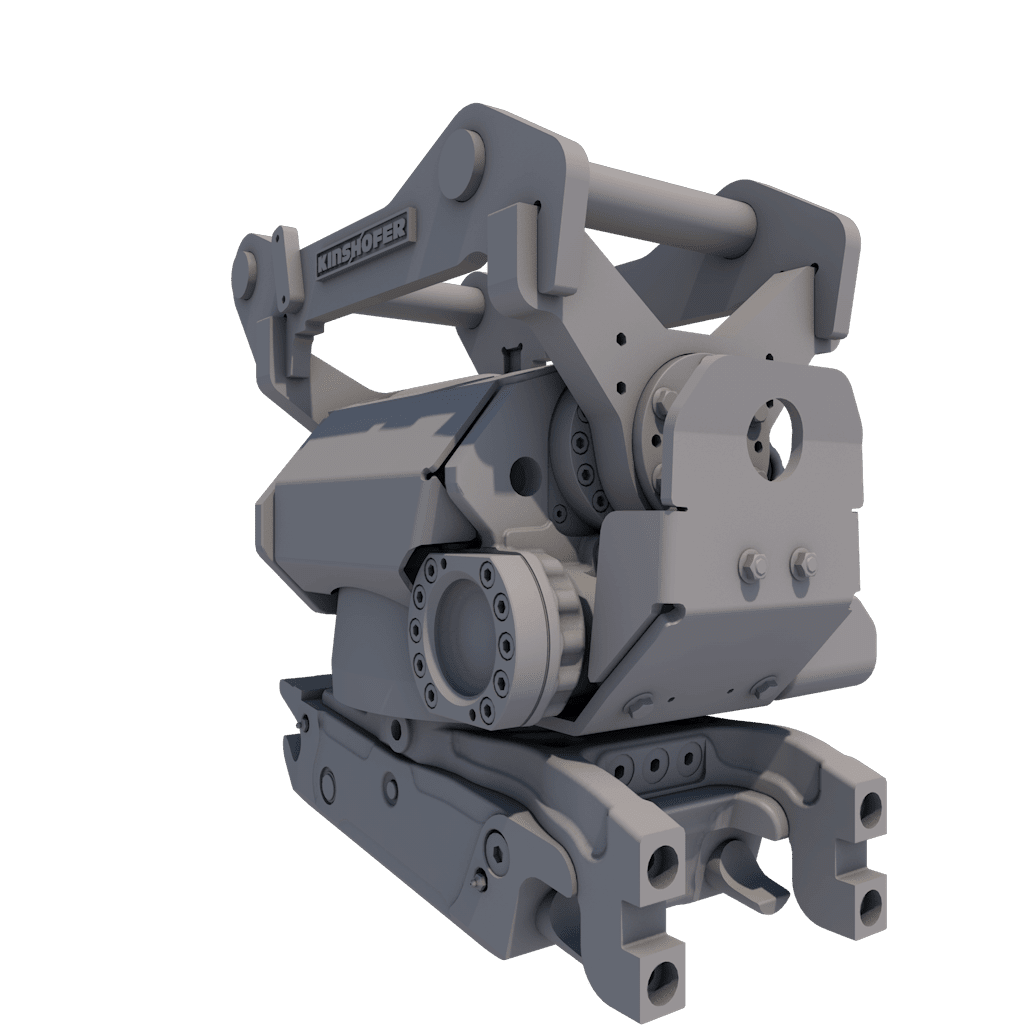

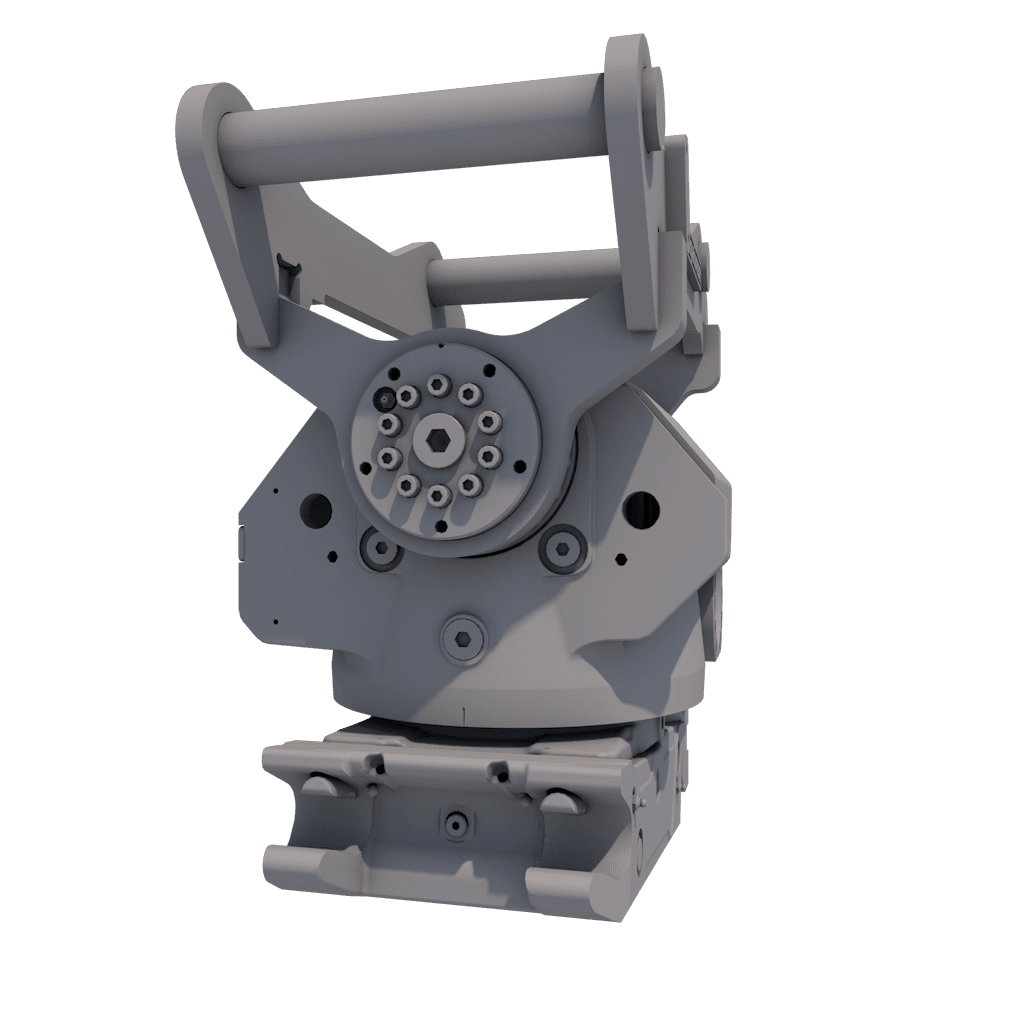

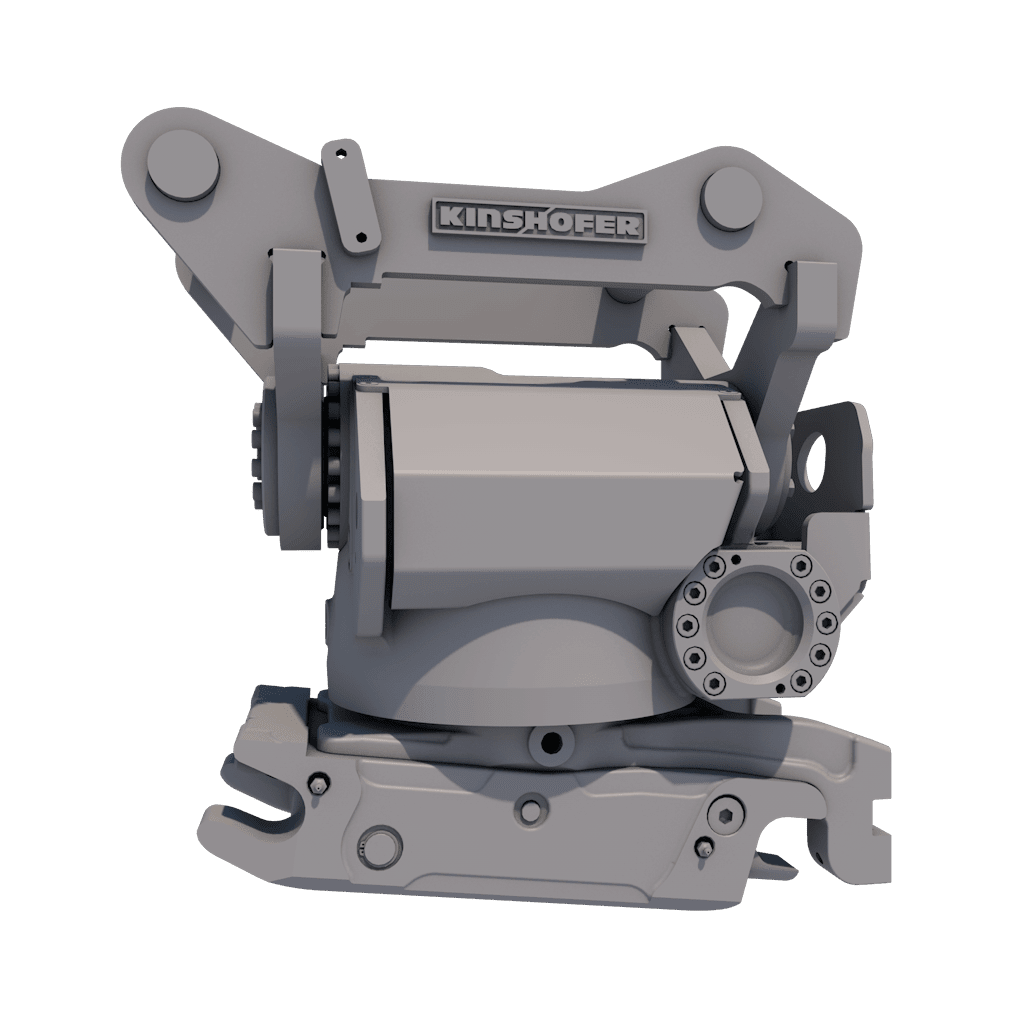

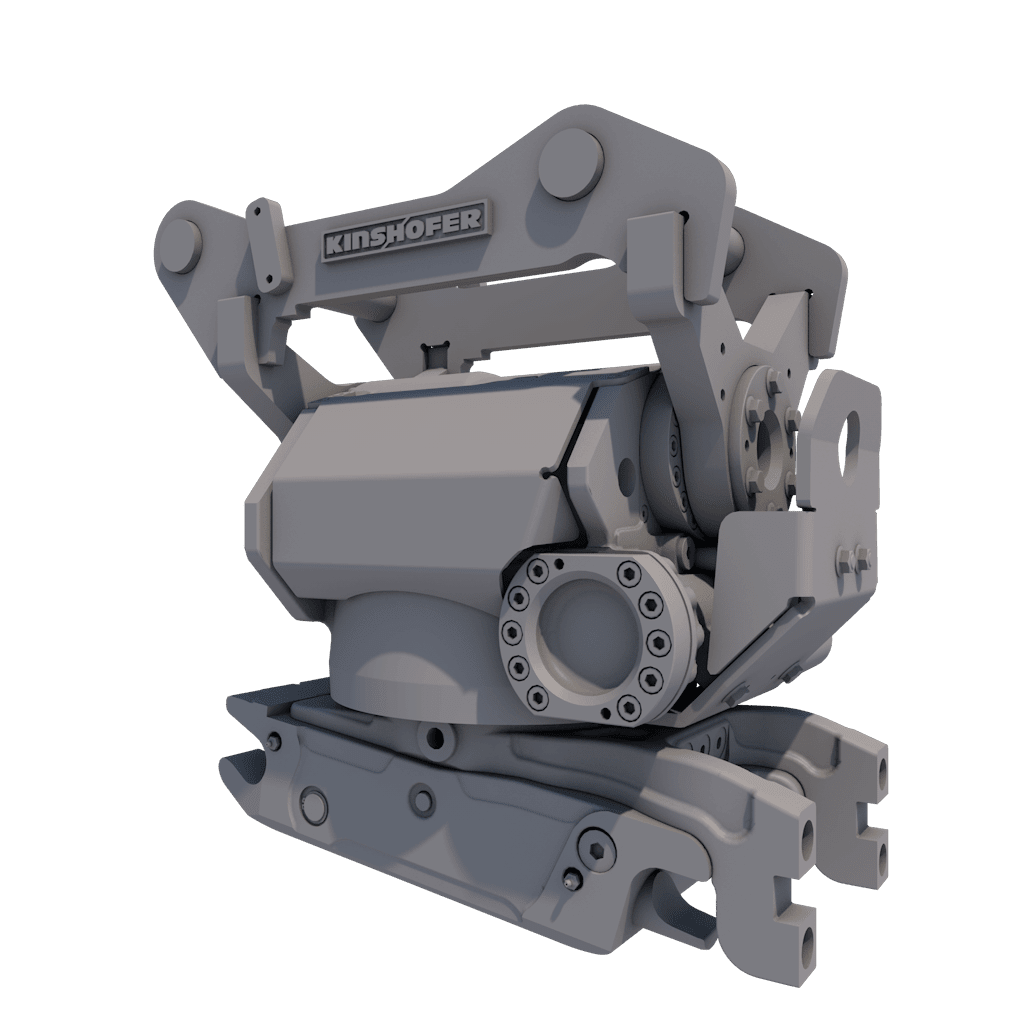

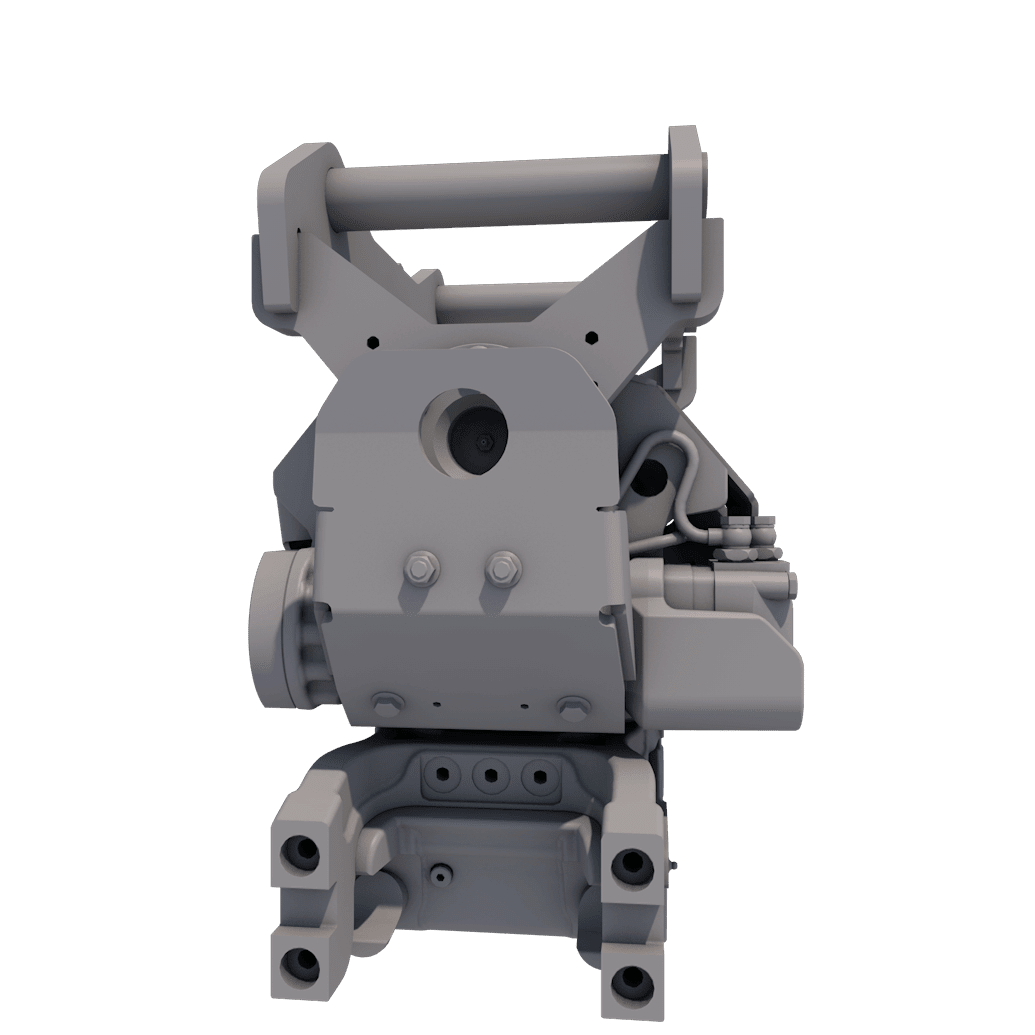

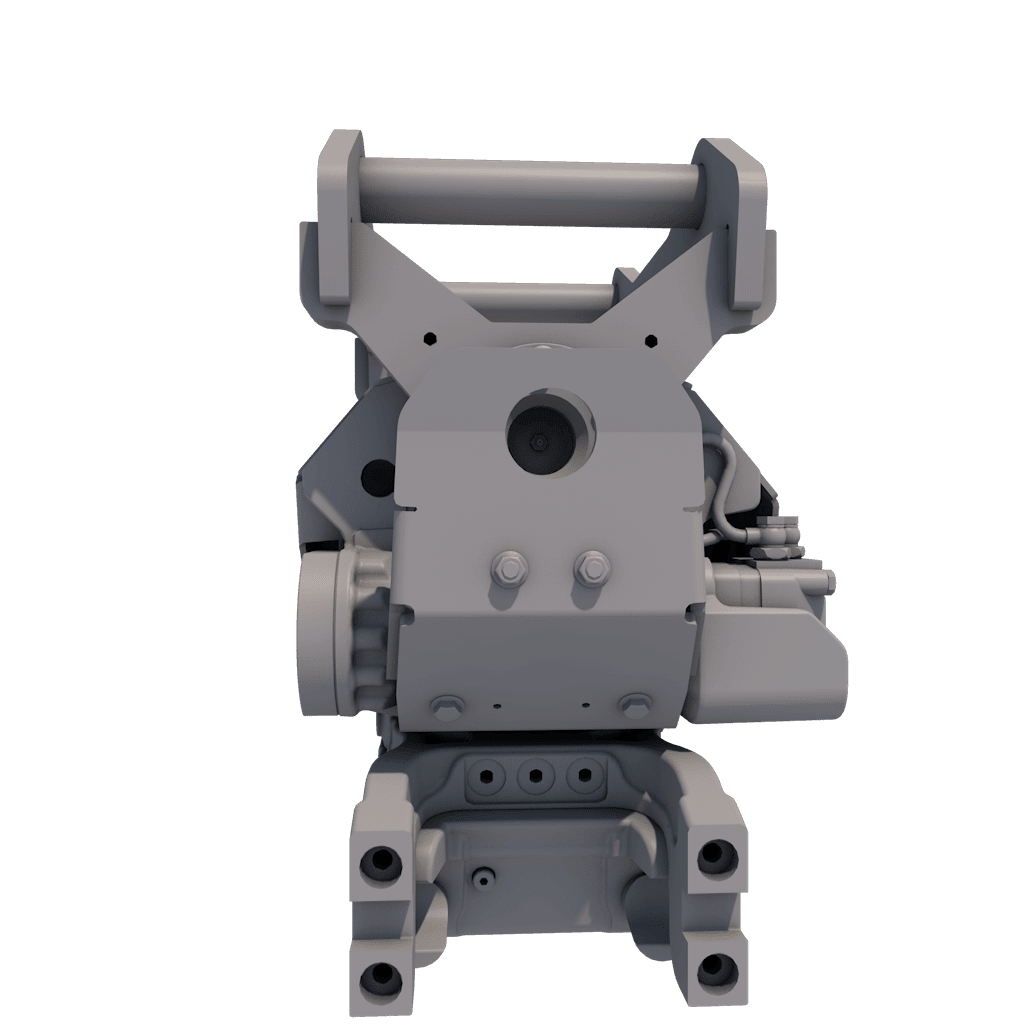

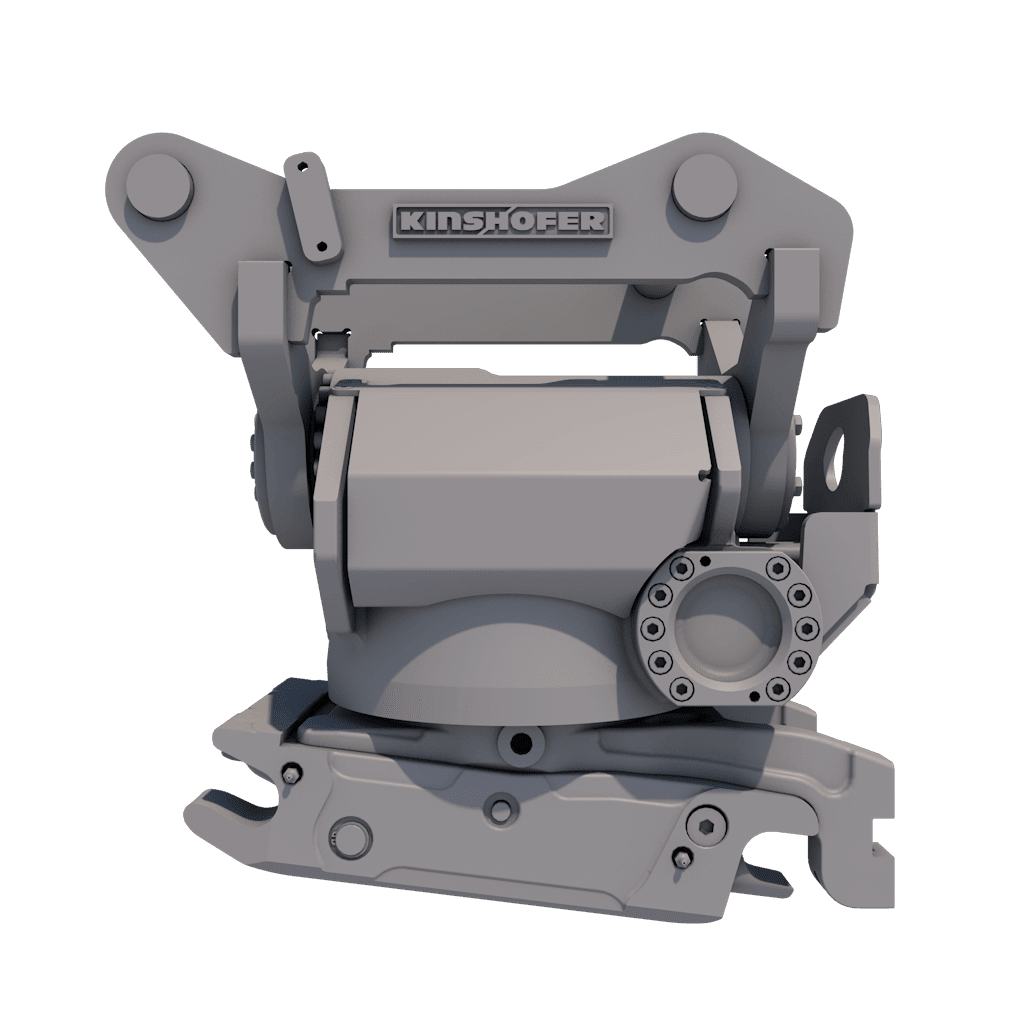

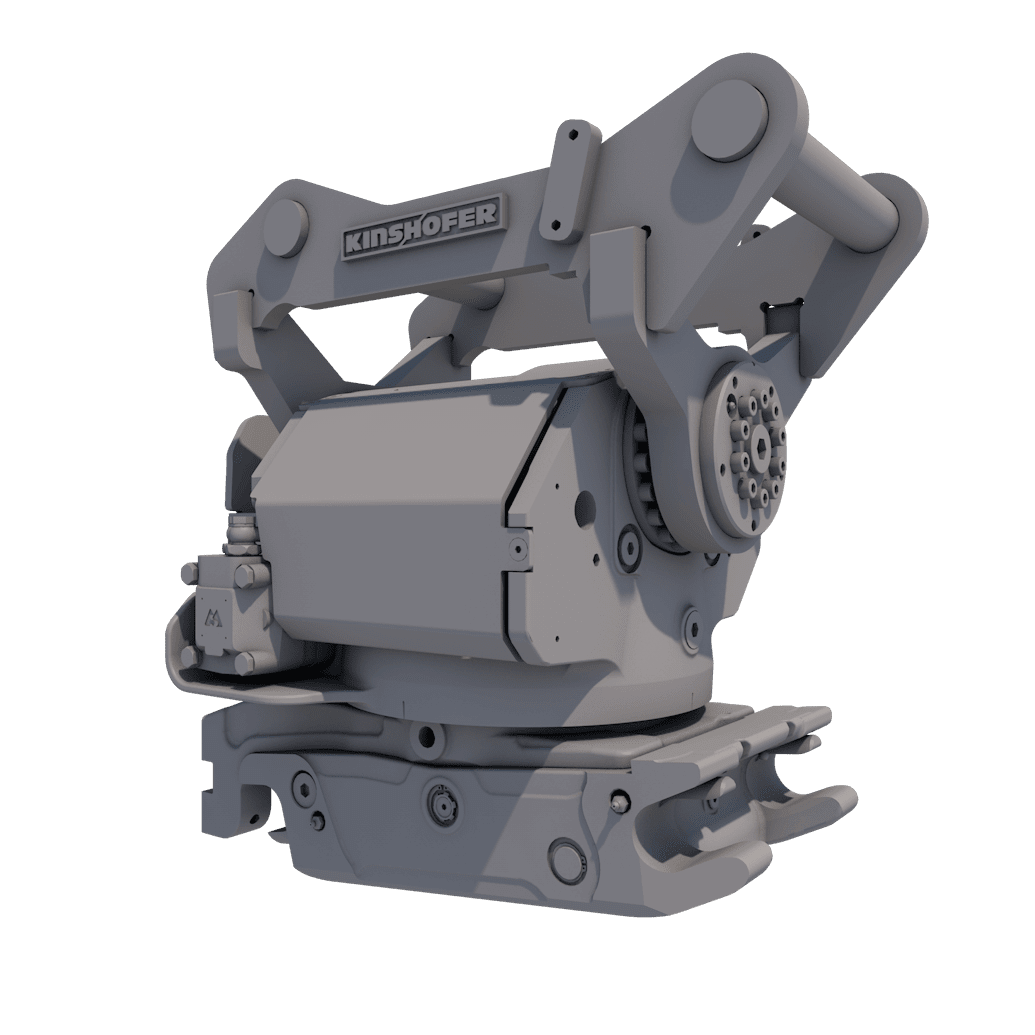

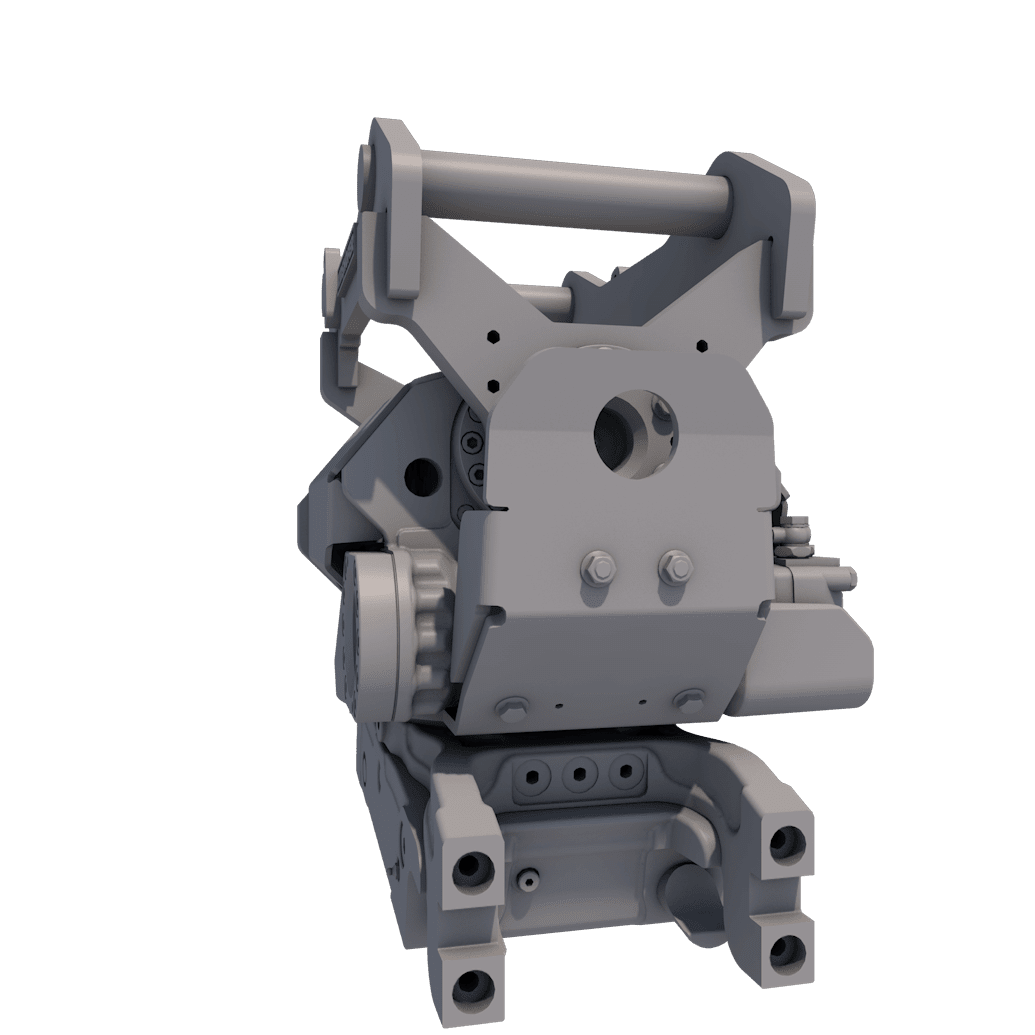

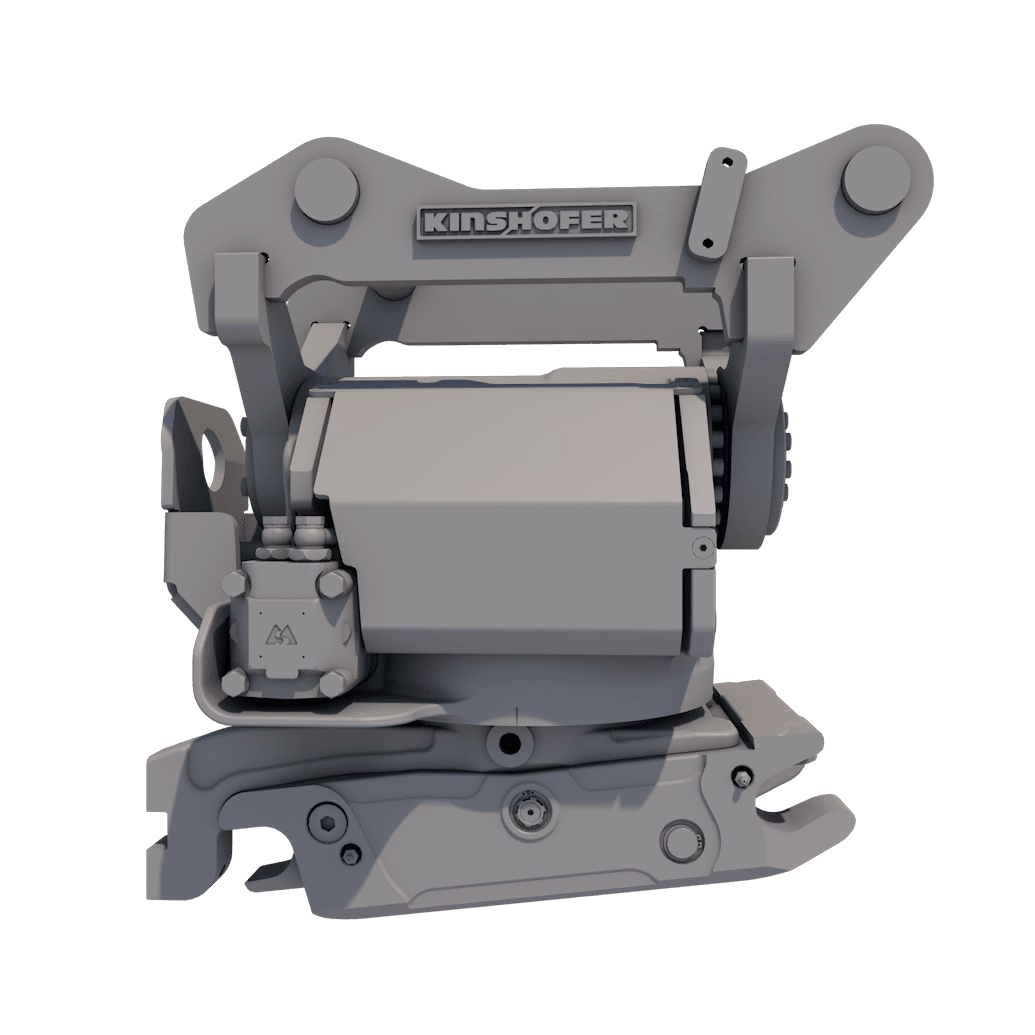

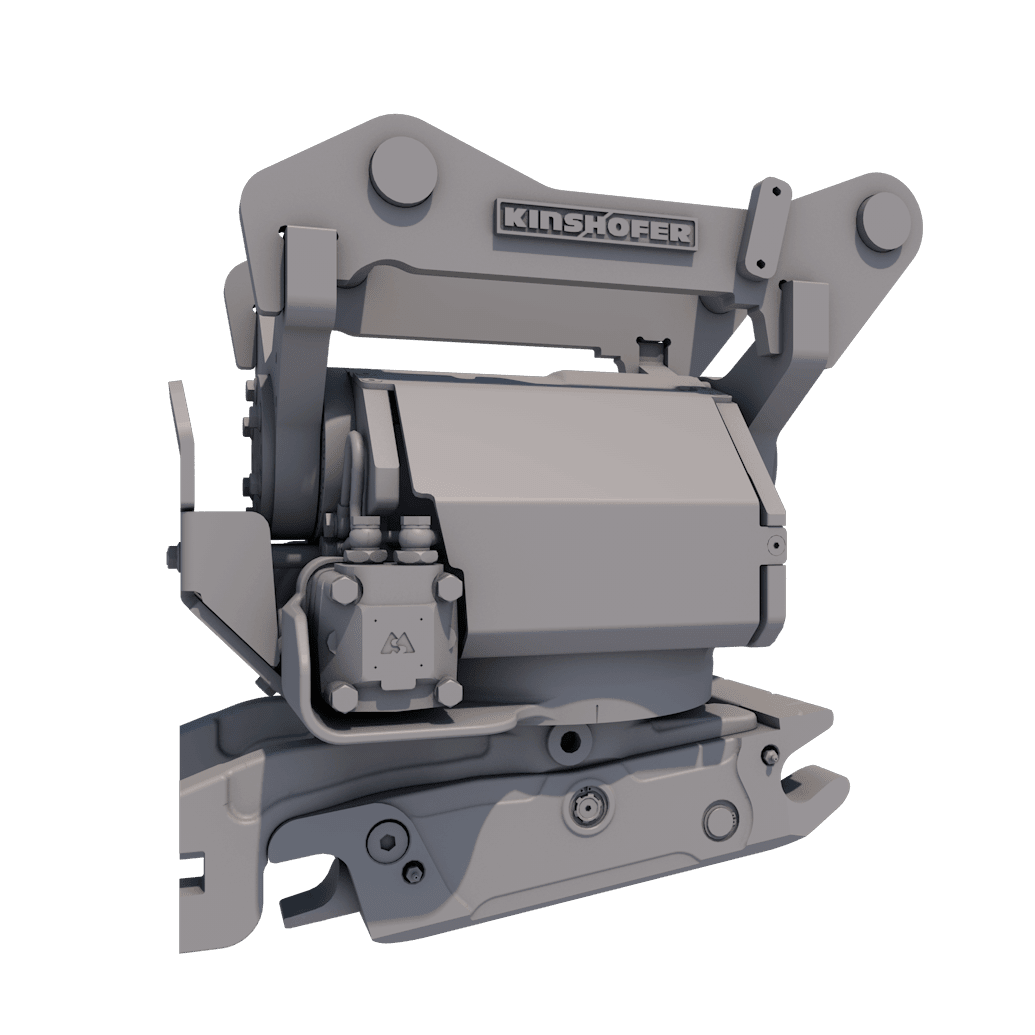

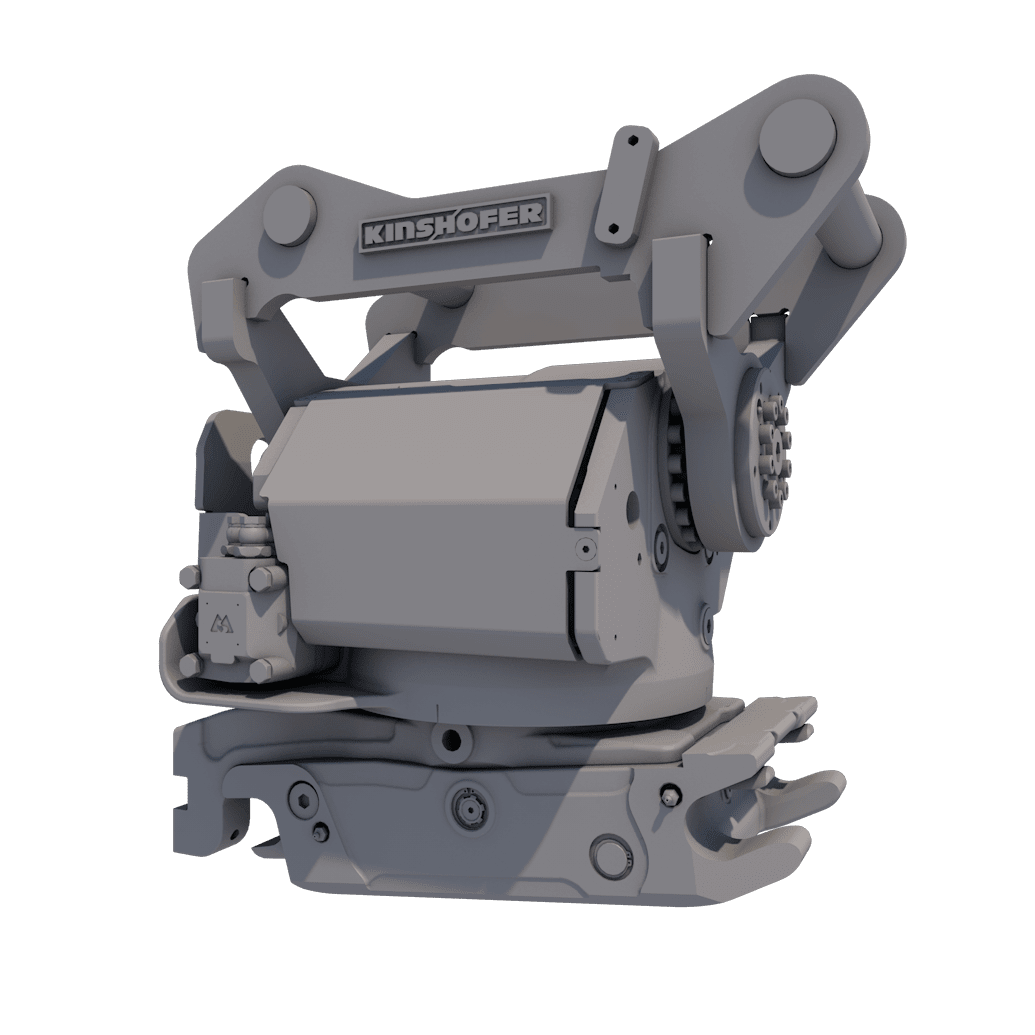

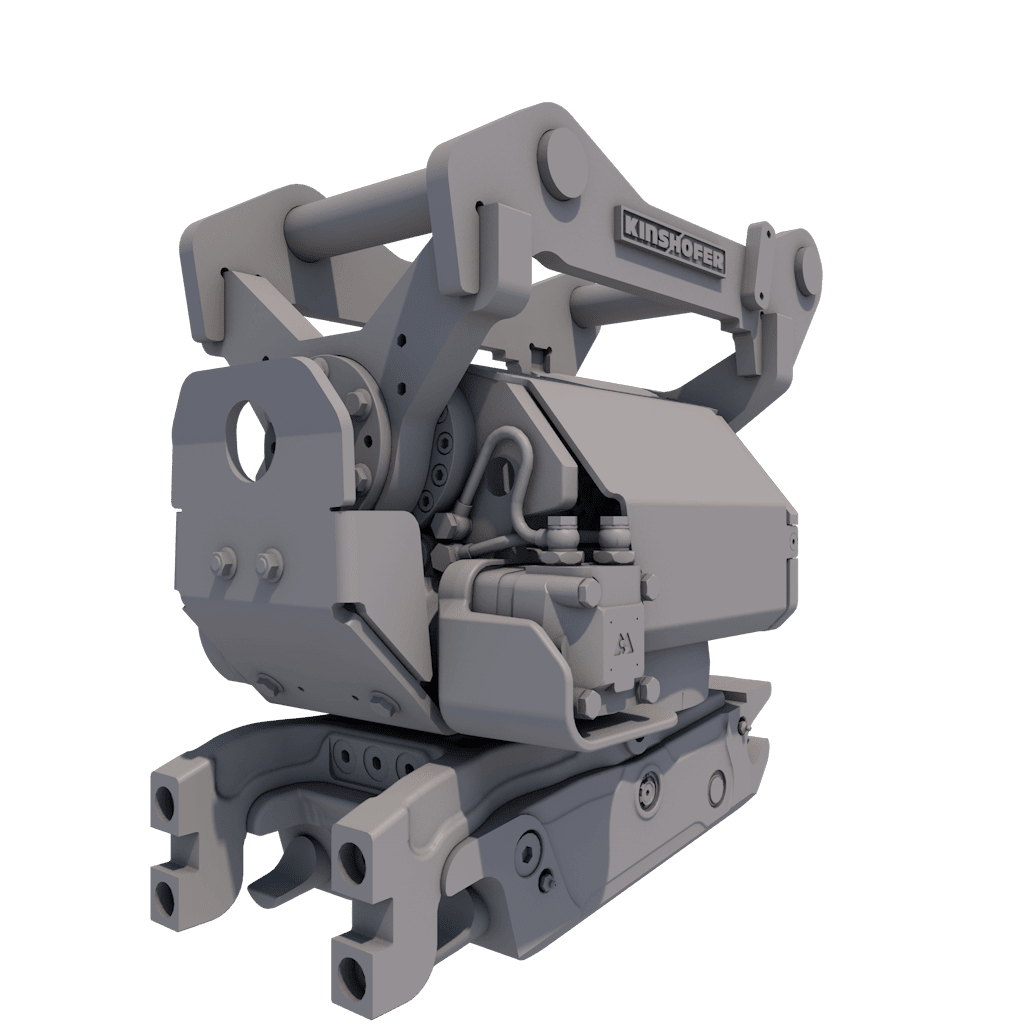

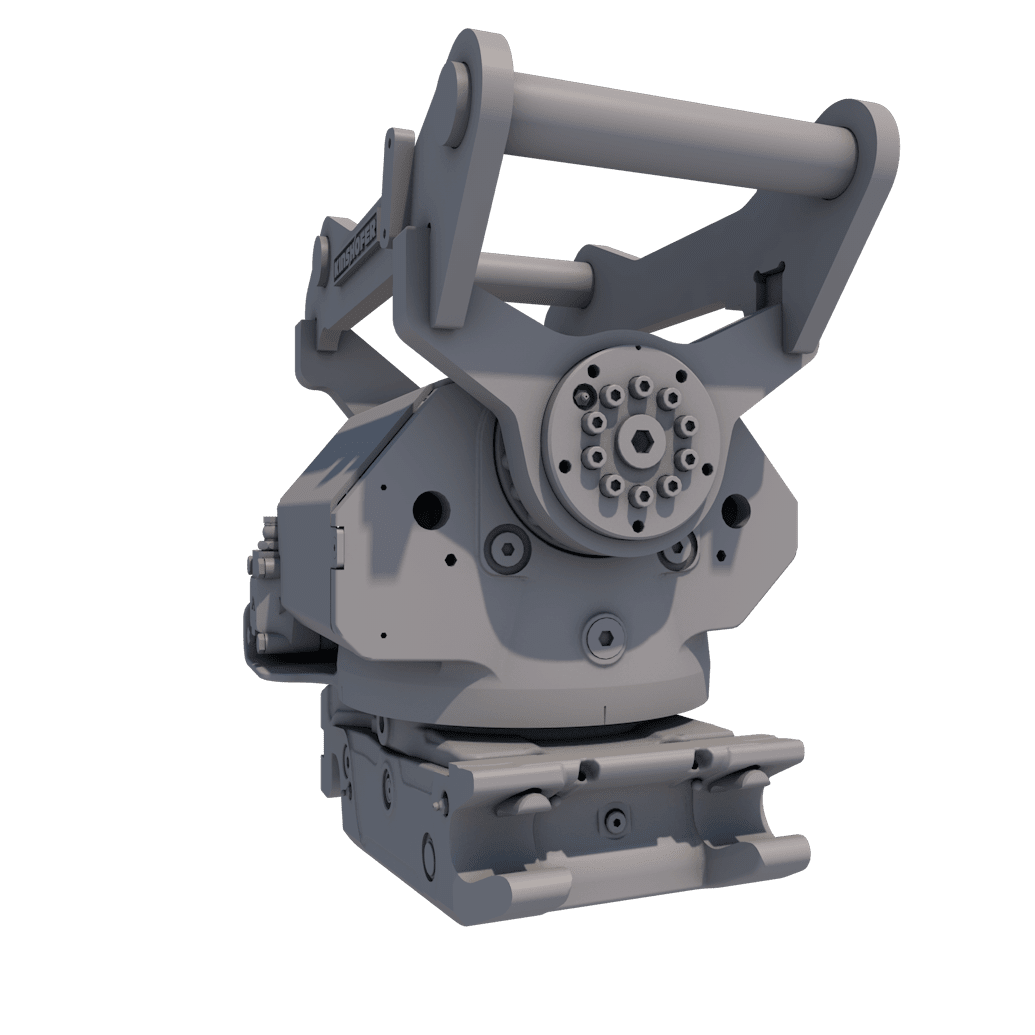

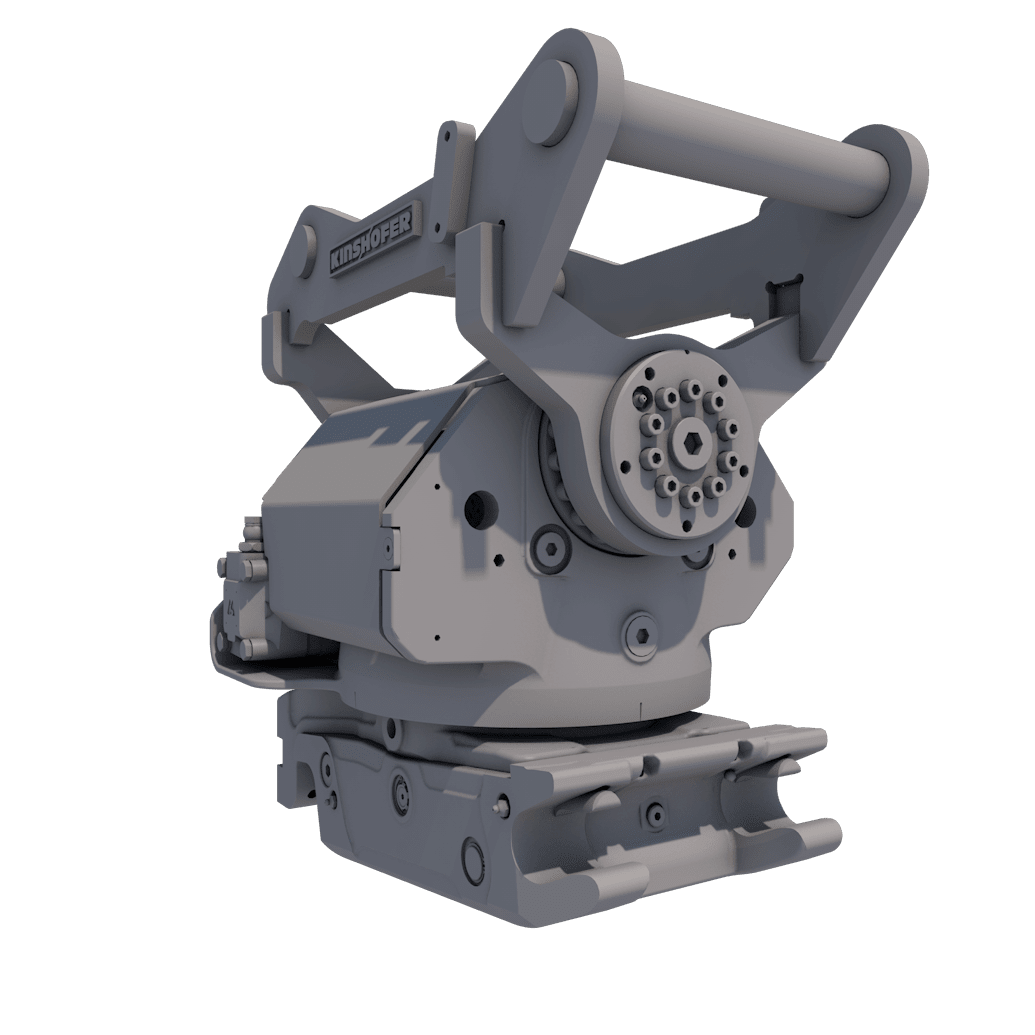

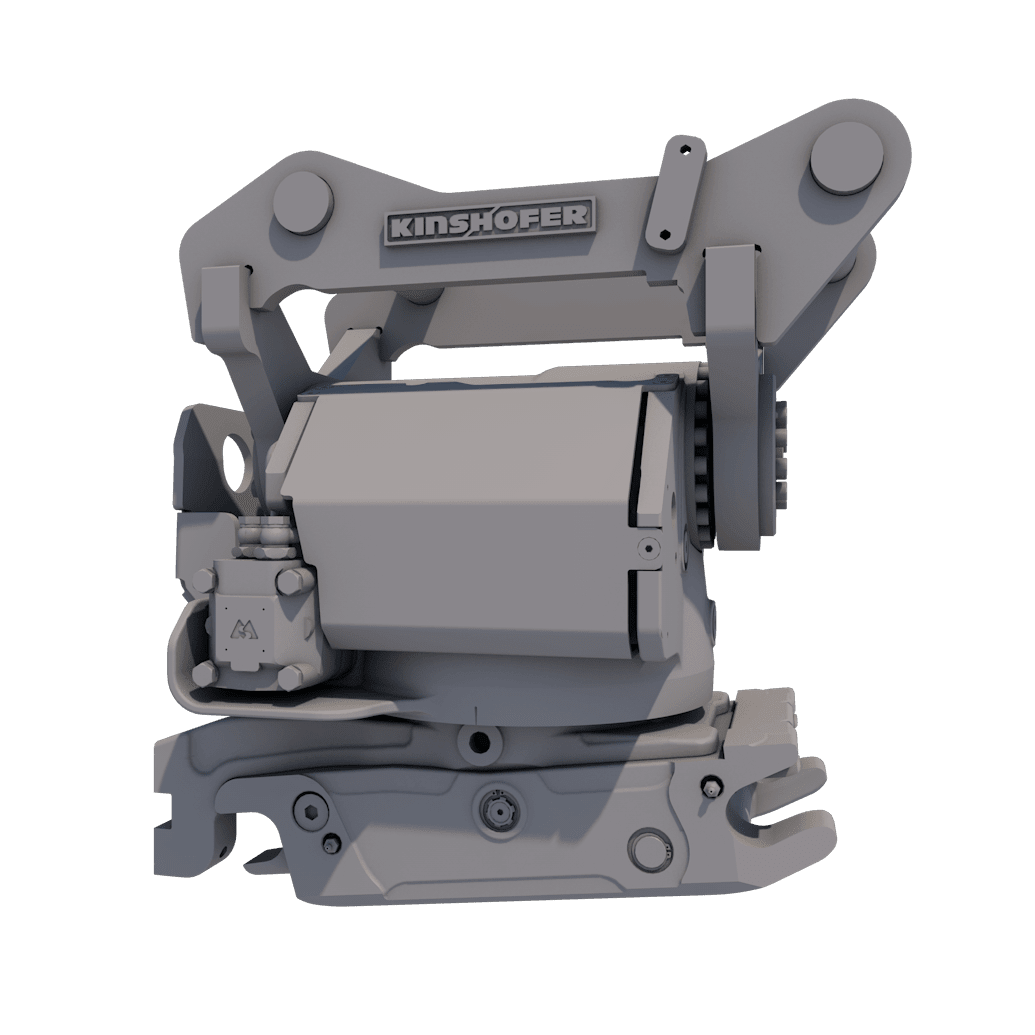

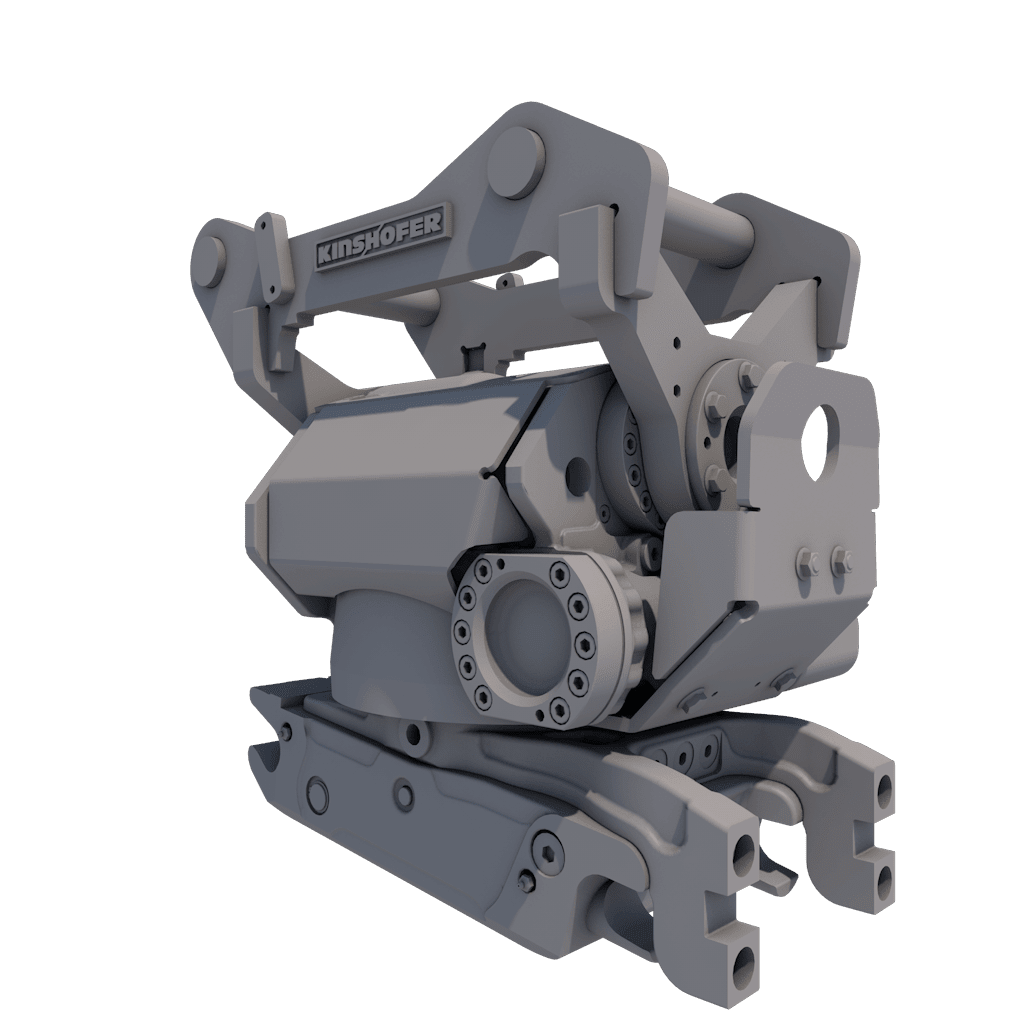

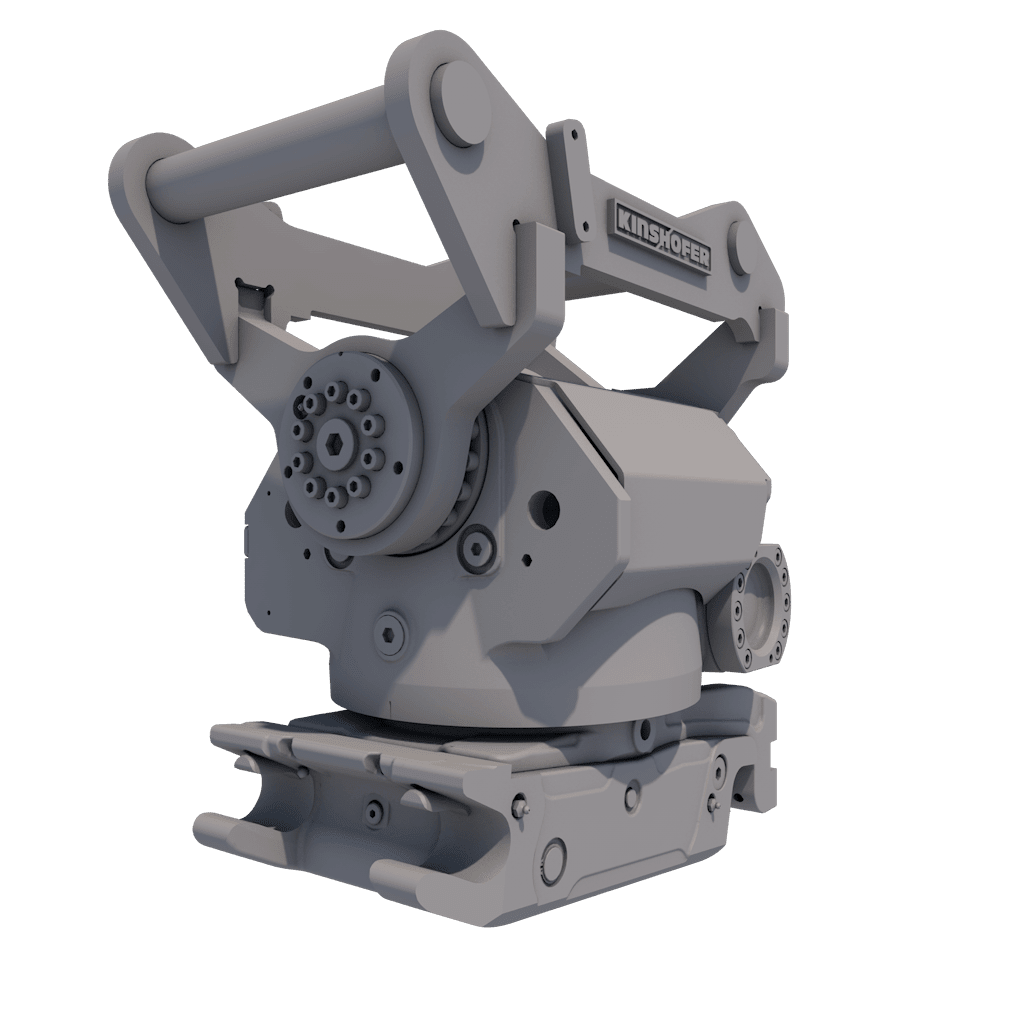

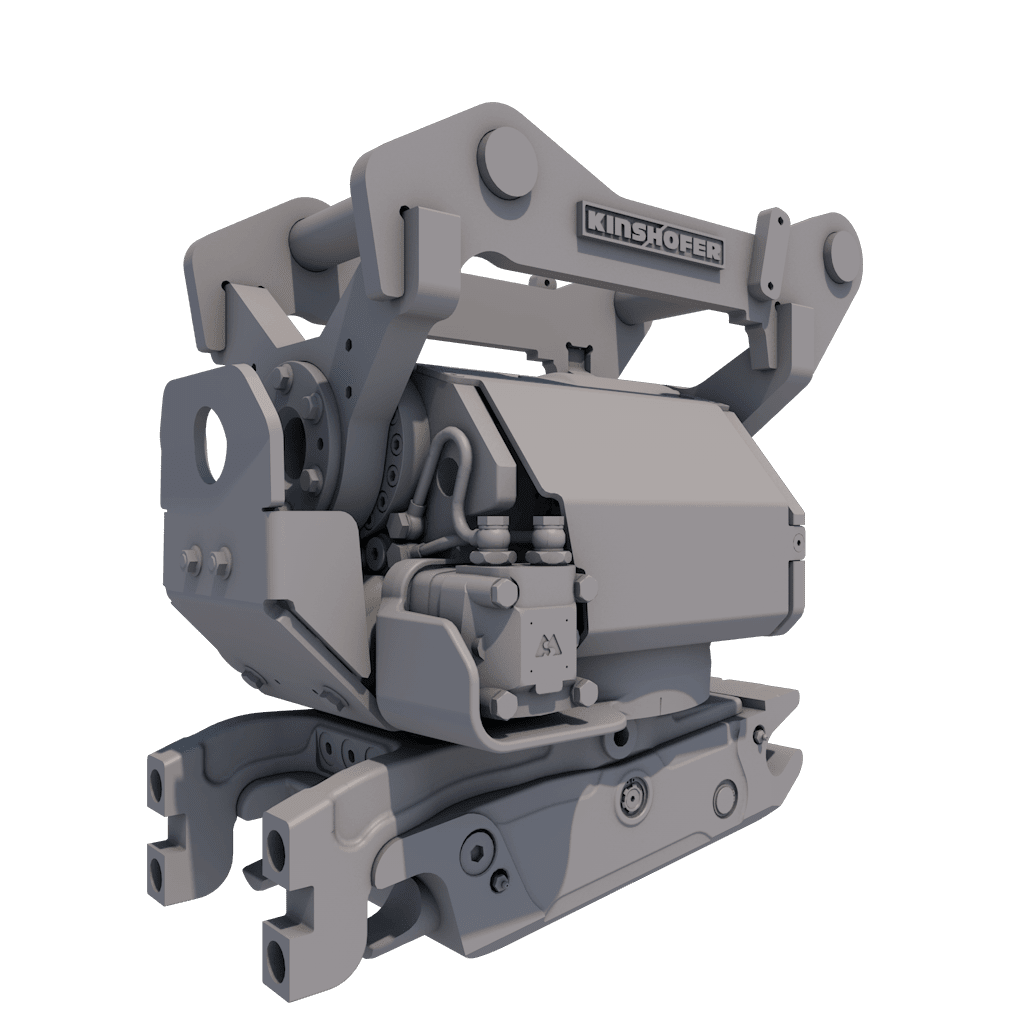

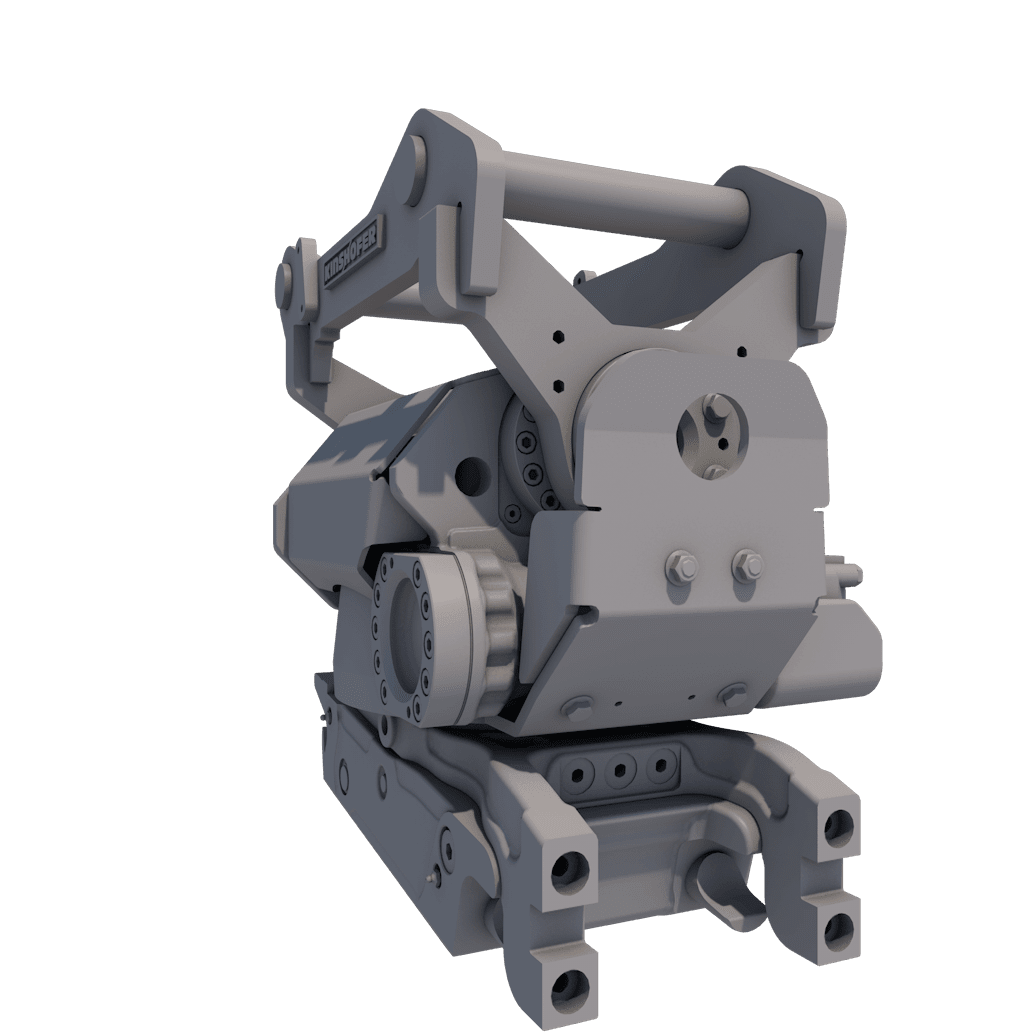

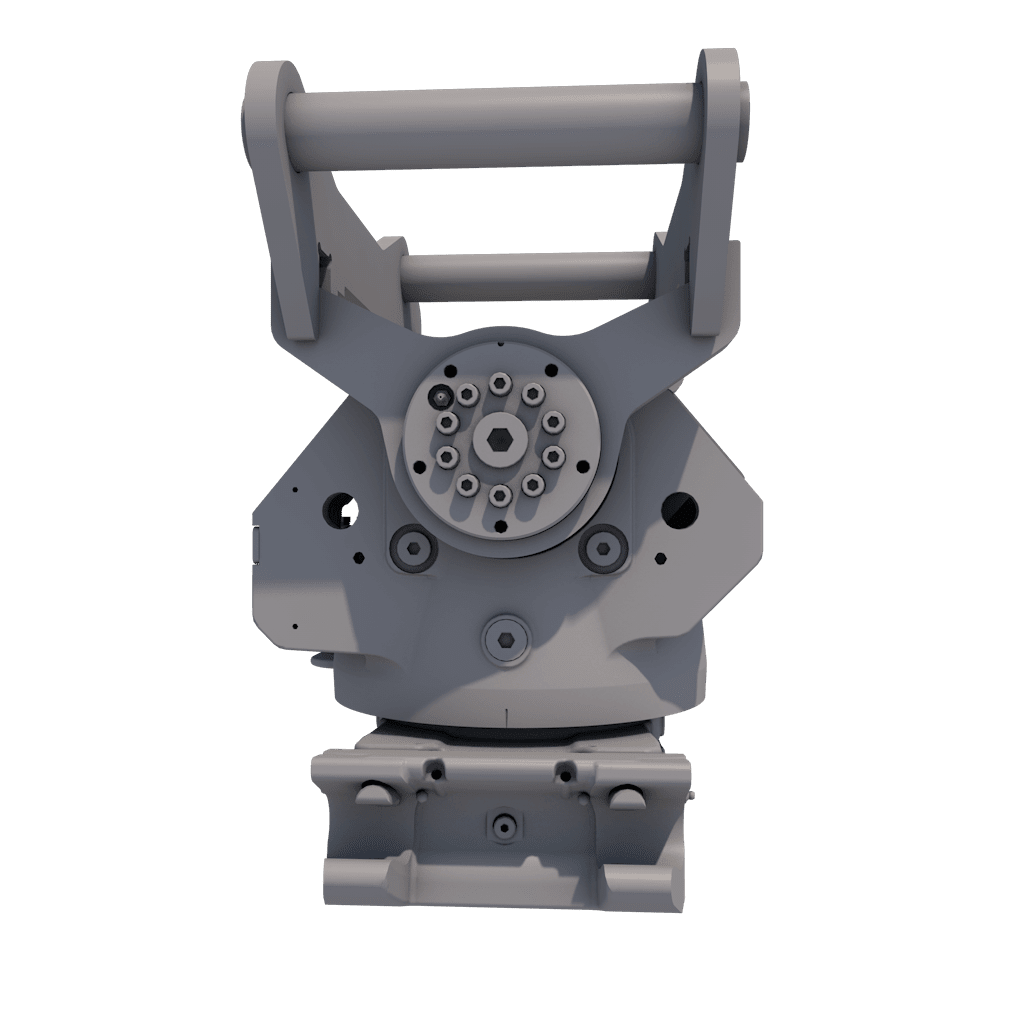

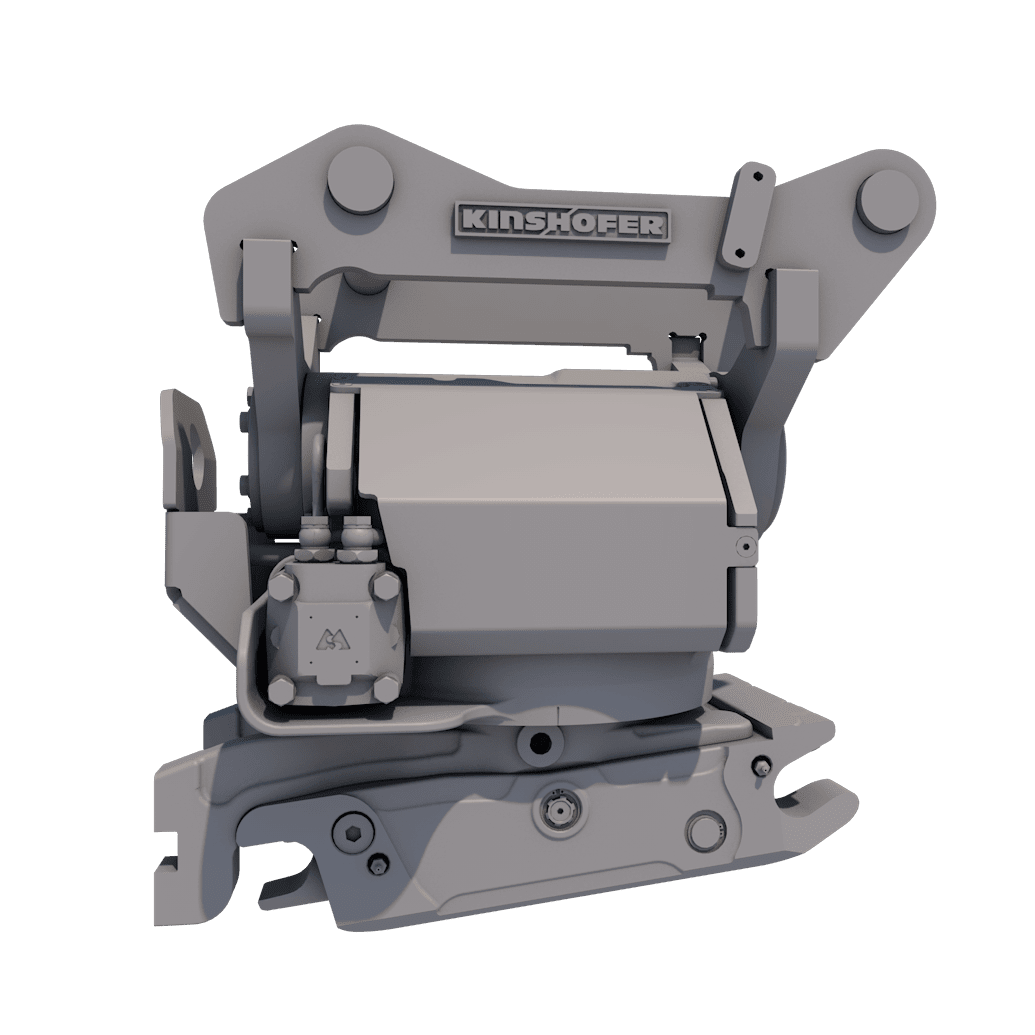

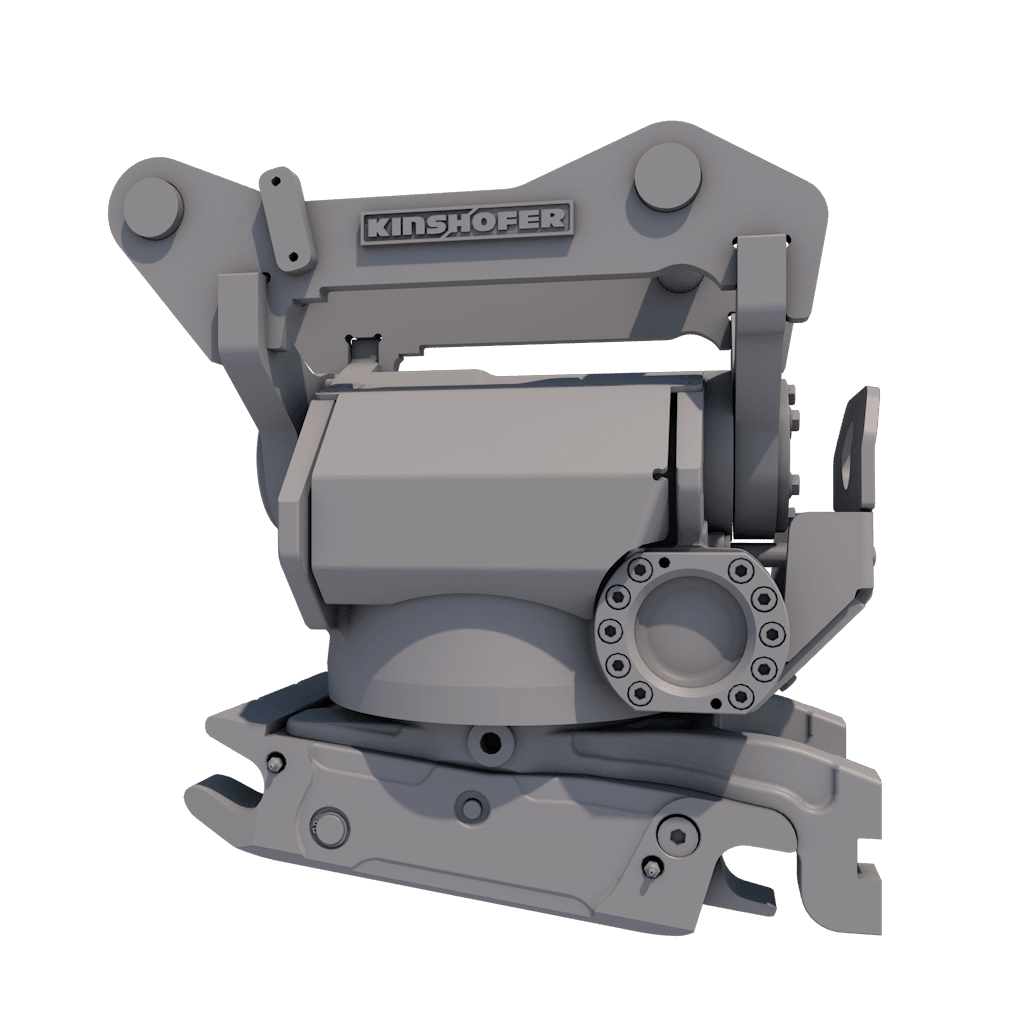

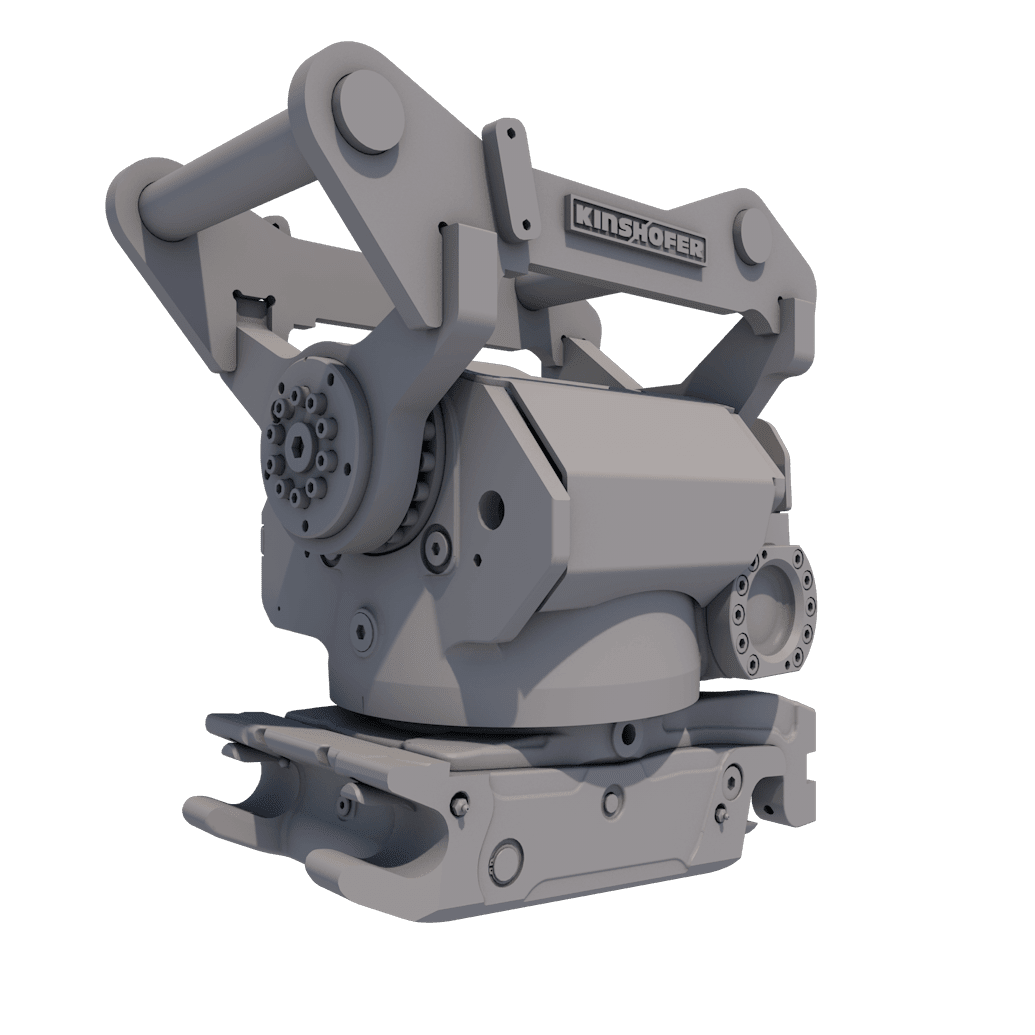

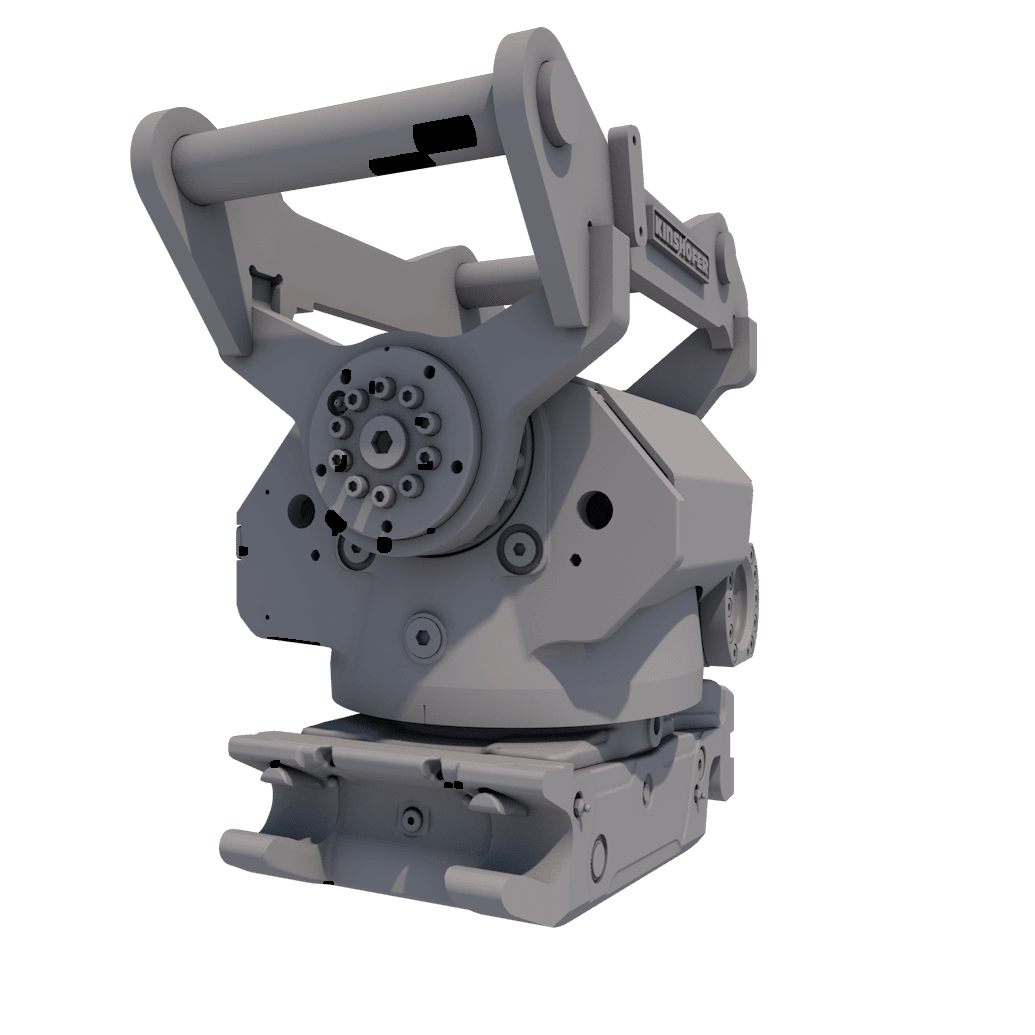

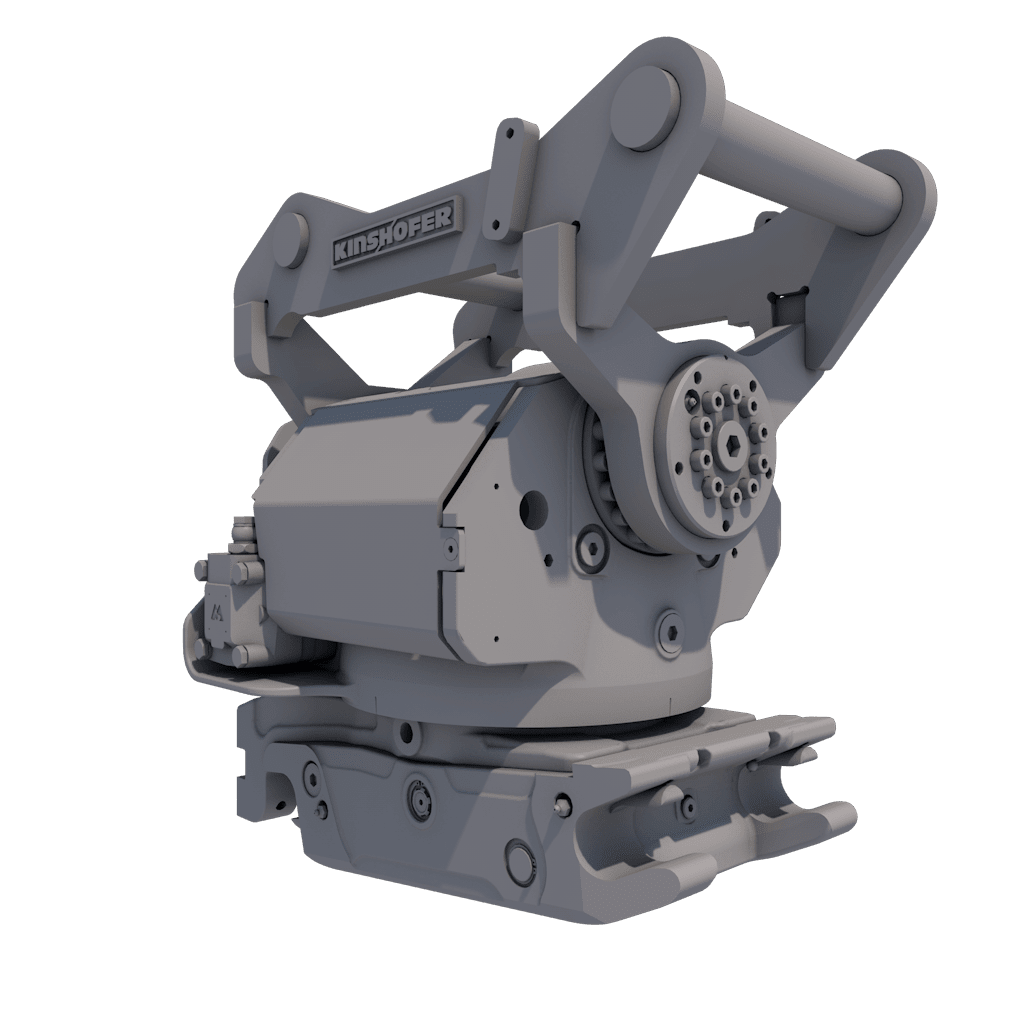

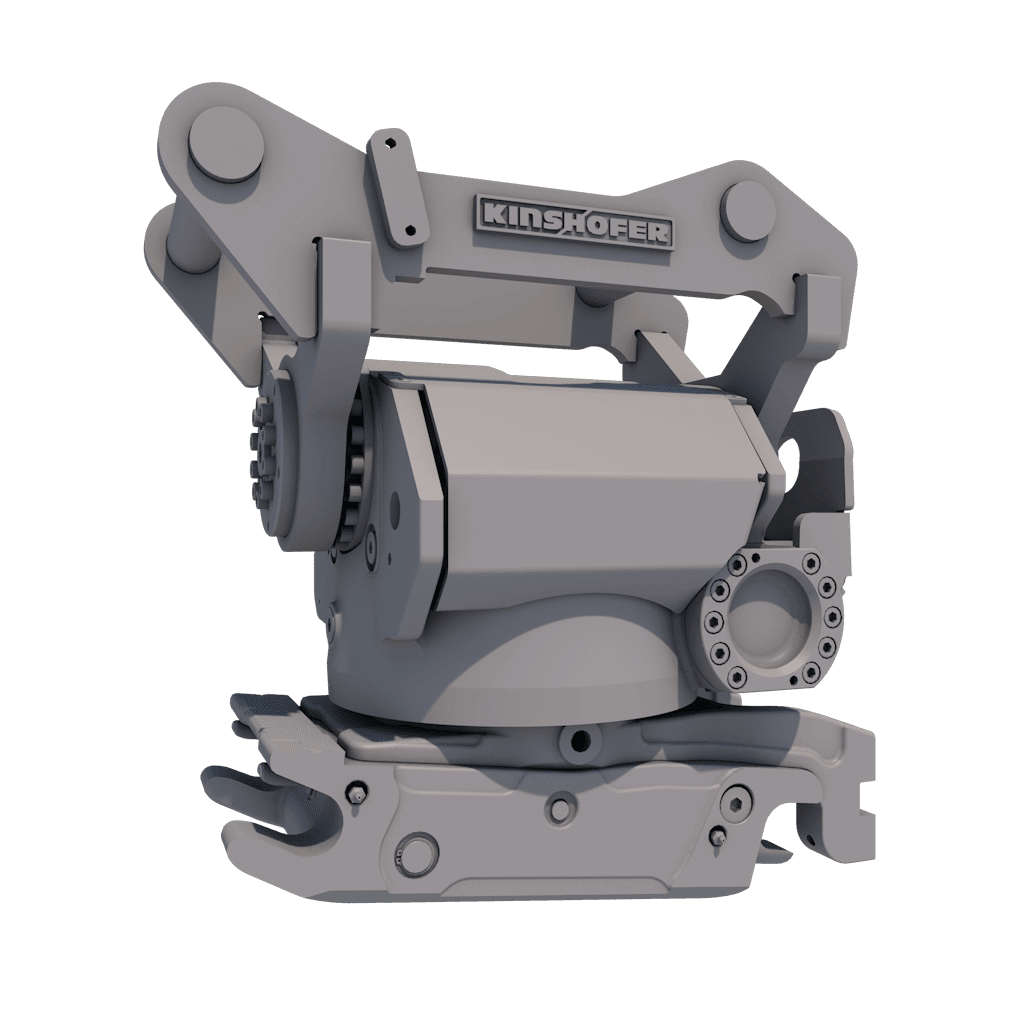

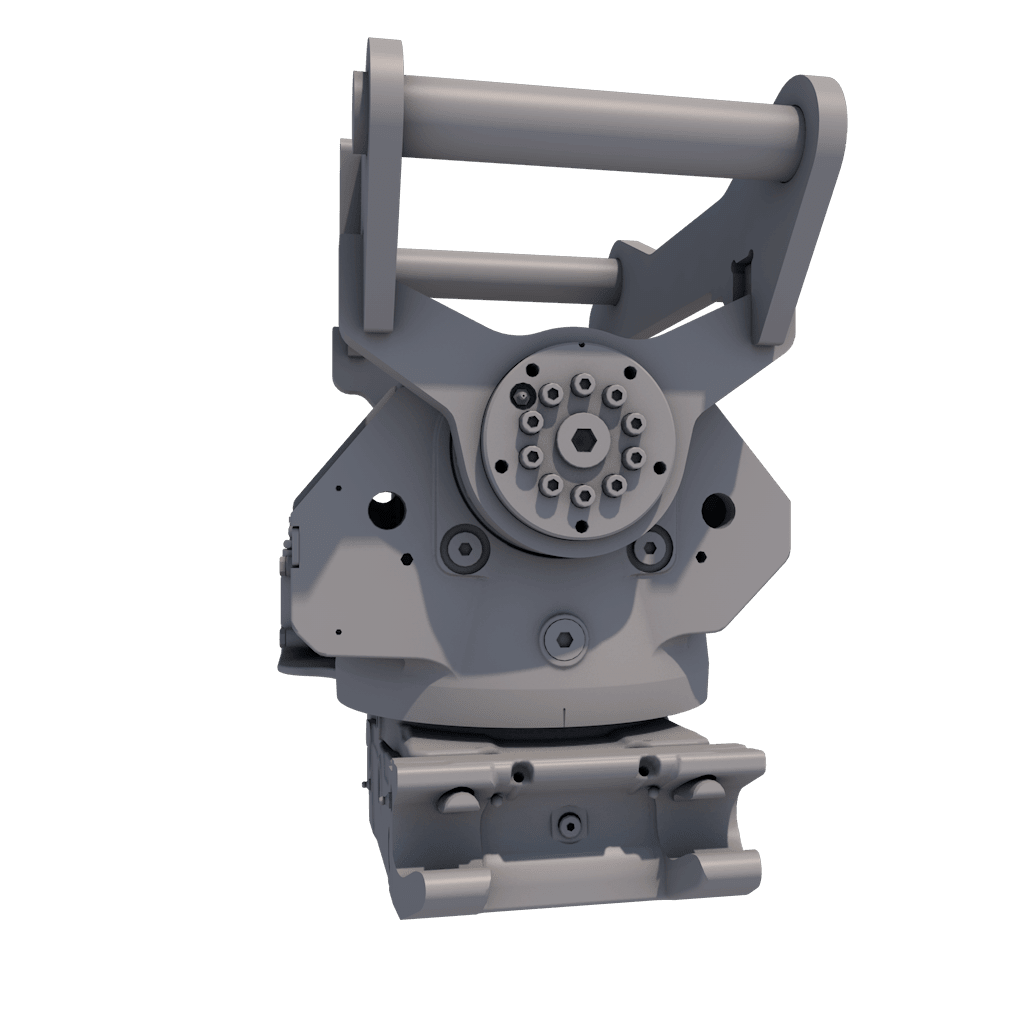

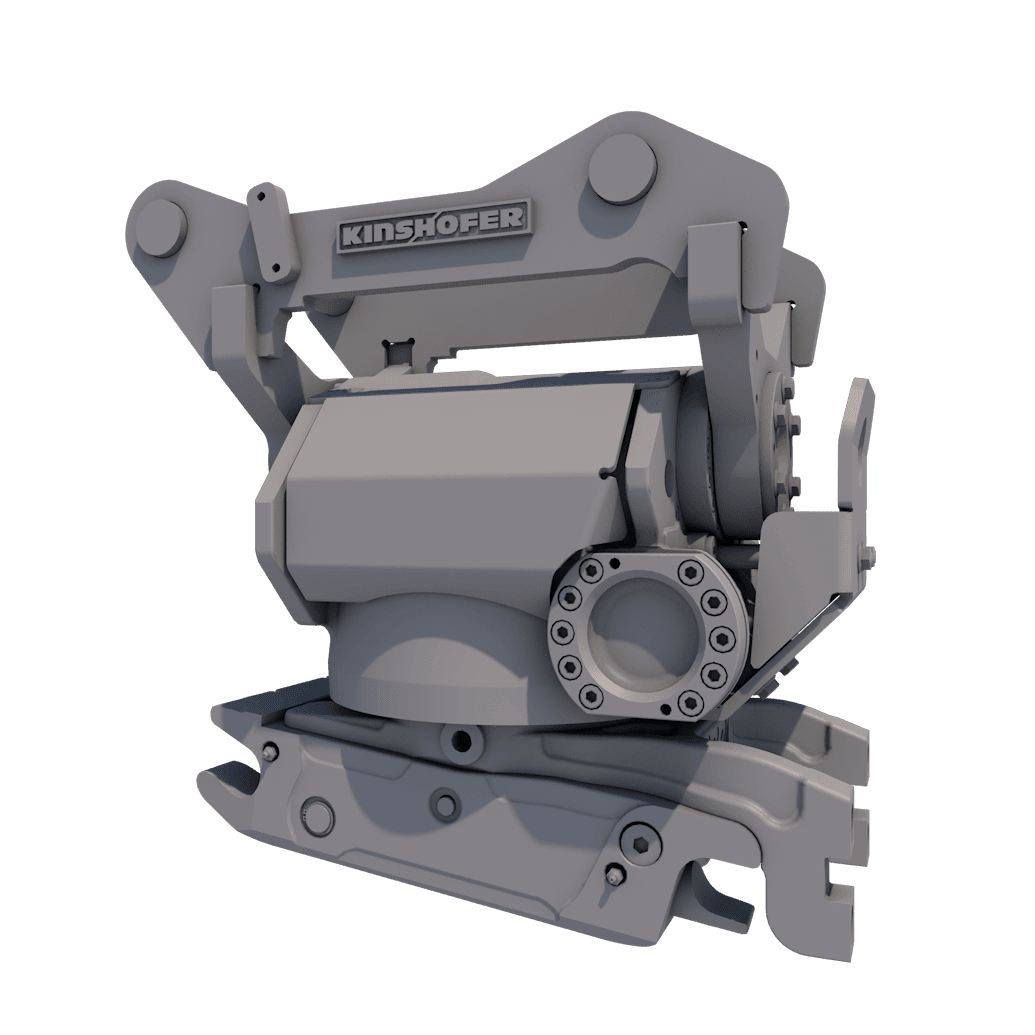

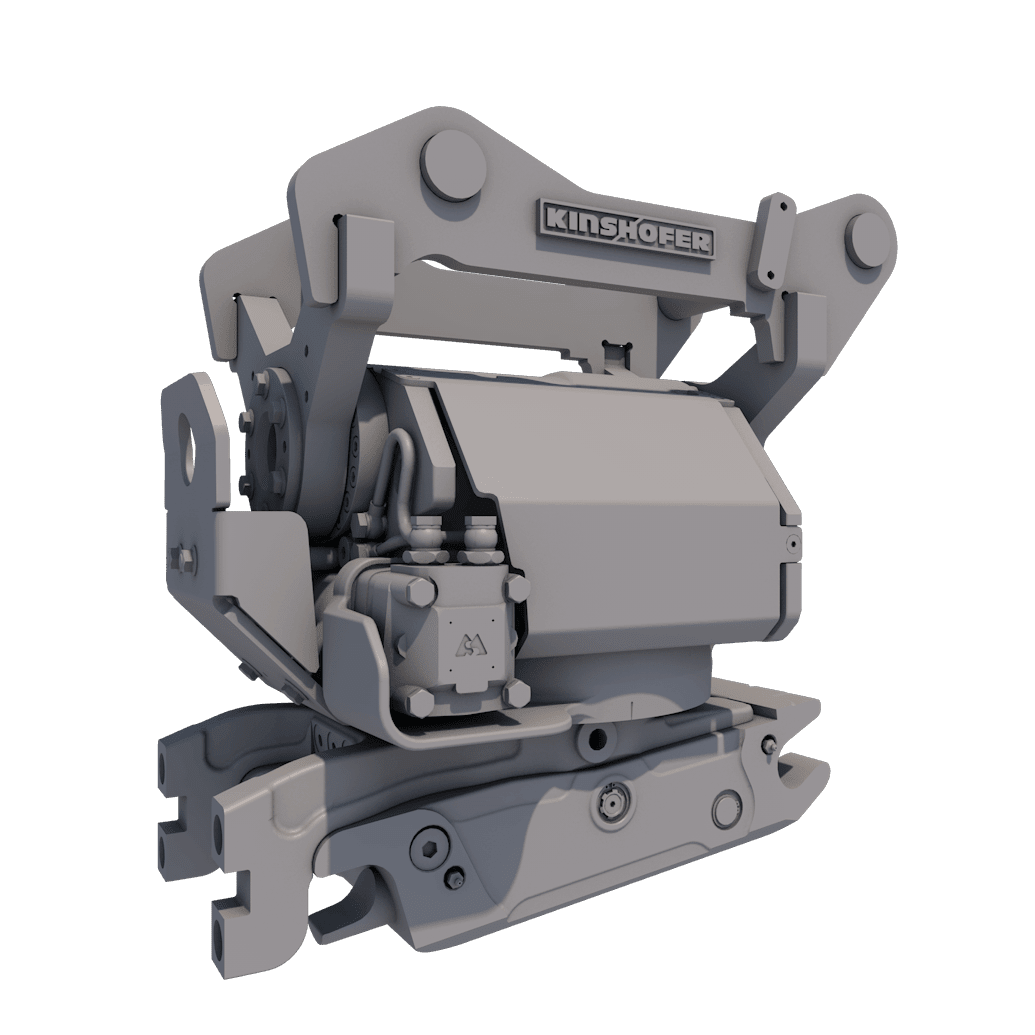

NOX – Cylinderless Tiltrotator
€0.00
Experience and innovation have resulted in one of the most advanced excavator tools: the latest generation of NOX cylinderless tiltrotators. The 360 ° continuous rotation and 2 x 50 ° tilt angle make the excavator a multifunctional all-rounder. This greatly increases the flexibility and efficiency of all attachments. Due to the lack of cylinders, the construction height is very low and the width of the tiltrotator modest. Therefore, the NOX is ideal when working in confined spaces. An elliptical piston generates a high and constant tilting moment. The NOX is available with various operating systems and an optional gripper. The NOX tiltrotator is available for mounting on excavators from 3 to 25 tons machine weight,5 types are available for this.
Technical Specifications
| NOX Type | Weight* | Machineweight** | Width | Lenght | Height | Tilt angle | Tipping point | Torque |
| TR-07 | 190 kg | 3 – 9 t | 170 cm | 500 cm | 390 cm | 2 x 50° | 8,5 kNm | 4600 Nm |
| TR-11 | 330 kg | 6 – 11 t | 200 cm | 580 cm | 495 cm | 2 x 50° | 8,5 kNm | 6400 Nm |
| TR-14 | 550 kg | 10 – 14 t | 225 cm | 610 cm | 550 cm | 2 x 50° | 8,5 kNm | 7800 Nm |
| TR-19 | 580 kg | 14 – 19 t | 240 cm | 700 cm | 625 cm | 2 x 50° | 8,5 kNm | 8800 Nm |
| TR-25 | 780 kg | 19 – 25 t | 260 cm | 760 cm | 650 cm | 2 x 50° | 8,5 kNm | 9300 Nm |
* Weight excl bracket
** Machine weight is indicative
Video's
Special
To introduce the latest generation of NOX, there is a special promotion:
* 3 year warranty or 5000 operating hours whichever is reached first, otherwise in accordance with Demarec warranty conditions.
** Promotion valid until 31-12-2020
For more information about the promotion conditions, please contact us via the contact button or mail to marketing@demarec.com
